0-61A — BATTERY AND ENGINE ELECTRICAL PARTS (#5010) — 124 parça
çizim 6291
21 18 24 26 100 25 28 28 99 23 24 27 12 101 23 76 76 73 21 18 18 73 21 18 21 100 99 101 13 101 100 99 81 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 03 1 9606-9606 ● ●
12 NUT; BATTERY CABLE CLIP
M10 FLANGE 		0-91150-210-0 03 1 9607-9708 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9709-9905 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906- ● ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9606-9905 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9906- ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9606-9905 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9906- ● ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 03 1 9606-9905 ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 03 1 9906- ● ● ●
18 CLIP; BATTERY CABLE
(A) ID=19 L=28 		9-09525-856-0 01 1 9606-9905 ● ●
18 CLIP; BATTERY CABLE
(A) ID=19 L=28 		9-09525-856-0 01 1 9906- ● ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28 		1-09701-067-0 01 1 9606- ● ● ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (B) ID=20 H=23 L=27 		1-09700-861-0 01 1 9606- ● ● ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28080-820-0 05 1 9606-9606 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9607-9905 ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28680-820-0 05 1 9906- ● ● ●
22 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 9606-9905 ● ●
22 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 9906- ● ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 01 1 9606-9905 ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 01 1 9906- ● ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 07 1 9606-9905 ● ●
23 BRACKET; CABLE CLIP TO FRAME
L=95 		1-82699-085-0 07 1 9906- ● ● ●
24 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28080-825-0 07 1 9606-9606 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 07 1 9607-9905 ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 07 1 9906- ● ● ●
25 CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6600MM(66W) ID=18 L=50 		1-09701-072-0 04 1 9606- ● ● ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9606-9606 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9607-9905 ● ●
26 BOLT; BATTERY CABLE CLIP TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9906- ● ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 		9-09110-408-0 04 1 9606-9606 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 9607-9905 ● ●
27 NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE 		0-91150-108-0 04 1 9906- ● ● ●
28 NUT; BRKT TO FRAME
M8 		9-09110-408-0 07 1 9606-9606 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 07 1 9607-9905 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 07 1 9906- ● ● ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> (A) 		1-82699-104-0 01 1 9606-9706 ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> (A) 		1-82699-104-0 01 1 9707-9905 ● ●
73 BRACKET; BATTERY CABLE
(A) 		1-82699-104-0 01 1 9906- ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82699-493-0 01 1 9609-9706 ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A> (B) 		1-82699-493-0 01 1 9707-9905 ● ●
73 BRACKET; BATTERY CABLE
MJA7U M/T(X6G) (B) 		1-82699-493-0 01 1 9906- ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-110-0 01 1 9606-9606 ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-210-0 01 1 9607-9706 ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> M10 FLANGE 		0-91150-210-0 01 1 9707-9905 ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91150-210-0 01 1 9906- ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9609-9706 ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9707-9905 ● ●
76 NUT; BATTERY CABLE
MJA7U M/T(X6G) M10 FLANGE 		0-91150-210-0 02 1 9906- ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9905 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 9906- ● ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 L=54 		1-09701-068-0 01 1 9606-9608 ●
99 CLIP; BATTERY CABLE
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=18 L=54 		1-09701-068-0 01 1 9609-9706 ●
99 CLIP; BATTERY CABLE
EXC. HONG KONG EQUIPMENT(PQ1) (A) ID=18 L=54 		1-09701-068-0 01 1 9707-9905 ● ●
99 CLIP; BATTERY CABLE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=18 L=54 		1-09701-068-0 01 1 9906-0003 ● ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 L=54 		1-09701-068-0 01 1 0004- ● ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 H=23 L=28 		1-09701-070-0 02 1 9606-9905 ● ●
99 CLIP; BATTERY CABLE
(B) ID=18 H=23 L=28 		1-09701-070-0 02 1 9906- ● ● ●
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) (C) ID=18 L=50 		1-09701-072-0 02 1 9606- ● ● ● ●
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) ID=18 L=80 		1-09701-069-0 02 1 9609-9701 ● ● ● ●
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) ID=18 L=80 		1-09701-069-0 02 1 9702-0003 ●
99 CLIP; BATTERY CABLE
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) ID=18 L=80 		1-09701-069-0 01 1 0004- ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28080-820-0 03 1 9606-9606 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 9607-9905 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 9906- ● ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28680-820-0 02 1 9609-0003 ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28680-820-0 01 1 9609-9701 ● ● ● ●
100 BOLT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28680-820-0 01 1 9702- ●
101 NUT; BATTERY CABLE CLIP
M8 		9-09110-408-0 03 1 9606-9606 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9905 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906- ● ● ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) M8 		9-09110-408-0 02 1 9606-9606 ● ● ● ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ● ● ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91150-108-0 01 1 9609-9701 ● ● ● ●
101 NUT; BATTERY CABLE CLIP
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91150-108-0 01 1 9702- ●

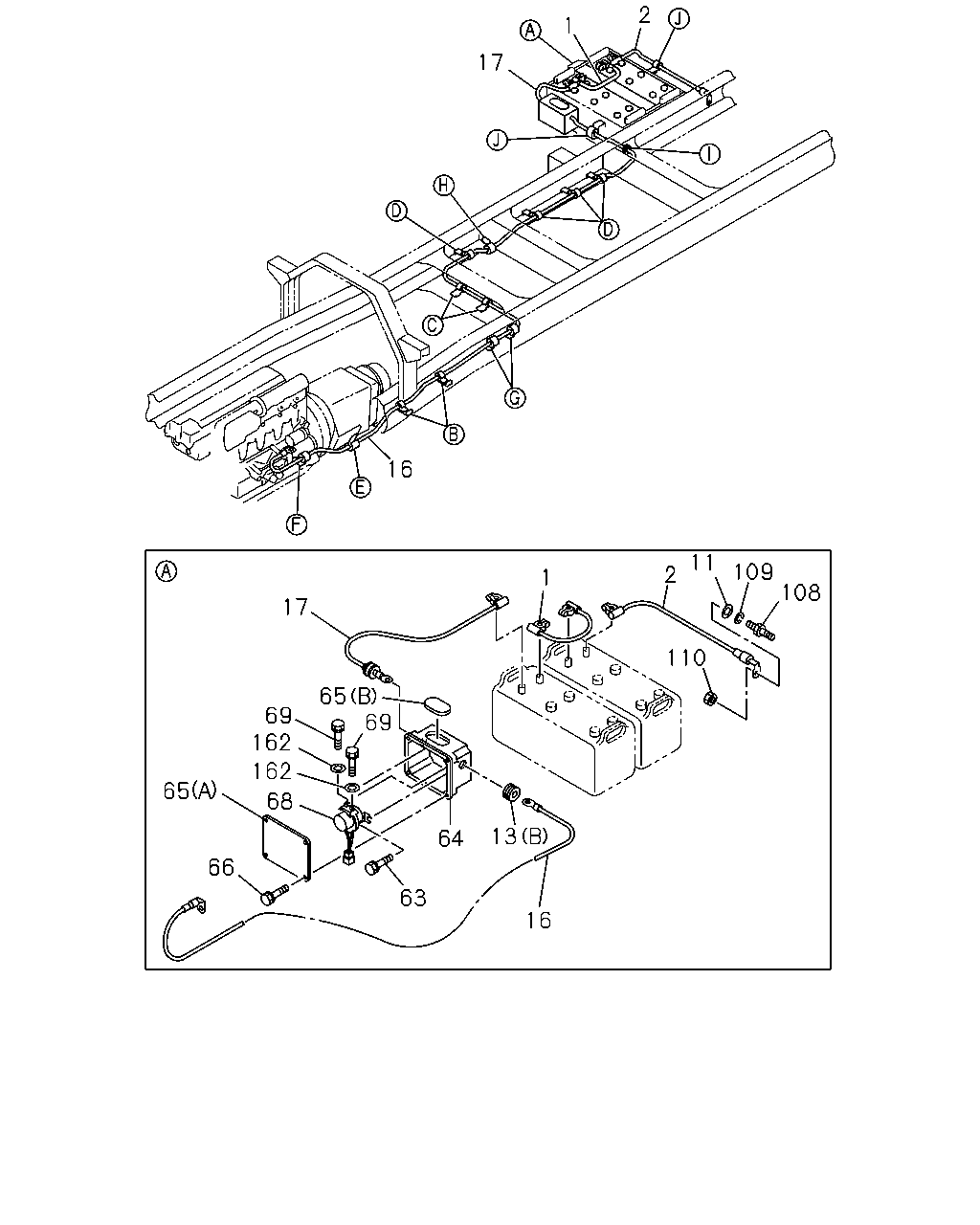

çizim 39482
2 1 17 16 11 109 2 1 108 17 110 65 69 69 162 162 65 68 13 64 66 63 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450 		1-82650-281-2 01 1 9606- ● ● ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180 		1-82650-280-2 01 1 9606- ● ● ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9606-9905 ● ●
2 CABLE; BATTERY
L=690 		1-82650-147-0 01 1 9906- ● ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9606-9905 ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 9906- ● ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9606-9905 ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9906- ● ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9606-9905 ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 9906- ● ● ●
16 CABLE; STARTER TO RELAY
L=5300 		1-82652-541-0 01 1 9606-9608 ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W) L=5300 		1-82652-541-0 01 1 9609-9609 ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W) L=5300 		1-82652-617-0 01 1 9609-9706 ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W) L=5300 		1-82652-617-0 01 1 9707-9905 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6600MM(66W) L=5300 		1-82652-617-0 01 1 9906- ● ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6300MM(63W) L=5000 		1-82652-609-0 01 1 9609-9609 ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6300MM(63W) L=5000 		1-82652-642-0 01 1 9609-9706 ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6300MM(63W) L=5000 		1-82652-642-0 01 1 9707-9905 ● ●
16 CABLE; STARTER TO RELAY
WHEEL BASE 6300MM(63W) L=5000 		1-82652-642-1 01 1 9906- ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9606-9905 ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 9906- ● ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9606-9905 ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 9906- ● ● ●
64 BOX; BATTERY RELAY 1-82699-352-2 01 1 9606-9611 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9612-9905 ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 9906- ● ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9606-9905 ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 9906- ● ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-354-2 01 1 9606-9611 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9612-9905 ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 9906- ● ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9606-9905 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9906- ● ● ●
68 RELAY; BATTERY 1-82550-228-2 01 1 9606-9711 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9712-9905 ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 9906- ● ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9606-9905 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9906- ● ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9606-9905 ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 9906- ● ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-508-0 01 1 9606-9810 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9811-9905 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 9906- ● ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9606-9905 ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 9906- ● ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9606-9905 ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 9906- ● ● ●
