5 |

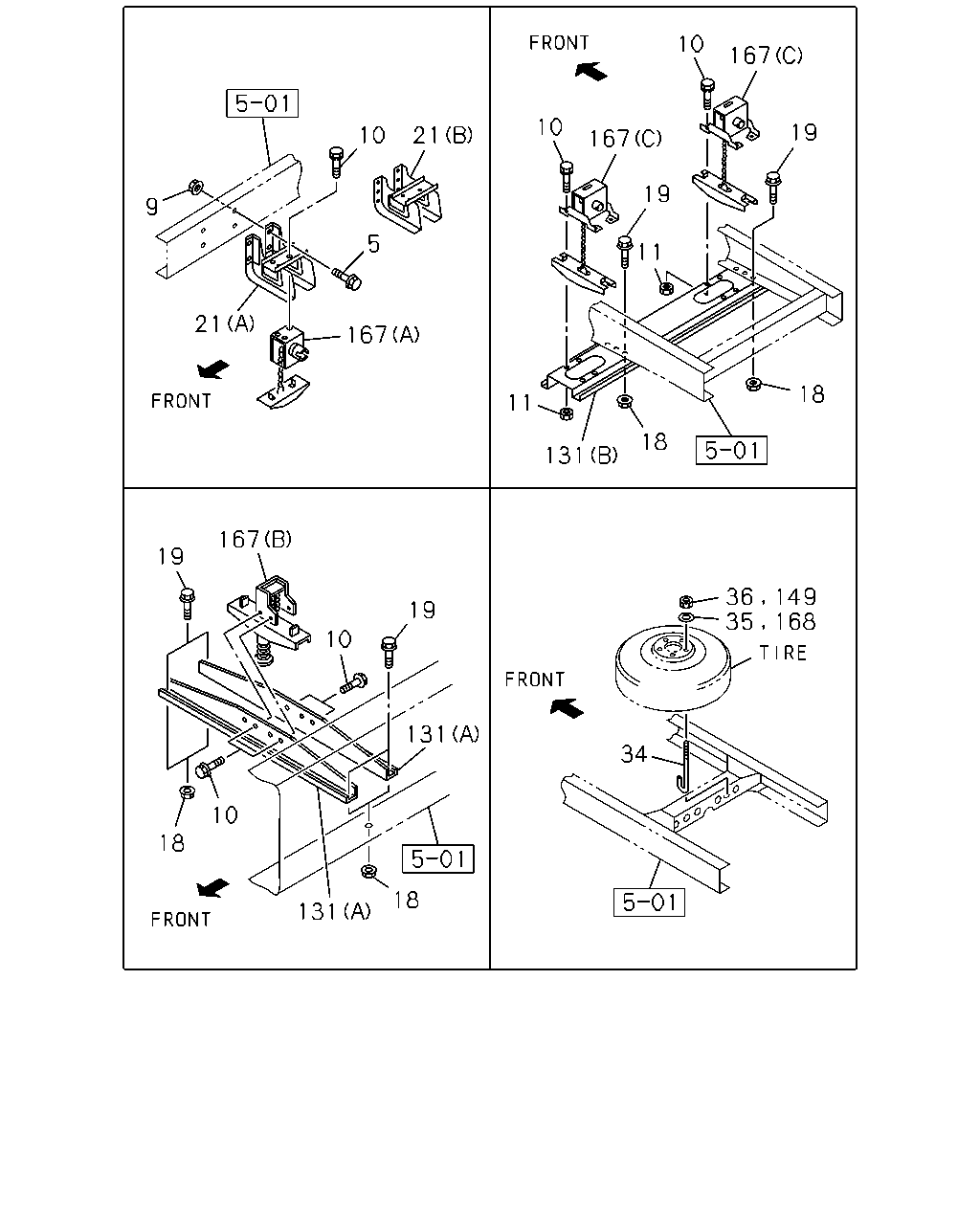

07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
0907- |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907- |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907-1011 |
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1012- |
● |
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-1011 |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-1011 |
|
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-1011 |
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-1011 |
|
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1012- |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1012- |
|
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1012- |
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1012- |
|
|
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
0905-1011 |
|
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1012-1101 |
|
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1012-1101 |
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1102- |
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1102- |
|
|
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1102- |
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907- |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907- |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907-1011 |
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1012- |
● |
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907-1011 |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907-1011 |
|
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907-1011 |
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0907-1011 |
|
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1012- |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1012- |
|
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1012- |
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1012- |
|
|
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-1011 |
|
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012-1101 |
|
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012-1101 |
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
|
|
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
08 |
1 |
0907- |
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0905-0906 |
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0907-0910 |
|
|
|
● |
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1007 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1007 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1007 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1007 |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0911-1007 |
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1008-1510 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1008-1510 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1008-1510 |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1008-1510 |
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL
BASE 4400MM(44W)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
|
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0905-0906 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0907-1011 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0907-1011 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
|
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
● |
|
|
|
| |
11 |
07.629 NUT; TIRE HANGER
01.062
M8 FLANGE
|
0-91180-108-0 |
08 |
1 |
0907- |
|
|
|
|
● |
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907-0910 |
|
|
● |
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907-0910 |
|
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0907-0910 |
|
|
|
● |
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0911-1007 |
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0911-1007 |
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0911-1007 |
|
|
● |
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0911-1007 |
|
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0911-1007 |
|
|
|
● |
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1008- |
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1008- |
|
|
● |
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1008- |
|
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1008- |
|
|
|
● |
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-0906 |
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-0906 |
|
|
● |
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-0906 |
|
|
|
● |
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
06 |
1 |
0907- |
|
|
|
|
● |
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907-0910 |
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907-0910 |
|
|
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907-0910 |
|
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0907-0910 |
|
|
|
● |
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0911-1007 |
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0911-1007 |
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0911-1007 |
|
|
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0911-1007 |
|
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0911-1007 |
|
|
|
● |
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1008- |
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1008- |
|
|
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1008- |
|
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1008- |
|
|
|
● |
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0905-0906 |
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0905-0906 |
|
|
● |
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0905-0906 |
|
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
0905-0906 |
|
|
|
● |
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
06 |
1 |
0907- |
|
|
|
|
● |
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
1012-1101 |
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
1102- |
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
1102- |
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
(A)
|
8-98072-378-1 |
01 |
1 |
0905-0906 |
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
(A)
|
8-98072-378-2 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
(A)
|
8-98072-378-2 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
1012- |
|
● |
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
0905-1209 |
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
M12X330
|
8-98226-501-0 |
01 |
1 |
1210- |
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
0907-1011 |
● |
● |
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
1012-1209 |
● |
● |
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
1012-1209 |
|
|
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
● |
● |
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
|
|
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0905- |
● |
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
05.002
M12
|
0-91110-512-0 |
01 |
1 |
0905- |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(B)
|
8-98029-266-1 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0907-0910 |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
0911-1011 |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98024-842-2 |
02 |
1 |
1012- |
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98035-827-1 |
02 |
1 |
0905-0906 |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0905-0906 |
|
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0905-0906 |
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98035-827-1 |
02 |
1 |
0905-0906 |
|
|
|
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0907-0910 |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0907-0910 |
|
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0907-0910 |
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98035-827-1 |
02 |
1 |
0907-0910 |
|
|
|
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
0911-1007 |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0911-1007 |
|
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
0911-1007 |
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98035-827-1 |
02 |
1 |
0911-1007 |
|
|
|
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
1008-1011 |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
1008-1011 |
|
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
1008-1011 |
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98035-827-1 |
02 |
1 |
1008-1011 |
|
|
|
● |
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
(A)
|
8-98035-827-1 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98035-827-1 |
02 |
1 |
1012- |
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
(A)
|
8-98035-827-1 |
02 |
1 |
1012- |
|
|
|
● |
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
0907-1011 |
● |
● |
● |
● |
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
1012- |
● |
● |
|
|
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
1012- |
|
|
● |
● |
|
| |
167 |
07.629 HANGER; TIRE
(C)
|
8-97182-113-1 |
02 |
1 |
0907- |
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
0907-1101 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
(A)
|
8-94382-875-1 |
01 |
1 |
1102- |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0907-0910 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0907-0910 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1007 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-384-0 |
01 |
1 |
0911-1007 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116
.5(CSA),FRT&RR TIRE 205/85R16 DISC
16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5
F-115(07H)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
1008- |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-383-0 |
01 |
1 |
0905-0906 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
EXC. SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-383-0 |
01 |
1 |
0905-0906 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3800MM(38W)
(B)
|
8-98036-383-0 |
01 |
1 |
0905-0906 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
(B)
|
8-98036-383-0 |
01 |
1 |
0905-0906 |
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-383-0 |
01 |
1 |
0905-0906 |
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
HONG KONG EQUIPMENT(B14)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3800MM(38W)
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-383-0 |
01 |
1 |
0907-0907 |
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
HONG KONG EQUIPMENT(B14)
FRAME STRAIGHT TYPE<7KJ>
EXC. SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-383-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-383-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3800MM(38W)
(B)
|
8-98036-383-0 |
01 |
1 |
0907- |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
(B)
|
8-98036-383-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
(B)
|
8-98036-383-0 |
01 |
1 |
0907- |
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
(A)
|
8-97010-955-1 |
01 |
1 |
0905-0906 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
(A)
|
8-97010-955-1 |
01 |
1 |
0907-0907 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
(A)
|
8-97010-955-1 |
01 |
1 |
0907-1007 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1008-1011 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
(A)
|
8-97010-955-1 |
01 |
1 |
1008-1011 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1308 |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1308 |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1308 |
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
SPARE WHEEL CARRIER<P10>
(A)
|
8-97010-955-1 |
01 |
1 |
1309- |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
(A)
|
8-97010-955-1 |
01 |
1 |
1309- |
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILVE
R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1309- |
|
● |
|
|
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
0907-1011 |
● |
● |
● |
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
1012- |
● |
● |
|
|
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
1012- |
|
|
● |
● |
|
