Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

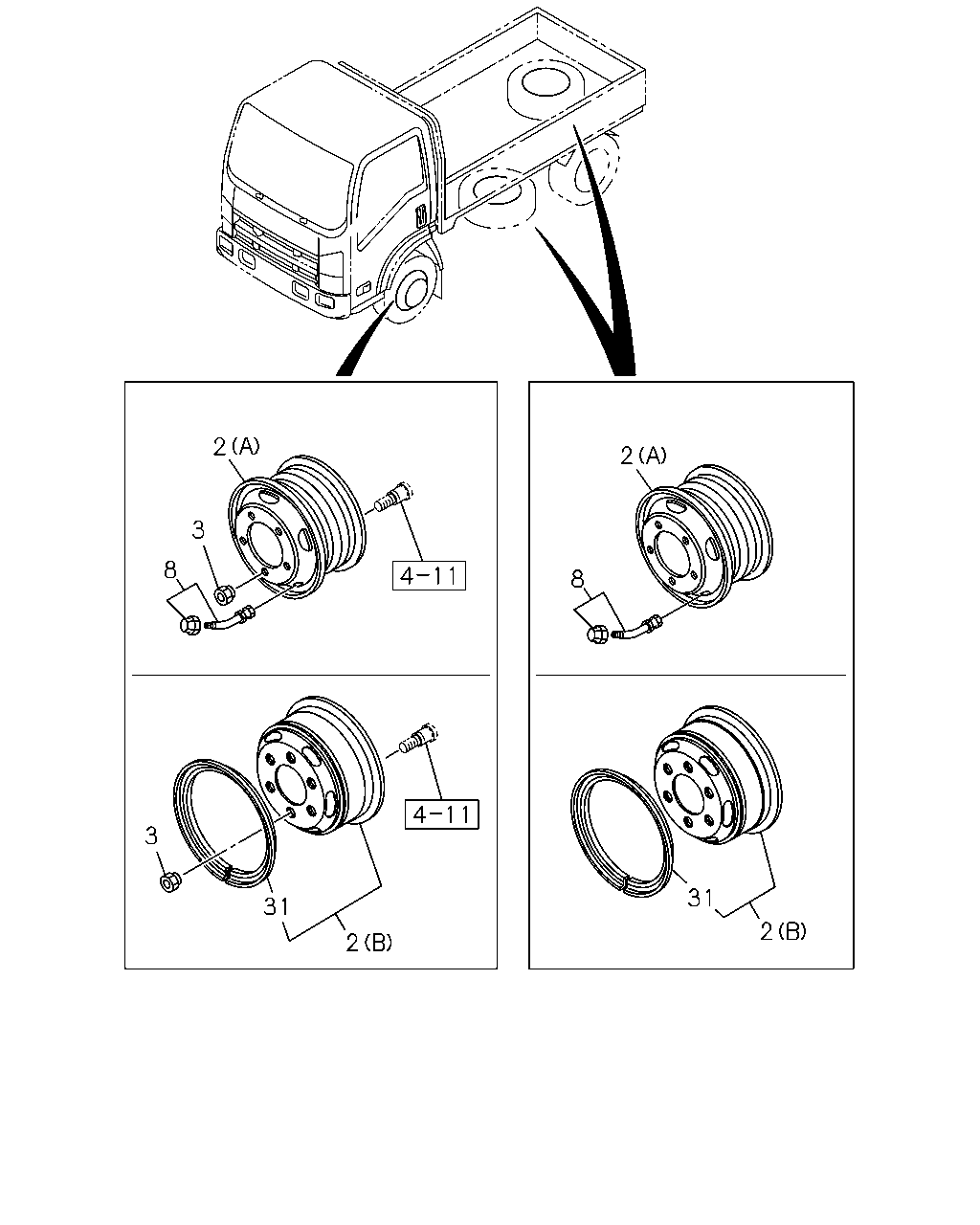

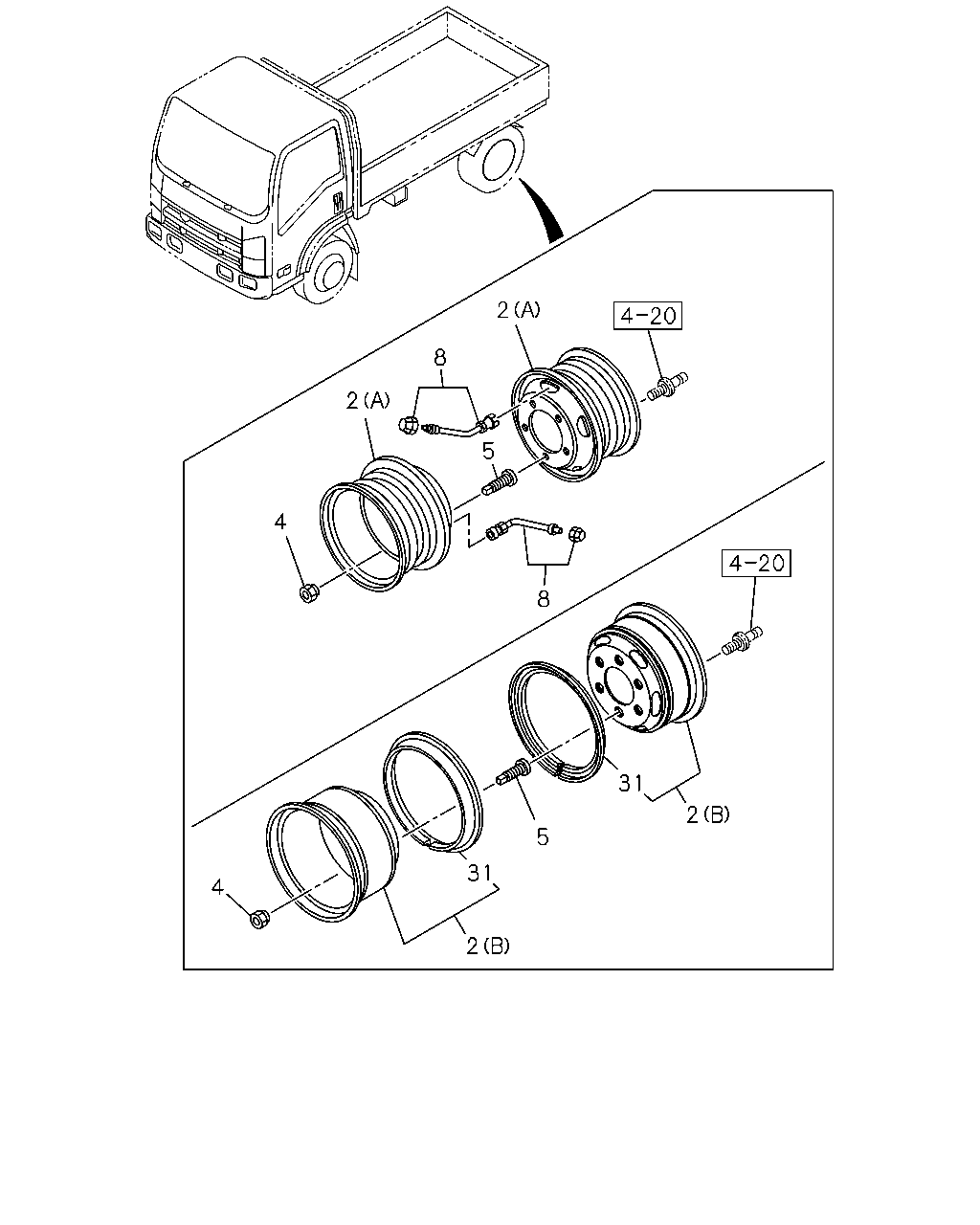

4-80 — ROAD WHEEL (#50087) — 116 parça

2 8 2 4 5 8 31 5 31 2 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	04	1	1006-1010	●	●
2	05.803 WHEEL; DISC (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	04	1	1006-1010			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1011-	●	●
2	05.803 WHEEL; DISC (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1011-			●	●
2	05.803 WHEEL; DISC (A) SPARE 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	01	1	0907-					●
2	05.803 WHEEL; DISC (A) REAR 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	04	1	0907-					●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) (A) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0907-	●
2	05.803 WHEEL; DISC (A) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0907-					●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0907-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0907-					●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) (A) REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	04	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116 .5(CSB) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0905-1010	●	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0905-1010			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-	●	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0905-1005	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0905-1005			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	02	1	1006-1010	●	●
2	05.803 WHEEL; DISC (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	02	1	1006-1010			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1011-	●	●
2	05.803 WHEEL; DISC (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1011-			●	●
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOL E	8-97233-665-1	01	1	0905-	●	●
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOL E	8-97233-665-1	06	1	0905-	●	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) M27 RH THREAD	8-98007-824-0	05	1	0907-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0907-					●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) M27 LH THREAD	8-98007-825-0	05	1	0907-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0907-					●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) M30 RH THREAD	8-97359-809-0	06	1	0905-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0905-			●	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) M30 LH THREAD	8-97359-810-0	06	1	0905-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0905-			●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0907-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0907-					●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0907-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0907-					●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0905-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0905-			●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0905-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE	8-98221-106-0	01	1	0905-0906	●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K -128(CSC) SPARE	8-98221-106-0	01	1	0907-	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE	8-98221-106-0	01	1	0907-		●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0907-					●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0907-					●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) FRONT	8-98221-106-0	02	1	0907-	●
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	0907-					●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) REAR	8-98221-106-0	04	1	0907-	●
8	05.875 VALVE; TIRE REAR	8-98221-106-0	04	1	0907-					●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) SPARE	8-98221-112-0	01	1	0905-	●	●
8	05.875 VALVE; TIRE SPARE	8-98221-112-0	01	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) FRONT	8-98221-112-0	02	1	0905-	●	●
8	05.875 VALVE; TIRE FRONT	8-98221-112-0	02	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) REAR	8-98221-112-0	04	1	0905-	●	●
8	05.875 VALVE; TIRE REAR	8-98221-112-0	04	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	0905-0906	●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116 .5(CSB),FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	0907-	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	0907-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0907-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0907-	●

2 3 8 2 31 2 2 31 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	04	1	1006-1010	●	●
2	05.803 WHEEL; DISC (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	04	1	1006-1010			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1011-	●	●
2	05.803 WHEEL; DISC (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1011-			●	●
2	05.803 WHEEL; DISC (A) SPARE 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	01	1	0907-					●
2	05.803 WHEEL; DISC (A) REAR 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	04	1	0907-					●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) (A) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0907-	●
2	05.803 WHEEL; DISC (A) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0907-					●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0907-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0907-					●
2	05.803 WHEEL; DISC FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) (A) REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	04	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR TIRE 205/85R16 DISC 16-5.5J-116 .5(CSB) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (B) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) (B) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0907-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0905-1010	●	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0905-1010			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-	●	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0905-1005	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0905-1005			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	02	1	1006-1010	●	●
2	05.803 WHEEL; DISC (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	02	1	1006-1010			●	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1011-	●	●
2	05.803 WHEEL; DISC (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1011-			●	●
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOL E	8-97233-665-1	01	1	0905-	●	●
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOL E	8-97233-665-1	06	1	0905-	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) M18 RH THREAD	8-98007-907-0	05	1	0907-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0907-					●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) M18 LH THREAD	8-98007-908-0	05	1	0907-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0907-					●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) M20 RH THREAD	8-97359-807-0	06	1	0905-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0905-			●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) M20 LH THREAD	8-97359-808-0	06	1	0905-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE	8-98221-106-0	01	1	0905-0906	●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K -128(CSC) SPARE	8-98221-106-0	01	1	0907-	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE	8-98221-106-0	01	1	0907-		●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0907-					●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0907-					●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) FRONT	8-98221-106-0	02	1	0907-	●
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	0907-					●
8	05.875 VALVE; TIRE FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA) REAR	8-98221-106-0	04	1	0907-	●
8	05.875 VALVE; TIRE REAR	8-98221-106-0	04	1	0907-					●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) SPARE	8-98221-112-0	01	1	0905-	●	●
8	05.875 VALVE; TIRE SPARE	8-98221-112-0	01	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) FRONT	8-98221-112-0	02	1	0905-	●	●
8	05.875 VALVE; TIRE FRONT	8-98221-112-0	02	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU) REAR	8-98221-112-0	04	1	0905-	●	●
8	05.875 VALVE; TIRE REAR	8-98221-112-0	04	1	0905-			●	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	0905-0906	●	●
8	05.875 VALVE; TIRE FRT&RR TIRE 205/85R16 DISC 16-5.5J-116 .5(CSB),FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	0907-	●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	0907-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0907-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0907-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
