◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60A - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60A — ENGINE ELECTRICAL CONTROL PARTS (#5008) — 222 parça
çizim 6528
606 843 869 606 606 606 843 869 843 869 843 869 843 869
BalonParca AdiParca NoAdetTipApplied Date A B C D
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> (C) 		1-75558-534-5 01 1 9610-9905 ●
606 BRACKET; CONT UNIT
(C) 		1-75558-534-9 01 1 9906- ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (A) 		1-72537-099-3 01 1 9607-9707 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (E) 		1-72537-195-2 01 1 9708- ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-112-5 01 1 9607-9611 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-171-0 01 1 9612-9707 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-197-1 01 1 9708-9812 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-205-2 01 1 9901- ● ● ● ●
843 SEAL; BRKT
CENTER SEAT DELETE(SP9) (A) 		1-72497-062-0 02 1 9708-9709 ● ● ● ●
843 SEAL; BRKT
CENTER SEAT DELETE(SP9) (C) 100X30 		1-72498-014-1 02 1 9708-9709 ● ● ● ●
843 SEAL; BRKT
CENTER SEAT DELETE(SP9) (B) 180X40 		1-72498-019-0 01 1 9708-9709 ● ● ● ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (B) L=880 		1-73948-003-0 01 1 9710- ● ● ● ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (C) L=880 		1-73948-003-0 02 1 9710- ● ● ● ●
869 FINISHER; BRKT
CENTER SEAT DELETE(SP9) (A) L=880 		1-73948-003-0 02 1 9710- ● ● ● ●

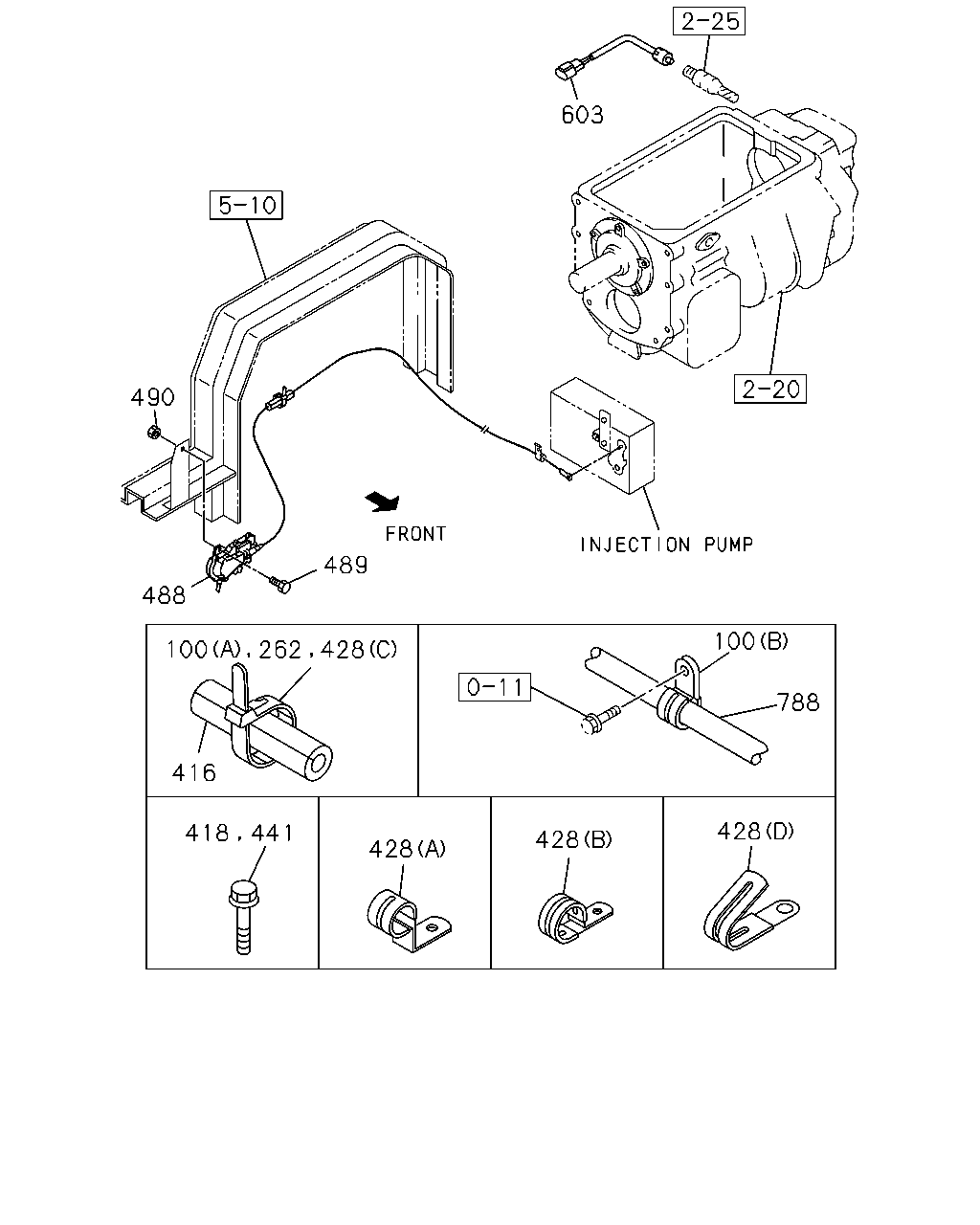

çizim 39058
603 490 489 488 100 100 788 416 428 428 428 262 428 418 441
BalonParca AdiParca NoAdetTipApplied Date A B C D
100 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0102- ● ● ●
100 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (B) ID=11 L=30 		1-09700-511-0 01 1 0102- ●
100 CLIP; HARNESS
(B) ID=11 L=30 		1-09700-511-0 01 1 0102- ●
100 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (A) L=140 		5-09707-031-1 01 1 0102- ●
100 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0102- ●
262 CLIP; HARNESS
L=140 		5-09707-031-0 03 1 9606-9609 ●
262 CLIP; HARNESS
CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=140 		5-09707-031-1 03 1 9610-9905 ●
262 CLIP; HARNESS
EXC. EURO2 SPECIFICATION<THN> L=140 		5-09707-031-1 03 1 9906- ● ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 9606-9710 ●
416 SLEEVE; RUBBER
CLUTCH-15.5" TWIN PLATE SPICER(TEY) ID=10 OD=14 L=30 		9-09956-682-0 02 1 9711-9905 ●
416 SLEEVE; RUBBER
EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 06 1 9906- ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9906- ●
416 SLEEVE; RUBBER
17 INCH CLUTCH(RF3) ID=10 OD=14 L=30 		9-09956-682-0 05 1 9610-9612 ●
416 SLEEVE; RUBBER
EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 05 1 9701-9706 ●
416 SLEEVE; RUBBER
EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 05 1 9707-9710 ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 05 1 9707-9710 ●
416 SLEEVE; RUBBER
EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 06 1 9711-9905 ●
416 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 06 1 9711-9905 ●
416 SLEEVE; RUBBER
EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30 		9-09956-682-0 02 1 9906- ● ●
416 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0102- ● ● ●
416 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9707-9905 ●
416 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9906- ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9606-9706 ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9707-9905 ● ●
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 9906- ● ● ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-0 01 1 9606-9710 ●
428 CLIP; HARNESS
CLUTCH-15.5" TWIN PLATE SPICER(TEY) (C) L=140 		5-09707-031-1 01 1 9711-9905 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 05 1 9906- ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9906- ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9606-9706 ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9707-9905 ● ●
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 9906- ● ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9606-9706 ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9707-9905 ● ●
428 CLIP; HARNESS
(B) ID=11 L=28 		9-09917-544-0 01 1 9906- ● ● ●
428 CLIP; HARNESS
17 INCH CLUTCH(RF3) (C) L=250 		5-09707-030-0 02 1 9610-9612 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) L=250 		5-09707-030-0 02 1 9701-9706 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) L=250 		5-09707-030-1 02 1 9707-9905 ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9707-9905 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) L=250 		5-09707-030-1 02 1 9906- ●
428 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9906- ●
428 CLIP; HARNESS
17 INCH CLUTCH(RF3) (C) L=140 		5-09707-031-0 05 1 9610-9612 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-0 05 1 9701-9706 ●
428 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 05 1 9707-9905 ●
428 CLIP; HARNESS
(C) L=140 		5-09707-031-1 05 1 9707-9905 ●
428 CLIP; HARNESS
EXC. EURO2 SPECIFICATION<THN> (C) L=140 		5-09707-031-1 01 1 9906- ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9606-9905 ● ●
428 CLIP; HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9906- ● ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9606-9905 ● ●
428 CLIP; HARNESS
(B) ID=26 L=26 		1-09701-236-0 01 1 9906- ● ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9606-9905 ● ●
428 CLIP; HARNESS
(B) ID=32 L=35 		1-09701-244-0 01 1 9906- ● ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28080-820-0 01 1 9606-9606 ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28680-820-0 01 1 9607-9905 ● ●
441 BOLT; HARNESS TO FRAME
M8X20 FLANGE 		0-28680-820-0 01 1 9906- ● ● ●
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9606-9905 ● ●
441 BOLT; HARNESS TO FRAME
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9906- ● ● ●
488 STOPPER; ENG 1-82840-145-0 01 1 9606-9608 ●
488 STOPPER; ENG
EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-145-0 01 1 9609-9706 ●
488 STOPPER; ENG
EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-145-1 01 1 9707-9905 ● ●
488 STOPPER; ENG
EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> 		1-82840-145-1 01 1 9906- ● ●
488 STOPPER; ENG
CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-161-0 01 1 9906- ● ●
489 BOLT; ENG STOPPER
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ● ●
489 BOLT; ENG STOPPER
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ● ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9807 ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9808-9905 ●
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9906- ● ●
490 NUT; ENG STOP
M8 		9-09110-408-0 02 1 9606-9606 ● ●
490 NUT; ENG STOP
M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ● ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9610-9905 ●
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ●
603 SENSOR; TACHO 1-83127-115-0 01 1 9606-9609 ●
603 SENSOR; TACHO
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-83127-115-0 01 1 9610-9905 ●
603 SENSOR; TACHO
EXC. EURO2 SPECIFICATION<THN> 		1-83127-115-0 01 1 9906- ● ●
788 HARNESS; EXT,WATER TEMP SENSOR
EURO2 SPECIFICATION<THN> 		1-82641-186-0 02 1 0102- ●
788 HARNESS; EXT,WATER TEMP SENSOR 1-82641-186-0 02 1 0102- ●

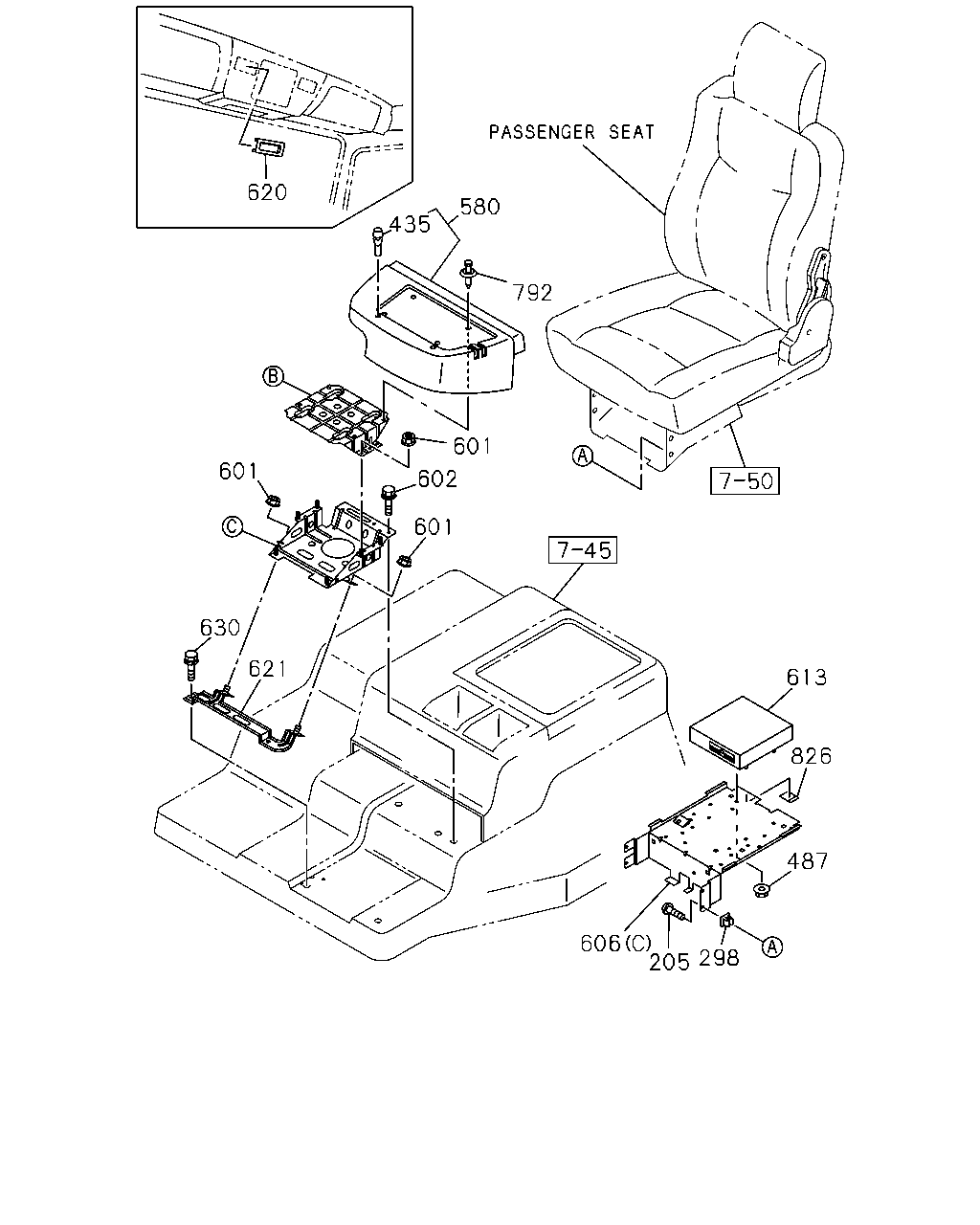

çizim 39367
620 580 435 792 601 601 602 601 630 621 613 826 487 606 298 205
BalonParca AdiParca NoAdetTipApplied Date A B C D
205 SCREW; BRKT
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9610-9905 ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 9906- ● ●
298 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 04 1 9610-9905 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9906- ● ●
435 RUBBER; CUSHION
CENTER SEAT DELETE(SP9) 		1-72537-138-0 02 1 9607- ● ● ● ●
487 NUT
EURO2 SPECIFICATION<THN> M6 FLANGE 		0-91150-106-0 04 1 9610-9905 ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 9906- ● ●
580 COVER; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-102-3 01 1 9607- ● ● ● ●
601 NUT; UNIT
CENTER SEAT DELETE(SP9) M6 FLANGE 		0-91150-106-0 06 1 9607- ● ● ● ●
602 BOLT; BRKT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9607- ● ● ● ●
606 BRACKET; CONT UNIT
EURO2 SPECIFICATION<THN> (C) 		1-75558-534-5 01 1 9610-9905 ●
606 BRACKET; CONT UNIT
(C) 		1-75558-534-9 01 1 9906- ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (A) 		1-72537-099-3 01 1 9607-9707 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (E) 		1-72537-195-2 01 1 9708- ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-112-5 01 1 9607-9611 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (B) 		1-72537-171-0 01 1 9612-9707 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-197-1 01 1 9708-9812 ● ● ● ●
606 BRACKET; CONT UNIT
CENTER SEAT DELETE(SP9) (D) 		1-72537-205-2 01 1 9901- ● ● ● ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-098-0 01 1 9610-9612 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-130-0 01 1 9701-9704 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-200-0 01 1 9705-9810 ●
613 CONTROL UNIT; ENG
EURO2 SPECIFICATION<THN> 		1-80110-402-0 01 1 9811-9905 ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) 		1-80110-402-0 01 1 9906-0007 ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		1-80110-402-0 01 1 0008- ●
613 CONTROL UNIT; ENG 1-80110-227-0 01 1 9707-9810 ●
613 CONTROL UNIT; ENG 1-80110-403-0 01 1 9811-9905 ●
613 CONTROL UNIT; ENG
ELECTRONIC GOV RED3(KG5) 		1-80110-439-0 01 1 9906- ●
613 CONTROL UNIT; ENG
RLD GOVERNOR(SD7) 		1-80110-440-0 01 1 9906- ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9706-9905 ● ●
620 BEZEL; CONT UNIT 1-72447-666-1 01 1 9906- ● ● ●
621 SUPPORT; CONT UNIT
CENTER SEAT DELETE(SP9) 		1-72537-097-1 01 1 9607- ● ● ● ●
630 SCREW; UNIT
CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9607- ● ● ● ●
792 FASTENER
CENTER SEAT DELETE(SP9) 		1-09987-245-1 04 1 9607- ● ● ● ●
826 SEAL; NOISE INSULATION
EURO2 SPECIFICATION<THN> 30X30 		8-97866-626-0 03 1 9610-9905 ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 9906- ● ●

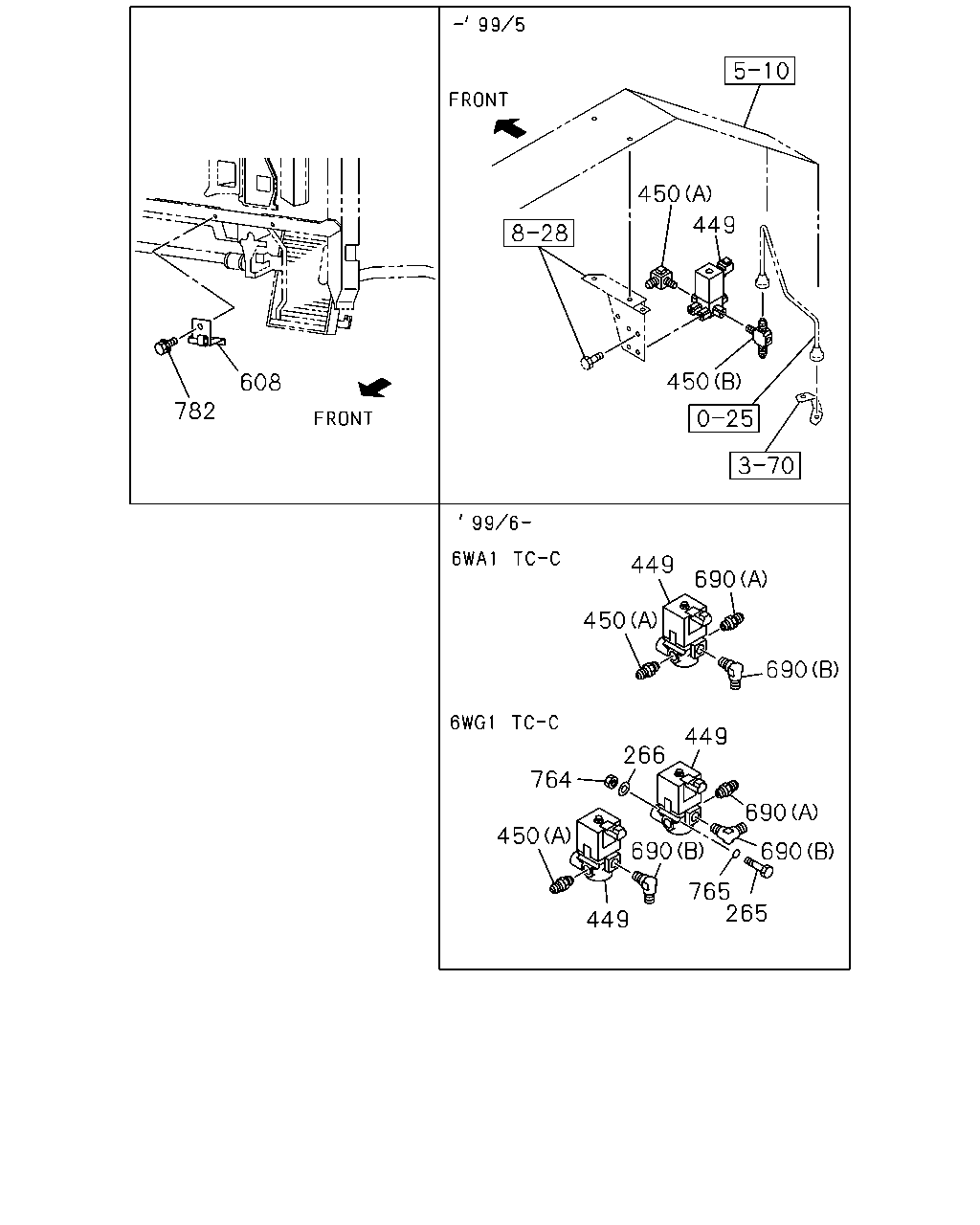

çizim 42209
450 449 450 608 782 449 690 450 690 449 266 690 764 690 450 690 765 265 449
BalonParca AdiParca NoAdetTipApplied Date A B C D
265 BOLT; MAG VLV FIX
M6X50 FLANGE 		0-28080-650-0 01 1 9906- ●
266 WASHER; PL,MAG VLV FIX 1-82569-266-0 02 1 9906- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
EURO2 SPECIFICATION<THN> 		1-82563-598-2 01 1 9610-9706 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
ELECTRONIC GOV RED3(KG5) 		1-82563-598-3 01 1 9707-9905 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 01 1 9906- ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-871-2 02 1 9906- ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9610-9706 ●
450 CONNECTOR; MAG VLV,INL PORT
ELECTRONIC GOV RED3(KG5) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9707-9905 ●
450 CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9906- ● ●
450 CONNECTOR; MAG VLV,INL PORT
EURO2 SPECIFICATION<THN> (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9610-9706 ●
450 CONNECTOR; MAG VLV,INL PORT
ELECTRONIC GOV RED3(KG5) (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9707-9905 ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-022-3 01 1 9610-9610 ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-031-0 01 1 9610-9905 ●
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5) 		1-83544-031-0 01 1 9906- ● ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9906- ●
690 CONNECTOR
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9906- ● ●
690 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 9906- ●
764 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 9906- ●
765 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 9906- ●
782 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9612-9905 ●
782 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9906- ● ●

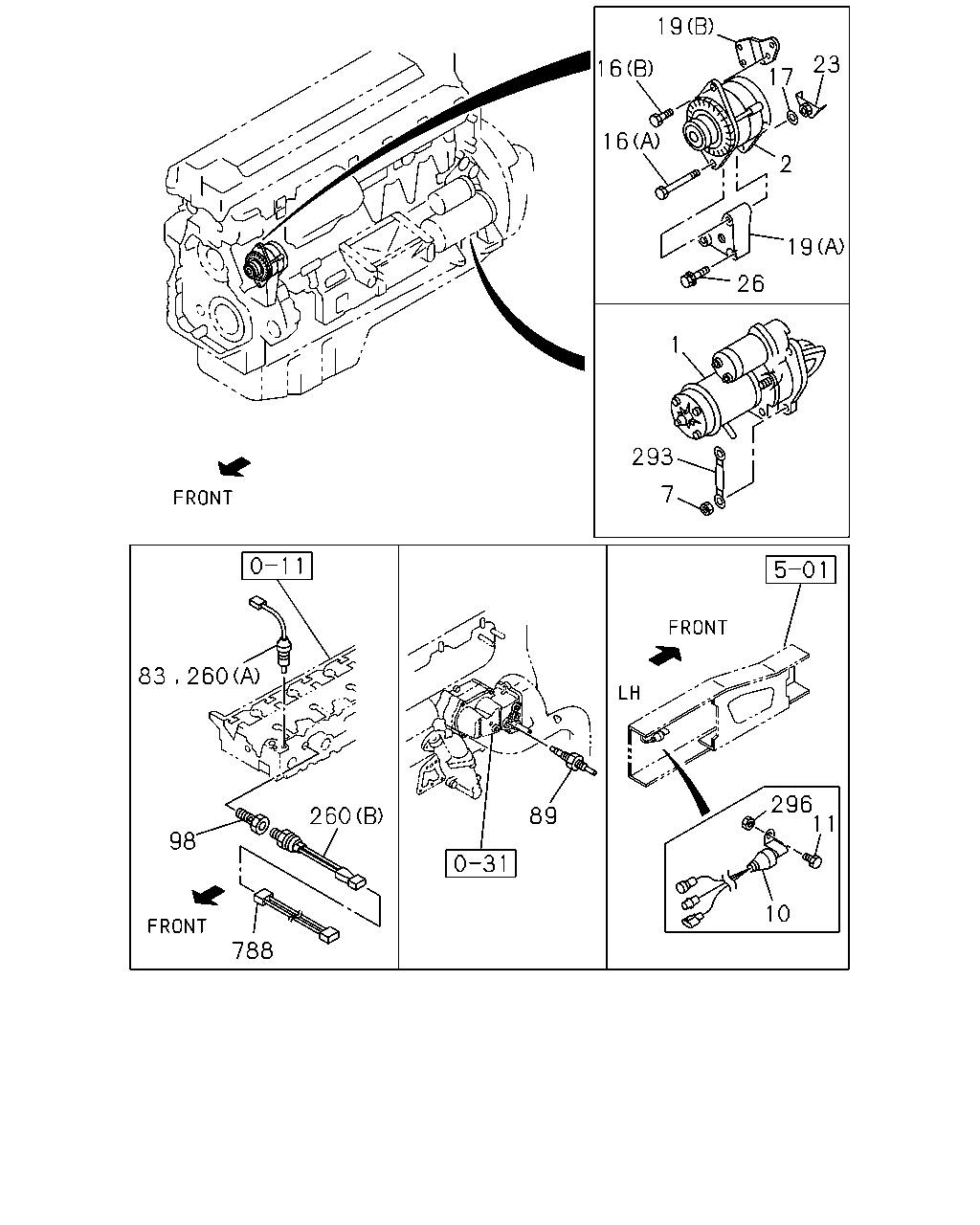

çizim 42282
19 17 23 16 16 2 19 26 1 293 7 296 11 89 260 98 10 788 83 260
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-293-1 01 1 9606-9702 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO<SV1> 24V 6.0KW NIKKO 		1-81100-293-1 01 1 9703-9706 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO<SV1> 24V 6.0KW NIKKO 		1-81100-293-1 01 1 9707-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-293-1 01 1 9707-9708 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO<SV1> 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9709-9905 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO 		1-81100-325-1 01 1 9709-9905 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-325-2 01 1 9906- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO<SV1> 24V 6.0KW NIKKO 		1-81100-325-2 01 1 9906- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO<SV1> 24V 6.0KW NIKKO 		1-81100-314-0 01 1 9703-9905 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO<SV1> 24V 6.0KW NIKKO 		1-81100-314-1 01 1 9906- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO<SV1> 24V 7.0KW MITSUBISHI 		1-81100-352-0 01 1 9904-9905 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. ENGINE REAR PTO<SV1> 24V 7.0KW MITSUBISHI 		1-81100-352-1 01 1 9906-9907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO<SV1> 24V 7.0KW MITSUBISHI 		1-81100-341-0 01 1 9904-9905 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-341-0 01 1 9904-9905 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		1-81100-341-1 01 1 9906-9907 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. ENGINE REAR PTO<SV1> 24V 7.0KW MITSUBISHI 		1-81100-341-1 01 1 9906-9907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-426-2 01 1 9606-9706 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-426-2 01 1 9707-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO 		1-81200-469-4 01 1 9906- ● ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-519-0 01 1 9904-9905 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI 		1-81200-517-0 01 1 9906-9907 ● ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9606-9706 ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9707-9905 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 9906- ● ● ●
10 RELAY; STARTER
NIKKO 		1-81171-071-0 01 1 9606-9606 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-0 01 1 9607-9905 ● ●
10 RELAY; STARTER
NIKKO 		1-81171-075-1 01 1 9906- ● ● ●
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 9904-9907 ● ●
10 RELAY; STARTER
EXC. NIKKO<Y70> HITACHI 		1-81171-087-0 01 1 9908- ● ● ● ●
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28080-825-0 02 1 9606-9606 ● ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ● ●
11 BOLT; RELAY STARTER
FRAME EQUIPMENT HEAVY DUTY<F03> M8X30 FLANGE 		0-28680-830-0 02 1 9803-0003 ● ● ● ●
11 BOLT; RELAY STARTER
M8X30 FLANGE 		0-28680-830-0 02 1 0004- ● ●
11 BOLT; RELAY STARTER
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE 		0-28680-825-0 02 1 9803-0003 ● ● ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9606-9706 ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9707-9905 ● ●
16 BOLT; GEN
(A) M14X123 		9-09801-204-1 01 1 9906-0010 ● ● ●
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0011- ● ● ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 9707-9905 ●
16 BOLT; GEN
(B) M12X40 FLANGE 		0-28081-240-0 01 1 9906- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9606-9706 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9707-9905 ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9906- ● ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9606-9706 ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9707-9905 ● ●
19 BRACKET; GEN
(A) 		1-19711-068-1 01 1 9906-0010 ● ● ●
19 BRACKET; GEN
(A) 		1-19711-144-0 01 1 0011- ● ● ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 9707-9905 ●
19 BRACKET; GEN
(B) 		1-19711-082-0 01 1 9906- ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9606-9706 ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9707-9905 ● ●
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 9906- ● ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9606-9706 ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9707-9905 ● ●
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 9906- ● ● ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9606-9609 ●
83 THERMOMETER UNIT
CLUTCH-15.5" TWIN PLATE SPICER(TEY) 		1-83161-031-1 01 1 9610-9905 ●
83 THERMOMETER UNIT
EXC. EURO2 SPECIFICATION<THN> 		1-83161-031-1 01 1 9906- ● ●
89 SWITCH; OVER HEAT WARNING 5-82450-020-0 01 1 9606-9706 ●
89 SWITCH; OVER HEAT WARNING 5-82450-020-0 01 1 9707-9905 ● ●
98 ADAPTER; TEMP SENSOR 1-09675-236-0 01 1 0102- ● ● ●
260 SENSOR; WATER TEMP
17 INCH CLUTCH(RF3) (B) 		1-80210-004-0 01 1 9610-9612 ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> (B) 		1-80210-004-0 01 1 9701-9706 ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> (B) 		1-80210-004-0 01 1 9707-9905 ●
260 SENSOR; WATER TEMP
(B) 		1-80210-004-0 01 1 9707-9905 ●
260 SENSOR; WATER TEMP
EURO2 SPECIFICATION<THN> (B) 		1-80210-004-0 01 1 9906- ●
260 SENSOR; WATER TEMP
(B) 		1-80210-004-0 01 1 9906- ●
260 SENSOR; WATER TEMP
(A) 		1-83161-038-0 01 1 0102- ● ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9606-9706 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9707-9905 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 9906- ● ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9606-9606 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9905 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
788 HARNESS; EXT,WATER TEMP SENSOR
EURO2 SPECIFICATION<THN> 		1-82641-186-0 02 1 0102- ●
788 HARNESS; EXT,WATER TEMP SENSOR 1-82641-186-0 02 1 0102- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
