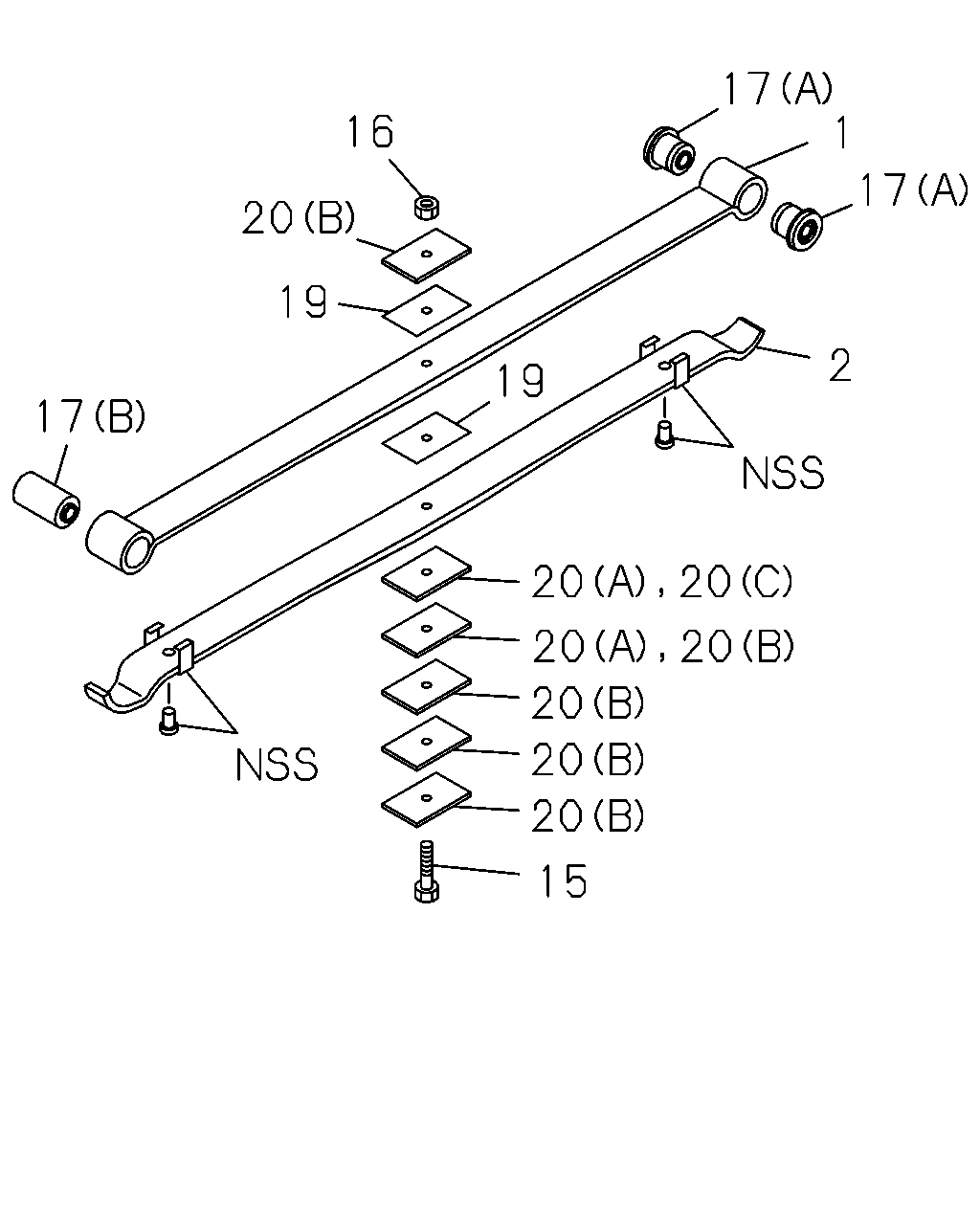

4-55A — FRONT LEAF SPRING (#50079) — 34 parça

17 1 16 17 20 19 2 19 17 20 20 20 20 20 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98079-906-0, 98079906	8-98081-579-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-907-0, 98079907	8-98081-589-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98197-602-0, 98197602	8-98198-647-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98197-603-0, 98197603	8-98198-649-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98079-906-0, 98079906	8-98081-580-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-907-0, 98079907	8-98081-590-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98197-602-0, 98197602	8-98198-648-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98197-603-0, 98197603	8-98198-650-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-98081-401-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT (B), OD=42 L=81 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-97081-586-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-97084-845-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907	8-98041-368-0	05	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-98041-368-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907	8-98041-370-0	01	1	-

17 16 17 20 19 1 19 17 2 19 3 19 4 5 6 20 20 20 29 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98079-906-0, 98079906	8-98081-579-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-907-0, 98079907	8-98081-589-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: C = 8-98197-602-0, 98197602	8-98198-647-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: D = 8-98197-603-0, 98197603	8-98198-649-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98079-906-0, 98079906	8-98081-580-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-907-0, 98079907	8-98081-590-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: C = 8-98197-602-0, 98197602	8-98198-648-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: D = 8-98197-603-0, 98197603	8-98198-650-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=90 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-98081-401-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (A) ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT (B), OD=42 L=81 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-97081-586-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907, C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-97084-845-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (A) ASM PART: C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-98039-233-0	02	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907	8-98041-368-0	05	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: C = 8-98197-602-0, 98197602, D = 8-98197-603-0, 98197603	8-98041-368-0	04	1	-
20	07.425 SEAT; LEAF SPR,FRT (C) ASM PART: A = 8-98079-906-0, 98079906, B = 8-98079-907-0, 98079907	8-98041-370-0	01	1	-
