4-36 — POWER STEERING CONTROL; ENGINE SIDE (#50075) — 34 parça

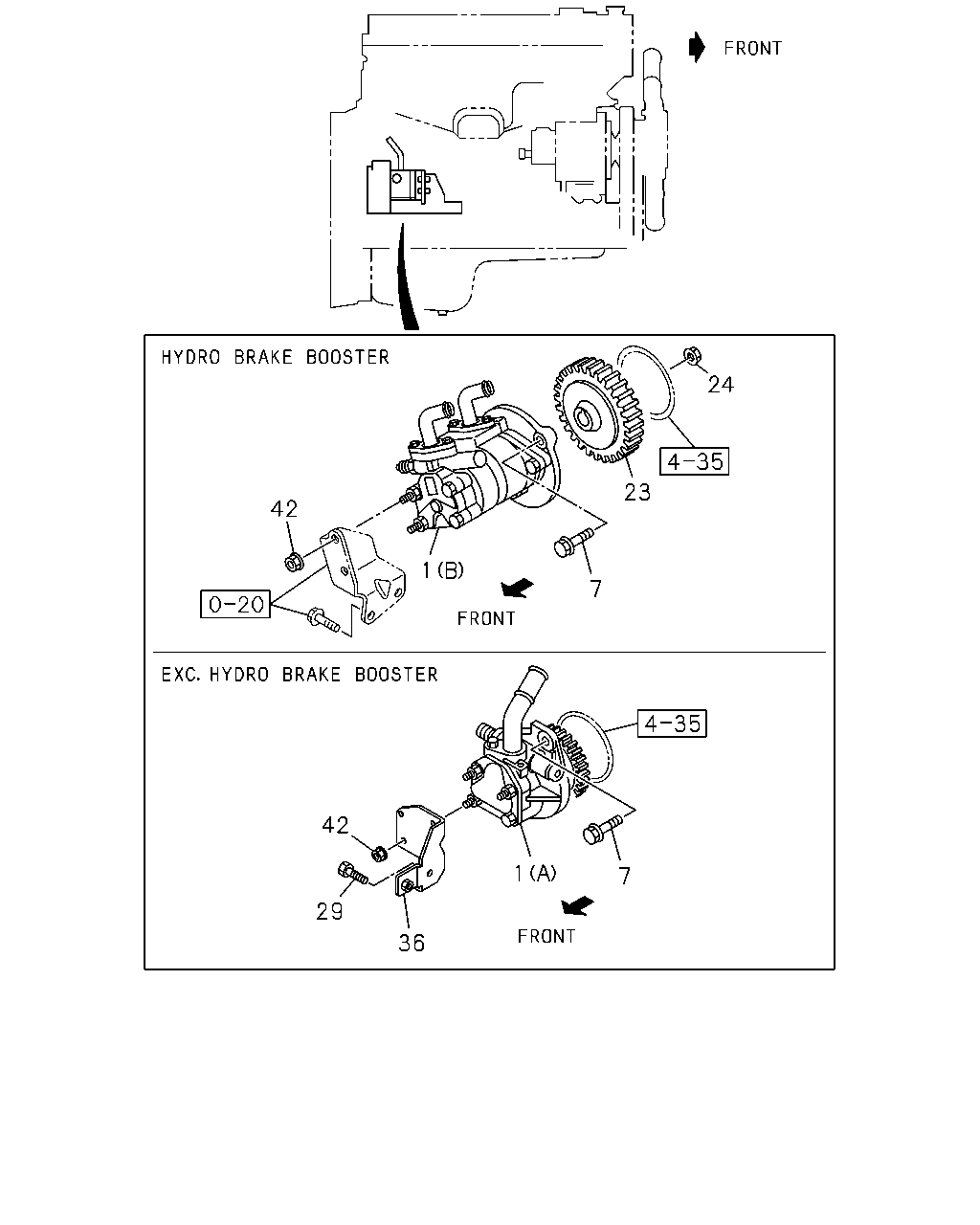

çizim 158992
24 23 42 1 7 42 1 7 29 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-3 01 1 0907-1011 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-1 01 1 0905-0906 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-1 01 1 0905-0906 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 0907- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98055-007-2 01 1 0907- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-2 01 1 0905-0906 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 0907- ● ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 0905-0906 ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 0907- ● ● ● ●
23 06.660 GEAR; OIL PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 0905-0906 ● ●
23 06.660 GEAR; OIL PUMP 8-97114-550-1 01 1 0905-0906 ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 		8-97114-550-1 01 1 0907- ● ●
23 06.660 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) 		8-97114-550-1 01 1 0907- ● ●
24 06.673 NUT; GEAR,P/S PUMP
HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 0905-0906 ● ●
24 06.673 NUT; GEAR,P/S PUMP
05.816 M12 FLANGE 		0-91180-212-0 01 1 0905-0906 ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE 		0-91180-212-0 01 1 0907- ● ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) 05.816 M12 FLANGE 		0-91180-212-0 01 1 0907- ● ●
29 09.171 BOLT; BRKT,POWER STRG
EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 0905-0906 ● ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 0907- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 0905-0906 ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 0907- ● ●
42 06.672 NUT; ADJ PLATE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ● ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ●

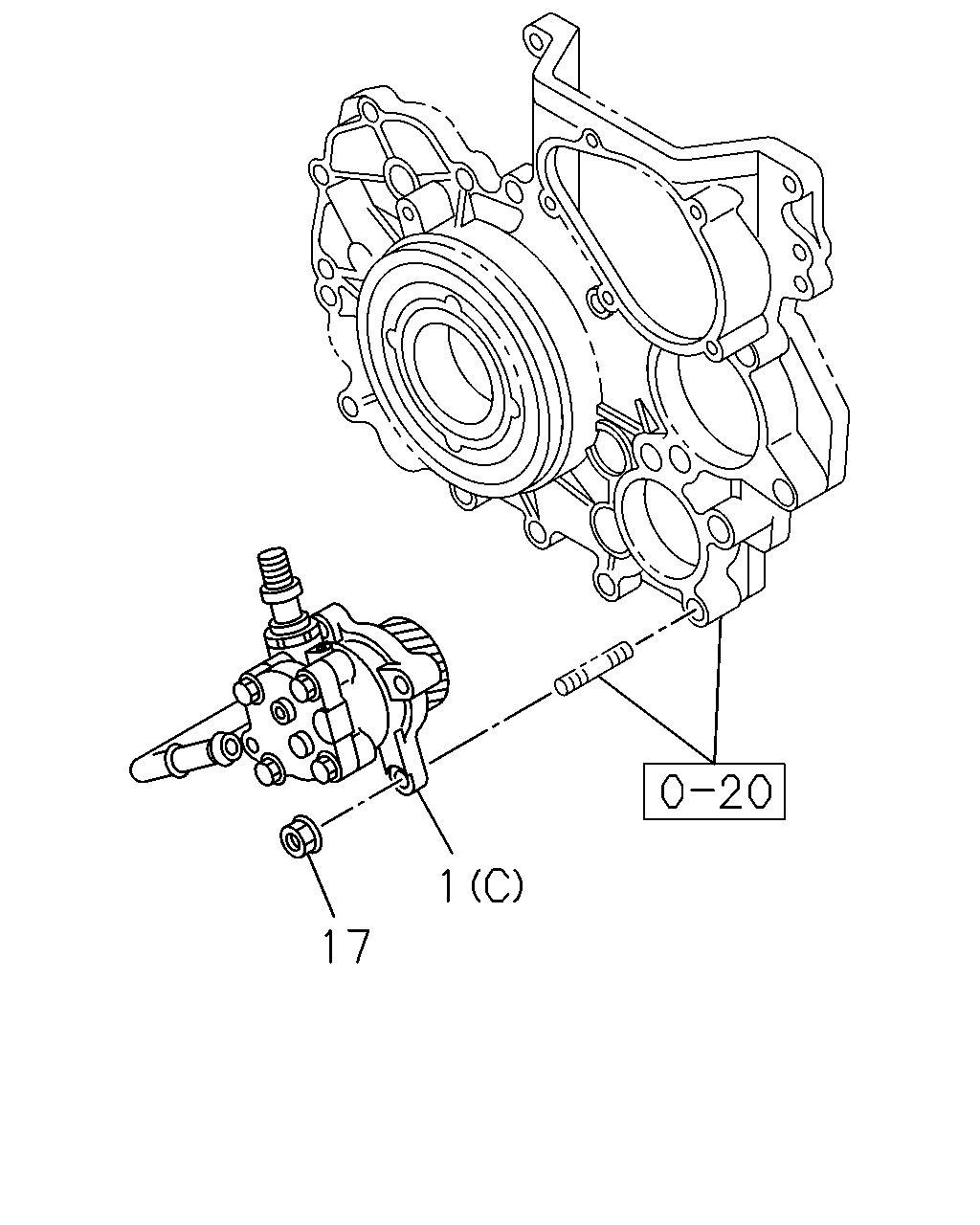

çizim 159148
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-3 01 1 0907-1011 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (C) 		8-98043-204-4 01 1 1012- ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-1 01 1 0905-0906 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B) 		8-98055-007-1 01 1 0905-0906 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98055-007-2 01 1 0907- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98055-007-2 01 1 0907- ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-2 01 1 0905-0906 ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98006-793-4 01 1 0907- ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0907-1011 ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ● ●
