12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
ID=18 L=50
|
1-09700-302-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
02.559
(C)
ID=18 L=50
|
1-09700-302-1 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(C)
ID=18 L=50
|
1-09700-302-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
02.559
(C)
ID=18 L=50
|
1-09700-302-1 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
ID=19 H=70 L=25
|
1-09700-773-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
02.559
(D)
ID=19 H=70 L=25
|
1-09700-773-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
ID=19 H=70 L=25
|
1-09700-773-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
02.559
(D)
ID=19 H=70 L=25
|
1-09700-773-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
ID=16.5 & 16.5
|
8-94468-380-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
02.559
(E)
ID=16.5 & 16.5
|
8-94468-380-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
ID=16.5 & 16.5
|
8-94468-380-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
02.559
(E)
ID=16.5 & 16.5
|
8-94468-380-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0905-0906 |
|
● |
|
● |
|
| |
12 |
04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0907- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0907- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0907- |
|
● |
|
● |
|
| |
12 |
04.681 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
02 |
1 |
0907- |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
16 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
16 |
1 |
0907- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
POWER ASSIST CLUTCH(S2T)
04.930
(A)
ID=15.5
|
8-98008-097-0 |
16 |
1 |
0907- |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
|
| |
12 |
04.681 CLIP; HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
|
|
|
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1011 |
|
● |
● |
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1011 |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
● |
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
|
● |
|
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
03.162
(B)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
|
|
|
|
● |
| |
12 |
04.681 CLIP; HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
|
● |
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
|
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
|
|
|
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1011 |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1011 |
|
● |
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W)
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1011 |
|
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1011 |
|
|
|
● |
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
● |
|
|
|
| |
12 |
04.681 CLIP; HOSE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
12 |
04.681 CLIP; HOSE
03.162
(B)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
|
|
● |
|
| |
13 |
04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
|
8-98035-106-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
|
8-98035-106-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
|
8-98035-106-0 |
01 |
1 |
0905-0906 |
|
● |
|
● |
|
| |
13 |
04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
|
8-98035-106-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
|
8-98035-106-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
|
8-98035-106-0 |
01 |
1 |
0907- |
|
● |
|
● |
|
| |
13 |
04.681 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T)
|
8-98035-106-0 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-98035-106-0 |
03 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-98035-106-0 |
03 |
1 |
0907- |
● |
|
● |
|
|
| |
13 |
04.681 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
|
8-98035-106-0 |
03 |
1 |
0907- |
|
|
|
|
● |
| |
20 |
04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
20 |
04.686 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
03.162
(E)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1205 |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
03.162
(E)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1205 |
● |
|
● |
|
● |
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
01.097
(E)
ID=16
|
8-97329-628-0 |
02 |
1 |
1206- |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
01.097
(E)
ID=16
|
8-97329-628-0 |
02 |
1 |
1206- |
● |
|
● |
|
● |
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
|
● |
|
● |
| |

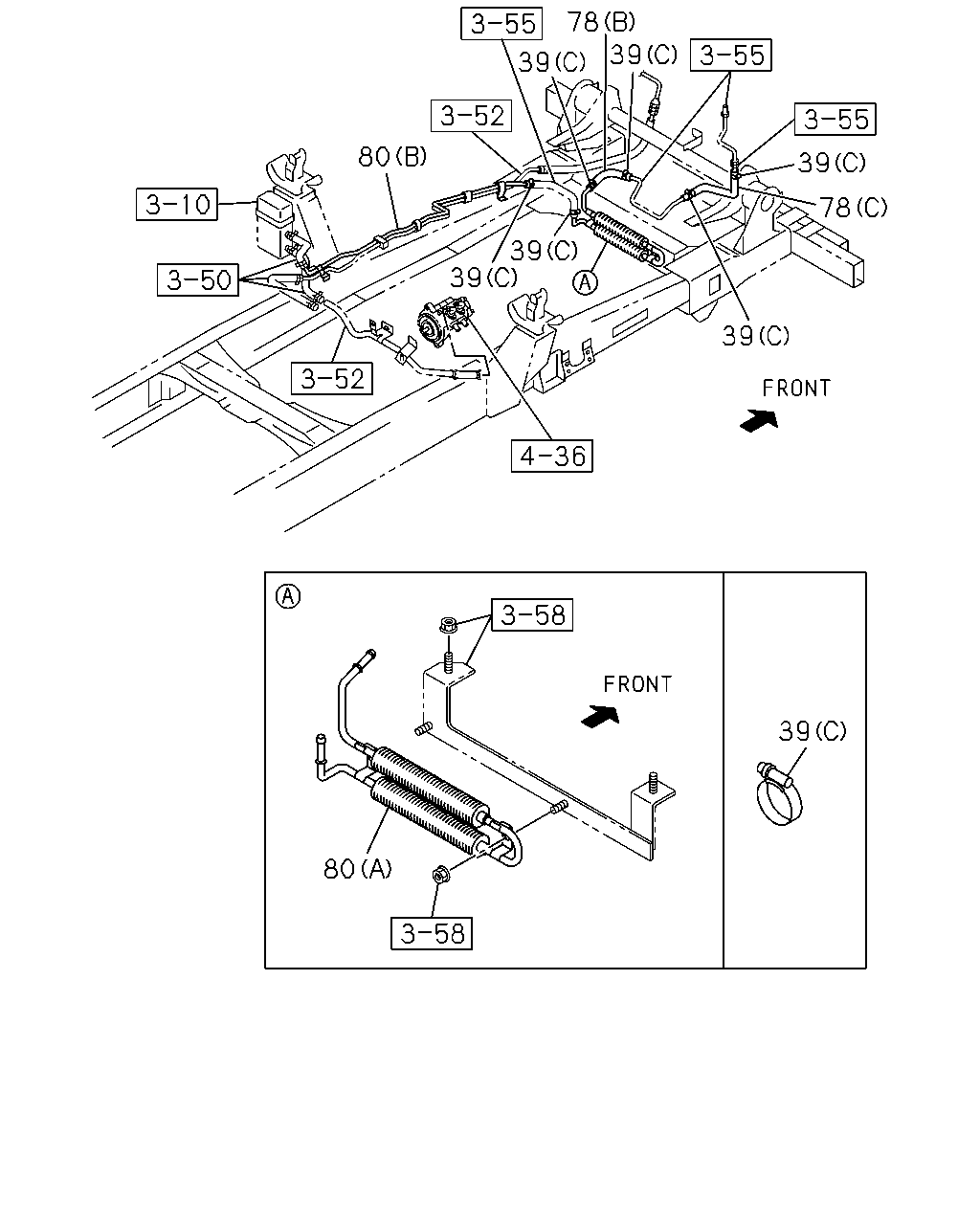

39 |
04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
|
● |
|
● |
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0912- |
● |
● |
● |
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
02 |
1 |
0912- |
● |
|
● |
|
● |
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0905-0906 |
|
● |
|
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907- |
|
● |
|
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
02.559
(A)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907- |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T)
04.930
(B)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907- |
|
|
|
|
● |
| |
39 |
04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ)
04.686
(C)
ID=11-19.5
|
8-94426-597-0 |
08 |
1 |
0905-1005 |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
04.686
(C)
ID=11-19.5
|
8-94426-597-0 |
08 |
1 |
0905-1005 |
|
● |
|
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ)
(C)
ID=11-17
|
8-98173-762-1 |
08 |
1 |
1006- |
● |
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
(C)
ID=11-17
|
8-98173-762-1 |
08 |
1 |
1006- |
|
● |
|
● |
|
| |
39 |
04.681 CLIP; HOSE,VAC
HYDRO BRAKE BOOSTER(7QQ)
08.846
(D)
ID=21.7
|
8-97203-074-0 |
02 |
1 |
0905- |
|
|
● |
|
|
| |
39 |
04.681 CLIP; HOSE,VAC
08.846
(D)
ID=21.7
|
8-97203-074-0 |
02 |
1 |
0905- |
|
|
|
● |
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
|
8-98046-550-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-98046-550-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T)
|
8-98046-550-0 |
01 |
1 |
0905-0906 |
|
● |
|
● |
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
|
8-98046-550-0 |
01 |
1 |
0907-1205 |
● |
|
● |
|
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-98046-550-0 |
01 |
1 |
0907-1205 |
● |
|
● |
|
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T)
|
8-98046-550-0 |
01 |
1 |
0907-1205 |
|
● |
|
● |
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
|
8-98046-550-0 |
01 |
1 |
0907-1205 |
|
|
|
|
● |
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
|
8-98220-579-0 |
01 |
1 |
1206- |
● |
● |
● |
● |
|
| |
96 |
04.930 PIPE; VAC,M/VAC TO VAC PUMP
EXC. HYDRO BRAKE BOOSTER(7QQ)
|
8-98220-579-0 |
01 |
1 |
1206- |
● |
|
● |
|
● |
| |

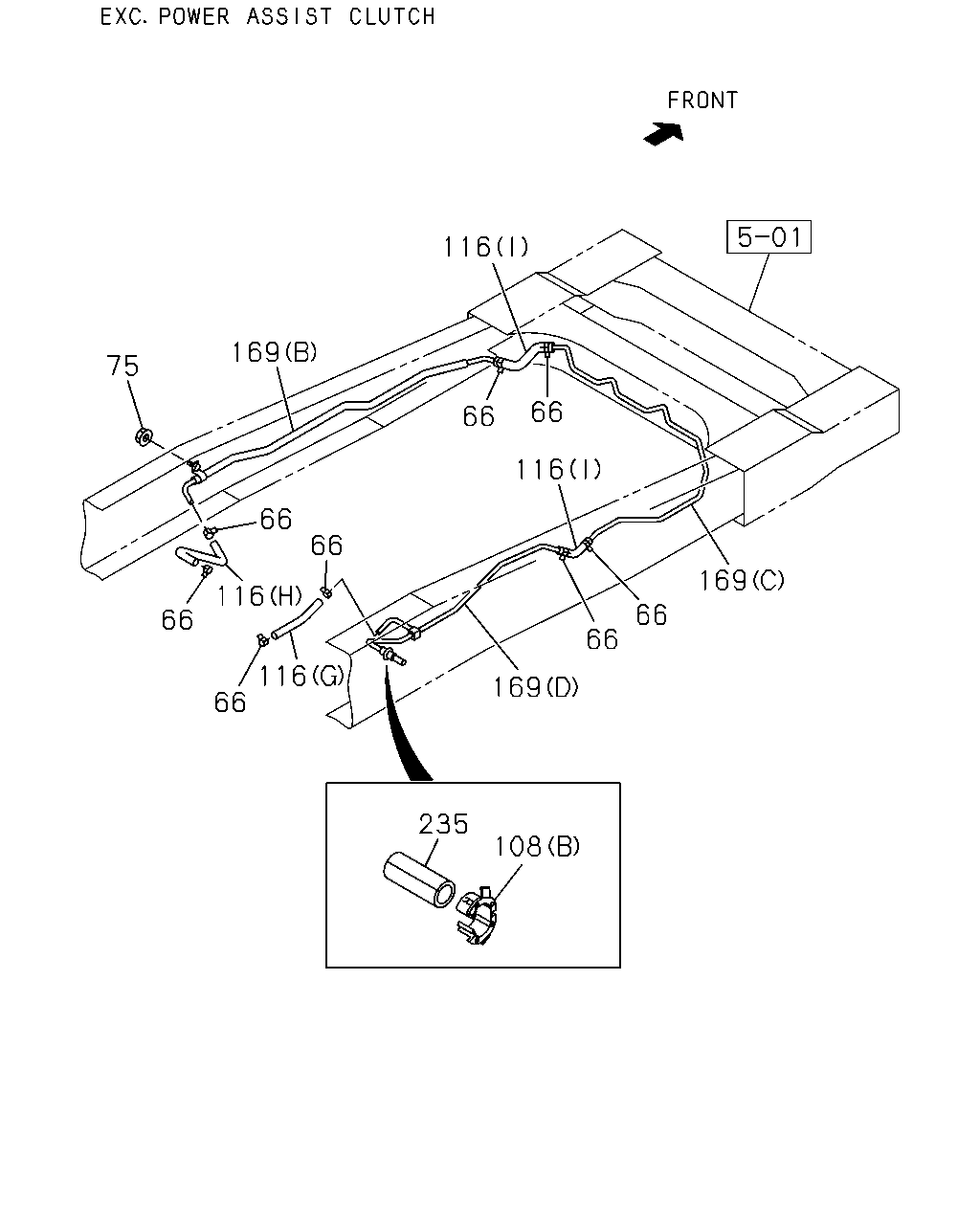

108 |
04.931 GROMMET; PIPE
02.343
(B)
ID=17
|
8-94128-319-2 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
108 |
04.931 GROMMET; PIPE
02.343
(B)
ID=17
|
8-94128-319-2 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
108 |
04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T)
(A)
|
9-09956-353-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
108 |
04.931 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T)
(A)
|
9-09956-353-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |

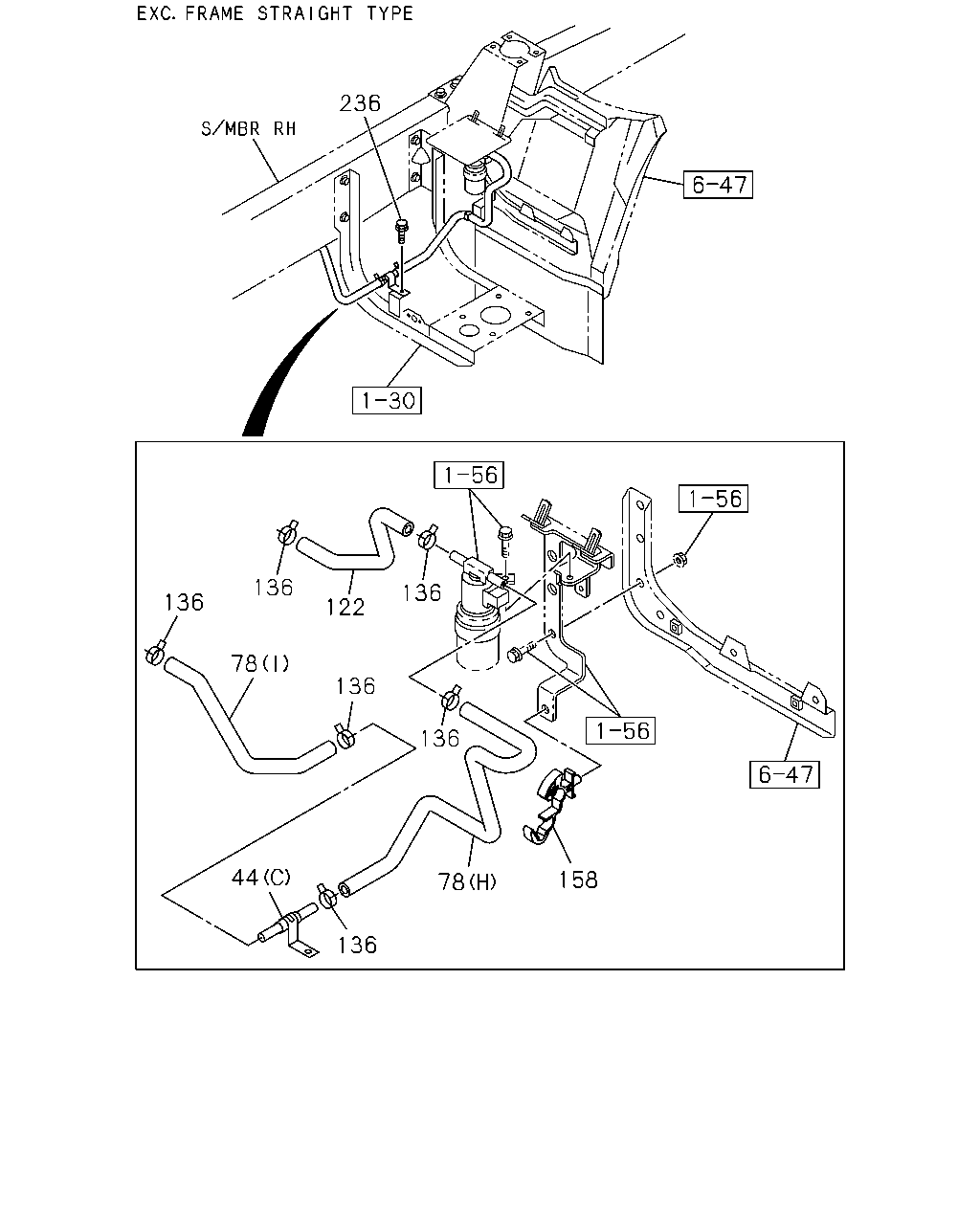

116 |
04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ>
(J)
L=170
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(J)
L=170
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
0907-1011 |
|
|
|
|
● |
| |
116 |
04.931 HOSE; VAC,M/VAC
EXC. FRAME STRAIGHT TYPE<7KJ>
(J)
L=170
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(J)
L=170
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
1012- |
|
|
|
|
● |
| |

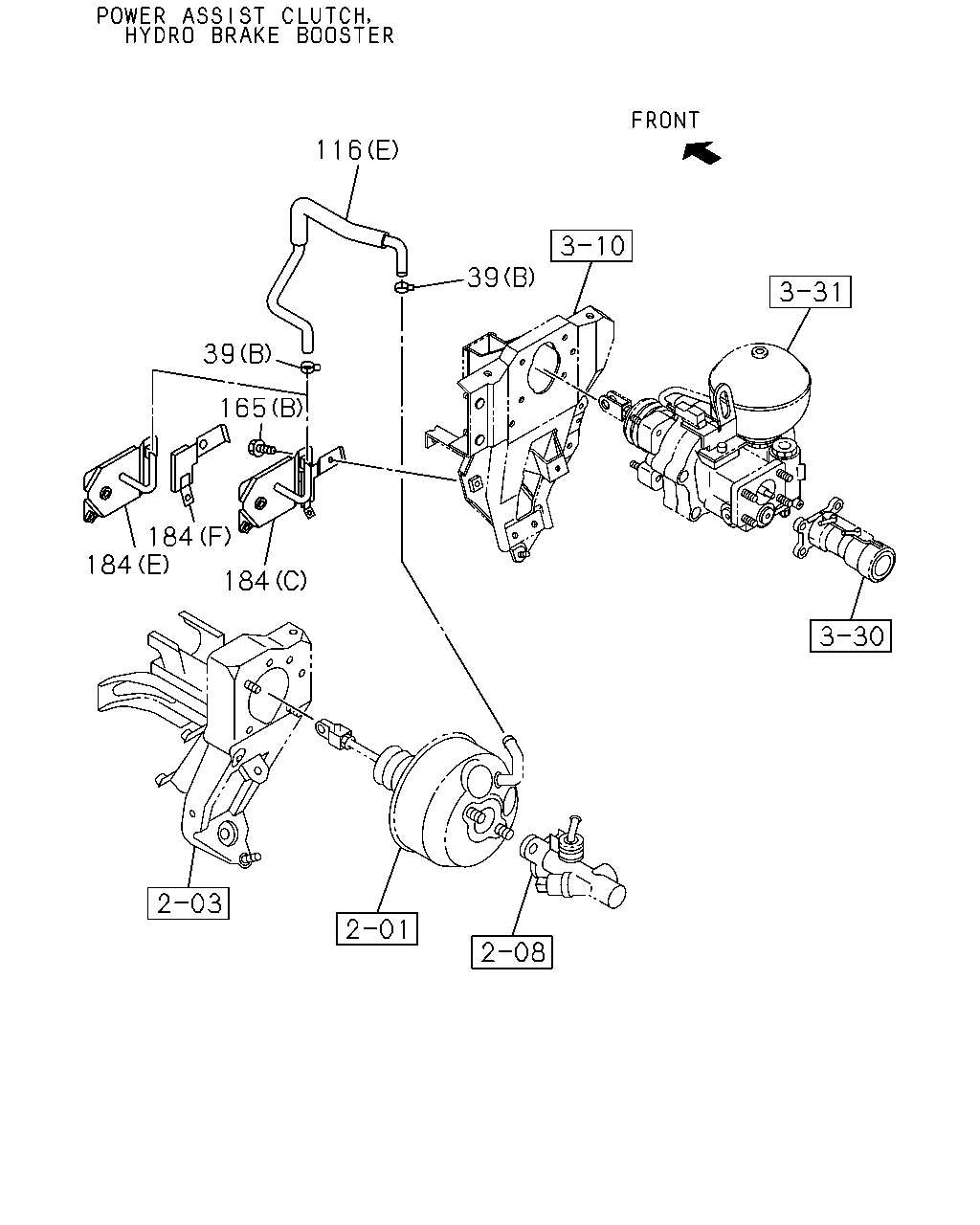

116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
(E)
|
8-98067-702-0 |
01 |
1 |
0905- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
(E)
|
8-98067-702-0 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |

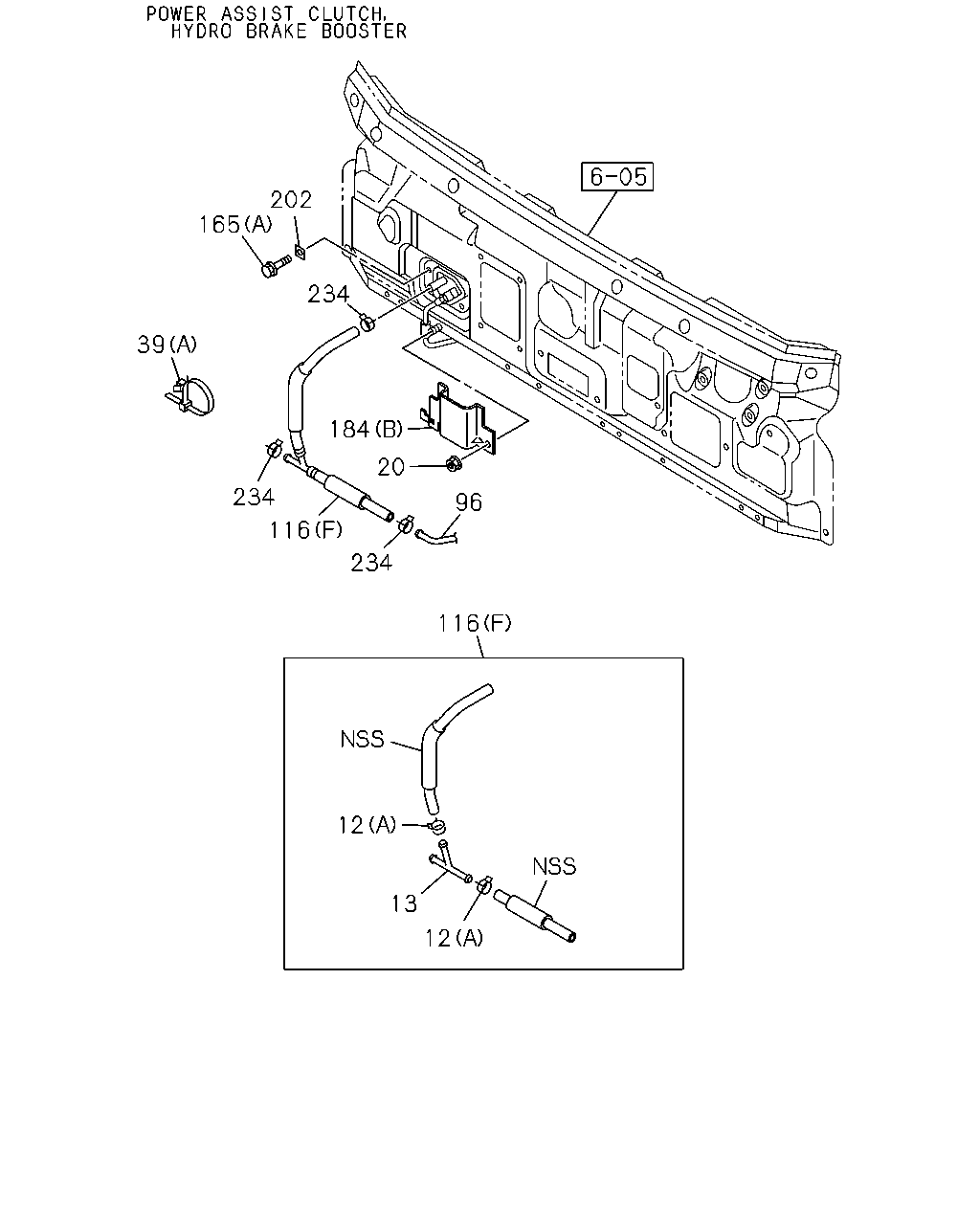

116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
(F)
|
8-98081-002-2 |
01 |
1 |
0905- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
(F)
|
8-98081-002-2 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |

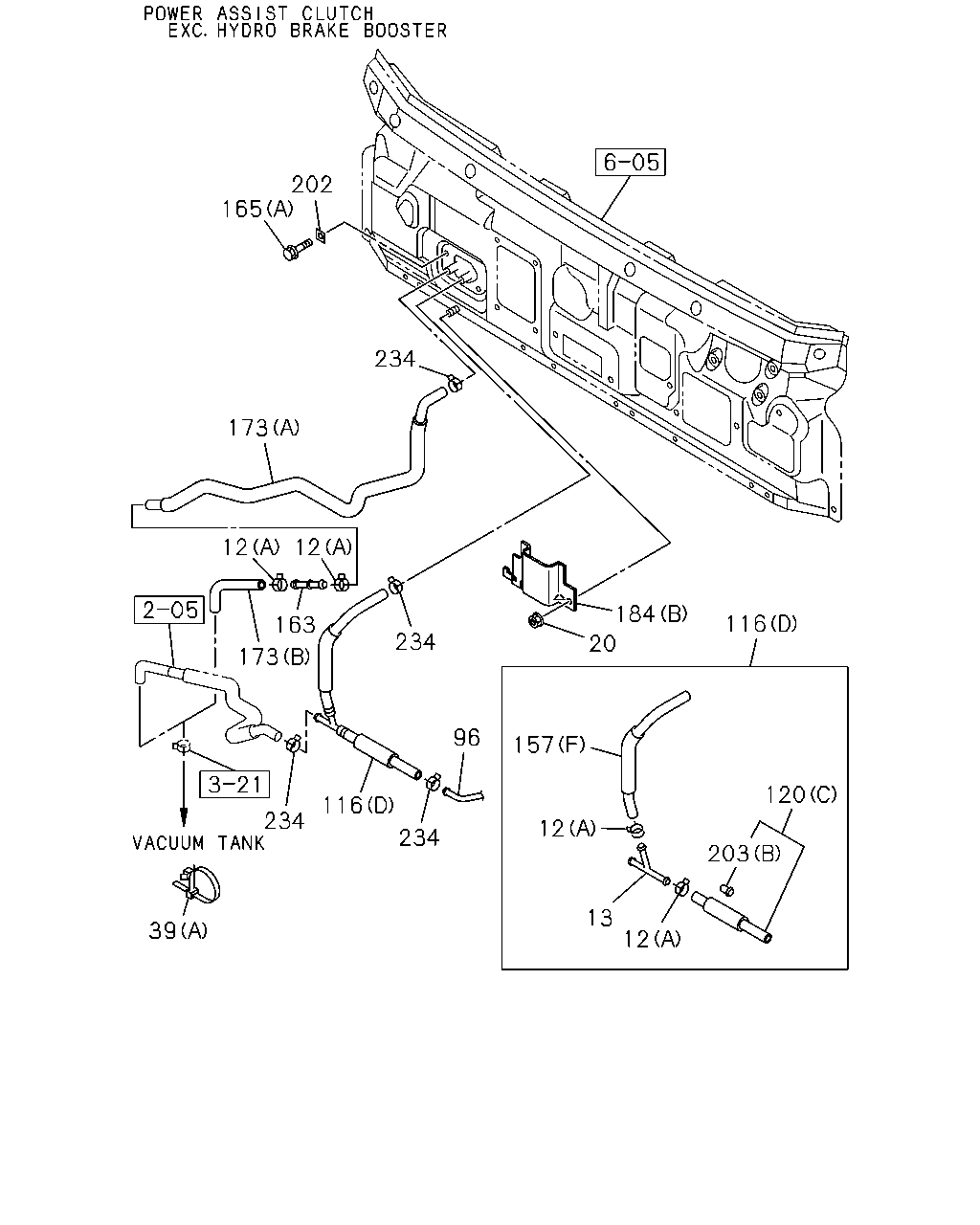

116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-97389-674-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-97389-674-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
(C)
|
8-97389-674-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-97389-689-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-97389-689-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T)
(D)
|
8-97389-689-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
116 |
04.931 HOSE; VAC,M/VAC
(I)
L=140
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ>
(I)
L=140
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(I)
L=140
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ>
(I)
L=140
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(I)
L=140
SERVICED BY L=3000
|
0-08158-300-0 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
03.630
(G)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ>
03.630
(G)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
03.630
(G)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ>
03.630
(G)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
03.630
(G)
L=280
SERVICED BY L=3000
|
0-08258-300-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(H)
|
8-98034-276-2 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC

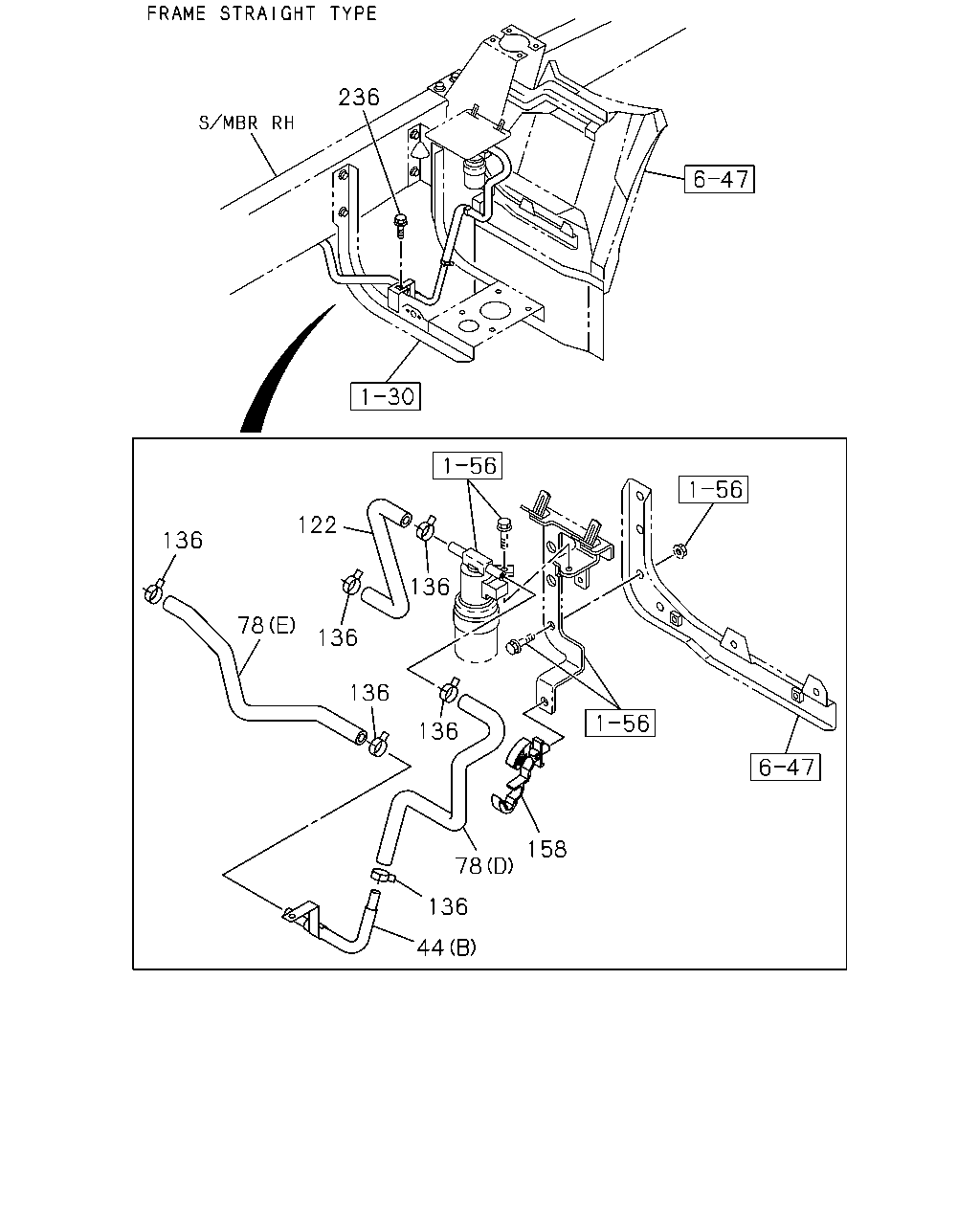

FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-98034-276-2 |
01 |
1 |
0907-0911 |
● |
|
|
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(H)
|
8-98034-276-2 |
01 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-98158-378-0 |
01 |
1 |
0912-1011 |
● |
|
|
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(H)
|
8-98158-378-0 |
01 |
1 |
0912-1011 |
|
● |
● |
● |
|
| |
116 |
04.931 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ>
(H)
|
8-98158-378-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
(H)
|
8-98158-378-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |

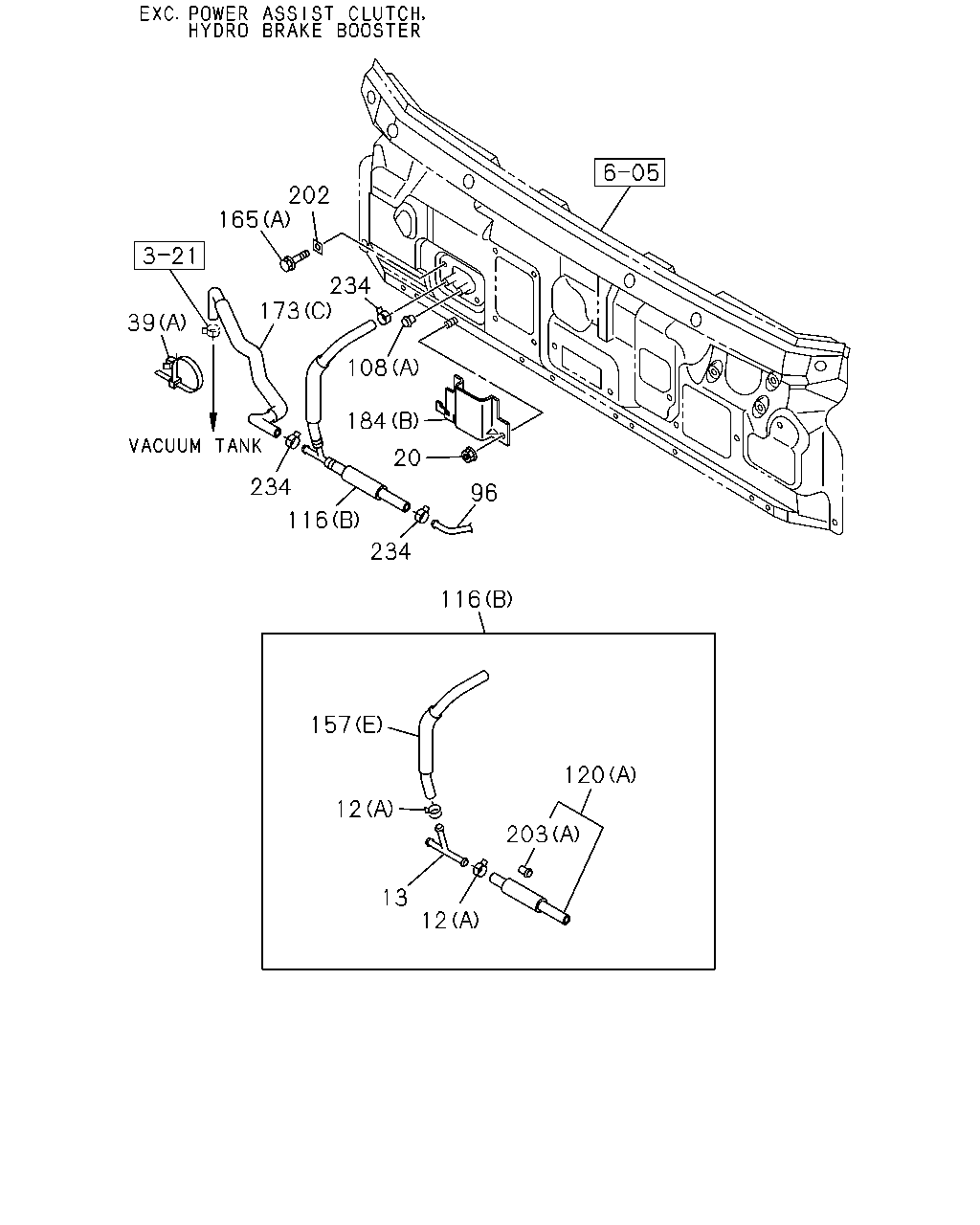

116 |
04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(B)
|
8-97389-690-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(B)
|
8-97389-690-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T)
(B)
|
8-97389-690-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
116 |
04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(A)
|
8-98094-547-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(A)
|
8-98094-547-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
116 |
04.931 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T)
(A)
|
8-98094-547-0 |
01 |
1 |
0907- |
|
|
|
|
● |
| |

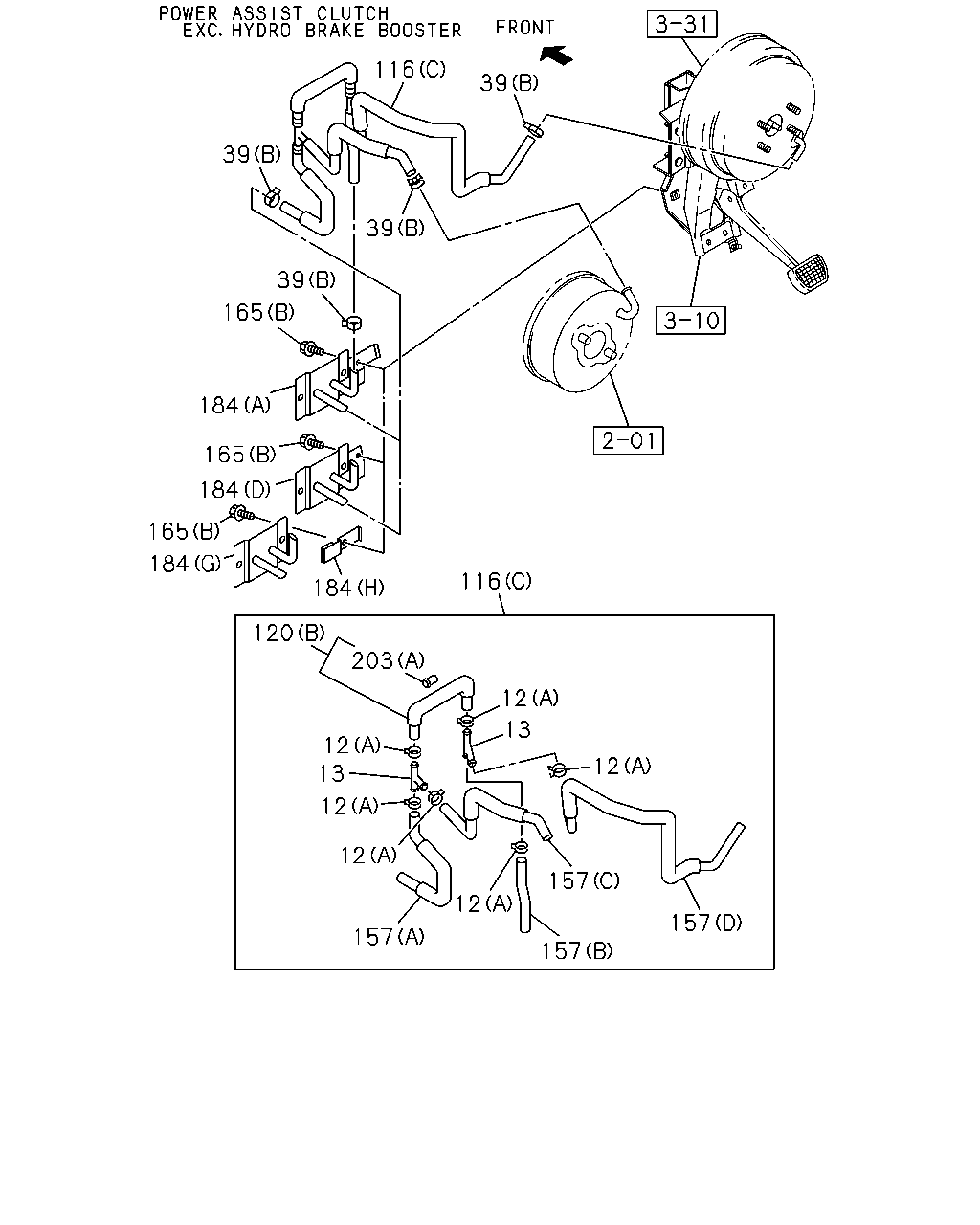

120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-97389-695-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-97389-695-2 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T)
(C)
|
8-97389-695-2 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98027-352-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98027-352-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T)
(B)
|
8-98027-352-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(A)
|
8-97389-696-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(A)
|
8-97389-696-2 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
120 |
04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T)
(A)
|
8-97389-696-2 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(F)
|
8-98017-168-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(F)
|
8-98017-168-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
(F)
|
8-98017-168-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-98027-350-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-98027-350-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
(D)
|
8-98027-350-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-98027-351-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-98027-351-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
(C)
|
8-98027-351-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98027-353-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98027-353-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
(B)
|
8-98027-353-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-98027-354-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-98027-354-2 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
POWER ASSIST CLUTCH(S2T)
(A)
|
8-98027-354-2 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
157 |
04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(E)
|
8-98022-868-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(E)
|
8-98022-868-3 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
157 |
04.931 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T)
(E)
|
8-98022-868-3 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
165 |
04.686 BOLT; BRKT
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
165 |
04.686 BOLT; BRKT
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
0907-1001 |
● |
● |
● |
● |
● |
| |
165 |
04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
165 |
04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
165 |
04.686 BOLT; BRKT
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1002-1011 |
|
● |
● |
● |
● |
| |
165 |
04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
165 |
04.686 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV>
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
165 |
04.686 BOLT; BRKT
02.343
(B)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1012- |
|
● |
|
● |
● |
| |
165 |
04.686 BOLT; BRKT
02.762
(A)
M6X20 W/LK&PL WASHER
|
8-98031-842-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
165 |
04.686 BOLT; BRKT
02.762
(A)
M6X20 W/LK&PL WASHER
|
8-98031-842-0 |
02 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-98055-936-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-98055-936-1 |
01 |
1 |
0907-1012 |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
(A)
|
8-98055-936-1 |
01 |
1 |
0907-1012 |
|
|
|
|
● |
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98121-941-0 |
01 |
1 |
1101- |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
(B)
|
8-98121-941-0 |
01 |
1 |
1101- |
|
|
|
|
● |
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98055-937-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-98055-937-1 |
01 |
1 |
0907-1012 |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
(B)
|
8-98055-937-1 |
01 |
1 |
0907-1012 |
|
|
|
|
● |
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-98121-940-0 |
01 |
1 |
1101- |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
(A)
|
8-98121-940-0 |
01 |
1 |
1101- |
|
|
|
|
● |
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(C)
|
8-98022-870-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(C)
|
8-98022-870-1 |
01 |
1 |
0907-1012 |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T)
(C)
|
8-98022-870-1 |
01 |
1 |
0907-1012 |
|
|
|
|
● |
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
(C)
|
8-98107-558-0 |
01 |
1 |
1101- |
● |
|
● |
|
|
| |
173 |
04.931 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T)
(C)
|
8-98107-558-0 |
01 |
1 |
1101- |
|
|
|
|
● |
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD
PREPARATORY PACK VAR.4<7TV>
(H)
|
8-98255-548-0 |
01 |
1 |
1312- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(H)
|
8-98255-548-0 |
01 |
1 |
1312- |
|
|
|
|
● |
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
EXC. KD PREPARATORY PACK VAR.4<7TV>
(F)
|
8-98255-541-0 |
01 |
1 |
1312- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(F)
|
8-98255-541-0 |
01 |
1 |
1312- |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
(E)
|
8-98155-991-0 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
(E)
|
8-98155-991-0 |
01 |
1 |
1012-1102 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
(E)
|
8-98183-472-1 |
01 |
1 |
1103-1103 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
(E)
|
8-98193-145-0 |
01 |
1 |
1104- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
(F)
|
8-98156-526-0 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
KD PREPARATORY PACK VAR.4<7TV>
(F)
|
8-98156-526-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV>
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-98155-345-0 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
184 |
04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV>
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-98155-345-0 |
01 |
1 |
1012-1102 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV>
EXC. HYDRO BRAKE BOOSTER(7QQ)
(D)
|
8-98183-467-1 |
01 |
1 |
1103- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-98041-992-2 |
01 |
1 |
0905-1001 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(C)
|
8-98041-992-2 |
01 |
1 |
0905-1001 |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
EXC. KD PREPARATORY PACK VAR.4<7TV>
(C)
|
8-98041-992-2 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(C)
|
8-98041-992-2 |
01 |
1 |
1002-1011 |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
(C)
|
8-98041-992-2 |
01 |
1 |
1002-1011 |
|
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
EXC. KD PREPARATORY PACK VAR.4<7TV>
(C)
|
8-98041-992-2 |
01 |
1 |
1012-1102 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(C)
|
8-98041-992-2 |
01 |
1 |
1012-1102 |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
EXC. KD PREPARATORY PACK VAR.4<7TV>
(C)
|
8-98183-470-1 |
01 |
1 |
1103-1103 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(C)
|
8-98183-470-1 |
01 |
1 |
1103-1103 |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
EXC. KD PREPARATORY PACK VAR.4<7TV>
(C)
|
8-98193-144-0 |
01 |
1 |
1104-1311 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(C)
|
8-98193-144-0 |
01 |
1 |
1104-1311 |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
HYDRO BRAKE BOOSTER(7QQ)
EXC. KD PREPARATORY PACK VAR.4<7TV>
(E)
|
8-98255-539-0 |
01 |
1 |
1312- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(E)
|
8-98255-539-0 |
01 |
1 |
1312- |
|
● |
|
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC)
(B)
|
8-98017-628-1 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
184 |
04.685 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC)
(B)
|
8-98017-628-1 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-97389-686-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-97389-686-1 |
01 |
1 |
0907-1001 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(A)
|
8-97389-686-1 |
01 |
1 |
0907-1001 |
|
|
|
|
● |
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD
PREPARATORY PACK VAR.4<7TV>
(A)
|
8-97389-686-1 |
01 |
1 |
1002-1011 |
● |
|
|
|
|
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-97389-686-1 |
01 |
1 |
1002-1011 |
|
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(A)
|
8-97389-686-1 |
01 |
1 |
1002-1011 |
|
|
|
|
● |
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD
PREPARATORY PACK VAR.4<7TV>
(A)
|
8-97389-686-1 |
01 |
1 |
1012-1102 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(A)
|
8-97389-686-1 |
01 |
1 |
1012-1102 |
|
|
|
|
● |
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD
PREPARATORY PACK VAR.4<7TV>
(A)
|
8-98183-462-1 |
01 |
1 |
1103-1311 |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(A)
|
8-98183-462-1 |
01 |
1 |
1103-1311 |
|
|
|
|
● |
| |
184 |
04.685 BRACKET; UNION FIX
EXC. HYDRO BRAKE BOOSTER(7QQ),KD
PREPARATORY PACK VAR.4<7TV>
(G)
|
8-98255-535-0 |
01 |
1 |
1312- |
● |
|
● |
|
|
| |
184 |
04.685 BRACKET; UNION FIX
(G)
|
8-98255-535-0 |
01 |
1 |
1312- |
|
|
|
|
● |
| |
202 |
04.686 SEAL
08.845
|
8-97856-616-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
202 |
04.686 SEAL
08.845
|
8-97856-616-0 |
02 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
203 |
04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-94104-021-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
203 |
04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
(B)
|
8-94104-021-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
203 |
04.690 VALVE; CHECK
POWER ASSIST CLUTCH(S2T)
(B)
|
8-94104-021-0 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
203 |
04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-94386-540-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
203 |
04.690 VALVE; CHECK
EXC. HYDRO BRAKE BOOSTER(7QQ)
(A)
|
8-94386-540-0 |
01 |
1 |
0907- |
● |
|
● |
|
|
| |
203 |
04.690 VALVE; CHECK
(A)
|
8-94386-540-0 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
234 |
04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0905-0906 |
|
● |
|
● |
|
| |
234 |
04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO
BRAKE BOOSTER(7QQ)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0907- |
● |
|
● |
|
|
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
HYDRO BRAKE BOOSTER(7QQ)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0907- |
● |
|
● |
|
|
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0907- |
|
● |
|
● |
|
| |
234 |
04.685 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T)
04.930
ID=16
|
8-94238-568-0 |
03 |
1 |
0907- |
|
|
|
|
● |
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
EXC. HYDRO BRAKE BOOSTER(7QQ)
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0907- |
● |
|
● |
|
|
| |
234 |
04.685 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T)
04.930
ID=16
|
8-94238-568-0 |
04 |
1 |
0907- |
|
|
|
|
● |
