◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#50063) — 244 parça
çizim 158876
3 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0905-0906 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0905-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0907-1011 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1012- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0905-0906 ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0905-0906 ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0907- ● ● ● ● ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 0907- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0907- ●

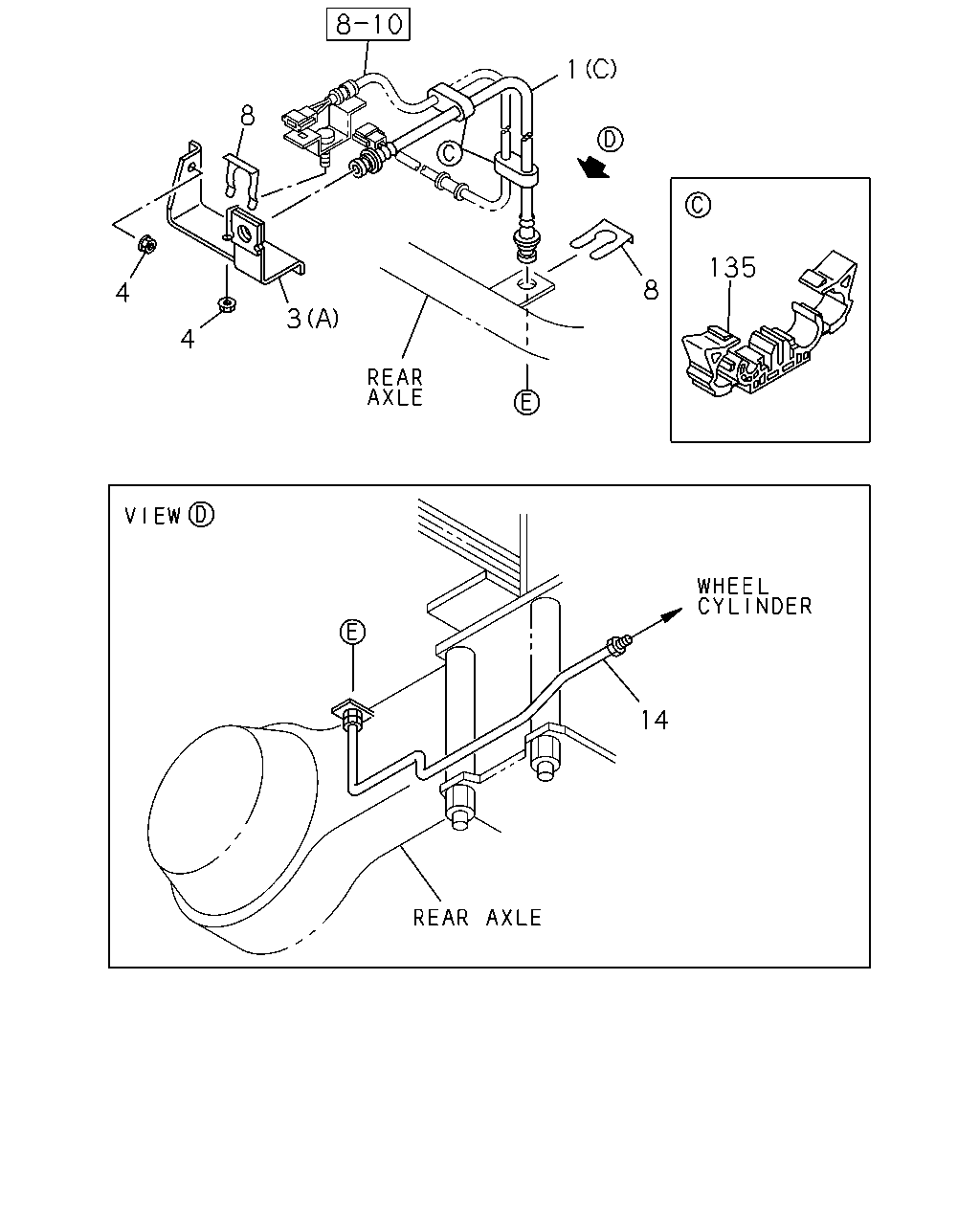

çizim 158883
1 8 135 8 4 4 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1012- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=405 		8-97089-061-0 01 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0907- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=405 		8-97089-061-0 01 1 0907- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (B) 		8-97205-199-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (B) 		8-97205-199-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98117-514-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0905-0906 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0905-0906 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0907-1011 ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0907-1011 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1012- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 1012- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1011 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1011 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0905-0906 ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0907- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0907- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0905-0906 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0907- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0907- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97202-212-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97202-212-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-1 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-1 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-1 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) 		8-98026-038-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14) 		8-98026-038-0 01 1 1008- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) 		8-98089-413-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14) 		8-98089-413-0 01 1 1008- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) SINGAPORE EQUIPMENT(2G0) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1008-1204 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 1008-1204 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1205- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 1205- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 5.5-6.0TON(RPU) 		8-97359-746-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-746-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-746-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 5.5-6.0TON(RPU) 		8-97359-747-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-747-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-747-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-747-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0905-0906 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 0905-0906 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 0907-1007 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1008-1011 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1012-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1012-1507 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1012-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1508- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1508- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0905-0906 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1012- ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0905-0906 ● ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0907-1011 ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0907-1011 ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 1012- ●
135 04.686 CLIP; FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 1012- ●

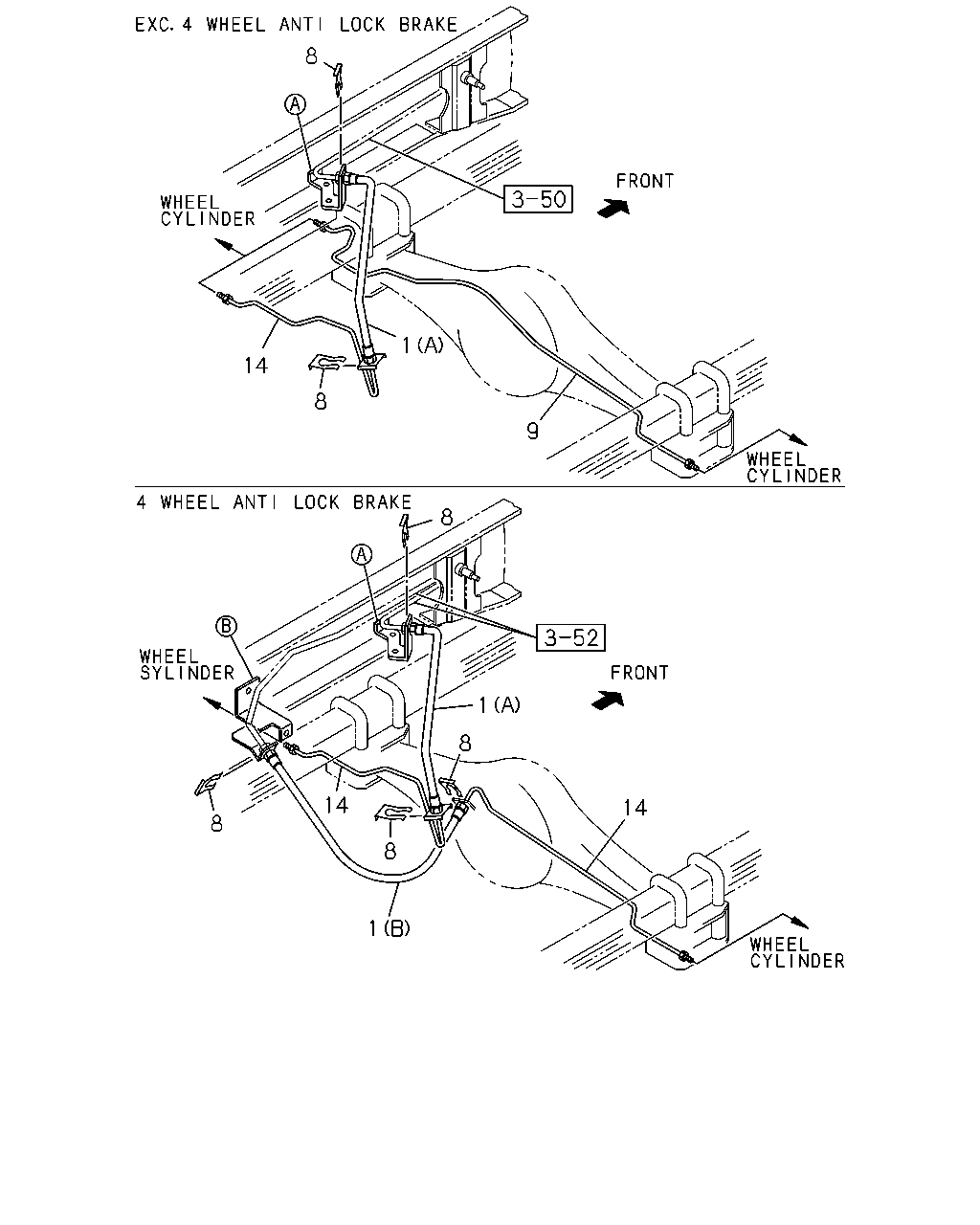

çizim 158964
8 1 14 8 9 8 1 8 14 14 8 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=310 		8-97035-063-1 01 1 1012- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=310 		8-97035-063-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=345 		8-97230-284-1 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0907-1011 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 1012- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=405 		8-97089-061-0 01 1 0905-0906 ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) L=405 		8-97089-061-0 01 1 0907- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=405 		8-97089-061-0 01 1 0907- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0905-0906 ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0907- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0907- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0905-0906 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0907- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0907- ● ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98072-007-0 01 1 0907- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 0907-1204 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98039-603-0 01 1 1205- ●
9 04.685 PIPE; BRK,RR AXLE
4HK1-TCS ENG(RJS) 		8-98026-057-0 01 1 0905-1007 ● ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1008-1507 ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98026-057-0 01 1 1508- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1508- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-98026-042-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97202-212-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97202-212-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-1 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-1 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-98026-043-1 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) 		8-98026-038-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14) 		8-98026-038-0 01 1 1008- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) 		8-98089-413-0 01 1 1008-1008 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14) 		8-98089-413-0 01 1 1008- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) SINGAPORE EQUIPMENT(2G0) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1008-1204 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 1008-1204 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. HONG KONG EQUIPMENT(B14),4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98027-461-0 01 1 1205- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-461-0 01 1 1205- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 5.5-6.0TON(RPU) 		8-97359-746-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-746-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-746-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97359-746-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 5.5-6.0TON(RPU) 		8-97359-747-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0905-0906 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-747-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-747-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) EXC. HONG KONG EQUIPMENT(B14), SINGAPORE EQUIPMENT(2G0) 		8-97359-747-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97359-747-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0905-0906 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 0905-0906 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCS ENG(RJS) 		8-97359-748-0 01 1 0907-1007 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1008-1011 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1012-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1012-1507 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1012-1507 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-748-0 01 1 1508- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1508- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0905-0906 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4HK1-TCN ENG(RDQ) G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 0907-1007 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1008-1011 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) 		8-97359-749-0 01 1 1012- ●

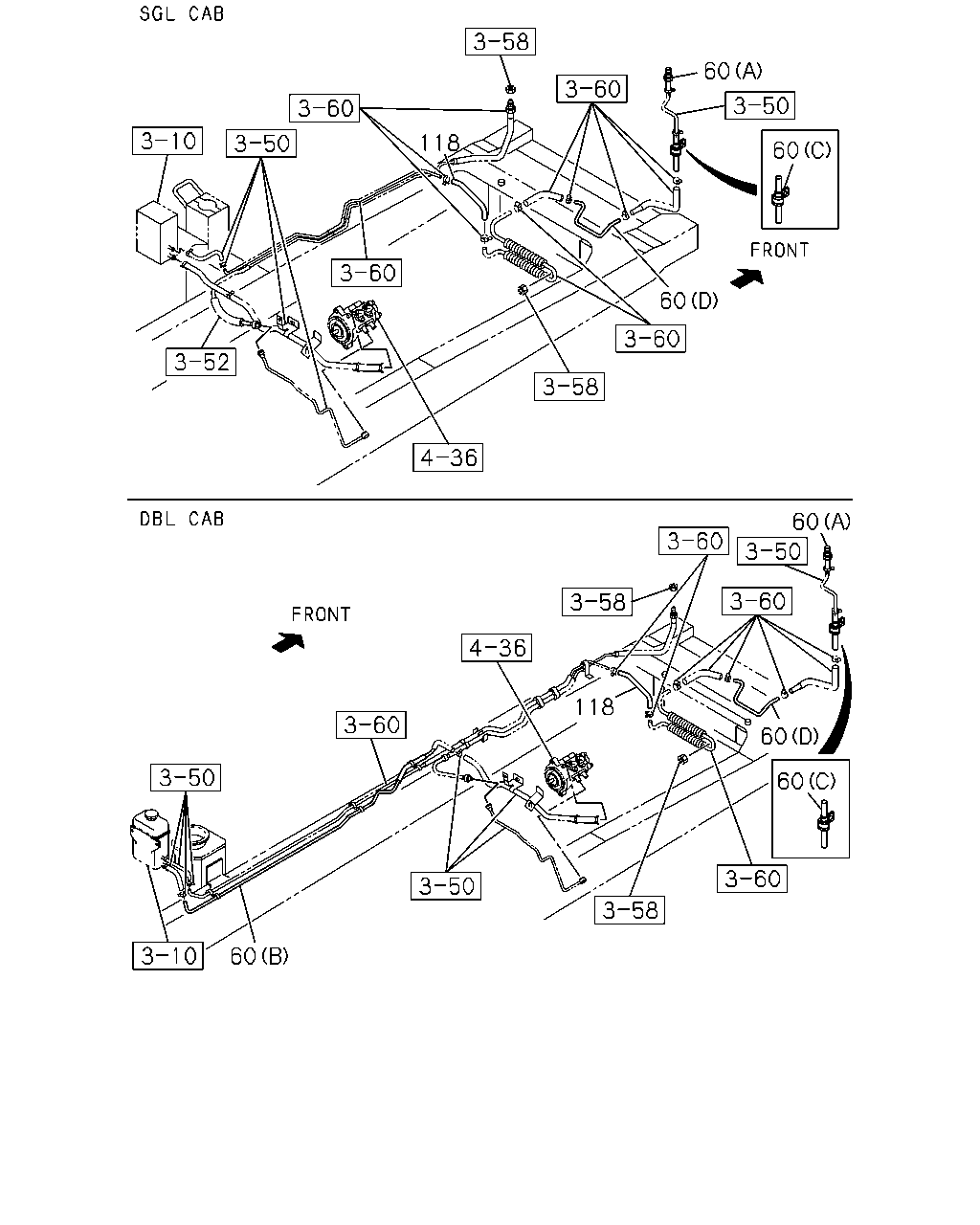

çizim 159188
60 118 60 60 60 118 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98041-326-1 01 1 0905- ● ●
60 04.685 PIPE ASM; BRK
(D) 		8-98041-326-1 01 1 0905- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 0905- ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 0905- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98088-313-1 01 1 0905- ● ●
60 04.685 PIPE ASM; BRK
(C) 		8-98088-313-1 01 1 0905- ● ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98092-259-1 01 1 0905- ●
60 04.685 PIPE ASM; BRK
(B) 		8-98092-259-1 01 1 0905- ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-97181-217-2 01 1 0905-1001 ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0905-1001 ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1002- ● ●
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
