Sayfa 0-52A - Isuzu EPC

0-52A — OIL AND VACUUM PIPING; ENGINE (#5006) — 206 parça

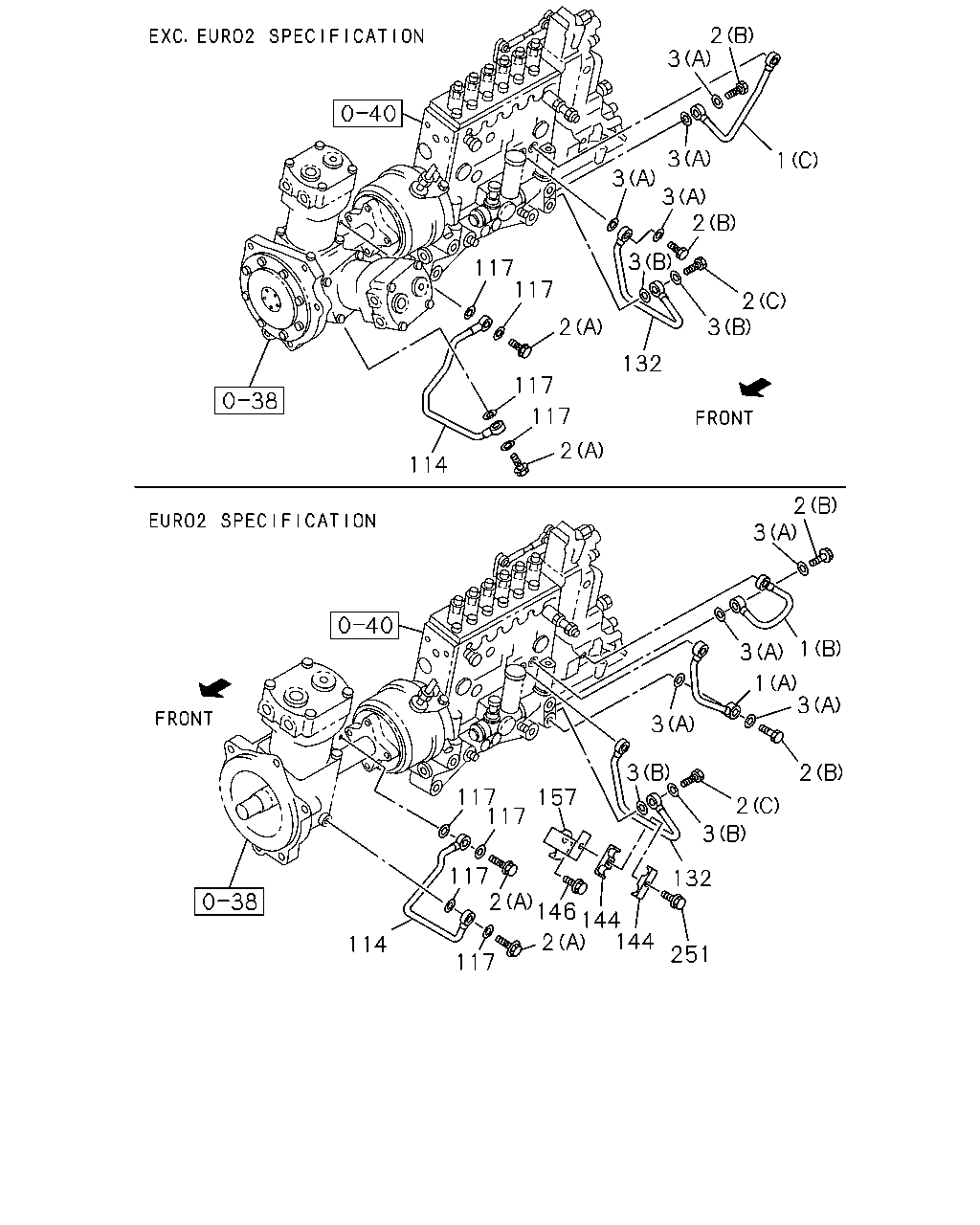

2 3 3 1 3 3 2 3 117 117 2 3 2 132 117 117 2 2 3 1 3 1 3 3 3 2 117 117 157 2 3 117 2 132 146 144 144 2 114 117 251 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL (C)	1-13313-645-0	01	1	9606-9609	●
1	PIPE; OIL,INJ PUMP TO C/BL CLUTCH-15.5" TWIN PLATE SPICER(TEY) (C)	1-13313-645-0	01	1	9610-9905	●
1	PIPE; OIL,INJ PUMP TO C/BL (C)	1-13313-645-0	01	1	9906-	●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	9906-		●
1	PIPE; OIL,INJ PUMP TO C/BL 17 INCH CLUTCH(RF3) (A)	1-13313-449-0	01	1	9610-9612	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> (A)	1-13313-449-0	01	1	9701-9706	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> (A)	1-13313-449-0	01	1	9707-9905	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	9707-9905			●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (A)	1-13313-449-0	01	1	9906-		●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	9906-				●
1	PIPE; OIL,INJ PUMP TO C/BL 17 INCH CLUTCH(RF3) (B)	1-13313-450-0	01	1	9610-9612	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> (B)	1-13313-450-0	01	1	9701-9706	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> (B)	1-13313-450-0	01	1	9707-9905	●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	9707-9905			●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (B)	1-13313-450-0	01	1	9906-		●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	9906-				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (E)	1-09675-156-1	01	1	9703-9804	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9703-9905	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-9910	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9911-		●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (B) M14X27 FLANGE	1-09675-086-0	01	1	9805-9905	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	9906-9910	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (B) M14X27 FLANGE	1-09675-086-0	01	1	9911-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9606-9701	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9702-9706	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9707-9905	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9906-	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9606-9706	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9905	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9906-	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9706	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9707-9905	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9906-	●	●		●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-642-0	01	1	9610-9905	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-642-0	01	1	9906-		●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9606-9609	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	9610-9706	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	9707-9905	●		●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	9906-	●			●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	9906-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9606-9706	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9707-9905	●		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9906-	●	●		●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-451-0	01	1	9606-9606	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9607-9706	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9707-9905	●		●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	9906-	●	●		●
144	CLIP; OIL PIPE,INJ PUMP	1-09701-132-0	02	1	9707-9905			●
144	CLIP; OIL PIPE,INJ PUMP	1-09701-132-1	02	1	9906-				●
146	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9707-9905			●
146	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9906-				●
157	BRACKET; OIL PIPE	1-13345-188-0	01	1	9707-9905			●
157	BRACKET; OIL PIPE	1-13345-188-0	01	1	9906-				●
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	9707-9905			●
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	9906-				●

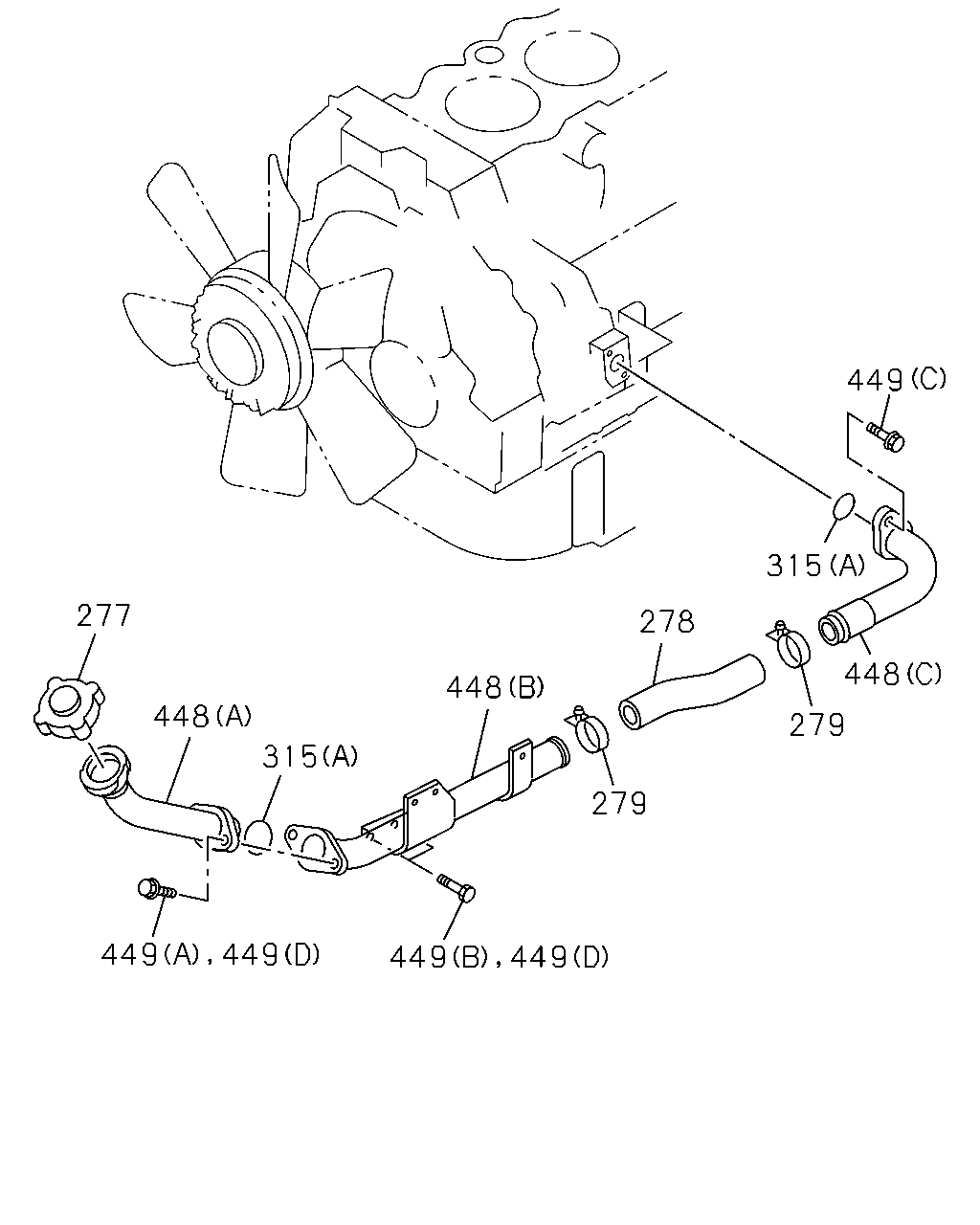

315 277 278 448 448 448 279 315 279 449 449 449 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
277	CAP; OIL FILLER	1-11750-020-0	01	1	9606-9905	●		●
277	CAP; OIL FILLER	1-11750-020-0	01	1	9906-	●	●		●
278	HOSE; RUBBER,OIL FILLER	1-11749-148-1	01	1	9606-9905	●
278	HOSE; RUBBER,OIL FILLER EXC. CAB UP +110MM<TGG>	1-11749-148-1	01	1	9906-	●	●		●
278	HOSE; RUBBER,OIL FILLER CAB UP +110MM<TGG>	1-11749-154-0	01	1	9906-				●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9606-9905	●		●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9906-	●	●		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9606-9706	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9606-9706	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9707-9905	●		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9707-9905	●		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9906-9910	●	●		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9906-9910	●	●		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	9911-	●	●		●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9911-	●	●		●
448	FILLER; OIL (B)	1-11741-178-2	01	1	9606-9905	●
448	FILLER; OIL EXC. CAB UP +110MM<TGG> (B)	1-11741-178-2	01	1	9906-	●	●		●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9606-9706	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9707-9905	●		●
448	FILLER; OIL (C)	1-11740-227-1	01	1	9906-	●	●		●
448	FILLER; OIL (A)	1-11741-175-3	01	1	9606-9905	●		●
448	FILLER; OIL (A)	1-11741-175-4	01	1	9906-	●	●		●
448	FILLER; OIL (B)	1-11741-210-1	01	1	9707-9905			●
448	FILLER; OIL CAB UP +110MM<TGG> (B)	1-11741-218-0	01	1	9906-				●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9606-9706	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9707-9905	●		●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	9906-	●	●		●
449	BOLT; OIL FILLER (D) M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●		●
449	BOLT; OIL FILLER (D) M8X20 FLANGE	0-28680-820-0	04	1	9607-9609	●		●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9905	●		●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9906-	●	●		●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28680-825-0	02	1	9610-9905	●		●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●		●

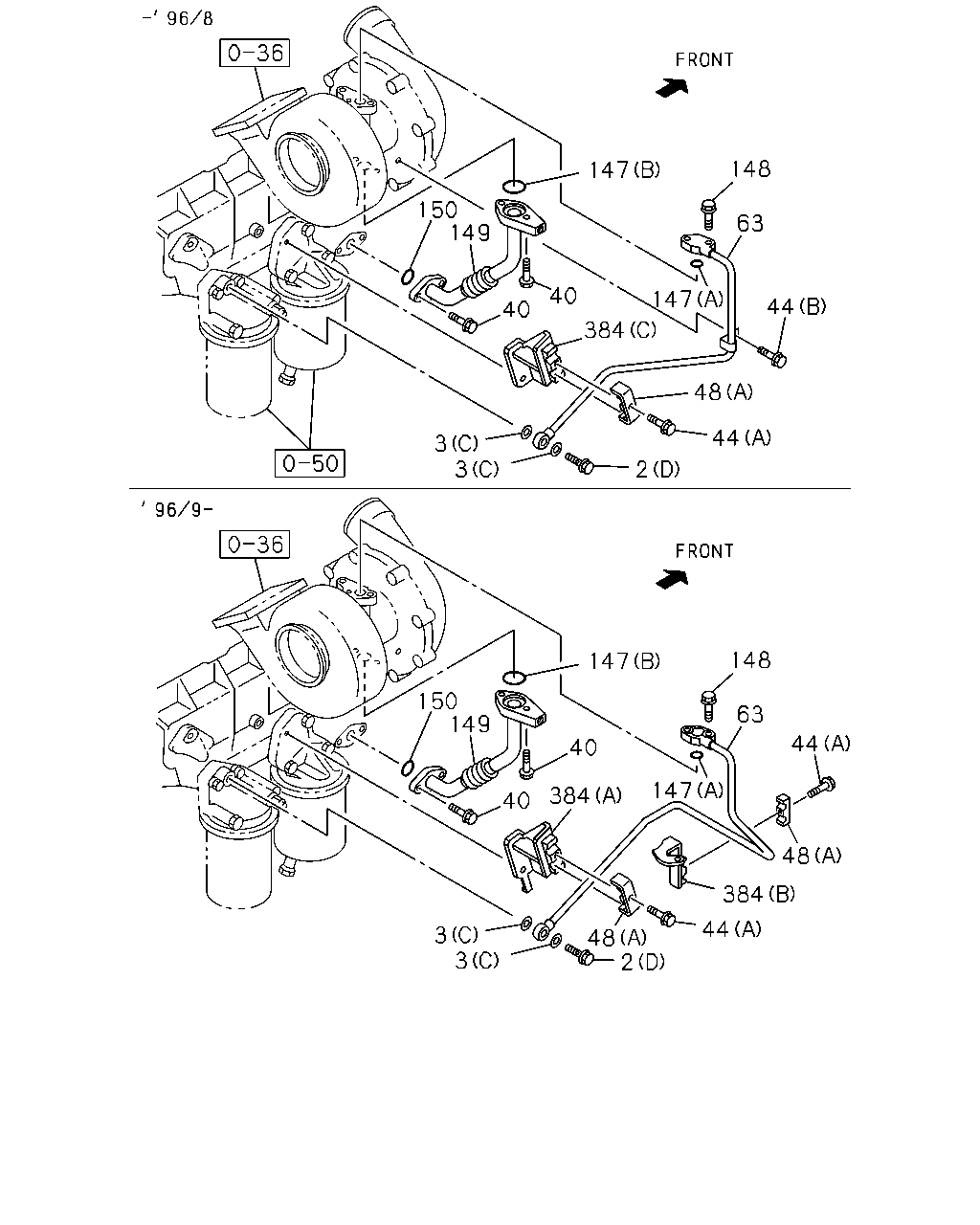

148 147 150 149 63 40 147 44 40 384 48 44 3 3 2 148 147 150 149 63 44 40 147 384 40 48 384 44 3 3 48 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (E)	1-09675-156-1	01	1	9703-9804	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9703-9905	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-9910	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9911-		●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (B) M14X27 FLANGE	1-09675-086-0	01	1	9805-9905	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	9906-9910	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (B) M14X27 FLANGE	1-09675-086-0	01	1	9911-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9606-9701	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9702-9706	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9707-9905	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9906-	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9606-9706	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9905	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	9906-	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9606-9706	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9707-9905	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	9906-	●	●		●
40	BOLT; OIL PIPE M10X25 FLANGE	0-28181-025-0	04	1	9606-9608	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9609-9706	●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9707-9905	●		●
40	BOLT; OIL PIPE M10X30 FLANGE	0-28181-030-0	04	1	9906-	●	●		●
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9606-9608	●
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28080-630-0	02	1	9609-9706	●
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28080-630-0	02	1	9707-9905	●		●
44	BOLT; CLIP,OIL PIPE (A) M6X30 FLANGE	0-28080-630-0	02	1	9906-	●	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X14 FLANGE	0-28080-814-0	01	1	9606-9608	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	01	1	9606-9608	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	02	1	9609-9706	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	02	1	9707-9905	●		●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	9906-	●	●		●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (B)	1-09701-132-0	06	1	9703-9905	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (B)	1-09701-132-1	06	1	9906-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-534-0	01	1	9606-9608	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-704-0	01	1	9609-9706	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-704-0	01	1	9707-9810	●		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9811-9905	●		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	9906-	●	●		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9606-9706	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9707-9905	●		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	9906-	●	●		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9606-9706	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9707-9905	●		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	9906-	●	●		●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9606-9706	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9707-9905	●		●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	9906-	●	●		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9606-9706	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9707-9905	●		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-0	01	1	9906-	●	●		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9606-9706	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9707-9905	●		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	9906-	●	●		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (C)	1-13345-185-0	01	1	9606-9608	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9609-9706	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9707-9905	●		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	9906-	●	●		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9609-9706	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9707-9905	●		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	9906-	●	●		●

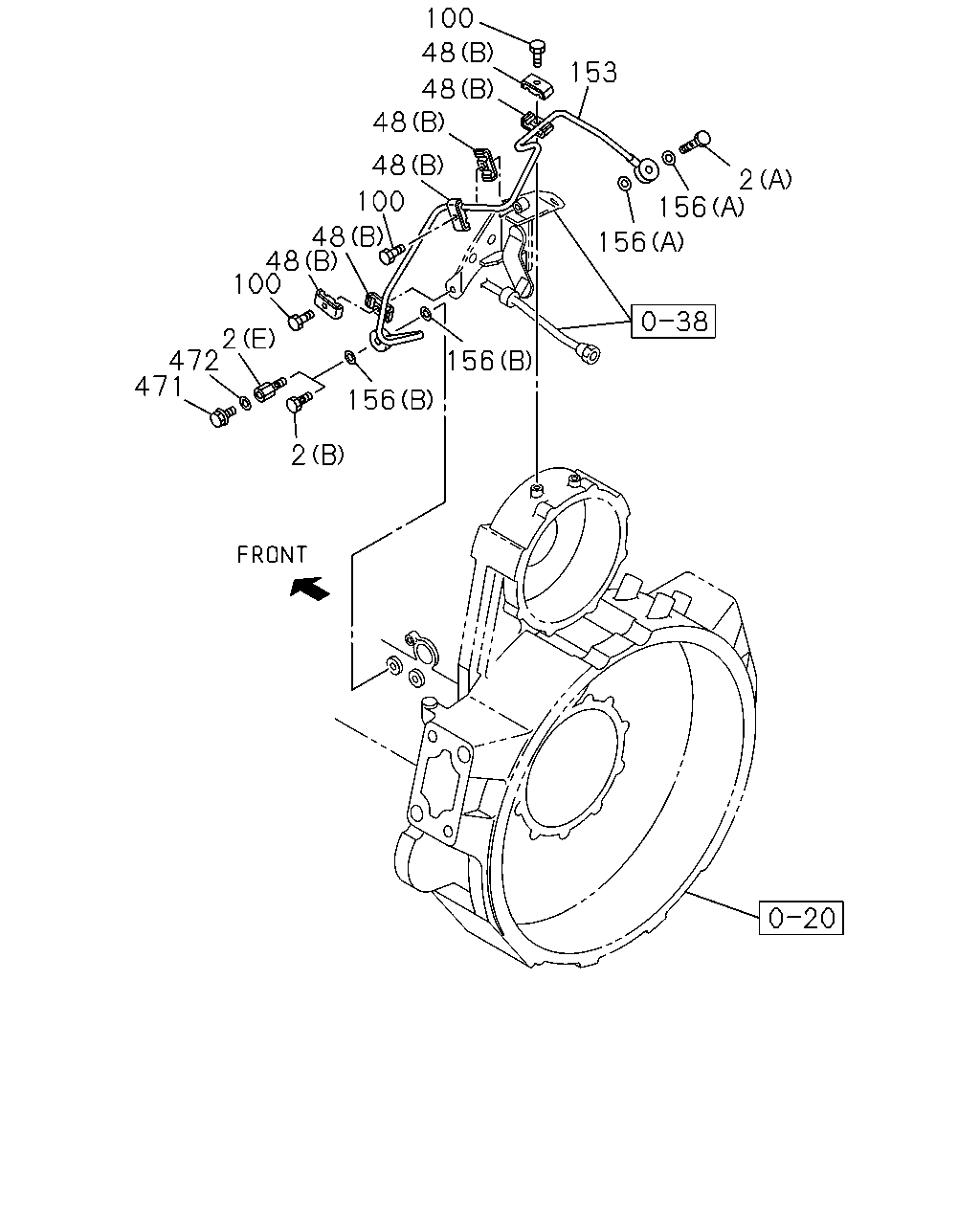

100 48 153 48 48 48 2 100 156 48 48 100 156 2 472 471 156 156 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9606-9706	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9707-9905	●		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	9906-	●	●		●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (E)	1-09675-156-1	01	1	9703-9804	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9703-9905	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-9910	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9911-		●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (B) M14X27 FLANGE	1-09675-086-0	01	1	9805-9905	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	9906-9910	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (B) M14X27 FLANGE	1-09675-086-0	01	1	9911-		●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	01	1	9606-9608	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	02	1	9609-9706	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-0	02	1	9707-9905	●		●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	9906-	●	●		●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (B)	1-09701-132-0	06	1	9703-9905	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (B)	1-09701-132-1	06	1	9906-		●
100	BOLT; CLIP ENGINE REAR PTO<SV1> M6X30 FLANGE	0-28680-630-0	03	1	9703-9905	●
100	BOLT; CLIP ENGINE REAR PTO<SV1> M6X30 FLANGE	0-28680-630-0	03	1	9906-		●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO<SV1>	1-13313-672-0	01	1	9703-9905	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO<SV1>	1-13313-672-0	01	1	9906-		●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO<SV1> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9703-9905	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO<SV1> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9906-		●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO<SV1> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9703-9905	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO<SV1> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-		●
471	PLUG; OIL ENGINE REAR PTO<SV1> M12X9	9-99202-312-0	01	1	9703-9804	●
472	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> ID=12.2	1-09630-084-0	01	1	9703-9804	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
