3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#50057) — 111 parça

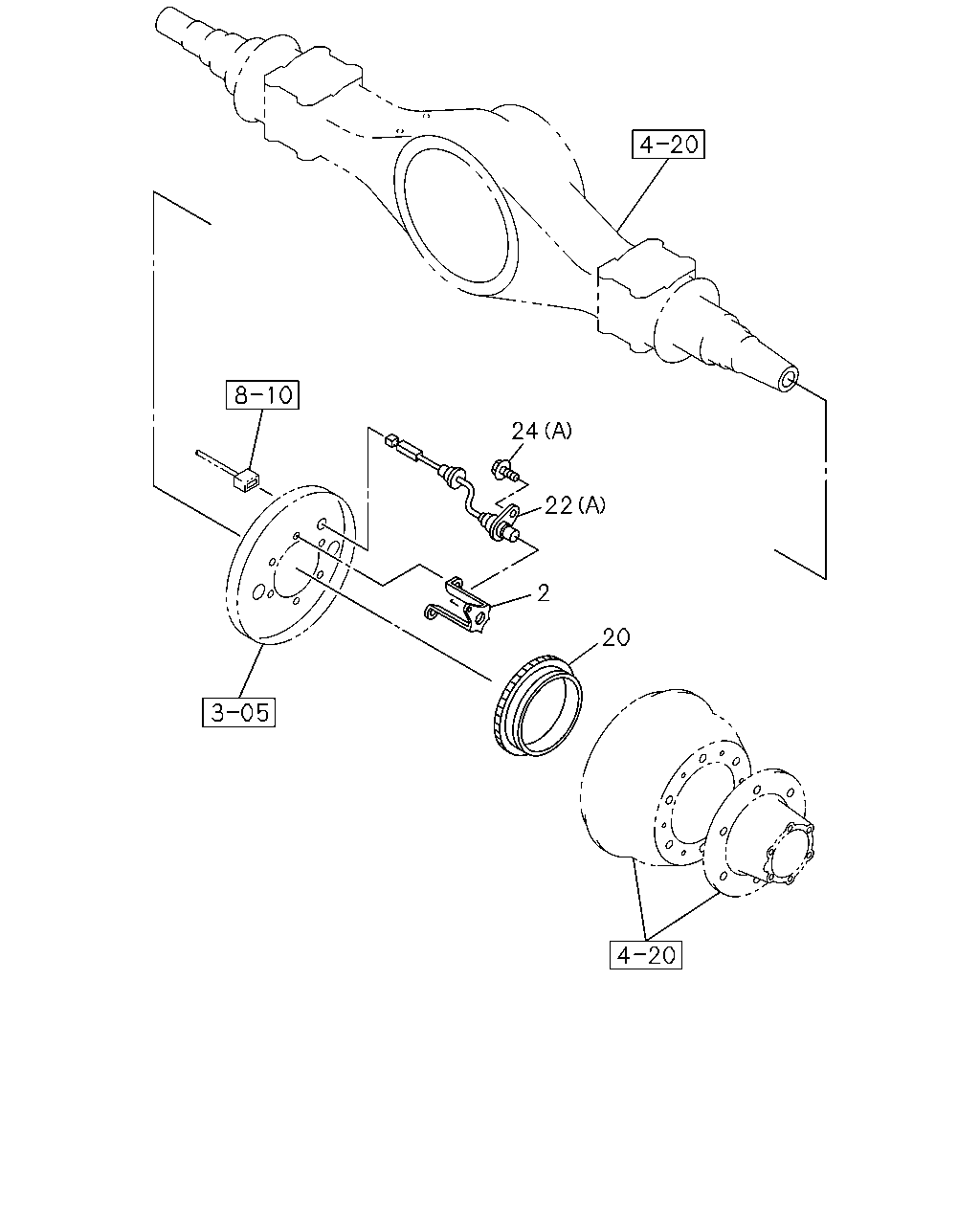

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.730 BRACKET; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98000-019-1	02	1	0905-0906	●	●
2	04.730 BRACKET; SENSOR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98000-019-1	02	1	0907-1007	●
2	04.730 BRACKET; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98000-019-1	02	1	0907-1007		●
2	04.730 BRACKET; SENSOR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98000-019-2	02	1	1008-	●
2	04.730 BRACKET; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98000-019-2	02	1	1008-		●
2	04.730 BRACKET; SENSOR HYDRO BRAKE BOOSTER(7QQ)	8-98002-440-1	02	1	0905-	●	●
20	04.710 ROTOR; SENSOR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97234-459-3	02	1	1212-1507	●
20	04.710 ROTOR; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	0905-0906	●	●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	0907-1007	●
20	04.710 ROTOR; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	0907-1007		●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	1008-1011	●
20	04.710 ROTOR; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	1008-1011		●
20	04.710 ROTOR; SENSOR FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	1012-	●
20	04.710 ROTOR; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	1012-	●
20	04.710 ROTOR; SENSOR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97206-774-4	02	1	1012-		●
20	04.710 ROTOR; SENSOR HYDRO BRAKE BOOSTER(7QQ)	8-97206-775-3	02	1	0905-	●	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-0	02	1	1008-1008	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ) (A)	8-97388-899-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/8(R40) (A)	8-97388-899-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) (A)	8-97388-899-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED (A)	8-97388-899-0	02	1	1008-1011			●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-1	02	1	1012-1401	●	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98244-877-0	02	1	1402-	●	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	0905-0906	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-0	02	1	0907-1007	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	0907-1007		●
22	04.710 SENSOR; SPEED 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	1008-1011		●
22	04.710 SENSOR; SPEED 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-1	02	1	1012-1401	●	●
22	04.710 SENSOR; SPEED 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1402-	●	●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	0905-0906	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-184-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	0907-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-391-0	01	1	1409-		●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	0905-0906	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-185-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	0907-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-392-0	01	1	1409-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-186-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1409-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-187-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1409-	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0907-1401	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0907-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0907-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0907-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0907-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0907-		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0907-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0907-		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0907-		●

24 24 24 22 24 24 24 29 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-0	02	1	1008-1008	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ) (A)	8-97388-899-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 43/8(R40) (A)	8-97388-899-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) (A)	8-97388-899-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED (A)	8-97388-899-0	02	1	1008-1011			●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97388-899-1	02	1	1012-1401	●	●
22	04.710 SENSOR; SPEED 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98244-877-0	02	1	1402-	●	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	0905-0906	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-0	02	1	0907-1007	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	0907-1007		●
22	04.710 SENSOR; SPEED 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-0	02	1	1008-1011	●
22	04.710 SENSOR; SPEED (A)	8-98002-215-0	02	1	1008-1011		●
22	04.710 SENSOR; SPEED 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-1	02	1	1012-1401	●	●
22	04.710 SENSOR; SPEED 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1402-	●	●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	0905-0906	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-184-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-184-0	01	1	0907-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-391-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-391-0	01	1	1409-		●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	0905-0906	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98006-185-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED (B)	8-98006-185-0	01	1	0907-1408		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B)	8-98219-392-0	01	1	1409-	●
22	04.710 SENSOR; SPEED (B)	8-98219-392-0	01	1	1409-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-186-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-393-0	01	1	1409-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98006-187-0	01	1	0907-1408	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B)	8-98219-394-0	01	1	1409-	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0907-1401	●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0907-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0907-1310	●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0907-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0907-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0907-		●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0907-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	0907-		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0905-0906	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0907-		●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●
