◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶

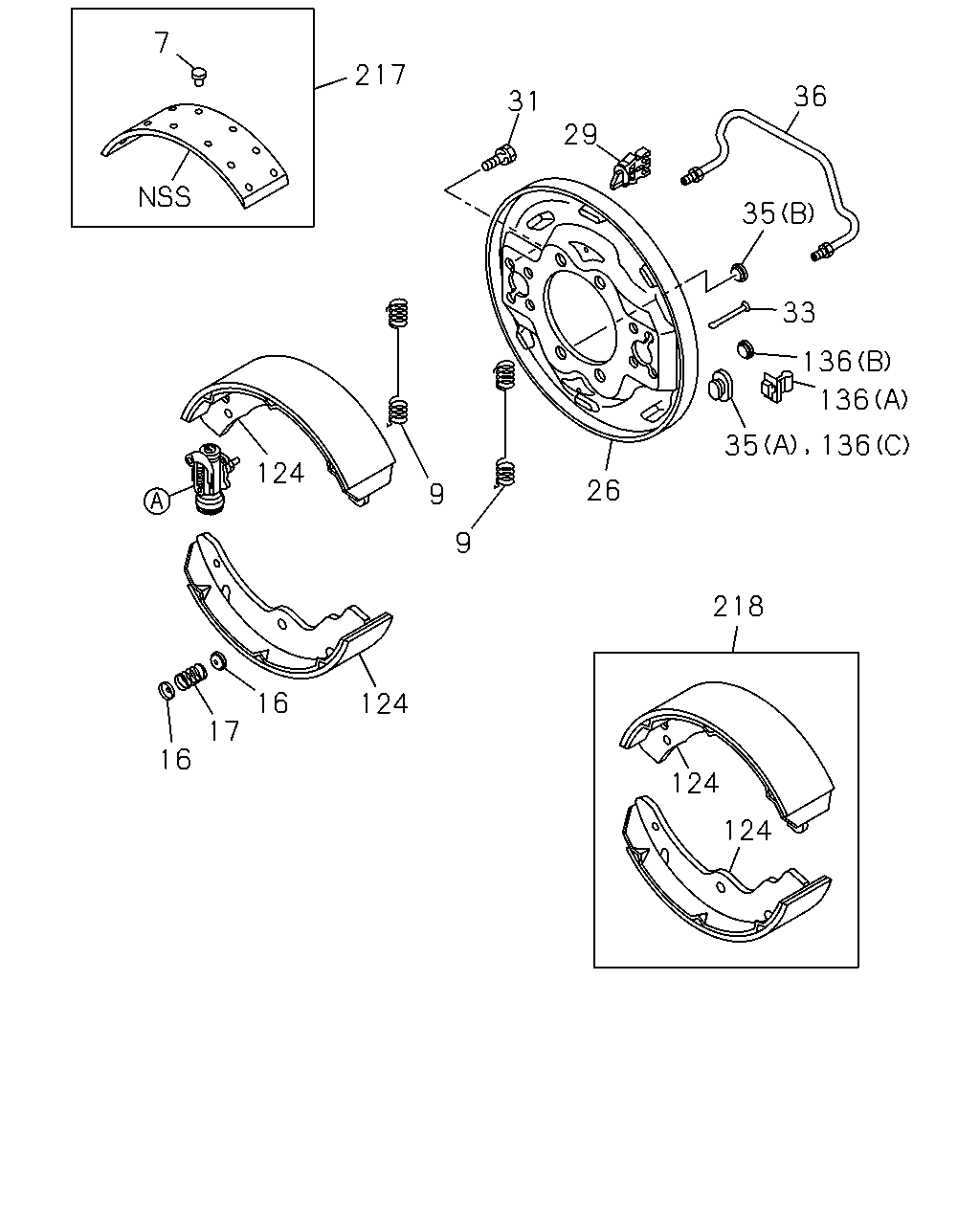

3-05 — REAR WHEEL BRAKE (#50053) — 153 parça

7 217 36 31 29 35 33 136 136 35 136 124 26 9 9 218 16 124 17 16 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	05.019 RIVET; LINING,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	1-09732-029-0	48	1	0905-	●	●
7	05.019 RIVET; LINING,RR BRK HYDRO BRAKE BOOSTER(7QQ)	1-09732-029-0	64	1	0905-	●	●
7	05.019 RIVET; LINING,RR BRK	1-09732-029-0	64	1	0905-			●	●
9	05.026 SPRING; RETURN,BRK SHOE	8-97191-707-0	04	1	0907-					●
9	05.026 SPRING; RETURN,BRK SHOE EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97022-087-0	04	1	0905-	●	●
9	05.026 SPRING; RETURN,BRK SHOE HYDRO BRAKE BOOSTER(7QQ)	8-97122-869-0	04	1	0905-	●	●
9	05.026 SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	0905-			●	●
16	05.043 CUP; SHOE HOLDING	8-97191-712-0	08	1	0907-					●
16	05.043 CUP; SHOE HOLDING	9-47165-096-0	08	1	0905-	●	●	●	●
17	04.043 SPRING; SHOE HOLD DOWN	8-97191-708-0	04	1	0907-					●
17	04.043 SPRING; SHOE HOLD DOWN 05.043	5-09580-101-1	04	1	0905-	●	●	●	●
26	05.001 PLATE; BACK,RR BRK	8-97191-696-0	01	1	0907-					●
26	05.001 PLATE; BACK,RR BRK	8-97191-697-0	01	1	0907-					●
26	05.001 PLATE; BACK,RR BRK FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ)	8-97376-073-0	01	1	0907-	●
26	05.001 PLATE; BACK,RR BRK FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ)	8-97376-074-0	01	1	0907-	●
26	05.001 PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	0905-0906	●	●
26	05.001 PLATE; BACK,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	0907-1007	●
26	05.001 PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	0907-1007		●
26	05.001 PLATE; BACK,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	1008-	●
26	05.001 PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-080-0	01	1	1008-		●
26	05.001 PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	0905-0906	●	●
26	05.001 PLATE; BACK,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	0907-1007	●
26	05.001 PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	0907-1007		●
26	05.001 PLATE; BACK,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	1008-	●
26	05.001 PLATE; BACK,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97192-081-0	01	1	1008-		●
26	05.001 PLATE; BACK,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-97207-157-0	01	1	0905-	●	●
26	05.001 PLATE; BACK,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-97207-158-0	01	1	0905-	●	●
26	05.001 PLATE; BACK,RR BRK	8-97134-731-0	01	1	0905-			●	●
26	05.001 PLATE; BACK,RR BRK	8-97134-732-0	01	1	0905-			●	●
29	04.685 CLIP; PIPE,BRK	8-97191-703-0	02	1	0907-					●
29	04.685 CLIP; PIPE,BRK	8-97022-086-0	02	1	0905-	●	●	●	●
31	04.665 BOLT; RR WHEEL CYL	8-97191-714-0	16	1	0907-					●
31	04.665 BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0905-	●	●	●	●
33	05.043 PIN; SHOE HOLD DOWN	8-97191-711-0	04	1	0907-					●
33	05.043 PIN; SHOE HOLD DOWN EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97022-089-0	04	1	0905-	●	●
33	05.043 PIN; SHOE HOLD DOWN HYDRO BRAKE BOOSTER(7QQ)	8-97122-870-0	04	1	0905-	●	●
33	05.043 PIN; SHOE HOLD DOWN	8-97122-870-0	04	1	0905-			●	●
35	05.002 GROMMET; CHECK HOLE (B)	8-97191-720-0	02	1	0907-					●
35	05.002 GROMMET; CHECK HOLE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97017-507-0	02	1	0905-	●	●
35	05.002 GROMMET; CHECK HOLE (A)	8-97017-507-0	02	1	0905-			●	●
35	05.002 GROMMET; CHECK HOLE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97017-507-0	06	1	0905-	●	●
36	04.685 PIPE; OIL,RR BRK	8-97191-702-0	02	1	0907-					●
36	04.685 PIPE; OIL,RR BRK	8-97192-215-0	02	1	0905-	●	●
36	04.685 PIPE; OIL,RR BRK	8-97079-847-0	02	1	0905-			●	●
124	05.017 SHOE ASM; BRK,RR	8-97331-932-0	04	1	0907-					●
124	05.017 SHOE ASM; BRK,RR EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97201-061-0	04	1	0905-	●	●
124	05.017 SHOE ASM; BRK,RR HYDRO BRAKE BOOSTER(7QQ)	8-97188-455-0	04	1	0905-	●	●
124	05.017 SHOE ASM; BRK,RR	8-97188-455-0	04	1	0905-			●	●
136	05.002 GROMMET (C)	8-97191-718-0	08	1	0907-					●
136	05.002 GROMMET 04.670 (B)	1-47154-008-0	04	1	0905-	●	●
136	05.002 GROMMET EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97017-507-0	04	1	0905-	●	●
136	05.002 GROMMET (A)	8-97044-742-1	04	1	0905-			●	●
217	05.018 LINING KIT; RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87831-774-0	01	1	0905-	●	●
217	05.018 LINING KIT; RR BRK HYDRO BRAKE BOOSTER(7QQ)	5-87831-692-0	01	1	0905-	●	●
217	05.018 LINING KIT; RR BRK	5-87831-692-0	01	1	0905-			●	●
217	05.018 LINING KIT; RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS	5-87610-120-0	01	1	0905-	●	●
217	05.018 LINING KIT; RR BRK HYDRO BRAKE BOOSTER(7QQ) BEST VALUE PARTS	5-87610-119-0	01	1	0905-	●	●
217	05.018 LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	0905-			●	●
218	05.017 SHOE KIT; BRK,RR	5-87832-044-0	01	1	0907-					●
218	05.017 SHOE KIT; BRK,RR EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87831-775-0	01	1	0905-	●	●
218	05.017 SHOE KIT; BRK,RR HYDRO BRAKE BOOSTER(7QQ)	5-87831-693-0	01	1	0905-	●	●
218	05.017 SHOE KIT; BRK,RR	5-87831-693-0	01	1	0905-			●	●

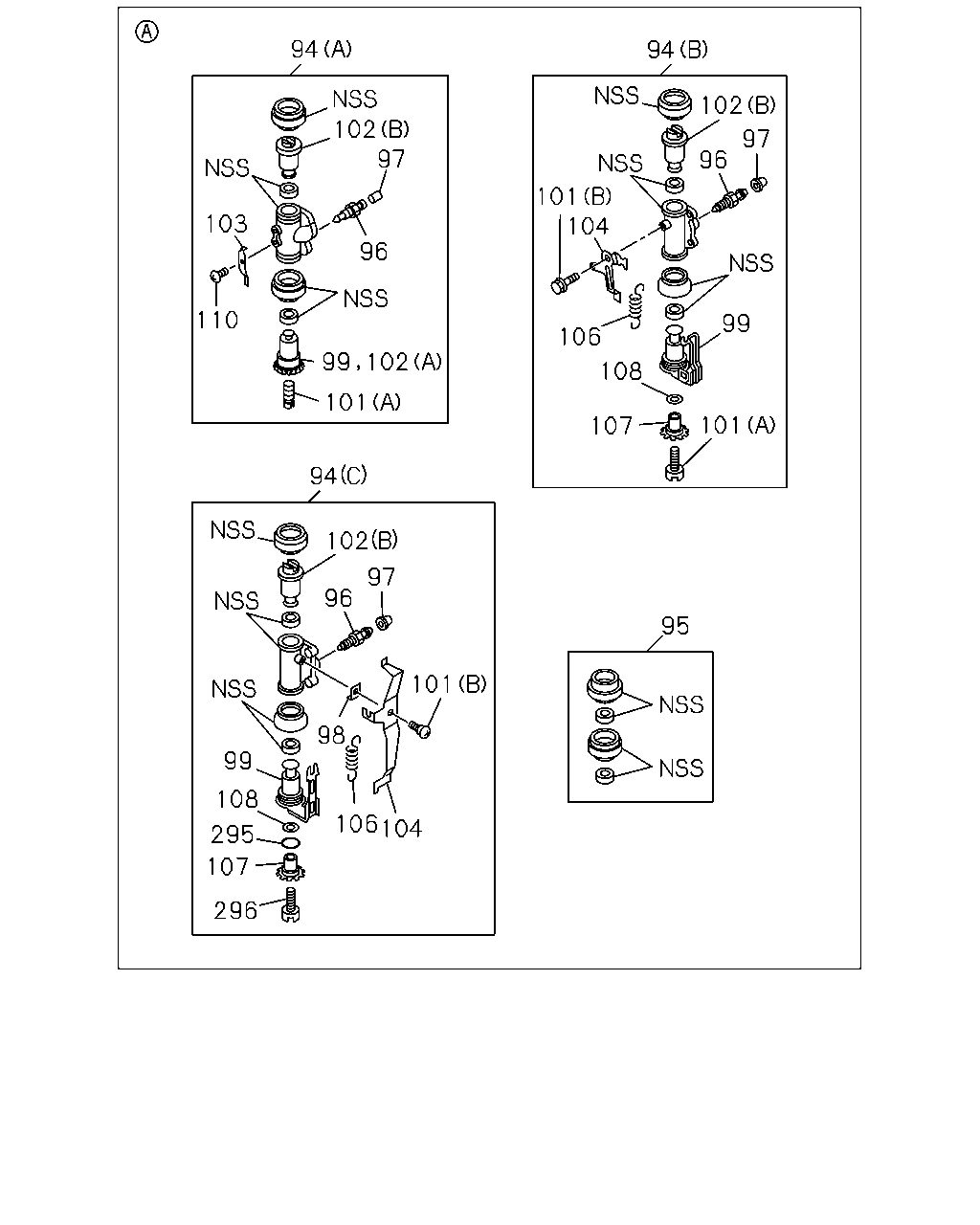

94 94 102 102 97 97 96 101 104 103 96 110 99 106 108 101 101 107 94 102 97 96 95 101 98 99 108 106 104 295 107 296 99 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
94	04.665 CYLINDER; WHEEL,RR BRK (C) FRONT	8-97191-497-0	01	1	0907-					●
94	04.665 CYLINDER; WHEEL,RR BRK (C) REAR	8-97191-499-0	01	1	0907-					●
94	04.665 CYLINDER; WHEEL,RR BRK (C)	8-97191-502-0	02	1	0907-					●
94	04.665 CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ) (B)	8-97349-705-0	02	1	0907-	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	0905-0906	●	●
94	04.665 CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	0907-1007	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	0907-1007		●
94	04.665 CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	1008-	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-705-0	01	1	1008-		●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97349-706-0	01	1	0905-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	0905-0906	●	●
94	04.665 CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	0907-1007	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	0907-1007		●
94	04.665 CYLINDER; WHEEL,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	1008-	●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-707-0	01	1	1008-		●
94	04.665 CYLINDER; WHEEL,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97349-708-0	01	1	0905-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97358-878-0	01	1	0905-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) REAR	8-97358-879-0	01	1	0905-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97358-880-0	01	1	0905-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK HYDRO BRAKE BOOSTER(7QQ) (B) FRONT	8-97358-881-0	01	1	0905-	●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A)	8-97353-570-0	02	1	0905-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) REAR	8-97353-571-0	01	1	0905-			●	●
94	04.665 CYLINDER; WHEEL,RR BRK (A) FRONT	8-97353-572-0	01	1	0905-			●	●
95	04.665 CUP SET; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	5-87832-051-0	02	1	0905-	●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87831-781-0	01	1	0907-					●
95	04.665 CUP SET; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	5-87832-070-0	01	1	0905-	●	●
95	04.665 CUP SET; RR WHEEL CYL	5-87832-080-0	02	1	0905-			●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-97191-759-0	01	1	0907-					●
96	04.666 SCREW; BLEEDER,RR BRK FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ)	8-98050-476-0	01	1	0907-	●
96	04.666 SCREW; BLEEDER,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98050-476-0	02	1	0905-0906	●	●
96	04.666 SCREW; BLEEDER,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98050-476-0	02	1	0907-1007	●
96	04.666 SCREW; BLEEDER,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98050-476-0	02	1	0907-1007		●
96	04.666 SCREW; BLEEDER,RR BRK FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98050-476-0	02	1	1008-	●
96	04.666 SCREW; BLEEDER,RR BRK EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98050-476-0	02	1	1008-		●
96	04.666 SCREW; BLEEDER,RR BRK HYDRO BRAKE BOOSTER(7QQ)	8-98050-477-0	02	1	0905-	●	●
96	04.666 SCREW; BLEEDER,RR BRK	8-98050-477-0	01	1	0905-			●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0905-0906			●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	01	1	0907-	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	01	1	0907-			●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-97191-774-0	01	1	0907-					●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	0905-0906	●	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98050-479-0	02	1	0907-	●
97	04.666 CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	0907-		●
98	04.669 SPRING; RR WHEEL CYL	8-97191-768-0	04	1	0907-					●
99	04.668 PISTON; RR WHEEL CYL	8-97191-731-0	02	1	0907-					●
99	04.668 PISTON; RR WHEEL CYL	8-97191-732-0	02	1	0907-					●
99	04.668 PISTON; RR WHEEL CYL FINAL GEAR RATIO 43/10(S7C) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	02	1	0907-	●
99	04.668 PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	0905-0906	●	●
99	04.668 PISTON; RR WHEEL CYL FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	0907-1007	●
99	04.668 PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	0907-1007		●
99	04.668 PISTON; RR WHEEL CYL FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	1008-	●
99	04.668 PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-729-0	01	1	1008-		●
99	04.668 PISTON; RR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-730-0	02	1	0905-	●	●
99	04.668 PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	8-97349-731-0	02	1	0905-	●	●
99	04.668 PISTON; RR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ)	8-97349-732-0	02	1	0905-	●	●
99	04.668 PISTON; RR WHEEL CYL	8-97353-579-0	03	1	0905-			●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (B)	8-97191-770-0	04	1	0907-					●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0905-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0905-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0905-	●	●
101	04.666 SCREW; ADJ,RR WHEEL CYL (A)	8-94414-702-0	04	1	0905-			●	●
102	04.668 PISTON; REAR WHEEL CYL (B)	8-97191-755-0	04	1	0907-					●
102	04.668 PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97078-045-0	04	1	0905-	●	●
102	04.668 PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	0905-0906	●	●
102	04.668 PISTON; REAR WHEEL CYL FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	0907-1007	●
102	04.668 PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	0907-1007		●
102	04.668 PISTON; REAR WHEEL CYL FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 43/10(S7C) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	1008-	●
102	04.668 PISTON; REAR WHEEL CYL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97349-729-0	01	1	1008-		●
102	04.668 PISTON; REAR WHEEL CYL HYDRO BRAKE BOOSTER(7QQ) (B)	8-97332-043-0	04	1	0905-	●	●
102	04.668 PISTON; REAR WHEEL CYL (B)	8-97353-578-0	04	1	0905-			●	●
102	04.668 PISTON; REAR WHEEL CYL (A)	8-97353-579-0	01	1	0905-			●	●
103	05.107 SPRING; LK,RR WHEEL CYL,ADJ	8-94128-486-0	04	1	0905-			●	●
104	05.103 LEVER; ADJ	8-97191-739-0	02	1	0907-					●
104	05.103 LEVER; ADJ	8-97191-740-0	02	1	0907-					●
104	05.103 LEVER; ADJ	8-97349-743-0	02	1	0905-	●	●
104	05.103 LEVER; ADJ	8-97349-744-0	02	1	0905-	●	●
106	05.107 SPRING; ADJ LEVER	8-97191-743-0	02	1	0907-					●
106	05.107 SPRING; ADJ LEVER	8-97191-744-0	02	1	0907-					●
106	05.107 SPRING; ADJ LEVER	8-97349-745-0	04	1	0905-	●	●
107	05.110 GEAR; ADJ,RR W/CYL	8-97191-747-0	02	1	0907-					●
107	05.110 GEAR; ADJ,RR W/CYL	8-97191-748-0	02	1	0907-					●
107	05.110 GEAR; ADJ,RR W/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-738-0	02	1	0905-	●	●
107	05.110 GEAR; ADJ,RR W/CYL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97349-740-0	02	1	0905-	●	●
107	05.110 GEAR; ADJ,RR W/CYL HYDRO BRAKE BOOSTER(7QQ) 04.665	8-97358-894-0	02	1	0905-	●	●
107	05.110 GEAR; ADJ,RR W/CYL HYDRO BRAKE BOOSTER(7QQ) 04.665	8-97358-895-0	02	1	0905-	●	●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97191-762-0	04	1	0907-					●
108	05.110 WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0905-	●	●
110	05.107 SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	0905-			●	●
295	05.110 SEAL; DUST	8-97191-751-0	04	1	0907-					●
296	05.125 BOLT; ADJ,RR WHEEL CYL	8-97191-764-0	02	1	0907-					●
296	05.125 BOLT; ADJ,RR WHEEL CYL	8-97191-765-0	02	1	0907-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
