◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#50051) — 147 parça

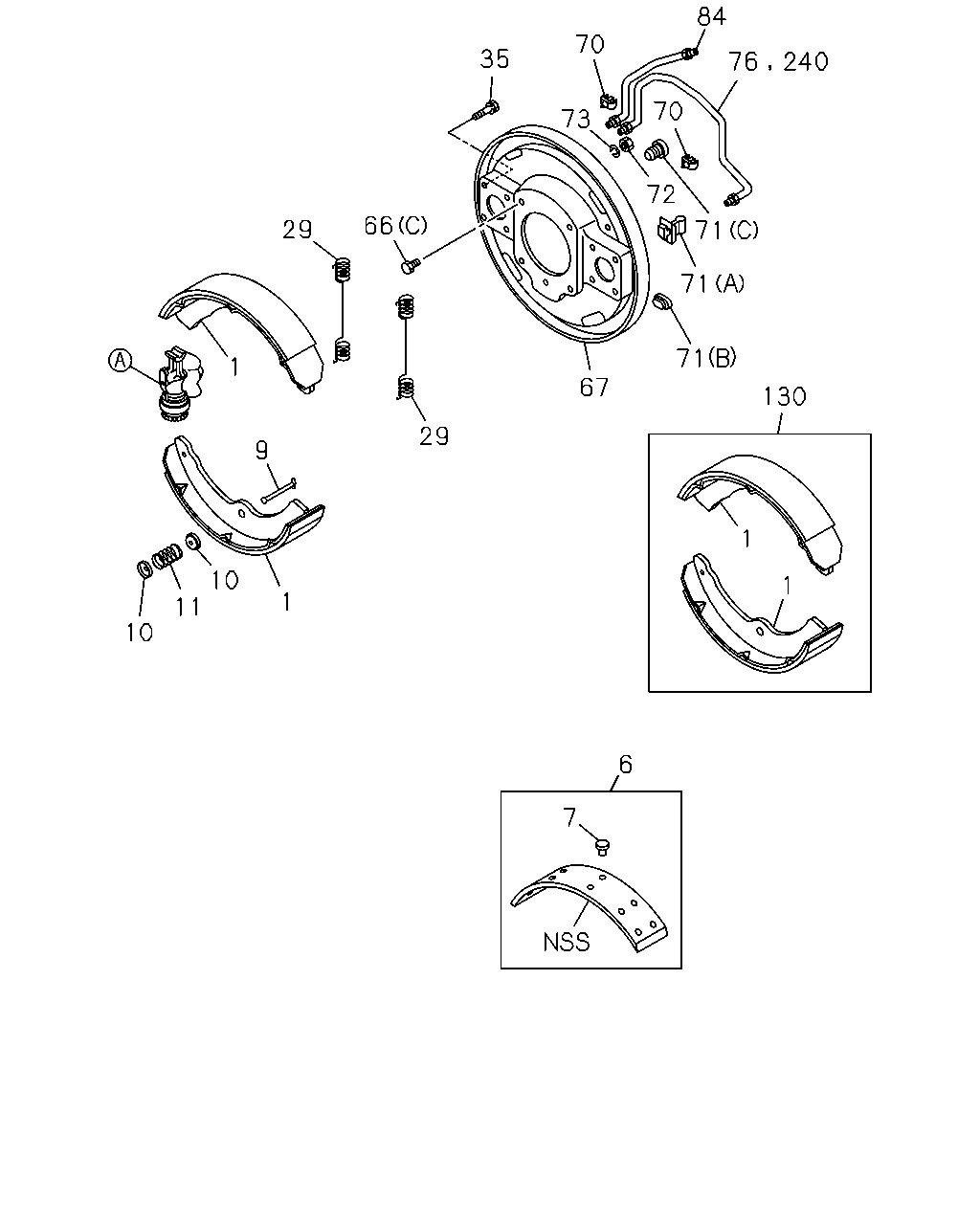

çizim 158842
84 70 35 70 73 72 66 29 71 71 71 1 67 130 29 9 1 10 1 1 11 10 6 7 76 240
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 05.017 SHOE; BRK,FRT 8-97188-455-0 04 1 0905-0906 ● ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97188-455-0 04 1 0907- ●
1 05.017 SHOE; BRK,FRT 8-97188-455-0 04 1 0907- ● ●
6 05.018 LINING KIT; FRT BRK 5-87831-692-0 01 1 0905-0906 ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		5-87831-692-0 01 1 0907- ●
6 05.018 LINING KIT; FRT BRK 5-87831-692-0 01 1 0907- ● ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 0905-0906 ● ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-119-0 01 1 0907- ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 0907- ● ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 0905-0906 ● ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		1-09732-029-0 64 1 0907- ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 0907- ● ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97122-870-0 04 1 0905-0906 ● ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.043 		8-97122-870-0 04 1 0907- ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97122-870-0 04 1 0907- ● ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0905-0906 ● ●
10 05.043 CUP; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		9-47165-096-0 08 1 0907- ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0907- ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 0905-0906 ● ●
11 05.027 SPRING; SHOE HOLDING
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.043 		5-09580-101-1 04 1 0907- ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 0907- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0905-0906 ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97122-869-0 04 1 0907- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0907- ● ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0905-0906 ● ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97081-305-0 16 1 0907- ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907-0907 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0907- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907-0907 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0907- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (C) M14X40 		8-98007-879-0 08 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0907- ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (C) M14X40 		8-98007-879-0 08 1 0907- ● ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-868-0 01 1 0907- ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-869-0 01 1 0907- ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 0905-1402 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 		8-97160-410-0 01 1 1403- ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 1403- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 0905-1402 ● ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 		8-97160-411-0 01 1 1403- ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 1403- ● ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 0905-0906 ● ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97022-086-0 04 1 0907- ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 0907- ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.670 (C) 		1-47154-008-0 04 1 0907- ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) 		8-97017-507-0 06 1 0907- ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 0905-1402 ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> (B) 		8-97017-507-0 02 1 1403- ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 1403- ● ●
71 05.002 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 0905-1402 ● ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> (A) 		8-97044-742-1 04 1 1403- ●
71 05.002 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 1403- ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0905-0906 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907-0907 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 0907- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907- ● ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 0905-0906 ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0907- ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 0907- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 0905-0906 ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 06.174 ID=14.2 		0-91510-814-0 08 1 0907- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 0907- ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 0905-1402 ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 		8-97079-847-0 02 1 1403- ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 1403- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0905-0906 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97039-676-0 01 1 0907- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0907- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0905-0906 ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97039-677-0 01 1 0907- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0907- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0905-0906 ● ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		5-87831-693-0 01 1 0907- ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0907- ● ●
240 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97079-847-0 02 1 0907- ●
çizim 158849
15 15 17 16 17 16 18 255 302 19 24 254 253 24 25 25 252 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) FRONT 		8-98081-290-0 01 1 0907- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) FRONT 		8-98081-291-0 01 1 0907- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) REAR 		8-98081-292-0 01 1 0907- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> (B) REAR 		8-98081-293-0 01 1 0907- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97353-573-0 01 1 0905-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> (A) FRONT 		8-97353-573-0 01 1 1403- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97353-573-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97353-574-0 01 1 0905-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> (A) FRONT 		8-97353-574-0 01 1 1403- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97353-574-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97353-575-0 01 1 0905-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> (A) REAR 		8-97353-575-0 01 1 1403- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97353-575-0 01 1 1403- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97353-576-0 01 1 0905-1402 ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> (A) REAR 		8-97353-576-0 01 1 1403- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97353-576-0 01 1 1403- ● ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 0905-0906 ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-477-0 02 1 0907- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 0907- ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0905-0906 ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0907- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0907- ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0905-1402 ● ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 		8-94128-486-0 04 1 1403- ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1403- ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0905-1402 ● ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 		8-94128-727-0 04 1 1403- ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1403- ● ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-731-0 02 1 0907- ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-732-0 02 1 0907- ●
24 04.668 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 0905-1402 ● ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 		8-97353-579-0 04 1 1403- ●
24 04.668 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 1403- ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-741-0 02 1 0907- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-742-0 02 1 0907- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 0905-1402 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 04.666 		8-94414-702-0 04 1 1403- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 1403- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.665 		5-87832-051-0 01 1 0907- ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87832-080-0 01 1 0905-1402 ● ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISCBRAKE FRT<J52> 04.665 		5-87832-080-0 01 1 1403- ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87832-080-0 01 1 1403- ● ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-894-0 02 1 0907- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97358-895-0 02 1 0907- ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.110 		8-97349-736-0 04 1 0907- ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.107 		8-97349-745-0 04 1 0907- ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-743-0 02 1 0907- ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-744-0 02 1 0907- ●
302 04.665 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-747-0 04 1 0907- ●

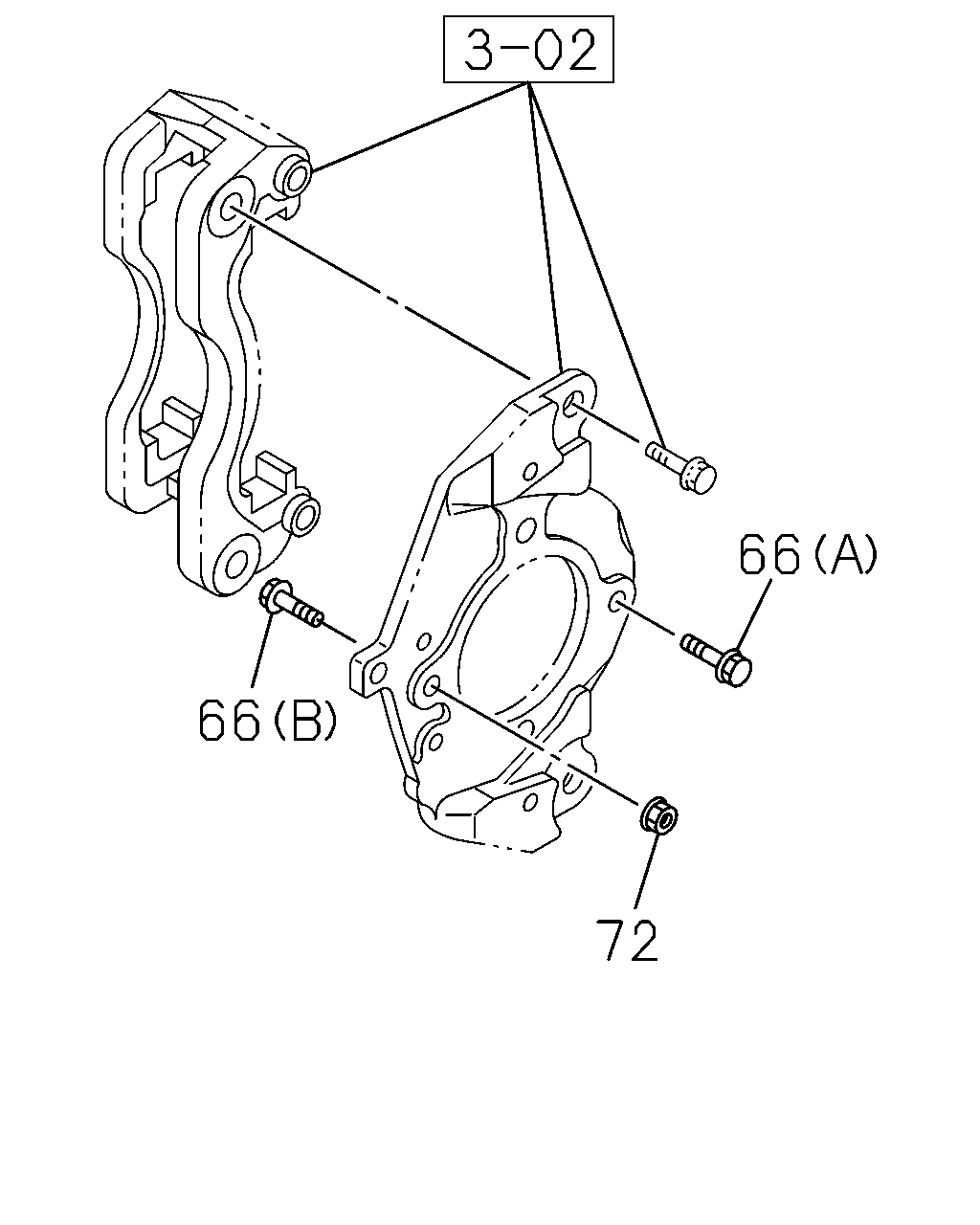

çizim 158859
66 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907-0907 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0907- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907-0907 ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0907- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0907- ● ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (C) M14X40 		8-98007-879-0 08 1 0905-0906 ● ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.002 (C) M14X40 		8-98007-879-0 08 1 0907- ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (C) M14X40 		8-98007-879-0 08 1 0907- ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0905-0906 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907-0907 ● ● ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 0907- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 0907- ● ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 0905-0906 ● ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 07.833 M14 		0-91110-514-0 08 1 0907- ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 0907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
