0-51B — OIL PUMP AND OIL STRAINER (#5005) — 132 parça

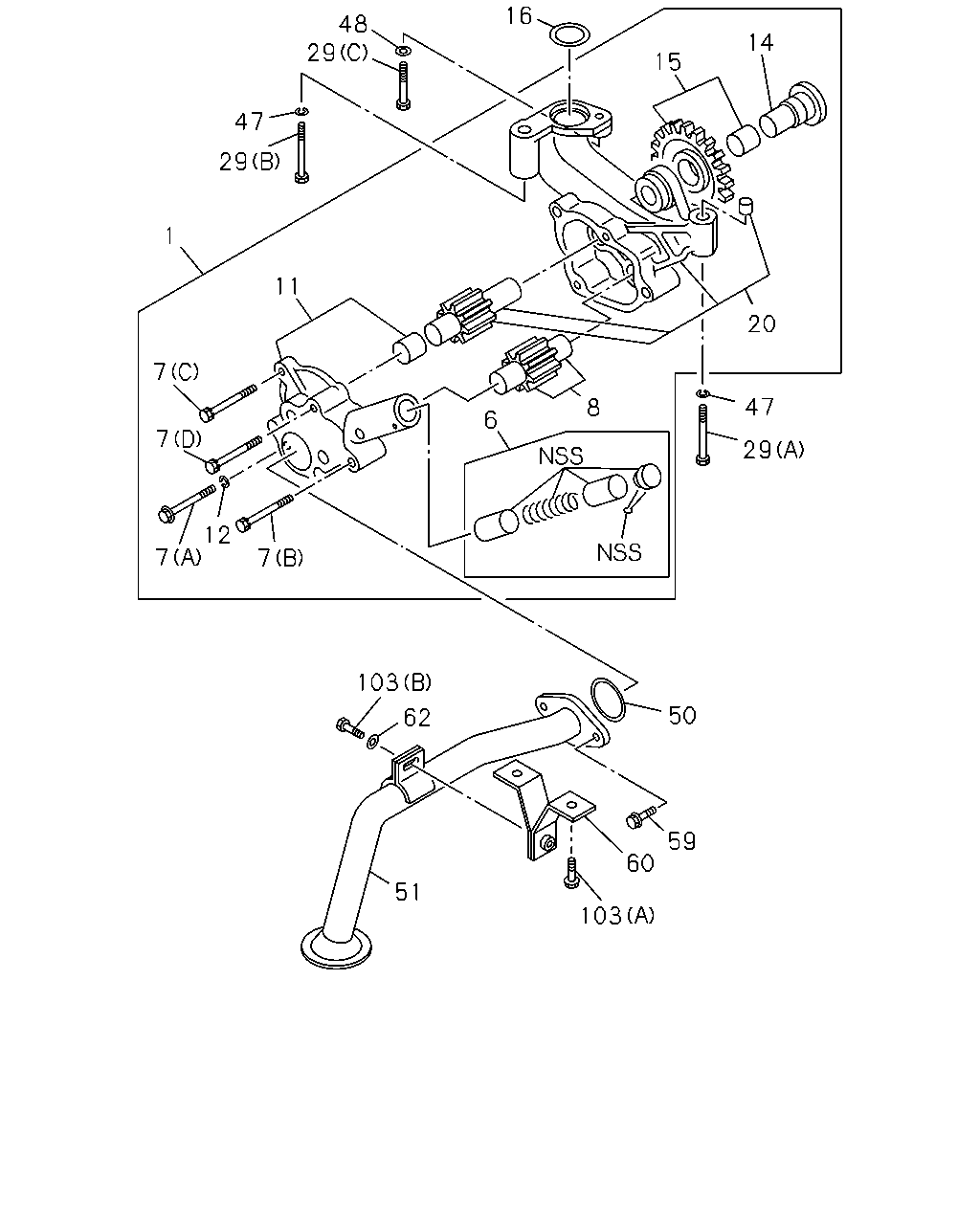

çizim 39483
16 48 29 14 15 47 29 1 11 20 7 47 8 6 7 29 12 7 7 103 50 62 59 60 51 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13100-278-0 01 1 9606-9705 ●
1 PUMP ASM; OIL
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13100-285-0 01 1 9706-9905 ●
1 PUMP ASM; OIL
ENGINE REAR PTO<SV1> 		1-13100-285-0 01 1 9906- ●
1 PUMP ASM; OIL
EXC. ENGINE REAR PTO<SV1> 		1-13100-279-0 01 1 9606-9705 ●
1 PUMP ASM; OIL
EXC. ENGINE REAR PTO<SV1> 		1-13100-286-0 01 1 9706-9905 ●
1 PUMP ASM; OIL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> 		1-13100-286-0 01 1 9906- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-012-0 01 1 9606-9705 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13161-026-0 01 1 9706-9905 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13161-026-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(A) M10X55 		0-16806-055-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(A) M10X55 		0-16806-055-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(B) M10X70 		0-16806-070-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(B) M10X70 		0-16806-070-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(C) M10X35 W/LK WASHER 		0-50051-035-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(C) M10X35 W/LK WASHER 		0-50051-035-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(D) M10X45 W/LK WASHER 		0-50051-045-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(D) M10X45 W/LK WASHER 		0-50051-045-0 01 1 9906- ●
8 GEAR; DRIVEN,OIL PUMP
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13125-046-0 01 1 9606-9905 ●
8 GEAR; DRIVEN,OIL PUMP
ENGINE REAR PTO<SV1> 		1-13125-046-0 01 1 9906- ●
8 GEAR; DRIVEN,OIL PUMP
EXC. ENGINE REAR PTO<SV1> 		1-13125-049-0 01 1 9606-9905 ●
8 GEAR; DRIVEN,OIL PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> 		1-13125-049-0 01 1 9906- ●
11 COVER ASM; OIL PUMP 1-13113-054-0 01 1 9606-9705 ●
11 COVER ASM; OIL PUMP 1-13113-070-0 01 1 9706-9905 ●
11 COVER ASM; OIL PUMP 1-13113-070-0 01 1 9906- ●
12 WASHER; LK,BOLT COVER
ID=10.2 		9-09150-510-0 02 1 9606-9905 ●
12 WASHER; LK,BOLT COVER
ID=10.2 		9-09150-510-0 02 1 9906- ●
14 SPINDLE; DRIVEN GEAR 1-13129-010-1 01 1 9606-9905 ●
14 SPINDLE; DRIVEN GEAR 1-13129-010-1 01 1 9906- ●
15 GEAR ASM; IDLE 1-13128-046-0 01 1 9606-9705 ●
15 GEAR ASM; IDLE 1-13128-027-0 01 1 9706-9905 ●
15 GEAR ASM; IDLE 1-13128-027-0 01 1 9906- ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9606-9905 ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9906- ●
20 GEAR; DRIVE,OIL PUMP
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13110-047-0 01 1 9606-9705 ●
20 GEAR; DRIVE,OIL PUMP
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13110-051-0 01 1 9706-9905 ●
20 GEAR; DRIVE,OIL PUMP
ENGINE REAR PTO<SV1> 		1-13110-051-0 01 1 9906- ●
20 GEAR; DRIVE,OIL PUMP
EXC. ENGINE REAR PTO<SV1> 		1-13110-048-0 01 1 9606-9705 ●
20 GEAR; DRIVE,OIL PUMP
EXC. ENGINE REAR PTO<SV1> 		1-13110-052-0 01 1 9706-9905 ●
20 GEAR; DRIVE,OIL PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> 		1-13110-052-0 01 1 9906- ●
29 BOLT; OIL PUMP
(A) M12X55 		9-01666-255-0 01 1 9606-9905 ●
29 BOLT; OIL PUMP
(A) M12X55 		9-01666-255-0 01 1 9906- ●
29 BOLT; OIL PUMP
(B) M12X70 		9-01666-270-0 01 1 9606-9905 ●
29 BOLT; OIL PUMP
(B) M12X70 		9-01666-270-0 01 1 9906- ●
29 BOLT; OIL PUMP
(C) M10X30 		9-02361-030-0 01 1 9606-9905 ●
29 BOLT; OIL PUMP
(C) M10X30 		9-02361-030-0 01 1 9906- ●
47 WASHER; LK,OIL PUMP
ID=12.5 		9-09851-682-0 02 1 9606-9905 ●
47 WASHER; LK,OIL PUMP
ID=12.5 		9-09851-682-0 02 1 9906- ●
48 WASHER; PL,OIL PUMP
ID=10 		1-09503-033-1 01 1 9606-9905 ●
48 WASHER; PL,OIL PUMP
ID=10 		1-09503-033-1 01 1 9906- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-397-0 01 1 9606-9905 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-397-0 01 1 9906- ●
51 STRAINER & PIPE ASM; OIL 1-13140-112-0 01 1 9606-9905 ●
51 STRAINER & PIPE ASM; OIL 1-13140-112-2 01 1 9906- ●
59 BOLT; BRKT,STRAINER
M8X18 FLANGE 		0-28080-818-0 02 1 9606-9905 ●
59 BOLT; BRKT,STRAINER
M8X18 FLANGE 		0-28080-818-0 02 1 9906- ●
60 BRACKET; OIL STRAINER 1-13145-048-0 01 1 9606-9905 ●
60 BRACKET; OIL STRAINER 1-13145-048-0 01 1 9906- ●
62 WASHER; PL,STAY
ID=8.4 OD=18 		9-09160-608-0 01 1 9606-9905 ●
62 WASHER; PL,STAY
ID=8.4 OD=18 		9-09160-608-0 01 1 9906- ●
103 BOLT; STRAINER
(A) M8X18 FLANGE 		0-28080-818-0 02 1 9606-9905 ●
103 BOLT; STRAINER
(A) M8X18 FLANGE 		0-28080-818-0 02 1 9906- ●
103 BOLT; STRAINER
(B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606-9905 ●
103 BOLT; STRAINER
(B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9906- ●

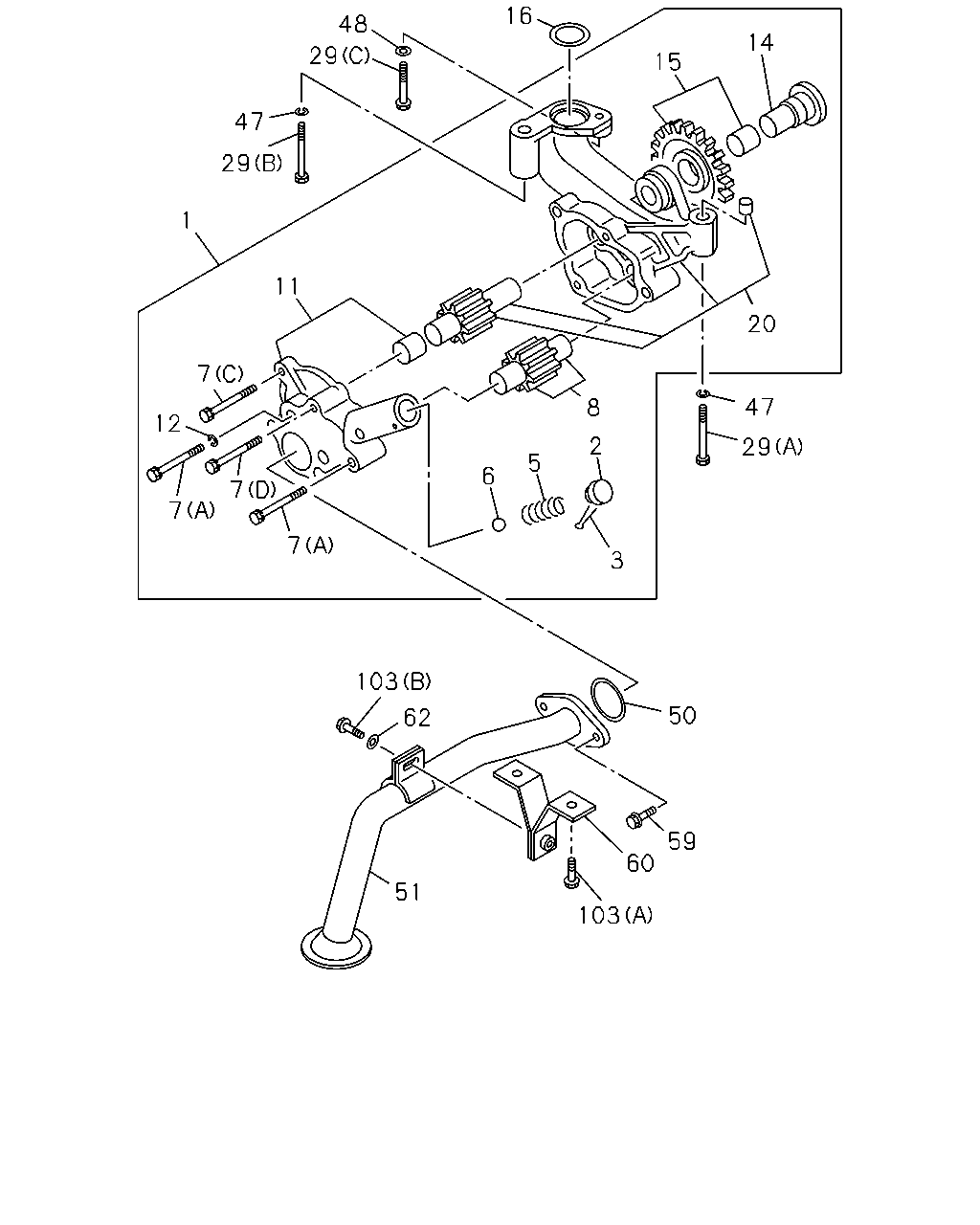

çizim 42110
16 48 14 29 15 47 29 1 11 20 7 47 8 12 2 29 5 6 7 7 7 3 103 50 62 59 60 51 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13100-278-0 01 1 9606-9705 ●
1 PUMP ASM; OIL
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13100-285-0 01 1 9706-9905 ●
1 PUMP ASM; OIL
ENGINE REAR PTO<SV1> 		1-13100-285-0 01 1 9906- ●
1 PUMP ASM; OIL
EXC. ENGINE REAR PTO<SV1> 		1-13100-279-0 01 1 9606-9705 ●
1 PUMP ASM; OIL
EXC. ENGINE REAR PTO<SV1> 		1-13100-286-0 01 1 9706-9905 ●
1 PUMP ASM; OIL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> 		1-13100-286-0 01 1 9906- ●
2 SEAT; SPR 1-13165-014-0 01 1 9706-9905 ●
2 SEAT; SPR 1-13165-014-0 01 1 9906- ●
3 PIN; SPLIT 9-08114-040-0 01 1 9606-9905 ●
3 PIN; SPLIT 9-08114-040-0 01 1 9906- ●
5 SPRING; COIL 1-09580-552-0 01 1 9706-9905 ●
5 SPRING; COIL 1-09580-552-0 01 1 9906- ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13160-012-0 01 1 9606-9705 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13161-026-0 01 1 9706-9905 ●
6 VALVE ASM; RELIEF,OIL PUMP 1-13161-026-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(A) M10X55 		0-16806-055-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(A) M10X55 		0-16806-055-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(B) M10X70 		0-16806-070-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(B) M10X70 		0-16806-070-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(C) M10X35 W/LK WASHER 		0-50051-035-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(C) M10X35 W/LK WASHER 		0-50051-035-0 01 1 9906- ●
7 BOLT; COVER,OIL PUMP
(D) M10X45 W/LK WASHER 		0-50051-045-0 01 1 9606-9905 ●
7 BOLT; COVER,OIL PUMP
(D) M10X45 W/LK WASHER 		0-50051-045-0 01 1 9906- ●
8 GEAR; DRIVEN,OIL PUMP
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13125-046-0 01 1 9606-9905 ●
8 GEAR; DRIVEN,OIL PUMP
ENGINE REAR PTO<SV1> 		1-13125-046-0 01 1 9906- ●
8 GEAR; DRIVEN,OIL PUMP
EXC. ENGINE REAR PTO<SV1> 		1-13125-049-0 01 1 9606-9905 ●
8 GEAR; DRIVEN,OIL PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> 		1-13125-049-0 01 1 9906- ●
11 COVER ASM; OIL PUMP 1-13113-054-0 01 1 9606-9705 ●
11 COVER ASM; OIL PUMP 1-13113-070-0 01 1 9706-9905 ●
11 COVER ASM; OIL PUMP 1-13113-070-0 01 1 9906- ●
12 WASHER; LK,BOLT COVER
ID=10.2 		9-09150-510-0 02 1 9606-9905 ●
12 WASHER; LK,BOLT COVER
ID=10.2 		9-09150-510-0 02 1 9906- ●
14 SPINDLE; DRIVEN GEAR 1-13129-010-1 01 1 9606-9905 ●
14 SPINDLE; DRIVEN GEAR 1-13129-010-1 01 1 9906- ●
15 GEAR ASM; IDLE 1-13128-046-0 01 1 9606-9705 ●
15 GEAR ASM; IDLE 1-13128-027-0 01 1 9706-9905 ●
15 GEAR ASM; IDLE 1-13128-027-0 01 1 9906- ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9606-9905 ●
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2 		1-09623-220-0 01 1 9906- ●
20 GEAR; DRIVE,OIL PUMP
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13110-047-0 01 1 9606-9705 ●
20 GEAR; DRIVE,OIL PUMP
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-13110-051-0 01 1 9706-9905 ●
20 GEAR; DRIVE,OIL PUMP
ENGINE REAR PTO<SV1> 		1-13110-051-0 01 1 9906- ●
20 GEAR; DRIVE,OIL PUMP
EXC. ENGINE REAR PTO<SV1> 		1-13110-048-0 01 1 9606-9705 ●
20 GEAR; DRIVE,OIL PUMP
EXC. ENGINE REAR PTO<SV1> 		1-13110-052-0 01 1 9706-9905 ●
20 GEAR; DRIVE,OIL PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> 		1-13110-052-0 01 1 9906- ●
29 BOLT; OIL PUMP
(A) M12X55 		9-01666-255-0 01 1 9606-9905 ●
29 BOLT; OIL PUMP
(A) M12X55 		9-01666-255-0 01 1 9906- ●
29 BOLT; OIL PUMP
(B) M12X70 		9-01666-270-0 01 1 9606-9905 ●
29 BOLT; OIL PUMP
(B) M12X70 		9-01666-270-0 01 1 9906- ●
29 BOLT; OIL PUMP
(C) M10X30 		9-02361-030-0 01 1 9606-9905 ●
29 BOLT; OIL PUMP
(C) M10X30 		9-02361-030-0 01 1 9906- ●
47 WASHER; LK,OIL PUMP
ID=12.5 		9-09851-682-0 02 1 9606-9905 ●
47 WASHER; LK,OIL PUMP
ID=12.5 		9-09851-682-0 02 1 9906- ●
48 WASHER; PL,OIL PUMP
ID=10 		1-09503-033-1 01 1 9606-9905 ●
48 WASHER; PL,OIL PUMP
ID=10 		1-09503-033-1 01 1 9906- ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-397-0 01 1 9606-9905 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-397-0 01 1 9906- ●
51 STRAINER & PIPE ASM; OIL 1-13140-112-0 01 1 9606-9905 ●
51 STRAINER & PIPE ASM; OIL 1-13140-112-2 01 1 9906- ●
59 BOLT; BRKT,STRAINER
M8X18 FLANGE 		0-28080-818-0 02 1 9606-9905 ●
59 BOLT; BRKT,STRAINER
M8X18 FLANGE 		0-28080-818-0 02 1 9906- ●
60 BRACKET; OIL STRAINER 1-13145-048-0 01 1 9606-9905 ●
60 BRACKET; OIL STRAINER 1-13145-048-0 01 1 9906- ●
62 WASHER; PL,STAY
ID=8.4 OD=18 		9-09160-608-0 01 1 9606-9905 ●
62 WASHER; PL,STAY
ID=8.4 OD=18 		9-09160-608-0 01 1 9906- ●
103 BOLT; STRAINER
(A) M8X18 FLANGE 		0-28080-818-0 02 1 9606-9905 ●
103 BOLT; STRAINER
(A) M8X18 FLANGE 		0-28080-818-0 02 1 9906- ●
103 BOLT; STRAINER
(B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9606-9905 ●
103 BOLT; STRAINER
(B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9906- ●
