3 |
03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
IDENTIFICATION LABEL FOR KD<6UT>
(D)
|
8-98214-261-0 |
01 |
1 |
1204- |
|
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(C)
|
8-98005-237-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
(C)
|
8-98005-237-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W)
(C)
|
8-98005-237-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
(C)
|
8-98005-237-0 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3800MM(38W)
(C)
|
8-97387-264-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3800MM(38W)
(C)
|
8-97387-264-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
(B)
|
8-98097-777-1 |
01 |
1 |
0905-1203 |
|
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-98097-777-1 |
01 |
1 |
1204- |
|
● |
|
|
|
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
(A)
|
8-98020-602-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |

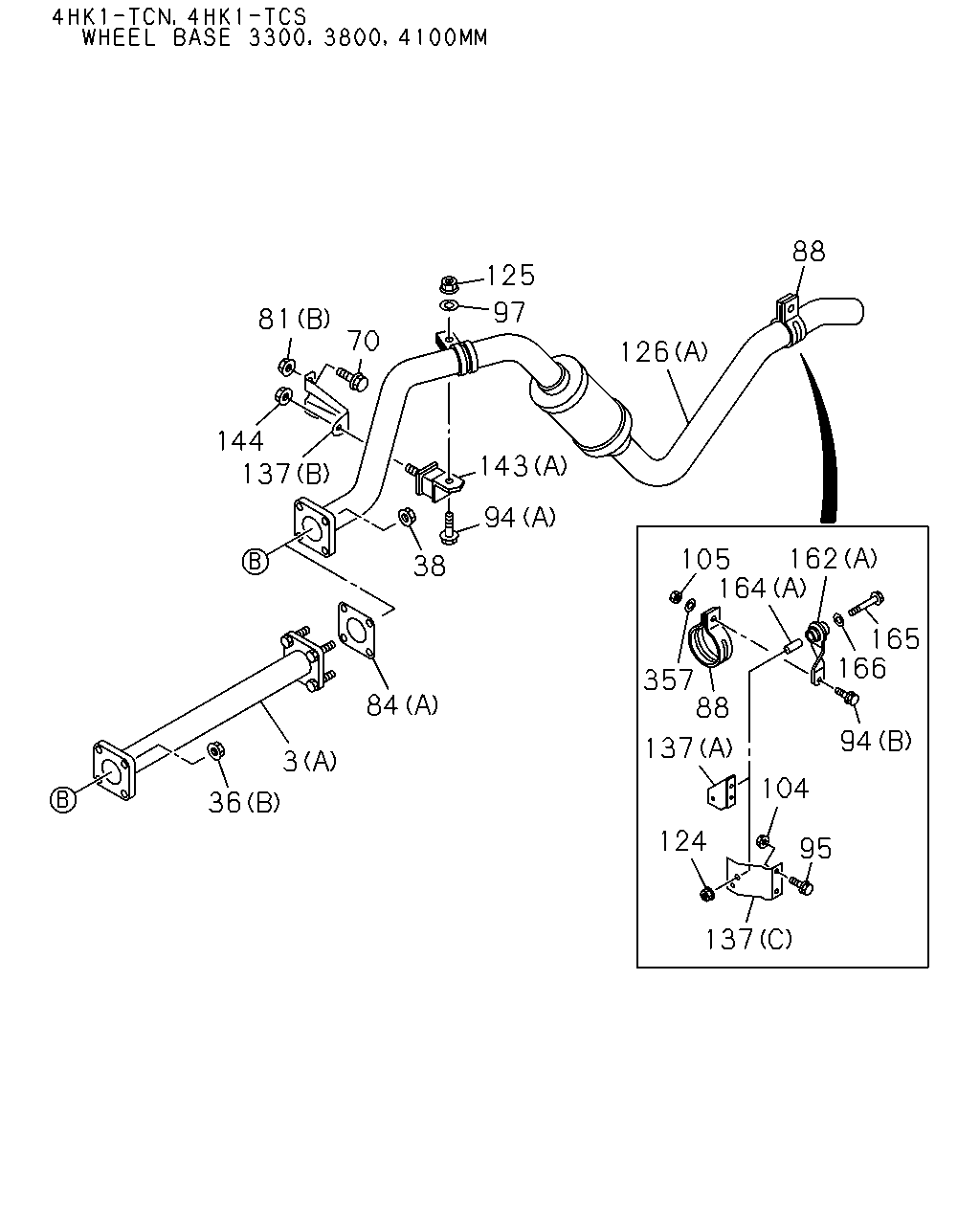

3 |
03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
(A)
|
8-98020-602-0 |
01 |
1 |
0905- |
|
|
|
● |
|
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS)
(A)
|
8-98020-602-0 |
01 |
1 |
0905- |
|
|
|
|
● |
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-98099-061-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
|
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-98099-061-0 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
3 |
03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W)
(A)
|
8-98099-061-0 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
12 |

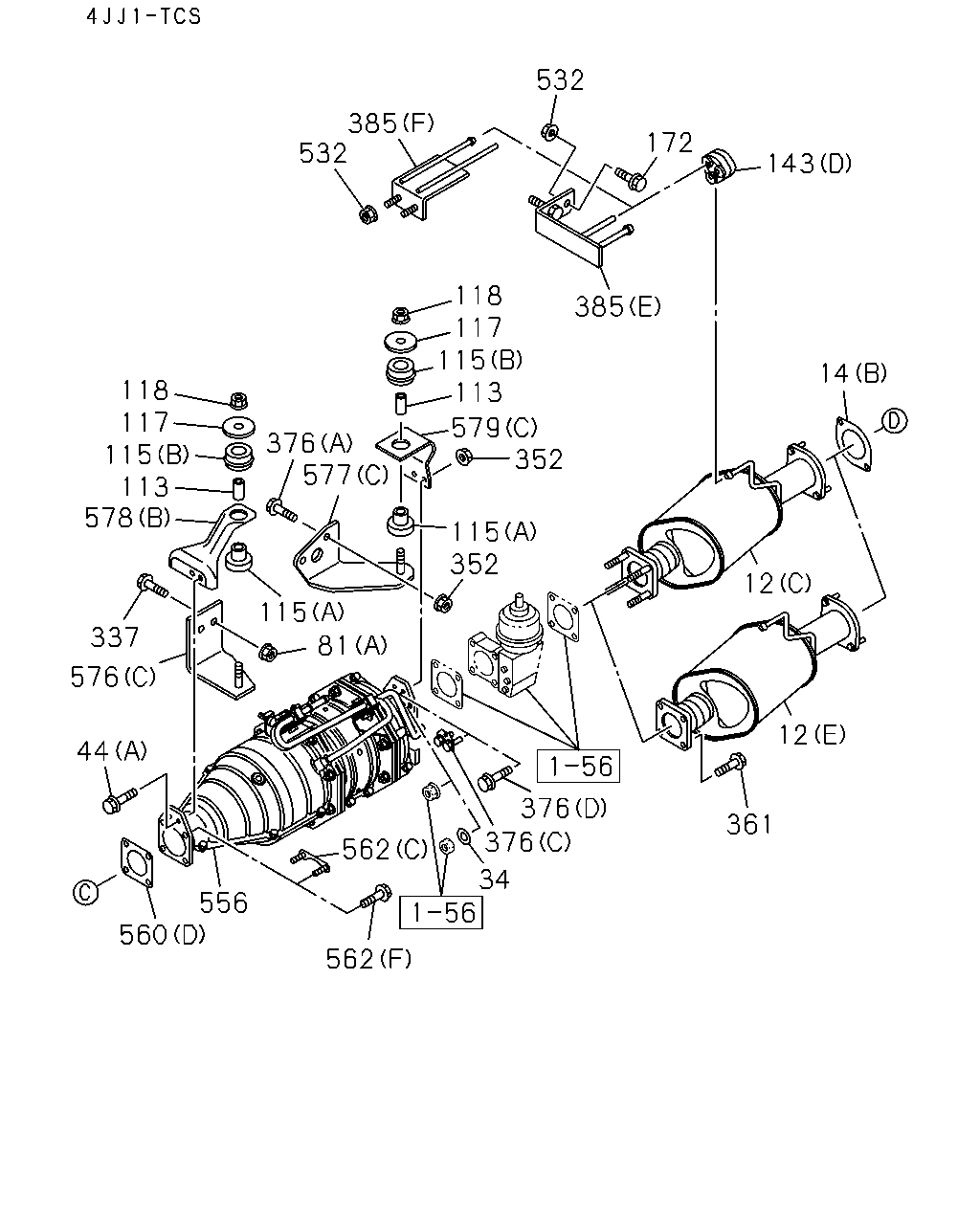

03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
IDENTIFICATION LABEL FOR KD<6UT>
(E)
|
8-98214-241-0 |
01 |
1 |
1204-1308 |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
IDENTIFICATION LABEL FOR KD<6UT>
(E)
|
8-98254-792-0 |
01 |
1 |
1309- |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
IDENTIFICATION LABEL FOR KD<6UT>
(D)
|
8-98214-243-0 |
01 |
1 |
1204- |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL B
ASE 4400MM(44W)
IDENTIFICATION LABEL FOR KD<6UT>
(D)
|
8-98214-243-0 |
01 |
1 |
1204- |
|
|
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
(C)
|
8-97387-244-1 |
01 |
1 |
0907-1011 |
● |
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
(C)
|
8-97387-244-1 |
01 |
1 |
1012-1203 |
● |
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(C)
|
8-97387-244-1 |
01 |
1 |
1204-1308 |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
(C)
|
8-97387-244-1 |
01 |
1 |
1204-1308 |
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(C)
|
8-98254-780-0 |
01 |
1 |
1309- |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB)
(C)
|
8-98254-780-0 |
01 |
1 |
1309- |
● |
|
|
|
|
| |
12 |

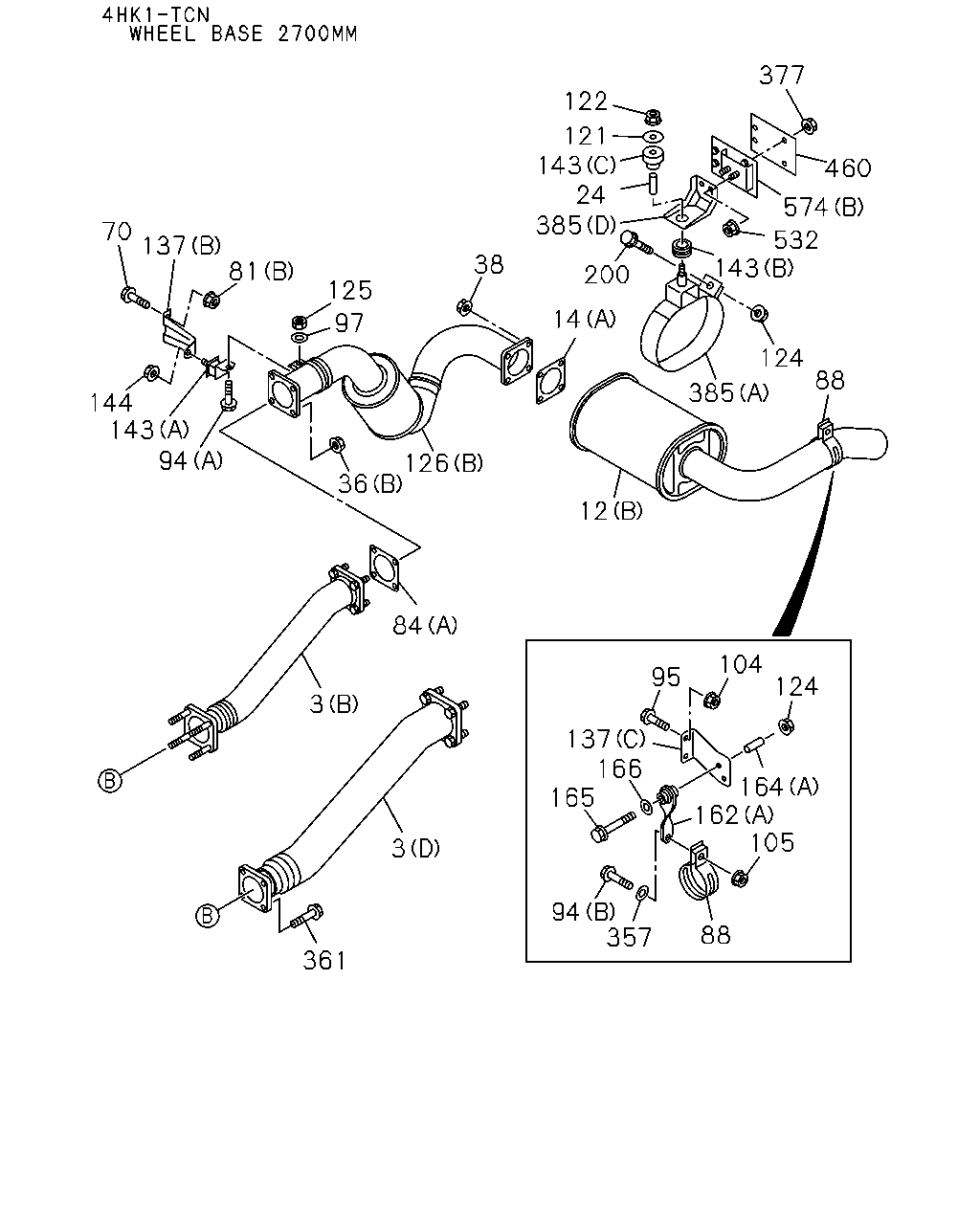

03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
(B)
|
8-98097-779-0 |
01 |
1 |
0905- |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98020-562-1 |
01 |
1 |
0905-0912 |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS)
(A)
|
8-98020-562-1 |
01 |
1 |
0905-0912 |
|
|
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98020-562-1 |
01 |
1 |
1001-1011 |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(A)
|
8-98020-562-1 |
01 |
1 |
1001-1011 |
|
|
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS)
(A)
|
8-98020-562-1 |
01 |
1 |
1001-1011 |
|
|
|
|
● |
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98020-562-1 |
01 |
1 |
1012-1203 |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS)
(A)
|
8-98020-562-1 |
01 |
1 |
1012-1203 |
|
|
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ)
(A)
|
8-98020-562-1 |
01 |
1 |
1012-1203 |
|
|
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL B
ASE 4400MM(44W)
EURO5 SPECIFICATION(NT5)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(A)
|
8-98020-562-1 |
01 |
1 |
1204- |
● |
● |
● |
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB)
03.611
(B)
ID=65
|
8-97148-757-1 |
01 |
1 |
0907-1011 |
● |
● |
|
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB)
03.611
(B)
ID=65
|
8-97148-757-1 |
01 |
1 |
1012- |
● |
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ)
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
24 |
03.613 COLLAR; DIST,CLAMP
4HK1-TCN ENG(RDQ)
03.706
L=37.5
|
9-22151-217-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
24 |
03.613 COLLAR; DIST,CLAMP
03.706
L=37.5
|
9-22151-217-0 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
(C)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1011 |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
03.162
(C)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
(C)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB)
03.162
(C)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
(A)
M10 FLANGE
|
8-97096-192-1 |
03 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
(A)
M10 FLANGE
|
8-97096-192-1 |
03 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-1011 |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-1011 |
|
|
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
WHEEL BASE 3800MM(38W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905-1011 |
|
|
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012- |
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4HK1-TCS ENG(RJS)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012- |
|
|
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
03.162
(B)
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012- |
|
|
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1011 |
● |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
● |
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905- |
|
● |
● |
|
|
| |
38 |
00.002 NUT; SILENCER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
0905- |
|
|
|
● |
● |
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-1011 |
|
● |
|
|
|
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012- |
|
● |
● |
|
|
| |
70 |
03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
70 |
03.706 BOLT; BRKT
4HK1-TCN ENG(RDQ)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905- |
|
● |
● |
|
|
| |
70 |
03.706 BOLT; BRKT
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905- |
|
|
|
● |
● |
| |
81 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905- |
|
● |
● |
|
|
| |
81 |
03.704 NUT; BRKT
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905- |
|
|
|
● |
● |
| |
81 |
03.704 NUT; BRKT
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
81 |
03.704 NUT; BRKT
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1007 |
● |
● |
● |
● |
● |
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1007 |
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1007 |
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1008-1011 |
|
● |
|
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1008-1011 |
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
● |
● |
|
|
| |
81 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
03.162
(A)
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(B)
ID=65
|
8-97148-757-1 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB)
(B)
ID=65
|
8-97148-757-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(B)
ID=65
|
8-97148-757-1 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB)
(B)
ID=65
|
8-97148-757-1 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905-1011 |
|
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905-1011 |
|
● |
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
● |
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905-1011 |
|
|
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
0905-1011 |
|
|
|
|
● |
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3800MM(38W)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
1012- |
|
● |
|
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
1012- |
|
|
|
● |
● |
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W),WHEEL BASE 4400MM(44W)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
84 |
03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS)
03.704
(A)
ID=85.8
|
1-22116-043-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
88 |

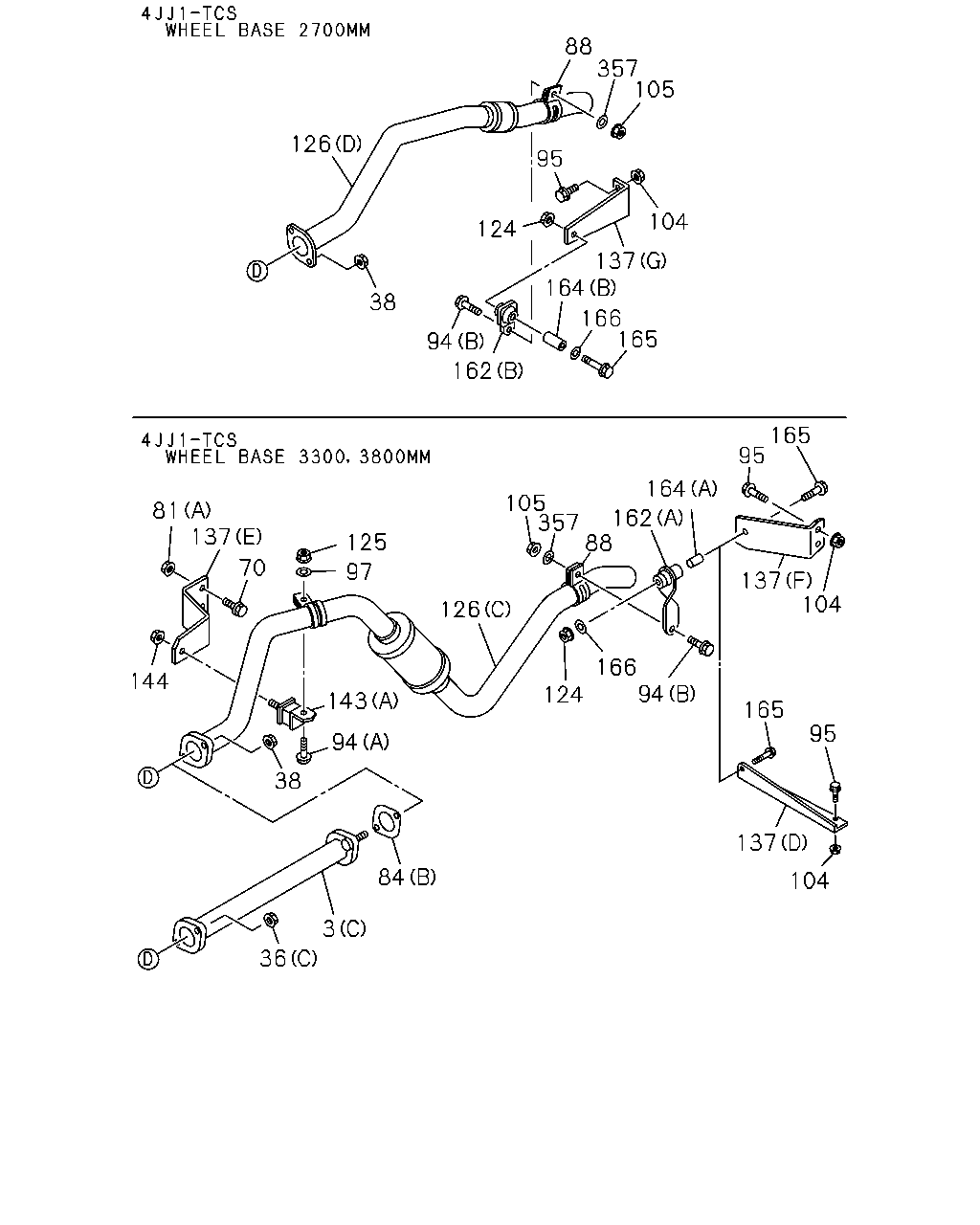

03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
|
8-97373-158-0 |
01 |
1 |
0907-1011 |
● |
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-97373-158-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
|
8-97373-158-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
|
8-97373-158-0 |
01 |
1 |
1012- |
● |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
|
8-97373-158-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB)
|
8-97373-158-0 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ)
|
8-98034-766-0 |
01 |
1 |
0905-0908 |
|
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
|
8-98034-766-0 |
01 |
1 |
0905-0908 |
|
|
|
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ)
|
8-98034-766-0 |
01 |
1 |
0909-1108 |
|
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ)
EXC. NOISE PACK FOR REGULATION
VAR.2<7TF>
|
8-98034-766-0 |
01 |
1 |
0909-1108 |
|
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
|
8-98034-766-0 |
01 |
1 |
0909-1108 |
|
|
|
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ)
|
8-98034-766-0 |
01 |
1 |
1109- |
|
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ)
EXC. NOISE PACK FOR REGULATION
VAR.2<7TF>
|
8-98034-766-0 |
01 |
1 |
1109- |
|
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS)
|
8-98034-766-0 |
01 |
1 |
1109- |
|
|
|
● |
● |
| |
94 |
03.704 BOLT; CLAMP
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
00.685
(B)
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ)
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0905-0906 |
|
● |
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4HK1-TCS ENG(RJS)
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0905-0906 |
|
|
|
● |
● |
| |
94 |
03.704 BOLT; CLAMP
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
0907-1011 |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ)
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
94 |
03.704 BOLT; CLAMP
03.023
(A)
M10X50 FLANGE
|
8-97301-165-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
03 |
1 |
0907- |
● |
|
|
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905-0906 |
|
|
|
● |
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905-0906 |
|
|
● |
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0905-0906 |
|
|
|
|
● |
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
|
|
|
● |
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
|
|
● |
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0907- |
|
|
|
|
● |
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0905-0906 |
|
|
|
● |
|
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-1011 |
|
● |
|
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-1011 |
|
|
|
● |
|
| |
95 |
03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012- |
|
● |
● |
|
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012- |
|
|
|
● |
|
| |
95 |
03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0905-0906 |
|
● |
● |
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
4HK1-TCS ENG(RJS)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0905-0906 |
|
|
|
● |
● |
| |
97 |
03.708 WASHER; PL,CLAMP
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0907-1011 |
● |
● |
● |
● |
● |
| |
97 |
03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ)
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
97 |
03.708 WASHER; PL,CLAMP
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
03 |
1 |
0907- |
● |
|
|
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905-0906 |
|
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905-0906 |
|
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0905-0906 |
|
|
|
|
● |
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
|
● |
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0907- |
|
|
|
|
● |
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-0906 |
|
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1011 |
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1011 |
|
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
● |
● |
|
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
|
|
● |
|
| |
104 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
105 |
03.704 NUT; CLAMP
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
121 |
03.704 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ)
OD=55
|
9-09852-169-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
121 |
03.704 WASHER; PL,BRKT
OD=55
|
9-09852-169-0 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ)
07.874
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
122 |
03.275 NUT; HANGER BRKT
07.874
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907-1011 |
● |
● |
● |
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907-1011 |
|
|
● |
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1012- |
● |
● |
● |
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1012- |
|
|
|
● |
● |
| |
125 |
03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0905-0906 |
|
● |
● |
|
|
| |
125 |
03.708 NUT; CLAMP
4HK1-TCS ENG(RJS)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0905-0906 |
|
|
|
● |
● |
| |
125 |
03.708 NUT; CLAMP
00.833
M10
|
0-91110-510-0 |
01 |
1 |
0907-1011 |
● |
● |
● |
● |
● |
| |
125 |
03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
125 |
03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ)
00.833
M10
|
0-91110-510-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
125 |
03.708 NUT; CLAMP
00.833
M10
|
0-91110-510-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
EXC. NOISE PACK FOR REGULATION
VAR.2<7TF>
(A)
|
8-98149-686-0 |
01 |
1 |
1109- |
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. NOISE PACK FOR REGULATION
VAR.2<7TF>
(A)
|
8-98149-685-0 |
01 |
1 |
0909-1108 |
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. NOISE PACK FOR REGULATION
VAR.2<7TF>
(A)
|
8-98149-685-0 |
01 |
1 |
1109- |
|
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
(C)
|
8-98079-102-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(D)
|
8-98020-604-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(C)
|
8-98079-101-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(C)
|
8-98079-101-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
(B)
|
8-98097-778-1 |
01 |
1 |
0905- |
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98045-047-0 |
01 |
1 |
0905-0908 |
|
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
(A)
|
8-98045-047-0 |
01 |
1 |
0905-0908 |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
(A)
|
8-98045-047-0 |
01 |
1 |
0905-0908 |
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
NOISE PACK FOR REGULATION VAR.2<7TF>
(A)
|
8-98045-047-0 |
01 |
1 |
0909-1108 |
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
(A)
|
8-98045-047-0 |
01 |
1 |
0909-1108 |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98045-047-0 |
01 |
1 |
0909-1108 |
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
(A)
|
8-98045-047-0 |
01 |
1 |
0909-1108 |
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
NOISE PACK FOR REGULATION VAR.2<7TF>
(A)
|
8-98045-047-0 |
01 |
1 |
1109- |
|
● |
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
(A)
|
8-98045-047-0 |
01 |
1 |
1109- |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
(A)
|
8-98045-047-0 |
01 |
1 |
1109- |
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-98099-064-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-98099-064-0 |
01 |
1 |
1012-1108 |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
(A)
|
8-98099-064-0 |
01 |
1 |
1012-1108 |
|
|
● |
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-98099-064-0 |
01 |
1 |
1109- |
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
NOISE PACK FOR REGULATION VAR.2<7TF>
(A)
|
8-98099-064-0 |
01 |
1 |
1109- |
|
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
(E)
|
8-98059-407-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
(D)
|
8-98079-109-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(G)
|
8-97387-256-1 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(F)
|
8-98001-913-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(F)
|
8-98001-913-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(E)
|
8-98019-904-2 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(E)
|
8-98019-904-2 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ)
03.613
(B)
|
8-97096-651-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
03.613
(B)
|
8-97096-651-0 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
137 |
03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ)
(C)
|
8-97116-588-2 |
01 |
1 |
0905- |
|
● |
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W)
(C)
|
8-97116-588-2 |
01 |
1 |
0905- |
|
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
(C)
|
8-97116-588-2 |
01 |
1 |
0905- |
|
|
● |
|
● |
| |
137 |
03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-97185-801-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4HK1-TCS ENG(RJS)
WHEEL BASE 4100MM(41W)
(A)
|
8-97185-801-0 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 4100MM(41W),WHEEL BASE
4400MM(44W)
(A)
|
8-97185-801-0 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
(D)
|
8-97080-694-0 |
01 |
1 |
0907-1011 |
● |
● |
|
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
(D)
|
8-97080-694-0 |
01 |
1 |
1012- |
● |
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ)
(C)
|
8-94457-277-1 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
(C)
|
8-94457-277-1 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
143 |
03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ)
(B)
|
8-94457-278-1 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
(B)
|
8-94457-278-1 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
143 |
03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ)
(A)
|
8-98034-767-0 |
01 |
1 |
0905-0906 |
|
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4HK1-TCS ENG(RJS)
(A)
|
8-98034-767-0 |
01 |
1 |
0905-0906 |
|
|
|
● |
● |
| |
143 |
03.704 RUBBER; SUPPORT
(A)
|
8-98034-767-0 |
01 |
1 |
0907-1011 |
● |
● |
● |
● |
● |
| |
143 |
03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98034-767-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ)
(A)
|
8-98034-767-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
143 |
03.704 RUBBER; SUPPORT
(A)
|
8-98034-767-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
144 |
03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0905-0906 |
|
● |
● |
|
|
| |
144 |
03.613 NUT; MTG RUBBER
4HK1-TCS ENG(RJS)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0905-0906 |
|
|
|
● |
● |
| |
144 |
03.613 NUT; MTG RUBBER
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0907-1011 |
● |
● |
● |
● |
● |
| |
144 |
03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
144 |
03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
144 |
03.613 NUT; MTG RUBBER
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(B)
L=115
|
8-98032-151-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
(A)
L=115
|
8-98034-765-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
L=115
|
8-98034-765-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
(A)
L=115
|
8-98034-765-0 |
01 |
1 |
0907-1011 |
● |
|
● |
● |
● |
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
L=115
|
8-98034-765-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ)
(A)
L=115
|
8-98034-765-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
(A)
L=115
|
8-98034-765-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(B)
L=23
|
8-98006-011-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
(A)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
(A)
L=37.5
|
9-22151-217-0 |
01 |
1 |
0907-1011 |
● |
|
● |
● |
● |
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
L=37.5
|
9-22151-217-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ)
(A)
L=37.5
|
9-22151-217-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
(A)
L=37.5
|
9-22151-217-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
00.685
M10X45 FLANGE
|
0-28051-045-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
0907-1011 |
● |
|
● |
● |
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ)
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE
|
0-28051-070-0 |
01 |
1 |
1012- |
● |
|
|
● |
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002
ID=10.5 OD=32
|
0-91614-810-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
200 |
03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ)
00.685
M10X40 FLANGE
|
0-28051-040-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
200 |
03.704 BOLT; SUPPORT RUBBER
00.685
M10X40 FLANGE
|
0-28051-040-0 |
01 |
1 |
0905- |
|
|
|
● |
● |
| |
357 |
03.708 WASHER; PL,CLAMP
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0905-0906 |
|
● |
● |
● |
● |
| |
357 |
03.708 WASHER; PL,CLAMP
00.002
ID=10.5 OD=22
|
0-91614-610-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
361 |
03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
IDENTIFICATION LABEL FOR KD<6UT>
M8X60 FLANGE
|
8-98213-301-0 |
04 |
1 |
1204- |
|
● |
● |
|
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0905- |
|
● |
|
|
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-1011 |
|
● |
● |
|
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-1011 |
|
|
|
● |
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-1011 |
|
|
|
|
● |
| |
377 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
● |
|
|
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
|
|
● |
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
377 |
03.704 NUT; BRKT
4HK1-TCS ENG(RJS)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
|
|
|
● |
| |

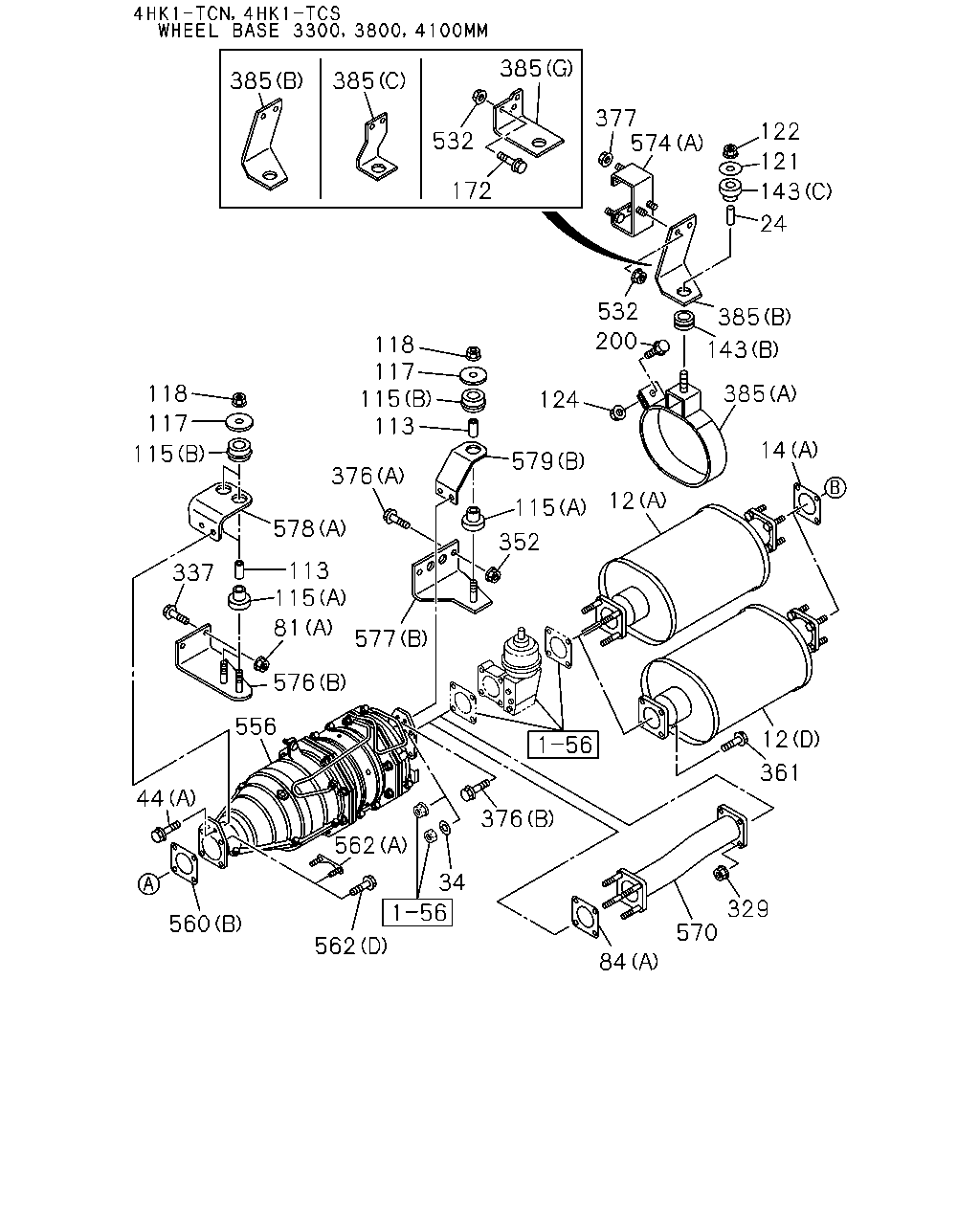

385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
WHEEL BASE 4400MM(44W)
(G)
|
8-98073-377-0 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(E)
|
8-97387-251-1 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB)
(E)
|
8-97387-251-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(E)
|
8-97387-251-1 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB)
(E)
|
8-97387-251-1 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
(F)
|
8-98001-889-1 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
(D)
|
8-98122-620-0 |
01 |
1 |
0905- |
|
● |
|
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
(A)
|
8-98006-776-0 |
01 |
1 |
0905-0912 |
|
● |
|
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
(A)
|
8-98006-776-0 |
01 |
1 |
0905-0912 |
|
|
● |
● |
● |
| |
385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
(A)
|
8-98006-776-1 |
01 |
1 |
1001- |
|
● |
● |
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
(A)
|
8-98006-776-1 |
01 |
1 |
1001- |
|
|
|
● |
● |
| |
385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W)
(C)
|
8-98006-774-0 |
01 |
1 |
0905- |
|
● |
● |
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W)
(B)
|
8-98073-376-0 |
01 |
1 |
0905-1011 |
|
● |
● |
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
(B)
|
8-98073-376-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
● |
| |
385 |
03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(B)
|
8-98073-376-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
385 |
03.704 BRACKET; SILENCER MTG
(B)
|
8-98073-376-0 |
01 |
1 |
1012- |
|
|
|
● |
● |
| |
460 |
03.609 PLATE; EXH PIPE
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
|
8-98122-619-0 |
01 |
1 |
0905- |
|
● |
|
|
|
| |
532 |
03.704 NUT
4HK1-TCN ENG(RDQ)
WHEEL BASE 4400MM(44W)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
532 |
03.704 NUT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
532 |
03.704 NUT
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
532 |
03.704 NUT
4JJ1-TCS ENG(LFB)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1012- |
|
● |
● |
|
|
| |
532 |
03.704 NUT
4JJ1-TCS ENG(LFB)
03.162
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
532 |
03.704 NUT
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-0906 |
|
● |
|
|
|
| |
532 |
03.704 NUT
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0905-0906 |
|
|
● |
● |
● |
| |
532 |
03.704 NUT
4HK1-TCN ENG(RDQ)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-0912 |
|
● |
● |
|
|
| |
532 |
03.704 NUT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-0912 |
|
● |
|
|
|
| |
532 |
03.704 NUT
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-0912 |
|
|
|
● |
● |
| |
532 |
03.704 NUT
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1001-1011 |
|
● |
● |
● |
● |
| |
532 |
03.704 NUT
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
● |
|
● |
● |
| |
532 |
03.704 NUT
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1012- |
|
|
● |
|
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
(B)
|
8-98122-618-0 |
01 |
1 |
0905- |
|
● |
|
|
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98044-774-0 |
01 |
1 |
0905-1011 |
|
● |
● |
|
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(A)
|
8-98044-774-0 |
01 |
1 |
0905-1011 |
|
|
|
● |
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCS ENG(RJS)
(A)
|
8-98044-774-0 |
01 |
1 |
0905-1011 |
|
|
|
|
● |
| |
574 |
03.706 SPACER; DPD
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
(A)
|
8-98044-774-0 |
01 |
1 |
1012- |
|
● |
|
|
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(A)
|
8-98044-774-0 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W)
(A)
|
8-98044-774-0 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
574 |
03.706 SPACER; DPD
4HK1-TCS ENG(RJS)
(A)
|
8-98044-774-0 |
01 |
1 |
1012- |
|
|
|
|
● |
