0-50B — OIL COOLER AND OIL FILTER (#5003) — 103 parça

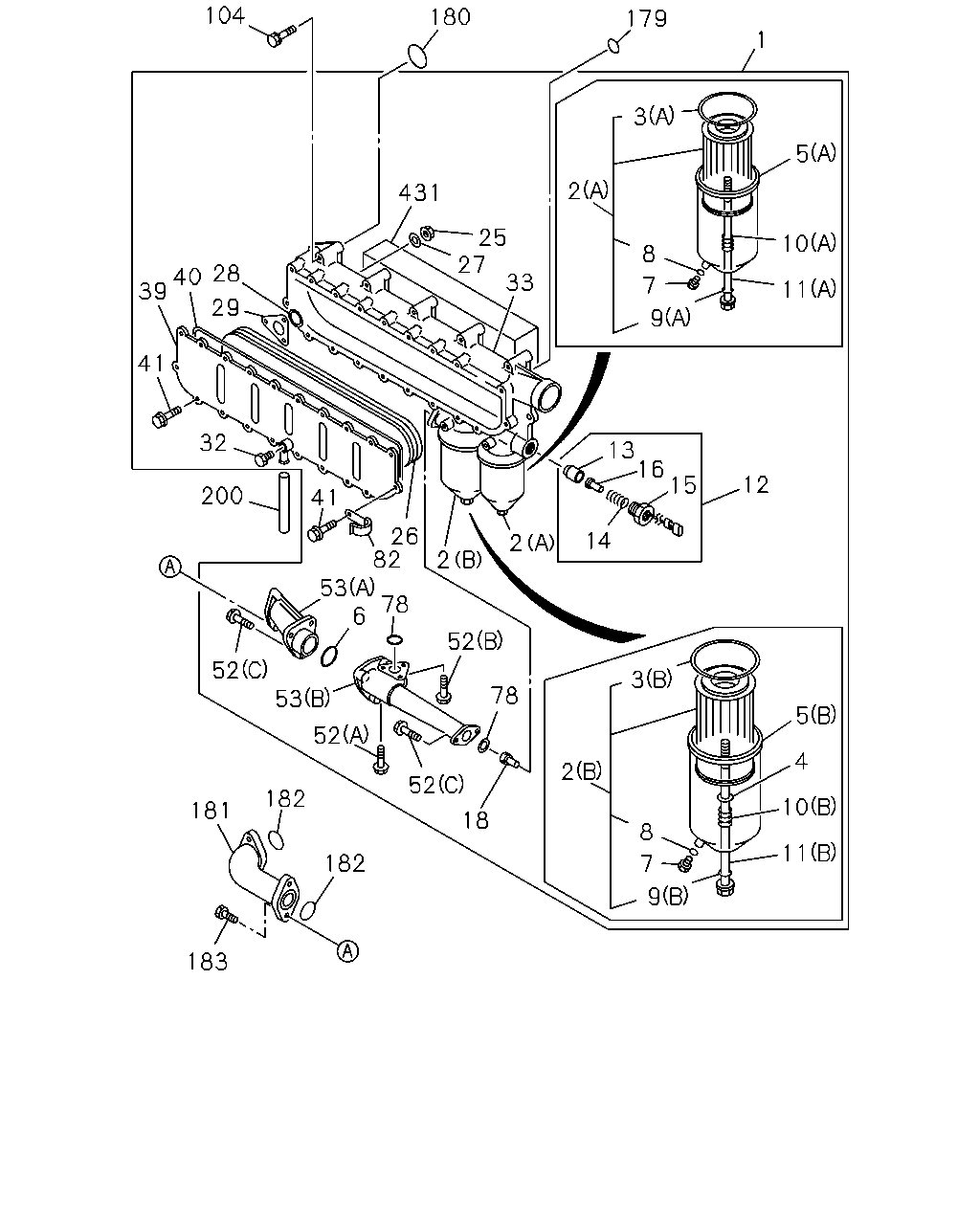

çizim 6292
104 180 179 1 3 5 2 431 25 27 10 8 28 40 39 33 7 11 29 9 41 32 13 16 15 12 41 200 26 82 14 2 2 53 6 78 52 52 3 78 53 5 52 4 2 52 182 10 181 18 8 11 182 7 9 183
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER & COOLER ASM; OIL 1-13200-957-1 01 1 9606-9905 ●
1 FILTER & COOLER ASM; OIL 1-13200-957-1 01 1 9906- ●
2 ELEMENT; OIL FILTER
(A) TOKYO ROKI 		1-13240-116-0 01 1 9606-9905 ●
2 ELEMENT; OIL FILTER
(A) TOKYO ROKI 		1-13240-116-0 01 1 9906- ●
2 ELEMENT; OIL FILTER
(B) TOKYO ROKI 		1-13240-187-0 01 1 9606-9612 ●
2 ELEMENT; OIL FILTER
(B) TOKYO ROKI 		1-13240-205-0 01 1 9701-9905 ●
2 ELEMENT; OIL FILTER
(B) TOKYO ROKI 		1-13240-205-0 01 1 9906- ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-200-0 01 1 9606-9707 ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-200-0 01 1 9708-9905 ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-200-0 01 1 9906- ●
3 GASKET
(A) 		1-13213-010-0 01 1 9606-9905 ●
3 GASKET
(A) 		1-13213-010-0 01 1 9906- ●
3 GASKET
(B) 		1-13213-011-2 01 1 9606-9905 ●
3 GASKET
(B) 		1-13213-011-2 01 1 9906- ●
4 WASHER; ELEMENT 1-13219-259-0 01 1 9606-9905 ●
4 WASHER; ELEMENT 1-13219-259-0 01 1 9906- ●
5 CASE; OIL FILTER
(A) 		1-13211-198-3 01 1 9606-9905 ●
5 CASE; OIL FILTER
(A) 		1-13211-198-3 01 1 9906- ●
5 CASE; OIL FILTER
(B) 		1-13211-200-3 01 1 9606-9905 ●
5 CASE; OIL FILTER
(B) 		1-13211-200-3 01 1 9906- ●
6 GASKET; VLV CASE 1-13219-258-0 01 1 9606-9905 ●
6 GASKET; VLV CASE 1-13219-258-0 01 1 9906- ●
7 PLUG; CENTER BOLT 1-09604-088-0 02 1 9606-9905 ●
7 PLUG; CENTER BOLT 1-09604-088-0 02 1 9906- ●
8 GASKET; PLUG
ID=11.8 		9-09923-579-0 02 1 9606-9905 ●
8 GASKET; PLUG
ID=11.8 		9-09923-579-0 02 1 9906- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-09623-499-0 01 1 9606-9905 ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-09623-499-0 01 1 9906- ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		1-09623-500-0 01 1 9606-9905 ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		1-09623-500-0 01 1 9906- ●
10 SPRING; ELEMENT
(A) 		1-13219-263-0 01 1 9606-9905 ●
10 SPRING; ELEMENT
(A) 		1-13219-263-0 01 1 9906- ●
10 SPRING; ELEMENT
(B) 		1-13219-264-0 01 1 9606-9905 ●
10 SPRING; ELEMENT
(B) 		1-13219-264-0 01 1 9906- ●
11 BOLT; CENTER
(A) 		1-13231-071-0 01 1 9606-9905 ●
11 BOLT; CENTER
(A) 		1-13231-071-0 01 1 9906- ●
11 BOLT; CENTER
(B) 		1-13231-072-0 01 1 9606-9905 ●
11 BOLT; CENTER
(B) 		1-13231-072-0 01 1 9906- ●
12 VALVE ASM; BYPASS 1-13200-875-0 01 1 9606-9905 ●
12 VALVE ASM; BYPASS 1-13200-875-0 01 1 9906- ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9606-9905 ●
13 VALVE; RELIEF 9-13262-010-0 01 1 9906- ●
14 SPRING; RELIEF VLV 9-09940-985-0 01 1 9606-9905 ●
14 SPRING; RELIEF VLV 9-09940-985-0 01 1 9906- ●
15 PLUG; RELIEF VLV 1-13265-024-0 01 1 9606-9905 ●
15 PLUG; RELIEF VLV 1-13265-024-0 01 1 9906- ●
16 VALVE ASM; RELIEF 1-13269-005-0 01 1 9606-9905 ●
16 VALVE ASM; RELIEF 1-13269-005-0 01 1 9906- ●
18 VALVE ASM; OIL COOLER 1-21740-002-0 01 1 9606-9905 ●
18 VALVE ASM; OIL COOLER 1-21740-002-0 01 1 9906- ●
25 NUT; CORE TO BODY
M10 		9-09110-410-0 06 1 9606-9612 ●
25 NUT; CORE TO BODY
M10 FLANGE 		0-91250-210-0 06 1 9701-9905 ●
25 NUT; CORE TO BODY
M10 FLANGE 		0-91250-210-0 06 1 9906- ●
26 CORE ASM; OIL COOLER 1-21491-034-0 01 1 9606-9905 ●
26 CORE ASM; OIL COOLER 1-21491-034-0 01 1 9906- ●
27 WASHER; PL,CORE TO BODY 9-09100-510-0 06 1 9606-9612 ●
28 GASKET; CORE TO BODY 1-09623-560-0 02 1 9606-9905 ●
28 GASKET; CORE TO BODY 1-09623-560-0 02 1 9906- ●
29 GASKET; CORE TO BODY 1-13213-014-1 02 1 9606-9905 ●
29 GASKET; CORE TO BODY 1-13213-014-1 02 1 9906- ●
32 PLUG; DRAIN 1-13219-276-0 01 1 9606-9905 ●
32 PLUG; DRAIN 1-13219-276-0 01 1 9906- ●
33 HOUSING ASM; COOLER 1-21721-069-4 01 1 9606-9905 ●
33 HOUSING ASM; COOLER 1-21721-069-4 01 1 9906- ●
39 COVER; OIL COOLER 1-21722-028-0 01 1 9606-9905 ●
39 COVER; OIL COOLER 1-21722-028-0 01 1 9906- ●
40 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13213-013-0 01 1 9606-9905 ●
40 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13213-013-0 01 1 9906- ●
41 BOLT; COVER FIX 1-13219-163-1 20 1 9606-9905 ●
41 BOLT; COVER FIX 1-13219-163-1 20 1 9906- ●
52 BOLT; OIL INL PIPE & VLV CASE
(A) 		1-13219-261-1 02 1 9606-9905 ●
52 BOLT; OIL INL PIPE & VLV CASE
(A) 		1-13219-261-1 02 1 9906- ●
52 BOLT; OIL INL PIPE & VLV CASE
(B) 		1-13219-262-1 01 1 9606-9905 ●
52 BOLT; OIL INL PIPE & VLV CASE
(B) 		1-13219-262-1 01 1 9906- ●
52 BOLT; OIL INL PIPE & VLV CASE
(C) M8X30 		9-02050-830-0 05 1 9606-9612 ●
52 BOLT; OIL INL PIPE & VLV CASE
(C) M8X30 FLANGE 		0-28080-830-0 05 1 9701-9905 ●
52 BOLT; OIL INL PIPE & VLV CASE
(C) M8X30 FLANGE 		0-28080-830-0 05 1 9906- ●
53 PIPE; OIL INL
(A) 		1-13219-255-0 01 1 9606-9905 ●
53 PIPE; OIL INL
(A) 		1-13219-255-0 01 1 9906- ●
53 PIPE; OIL INL
(B) 		1-13219-256-2 01 1 9606-9905 ●
53 PIPE; OIL INL
(B) 		1-13219-256-2 01 1 9906- ●
78 GASKET; PIPE 1-13219-257-0 02 1 9606-9905 ●
78 GASKET; PIPE 1-13219-257-0 02 1 9906- ●
82 HOLDER; OIL COOLER
ID=11 L=30 		1-09700-511-0 01 1 9606-9905 ●
82 HOLDER; OIL COOLER
ID=11 L=30 		1-09700-511-0 01 1 9906- ●
104 BOLT; OIL COOLER
M10X60 FLANGE 		0-28181-060-0 02 1 9606-9905 ●
104 BOLT; OIL COOLER
M10X60 FLANGE 		0-28181-060-0 02 1 9906- ●
104 BOLT; OIL COOLER
M10X90 FLANGE 		0-28181-090-0 05 1 9606-9905 ●
104 BOLT; OIL COOLER
M10X90 FLANGE 		0-28181-090-0 05 1 9906- ●
179 GASKET; OIL OUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9606-9905 ●
179 GASKET; OIL OUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9906- ●
180 GASKET; WATER OUT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 01 1 9606-9905 ●
180 GASKET; WATER OUT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-425-0 01 1 9906- ●
181 CONNECTOR; HSG TO COOLER 1-13312-082-0 01 1 9606-9905 ●
181 CONNECTOR; HSG TO COOLER 1-13312-082-0 01 1 9906- ●
182 GASKET; CONNECTOR,HSG TO COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 02 1 9606-9905 ●
182 GASKET; CONNECTOR,HSG TO COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 02 1 9906- ●
183 BOLT; CONNECTOR,HSG TO COOLER
M8X22 FLANGE 		0-28080-822-0 04 1 9606-9905 ●
183 BOLT; CONNECTOR,HSG TO COOLER
M8X22 FLANGE 		0-28080-822-0 04 1 9906- ●
200 PIPE; VINYL,WATER DRAIN
L=510 SERVICED BY L=10000 		9-09914-701-0 01 1 9606-9905 ●
200 PIPE; VINYL,WATER DRAIN
L=510 SERVICED BY L=10000 		9-09914-701-0 01 1 9906- ●
431 SPACER; OIL COOLER 1-19389-182-0 01 1 9606-9905 ●
431 SPACER; OIL COOLER 1-19389-182-0 01 1 9906- ●
