15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0905-0906 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0905-0906 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0905-0906 |
|
● |
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0905-0906 |
|
● |
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
02.559
(A)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
0907- |
|
● |
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
04.686
(B)
ID=12 & 6.35 & 4.76
|
8-97202-954-1 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
(C)
ID=12 & 6.35
|
8-97215-437-0 |
02 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
15 |
03.162 CLIP; FUEL PIPE
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
04.930
(D)
ID=10X2 OR 12X2 & 6.35
|
8-97326-157-1 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
02.559
(E)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
0905-1011 |
|
|
● |
● |
|
| |
15 |
03.162 CLIP; FUEL PIPE
FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
15 |
03.162 CLIP; FUEL PIPE
02.559
(E)
ID=28 L=60
|
1-09700-585-1 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
ID=45 H=31 L=35
|
1-09701-273-0 |
01 |
1 |
1012-1107 |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(F)
ID=29 H=50 L=45.5
|
1-09701-027-0 |
01 |
1 |
1108- |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0907 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0907 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1012-1107 |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1012-1107 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108-1204 |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108-1204 |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1108-1204 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1205- |
● |
● |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
1205- |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
08 |
1 |
0907-0907 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
08 |
1 |
0907-0907 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
10 |
1 |
0908-0911 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
10 |
1 |
0908-0911 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
10 |
1 |
0912-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=16
|
8-98008-098-0 |
10 |
1 |
0912-1011 |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
10 |
1 |
1012- |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=16
|
8-98008-098-0 |
10 |
1 |
1012- |
|
|
|
|
● |
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0907-1006 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
H.S.A SYSTEM<6EP>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0907-1006 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1007-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1012-1107 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1012-1107 |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1108- |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
1012- |
|
● |
|
● |
● |
| |
24 |
03.162 CLIP; FUEL HOSE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
(D)
L=170.3
|
1-09987-182-0 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
03 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
03 |
1 |
0907-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
03 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
03 |
1 |
1012-1204 |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
03 |
1 |
1012-1204 |
|
● |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
1205- |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
1205- |
|
● |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
04 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(C)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
04.930
(C)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=16
|
8-98008-098-0 |
04 |
1 |
0912-1011 |
|
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
(C)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
(C)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
|
● |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
02 |
1 |
0907-0911 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
02 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912-1011 |
● |
|
|
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
02 |
1 |
0912-1011 |
|
● |
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
03.483
(D)
L=450
|
1-09707-142-1 |
01 |
1 |
0905-1011 |
|
|
● |
● |
|
| |
24 |
03.162 CLIP; FUEL HOSE
FRAME STRAIGHT TYPE<7KJ>
03.483
(D)
L=450
|
1-09707-142-1 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
24 |
03.162 CLIP; FUEL HOSE
03.483
(D)
L=450
|
1-09707-142-1 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCN ENG(RDQ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-0907 |
● |
|
|
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-0907 |
|
● |
● |
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-1007 |
● |
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0907-1007 |
|
● |
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1008-1011 |
● |
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
HONG KONG EQUIPMENT(B14)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1008-1011 |
● |
|
|
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1008-1011 |
|
● |
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012-1204 |
● |
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
HONG KONG EQUIPMENT(B14)
POOR QUALITY DIESEL FUEL(KF0)
NOISE PACK FOR REGULATION VAR.2<7TF>
EXC. FRAME STRAIGHT TYPE<7KJ>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012-1204 |
● |
|
|
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1012-1204 |
|
● |
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1205-1410 |
● |
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1205-1410 |
|
● |
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1411-1510 |
● |
|
|
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1411-1510 |
|
● |
|
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL B
ASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1411-1510 |
|
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1411-1510 |
|
|
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1511- |
● |
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1511- |
● |
|
● |
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1511- |
|
● |
|
● |
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1511- |
|
● |
|
|
|
| |
28 |
03.330 BOLT; BRKT,FUEL PUMP
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
1511- |
|
|
|
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98105-710-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
(C)
|
8-98105-710-0 |
01 |
1 |
0907-0907 |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98105-710-0 |
01 |
1 |
0908-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
(C)
|
8-98105-710-0 |
01 |
1 |
0908-1011 |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98105-710-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
(C)
|
8-98105-710-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98105-757-1 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
(D)
|
8-98105-757-1 |
01 |
1 |
0907-0907 |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98105-757-1 |
01 |
1 |
0908-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
(D)
|
8-98105-757-1 |
01 |
1 |
0908-1011 |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98105-757-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
(D)
|
8-98105-757-1 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(E)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
03.003
(E)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(E)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
03.003
(E)
L=280
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(E)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAME STRAIGHT TYPE<7KJ>
03.003
(E)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.003
(E)
L=360
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0908- |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98099-502-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98099-502-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98099-502-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98099-502-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98099-502-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 2700MM(27W)
(B)
|
8-98120-953-0 |
01 |
1 |
0905-0906 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98120-953-1 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
(B)
|
8-98067-564-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-564-4 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
(B)
|
8-98067-564-4 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-564-4 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-564-4 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W)
(B)
|
8-98067-563-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(B)
|
8-98067-563-2 |
01 |
1 |
0905-0906 |
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
(B)
|
8-98067-563-2 |
01 |
1 |
0905-0906 |
|
|
|
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-563-4 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(B)
|
8-98067-563-4 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W)
(B)
|
8-98067-563-4 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
(B)
|
8-98067-563-4 |
01 |
1 |
0907-1011 |
|
|
|
● |
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-563-4 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(B)
|
8-98067-563-4 |
01 |
1 |
1012- |
|
● |
|
|
|
| |
29 |
03.163 HOSE; FUEL
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98067-563-4 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
(B)
|
8-98067-563-4 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
29 |
03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98037-758-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98037-758-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
29 |
03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98037-758-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
29 |
03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98037-758-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
29 |
03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0)
(A)
|
8-98037-758-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98070-974-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-974-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98070-974-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-974-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98070-973-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-936-3 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-936-3 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-936-3 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-936-3 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-681-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-681-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-681-1 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-681-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MZZ6U(RSF)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-638-3 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |
45 |
03.163 PIPE; FUEL,DELIVERY
M/T MZZ6U(RSF)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-486-1 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98136-281-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98136-281-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98136-281-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98136-281-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98136-278-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(D)
|
8-98136-278-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98136-278-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(D)
|
8-98136-278-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98136-279-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(E)
|
8-98136-279-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>,
TRANSMISSION CONTROL-SMOOTHER(8GF)
(E)
|
8-98136-279-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(E)
|
8-98136-279-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-937-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-937-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-937-1 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98046-937-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-639-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-639-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-639-0 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-639-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(C)
L=70
|
8-98036-483-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
(C)
L=70
|
8-98036-483-0 |
01 |
1 |
0907- |
● |
● |
● |
● |
● |
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98033-864-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
47 |
03.163 PIPE; FUEL,RETURN
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-618-1 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MZZ6U(RSF)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98082-163-1 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |
47 |
03.163 PIPE; FUEL,RETURN
M/T MZZ6U(RSF)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-487-1 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |
51 |
03.162 NUT; CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
00.787
M10
|
0-91111-510-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
M10
|
0-91111-510-0 |
02 |
1 |
0907-1011 |
|
|
|
|
● |
| |
51 |
03.162 NUT; CLIP,PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
00.787
M10
|
0-91111-510-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
51 |
03.162 NUT; CLIP,PIPE
00.787
M10
|
0-91111-510-0 |
02 |
1 |
1012- |
|
|
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
02 |
1 |
1003-1011 |
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
(A)
ID=17
|
8-94128-319-2 |
02 |
1 |
1003-1011 |
|
● |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
(A)
ID=17
|
8-94128-319-2 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98038-801-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
(B)
|
8-98038-801-0 |
02 |
1 |
0907-1011 |
|
|
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98038-801-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
(B)
|
8-98038-801-0 |
02 |
1 |
1012- |
|
|
|
|
● |
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
(A)
ID=17
|
8-94128-319-2 |
03 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
03 |
1 |
0907-1002 |
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
(A)
ID=17
|
8-94128-319-2 |
03 |
1 |
0907-1002 |
|
● |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
01 |
1 |
1003-1011 |
● |
|
|
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
(A)
ID=17
|
8-94128-319-2 |
01 |
1 |
1003-1011 |
|
● |
● |
● |
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
FRAME STRAIGHT TYPE<7KJ>
02.343
(A)
ID=17
|
8-94128-319-2 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
61 |
03.162 GROMMET; PIPE TO FRAME
02.343
(A)
ID=17
|
8-94128-319-2 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98087-851-1 |
01 |
1 |
1012-1107 |
|
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98177-420-0 |
01 |
1 |
1108- |
|
|
● |
|
|
| |
65 |

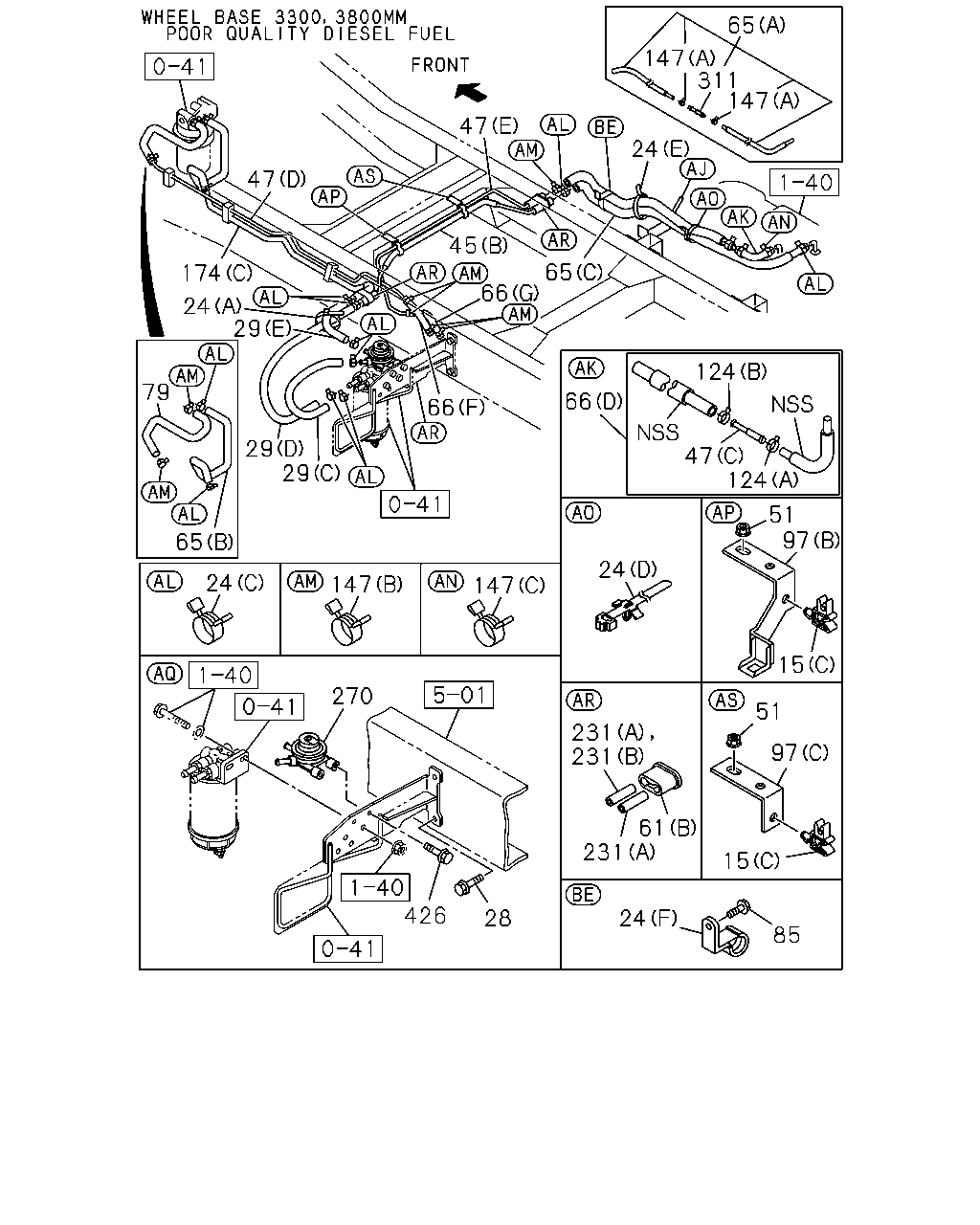

03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98072-316-0 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(C)
|
8-98072-316-0 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97389-774-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(B)
|
8-97389-774-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-97389-774-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
(B)
|
8-97389-774-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98106-967-1 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-98106-967-2 |
01 |
1 |
0908- |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98106-968-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98106-968-1 |
01 |
1 |
0908- |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
WHEEL BASE 2700MM(27W)
EXC. POOR QUALITY DIESEL FUEL(KF0),
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97389-796-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
03.003
(A)
L=140
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98043-671-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
65 |
03.163 HOSE; FUEL,DELIVERY PIPE
M/T MZZ6U(RSF)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
03.003
(A)
L=200
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-97389-808-3 |
01 |
1 |
1012-1107 |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98177-419-0 |
01 |
1 |
1108- |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(D)
|
8-98072-317-1 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(D)
|
8-98072-317-1 |
01 |
1 |
0907- |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(G)
L=100
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(G)
L=100
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(G)
L=100
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012-1204 |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(G)
L=100
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012-1204 |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(G)
L=100
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1205- |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
(G)
L=100
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1205- |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
L=140
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(F)
L=140
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
L=140
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012-1204 |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(F)
L=140
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012-1204 |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
EXC. FRAME STRAIGHT TYPE<7KJ>
(F)
L=140
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1205- |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
4JJ1-TCS ENG(LFB)
(F)
L=140
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1205- |
|
|
|
|
● |
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
|
8-97389-806-2 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MYY6S(RST)
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
L=150
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
(C)
|
8-98120-961-1 |
01 |
1 |
0905-0906 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98120-961-1 |
01 |
1 |
0907- |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
(C)
|
8-98067-567-1 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-567-2 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
(C)
|
8-98067-567-2 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-567-2 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3300MM(33W),WHEEL BASE
4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-567-2 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W)
(C)
|
8-98067-566-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(C)
|
8-98067-566-2 |
01 |
1 |
0905-0906 |
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(C)
|
8-98067-566-2 |
01 |
1 |
0905-0906 |
|
|
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-566-2 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(C)
|
8-98067-566-2 |
01 |
1 |
0907-1011 |
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W)
(C)
|
8-98067-566-2 |
01 |
1 |
0907-1011 |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(C)
|
8-98067-566-2 |
01 |
1 |
0907-1011 |
|
|
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-566-2 |
01 |
1 |
1012- |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
(C)
|
8-98067-566-2 |
01 |
1 |
1012- |
|
● |
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98067-566-2 |
01 |
1 |
1012- |
|
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(C)
|
8-98067-566-2 |
01 |
1 |
1012- |
|
|
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
|
8-98093-616-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98093-616-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
|
8-98093-616-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98093-616-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
(B)
|
8-98093-616-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
66 |
03.163 HOSE; FUEL,RETURN PIPE
M/T MZZ6U(RSF)
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
L=200
SERVICED BY L=3000
|
0-01855-300-0 |
01 |
1 |
0905- |
|
● |
|
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
|
8-98107-370-0 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
SINGAPORE EQUIPMENT(2G0)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98107-370-0 |
01 |
1 |
0907-1007 |
● |
|
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98107-370-0 |
01 |
1 |
1008-1410 |
● |
|
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
POOR QUALITY DIESEL FUEL(KF0)
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98107-370-0 |
01 |
1 |
1411- |
● |
|
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCN ENG(RDQ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
0907-0907 |
● |
|
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
|
8-98084-815-1 |
01 |
1 |
0907-0907 |
|
● |
● |
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
FRAME STRAIGHT TYPE<7KJ>
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
0907-1410 |
● |
|
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCS ENG(RJS)
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
0907-1410 |
|
● |
|
● |
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
1411- |
● |
|
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCS ENG(RJS)
WHEEL BASE 3800MM(38W),WHEEL BASE
4100MM(41W)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
1411- |
|
● |
|
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 3300MM(33W),WHEEL BASE
3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL B
ASE 4400MM(44W)
FRAME STRAIGHT TYPE<7KJ>
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
1411- |
|
|
● |
|
|
| |
72 |
03.901 BRACKET; FUEL PUMP & FILTER
4HK1-TCS ENG(RJS)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. POOR QUALITY DIESEL FUEL(KF0)
|
8-98084-815-1 |
01 |
1 |
1411- |
|
|
|
● |
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-0907 |
● |
|
|
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
SINGAPORE EQUIPMENT(2G0)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
0907-1007 |
● |
|
|
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1008-1410 |
● |
|
|
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
HONG KONG EQUIPMENT(B14),SINGAPORE
EQUIPMENT(2G0)
POOR QUALITY DIESEL FUEL(KF0)
NOISE PACK FOR REGULATION VAR.2<7TF>
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1411-1510 |
● |
|
|
|
|
| |
74 |
03.901 NUT; BRKT,FUEL PUMP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ)
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
TRANSMISSION CONTROL-SMOOTHER(8GF),
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
02 |
1 |
1511- |
● |
|
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97389-778-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
|
8-97389-778-1 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97389-778-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
79 |
03.163 HOSE; FUEL,PUMP TO PIPE,RETURN
|
8-97389-778-1 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98006-480-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98006-480-1 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98006-480-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
(C)
|
8-98006-480-1 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98039-929-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98039-929-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
(B)
|
8-98039-929-1 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
97 |
03.162 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
97 |
03.162 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98057-653-0 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
97 |
03.162 BRACKET; CLIP
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
0907-1011 |
● |
|
|
|
|
| |
97 |
03.162 BRACKET; CLIP
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
97 |
03.162 BRACKET; CLIP
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
97 |
03.162 BRACKET; CLIP
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(A)
|
8-98041-203-0 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
07 |
1 |
0907-0911 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
07 |
1 |
0907-0911 |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
07 |
1 |
0912-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
07 |
1 |
0912-1011 |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
07 |
1 |
1012- |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
07 |
1 |
1012- |
|
|
|
|
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
POOR QUALITY DIESEL FUEL(KF0)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0907-0907 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
04 |
1 |
0908-0911 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0912-1002 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
02 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
0912-1002 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1003-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1003-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1003-1011 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
04 |
1 |
1012- |
|
● |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
0907-0911 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
04.930
(A)
ID=16
|
8-94238-568-0 |
06 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
06 |
1 |
0912-1002 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
06 |
1 |
0912-1002 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003-1011 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003-1011 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1003-1011 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
POOR QUALITY DIESEL FUEL(KF0)
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1012- |
|
● |
|
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(C)
ID=13
|
8-94238-571-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(C)
ID=13
|
8-94238-571-0 |
01 |
1 |
0907-0911 |
● |
● |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
(C)
ID=13
|
8-98150-357-0 |
01 |
1 |
0912- |
● |
● |
● |
● |
● |
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
01.219
(B)
ID=12
|
8-94238-610-0 |
01 |
1 |
0907-0911 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.219
(B)
ID=12
|
8-94238-610-0 |
01 |
1 |
0907-0911 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
0912-1011 |
● |
|
|
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
0912-1011 |
|
● |
● |
● |
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
FRAME STRAIGHT TYPE<7KJ>
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
147 |
03.162 CLIP; FUEL PIPE TO HOSE
01.240
(B)
ID=12
|
8-98150-358-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98070-972-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(C)
|
8-98070-972-0 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-98070-972-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(C)
|
8-98070-972-0 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-615-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(A)
|
8-98033-844-1 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98033-844-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(A)
|
8-98033-844-1 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98033-844-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
(A)
|
8-98033-844-1 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
0907-1011 |
|
● |
● |
● |
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
FRAME STRAIGHT TYPE<7KJ>
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
174 |
03.163 PIPE; FUEL,FEED,FRT
EXC. TRANSMISSION
CONTROL-SMOOTHER(8GF)
(B)
|
8-98041-616-0 |
01 |
1 |
1012- |
|
● |
|
● |
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0907-1011 |
● |
|
|
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
0907-1011 |
|
|
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
1012- |
● |
|
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(B)
OD=17 L=50
|
8-94157-054-1 |
01 |
1 |
1012- |
|
|
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0907-1011 |
● |
|
|
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
0907-1011 |
|
|
|
|
● |
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
1012- |
● |
|
● |
|
|
| |
231 |
03.162 RUBBER; SUPPORT,FUEL PIPE
(A)
OD=16.5 L=50
|
8-97214-235-0 |
03 |
1 |
1012- |
|
|
|
|
● |
| |
270 |
03.900 PUMP ASM; FUEL
4HK1-TCN ENG(RDQ)
|
8-98018-187-2 |
01 |
1 |
0905-0906 |
● |
|
● |
|
|
| |
270 |
03.900 PUMP ASM; FUEL
4HK1-TCS ENG(RJS)
|
8-98018-187-2 |
01 |
1 |
0905-0906 |
|
● |
|
● |
|
| |
270 |
03.900 PUMP ASM; FUEL
|
8-98018-187-4 |
01 |
1 |
0907-1408 |
● |
● |
● |
● |
● |
| |
270 |
03.900 PUMP ASM; FUEL
|
8-97948-892-0 |
01 |
1 |
1409- |
● |
● |
● |
● |
● |
| |
426 |
03.330 BOLT; FUEL PUMP
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0905-0906 |
● |
● |
● |
● |
|
| |
426 |
03.330 BOLT; FUEL PUMP
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0907- |
● |
● |
● |
● |
● |
