Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#50022) — 172 parça

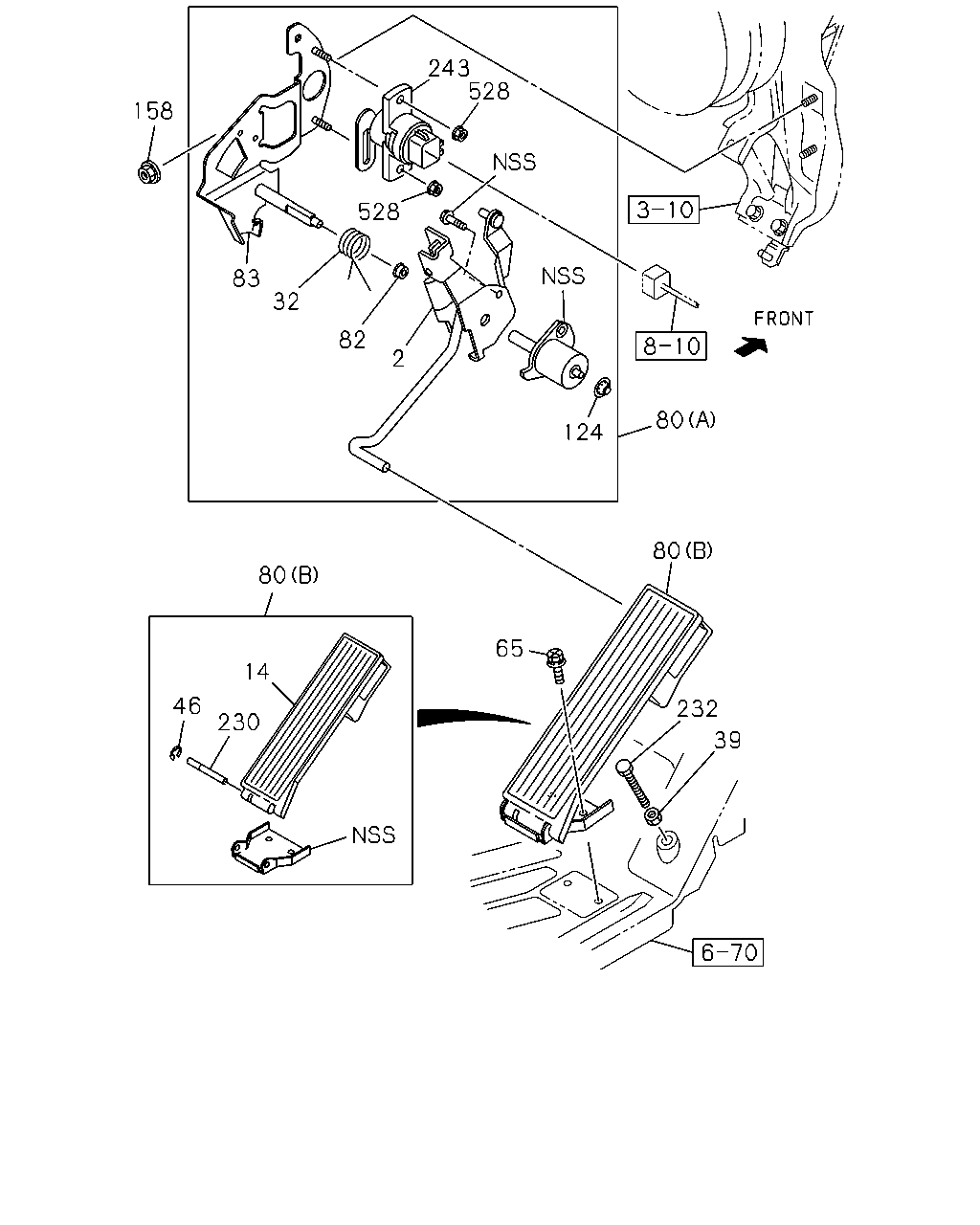

243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	0905-0906	●	●	●	●
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	0907-1002	●	●	●	●	●
2	03.454 LEVER; ENG CONT EXC. HONG KONG EQUIPMENT(B14)	8-98002-158-2	01	1	1003-1003	●
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	1003-1003					●
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	1004-1103	●	●	●	●	●
2	03.454 LEVER; ENG CONT	8-98002-158-2	01	1	1104-	●		●		●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0905-0906	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0907-1002	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL EXC. HONG KONG EQUIPMENT(B14)	8-97853-062-2	01	1	1003-1003	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1003-1003					●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1004-1004	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1004-1103	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1104-	●		●		●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	0905-0906	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	0907-1003	●	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. HONG KONG EQUIPMENT(B14)	8-98031-665-0	01	1	1004-1004	●
32	03.459 SPRING; RETURN,ACCEL PEDAL HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98031-665-0	01	1	1004-1004	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1004-1004		●		●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98031-665-0	01	1	1004-1004			●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1004-	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0905-0906	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0907-1103	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1104-	●		●		●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0905-0906	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0907-1002	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL EXC. HONG KONG EQUIPMENT(B14) ID=4	0-91805-504-0	01	1	1003-1003	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1003-1003					●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1004-1004	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1004-1103	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1104-	●		●		●
65	03.483 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1104-		●		●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0905-0906	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0907-1002	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1003-1003	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1004-1103	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1104-	●		●		●
80	03.452 LINK ASM; ENG CONT 03.451 (C)	8-97257-598-0	01	1	1104-		●		●
80	03.452 LINK ASM; ENG CONT (D)	8-98151-569-2	01	1	1104-		●		●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	0905-0906	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	0907-1002	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT EXC. HONG KONG EQUIPMENT(B14) (A)	8-97387-358-3	01	1	1003-1003	●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1003-1003					●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1004-1103	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1104-	●		●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0905-0906	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0907-1002	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT EXC. HONG KONG EQUIPMENT(B14) (B)	8-97853-061-2	01	1	1003-1003	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1003-1003					●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1004-1004	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1004-1103	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1104-	●		●		●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	0905-0906	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	0907-1003	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR EXC. HONG KONG EQUIPMENT(B14)	8-97581-053-0	01	1	1004-1004	●
82	03.463 BUSHING; ENG CONT LVR HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-97581-053-0	01	1	1004-1004	●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1004-1004		●		●	●
82	03.463 BUSHING; ENG CONT LVR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-97581-053-0	01	1	1004-1004			●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1004-	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	0905-0906	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	0907-1003	●	●	●	●	●
83	03.452 BRACKET; CONT LINK EXC. HONG KONG EQUIPMENT(B14)	8-98023-885-2	01	1	1004-1004	●
83	03.452 BRACKET; CONT LINK HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98023-885-2	01	1	1004-1004	●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	1004-1004		●		●	●
83	03.452 BRACKET; CONT LINK G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98023-885-2	01	1	1004-1004			●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	1004-	●	●	●	●	●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0905-0906	●	●	●	●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0907-1003	●	●	●	●	●
124	03.463 NUT; LEVER EXC. HONG KONG EQUIPMENT(B14) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004	●
124	03.463 NUT; LEVER HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004	●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004		●		●	●
124	03.463 NUT; LEVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004			●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0905-0906	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0907-	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0905-0906	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0907-1002	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT EXC. HONG KONG EQUIPMENT(B14)	8-97853-064-0	01	1	1003-1003	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1003-1003					●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1004-1004	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1004-1103	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1104-	●		●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL	8-98179-284-1	01	1	1104-		●		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0905-0906	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0907-1103	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1104-	●		●		●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0905-0906	●	●	●	●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0907-0910	●	●	●	●	●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	0911-1003	●	●	●	●	●
243	03.425 SENSOR; ACCEL EXC. HONG KONG EQUIPMENT(B14)	8-98131-263-0	01	1	1004-1004	●
243	03.425 SENSOR; ACCEL HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98131-263-0	01	1	1004-1004	●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	1004-1004		●		●	●
243	03.425 SENSOR; ACCEL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98131-263-0	01	1	1004-1004			●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	1004-	●	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0905-0906	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0907-1003	●	●	●	●	●
528	03.463 NUT; ACCEL SENSOR EXC. HONG KONG EQUIPMENT(B14) 12.183 M5	8-94169-022-0	02	1	1004-1004	●
528	03.463 NUT; ACCEL SENSOR HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 12.183 M5	8-94169-022-0	02	1	1004-1004	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	1004-1004		●		●	●
528	03.463 NUT; ACCEL SENSOR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 12.183 M5	8-94169-022-0	02	1	1004-1004			●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	1004-	●	●	●	●	●

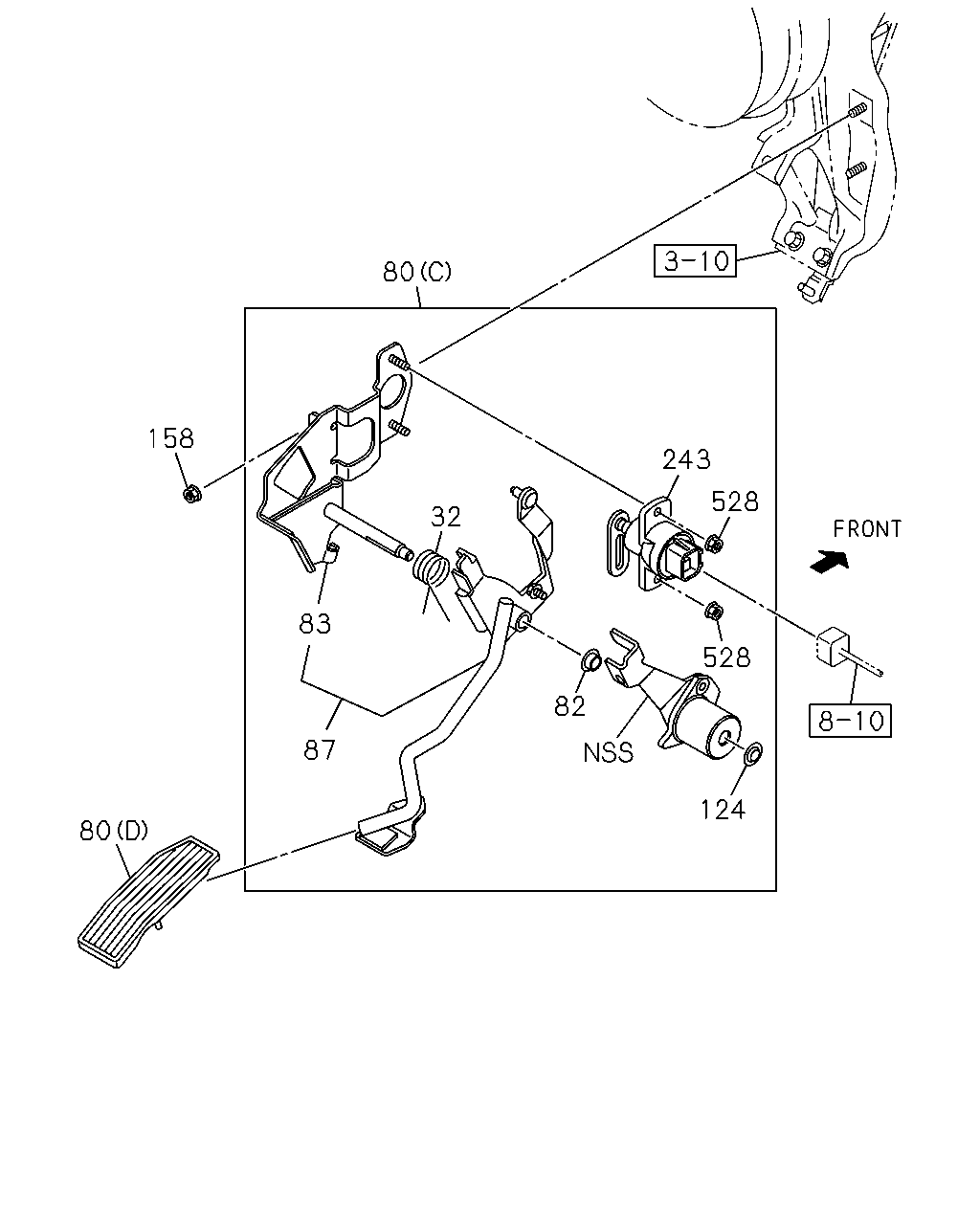

80 158 243 528 32 83 528 82 87 124 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	0905-0906	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	0907-1003	●	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. HONG KONG EQUIPMENT(B14)	8-98031-665-0	01	1	1004-1004	●
32	03.459 SPRING; RETURN,ACCEL PEDAL HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98031-665-0	01	1	1004-1004	●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1004-1004		●		●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98031-665-0	01	1	1004-1004			●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-98031-665-0	01	1	1004-	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 03.451 (C)	8-97257-598-0	01	1	1104-		●		●
80	03.452 LINK ASM; ENG CONT (D)	8-98151-569-2	01	1	1104-		●		●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	0905-0906	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	0907-1002	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT EXC. HONG KONG EQUIPMENT(B14) (A)	8-97387-358-3	01	1	1003-1003	●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1003-1003					●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1004-1103	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97387-358-3	01	1	1104-	●		●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0905-0906	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0907-1002	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT EXC. HONG KONG EQUIPMENT(B14) (B)	8-97853-061-2	01	1	1003-1003	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1003-1003					●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1004-1004	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1004-1103	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1104-	●		●		●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	0905-0906	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	0907-1003	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR EXC. HONG KONG EQUIPMENT(B14)	8-97581-053-0	01	1	1004-1004	●
82	03.463 BUSHING; ENG CONT LVR HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-97581-053-0	01	1	1004-1004	●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1004-1004		●		●	●
82	03.463 BUSHING; ENG CONT LVR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-97581-053-0	01	1	1004-1004			●
82	03.463 BUSHING; ENG CONT LVR	8-97581-053-0	01	1	1004-	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	0905-0906	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	0907-1003	●	●	●	●	●
83	03.452 BRACKET; CONT LINK EXC. HONG KONG EQUIPMENT(B14)	8-98023-885-2	01	1	1004-1004	●
83	03.452 BRACKET; CONT LINK HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98023-885-2	01	1	1004-1004	●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	1004-1004		●		●	●
83	03.452 BRACKET; CONT LINK G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98023-885-2	01	1	1004-1004			●
83	03.452 BRACKET; CONT LINK	8-98023-885-2	01	1	1004-	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-98159-230-2	01	1	1104-		●		●
87	03.454 LINK; ENG CONT HONG KONG EQUIPMENT(B14)	8-98159-230-0	01	1	1003-1003	●
87	03.454 LINK; ENG CONT	8-98159-230-0	01	1	1003-1003		●	●	●
87	03.454 LINK; ENG CONT HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY)	8-98159-230-1	01	1	1004-1004	●
87	03.454 LINK; ENG CONT	8-98159-230-1	01	1	1004-1004		●		●
87	03.454 LINK; ENG CONT G.V.W. 7.5-8.0TON(RPY)	8-98159-230-1	01	1	1004-1004			●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0905-0906	●	●	●	●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0907-1003	●	●	●	●	●
124	03.463 NUT; LEVER EXC. HONG KONG EQUIPMENT(B14) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004	●
124	03.463 NUT; LEVER HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004	●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004		●		●	●
124	03.463 NUT; LEVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-1004			●
124	03.463 NUT; LEVER 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	1004-	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0905-0906	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0907-	●	●	●	●	●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0905-0906	●	●	●	●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0907-0910	●	●	●	●	●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	0911-1003	●	●	●	●	●
243	03.425 SENSOR; ACCEL EXC. HONG KONG EQUIPMENT(B14)	8-98131-263-0	01	1	1004-1004	●
243	03.425 SENSOR; ACCEL HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98131-263-0	01	1	1004-1004	●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	1004-1004		●		●	●
243	03.425 SENSOR; ACCEL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)	8-98131-263-0	01	1	1004-1004			●
243	03.425 SENSOR; ACCEL	8-98131-263-0	01	1	1004-	●	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0905-0906	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0907-1003	●	●	●	●	●
528	03.463 NUT; ACCEL SENSOR EXC. HONG KONG EQUIPMENT(B14) 12.183 M5	8-94169-022-0	02	1	1004-1004	●
528	03.463 NUT; ACCEL SENSOR HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 12.183 M5	8-94169-022-0	02	1	1004-1004	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	1004-1004		●		●	●
528	03.463 NUT; ACCEL SENSOR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 12.183 M5	8-94169-022-0	02	1	1004-1004			●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	1004-	●	●	●	●	●

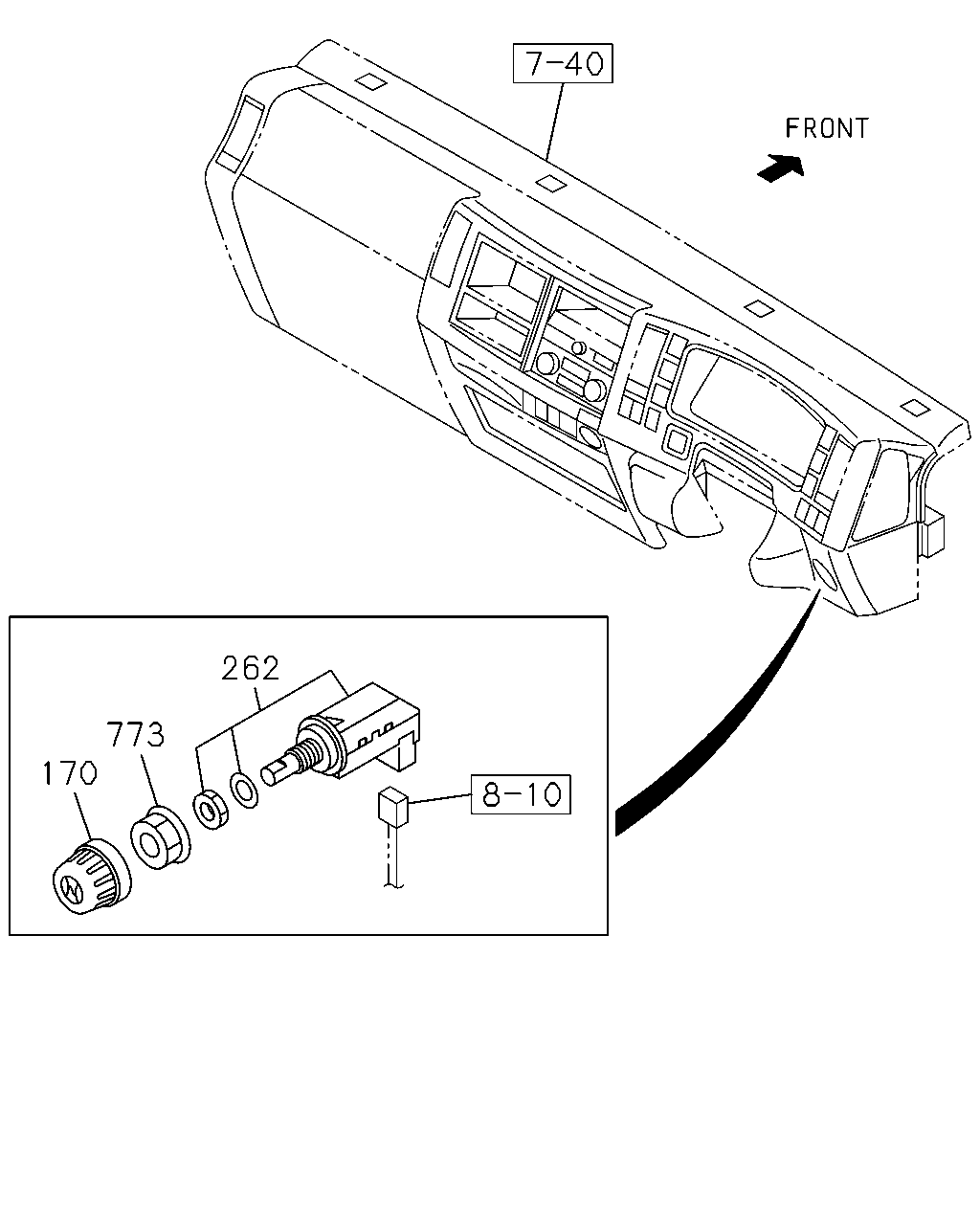

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
170	03.480 KNOB	8-98013-420-0	01	1	0905-0906	●	●	●	●
170	03.480 KNOB	8-98013-420-0	01	1	0907-	●	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE	8-98013-418-0	01	1	0905-0906	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE	8-98013-418-0	01	1	0907-	●	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0905-0906	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0907-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
