0-60 — ENGINE ELECTRICAL CONTROL PARTS (#50016) — 216 parça

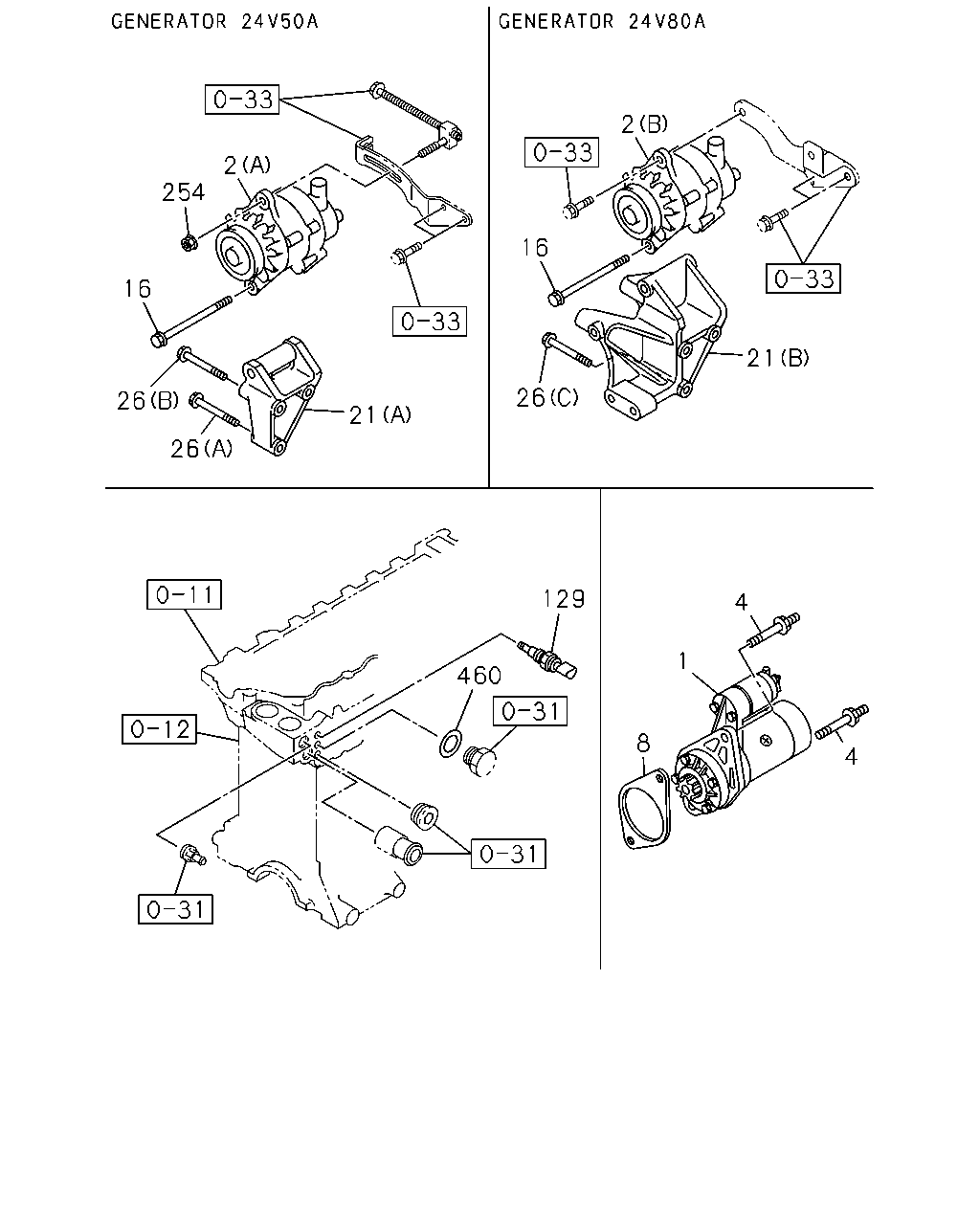

çizim 158768
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0905-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0905-0906 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 0905- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 0905- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0905-0906 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0907- ● ● ●
8 02.042 SPACER; STARTER
NPR(NP***N) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 0905- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0905-0906 ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0907- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 0905- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 0905- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0905- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0905- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0905- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0907- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0905-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0905- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0905- ● ●

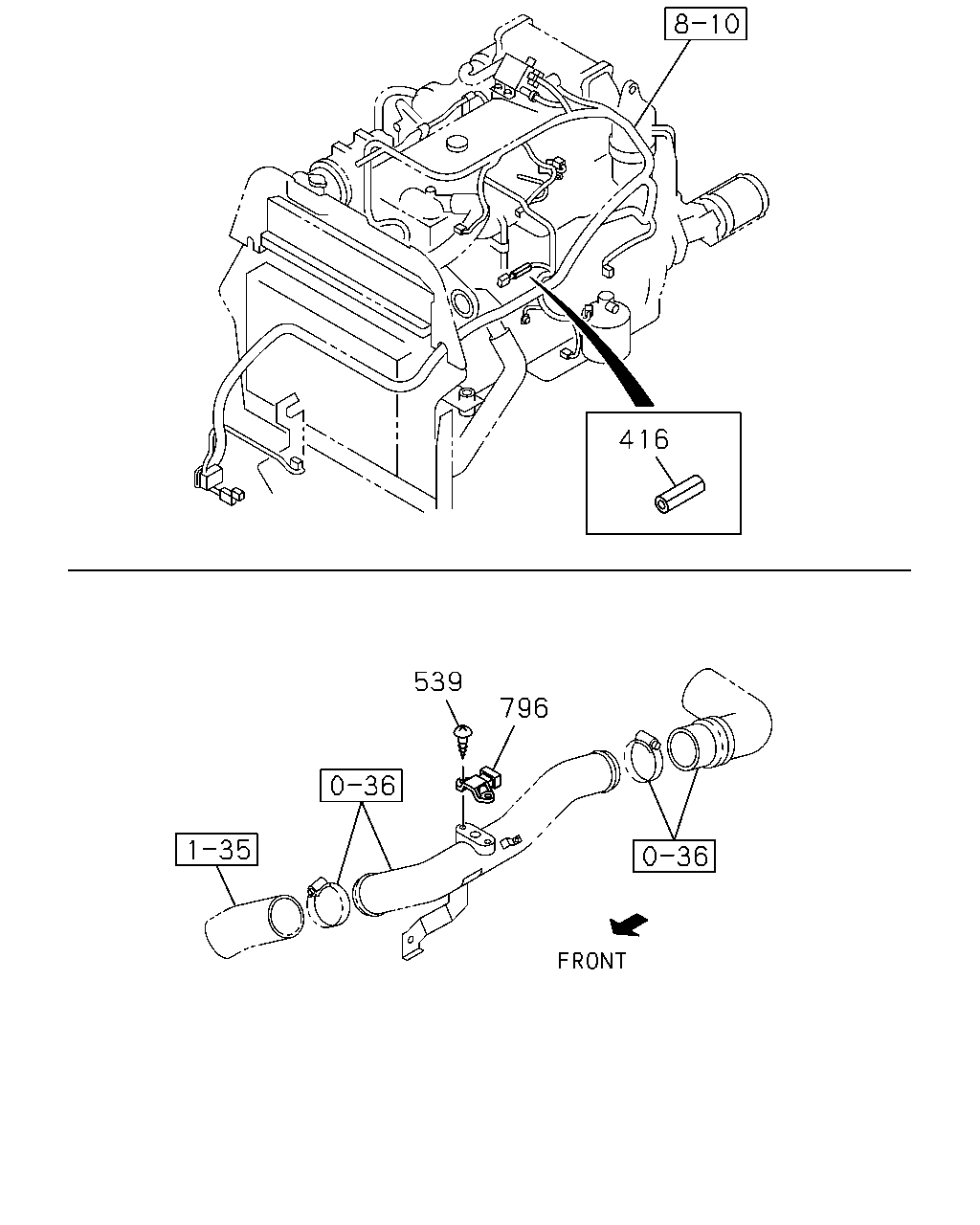

çizim 158770
416 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1010- ● ●
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 0905- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0905-0906 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0907- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0905-0906 ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0907- ● ● ●

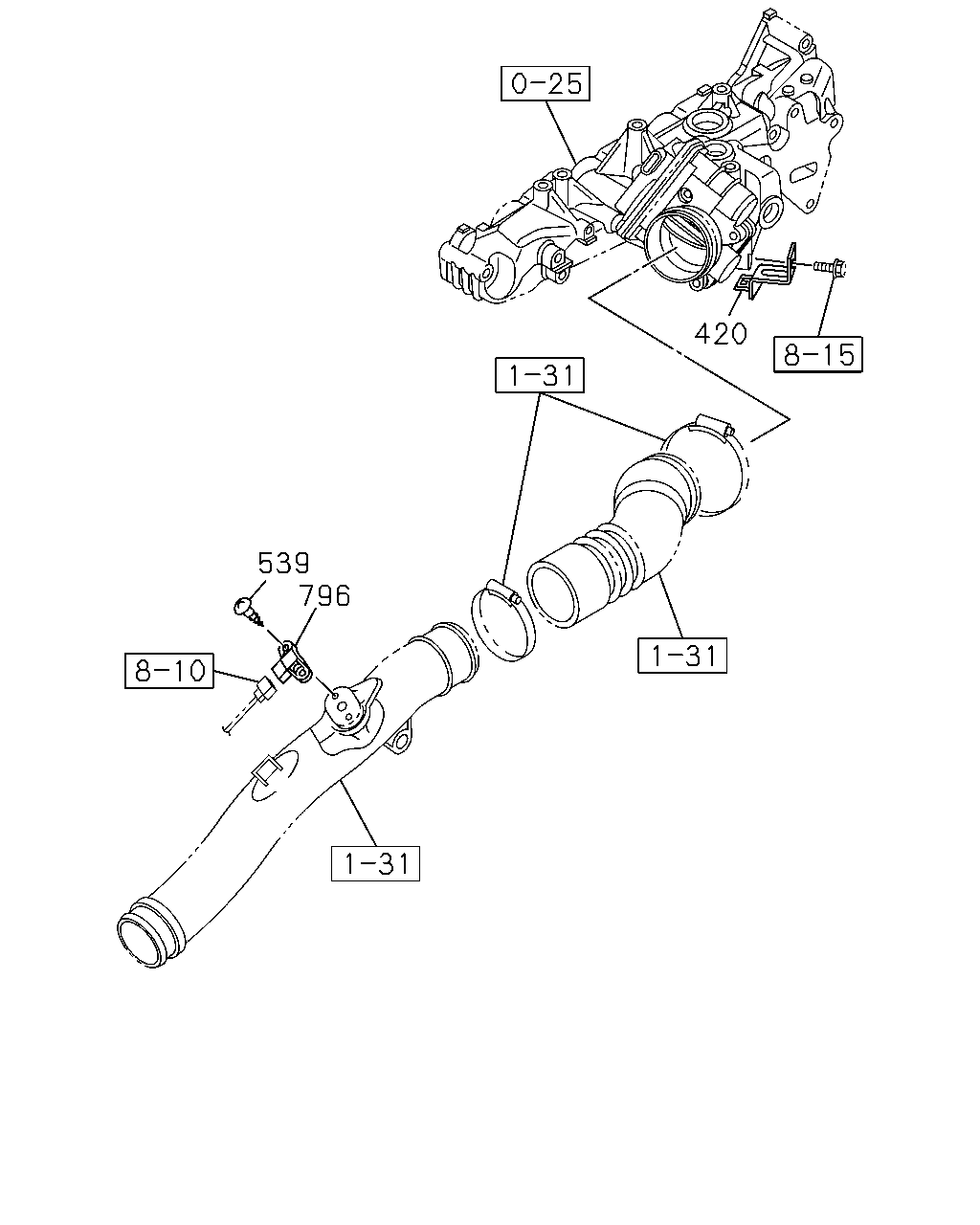

çizim 158771
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 0907- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0905-0906 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0907- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0905-0906 ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0907- ● ● ●

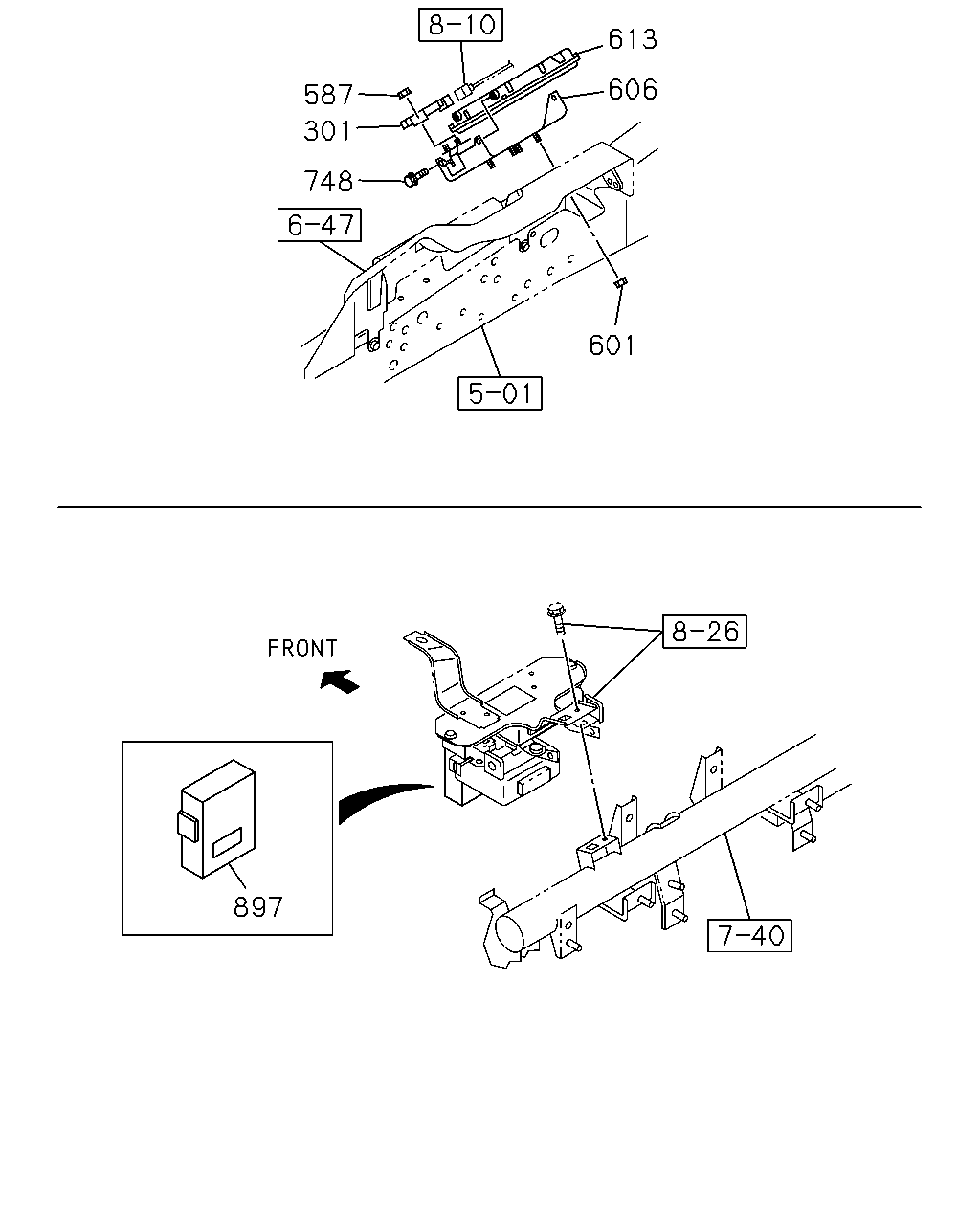

çizim 158772
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0905-0906 ● ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0907- ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0905-0906 ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907- ● ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0905-0906 ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0907- ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 0907- ●
606 03.680 BRACKET; CONT UNIT 8-98145-011-2 01 1 0905- ● ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-093-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-758-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98132-274-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-741-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98132-273-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-740-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98132-268-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-725-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-094-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-759-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98132-275-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-742-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98132-276-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-743-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98132-269-0 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-726-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-119-5 01 1 1012- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-113-4 01 1 1012- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98132-271-2 01 1 0906-1501 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98132-271-2 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98307-738-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GENERATOR 24V80A(7YN) 		8-98132-272-2 01 1 0906-1501 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98132-272-2 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-739-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V80A(7YN) 		8-98132-267-2 01 1 0906-1501 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98132-267-2 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-724-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98122-109-5 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-103-4 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-107-5 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98122-101-4 01 1 0907- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-285-4 01 1 0905-0906 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-285-5 01 1 0907-1105 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-285-6 01 1 1106-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98121-285-6 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98307-800-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-282-4 01 1 0905-0906 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-282-5 01 1 0907-1105 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-282-6 01 1 1106-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98121-282-6 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-754-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-293-6 01 1 0905-1501 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98121-293-6 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98307-733-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-292-6 01 1 0905-1501 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98121-292-6 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-732-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-291-6 01 1 0905-1501 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98121-291-6 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-721-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-286-6 01 1 0905-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98121-286-6 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-801-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-283-6 01 1 0905-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98121-283-6 01 1 1502-1505 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-755-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-096-0 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-808-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-095-0 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-807-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98231-098-0 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-810-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-097-0 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-809-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98307-800-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-284-4 01 1 0905-0906 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-284-5 01 1 0907-1105 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-284-6 01 1 1106-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98121-284-6 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOWSYSTEM DELETE<7RK> 		8-98307-799-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-287-6 01 1 0905-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98121-287-6 01 1 1502-1503 ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. GLOW SYSTEM DELETE<7RK> 		8-98307-802-0 01 1 1504- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0905-0906 ● ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0907- ● ● ●
897 02.510 DRM
EXC. GENERATOR 24V80A(7YN) 		8-98082-814-1 01 1 0905-0906 ● ●
897 02.510 DRM
EXC. GENERATOR 24V80A(7YN) 		8-98082-814-7 01 1 0907- ● ● ●

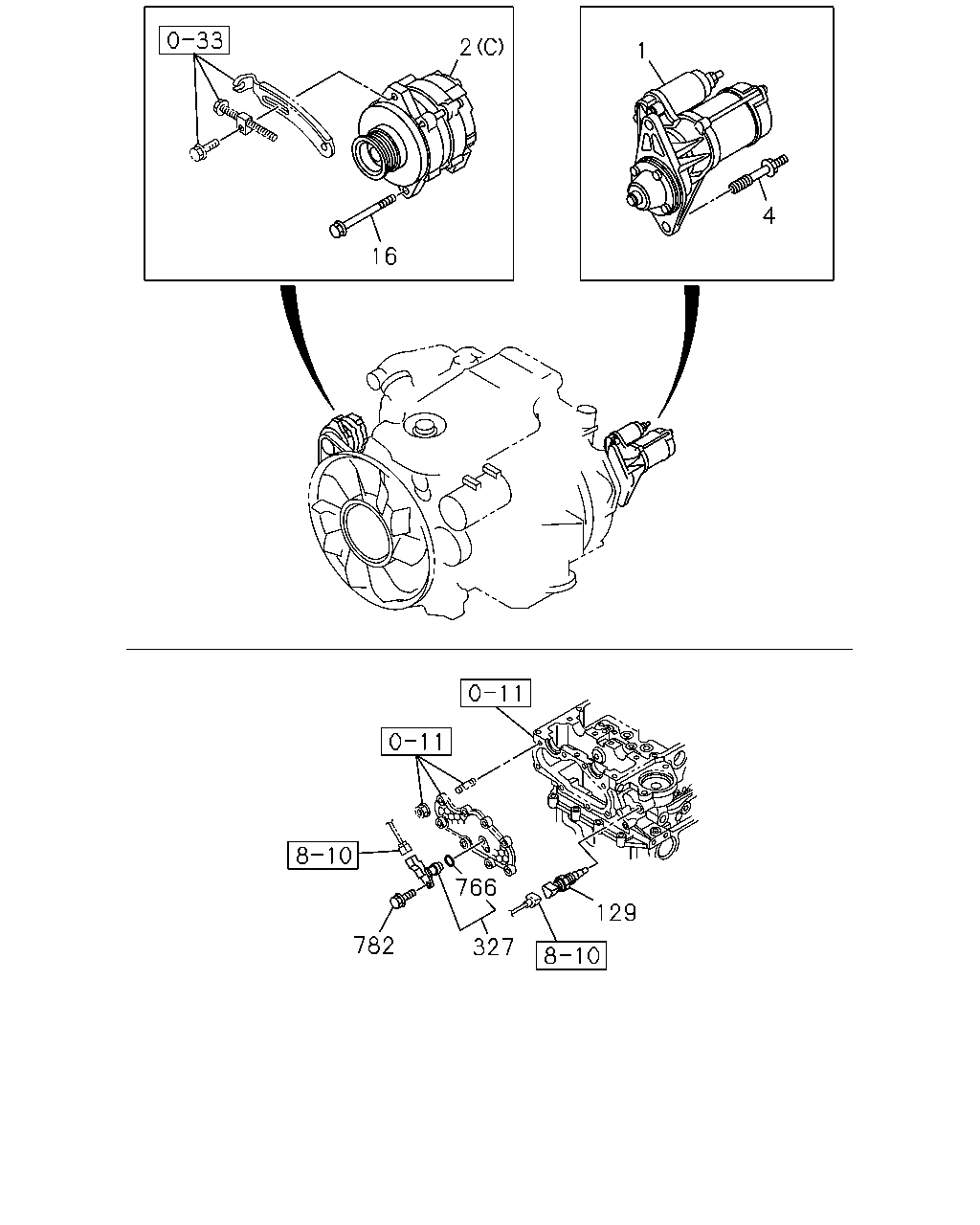

çizim 158773
2 1 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0905-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0905-0906 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (C) 24V 50A 		8-98029-887-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-889-2 01 1 0907- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 0905- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 0905- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0905-0906 ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0907- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0905-0906 ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0907- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0907- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0905-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0907- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0907- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0907- ●

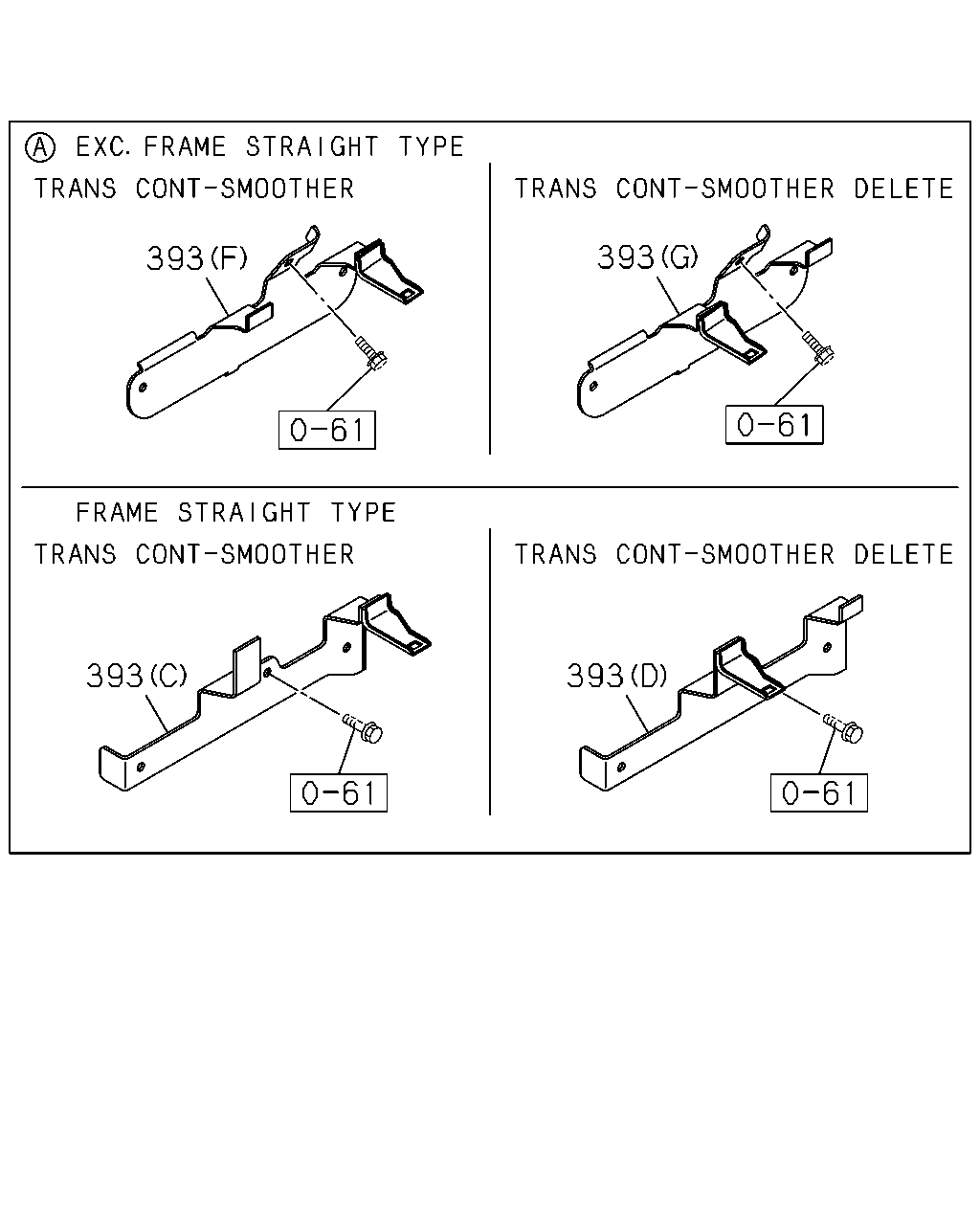

çizim 158952
393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98136-192-0 02 1 0907-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (F) 		8-98030-139-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (G) 		8-98030-138-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 0905- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 0905-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR SGL CAB(NP**SS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF) (D) 		8-98041-946-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-946-1 01 1 0907- ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0905-0906 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0907-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
çizim 158962
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0905-0906 ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0907- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0905-0906 ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0907-1501 ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1502- ●

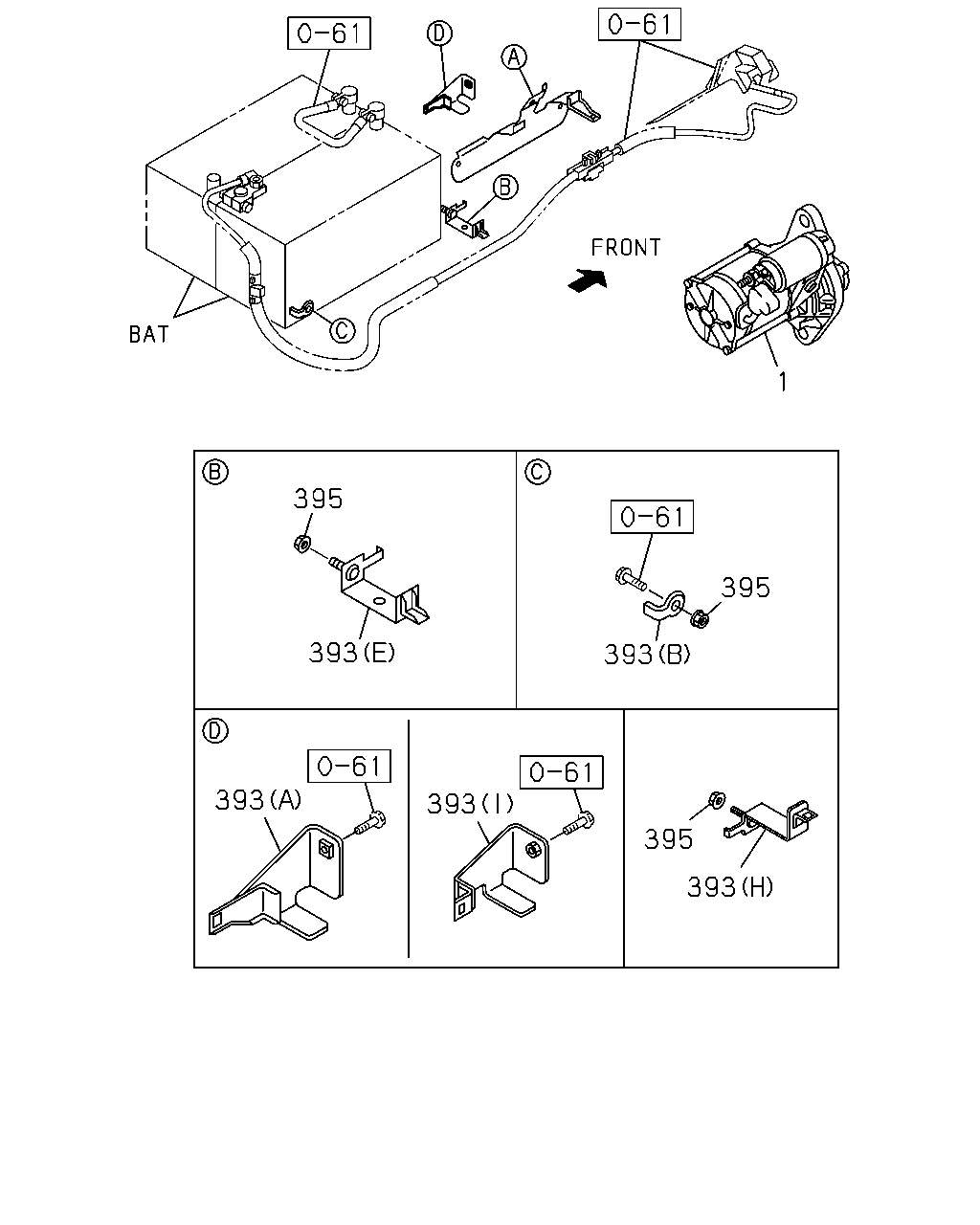

çizim 159121
1 395 395 393 393 393 393 395 393
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0907-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0905-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0905-0906 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0907-1006 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98136-192-0 02 1 0907-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (H) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (F) 		8-98030-139-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (G) 		8-98030-138-2 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 0905- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 02 1 0905- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 0905-1101 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR SGL CAB(NP**SS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (E) 		8-98018-251-1 01 1 1102- ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF) (D) 		8-98041-946-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0905-0906 ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98041-946-1 01 1 0907- ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0907- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0905-0906 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0907-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (A) 		8-98018-903-0 01 1 0907-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
