Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#50008) — 241 parça

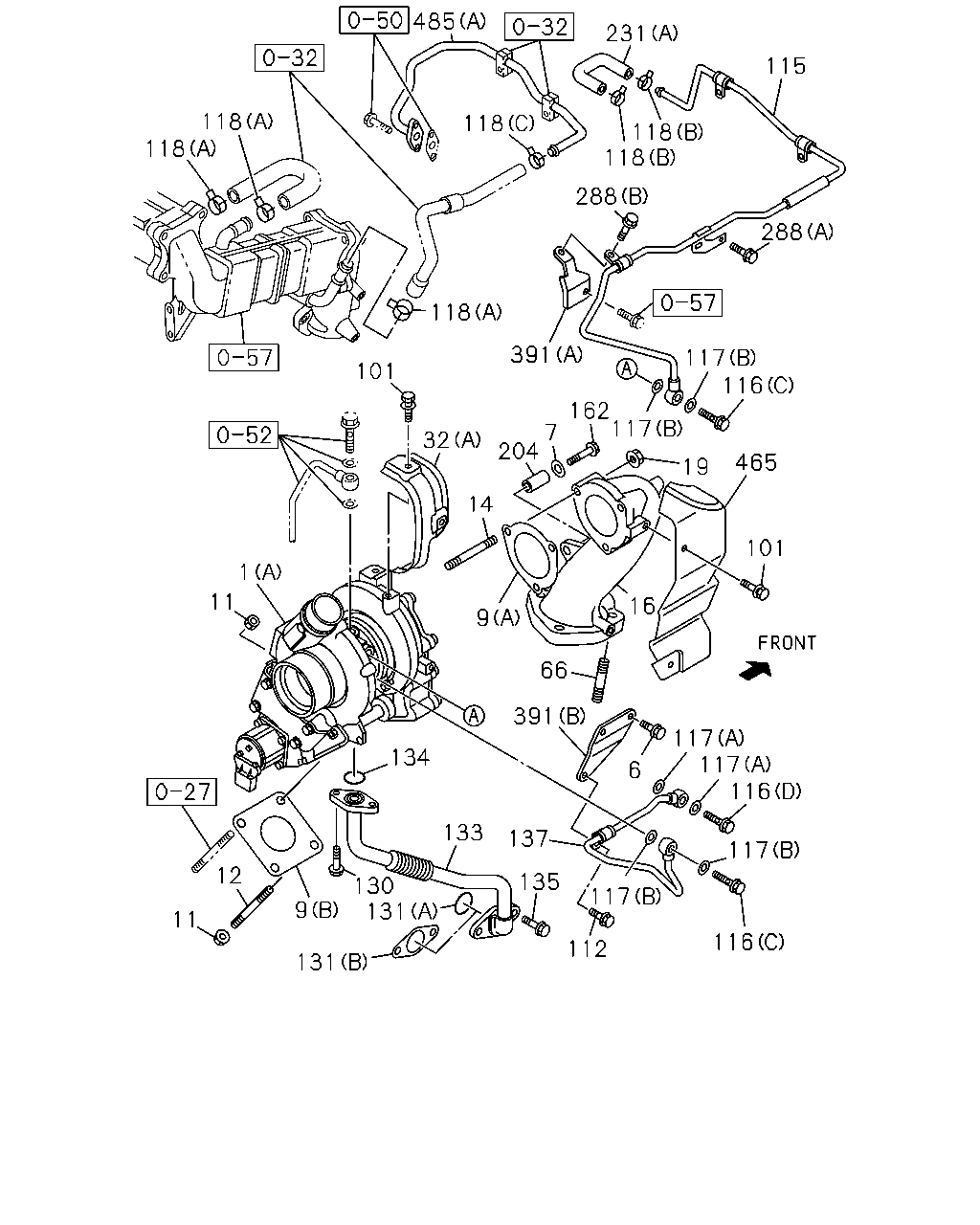

231 115 118 118 118 118 118 288 288 118 391 117 116 101 162 117 7 204 32 465 19 14 101 1 11 16 9 66 391 117 117 116 134 6 133 137 117 117 12 135 130 131 9 11 116 112 131 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM (B)	8-98083-041-2	01	1	0907-	●
1	03.342 TURBOCHARGER ASM (A)	8-98027-772-5	01	1	0905-1509		●	●
1	03.342 TURBOCHARGER ASM (A)	8-98322-481-0	01	1	1510-		●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0905-		●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0905-		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (C)	8-98011-532-0	01	1	0907-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	0905-		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	0905-		●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0907-	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0905-		●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0907-	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0905-		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0907-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	0905-		●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0907-0910	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0905-		●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0905-		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0907-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0907-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	0905-		●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0907-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0905-		●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0905-		●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0905-		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	0907-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0905-		●	●
116	03.342 BOLT; WATER PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0905-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0905-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0905-		●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0905-		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0907-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	0907-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0905-1312		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	0907-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0907-	●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0907-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=24	8-98025-921-0	04	1	0905-		●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0905-		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0905-1006		●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0905-1006		●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-661-0	01	1	1007-		●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0905-		●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0905-		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98074-761-0	01	1	0907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0905-		●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0905-		●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0905-		●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98075-182-1	01	1	0907-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-98120-394-1	01	1	0907-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-97209-950-0	01	1	0905-		●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	0905-		●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0905-		●	●
391	03.342 BRACKET; WATER PIPE (B)	8-97371-730-0	01	1	0905-		●	●
391	03.342 BRACKET; WATER PIPE (A)	8-98013-958-0	01	1	0905-		●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417	8-98052-394-0	01	1	0905-		●	●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	0907-	●
485	01.097 PIPE; WATER EGR (D)	8-98107-346-0	01	1	0907-	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	0905-		●	●
485	01.097 PIPE; WATER EGR (B)	8-98041-637-1	01	1	0905-		●	●

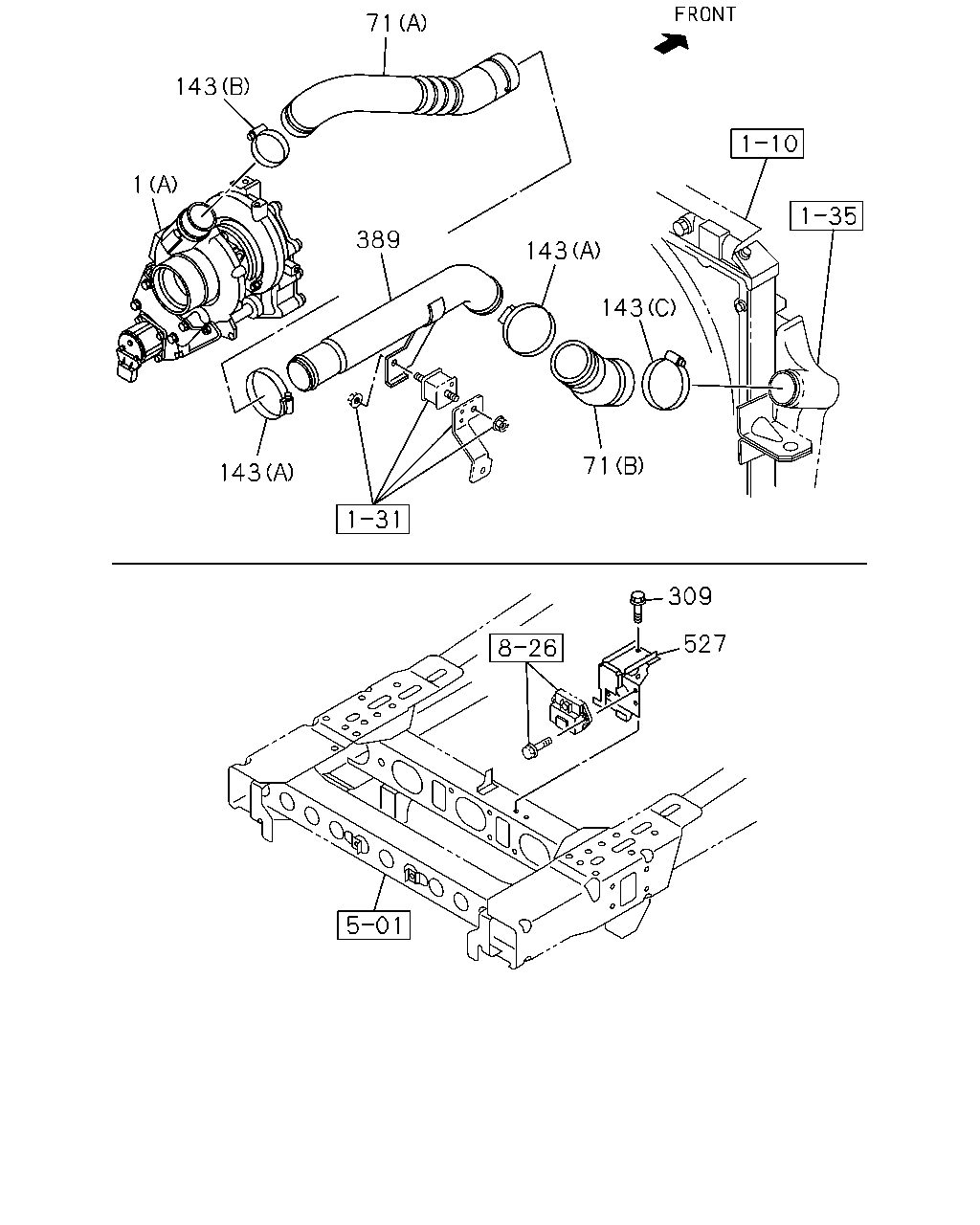

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM (B)	8-98083-041-2	01	1	0907-	●
1	03.342 TURBOCHARGER ASM (A)	8-98027-772-5	01	1	0905-1509		●	●
1	03.342 TURBOCHARGER ASM (A)	8-98322-481-0	01	1	1510-		●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	0907-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	0907-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98006-133-2	01	1	0905-		●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98039-732-3	01	1	0905-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0907-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0907-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1002-1011	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0907-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NNR(NP***E) (D) ID=60-65	8-98096-418-0	04	1	1002-1011	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1002-1011	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NNR(NP***E) (D) ID=60-65	8-98096-418-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0905-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (A) ID=45-65	8-98133-348-0	02	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0907-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (C) ID=65-85	8-98133-350-0	01	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0907-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65	8-98096-418-0	02	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (A) ID=60-65	8-98096-418-0	02	1	1002-1011			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR DBL CAB(NP**WN) (A) ID=60-65	8-98096-418-0	02	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (A) ID=60-65	8-98096-418-0	02	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90	8-98122-372-0	01	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (C) ID=70-90	8-98122-372-0	01	1	1002-1011			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR DBL CAB(NP**WN) (C) ID=70-90	8-98122-372-0	01	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (C) ID=70-90	8-98122-372-0	01	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0907-	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0905-		●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0907-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0905-		●	●
527	03.373 BRACKET; TURBOCHARGER	8-98060-887-2	01	1	0905-		●	●

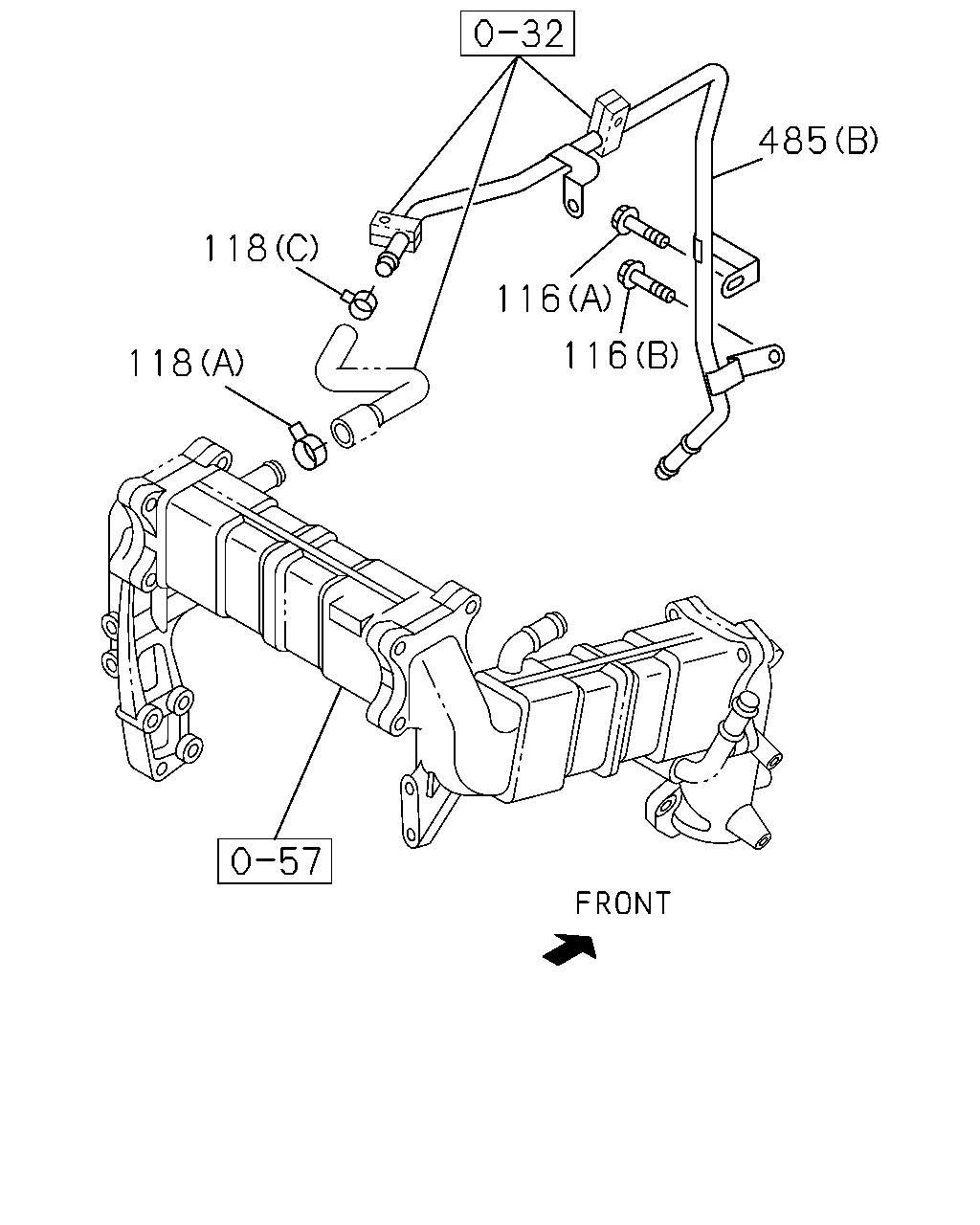

485 118 116 116 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
116	03.342 BOLT; WATER PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0905-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0905-		●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0905-		●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	0907-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0907-	●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0907-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=24	8-98025-921-0	04	1	0905-		●	●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	0907-	●
485	01.097 PIPE; WATER EGR (D)	8-98107-346-0	01	1	0907-	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	0905-		●	●
485	01.097 PIPE; WATER EGR (B)	8-98041-637-1	01	1	0905-		●	●

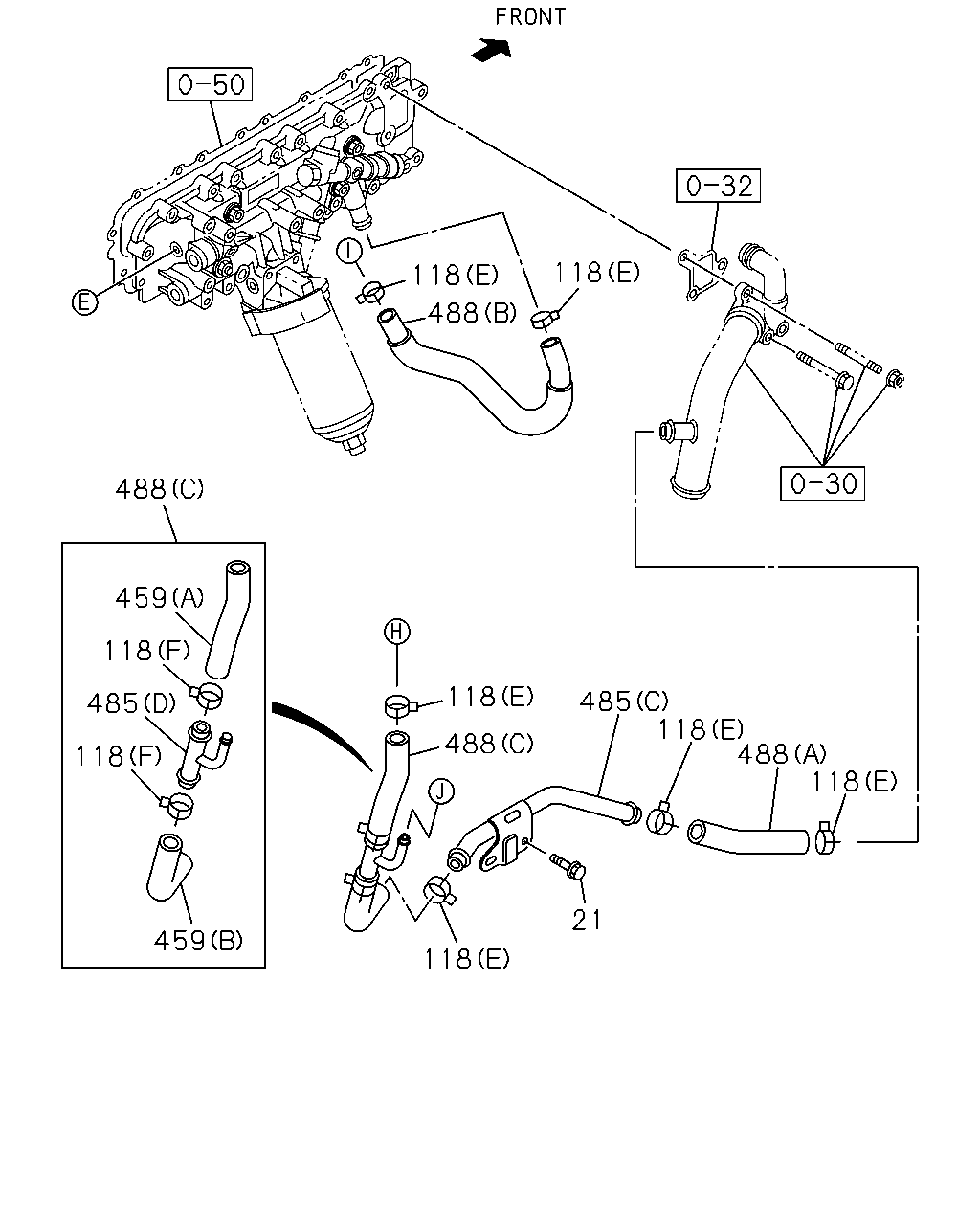

118 118 488 488 459 118 118 485 118 488 118 485 488 118 21 459 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	03.358 BOLT; PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	0907-	●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	0907-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0907-	●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0907-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=24	8-98025-921-0	04	1	0905-		●	●
459	03.341 HOSE; WATER (A)	8-98107-347-0	01	1	0907-	●
459	03.341 HOSE; WATER (B)	8-98108-321-0	01	1	0907-	●
485	01.097 PIPE; WATER EGR (C)	8-98082-424-1	01	1	0907-	●
485	01.097 PIPE; WATER EGR (D)	8-98107-346-0	01	1	0907-	●
485	01.097 PIPE; WATER EGR (A)	8-98032-267-0	01	1	0905-		●	●
485	01.097 PIPE; WATER EGR (B)	8-98041-637-1	01	1	0905-		●	●
488	03.163 HOSE; RUBBER (A) L=110 SERVICED BY L=3000	0-03666-300-0	01	1	0907-1102	●
488	03.163 HOSE; RUBBER (A) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1103-	●
488	03.163 HOSE; RUBBER (B)	8-98075-184-0	01	1	0907-	●
488	03.163 HOSE; RUBBER (C)	8-98082-221-0	01	1	0907-	●

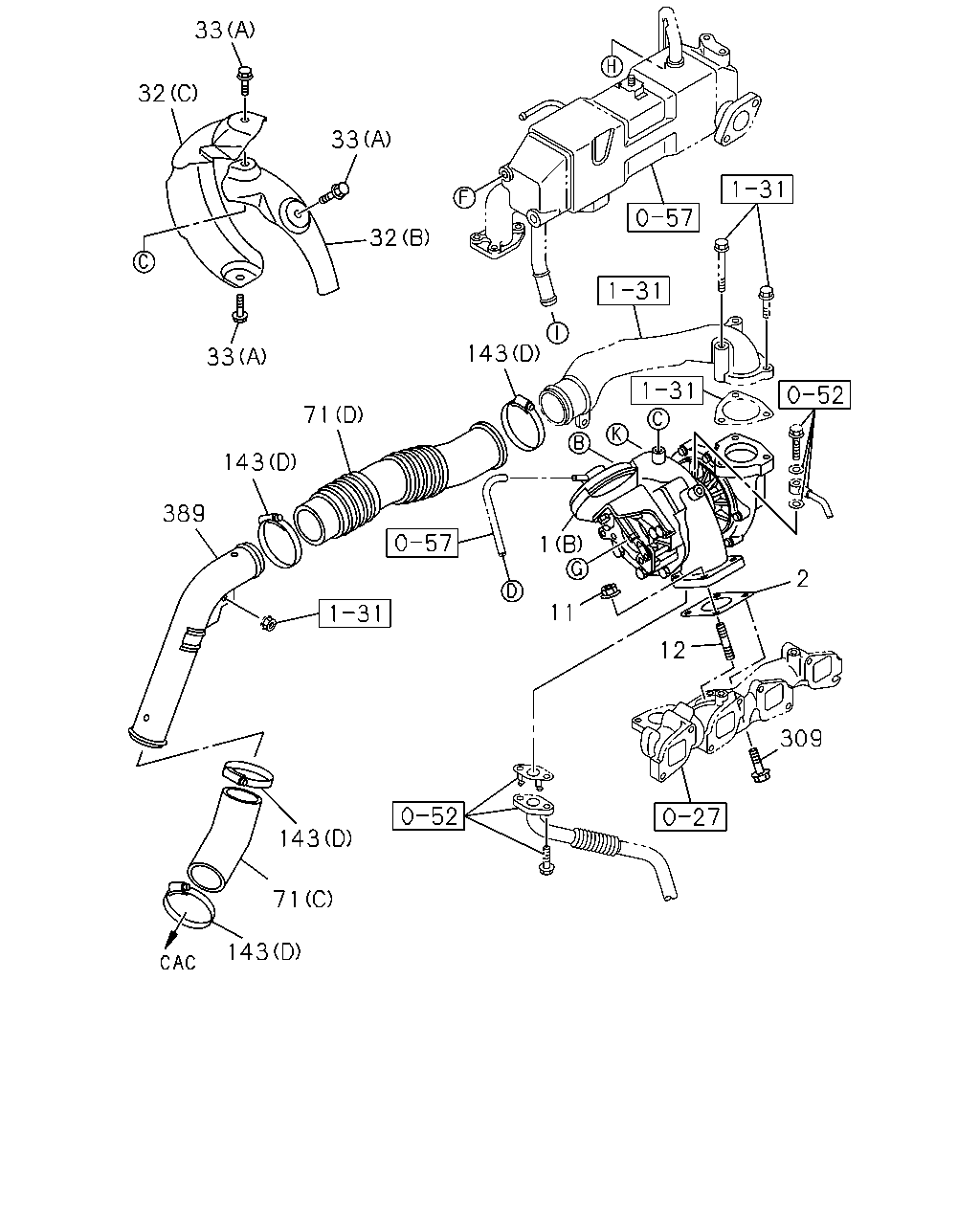

33 32 33 32 143 33 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM (B)	8-98083-041-2	01	1	0907-	●
1	03.342 TURBOCHARGER ASM (A)	8-98027-772-5	01	1	0905-1509		●	●
1	03.342 TURBOCHARGER ASM (A)	8-98322-481-0	01	1	1510-		●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0907-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0907-	●
11	03.342 NUT; TURBOCHARGER 03.604 M10 FLANGE	8-97381-617-0	04	1	0905-		●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0907-	●
12	03.342 STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0905-		●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0907-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0907-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98031-888-3	01	1	0905-		●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0907-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0907-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98036-513-2	01	1	0907-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98055-062-2	01	1	0907-	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98006-133-2	01	1	0905-		●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98039-732-3	01	1	0905-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0907-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0907-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1002-1011	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0907-1001	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NNR(NP***E) (D) ID=60-65	8-98096-418-0	04	1	1002-1011	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1002-1011	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NNR(NP***E) (D) ID=60-65	8-98096-418-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1012-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0905-		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (A) ID=45-65	8-98133-348-0	02	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0907-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> (C) ID=65-85	8-98133-350-0	01	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0907-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65	8-98096-418-0	02	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (A) ID=60-65	8-98096-418-0	02	1	1002-1011			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR DBL CAB(NP**WN) (A) ID=60-65	8-98096-418-0	02	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (A) ID=60-65	8-98096-418-0	02	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90	8-98122-372-0	01	1	0905-0906		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0907-1001		●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (C) ID=70-90	8-98122-372-0	01	1	1002-1011			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR SGL CAB(NP**SN) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR DBL CAB(NP**WN) (C) ID=70-90	8-98122-372-0	01	1	1002-1011		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NQR(NP***S) (C) ID=70-90	8-98122-372-0	01	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET NPR(NP***N) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0907-	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0905-		●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0907-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0905-		●	●

231 118 118 137 118 138 231 117 118 115 138 414 138 117 117 33 9 14 173 18 534 16 217 217 66 33 251 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611 (C)	8-98011-532-0	01	1	0907-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54	8-97376-758-0	01	1	0905-		●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49	8-98046-241-0	01	1	0905-		●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0907-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X49 L=63	8-97019-478-0	03	1	0905-		●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0907-0910	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	0911-	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-3	01	1	0905-		●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0907-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0907-	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0907-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0907-	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0905-		●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	0907-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98085-187-0	01	1	0905-		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=12.6	8-97331-137-1	02	1	0907-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=14.2 OD=20.0	8-98113-762-0	01	1	0907-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0905-1312		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.166 (F) ID=20.8	8-94125-862-1	02	1	0907-	●
118	03.342 CLIP; WATER HOSE 01.153 (D) ID=12.8	8-94367-943-0	04	1	0907-	●
118	03.342 CLIP; WATER HOSE 08.846 (E) ID=22	8-94382-401-0	06	1	0907-1003	●
118	03.342 CLIP; WATER HOSE 03.278 (E) ID=22	8-97359-141-0	06	1	1004-	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0905-		●	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=24	8-98025-921-0	04	1	0905-		●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98074-761-0	01	1	0907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0905-		●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	0907-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	0907-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0907-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0907-	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0907-	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0907-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (C)	8-98075-182-1	01	1	0907-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-98120-394-1	01	1	0907-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-97209-950-0	01	1	0905-		●	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0907-	●
414	03.602 SPACER	8-98143-884-0	01	1	0907-	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0907-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
