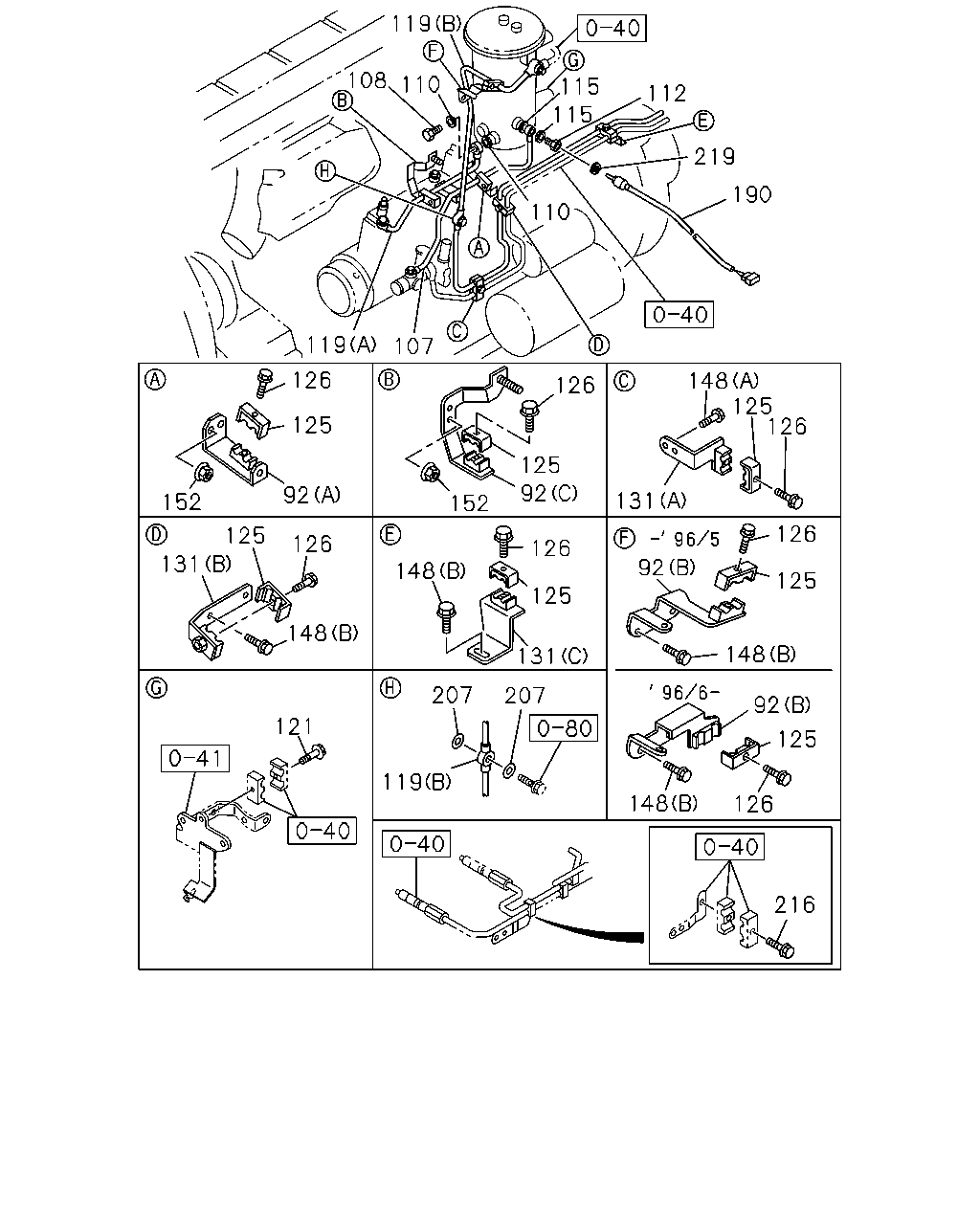

0-42A — FUEL PUMP AND PIPE (#5000) — 107 parça

119 115 108 110 112 115 219 190 110 119 107 126 148 125 126 126 125 125 92 92 131 152 152 126 125 126 126 131 92 148 125 125 148 148 131 207 207 92 121 125 119 148 126 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	PLUG M14X9	9-99202-314-0	01	1	9606-9609	●
46	PLUG CLUTCH-15.5" TWIN PLATE SPICER(TEY) M14X9	9-99202-314-0	01	1	9610-9905	●
46	PLUG M14X9	9-99202-314-0	01	1	9906-	●
46	PLUG RLD GOVERNOR(SD7) M14X9	9-99202-314-0	01	1	9906-		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	9606-9706	●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	9707-9905	●		●
92	BRACKET; FUEL PIPE (C)	1-15419-427-0	01	1	9906-	●	●		●
92	BRACKET; FUEL PIPE (B)	1-15419-468-0	01	1	9606-9606	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	9606-9706	●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	9707-9905	●		●
92	BRACKET; FUEL PIPE (B)	1-15419-474-1	01	1	9906-	●	●		●
92	BRACKET; FUEL PIPE 17 INCH CLUTCH(RF3) (A)	1-15419-425-0	01	1	9610-9612	●
92	BRACKET; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-425-0	01	1	9701-9706	●
92	BRACKET; FUEL PIPE EURO2 SPECIFICATION<THN> (A)	1-15419-425-0	01	1	9707-9710	●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	9707-9710			●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	9711-9905	●		●
92	BRACKET; FUEL PIPE (A)	1-15419-425-0	01	1	9906-	●	●		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	9606-9706	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	9707-9905	●		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-731-0	01	1	9906-	●	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9606-9706	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9707-9905	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9906-	●	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9706	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9707-9905	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-	●	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9606-9609	●
112	BOLT; JOINT,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	9610-9701	●
112	BOLT; JOINT,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE	1-09675-086-0	01	1	9702-9905	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9906-	●
112	BOLT; JOINT,FUEL FILTER 17 INCH CLUTCH(RF3)	1-09675-156-1	01	1	9610-9612	●
112	BOLT; JOINT,FUEL FILTER EURO2 SPECIFICATION<THN>	1-09675-156-1	01	1	9701-9706	●
112	BOLT; JOINT,FUEL FILTER EURO2 SPECIFICATION<THN>	1-09675-156-1	01	1	9707-9905	●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	9707-9905			●
112	BOLT; JOINT,FUEL FILTER EURO2 SPECIFICATION<THN>	1-09675-156-1	01	1	9906-		●
112	BOLT; JOINT,FUEL FILTER	1-09675-156-1	01	1	9906-				●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9706	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9707-9905	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-	●	●		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-538-1	01	1	9606-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A)	1-15415-538-1	01	1	9610-9905	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN> (A)	1-15415-538-1	01	1	9906-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15415-540-1	01	1	9606-9606	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-091-0	01	1	9606-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B)	1-15416-091-0	01	1	9610-9905	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN> (B)	1-15416-091-0	01	1	9906-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP 17 INCH CLUTCH(RF3) (A)	1-15415-539-1	01	1	9610-9612	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15415-539-1	01	1	9701-9706	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15415-539-1	01	1	9707-9905	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	9707-9905			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (A)	1-15415-539-1	01	1	9906-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (A)	1-15415-539-1	01	1	9906-				●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP 17 INCH CLUTCH(RF3) (B)	1-15416-090-0	01	1	9610-9612	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15416-090-0	01	1	9701-9706	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15416-090-0	01	1	9707-9905	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	9707-9905			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN> (B)	1-15416-090-0	01	1	9906-		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP (B)	1-15416-090-0	01	1	9906-				●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9606-9606	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9607-9706	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9707-9905	●		●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9906-	●	●		●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	8-94393-280-1	06	1	9606-9706	●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	8-94393-280-1	06	1	9707-9905	●		●
125	CLIP; FUEL PIPE ID=10 & 10 L=25	8-94393-280-2	06	1	9906-	●	●		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	9606-9706	●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	9707-9905	●		●
126	BOLT; CLIP,FUEL PIPE M6X30 FLANGE	0-28080-630-0	06	1	9906-	●	●		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	9606-9706	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	9707-9905	●		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-336-0	01	1	9906-	●	●		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	9606-9706	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	9707-9905	●		●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-372-0	01	1	9906-	●	●		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	9606-9706	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	9707-9905	●		●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-423-1	01	1	9906-	●	●		●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9606-9706	●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9707-9905	●		●
148	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9906-	●	●		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	9606-9706	●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	9707-9905	●		●
148	BOLT; BRKT (B) M10X20 FLANGE	0-28181-020-0	05	1	9906-	●	●		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9606-9612	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9701-9702	●
152	NUT; BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9701-9702	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9703-9706	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9707-9710	●		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9707-9710	●		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9711-9905	●		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9906-	●	●		●
190	SENSOR; FUEL TEMP 17 INCH CLUTCH(RF3)	1-81535-036-4	01	1	9610-9612	●
190	SENSOR; FUEL TEMP EURO2 SPECIFICATION<THN>	1-81535-036-4	01	1	9701-9706	●
190	SENSOR; FUEL TEMP EURO2 SPECIFICATION<THN>	1-81535-036-5	01	1	9707-9905	●
190	SENSOR; FUEL TEMP	1-81535-036-5	01	1	9707-9905			●
190	SENSOR; FUEL TEMP EURO2 SPECIFICATION<THN>	1-81535-036-6	01	1	9906-		●
190	SENSOR; FUEL TEMP	1-81535-036-6	01	1	9906-				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-	●	●		●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	9606-9706	●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	9707-9905	●		●
216	BOLT; CLIP,FUEL PIPE M6X40 FLANGE	0-28080-640-0	01	1	9906-	●	●		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 17 INCH CLUTCH(RF3) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9612	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2	1-09630-085-0	01	1	9701-9706	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9707-9905	●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9707-9905			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9906-		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9906-				●
