2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#500) — 108 parça

57 39 58 60 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
39	GASKET; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	02	1	9002-	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9002-9302	●
57	NIPPLE; POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-9306	●
57	NIPPLE; POWER ASSISTOR M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9307-	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=340	0-07150-340-0	01	1	9002-9103	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTER SHIFT CONTROL<WX8> L=360	0-07150-360-0	01	1	9104-	●
60	CLIP; FLEX HOSE ASSISTER SHIFT CONTROL<WX8>	1-09709-183-1	01	1	9002-9103	●
60	CLIP; FLEX HOSE ASSISTER SHIFT CONTROL<WX8> ID=13 & 12	8-94178-797-0	01	1	9104-9204	●

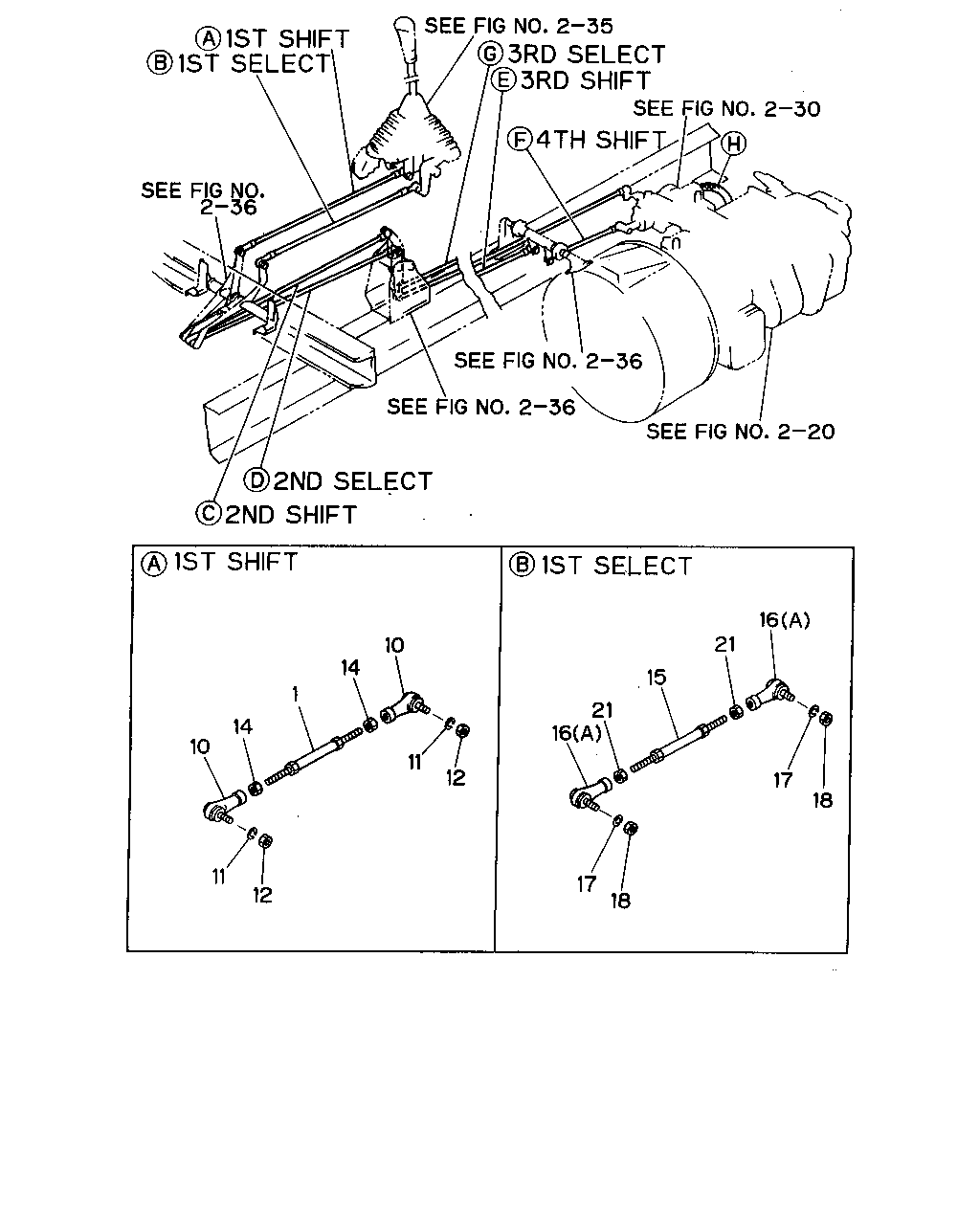

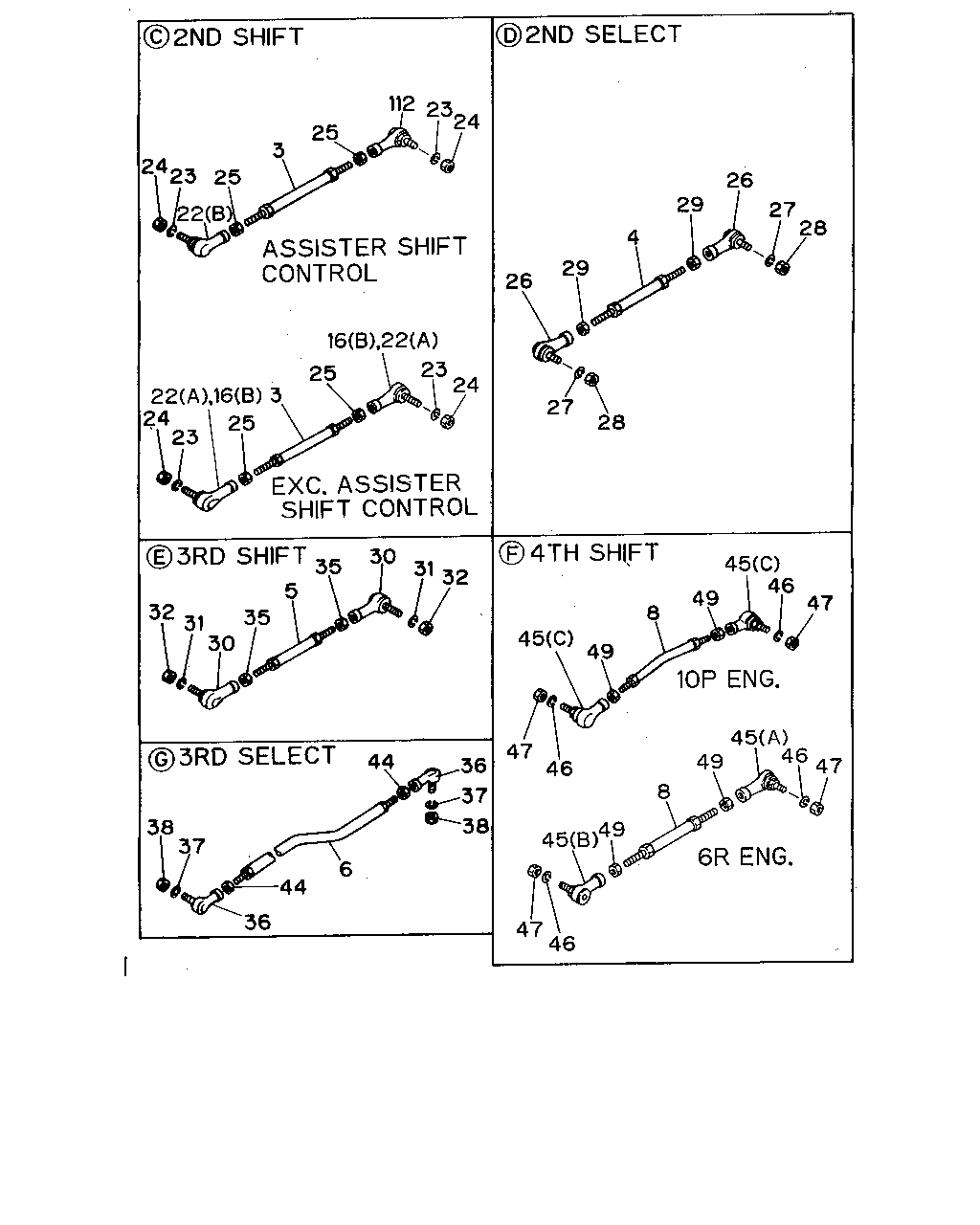

28 27 26 29 4 29 26 27 28 45 46 47 49 8 49 45 47 46 47 46 45 49 8 49 45 46 47 44 36 37 38 6 44 36 37 38 32 31 30 35 5 35 30 31 32 24 23 25 22 16 3 25 16 22 23 24 24 23 22 25 3 25 112 23 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	ROD; LINK,2ND SHIFT L=625	1-33652-319-0	01	1	8712-9001		●	●	●
3	ROD; LINK,2ND SHIFT L=595	1-33652-568-0	01	1	9002-	●
3	ROD; LINK,2ND SHIFT L=580	1-33652-416-0	01	1	9002-		●			●	●
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	8712-9001				●
4	ROD; LINK,2ND SELECT 10PC1 STD ENG(10L) L=585	1-33652-320-0	01	1	8712-9001			●
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	9002-9409	●
4	ROD; LINK,2ND SELECT L=585	1-33652-320-0	01	1	9410-	●	●			●
4	ROD; LINK,2ND SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) L=580	1-33652-381-0	01	1	8712-9001			●
4	ROD; LINK,2ND SELECT L=580	1-33652-381-0	01	1	8712-9001		●
4	ROD; LINK,2ND SELECT L=580	1-33652-381-0	01	1	9002-9409		●			●	●
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	8712-9001				●
5	ROD; LINK,3RD SHIFT 10PC1 STD ENG(10L) L=855	1-33652-321-0	01	1	8712-9001			●
5	ROD; LINK,3RD SHIFT L=855	1-33652-321-0	01	1	9002-	●
5	ROD; LINK,3RD SHIFT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) L=1380	1-33652-341-0	01	1	8712-9001			●
5	ROD; LINK,3RD SHIFT L=1380	1-33652-341-0	01	1	8712-9001		●
5	ROD; LINK,3RD SHIFT L=1380	1-33652-341-0	01	1	9002-		●			●	●
6	ROD; LINK,3RD SELECT L=1409	1-33652-444-0	01	1	8712-9001				●
6	ROD; LINK,3RD SELECT ASSISTER SHIFT CONTROL<WX8> L=1408	1-33652-606-1	01	1	9002-	●
6	ROD; LINK,3RD SELECT EXC. ASSISTER SHIFT CONTROL<WX8> L=1409	1-33652-444-0	01	1	9002-	●
6	ROD; LINK,3RD SELECT 10PC1 STD ENG(10L) L=1440	1-33652-340-0	01	1	8712-9001			●
6	ROD; LINK,3RD SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) L=1715	1-33652-426-1	01	1	8712-9001			●
6	ROD; LINK,3RD SELECT L=1715	1-33652-426-1	01	1	8712-9001		●
6	ROD; LINK,3RD SELECT L=1715	1-33652-426-2	01	1	9002-		●			●	●
8	ROD; LINK,4TH SHIFT L=502	1-33652-445-0	01	1	8902-9001				●
8	ROD; LINK,4TH SHIFT ASSISTER SHIFT CONTROL<WX8> L=330	1-33652-405-0	01	1	9002-9103	●
8	ROD; LINK,4TH SHIFT ASSISTER SHIFT CONTROL<WX8> L=320	1-33652-648-1	01	1	9104-	●
8	ROD; LINK,4TH SHIFT EXC. ASSISTER SHIFT CONTROL<WX8> L=502	1-33652-445-1	01	1	9002-9501	●
8	ROD; LINK,4TH SHIFT EXC. ASSISTER SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	9502-	●
8	ROD; LINK,4TH SHIFT 10PC1 STD ENG(10L) L=530	1-33652-394-0	01	1	8712-9001			●
8	ROD; LINK,4TH SHIFT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) L=303	1-33652-433-0	01	1	8712-9001			●
8	ROD; LINK,4TH SHIFT L=303	1-33652-433-0	01	1	8712-9001		●
8	ROD; LINK,4TH SHIFT L=303	1-33652-433-1	01	1	9002-		●			●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-078-0	02	1	9002-9306	●
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-078-0	02	1	9002-9306		●			●	●
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-078-0	02	1	9307-		●			●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-036-1	02	1	8712-8904		●	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-078-0	02	1	8905-9001		●	●	●
22	JOINT; BALL,SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-036-1	01	1	9002-	●
23	WASHER; LK,2ND LINK ROD ID=10.2	9-09150-510-0	02	1	8712-9301	●	●	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10	9-09110-410-0	02	1	8712-9301	●	●	●	●	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●			●	●
25	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	8712-	●	●	●	●	●	●
26	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
27	WASHER; LK,2ND LINK ROD ID=8.2	9-09150-508-0	02	1	8712-9301	●	●	●	●	●	●
28	NUT; 2ND LINK ROD M8	9-09110-408-0	02	1	8712-9301	●	●	●	●	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●			●	●
29	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	8712-	●	●	●	●	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-036-1	02	1	8712-8904				●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 10PC1 STD ENG(10L)	1-09760-036-1	02	1	8712-8904			●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	8905-9001				●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 10PC1 STD ENG(10L)	1-09760-078-0	02	1	8905-9001			●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-078-0	02	1	9002-	●	●			●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-09760-036-1	02	1	8712-8904		●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-09760-078-0	02	1	8905-9001		●	●
31	WASHER; LK,3RD LINK ROD ID=10.2	9-09150-510-0	02	1	8712-	●	●	●	●	●	●
32	NUT; 3RD LINK ROD M10	9-09110-410-0	02	1	8712-9301	●	●	●	●	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-	●	●			●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	8712-	●	●	●	●	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
37	WASHER; LK,3RD LINK ROD ID=8.2	9-09150-508-0	02	1	8712-9301	●	●	●	●	●	●
38	NUT; 3RD LINK ROD M8	9-09110-408-0	02	1	8712-9301	●	●	●	●	●	●
38	NUT; 3RD LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●			●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	8712-	●	●	●	●	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD (C)	1-09760-078-0	02	1	8712-9001				●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 10PC1 STD ENG(10L) (C)	1-09760-078-0	02	1	8712-9001			●
45	JOINT; BALL,RIGHT SCREW,LINK ROD (C)	1-09760-078-0	02	1	9002-9103	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> (C)	1-09760-082-0	02	1	9104-9501	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD (C)	1-09760-116-0	02	1	9502-	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD EXC. ASSISTER SHIFT CONTROL<WX8> (C)	1-09760-078-0	02	1	9104-9306	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD (A)	1-09760-078-0	01	1	9002-		●			●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A)	1-09760-078-0	01	1	8712-9001		●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B)	1-33660-157-0	01	1	8712-9001		●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD (B)	1-33660-157-1	01	1	9002-		●			●	●
46	WASHER; LK,4TH LINK ROD ID=10.2	9-09150-510-0	02	1	8712-9301	●	●	●	●	●	●
47	NUT; 4TH LINK ROD M10	9-09110-410-0	02	1	8712-9301	●	●	●	●	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-050-0	02	1	9302-	●	●			●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	8712-9001		●	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD ASSISTER SHIFT CONTROL<WX8> M12	9-99111-412-0	02	1	9002-9501	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	9502-	●
49	NUT; LK,RIGHT SCREW,LINK ROD EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	9002-9501	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9002-9501		●			●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	9502-		●			●	●
112	JOINT; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33660-157-1	01	1	9002-	●

12 11 10 14 1 14 10 11 12 17 18 16 21 15 21 16 17 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	ROD; LINK,1ST SHIFT L=498	1-33652-269-1	01	1	8712-	●	●	●	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-078-0	02	1	8905-	●	●	●	●	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-036-1	02	1	8712-8904		●	●	●
11	WASHER; LK,1ST LINK ROD,SHIFT ID=10.2	9-09150-510-0	02	1	8712-9301	●	●	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10	9-09110-510-0	02	1	8712-9301	●	●	●	●	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-050-0	02	1	9302-	●	●			●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	8712-	●	●	●	●	●	●
15	ROD; LINK 1ST SHIFT 1ST SELECT L=513	1-33652-318-1	01	1	8712-	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD (A) L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
16	JOINT ASM; BALL,CONT ROD EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-09760-078-0	02	1	9002-9306	●
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-078-0	02	1	9002-9306		●			●	●
16	JOINT ASM; BALL,CONT ROD (B)	1-09760-078-0	02	1	9307-		●			●
17	WASHER; LK,1ST LINK ROD ID=8.2	9-09150-508-0	02	1	8712-9301	●	●	●	●	●	●
18	NUT; 1ST LINK ROD M8	9-09110-508-0	02	1	8712-9301	●	●	●	●	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-049-0	02	1	9302-	●	●			●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	8712-	●	●	●	●	●	●
