2-30 — GEAR SHIFTER AND QUADRANT BOX (#5) — 556 parça

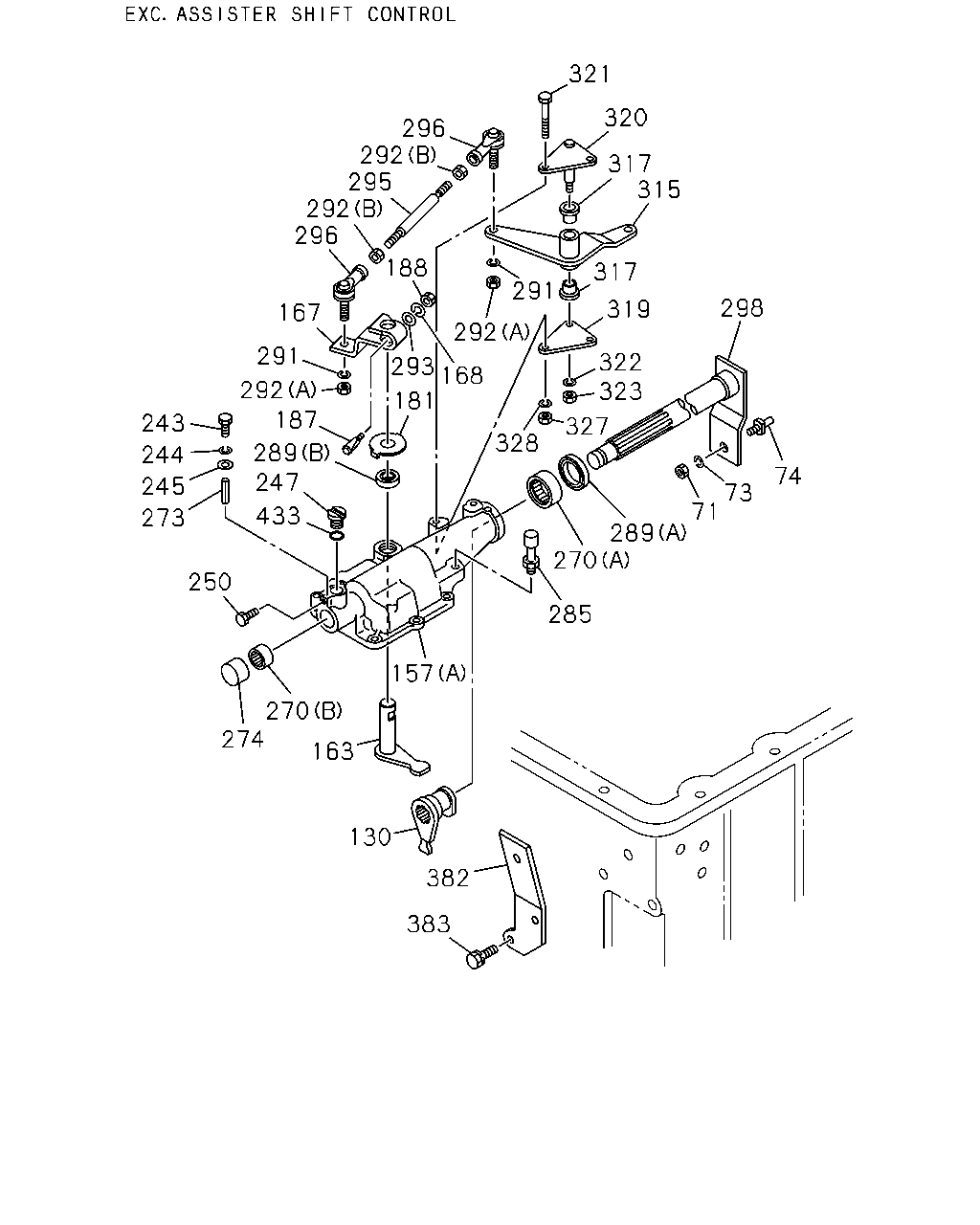

321 320 296 292 295 292 296 317 315 188 317 291 298 319 167 292 322 323 291 293 168 292 187 181 243 327 328 289 247 244 74 245 73 71 433 273 289 270 250 285 157 270 274 163 130 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●
71	NUT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	01	1	9206-	●
73	WASHER; LK,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	01	1	9202-9205	●
74	PIN; WIRE,SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33659-115-0	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-		●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9202-					●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
157	BOX; QUAD,TRANS (C)	1-33541-353-1	01	1	9202-		●		●
157	BOX; QUAD,TRANS (D)	1-33541-355-1	01	1	9202-9204			●
157	BOX; QUAD,TRANS (D)	1-33541-437-0	01	1	9205-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-349-0	01	1	9202-					●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9202-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9202-	●				●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●				●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●				●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●	●	●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●				●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●				●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9202-9205	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-	●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9202-9205	●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4	9-09160-506-0	01	1	9202-9205	●
247	BUSHING ASM; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-019-0	01	1	9202-	●
250	SCREW; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	9-06130-618-0	01	1	9202-	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-006-0	01	1	9202-	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NSK	1-09811-057-0	01	1	9202-	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-260-0	01	1	9202-	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9202-	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●				●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●				●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●				●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●				●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●				●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●				●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●				●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●				●
295	ROD; LINK,RELAY LEVER L=130	1-33652-392-0	01	1	9202-9402	●				●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●				●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●				●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-		●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●
298	SHAFT; SHIFT LEVER	1-33522-105-1	01	1	9202-					●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●
315	LEVER; SELECT	1-33651-494-0	01	1	9202-					●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●				●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●
319	BRACKET; SELECT LEVER	1-33651-352-0	01	1	9202-					●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-241-0	01	1	9202-	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●
321	BOLT; BRKT,RELAY LEVER M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205					●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9206-					●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●				●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●				●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9202-9205					●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●				●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9202-9205	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9202-9205	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-137-1	01	1	9202-		●		●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-136-3	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-109-0	01	1	9202-	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50051-020-0	01	1	9202-9206			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	9207-			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 W/LK WASHER	0-50051-025-0	03	1	9202-9205	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●
383	BOLT; BRKT,PARK BRAKE M10X20 W/LK WASHER	0-50051-020-0	02	1	9202-9205	●				●
433	GASKET; BUSHING EXC. ASSISTER SHIFT CONTROL<WX8>	1-09623-130-0	01	1	9202-	●

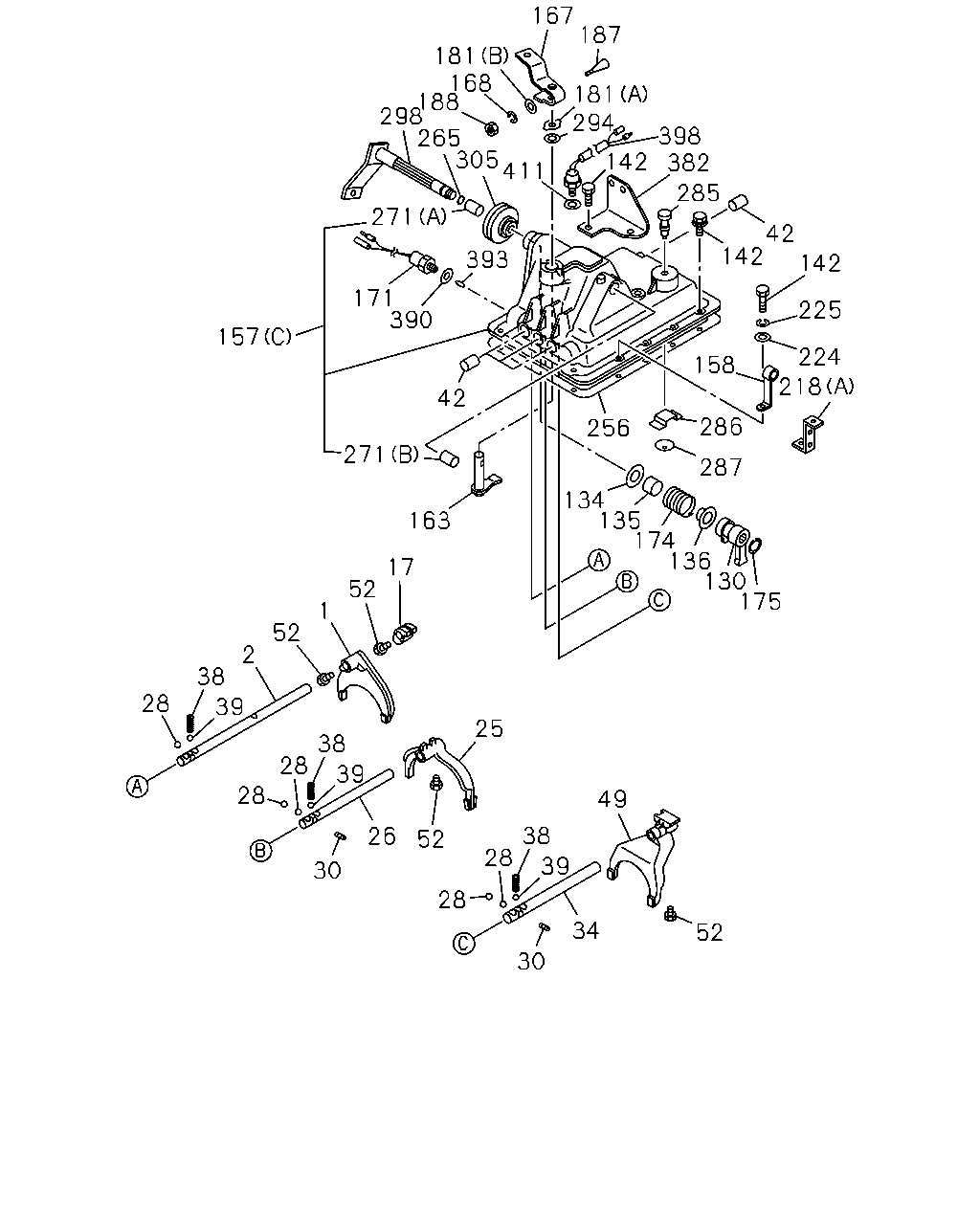

167 187 181 168 188 298 265 305 411 181 294 398 382 142 285 271 42 142 393 142 171 390 225 157 224 158 218 42 286 256 271 287 134 135 174 136 130 175 163 17 52 1 52 2 38 28 39 25 38 28 39 28 49 38 28 26 52 39 30 28 34 52 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9202-		●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9202-		●	●	●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9202-		●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9202-		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9202-		●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9202-		●		●
28	BALL; INTER LK	9-00097-010-0	07	1	9202-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●				●
30	PIN; INTER LK	1-33534-002-0	02	1	9202-		●		●
30	PIN; INTER LK	1-33534-002-0	03	1	9202-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●				●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9202-		●	●	●
38	SPRING; DETENT	1-09580-374-0	03	1	9202-		●		●
38	SPRING; DETENT	1-09580-374-0	04	1	9202-			●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9202-					●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●
39	BALL; DETENT	9-00097-013-0	03	1	9202-		●		●
39	BALL; DETENT	9-00097-013-0	04	1	9202-			●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●				●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9202-		●		●
42	CAP; QUAD BOX OD=24	9-33545-011-1	01	1	9202-		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9202-			●
42	CAP; QUAD BOX OD=24	9-33545-011-1	06	1	9202-	●				●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9202-		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-445-0	01	1	9202-			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9202-		●		●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9202-			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-		●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9202-					●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9202-		●	●	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9202-		●	●	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9202-		●	●	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	0-50051-035-0	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9206-		●		●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	09	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9206-		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9206-		●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X34	1-09040-091-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	04	1	9202-9205		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●		●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●				●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●				●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●				●
157	BOX; QUAD,TRANS (C)	1-33541-353-1	01	1	9202-		●		●
157	BOX; QUAD,TRANS (D)	1-33541-355-1	01	1	9202-9204			●
157	BOX; QUAD,TRANS (D)	1-33541-437-0	01	1	9205-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-349-0	01	1	9202-					●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9202-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9202-	●				●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9202-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●				●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●				●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9202-		●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●				●
174	SPRING; REV	1-09580-443-0	01	1	9202-		●	●	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●				●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●				●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9202-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9202-	●				●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	03	1	9202-9205		●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-	●				●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●				●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-9205		●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●				●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-	●				●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9202-		●		●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-037-1	01	1	9202-			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9202-	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9202-					●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9202-	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9202-					●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●				●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9202-		●	●	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9202-		●	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9202-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-		●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●
298	SHAFT; SHIFT LEVER	1-33522-105-1	01	1	9202-					●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9202-		●	●	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-137-1	01	1	9202-		●		●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-136-3	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-109-0	01	1	9202-	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9202-9208		●	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-		●	●	●
393	PIN; SW	1-33534-003-0	01	1	9202-		●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9202-9208		●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-		●	●	●

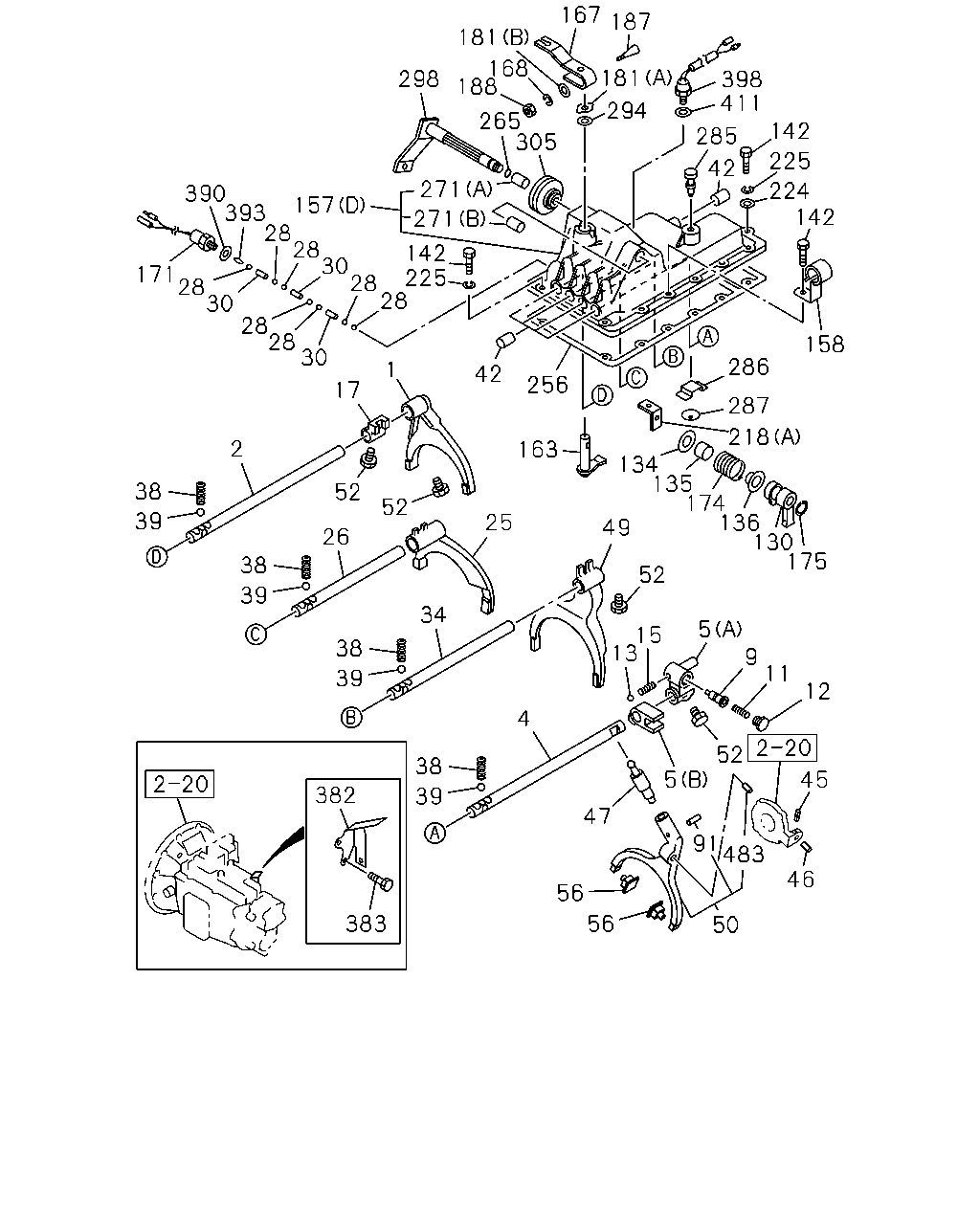

296 292 295 292 296 324 321 317 319 318 315 306 300 301 325 317 291 292 327 167 188 168 293 322 291 323 299 292 298 187 181 285 289 289 271 271 274 157 163 272 130 382 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-		●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9202-					●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
157	BOX; QUAD,TRANS (C)	1-33541-353-1	01	1	9202-		●		●
157	BOX; QUAD,TRANS (D)	1-33541-355-1	01	1	9202-9204			●
157	BOX; QUAD,TRANS (D)	1-33541-437-0	01	1	9205-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-349-0	01	1	9202-					●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9202-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9202-	●				●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●				●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●				●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●	●	●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●				●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●				●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9202-	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9202-					●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9202-	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9202-					●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9202-	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9202-					●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	9202-	●				●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	9202-	●				●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	9202-	●				●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9202-9205	●				●
292	NUT; LINK ROD (A) M8	9-09110-408-0	02	1	9202-9205	●				●
292	NUT; LINK ROD (A) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●				●
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-049-0	02	1	9302-	●				●
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	9202-	●				●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	9202-	●				●
295	ROD; LINK,RELAY LEVER L=130	1-33652-392-0	01	1	9202-9402	●				●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	9403-	●				●
296	ROD END L=48	1-09760-038-1	02	1	9202-	●				●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-		●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●
298	SHAFT; SHIFT LEVER	1-33522-105-1	01	1	9202-					●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>.	1-33542-032-0	01	1	9202-9406	●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T).	1-33542-032-0	01	1	9202-9406					●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9202-9205	●
300	WASHER; LK,SHIFT ASSISTOR ID=10.2	9-09150-510-0	06	1	9202-9205					●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9202-9205	●
301	WASHER; PL,SHIFT ASSISTOR ID=10.5 OD=18	9-09160-510-0	06	1	9202-9205					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9202-9205	●
306	BOLT; SHIFT ASSISTOR M10X50	0-16806-050-0	02	1	9202-9205					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9206-					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	0-16806-075-0	02	1	9202-9205	●
306	BOLT; SHIFT ASSISTOR M10X75	0-16806-075-0	02	1	9202-9205					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	02	1	9206-9406	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	02	1	9206-9406					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X70 FLANGE	0-28181-070-0	04	1	9407-	●
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	9407-					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X75	1-09040-072-0	02	1	9202-9205	●
306	BOLT; SHIFT ASSISTOR M10X75	1-09040-072-0	02	1	9202-9205					●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X72	1-09040-095-1	02	1	9206-9406	●
306	BOLT; SHIFT ASSISTOR M10X72	1-09040-095-1	02	1	9206-9406					●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-494-0	01	1	9202-	●
315	LEVER; SELECT	1-33651-494-0	01	1	9202-					●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-496-0	01	1	9202-	●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	9202-	●				●
318	WASHER; WAVE ASSISTER SHIFT CONTROL<WX8>	9-09855-315-0	01	1	9202-	●
318	WASHER; WAVE	9-09855-315-0	01	1	9202-					●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33651-352-0	01	1	9202-	●
319	BRACKET; SELECT LEVER	1-33651-352-0	01	1	9202-					●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33657-240-0	01	1	9202-	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205	●
321	BOLT; BRKT,RELAY LEVER M10X25 W/LK WASHER	0-50051-025-0	02	1	9202-9205					●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9206-					●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9202-	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9202-	●				●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	9202-	●				●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9202-	●
324	BOLT; SHAFT L=61	1-33619-126-2	01	1	9202-					●
325	SHIM; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33659-096-0	01	1	9202-	●
325	SHIM; LEVER	1-33659-096-0	01	1	9202-					●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9202-9205	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9202-9205					●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●				●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9202-9205	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-137-1	01	1	9202-		●		●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-136-3	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-109-0	01	1	9202-	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50051-020-0	01	1	9202-9206			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	9207-			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 W/LK WASHER	0-50051-025-0	03	1	9202-9205	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●
383	BOLT; BRKT,PARK BRAKE M10X20 W/LK WASHER	0-50051-020-0	02	1	9202-9205	●				●

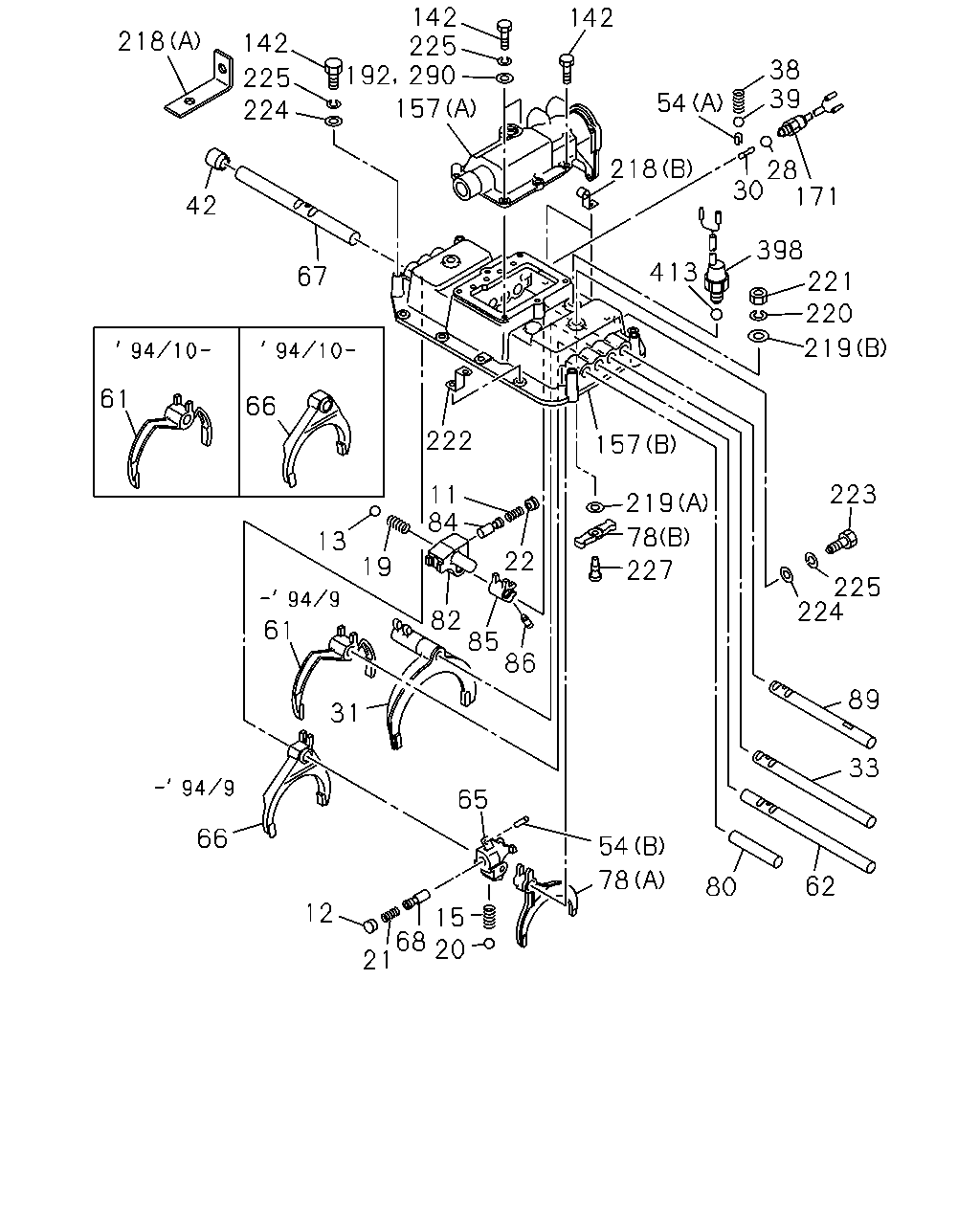

142 225 142 218 142 38 39 225 224 54 157 28 30 171 218 42 398 221 220 413 67 219 61 66 222 157 223 11 84 21 78 13 22 19 227 225 224 61 82 85 86 89 31 33 65 15 68 20 21 66 54 78 62 80 12 192 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9202-9304			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-9304	●				●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9305-	●		●		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●				●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9202-			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●				●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9202-9304			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-526-0	01	1	9305-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9202-	●				●
19	SPRING; COIL COMP	1-09580-441-0	01	1	9202-	●				●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9202-	●				●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	9202-	●				●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-	●				●
28	BALL; INTER LK	9-00097-010-0	05	1	9202-		●		●
28	BALL; INTER LK	9-00097-010-0	07	1	9202-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●				●
30	PIN; INTER LK	1-33534-002-0	02	1	9202-		●		●
30	PIN; INTER LK	1-33534-002-0	03	1	9202-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●				●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	9202-	●				●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	9202-	●				●
38	SPRING; DETENT	1-09580-374-0	03	1	9202-		●		●
38	SPRING; DETENT	1-09580-374-0	04	1	9202-			●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9202-					●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●
39	BALL; DETENT	9-00097-013-0	03	1	9202-		●		●
39	BALL; DETENT	9-00097-013-0	04	1	9202-			●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●				●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9202-		●		●
42	CAP; QUAD BOX OD=24	9-33545-011-1	01	1	9202-		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9202-			●
42	CAP; QUAD BOX OD=24	9-33545-011-1	06	1	9202-	●				●
54	PIN; SPR,SHIFT BLOCK (B)	1-09748-006-0	01	1	9202-	●				●
54	PIN; SPR,SHIFT BLOCK (A)	1-09748-014-0	03	1	9202-	●				●
61	ARM; SHIFT,3RD & 4TH	1-33511-414-3	01	1	9202-9412	●				●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	9501-	●				●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	9202-	●				●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-308-1	01	1	9202-	●				●
66	ARM; SHIFT,5TH & 6TH	1-33511-224-2	01	1	9202-9412	●				●
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	9501-	●				●
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	9202-	●				●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	9202-	●				●
78	ARM; SHIFT,REV (A)	1-33511-082-0	01	1	9202-	●				●
78	ARM; SHIFT,REV (B)	1-33511-234-1	01	1	9202-	●				●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	9202-	●				●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	9202-	●				●
84	SLEEVE; REV	1-33516-025-0	01	1	9202-	●				●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	9202-	●				●
86	SCREW; TAPER,ARM TO ROD	1-09129-014-2	07	1	9202-9412	●				●
86	SCREW; TAPER,ARM TO ROD M12X20 NO-HOLE	1-09052-032-1	07	1	9501-	●				●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	9202-	●				●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	0-50051-035-0	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9206-		●		●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	09	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9206-		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9206-		●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X34	1-09040-091-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	04	1	9202-9205		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●		●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●				●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●				●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●				●
157	BOX; QUAD,TRANS (C)	1-33541-353-1	01	1	9202-		●		●
157	BOX; QUAD,TRANS (D)	1-33541-355-1	01	1	9202-9204			●
157	BOX; QUAD,TRANS (D)	1-33541-437-0	01	1	9205-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-349-0	01	1	9202-					●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9202-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9202-	●				●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9202-		●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●				●
192	WASHER; PL ID=10.5	9-09164-510-0	02	1	9202-9205	●				●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9202-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9202-	●				●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	9202-9205	●				●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	9202-	●				●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9202-9205	●				●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9202-9205	●				●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●				●
222	BRACKET; CLIP	1-47475-868-0	02	1	9202-	●				●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9202-	●				●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	03	1	9202-9205		●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-	●				●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●				●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-9205		●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●				●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-	●				●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9202-	●				●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	9202-9205	●				●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	9202-	●				●

167 187 181 168 188 181 298 398 411 294 265 305 142 285 225 42 271 224 142 390 393 28 28 142 30 225 28 28 157 271 171 28 30 28 28 30 158 286 1 42 256 17 287 218 2 163 134 135 174 136 130 175 38 52 52 39 25 49 26 38 52 39 34 5 9 15 13 38 11 39 12 4 52 5 38 45 382 39 47 91 483 46 56 383 56 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV	1-33511-078-3	01	1	9202-		●	●	●
2	ROD; SHIFT,1ST & REV	1-33531-318-2	01	1	9202-		●	●	●
4	ROD; SHIFT,6TH	1-33531-344-1	01	1	9202-			●
5	BLOCK; SHIFT,6TH (B)	1-33511-320-2	01	1	9202-			●
5	BLOCK; SHIFT,6TH (A)	1-33511-326-1	01	1	9202-			●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	9202-			●
11	SPRING; RETURN,SHIFT SLEEVE	1-09580-444-0	01	1	9202-9304			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9202-9304	●				●
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	9305-	●		●		●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	9202-			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9202-	●				●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9202-			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9202-	●				●
15	SPRING; LK,SHIFT SLEEVE	1-09580-445-0	01	1	9202-9304			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-526-0	01	1	9305-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	9202-	●				●
17	BLOCK; SHIFT,1ST & REV	1-33511-325-1	01	1	9202-		●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-442-0	01	1	9202-		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-342-1	01	1	9202-		●	●	●
28	BALL; INTER LK	9-00097-010-0	05	1	9202-		●		●
28	BALL; INTER LK	9-00097-010-0	07	1	9202-			●
28	BALL; INTER LK	9-00097-501-0	04	1	9202-	●				●
30	PIN; INTER LK	1-33534-002-0	02	1	9202-		●		●
30	PIN; INTER LK	1-33534-002-0	03	1	9202-			●
30	PIN; INTER LK	9-33534-003-0	03	1	9202-	●				●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-343-1	01	1	9202-		●	●	●
38	SPRING; DETENT	1-09580-374-0	03	1	9202-		●		●
38	SPRING; DETENT	1-09580-374-0	04	1	9202-			●
38	SPRING; DETENT ASSISTER SHIFT CONTROL<WX8>	1-09580-379-0	04	1	9202-	●
38	SPRING; DETENT	1-09580-379-0	04	1	9202-					●
38	SPRING; DETENT EXC. ASSISTER SHIFT CONTROL<WX8>	1-09580-419-0	04	1	9202-	●
39	BALL; DETENT	9-00097-013-0	03	1	9202-		●		●
39	BALL; DETENT	9-00097-013-0	04	1	9202-			●
39	BALL; DETENT	1-09843-012-0	04	1	9202-	●				●
42	CAP; QUAD BOX OD=20	1-33545-002-1	04	1	9202-		●		●
42	CAP; QUAD BOX OD=24	9-33545-011-1	01	1	9202-		●	●	●
42	CAP; QUAD BOX OD=20	1-33545-002-1	05	1	9202-			●
42	CAP; QUAD BOX OD=24	9-33545-011-1	06	1	9202-	●				●
45	PIN; SPRING,SHIFT LEVER	1-09748-016-0	01	1	9202-			●
46	PIN; 6TH SHIFT ARM	1-33522-093-0	01	1	9202-			●
47	LEVER; SHIFT,6TH ARM	1-33521-101-1	01	1	9202-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-446-1	01	1	9202-		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-445-0	01	1	9202-			●
50	ARM; SHIFT,6TH	1-33511-318-0	01	1	9202-9205			●
50	ARM; SHIFT,6TH	1-33511-457-1	01	1	9206-			●
52	BOLT; SHIFT ARM	1-09052-034-2	04	1	9202-		●		●
52	BOLT; SHIFT ARM	1-09052-034-2	06	1	9202-			●
56	PIECE; SHIFT,6TH ARM	1-33518-002-0	02	1	9202-			●
91	PIN; SPR,SHIFT ARM	1-09748-015-0	01	1	9202-			●
130	LEVER; SHIFT,INTERNAL	1-33521-107-0	01	1	9202-		●	●	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-111-1	01	1	9202-	●
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	9202-					●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-093-1	01	1	9202-	●
134	SEAT; REV RESIST SPR	1-33549-105-0	01	1	9202-		●	●	●
135	STOPPER; LOW & REV,SELECT	1-33537-018-0	01	1	9202-		●	●	●
136	SLEEVE; REV RESIST SPR	1-33516-030-0	01	1	9202-		●	●	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	0-50051-035-0	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	08	1	9206-		●		●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	09	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	09	1	9206-		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	02	1	9206-		●	●	●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	01	1	9202-9205		●		●
142	BOLT; QUAD BOX M10X34	1-09040-091-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X30	1-09040-063-1	04	1	9202-9205		●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	08	1	9202-9205	●	●		●	●
142	BOLT; QUAD BOX M10X32 FLANGE	0-28181-032-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9202-9205			●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	11	1	9206-			●
142	BOLT; QUAD BOX M10X65	0-16806-065-0	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	02	1	9206-	●				●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	9206-	●				●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	01	1	9206-		●		●
142	BOLT; QUAD BOX M10X22,M10X66 L=96	1-09069-006-1	02	1	9202-9205	●				●
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	02	1	9206-	●				●
157	BOX; QUAD,TRANS (C)	1-33541-353-1	01	1	9202-		●		●
157	BOX; QUAD,TRANS (D)	1-33541-355-1	01	1	9202-9204			●
157	BOX; QUAD,TRANS (D)	1-33541-437-0	01	1	9205-			●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-349-0	01	1	9202-	●
157	BOX; QUAD,TRANS (A)	1-33541-349-0	01	1	9202-					●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33541-392-1	01	1	9202-	●
157	BOX; QUAD,TRANS (B)	1-33541-295-6	01	1	9202-	●				●
158	CLIP; HARNESS ID=11	1-09700-415-0	02	1	9202-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-032-0	01	1	9202-		●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	9202-	●				●
167	LEVER; SELECT,EXTERNAL	1-33521-123-0	01	1	9202-		●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-064-0	01	1	9202-	●				●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	9202-9205	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82340-177-0	01	1	9202-		●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9202-	●				●
174	SPRING; REV	1-09580-443-0	01	1	9202-		●	●	●
175	RING; STOPPER,SHIFT LEVER	1-09588-174-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER (A) OD=37	1-09532-007-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER (B) ID=8.4 OD=22	9-09160-708-0	01	1	9202-		●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	9202-	●				●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	9202-	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9202-9205	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9305-		●	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●				●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47476-812-1	01	1	9202-	●	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-09700-415-0	01	1	9202-	●				●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	03	1	9202-9205		●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9202-	●				●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9202-9205	●				●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	9202-9205		●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	06	1	9202-9205	●				●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9202-	●				●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-036-2	01	1	9202-		●		●
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33542-037-1	01	1	9202-			●
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-269-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	9202-		●	●	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	9202-	●
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	9202-					●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	9202-	●
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	9202-					●
285	BREATHER; AIR,QUAD BOX	1-33547-013-0	01	1	9202-		●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9202-	●				●
286	PLATE; BAFFLE,AIR BREATHER	1-33549-102-0	01	1	9202-		●	●	●
287	COVER; AIR BREATHER	1-33549-103-0	01	1	9202-		●	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T).	1-09625-369-0	01	1	9202-		●	●	●
298	SHAFT; SHIFT LEVER	1-33522-118-1	01	1	9202-		●	●	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-105-1	01	1	9202-	●
298	SHAFT; SHIFT LEVER	1-33522-105-1	01	1	9202-					●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-091-1	01	1	9202-	●
305	BOOT; LEVER SHAFT	1-33529-051-0	01	1	9202-		●	●	●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-137-1	01	1	9202-		●		●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-136-3	01	1	9202-			●
382	BRACKET; PARKING BRK CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46147-109-0	01	1	9202-	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50051-020-0	01	1	9202-9206			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X16 FLANGE	0-28181-016-0	01	1	9207-			●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 W/LK WASHER	0-50051-025-0	03	1	9202-9205	●
383	BOLT; BRKT,PARK BRAKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●
383	BOLT; BRKT,PARK BRAKE M10X20 W/LK WASHER	0-50051-020-0	02	1	9202-9205	●				●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9202-9208		●	●	●
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-		●	●	●
393	PIN; SW	1-33534-003-0	01	1	9202-		●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	9202-	●	●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	9202-9208		●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-		●	●	●
483	BUSHING; SHIFT ARM	1-33549-100-0	01	1	9202-9205			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
