1-50 — EXHAUST PIPE AND SILENCER (#49974) — 308 parça

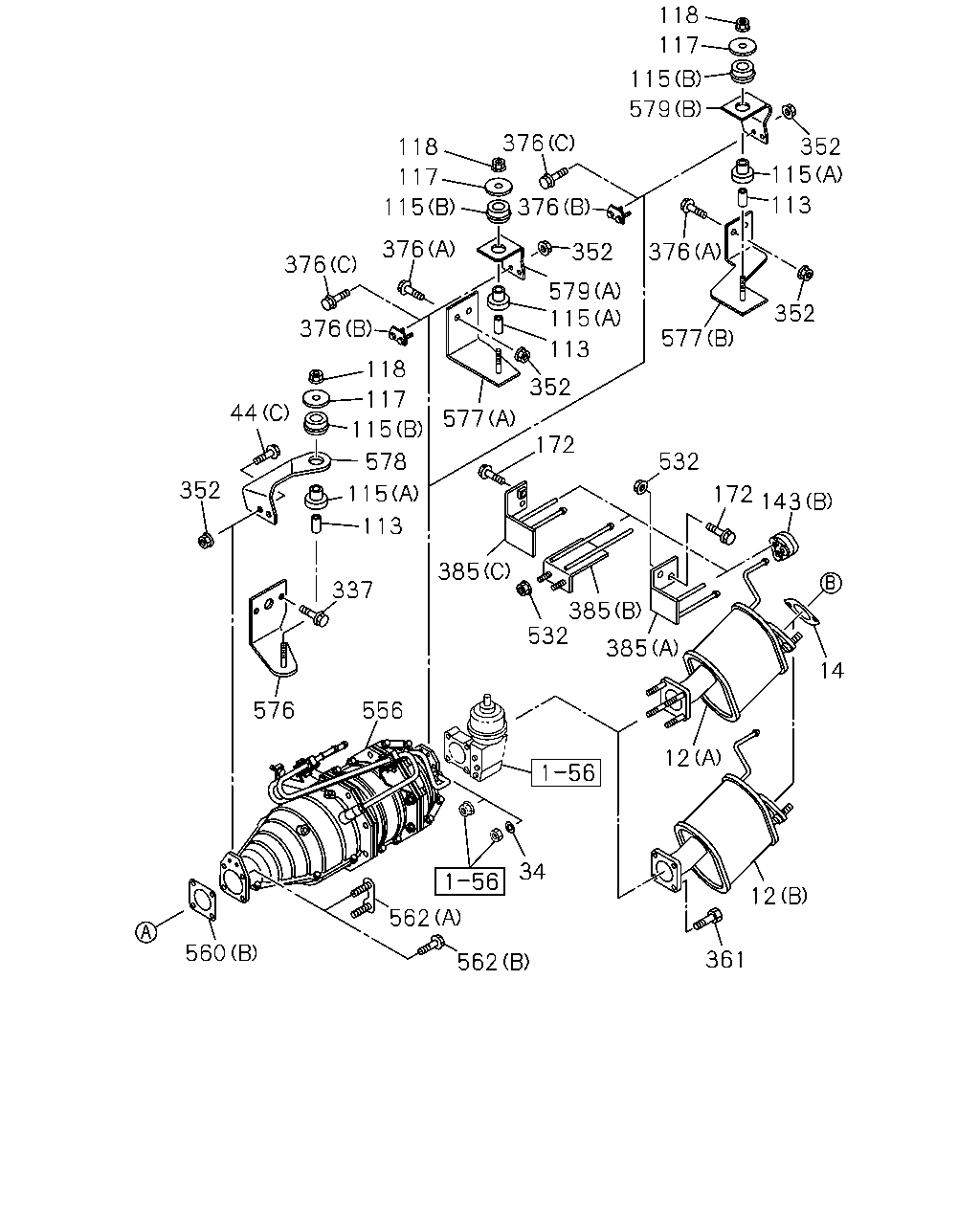

118 117 115 579 376 352 115 118 117 113 115 376 376 352 376 376 579 115 352 376 577 113 118 352 117 44 577 115 172 532 578 352 115 172 143 113 385 337 385 532 385 14 576 556 12 34 12 562 560 361 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-239-0	01	1	1204-1308	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR WIDE TREAD(V4T) (B)	8-98214-239-0	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-239-0	01	1	1204-1308			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-790-0	01	1	1309-	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR WIDE TREAD(V4T) (B)	8-98254-790-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-790-0	01	1	1309-			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-240-0	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98214-240-0	01	1	1204-1308		●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-791-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98254-791-0	01	1	1309-		●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) (A)	8-98001-836-1	01	1	0712-1203	●	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98001-836-1	01	1	1204-1308	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T), IDENTIFICATIONLABEL FOR KD<6UT> (A)	8-98001-836-1	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98001-836-1	01	1	1204-1308			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-781-0	01	1	1309-	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T), IDENTIFICATIONLABEL FOR KD<6UT> (A)	8-98254-781-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-781-0	01	1	1309-			●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) (A)	8-98034-019-0	01	1	0712-0903	●	●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98034-019-1	01	1	0904-1203	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) (A)	8-98034-019-1	01	1	0904-1203		●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98034-019-1	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98034-019-1	01	1	1204-1308		●	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-784-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98254-784-0	01	1	1309-		●	●
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.611 ID=65	8-97148-757-1	01	1	0712-0903	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	0904-	●
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.611 ID=65	8-97148-757-1	01	1	0904-		●	●
34	03.613 WASHER; EXH PIPE IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-	●	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0712-	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0712-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0712-	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0712-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0712-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0712-	●	●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0712-0903	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	0904-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0904-		●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0712-	●	●	●
172	03.708 BOLT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0712-	●	●	●
361	03.704 BOLT; EXH PIPE TO PIPE IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-	●	●	●
376	03.708 BOLT; BRKT IDENTIFICATION LABEL FOR KD<6UT> 03.890 (C) M10X30 FLANGE	0-28051-030-0	02	1	1206-	●	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
376	03.708 BOLT; BRKT 03.690 (B) W/PLATE	8-98005-985-0	01	1	0712-1205	●	●	●
376	03.708 BOLT; BRKT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE	8-98005-985-0	01	1	1206-	●	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98001-886-1	01	1	0712-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98051-655-0	01	1	0712-	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) (A)	8-98051-655-0	01	1	0712-			●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	0712-0903	●	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	0904-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	0904-		●	●
532	03.704 NUT WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●
532	03.704 NUT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903			●
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●	●
532	03.704 NUT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-		●
532	03.704 NUT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-			●
556	03.701 DPD ASM	8-98036-810-7	01	1	0712-1011	●	●	●
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0712-	●	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0712-	●	●	●
562	03.690 PLATE; STUD,BOLT IDENTIFICATION LABEL FOR KD<6UT> 03.162 (B) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●	●	●
562	03.690 PLATE; STUD,BOLT (A)	8-97373-966-0	02	1	0712-1205	●	●	●
562	03.690 PLATE; STUD,BOLT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-97373-966-0	02	1	1206-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98001-862-0	01	1	0712-0903	●	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W)	8-98001-862-0	01	1	0712-0903			●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98001-862-0	01	1	0904-	●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-98001-862-0	01	1	0904-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W)	8-98001-862-0	01	1	0904-			●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (A)	8-98001-880-0	01	1	0712-	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	0712-0903	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	0904-	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	0904-		●	●
578	03.706 BRACKET; DPD FRT	8-98001-873-1	01	1	0712-	●	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2400MM(24W) (A)	8-98001-883-1	01	1	0712-	●	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	0712-0903	●	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	0904-	●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	0904-		●	●

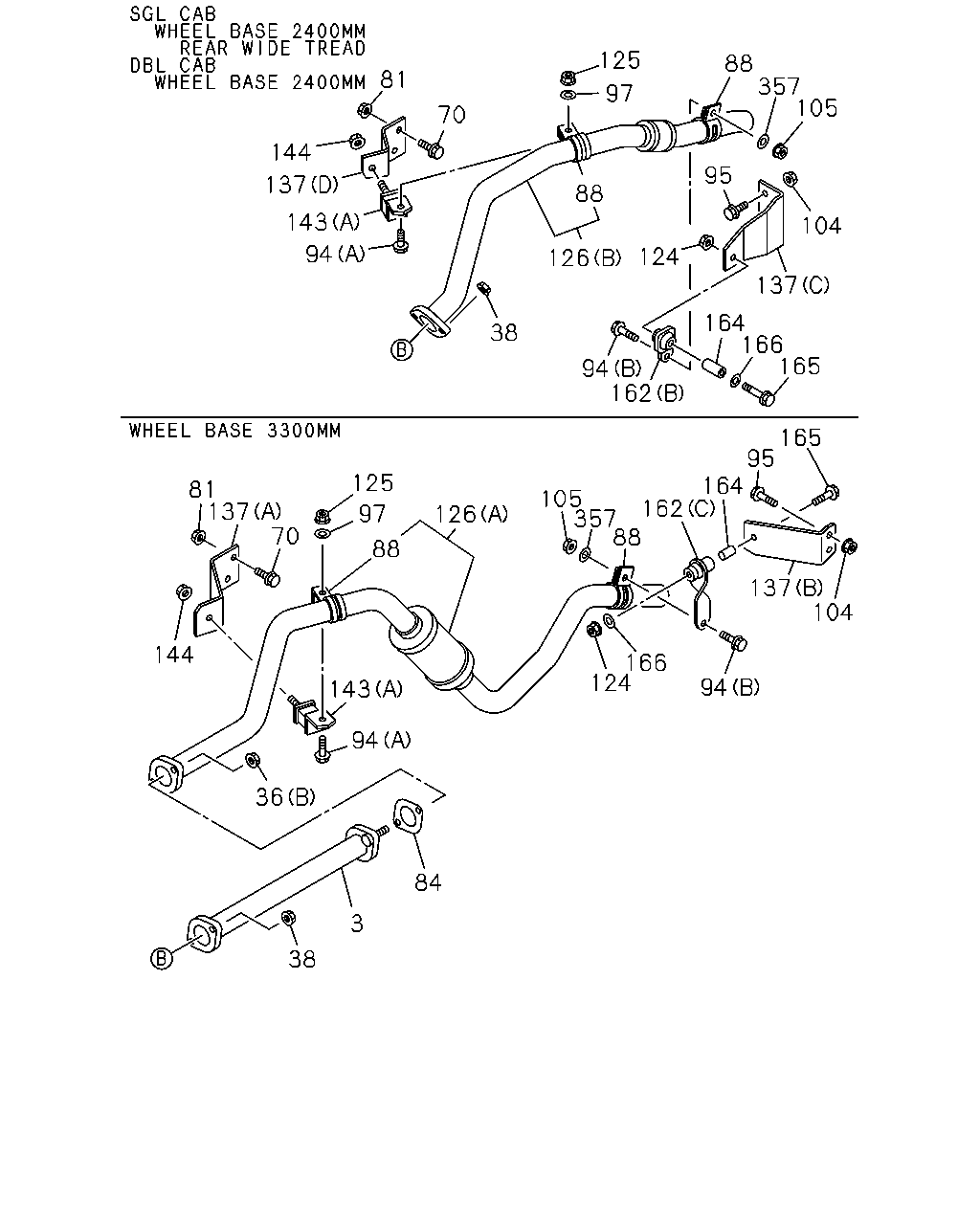

165 164 166 162 95 137 104 105 357 137 125 144 81 97 88 94 143 88 70 94 38 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-		●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0712-0903	●	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0712-0903	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0712-0903	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97373-158-0	01	1	0712-0903	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0712-0903			●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0904-	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97373-158-0	01	1	0904-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0904-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-		●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-		●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-			●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0712-0903	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0904-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0904-		●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0712-	●	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903			●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●	●
104	03.704 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-		●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-			●
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0712-0903	●	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0904-	●
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0904-		●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0712-	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98072-126-0	01	1	0712-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-128-0	01	1	0712-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (B)	8-98072-128-0	01	1	0712-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0712-0903	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0904-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0904-		●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98001-893-1	01	1	0712-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F)	8-98001-903-0	01	1	0712-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98001-895-1	01	1	0712-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (D)	8-98001-895-1	01	1	0712-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0712-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (C)	8-98038-762-1	01	1	0712-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0712-0903	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0904-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0904-		●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0712-0903	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0904-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0904-		●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0712-0903	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	0904-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0904-		●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0712-	●	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-98032-149-0	01	1	0712-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98032-151-0	01	1	0712-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (B)	8-98032-151-0	01	1	0712-			●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0712-0903	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0904-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0904-		●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	0712-	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0712-0903	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0904-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0904-		●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0712-0903	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0904-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0904-		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●	●	●
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-0903	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0904-	●
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0904-		●	●

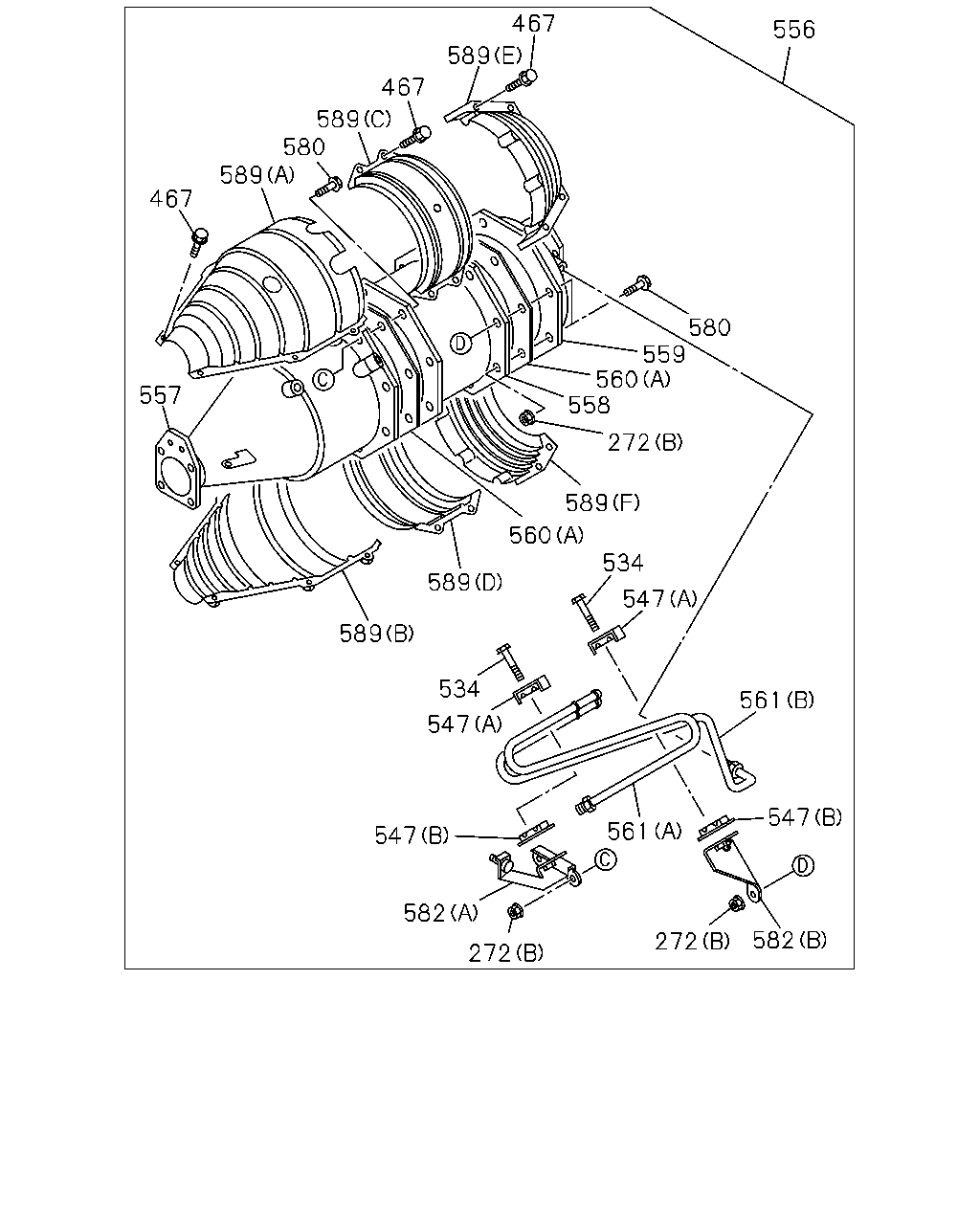

467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0712-	●	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0712-	●	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0712-	●	●	●
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	0712-	●	●	●
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	0712-	●	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0712-1011	●	●	●
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-	●	●	●
557	03.701 CATALYST ASM	8-98036-815-6	01	1	0712-	●	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	0712-	●	●	●
559	03.602 COVER; RR	8-98084-599-0	01	1	0712-1011	●	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-	●	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0712-	●	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0712-	●	●	●
561	03.609 PIPE; DPD (A) FRONT	8-98032-910-0	01	1	0712-1011	●	●	●
561	03.609 PIPE; DPD (A) FRONT	8-98084-600-0	01	1	1012-	●	●	●
561	03.609 PIPE; DPD (B) REAR	8-98032-911-1	01	1	0712-1011	●	●	●
561	03.609 PIPE; DPD (B) REAR	8-98084-601-0	01	1	1012-	●	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0712-	●	●	●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0712-	●	●	●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0712-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0712-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0712-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0712-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0712-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0712-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0712-	●	●	●

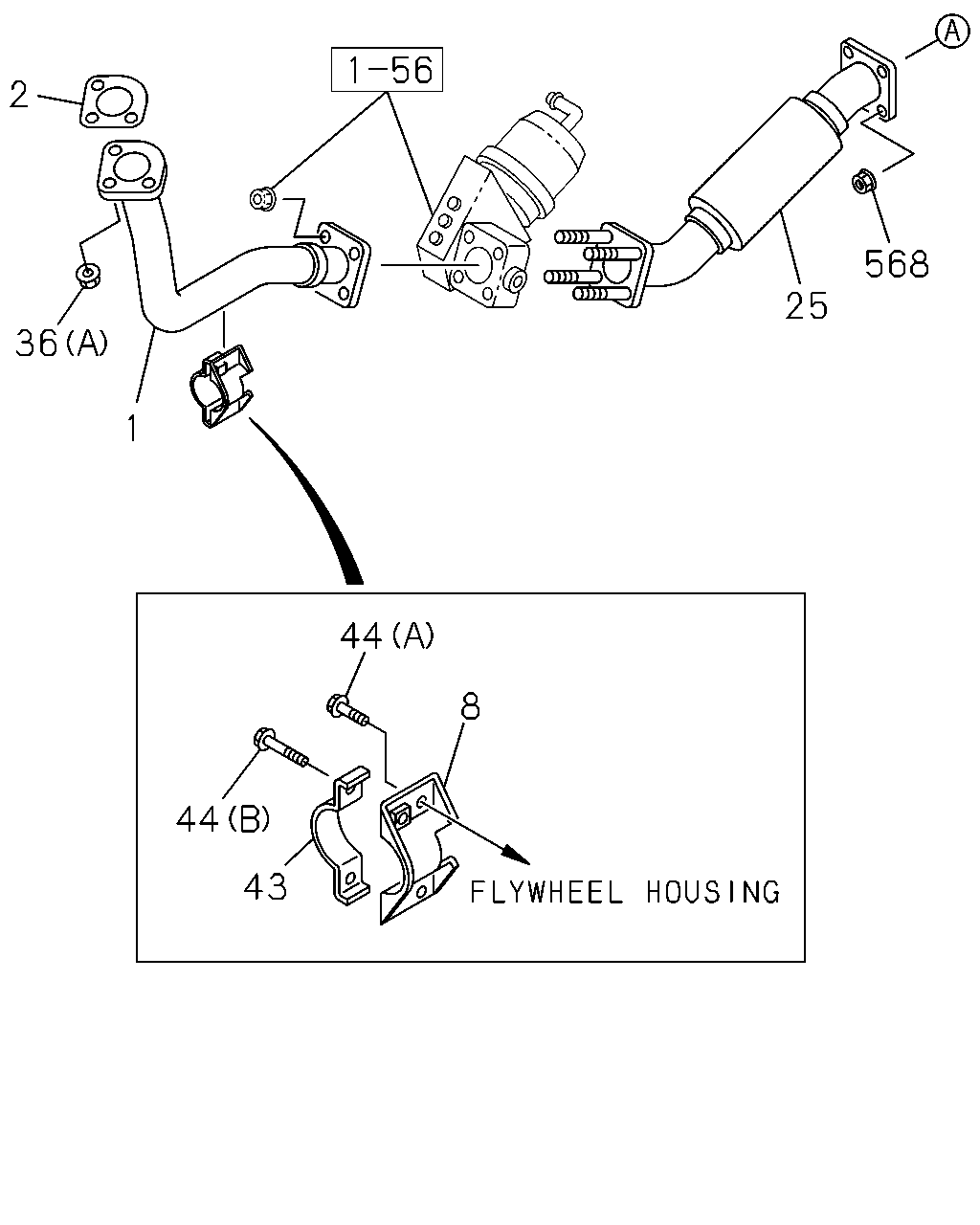

2 568 25 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH	8-98026-060-0	01	1	0712-	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0712-	●	●	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	0712-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98026-061-2	01	1	0712-	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0712-	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0712-	●	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0712-	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0712-	●	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0712-	●	●	●

125 88 357 105 81 97 70 144 95 137 88 143 104 94 124 126 137 164 166 165 38 94 162 165 95 164 105 162 357 88 125 81 137 70 97 126 88 137 104 144 166 124 94 143 94 36 84 3 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W)	8-98005-237-0	01	1	0712-	●	●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0712-	●	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-		●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-	●	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	0712-	●	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0712-0903	●	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0712-0903	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0712-0903	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97373-158-0	01	1	0712-0903	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0712-0903			●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0904-	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97373-158-0	01	1	0904-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0904-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-		●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-		●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0904-			●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0712-0903	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0904-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0904-		●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0712-	●	●	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-	●	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-	●	●	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903	●	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0903			●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●	●
104	03.704 NUT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-	●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-		●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-			●
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0712-0903	●	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0904-	●
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0904-		●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-0903	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-0903	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-0903		●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0904-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0904-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0904-		●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0712-	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (C)	8-98072-126-0	01	1	0712-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98072-128-0	01	1	0712-	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) (B)	8-98072-128-0	01	1	0712-			●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0712-0903	●	●	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0904-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0904-		●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98001-893-1	01	1	0712-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F)	8-98001-903-0	01	1	0712-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98001-895-1	01	1	0712-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (D)	8-98001-895-1	01	1	0712-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0712-	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) (C)	8-98038-762-1	01	1	0712-			●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0712-0903	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0904-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0904-		●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0712-0903	●	●	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0904-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0904-		●	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0712-0903	●	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	0904-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0904-		●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0712-	●	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-98032-149-0	01	1	0712-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98032-151-0	01	1	0712-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (B)	8-98032-151-0	01	1	0712-			●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0712-0903	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0904-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0904-		●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	0712-	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0712-0903	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0904-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0904-		●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0712-	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0712-0903	●	●	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0904-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0904-		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●	●	●
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0712-0903	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0904-	●
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0904-		●	●

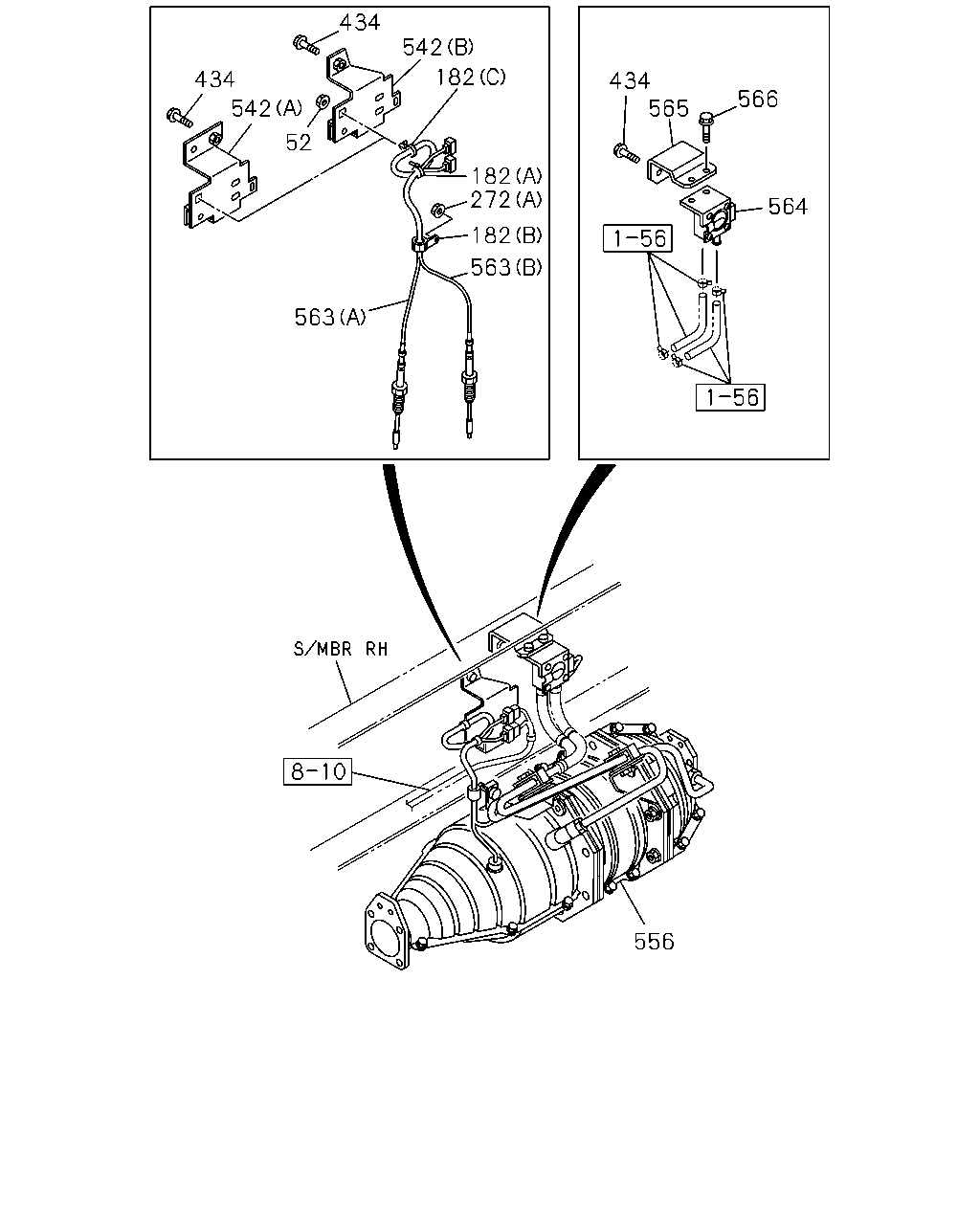

434 542 182 434 434 565 566 542 52 182 272 564 182 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	03.613 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-			●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0712-	●	●	●
182	03.682 CLIP; HARNESS (C) ID=7 L=7.5	8-97369-561-0	01	1	0712-	●	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0712-	●	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0712-	●	●	●
434	03.613 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0712-			●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-0909	●	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-0909	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0910-	●	●
434	03.613 BOLT; BRKT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0910-	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0910-		●	●
542	03.704 BRACKET (A)	8-98047-896-0	01	1	0712-	●	●
542	03.704 BRACKET WHEEL BASE 3300MM(33W) (B)	8-98073-059-0	01	1	0712-			●
556	03.701 DPD ASM	8-98036-810-7	01	1	0712-1011	●	●	●
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0712-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0712-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0712-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2400MM(24W)	8-98029-348-0	01	1	0712-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W)	8-98029-347-0	01	1	0712-0909	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-98029-347-0	01	1	0910-	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W)	8-98029-347-0	01	1	0910-		●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
