Sayfa 1-41 - Isuzu EPC

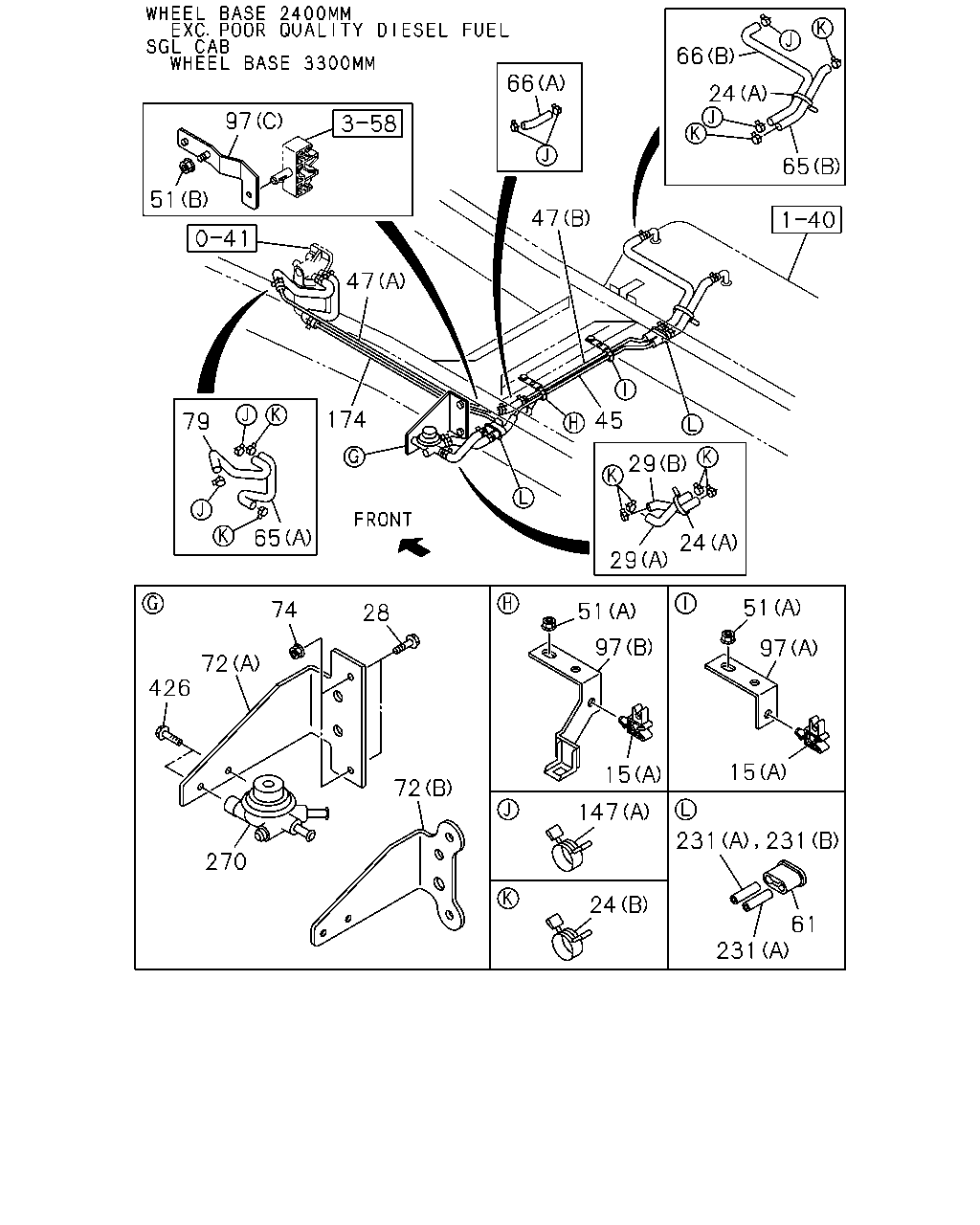

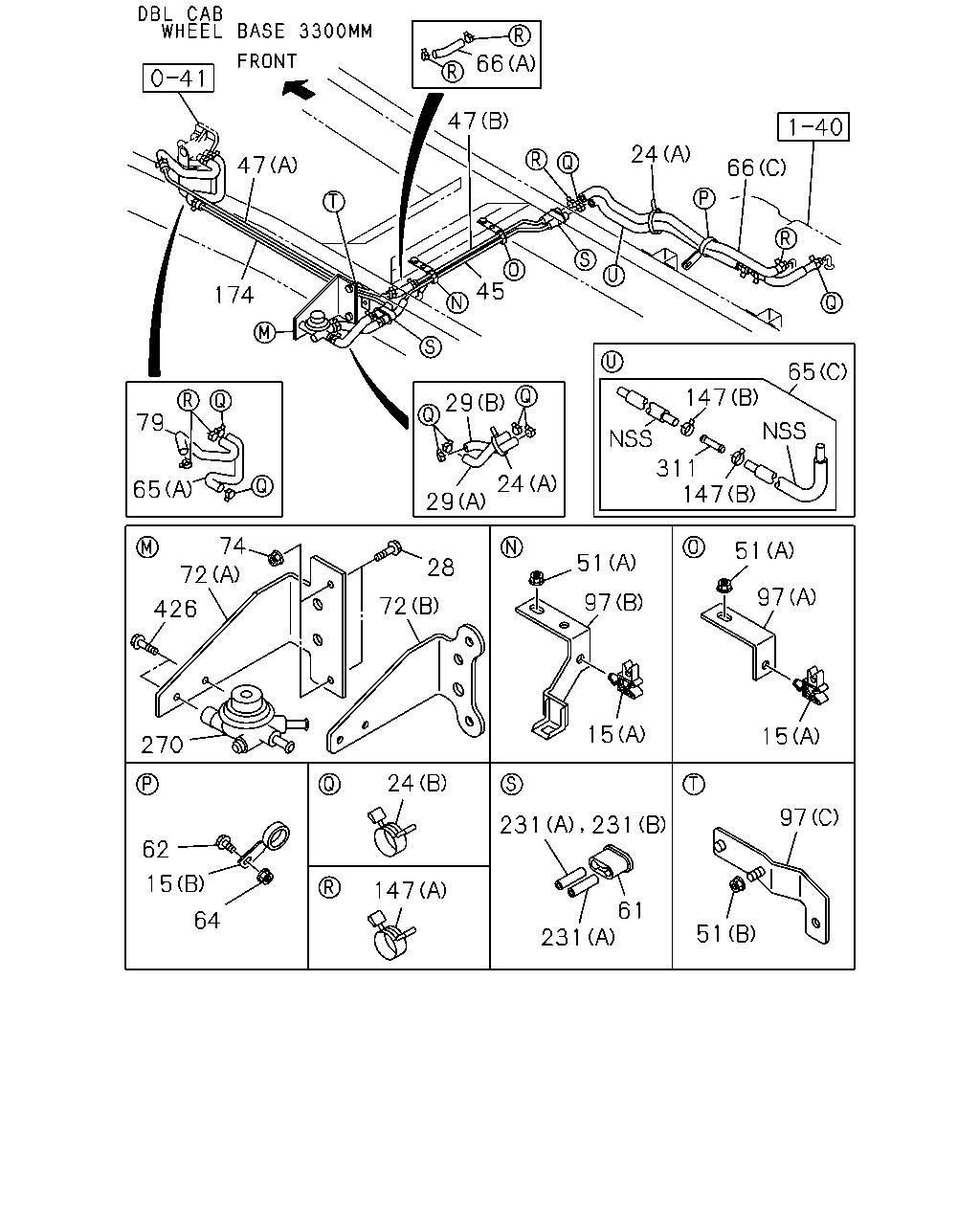

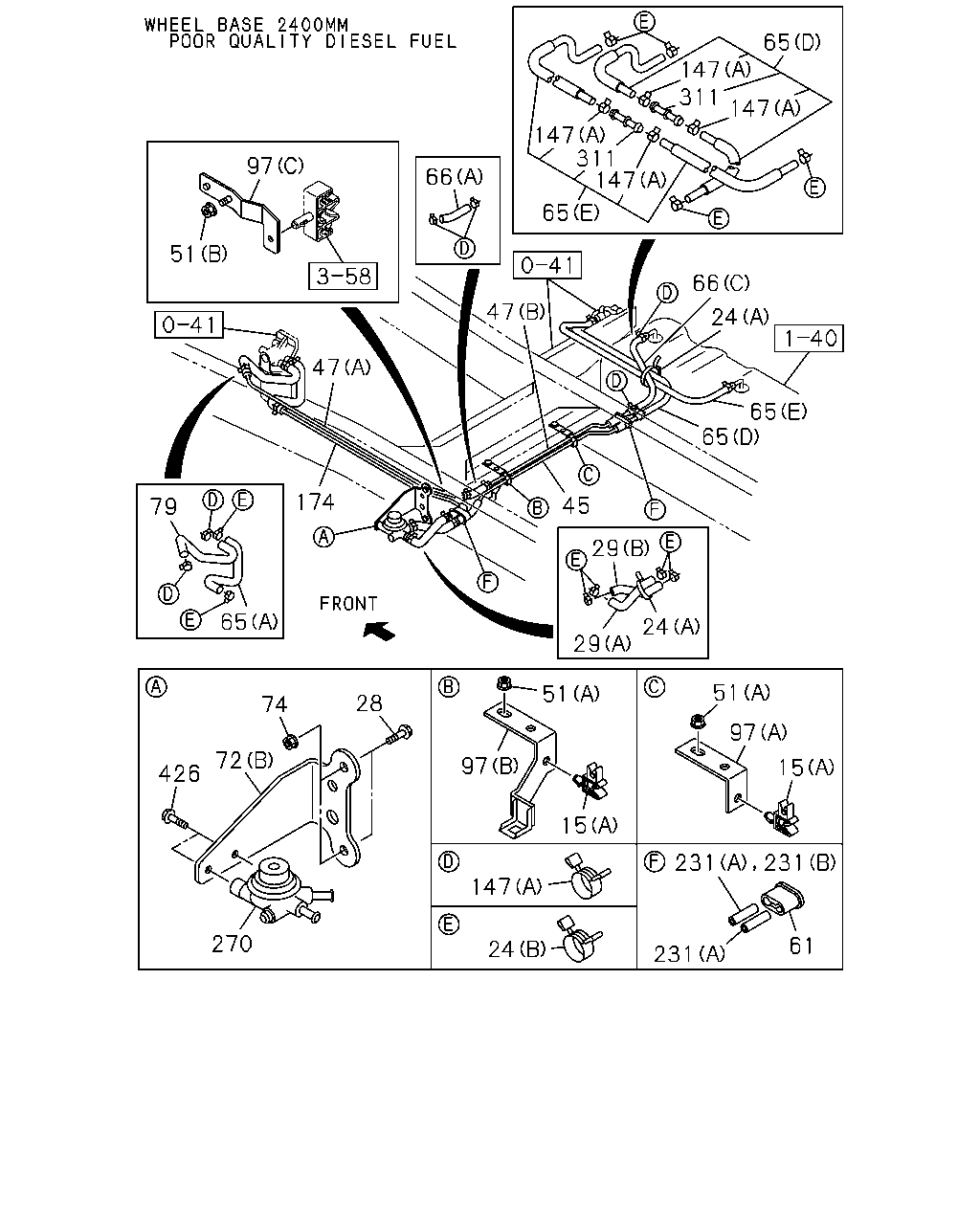

1-41 — FUEL PIPING; CHASSIS (#49973) — 441 parça

66 47 24 47 66 45 174 65 147 29 79 311 147 24 65 29 74 51 51 28 72 97 97 72 426 15 15 270 24 97 231 62 15 147 61 64 51 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0712-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0712-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911	●	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0712-0910	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0712-0910	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1009	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1009	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1009	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1009			●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1010-	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1010-			●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-0712	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0801-0903	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0801-0903			●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910			●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-			●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0712-0910	●	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0911-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0911-	●	●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0712-0910	●	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0911-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0911-	●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	0712-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	0712-	●	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98073-448-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-448-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-448-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-839-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98064-630-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98064-630-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-631-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-631-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-295-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-295-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=638.3	8-98021-484-2	01	1	0712-	●	●	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-778-3	01	1	0712-	●	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0712-	●	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0712-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0712-	●	●	●
62	03.162 BOLT; CLIP FIX WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-			●
64	03.162 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98098-175-1	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98098-176-1	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0712-0903	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0904-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0904-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0712-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-796-0	01	1	0712-0910	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-796-0	01	1	0911-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (C)	8-98077-174-4	01	1	0712-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=380	8-97389-805-1	01	1	0712-0910	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0712-0903	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0904-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0904-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0712-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-802-1	01	1	0712-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0712-			●
72	03.901 BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0712-0712	●	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98028-752-2	01	1	0801-0803	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (A)	8-98028-752-2	01	1	0801-0803			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0804-0903	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0804-0903			●
72	03.901 BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0904-0910	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0904-0910		●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0904-0910			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-		●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-			●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0712	●	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0801-0903	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0801-0903			●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910			●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●	●
74	03.901 NUT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-777-1	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-97389-777-1	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-777-1	01	1	0712-1005		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-802-0	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-802-0	01	1	0712-1005		●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0712-	●	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0712-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0712-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	04	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0712-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0712-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) (B) ID=16	8-98008-098-0	02	1	0912-			●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0712-		●	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0712-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0712-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0712-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0712-	●	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0712-	●	●	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	02	1	0911-	●	●
311	03.163 JOINT; HOSE WHEEL BASE 3300MM(33W)	8-97353-668-0	01	1	0712-			●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●	●

66 66 24 97 65 51 47 47 174 45 79 29 65 24 29 51 74 51 28 97 97 72 426 15 15 72 147 231 270 24 61 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0712-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0712-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911	●	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0712-0910	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0712-0910	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1009	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1009	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1009	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1009			●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1010-	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1010-			●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-0712	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0801-0903	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0801-0903			●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910			●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-			●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0712-0910	●	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0911-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0911-	●	●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0712-0910	●	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0911-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0911-	●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	0712-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	0712-	●	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98073-448-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-448-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-448-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-839-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98064-630-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98064-630-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-631-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-631-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-295-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-295-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=638.3	8-98021-484-2	01	1	0712-	●	●	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-778-3	01	1	0712-	●	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0712-	●	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0712-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0712-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98098-175-1	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98098-176-1	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0712-0903	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0904-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0904-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0712-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-796-0	01	1	0712-0910	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-796-0	01	1	0911-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (C)	8-98077-174-4	01	1	0712-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=380	8-97389-805-1	01	1	0712-0910	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0712-0903	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0904-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0904-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0712-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-802-1	01	1	0712-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0712-			●
72	03.901 BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0712-0712	●	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98028-752-2	01	1	0801-0803	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (A)	8-98028-752-2	01	1	0801-0803			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0804-0903	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0804-0903			●
72	03.901 BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0904-0910	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0904-0910		●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0904-0910			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-		●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-			●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0712	●	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0801-0903	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0801-0903			●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910			●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●	●
74	03.901 NUT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-777-1	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-97389-777-1	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-777-1	01	1	0712-1005		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-802-0	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-802-0	01	1	0712-1005		●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0712-	●	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0712-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0712-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	04	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0712-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0712-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) (B) ID=16	8-98008-098-0	02	1	0912-			●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0712-		●	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0712-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0712-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0712-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0712-	●	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0712-	●	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●	●

65 147 311 147 147 311 147 97 66 65 51 66 47 24 47 65 65 174 45 79 29 65 24 29 51 51 28 74 97 72 97 15 426 15 231 147 270 61 24 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	0712-	●	●	●
15	03.162 CLIP; FUEL PIPE WHEEL BASE 3300MM(33W) 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	0712-			●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 02.559 (A) L=250	5-09707-030-1	01	1	0911-	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16	8-94238-568-0	02	1	0911-0911	●	●	●
24	03.162 CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0712-0910	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0712-0910	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1009	●	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1009	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	0911-1009	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0911-1009			●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1010-	●	●	●
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A) L=140	5-09707-031-1	01	1	1010-		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1010-			●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0911	●	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-0712	●	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0801-0903	●	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0801-0903			●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-0910			●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-	●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	1010-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (D)	8-98099-503-0	01	1	1010-			●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	0911-1009	●	●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	0911-1009			●
29	03.163 HOSE; FUEL WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-		●
29	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (E)	8-98105-710-0	01	1	1010-			●
29	03.163 HOSE; FUEL 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0712-0910	●	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0911-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0911-	●	●
29	03.163 HOSE; FUEL (B) L=200	8-98081-038-0	01	1	0712-0910	●	●	●
29	03.163 HOSE; FUEL EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0911-	●	●	●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0911-	●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	0712-	●	●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-579-3	01	1	0712-	●	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97389-594-3	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-833-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98073-448-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-448-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98073-448-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-839-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98110-839-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98064-630-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98064-630-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0),TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98163-294-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-631-0	01	1	0712-1005	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-631-0	01	1	0712-1005		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-295-0	01	1	1006-	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98163-295-0	01	1	1006-		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=638.3	8-98021-484-2	01	1	0712-	●	●	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-778-3	01	1	0712-	●	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0712-	●	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0712-	●	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0712-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98098-175-1	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98098-176-1	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0712-0903	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0904-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (B)	8-97389-790-0	01	1	0904-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	0712-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-796-0	01	1	0712-0910	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-97389-796-0	01	1	0911-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-796-0	01	1	0911-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (C)	8-98077-174-4	01	1	0712-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0911-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=380	8-97389-805-1	01	1	0712-0910	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=380	8-97389-805-1	01	1	0911-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0712-0903	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0904-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (B) L=500	8-98057-029-0	01	1	0904-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0712-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B)	8-97389-802-1	01	1	0712-			●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=960 SERVICED BY L=3000	0-01855-300-0	01	1	0712-			●
72	03.901 BRACKET; FUEL PUMP & FILTER (A)	8-98028-752-2	01	1	0712-0712	●	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (A)	8-98028-752-2	01	1	0801-0803	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (A)	8-98028-752-2	01	1	0801-0803			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0804-0903	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0804-0903			●
72	03.901 BRACKET; FUEL PUMP & FILTER (B)	8-98107-370-0	01	1	0904-0910	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0904-0910		●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) (B)	8-98107-370-0	01	1	0904-0910			●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-	●	●
72	03.901 BRACKET; FUEL PUMP & FILTER EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-		●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98107-370-0	01	1	0911-			●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0712-0712	●	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0801-0903	●	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0801-0903			●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0904-0910			●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●	●
74	03.901 NUT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 3300MM(33W) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-777-1	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN FRT INDEPENDENT SUSPENSION(FF0)	8-97389-777-1	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-777-1	01	1	0712-1005		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1006-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-802-0	01	1	0712-1005	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-802-0	01	1	0712-1005		●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0712-	●	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0712-	●	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0712-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	04	1	0911-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (A) ID=16	8-98008-098-0	04	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0712-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12	8-94238-610-0	04	1	0712-0911	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0911			●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) (B) ID=16	8-98008-098-0	02	1	0912-			●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97389-589-1	01	1	0712-		●	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	0712-	●
174	03.163 PIPE; FUEL,FEED,FRT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-632-1	01	1	0712-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	0712-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0712-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	0712-	●	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-4	01	1	0712-	●	●	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0)	8-97353-668-0	02	1	0911-	●	●
311	03.163 JOINT; HOSE WHEEL BASE 3300MM(33W)	8-97353-668-0	01	1	0712-			●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
