◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#49972) — 66 parça

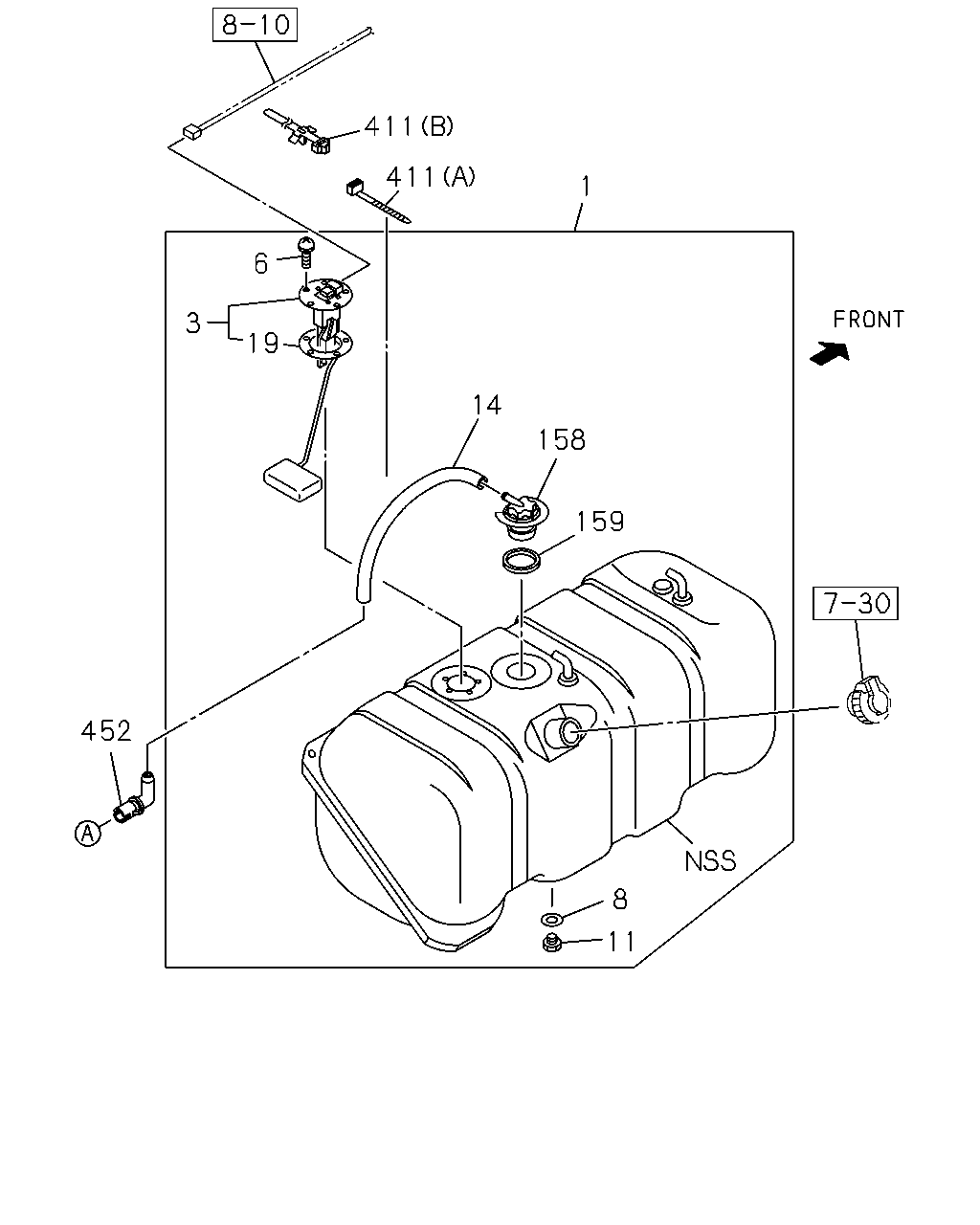

çizim 155384
411 411 1 6 3 19 14 158 159 452 8 11
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X348X375 100L 		8-98082-468-2 01 1 0712-0802 ● ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X348X375 100L 		8-98104-008-4 01 1 0803- ● ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 70L 		8-98082-467-1 01 1 0712-0802 ● ● ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 70L 		8-98104-005-4 01 1 0803- ● ● ●
1 03.001 TANK; FUEL
FUEL TANK 63L<6EF> 756X375X323 63L 		8-98021-293-4 01 1 0712-1205 ●
1 03.001 TANK; FUEL
FUEL TANK 63L<6EF> 756X375X323 63L 		8-98218-966-1 01 1 1206- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-704-0 01 1 0712-0802 ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98113-178-0 01 1 0803- ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> 		8-98056-703-0 01 1 0712-0802 ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> 		8-98113-177-0 01 1 0803- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 63L<6EF> 		8-98056-702-0 01 1 0712-1205 ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 63L<6EF> 		8-98213-753-0 01 1 1206- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0712- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0712- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> L=320 		8-98157-805-0 01 1 1004- ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 63L<6EF>,FUEL TANK 75 LITTER<7GX> L=320 		8-98157-805-0 01 1 1004- ●
19 03.112 GASKET; FUEL TANK UNIT 5-83148-001-0 01 1 0803- ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 75 LITTER<7GX> 		5-83148-001-0 01 1 0803- ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0712-0802 ● ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 63L<6EF> 		8-98051-797-0 01 1 0803- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0712- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0712- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) 03.162 (A) L=140 		5-09707-031-1 01 1 0804-0903 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0712-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0803-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2400MM(24W) 03.162 (A) L=140 		5-09707-031-1 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0804-0903 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (A) L=140 		5-09707-031-1 02 1 0904- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 03.162 (A) L=140 		5-09707-031-1 02 1 0904- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0712- ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0712- ● ● ●

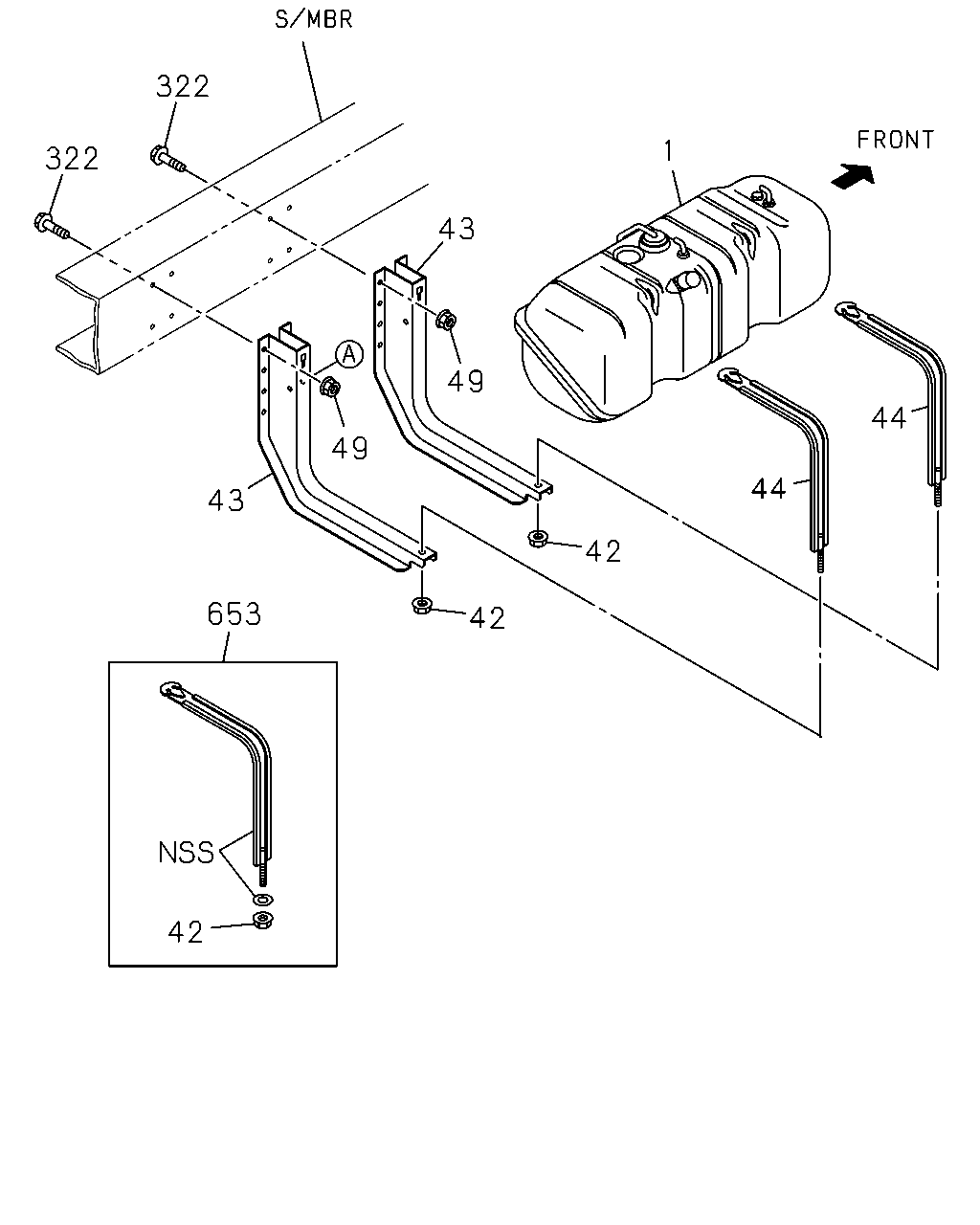

çizim 155386
1 44 44 42 42 653 42 43 49 43 49 322 322
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X348X375 100L 		8-98082-468-2 01 1 0712-0802 ● ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X348X375 100L 		8-98104-008-4 01 1 0803- ● ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 70L 		8-98082-467-1 01 1 0712-0802 ● ● ●
1 03.001 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 70L 		8-98104-005-4 01 1 0803- ● ● ●
1 03.001 TANK; FUEL
FUEL TANK 63L<6EF> 756X375X323 63L 		8-98021-293-4 01 1 0712-1205 ●
1 03.001 TANK; FUEL
FUEL TANK 63L<6EF> 756X375X323 63L 		8-98218-966-1 01 1 1206- ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0712- ● ● ●
43 03.015 BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FRONT 		8-97384-056-1 01 1 0712- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT 		8-97384-056-1 01 1 0712- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> FRONT 		8-97384-056-1 01 1 0712- ●
43 03.015 BRACKET; FUEL TANK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> REAR 		8-97384-081-1 01 1 0712- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR 		8-97384-081-1 01 1 0712- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 75 LITTER<7GX> REAR 		8-97384-081-1 01 1 0712- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT 		8-98061-738-1 01 1 0712- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR 		8-98061-739-1 01 1 0712- ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 63L<6EF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT 		8-97384-055-1 01 1 0712- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 63L<6EF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR 		8-98055-905-2 01 1 0712- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 63L<6EF> 		8-97169-230-2 02 1 0712-1312 ●
44 03.023 BAND; FUEL TANK
FUEL TANK 63L<6EF> 		8-98245-202-0 02 1 1401- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0712- ● ● ●
322 03.895 BOLT; BRKT FIX
07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0712- ● ● ●
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0712- ● ●
653 03.022 BAND KIT; FUEL TANK
EXC. FUEL TANK 63L<6EF> 		5-87411-970-0 02 1 0712- ●

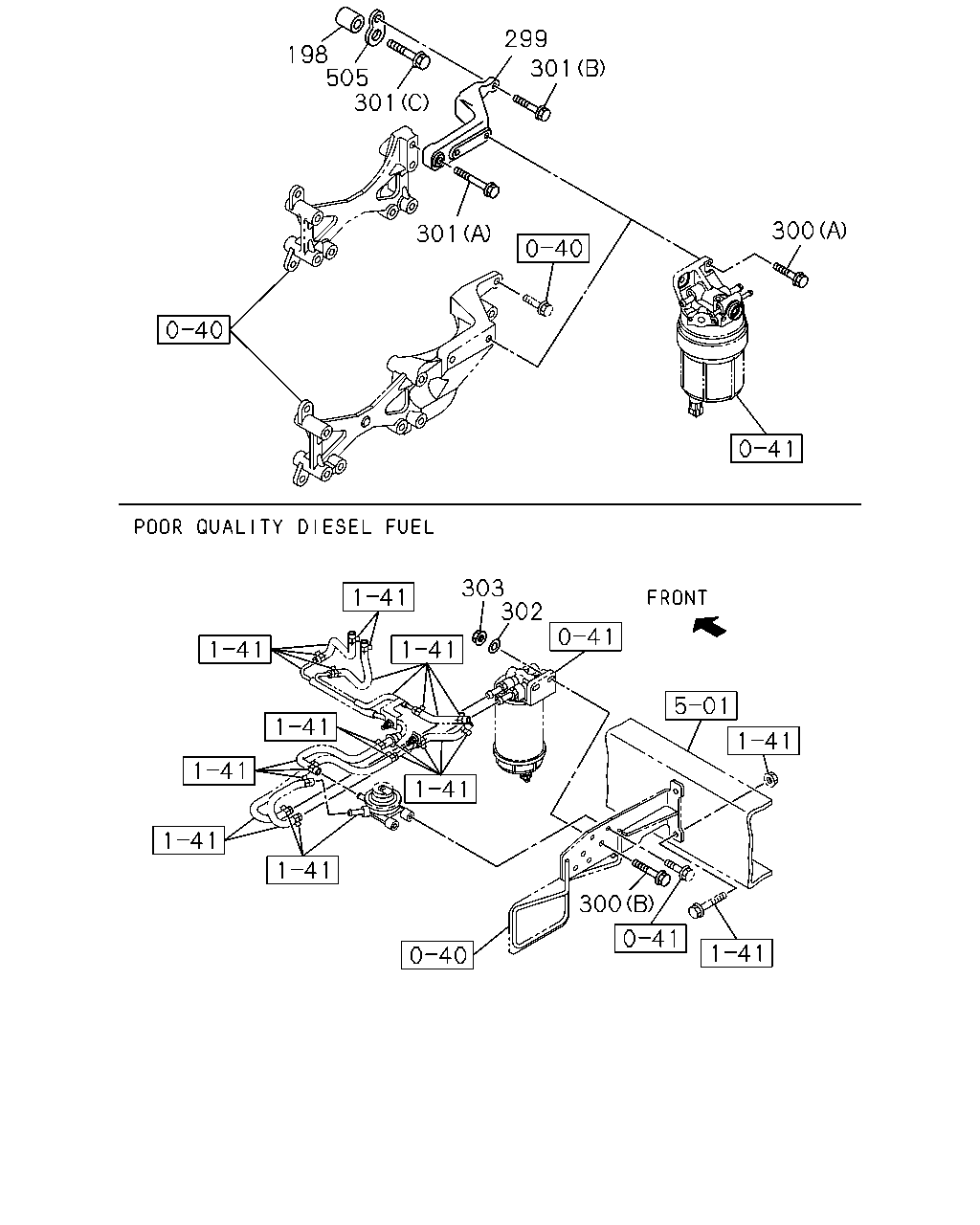

çizim 155387
198 505 301 299 301 300 301 303 302 300
BalonParca AdiParca NoAdetTipApplied Date A B C
198 03.107 SPACER 8-98081-509-0 01 1 0712-1001 ● ● ●
299 03.162 BRACKET; FUEL FILTER 8-98009-087-4 01 1 0712-1001 ● ● ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0712-1001 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0712-1001 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0712-1001 ● ● ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0911- ● ● ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0911- ● ● ●
505 03.163 BRACKET 8-98081-486-0 01 1 0712-1001 ● ● ●
