Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#49970) — 273 parça

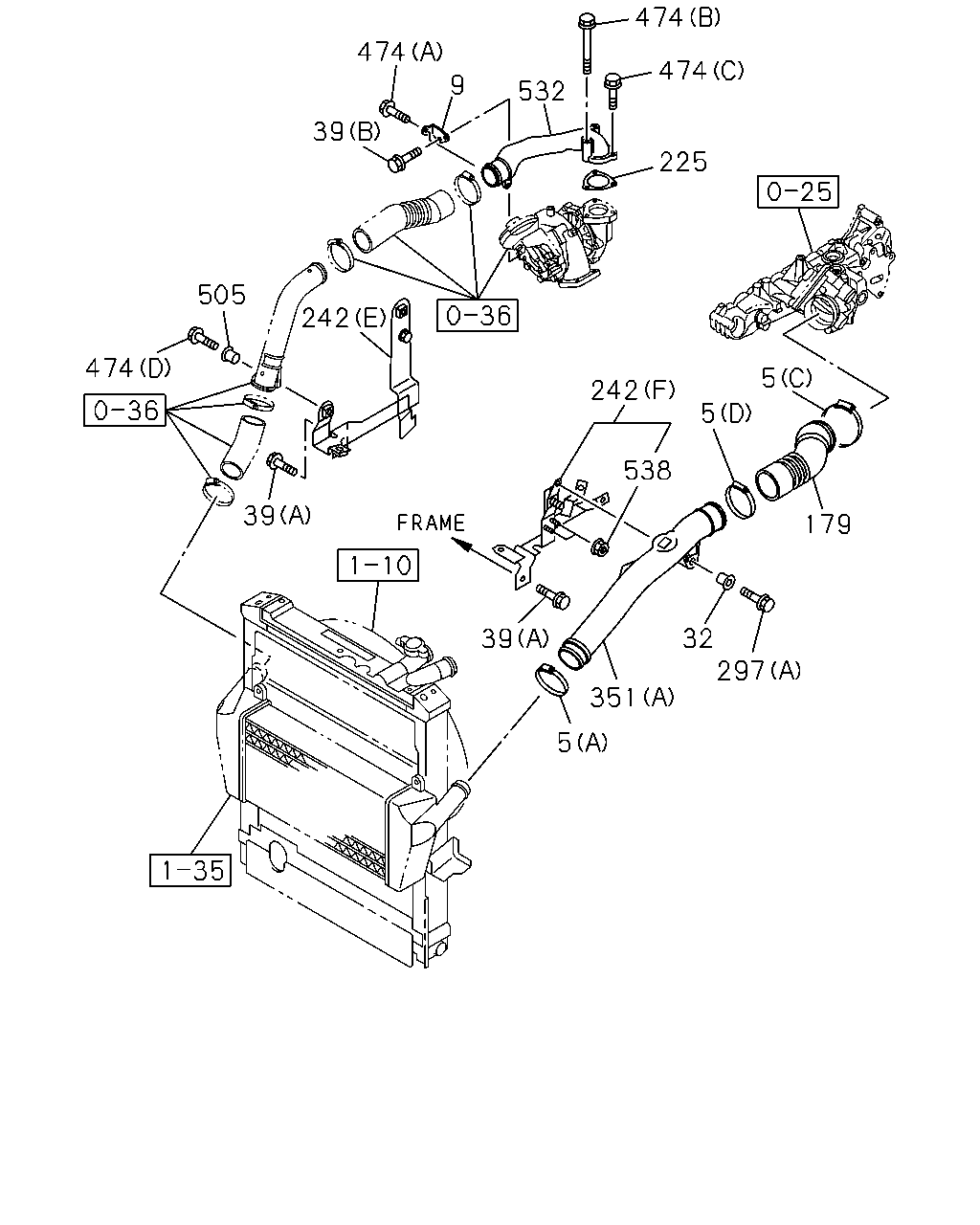

474 39 505 474 242 39 532 474 474 225 5 5 242 538 179 32 297 351 5 39 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	0712-			●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 01.159 (D) ID=58-76	1-09707-203-0	01	1	0712-0811	●	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	0812-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=50-65	1-09707-204-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 03.417 (B)	9-09915-504-1	01	1	0712-0802	●	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0803-	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	03	1	0712-0810			●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	03	1	0811-0812			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	0712-			●
9	03.417 BRACKET; INT PIPE	8-98009-086-0	01	1	0712-	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 03.265 OD=23	8-97105-689-6	01	1	0712-	●	●	●
39	03.417 BOLT; BRKT 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-	●	●	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	0712-	●	●	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	0712-	●	●	●
225	03.417 GASKET; AIR PIPE 03.270	8-97202-328-1	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-2	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98066-918-1	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	0712-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0712-	●	●	●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0712-			●
351	03.407 DUCT; AIR 03.417 (B)	8-97109-423-0	01	1	0712-0802	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	0803-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	0712-	●	●	●
351	03.407 DUCT; AIR (C)	8-98023-342-2	01	1	0712-			●
351	03.407 DUCT; AIR (D)	8-98023-343-1	01	1	0712-			●
474	03.417 BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	0712-	●	●	●
474	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●	●	●
474	03.417 BOLT; PIPE 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	0712-	●	●	●
474	03.417 BOLT; PIPE 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	0712-	●	●	●
505	03.406 RUBBER; MTG 03.265 OD=23	8-97105-689-6	01	1	0712-	●	●	●
532	03.417 PIPE; INTAKE	8-97385-203-1	01	1	0712-1303	●	●	●
532	03.417 PIPE; INTAKE	8-98237-771-1	01	1	1304-	●	●	●
538	03.417 NUT; PLATE,AIR DUCT 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●

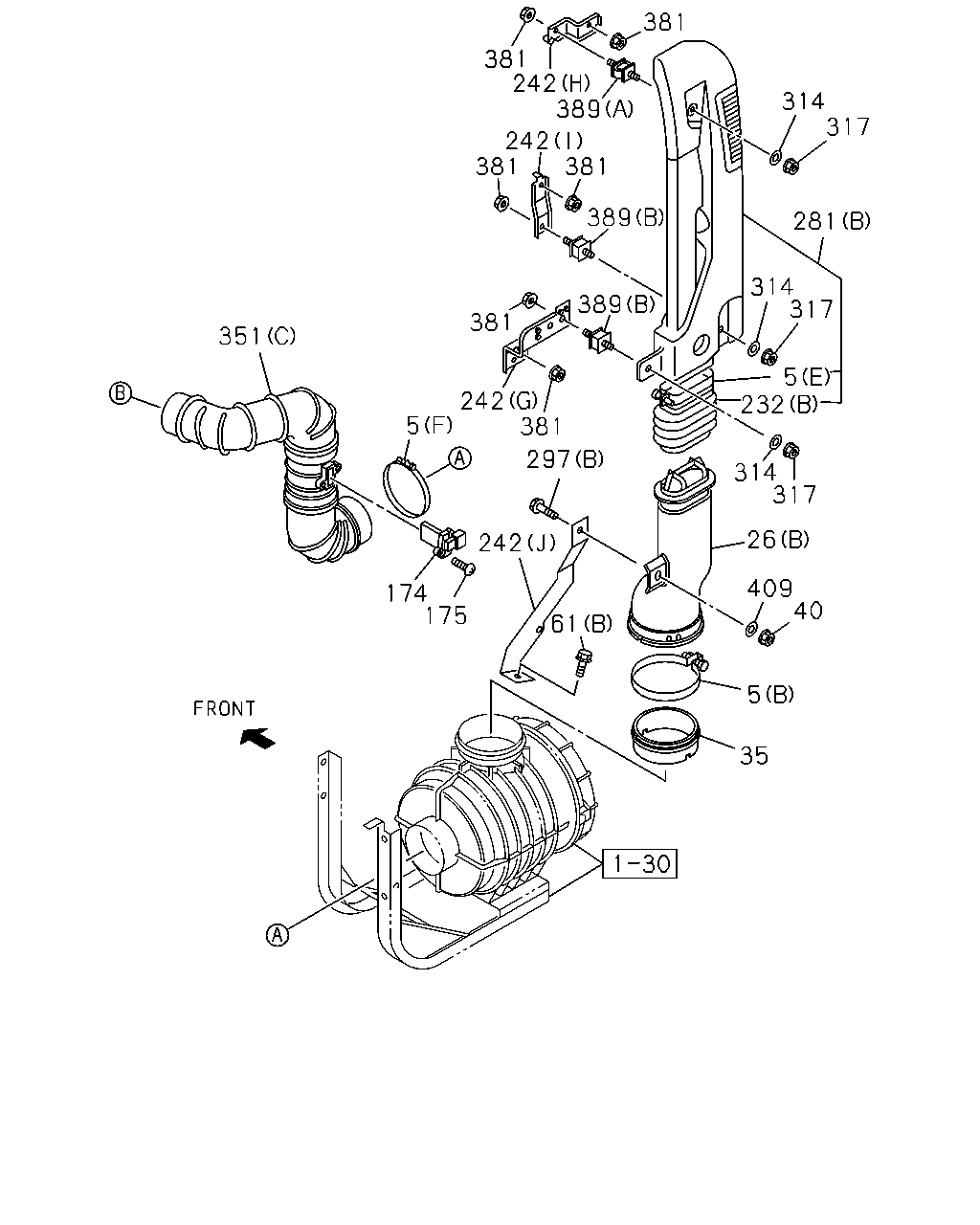

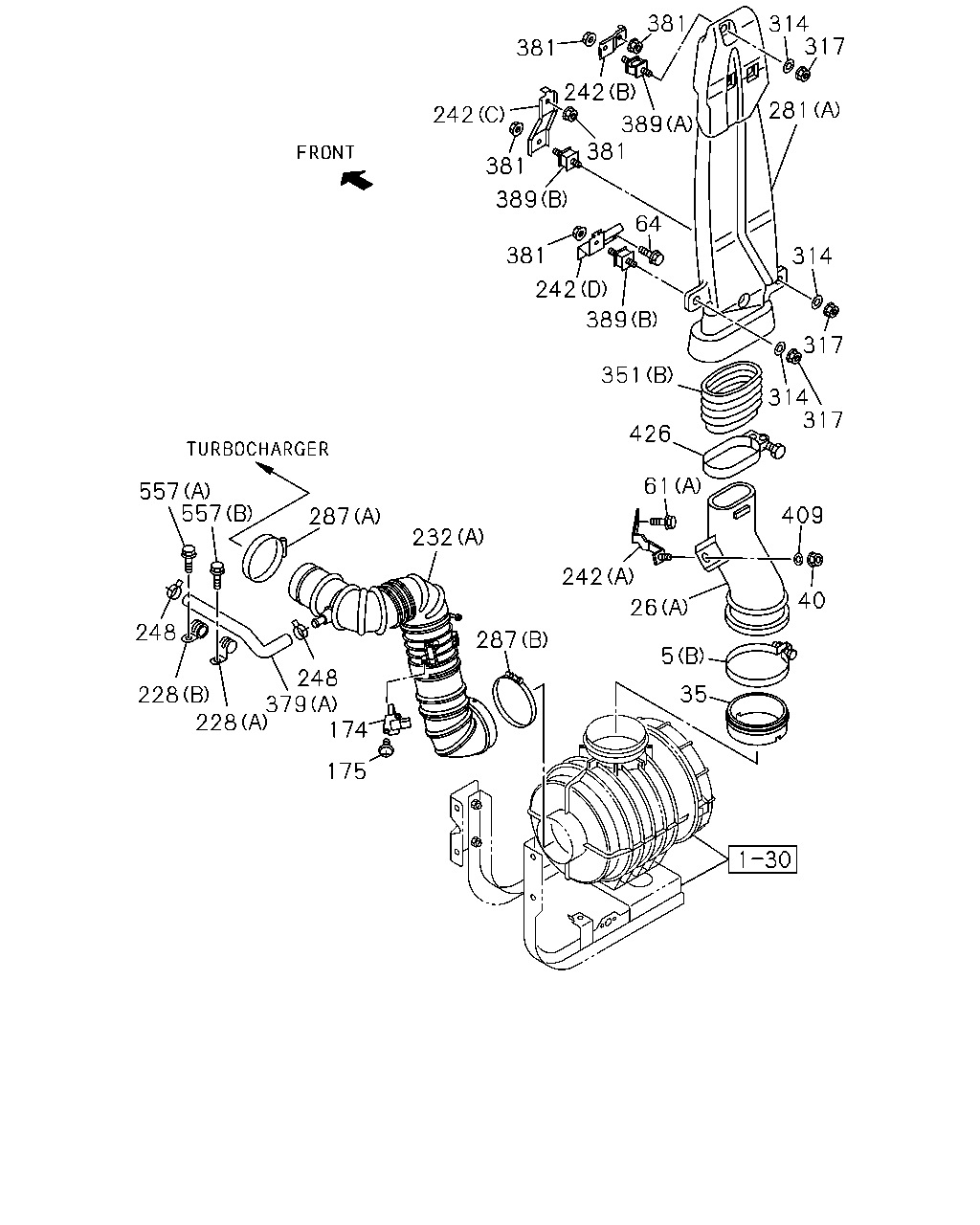

381 314 317 381 242 281 242 389 381 381 389 64 381 314 242 389 317 351 314 317 426 61 557 557 409 287 232 242 40 26 248 287 5 248 379 174 35 228 228 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	0712-			●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 01.159 (D) ID=58-76	1-09707-203-0	01	1	0712-0811	●	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	0812-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=50-65	1-09707-204-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 03.417 (B)	9-09915-504-1	01	1	0712-0802	●	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0803-	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	03	1	0712-0810			●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	03	1	0811-0812			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	0712-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	0712-	●	●
26	03.417 DUCT; AIR INT (B)	8-98023-340-0	01	1	0712-			●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0712-	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0712-			●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0712-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-	●	●	●
228	03.278 CLIP; PCV HOSE 04.866 (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-1001	●	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1002-	●	●	●
228	03.278 CLIP; PCV HOSE 09.242 (B) ID=22 L=22	5-83574-045-0	01	1	0712-1001	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1002-	●	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0712-1309			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN (A)	8-98048-136-1	01	1	0712-	●	●
232	03.417 HOSE; CONN (C)	8-98023-344-4	01	1	0712-0712			●
232	03.417 HOSE; CONN (C)	8-98108-234-0	01	1	0801-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-2	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98066-918-1	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	0712-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	0712-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT (A)	8-97369-706-0	01	1	0712-	●	●
281	03.417 DUCT; AIR,VERTICAL INT (B)	8-98061-757-2	01	1	0712-			●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1002-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●
287	03.417 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> 03.407 (A) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1002-	●	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=117	9-09915-075-1	01	1	0712-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0712-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0712-	●	●	●
351	03.407 DUCT; AIR 03.417 (B)	8-97109-423-0	01	1	0712-0802	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	0803-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	0712-	●	●	●
351	03.407 DUCT; AIR (C)	8-98023-342-2	01	1	0712-			●
351	03.407 DUCT; AIR (D)	8-98023-343-1	01	1	0712-			●
379	03.675 HOSE; RUBBER 03.278 (A)	8-98045-343-0	01	1	0712-	●	●
379	03.675 HOSE; RUBBER (B)	8-98088-336-0	01	1	0712-			●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0712-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0712-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0712-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0712-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0712-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	0712-	●	●
557	03.403 BOLT; HOSE CLIP 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0712-	●	●	●
557	03.403 BOLT; HOSE CLIP 03.330 (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	0712-	●	●	●

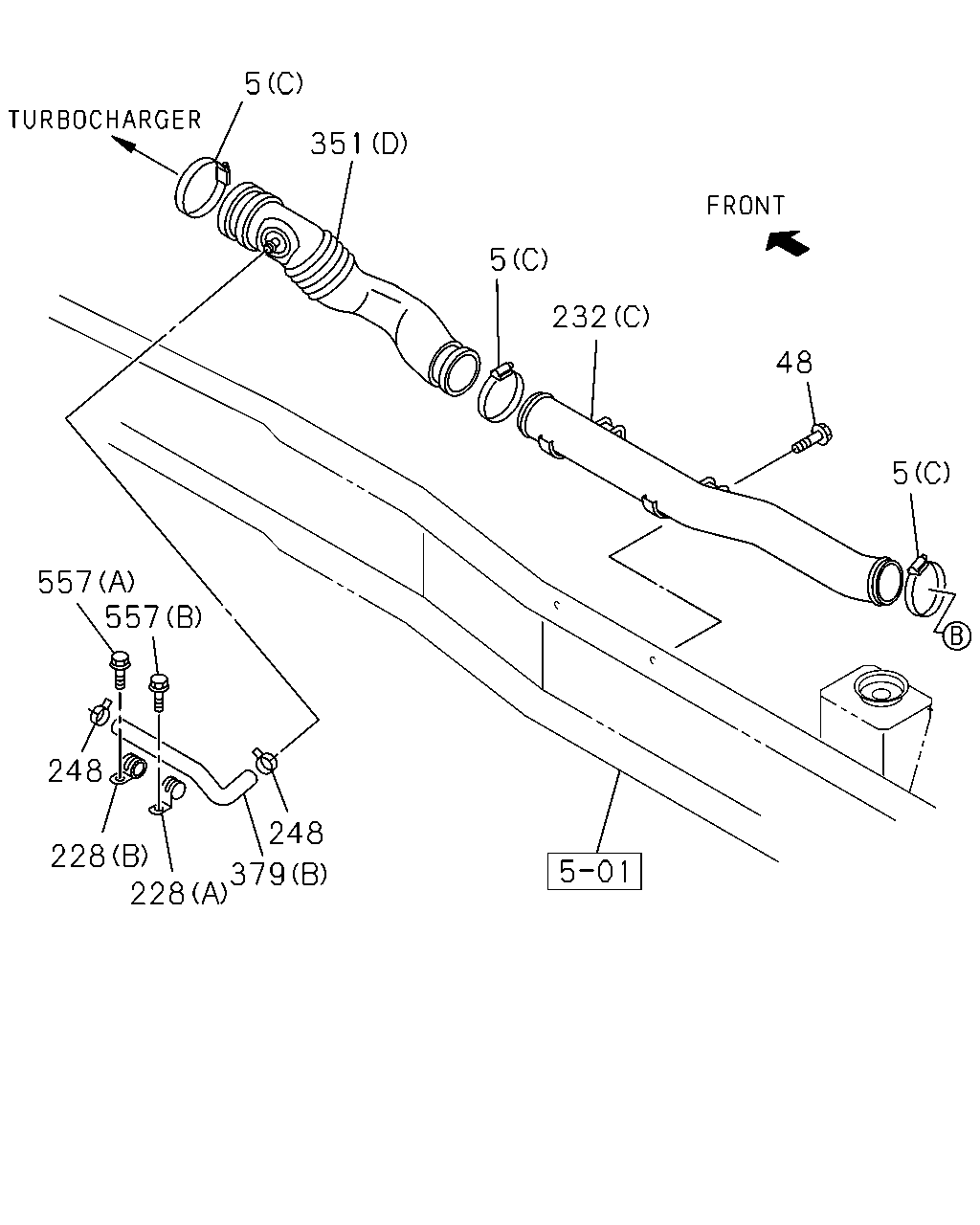

381 381 242 389 314 317 242 381 381 389 281 314 317 389 381 351 5 232 242 5 381 297 314 317 26 242 409 40 174 175 61 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	0712-			●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 01.159 (D) ID=58-76	1-09707-203-0	01	1	0712-0811	●	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	0812-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=50-65	1-09707-204-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 03.417 (B)	9-09915-504-1	01	1	0712-0802	●	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0803-	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	03	1	0712-0810			●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	03	1	0811-0812			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	0712-			●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	0712-	●	●
26	03.417 DUCT; AIR INT (B)	8-98023-340-0	01	1	0712-			●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0712-			●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-	●	●	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-	●	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0712-1309			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN (A)	8-98048-136-1	01	1	0712-	●	●
232	03.417 HOSE; CONN (C)	8-98023-344-4	01	1	0712-0712			●
232	03.417 HOSE; CONN (C)	8-98108-234-0	01	1	0801-			●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98067-767-4	01	1	0712-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-97384-140-2	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98100-224-2	01	1	0712-	●	●	●
242	03.417 BRACKET; AIR DUCT (H)	8-98055-247-1	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (J)	8-98066-918-1	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (G)	8-98055-246-2	01	1	0712-			●
242	03.417 BRACKET; AIR DUCT (I)	8-98055-243-1	01	1	0712-			●
281	03.417 DUCT; AIR,VERTICAL INT (A)	8-97369-706-0	01	1	0712-	●	●
281	03.417 DUCT; AIR,VERTICAL INT (B)	8-98061-757-2	01	1	0712-			●
297	03.417 BOLT; DUCT 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0712-	●	●	●
297	03.417 BOLT; DUCT 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	0712-			●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0712-	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0712-	●	●	●
351	03.407 DUCT; AIR 03.417 (B)	8-97109-423-0	01	1	0712-0802	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	0803-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	0712-	●	●	●
351	03.407 DUCT; AIR (C)	8-98023-342-2	01	1	0712-			●
351	03.407 DUCT; AIR (D)	8-98023-343-1	01	1	0712-			●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0712-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0712-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0712-			●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0712-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0712-	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●	●	●

5 351 5 232 48 5 557 557 248 248 228 228 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATIONLABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (E) D=101.6	9-09915-502-1	01	1	0712-			●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 01.159 (D) ID=58-76	1-09707-203-0	01	1	0712-0811	●	●	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	0812-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=50-65	1-09707-204-0	01	1	0712-0810	●	●	●
5	03.407 CLIP; AIR DUCT (A) ID=45-65	8-98133-348-0	01	1	0811-0812	●	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●	●
5	03.407 CLIP; AIR DUCT MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	0901-1001	●	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1002-	●	●	●
5	03.407 CLIP; AIR DUCT 03.417 (B)	9-09915-504-1	01	1	0712-0802	●	●	●
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	0803-	●	●	●
5	03.407 CLIP; AIR DUCT (C) ID=68-85	1-09707-202-0	03	1	0712-0810			●
5	03.407 CLIP; AIR DUCT (C) ID=65-85	8-98133-350-0	03	1	0811-0812			●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	0901-			●
5	03.407 CLIP; AIR DUCT (F) ID=117	9-09915-075-1	01	1	0712-			●
48	03.417 BOLT; AIR DUCT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0712-			●
228	03.278 CLIP; PCV HOSE 04.866 (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0712-1001	●	●	●
228	03.278 CLIP; PCV HOSE (B) ID=22 L=22	8-98120-916-0	01	1	1002-	●	●	●
228	03.278 CLIP; PCV HOSE 09.242 (B) ID=22 L=22	5-83574-045-0	01	1	0712-1001	●	●	●
228	03.278 CLIP; PCV HOSE (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1002-	●	●	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0712-1309			●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-			●
232	03.417 HOSE; CONN (A)	8-98048-136-1	01	1	0712-	●	●
232	03.417 HOSE; CONN (C)	8-98023-344-4	01	1	0712-0712			●
232	03.417 HOSE; CONN (C)	8-98108-234-0	01	1	0801-			●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	0712-	●	●	●
351	03.407 DUCT; AIR 03.417 (B)	8-97109-423-0	01	1	0712-0802	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	0803-	●	●
351	03.407 DUCT; AIR 03.417 (A)	8-98067-267-0	01	1	0712-	●	●	●
351	03.407 DUCT; AIR (C)	8-98023-342-2	01	1	0712-			●
351	03.407 DUCT; AIR (D)	8-98023-343-1	01	1	0712-			●
379	03.675 HOSE; RUBBER 03.278 (A)	8-98045-343-0	01	1	0712-	●	●
379	03.675 HOSE; RUBBER (B)	8-98088-336-0	01	1	0712-			●
557	03.403 BOLT; HOSE CLIP 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0712-	●	●	●
557	03.403 BOLT; HOSE CLIP 03.330 (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	0712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
