Sayfa 0-40B - Isuzu EPC

0-40B — FUEL INJECTION SYSTEM (#4997) — 216 parça

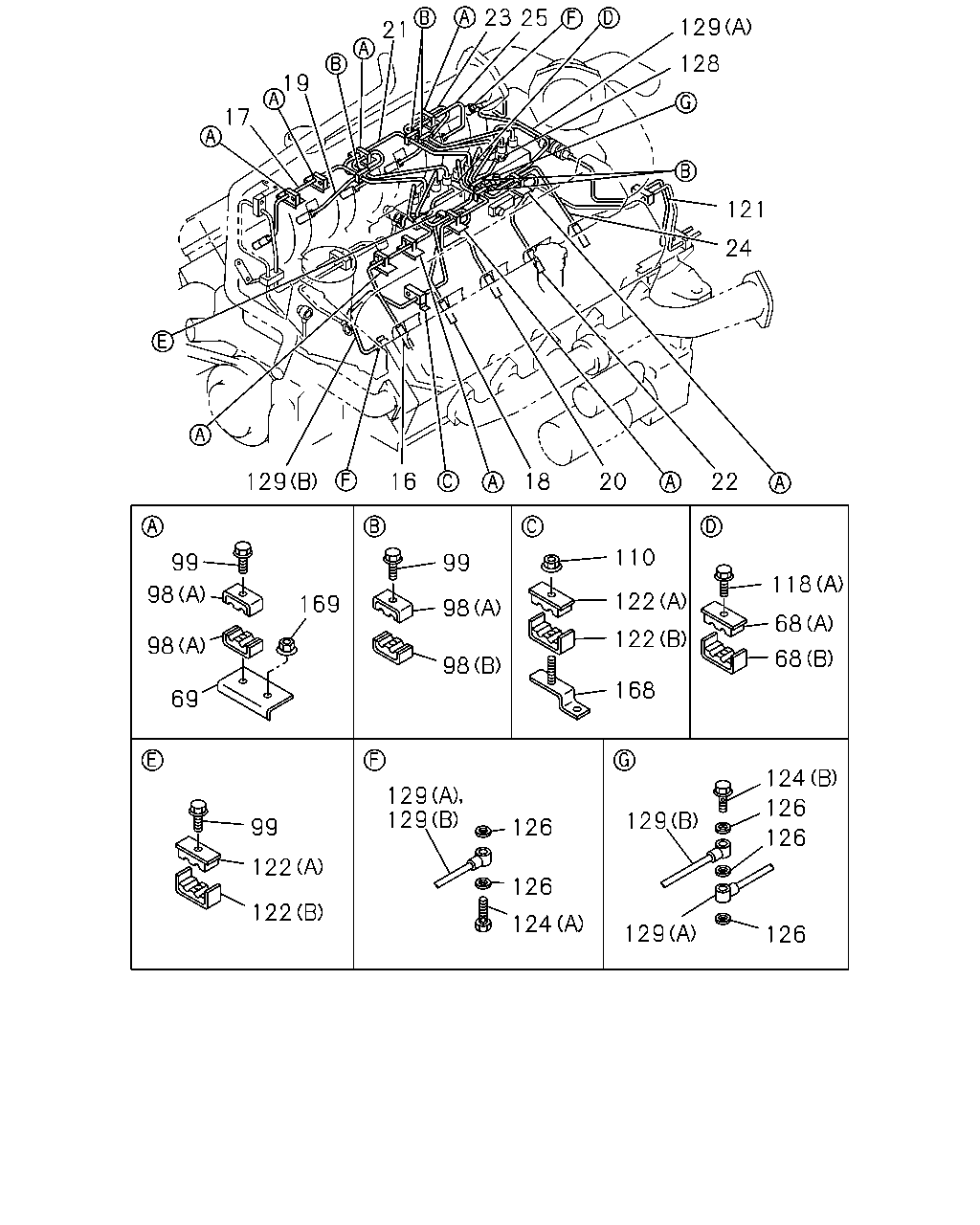

129 21 128 19 17 121 24 16 129 18 20 22 110 99 99 118 98 122 169 98 68 122 98 68 98 168 69 124 129 129 126 129 99 126 126 122 126 122 124 129 126 23 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 ANTI NOISE EQUIPMENT<SV9>	1-15415-919-1	01	1	9606-9905	●
16	PIPE; INJ NO.1 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-559-1	01	1	9702-9905	●
16	PIPE; INJ NO.1	1-15415-559-1	01	1	9906-		●
17	PIPE; INJ NO.2 ANTI NOISE EQUIPMENT<SV9>	1-15415-920-1	01	1	9606-9905	●
17	PIPE; INJ NO.2 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-560-1	01	1	9702-9905	●
17	PIPE; INJ NO.2	1-15415-560-1	01	1	9906-		●
18	PIPE; INJ NO.3 ANTI NOISE EQUIPMENT<SV9>	1-15415-921-1	01	1	9606-9905	●
18	PIPE; INJ NO.3 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-589-2	01	1	9702-9905	●
18	PIPE; INJ NO.3	1-15415-589-2	01	1	9906-		●
19	PIPE; INJ NO.4 ANTI NOISE EQUIPMENT<SV9>	1-15415-922-1	01	1	9606-9905	●
19	PIPE; INJ NO.4 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-562-1	01	1	9702-9905	●
19	PIPE; INJ NO.4	1-15415-562-1	01	1	9906-		●
20	PIPE; INJ NO.5 ANTI NOISE EQUIPMENT<SV9>	1-15415-923-1	01	1	9606-9905	●
20	PIPE; INJ NO.5 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-563-1	01	1	9702-9905	●
20	PIPE; INJ NO.5	1-15415-563-1	01	1	9906-		●
21	PIPE; INJ NO.6 ANTI NOISE EQUIPMENT<SV9>	1-15415-924-1	01	1	9606-9905	●
21	PIPE; INJ NO.6 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-564-1	01	1	9702-9905	●
21	PIPE; INJ NO.6	1-15415-564-1	01	1	9906-		●
22	PIPE; INJ NO.7 ANTI NOISE EQUIPMENT<SV9>	1-15415-925-1	01	1	9606-9905	●
22	PIPE; INJ NO.7 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-590-2	01	1	9702-9905	●
22	PIPE; INJ NO.7	1-15415-590-2	01	1	9906-		●
23	PIPE; INJ NO.8 ANTI NOISE EQUIPMENT<SV9>	1-15415-926-1	01	1	9606-9905	●
23	PIPE; INJ NO.8 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-566-1	01	1	9702-9905	●
23	PIPE; INJ NO.8	1-15415-566-1	01	1	9906-		●
24	PIPE; INJ NO.9 ANTI NOISE EQUIPMENT<SV9>	1-15415-927-1	01	1	9606-9905	●
24	PIPE; INJ NO.9 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-567-1	01	1	9702-9905	●
24	PIPE; INJ NO.9	1-15415-567-1	01	1	9906-		●
25	PIPE; INJ NO.10 ANTI NOISE EQUIPMENT<SV9>	1-15415-928-1	01	1	9606-9905	●
25	PIPE; INJ NO.10 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15415-568-1	01	1	9702-9905	●
25	PIPE; INJ NO.10	1-15415-568-1	01	1	9906-		●
68	CLIP; INJ PIPE (A)	1-09701-180-0	01	1	9606-9905	●
68	CLIP; INJ PIPE (A)	1-09701-180-0	01	1	9906-		●
68	CLIP; INJ PIPE (B) ID=10 & 10 L=25	8-94393-280-1	01	1	9606-9905	●
68	CLIP; INJ PIPE (B) ID=10 & 10 L=25	8-94393-280-2	01	1	9906-		●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	9606-9905	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	9906-		●
98	CLIP; "A",INJ PIPE (A)	1-09701-132-0	22	1	9606-9905	●
98	CLIP; "A",INJ PIPE (A)	1-09701-132-1	22	1	9906-		●
98	CLIP; "A",INJ PIPE (B)	1-09701-213-0	06	1	9606-9905	●
98	CLIP; "A",INJ PIPE (B)	1-09701-213-0	06	1	9906-		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	9606-9905	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	9906-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9606-9706	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9707-9905	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9906-		●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9703-9905	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9906-		●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9606-9905	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9906-		●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-800-0	01	1	9606-9905	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO<SV1>	1-15415-800-0	01	1	9906-		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO<SV1>	1-15415-657-0	01	1	9606-9905	●
121	PIPE; FUEL,FEED PUMP,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1>	1-15415-657-0	01	1	9906-		●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-2	02	1	9906-		●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-1	02	1	9906-		●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9906-		●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9906-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9606-9905	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9906-		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9606-9905	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9906-		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9606-9905	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9906-		●
128	PIPE ASM; INJ	1-15415-740-0	01	1	9606-9905	●
128	PIPE ASM; INJ	1-15415-740-1	01	1	9906-		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-390-0	01	1	9606-9905	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-390-0	01	1	9906-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-620-0	01	1	9606-9905	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-620-0	01	1	9906-		●
168	BRACKET; FUEL PIPE	1-15419-363-1	01	1	9606-9905	●
168	BRACKET; FUEL PIPE	1-15419-363-1	01	1	9906-9910		●
168	BRACKET; FUEL PIPE	1-15419-622-0	01	1	9911-		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9606-9905	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9906-		●

37 38 40 31 39 143 32 44 141 140 47 140 138 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ ANTI NOISE EQUIPMENT<SV9>	1-15300-204-1	10	1	9606-9905	●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9>	1-15300-328-0	10	1	9702-9709	●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9>	1-15300-368-0	10	1	9710-9905	●
31	NOZZLE ASM; INJ	1-15300-368-0	10	1	9906-		●
32	HOLDER ASM; NOZZLE ANTI NOISE EQUIPMENT<SV9>	1-15330-089-1	10	1	9606-9905	●
32	HOLDER ASM; NOZZLE EXC. ANTI NOISE EQUIPMENT<SV9>	1-15330-109-0	10	1	9702-9905	●
32	HOLDER ASM; NOZZLE	1-15330-109-0	10	1	9906-		●
33	NOZZLE; INJ ANTI NOISE EQUIPMENT<SV9>	1-15311-180-0	10	1	9606-9905	●
33	NOZZLE; INJ EXC. ANTI NOISE EQUIPMENT<SV9>	1-15311-261-0	10	1	9702-9709	●
33	NOZZLE; INJ EXC. ANTI NOISE EQUIPMENT<SV9>	1-15311-286-0	10	1	9710-9905	●
33	NOZZLE; INJ	1-15311-286-0	10	1	9906-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9606-9905	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9906-		●
37	NUT; CAP,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15334-015-0	10	1	9606-9905	●
37	NUT; CAP,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	1-15334-004-0	10	1	9702-9905	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-004-0	10	1	9906-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT<SV9>	9-15339-056-0	10	1	9606-9905	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	10	1	9606-9905	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	10	1	9906-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	10	1	9606-9905	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	10	1	9906-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	10	1	9606-9905	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	10	1	9906-		●
45	ROD; PUSH,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15341-004-0	10	1	9606-9905	●
45	ROD; PUSH,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	1-15341-005-0	10	1	9702-9905	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-005-0	10	1	9906-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9606-9905	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9906-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	10	1	9606-9905	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	10	1	9906-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	10	1	9606-9905	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	10	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9906-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9606-9905	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9906-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15341-005-0	10	1	9606-9905	●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	1-15341-004-0	10	1	9702-9905	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-004-0	10	1	9906-		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	10	1	9606-9905	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	10	1	9906-		●

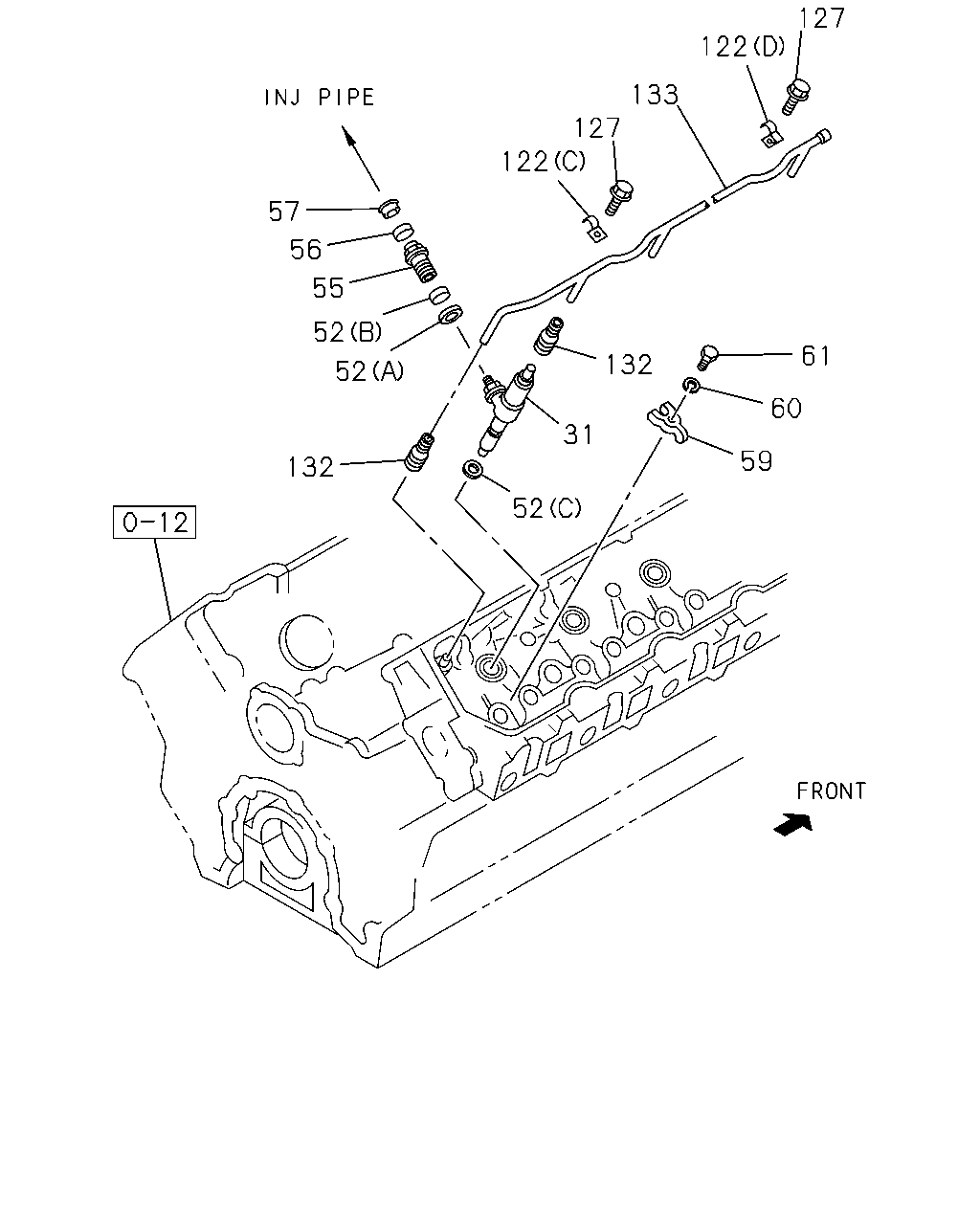

127 122 133 127 122 57 56 55 52 61 132 52 60 31 59 132 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ ANTI NOISE EQUIPMENT<SV9>	1-15300-204-1	10	1	9606-9905	●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9>	1-15300-328-0	10	1	9702-9709	●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9>	1-15300-368-0	10	1	9710-9905	●
31	NOZZLE ASM; INJ	1-15300-368-0	10	1	9906-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9606-9905	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9906-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9606-9905	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9906-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9606-9905	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9906-		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9606-9905	●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9906-		●
56	COVER	1-15419-028-0	10	1	9606-9905	●
56	COVER	1-15419-028-0	10	1	9906-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9606-9905	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9906-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9606-9905	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9906-		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9606-9905	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9906-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9606-9905	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9906-		●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-2	02	1	9906-		●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-1	02	1	9906-		●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9906-		●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9606-9905	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9906-		●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9606-9905	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9906-		●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9606-9905	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9906-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9606-9905	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9906-		●

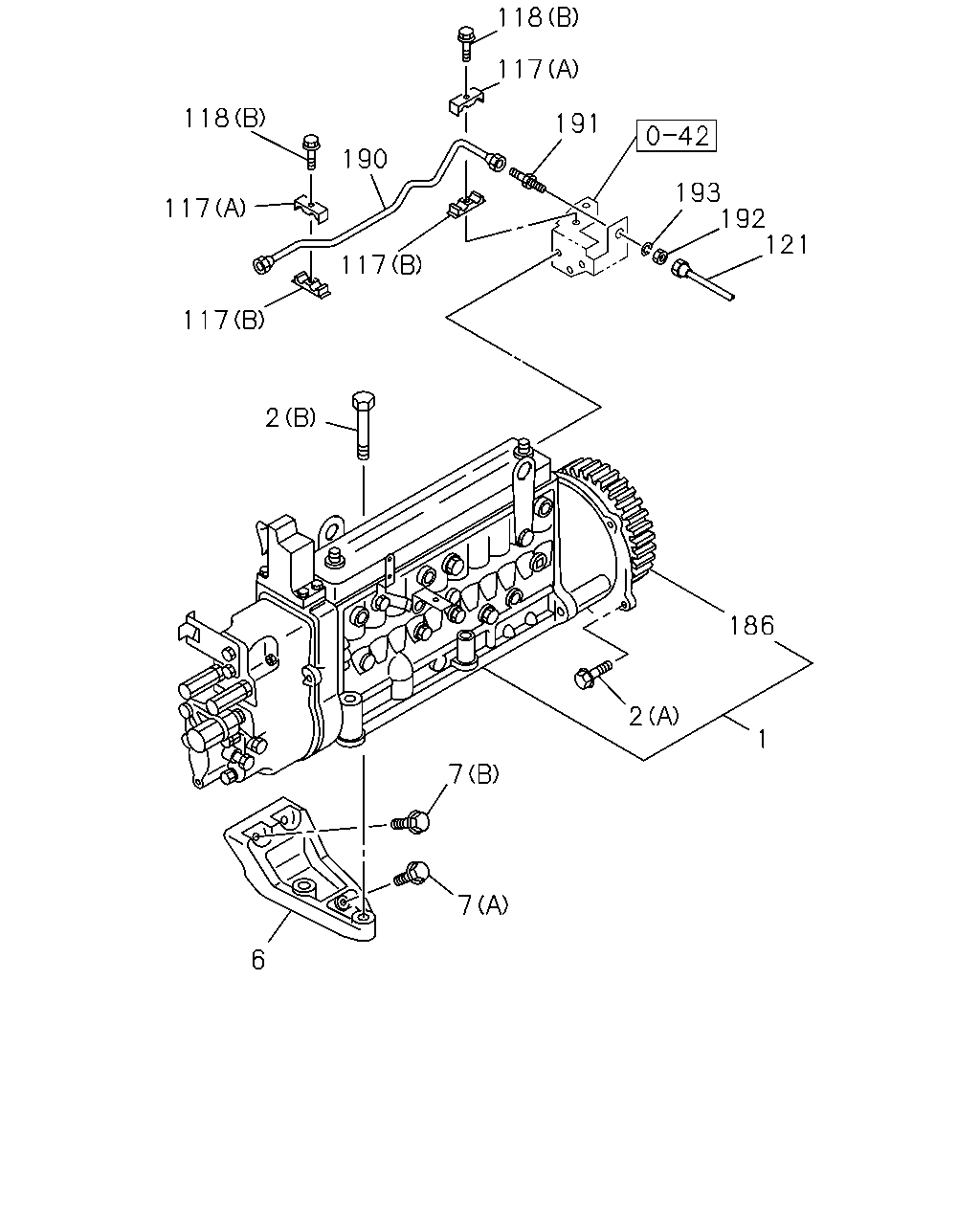

118 117 118 191 190 193 192 121 117 117 117 2 186 2 1 7 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT<SV9>	1-15603-059-2	01	1	9606-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT<SV9>	1-15603-201-0	01	1	9703-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ANTI NOISE EQUIPMENT<SV9>	1-15603-123-2	01	1	9702-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ANTI NOISE EQUIPMENT<SV9>	1-15603-209-0	01	1	9703-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-209-1	01	1	9906-		●
2	BOLT; INJ PUMP (A) M10X80 FLANGE	0-28181-080-0	04	1	9606-9905	●
2	BOLT; INJ PUMP (A) M10X80 FLANGE	0-28181-080-0	04	1	9906-		●
2	BOLT; INJ PUMP (B) M10X95 FLANGE	8-94397-027-1	02	1	9606-9905	●
2	BOLT; INJ PUMP (B) M10X95 FLANGE	8-94397-027-1	02	1	9906-		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9606-9905	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9906-		●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9606-9905	●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9906-		●
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28181-040-0	01	1	9606-9905	●
7	BOLT; INJ PUMP BRKT (B) M10X40 FLANGE	0-28181-040-0	01	1	9906-		●
117	CLIP; INJ PIPE (B)	1-09701-195-1	02	1	9703-9905	●
117	CLIP; INJ PIPE (B)	1-09701-195-2	02	1	9906-		●
117	CLIP; INJ PIPE (A)	1-09701-196-0	02	1	9703-9905	●
117	CLIP; INJ PIPE (A)	1-09701-196-1	02	1	9906-		●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9703-9905	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9906-		●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9606-9905	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9906-		●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-15415-800-0	01	1	9606-9905	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO<SV1>	1-15415-800-0	01	1	9906-		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO<SV1>	1-15415-657-0	01	1	9606-9905	●
121	PIPE; FUEL,FEED PUMP,SUCTION EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1>	1-15415-657-0	01	1	9906-		●
186	GEAR; INJ PUMP	1-12524-085-2	01	1	9606-9905	●
186	GEAR; INJ PUMP	1-12524-085-3	01	1	9906-		●
190	PIPE; FUEL INLET	1-15415-915-0	01	1	9703-9905	●
190	PIPE; FUEL INLET	1-15415-915-0	01	1	9906-		●
191	UNION; FLARE M20 L=77.5	9-09223-212-1	01	1	9703-9905	●
191	UNION; FLARE M20 L=77.5	9-09233-212-1	01	1	9906-		●
192	NUT; UNION M20	9-99110-420-0	01	1	9703-9905	●
192	NUT; UNION M20	9-99110-420-0	01	1	9906-		●
193	WASHER; UNION ID=20.2	9-09150-520-0	01	1	9703-9905	●
193	WASHER; UNION ID=20.2	9-09150-520-0	01	1	9906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
