◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#49963) — 18 parça

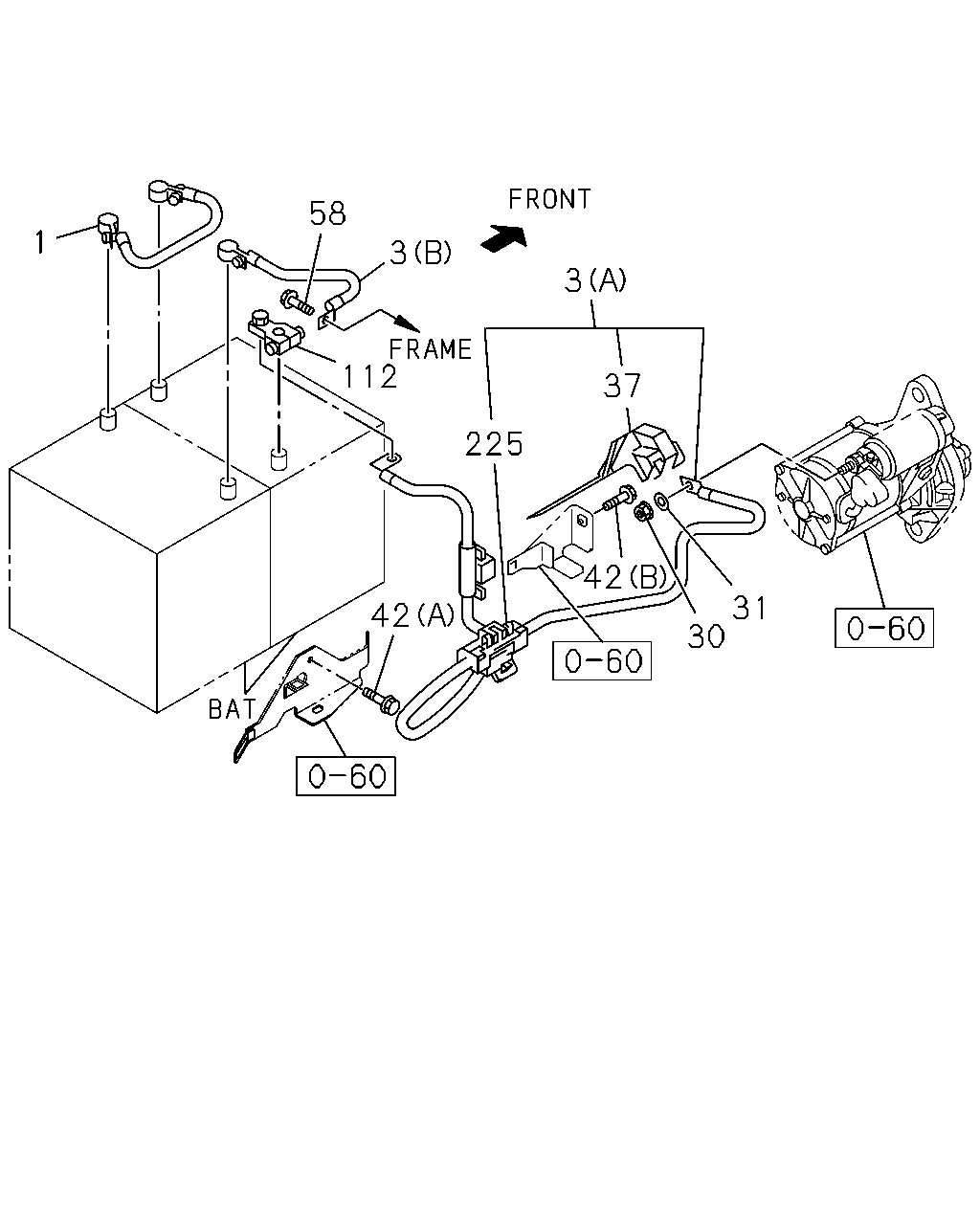

çizim 155369
58 1 3 3 112 37 225 42 31 30 42
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0712-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 0712-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 0712-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 0712-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98048-441-2 01 1 0712-0903
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98048-441-3 01 1 0904-1301
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1302-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0712-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0712-
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0712-
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0712-1301
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1302-
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 1302-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 0712-
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0712-1004
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0712-
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0712-
