Sayfa 0-40A - Isuzu EPC

0-40A — FUEL INJECTION SYSTEM (#4996) — 263 parça

31 31 32 32 34 36 36 46 42 140 44 46 42 45 140 46 146 44 45 46 33 47 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	1-15300-344-0	06	1	9606-9606	●
31	NOZZLE ASM; INJ	1-15300-357-0	06	1	9607-9609	●
31	NOZZLE ASM; INJ CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15300-357-1	06	1	9610-9905	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION<THN>	1-15300-357-1	06	1	9906-	●	●
31	NOZZLE ASM; INJ 17 INCH CLUTCH(RF3)	1-15300-358-0	06	1	9610-9612	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN>	1-15300-358-1	06	1	9701-9905	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN>	1-15300-358-1	06	1	9906-		●
31	NOZZLE ASM; INJ	1-15300-355-1	06	1	9707-9905			●
31	NOZZLE ASM; INJ	1-15300-339-2	06	1	9906-				●
32	HOLDER ASM; NOZZLE	1-15330-114-0	06	1	9906-	●	●
32	HOLDER ASM; NOZZLE	1-15330-105-1	06	1	9606-9905	●
32	HOLDER ASM; NOZZLE	1-15330-117-1	06	1	9707-9905			●
32	HOLDER ASM; NOZZLE	1-15330-117-1	06	1	9906-				●
33	NOZZLE; INJ	1-15311-274-0	06	1	9606-9609	●
33	NOZZLE; INJ CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15311-274-0	06	1	9610-9905	●
33	NOZZLE; INJ EXC. EURO2 SPECIFICATION<THN>	1-15311-274-0	06	1	9906-	●	●
33	NOZZLE; INJ 17 INCH CLUTCH(RF3)	1-15311-278-0	06	1	9610-9612	●
33	NOZZLE; INJ EURO2 SPECIFICATION<THN>	1-15311-278-0	06	1	9701-9905	●
33	NOZZLE; INJ EURO2 SPECIFICATION<THN>	1-15311-278-0	06	1	9906-		●
33	NOZZLE; INJ	1-15311-267-0	06	1	9707-9905			●
33	NOZZLE; INJ	1-15311-270-1	06	1	9906-				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9606-9901	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-0	06	1	9606-9905	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-1	06	1	9906-	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-137-1	06	1	9707-9905			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-137-1	06	1	9906-				●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9606-9901	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-131-0	06	1	9606-9901	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9707-9901			●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9902-9905	●		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	9906-	●	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9606-9706	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9707-9905	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	9906-	●	●		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9606-9706	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9707-9905	●		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	9906-	●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	1-15347-001-0	12	1	9606-9901	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	9606-9706	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	9707-9905	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	9906-	●	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	1-15347-001-0	12	1	9906-				●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	9606-9905	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	9906-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	9906-	●	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9606-9706	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9707-9905	●		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	9906-	●	●		●
146	SPACER; NOZZLE	1-15339-098-0	06	1	9707-9905			●
146	SPACER; NOZZLE	1-15339-098-0	06	1	9906-				●

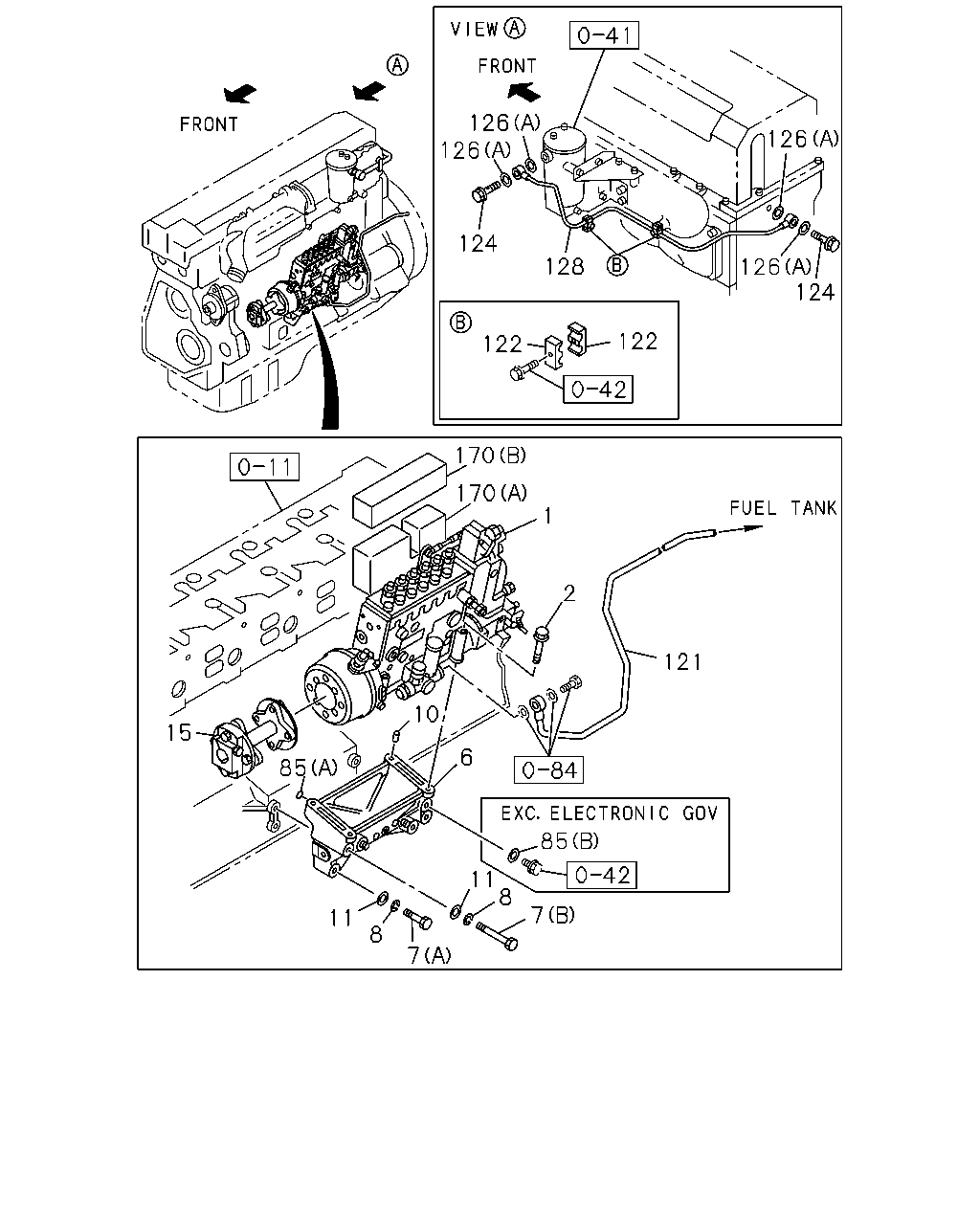

126 126 126 124 128 126 124 122 122 170 170 1 2 121 10 15 85 6 85 11 8 7 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-114-0	01	1	9606-9609	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15603-114-3	01	1	9610-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	1-15603-114-4	01	1	9906-	●	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 17 INCH CLUTCH(RF3)	1-15603-156-0	01	1	9610-9612	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-15603-156-1	01	1	9701-9707	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO2 SPECIFICATION<THN>	1-15603-265-0	01	1	9708-9905	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ELECTRONIC GOV RED3(KG5)	1-15603-265-3	01	1	9906-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-065-3	01	1	9706-9905			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-240-3	01	1	9906-				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR(SD7)	1-15603-290-5	01	1	9906-		●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9606-9706	●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9707-9905	●		●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	9906-	●	●		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-092-3	01	1	9606-9610	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	9611-9905	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	9906-	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	9707-9905			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	9906-				●
7	BOLT; INJ PUMP BRKT (A) M14X70	0-16806-470-0	02	1	9606-9610	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	9611-9706	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	9707-9905	●		●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	9906-	●	●		●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9606-9706	●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9707-9905	●		●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	9906-	●	●		●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9606-9706	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9707-9905	●		●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	9906-	●	●		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9606-9706	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9707-9905	●		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9906-	●	●		●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9606-9706	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9707-9905	●		●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	9906-	●	●		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	9606-9706	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	9707-9905	●		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	9906-	●	●		●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	9606-9706	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	9707-9905	●		●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	9906-	●	●		●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9606-9609	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH-15.5" TWIN PLATE SPICER(TEY) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9905	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	01	1	9906-	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9906-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9606-9706	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9707-9905	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	9906-	●	●		●
122	CLIP; LEAK OFF PIPE	1-09701-132-0	04	1	9606-9706	●
122	CLIP; LEAK OFF PIPE	1-09701-132-0	04	1	9707-9905	●		●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	04	1	9906-	●	●		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	03	1	9606-9606	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9607-9706	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9707-9905	●		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9906-	●	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	06	1	9606-9606	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9607-9706	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9707-9905	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9906-	●	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9607-9706	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9707-9905	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9906-	●	●		●
128	PIPE ASM; INJ	1-15415-543-1	01	1	9606-9706	●
128	PIPE ASM; INJ	1-15415-543-1	01	1	9707-9905	●		●
128	PIPE ASM; INJ	1-15415-543-1	01	1	9906-	●	●		●
170	INSULATOR; INJ PUMP (A)	1-19389-160-0	01	1	9707-9905			●
170	INSULATOR; INJ PUMP (A)	1-19389-160-0	01	1	9906-				●
170	INSULATOR; INJ PUMP (B)	1-19389-188-1	01	1	9707-9905			●
170	INSULATOR; INJ PUMP (B)	1-19389-188-1	01	1	9906-				●

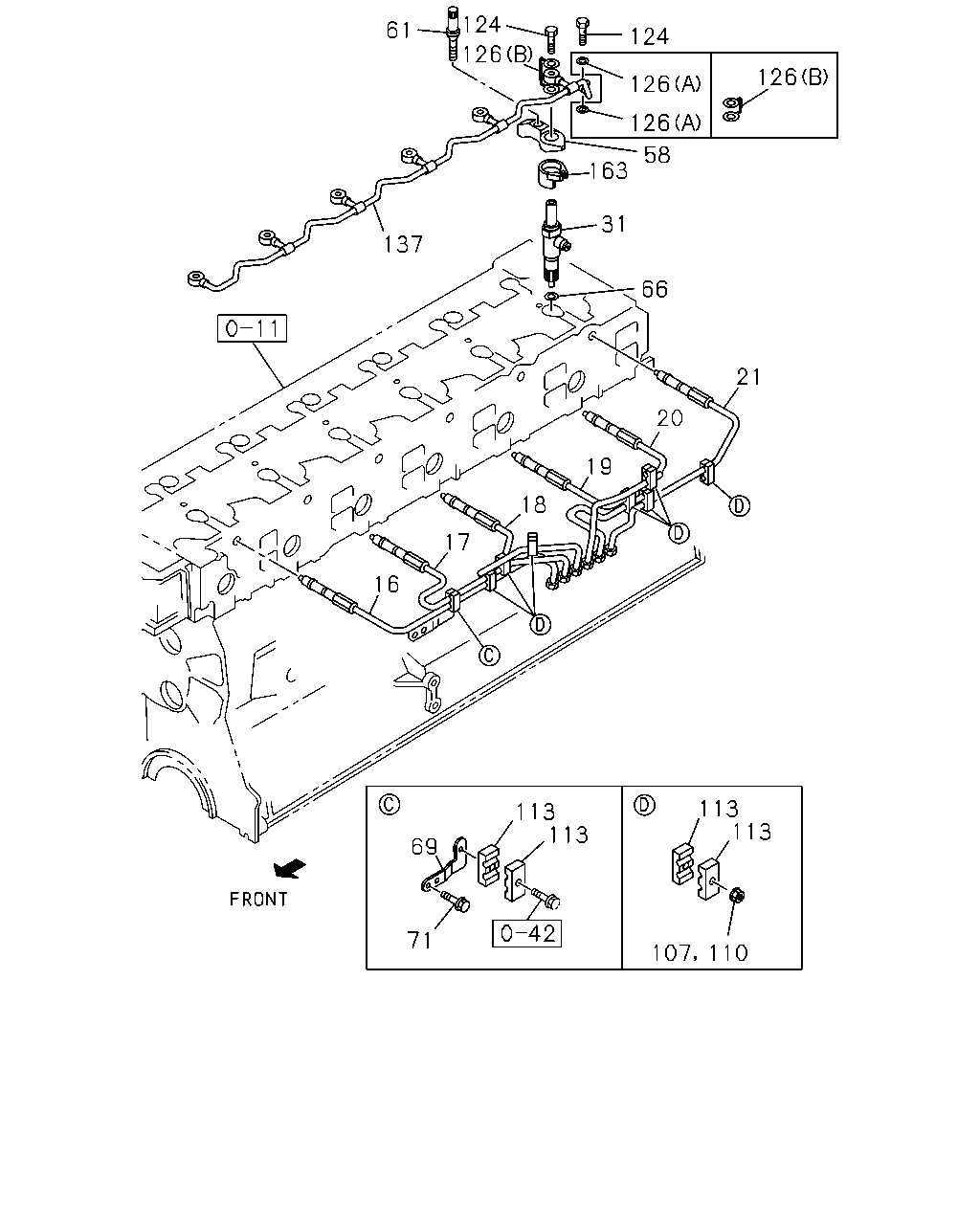

124 61 124 126 126 126 126 58 163 31 137 66 21 20 19 18 17 16 113 113 113 113 69 71 107 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	1-15415-312-1	01	1	9606-9609	●
16	PIPE; INJ NO.1 CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15415-312-1	01	1	9610-9905	●
16	PIPE; INJ NO.1 EXC. EURO2 SPECIFICATION<THN>	1-15415-312-1	01	1	9906-	●	●
16	PIPE; INJ NO.1 17 INCH CLUTCH(RF3)	1-15415-072-7	01	1	9610-9612	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<THN>	1-15415-072-7	01	1	9701-9706	●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<THN>	1-15415-072-7	01	1	9707-9905	●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	9707-9905			●
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<THN>	1-15415-072-7	01	1	9906-		●
16	PIPE; INJ NO.1	1-15415-072-7	01	1	9906-				●
17	PIPE; INJ NO.2	1-15415-313-1	01	1	9606-9609	●
17	PIPE; INJ NO.2 CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15415-313-1	01	1	9610-9905	●
17	PIPE; INJ NO.2 EXC. EURO2 SPECIFICATION<THN>	1-15415-313-1	01	1	9906-	●	●
17	PIPE; INJ NO.2 17 INCH CLUTCH(RF3)	1-15415-073-6	01	1	9610-9612	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<THN>	1-15415-073-6	01	1	9701-9706	●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<THN>	1-15415-073-6	01	1	9707-9905	●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	9707-9905			●
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<THN>	1-15415-073-6	01	1	9906-		●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	9906-				●
18	PIPE; INJ NO.3	1-15415-729-1	01	1	9606-9609	●
18	PIPE; INJ NO.3 CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15415-729-1	01	1	9610-9905	●
18	PIPE; INJ NO.3 EXC. EURO2 SPECIFICATION<THN>	1-15415-729-1	01	1	9906-	●	●
18	PIPE; INJ NO.3 17 INCH CLUTCH(RF3)	1-15415-074-6	01	1	9610-9612	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<THN>	1-15415-074-6	01	1	9701-9706	●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<THN>	1-15415-074-6	01	1	9707-9905	●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	9707-9905			●
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<THN>	1-15415-074-6	01	1	9906-		●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	9906-				●
19	PIPE; INJ NO.4	1-15415-526-1	01	1	9606-9609	●
19	PIPE; INJ NO.4 CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15415-526-1	01	1	9610-9905	●
19	PIPE; INJ NO.4 EXC. EURO2 SPECIFICATION<THN>	1-15415-526-1	01	1	9906-	●	●
19	PIPE; INJ NO.4 17 INCH CLUTCH(RF3)	1-15415-525-1	01	1	9610-9612	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<THN>	1-15415-525-1	01	1	9701-9706	●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<THN>	1-15415-525-1	01	1	9707-9905	●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	9707-9905			●
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<THN>	1-15415-525-1	01	1	9906-		●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	9906-				●
20	PIPE; INJ NO.5	1-15415-730-1	01	1	9606-9609	●
20	PIPE; INJ NO.5 CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15415-730-1	01	1	9610-9905	●
20	PIPE; INJ NO.5 EXC. EURO2 SPECIFICATION<THN>	1-15415-730-1	01	1	9906-	●	●
20	PIPE; INJ NO.5 17 INCH CLUTCH(RF3)	1-15415-076-6	01	1	9610-9612	●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<THN>	1-15415-076-6	01	1	9701-9706	●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<THN>	1-15415-076-6	01	1	9707-9905	●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	9707-9905			●
20	PIPE; INJ NO.5 EURO2 SPECIFICATION<THN>	1-15415-076-6	01	1	9906-		●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	9906-				●
21	PIPE; INJ NO.6	1-15415-317-1	01	1	9606-9609	●
21	PIPE; INJ NO.6 CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15415-317-1	01	1	9610-9905	●
21	PIPE; INJ NO.6 EXC. EURO2 SPECIFICATION<THN>	1-15415-317-1	01	1	9906-	●	●
21	PIPE; INJ NO.6 17 INCH CLUTCH(RF3)	1-15415-077-6	01	1	9610-9612	●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION<THN>	1-15415-077-6	01	1	9701-9706	●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION<THN>	1-15415-077-6	01	1	9707-9905	●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	9707-9905			●
21	PIPE; INJ NO.6 EURO2 SPECIFICATION<THN>	1-15415-077-6	01	1	9906-		●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	9906-				●
31	NOZZLE ASM; INJ	1-15300-344-0	06	1	9606-9606	●
31	NOZZLE ASM; INJ	1-15300-357-0	06	1	9607-9609	●
31	NOZZLE ASM; INJ CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-15300-357-1	06	1	9610-9905	●
31	NOZZLE ASM; INJ EXC. EURO2 SPECIFICATION<THN>	1-15300-357-1	06	1	9906-	●	●
31	NOZZLE ASM; INJ 17 INCH CLUTCH(RF3)	1-15300-358-0	06	1	9610-9612	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN>	1-15300-358-1	06	1	9701-9905	●
31	NOZZLE ASM; INJ EURO2 SPECIFICATION<THN>	1-15300-358-1	06	1	9906-		●
31	NOZZLE ASM; INJ	1-15300-355-1	06	1	9707-9905			●
31	NOZZLE ASM; INJ	1-15300-339-2	06	1	9906-				●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-016-0	06	1	9606-9706	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-016-0	06	1	9707-9711	●		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	9712-9905	●		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	9906-	●	●		●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9606-9706	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9707-9905	●		●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	9906-	●	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-019-0	06	1	9606-9804	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9707-9804			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9805-9905	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	9906-	●	●		●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	9606-9706	●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	9707-9905	●		●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	9906-	●	●		●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9606-9706	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9707-9905	●		●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9906-	●	●		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	07	1	9606-9609	●
107	NUT; INJ PIPE CLIP CLUTCH-15.5" TWIN PLATE SPICER(TEY) M6 FLANGE	0-91150-106-0	07	1	9610-9905	●
107	NUT; INJ PIPE CLIP EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	06	1	9906-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	9906-				●
107	NUT; INJ PIPE CLIP 17 INCH CLUTCH(RF3) M6 FLANGE	0-91150-106-0	06	1	9610-9612	●
107	NUT; INJ PIPE CLIP EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	06	1	9701-9706	●
107	NUT; INJ PIPE CLIP EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	06	1	9707-9905	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	9707-9905			●
107	NUT; INJ PIPE CLIP EXC. EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	07	1	9906-	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9606-9706	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9707-9905	●		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9906-	●	●		●
113	CLIP; INJ PIPE	1-09701-132-0	16	1	9606-9609	●
113	CLIP; INJ PIPE CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-09701-132-0	16	1	9610-9905	●
113	CLIP; INJ PIPE EURO2 SPECIFICATION<THN>	1-09701-132-1	14	1	9906-		●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	9906-				●
113	CLIP; INJ PIPE 17 INCH CLUTCH(RF3)	1-09701-132-0	14	1	9610-9612	●
113	CLIP; INJ PIPE EURO2 SPECIFICATION<THN>	1-09701-132-0	14	1	9701-9706	●
113	CLIP; INJ PIPE EURO2 SPECIFICATION<THN>	1-09701-132-0	14	1	9707-9905	●
113	CLIP; INJ PIPE	1-09701-132-0	14	1	9707-9905			●
113	CLIP; INJ PIPE EXC. EURO2 SPECIFICATION<THN>	1-09701-132-1	16	1	9906-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	03	1	9606-9606	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9607-9706	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9707-9905	●		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	9906-	●	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	06	1	9606-9606	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9607-9706	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9707-9905	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	9906-	●	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9607-9706	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9707-9905	●		●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	9906-	●	●		●
137	PIPE ASM; LEAK OFF	1-15415-626-0	01	1	9606-9608	●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9609-9706	●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9707-9905	●		●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	9906-	●	●		●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9606-9706	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9707-9905	●		●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	9906-	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
