1-50 — EXHAUST PIPE AND SILENCER (#49942) — 2966 parça
çizim 156083
2 329 25 36 1 44 8 44 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (D) 		8-98026-060-0 01 1 0710-0803 ● ● ●
1 03.609 PIPE; EXH
(D) 		8-98026-060-0 01 1 0804- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-98026-060-0 01 1 0804- ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-108-1 01 1 0804- ● ● ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98006-765-2 01 1 0710-0803 ● ● ● ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-765-2 01 1 0804- ● ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98075-966-0 01 1 0804- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) (B) 		8-97384-590-0 01 1 0710-0803 ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-97384-590-0 01 1 0804- ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97381-455-0 01 1 0710- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (C) 		8-98026-063-0 01 1 0710-0803 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (C) 		8-98026-063-0 01 1 0804- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 (A) 		8-97365-228-0 01 1 0804- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (B) 		8-98020-555-0 01 1 0710-0803 ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.613 (B) 		8-98020-555-0 01 1 0804- ● ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) (D) 		8-98026-062-2 01 1 0710-0803 ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
(D) 		8-98026-062-2 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-98026-062-2 01 1 0804- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-109-0 01 1 0804- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ) (B) 		8-98072-179-0 01 1 0710-0803 ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) 		8-98072-179-0 01 1 0804- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-98082-064-0 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
(B) 		8-98006-766-0 01 1 0710-0803 ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-766-0 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) (B) 		8-98006-766-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 0710-0803 ● ● ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-97351-200-1 01 1 0804- ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-97351-200-1 01 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0710-0803 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0710-0803 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●

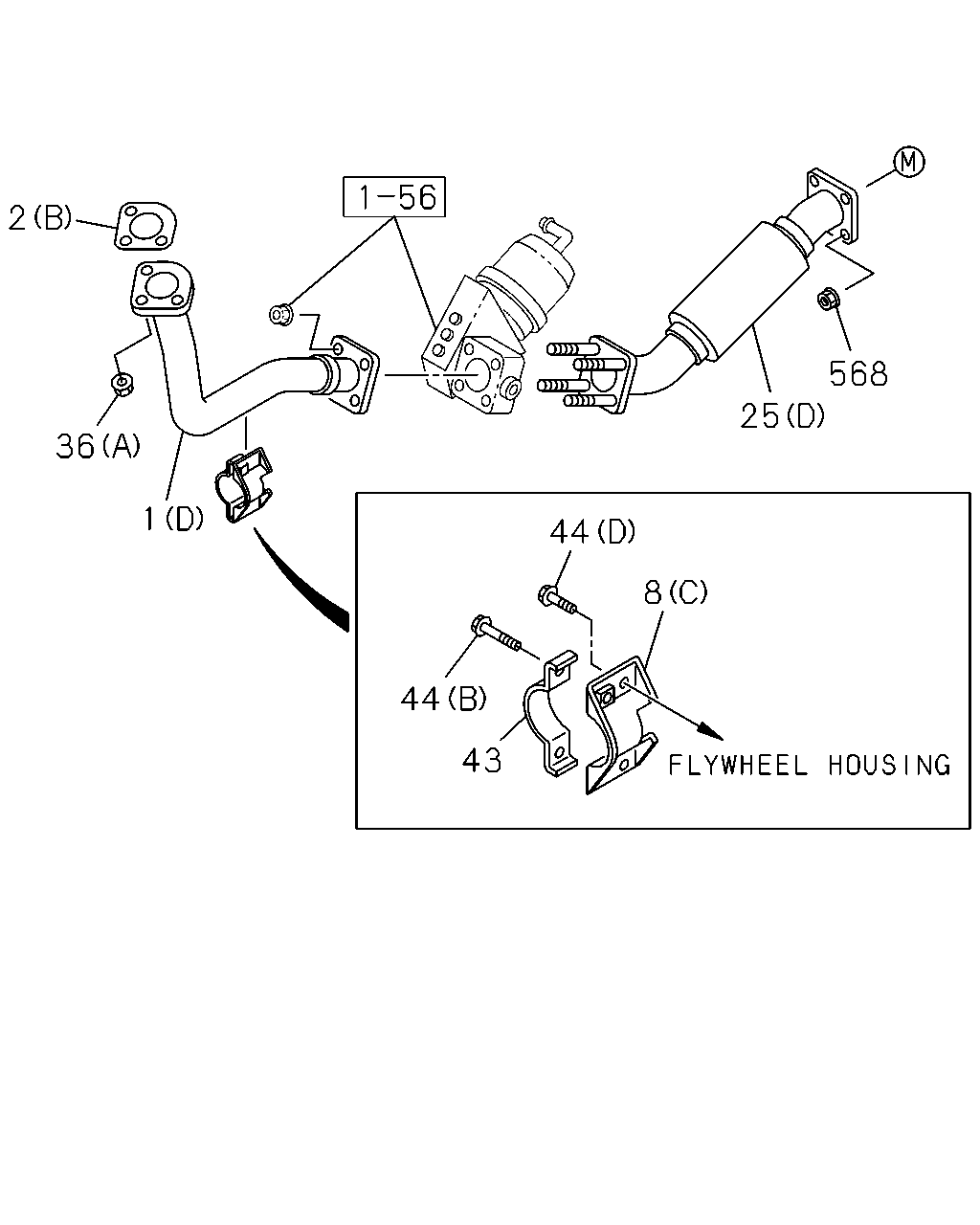

çizim 156086
2 568 25 36 1 44 8 44 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (D) 		8-98026-060-0 01 1 0710-0803 ● ● ●
1 03.609 PIPE; EXH
(D) 		8-98026-060-0 01 1 0804- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-98026-060-0 01 1 0804- ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-108-1 01 1 0804- ● ● ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98006-765-2 01 1 0710-0803 ● ● ● ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-765-2 01 1 0804- ● ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98075-966-0 01 1 0804- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) (B) 		8-97384-590-0 01 1 0710-0803 ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-97384-590-0 01 1 0804- ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97381-455-0 01 1 0710- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (C) 		8-98026-063-0 01 1 0710-0803 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (C) 		8-98026-063-0 01 1 0804- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 (A) 		8-97365-228-0 01 1 0804- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (B) 		8-98020-555-0 01 1 0710-0803 ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.613 (B) 		8-98020-555-0 01 1 0804- ● ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) (D) 		8-98026-062-2 01 1 0710-0803 ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
(D) 		8-98026-062-2 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-98026-062-2 01 1 0804- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-109-0 01 1 0804- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ) (B) 		8-98072-179-0 01 1 0710-0803 ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) 		8-98072-179-0 01 1 0804- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-98082-064-0 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
(B) 		8-98006-766-0 01 1 0710-0803 ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-766-0 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) (B) 		8-98006-766-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 0710-0803 ● ● ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-97351-200-1 01 1 0804- ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-97351-200-1 01 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0710-0803 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ●
568 03.704 NUT; DPD
01.062 M8 FLANGE 		0-91180-108-0 04 1 0710-0803 ● ● ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ● ● ●
568 03.704 NUT; DPD
02.042 M12 FLANGE 		0-91180-112-0 04 1 0710-0803 ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.042 M12 FLANGE 		0-91180-112-0 04 1 0804- ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 0804- ●

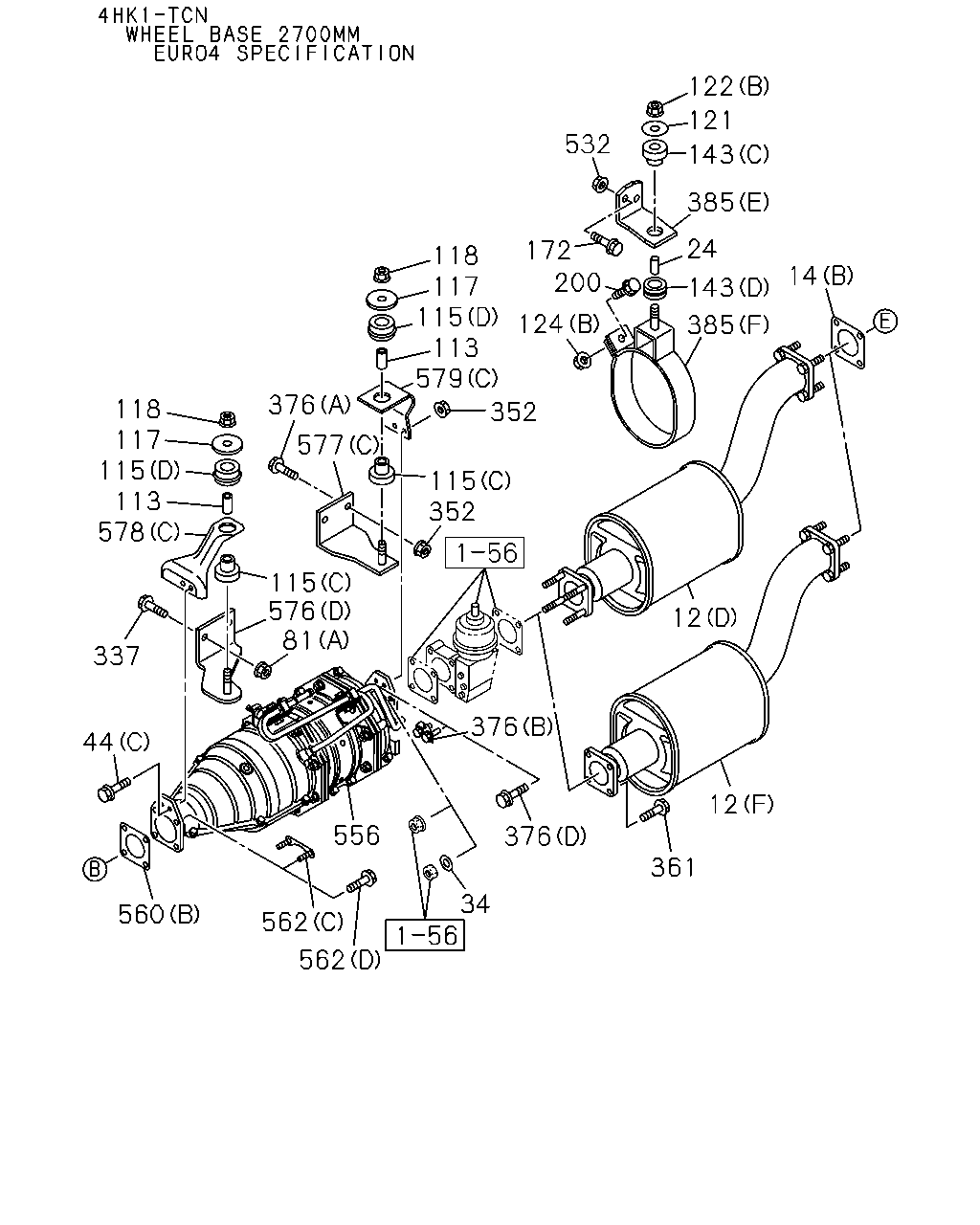

çizim 156099
122 121 532 143 385 24 172 200 124 118 117 115 113 579 14 143 385 376 118 117 115 113 578 352 577 115 352 115 576 81 12 337 376 44 12 556 376 361 34 560 562 562
BalonParca AdiParca NoAdetTipApplied Date A B C D E F

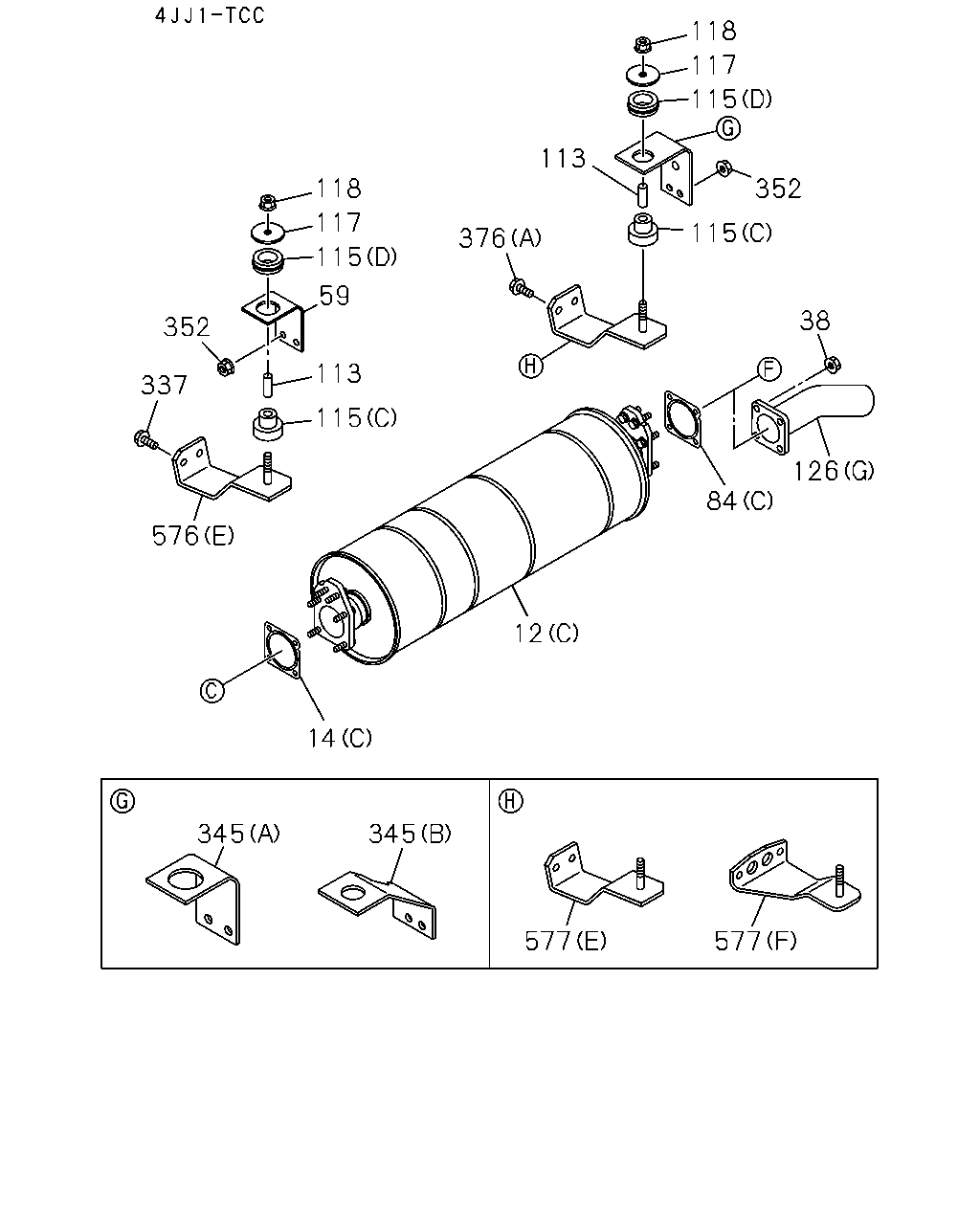

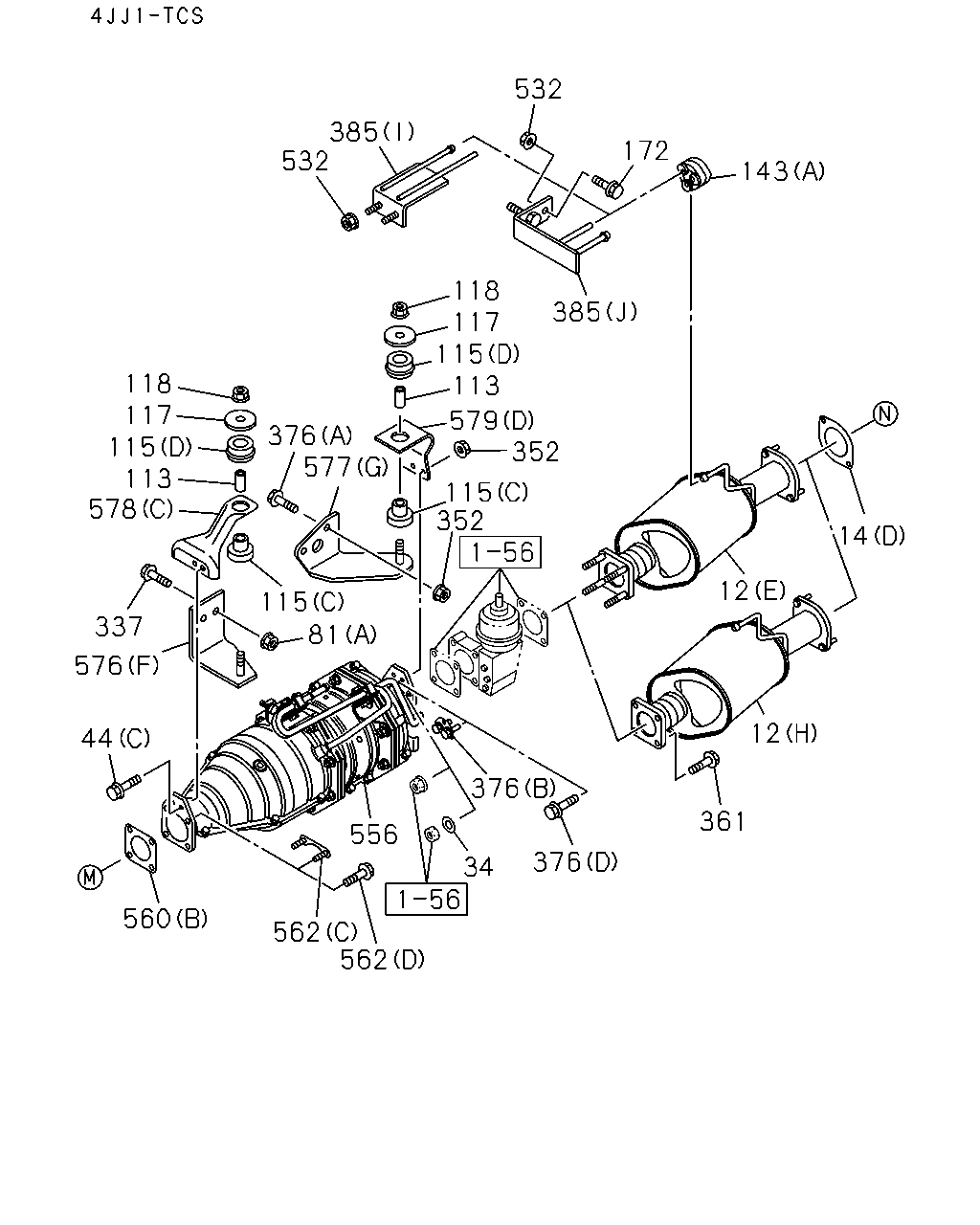

12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (F) 		8-98214-242-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 0710-0803 ● ● ●
12 03.701 SILENCER ASM; EXH
(E) 		8-97387-244-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (E) 		8-97387-244-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98073-374-0 01 1 0710-0803 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-374-0 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98073-374-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-839-0 01 1 0804- ● ● ●

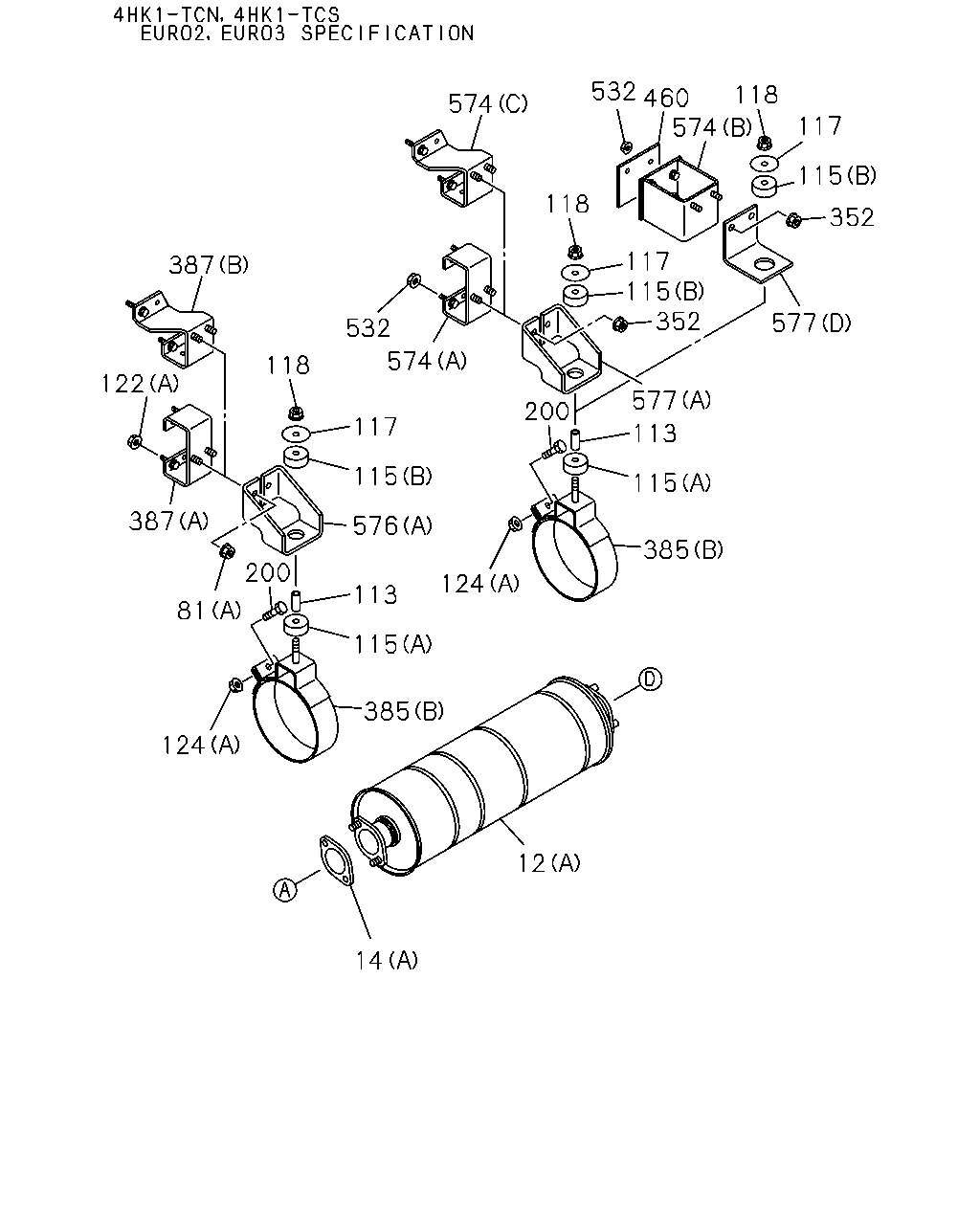

12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
(B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98027-813-1 01 1 0804- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 (D) ID=65 		8-97148-757-1 01 1 0710- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
24 03.613 COLLAR; DIST,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ● ●
24 03.613 COLLAR; DIST,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
34 03.613 WASHER; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ● ● ● ●
44 03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0710-0803 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 0710-0803 ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 03 1 0710-0803 ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-94457-277-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (D) 		8-94457-278-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97379-882-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97379-927-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 03 1 0804- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0710-0803 ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) OD=55 		9-09852-169-0 02 1 0804- ● ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) OD=55 		9-09852-169-0 02 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 03 1 0710-0803 ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 03 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0804- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 0710-0803 ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 03 1 0710-0803 ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ●
121 03.704 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 01 1 0710-0803 ● ● ● ●
121 03.704 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 01 1 0804- ● ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.874 (B) M10 FLANGE 		5-09440-006-0 01 1 0710-0803 ● ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 (B) M10 FLANGE 		5-09440-006-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0804-0909 ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910- ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0710-0803 ● ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0804- ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE 		0-28051-030-0 02 1 1206- ● ● ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
376 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ●
376 03.708 BOLT; BRKT
03.690 (B) W/PLATE 		8-98005-985-0 01 1 0710-0803 ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.690 (B) W/PLATE 		8-98005-985-0 01 1 0804-1205 ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE 		8-98005-985-0 01 1 1206- ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
376 03.708 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98001-889-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98001-889-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (J) 		8-97387-251-1 01 1 0710-0803 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (J) 		8-97387-251-1 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (F) 		8-98053-974-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (F) 		8-98053-974-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (E) 		8-98073-375-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (E) 		8-98073-375-1 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-495-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97207-224-0 02 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (G) 		8-98006-774-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (C) 		8-98006-776-1 01 1 0804- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-376-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 4400MM(44W) (H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (H) 		8-98073-377-0 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (H) 		8-98073-377-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) 		8-98101-911-0 01 1 0804- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●

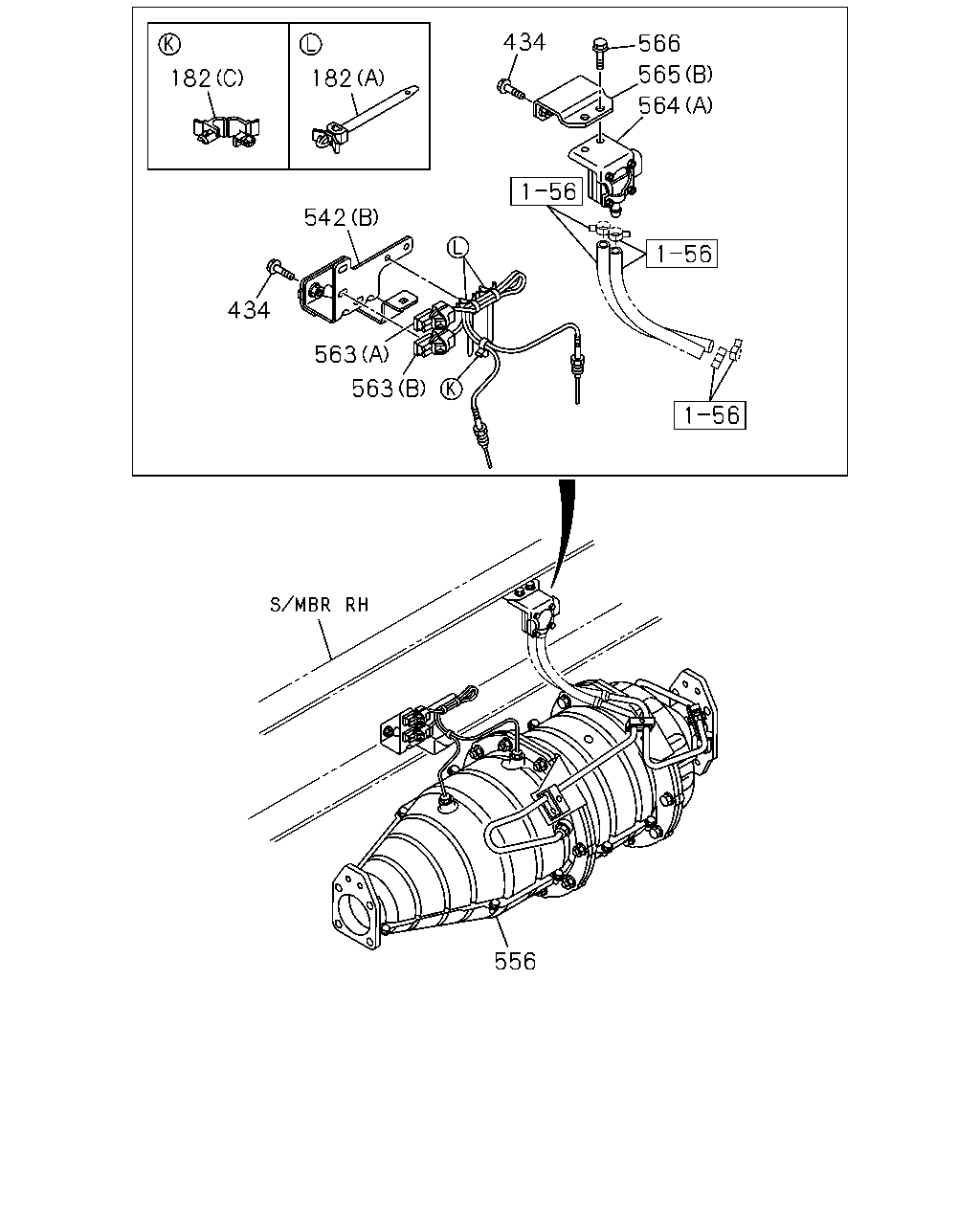

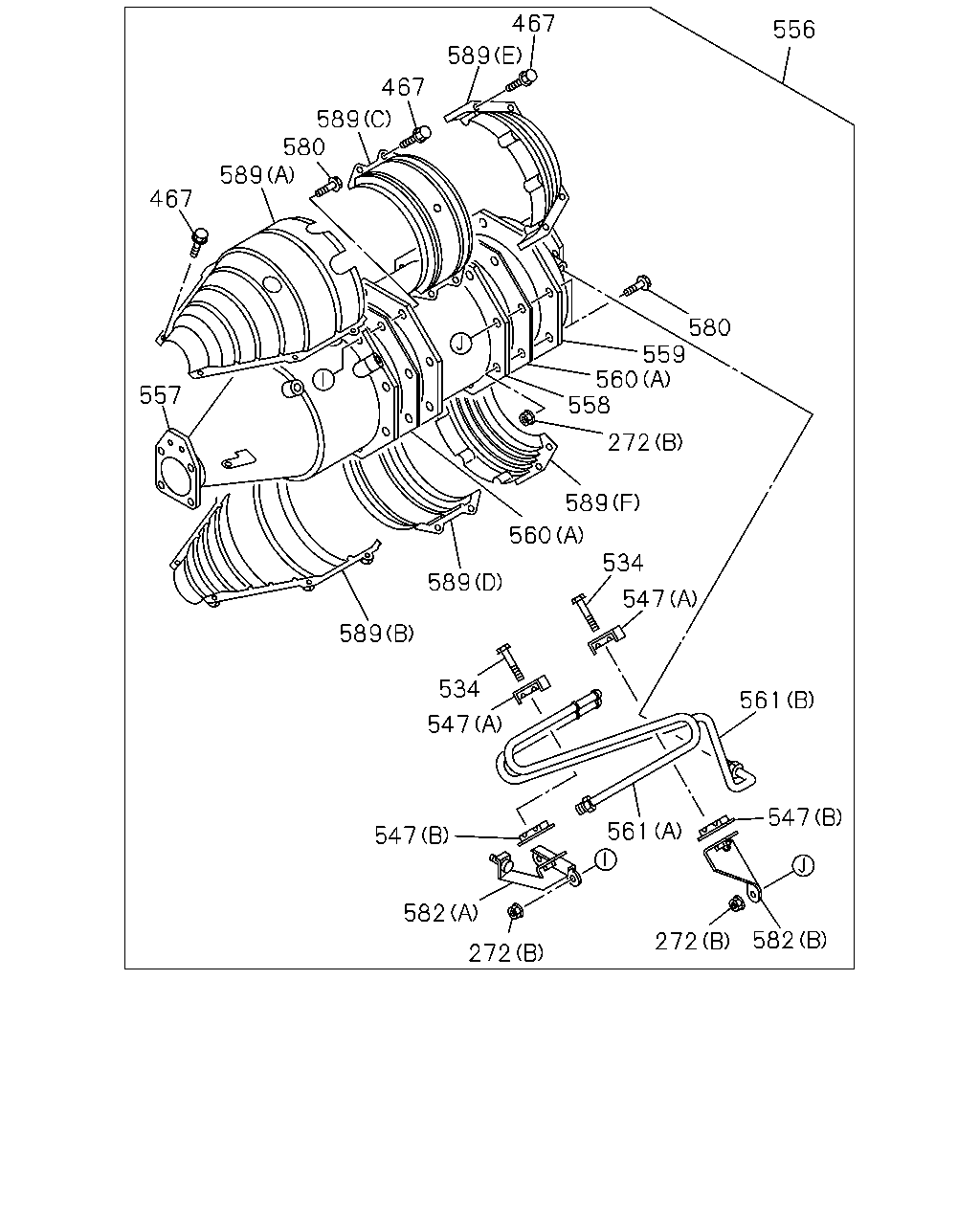

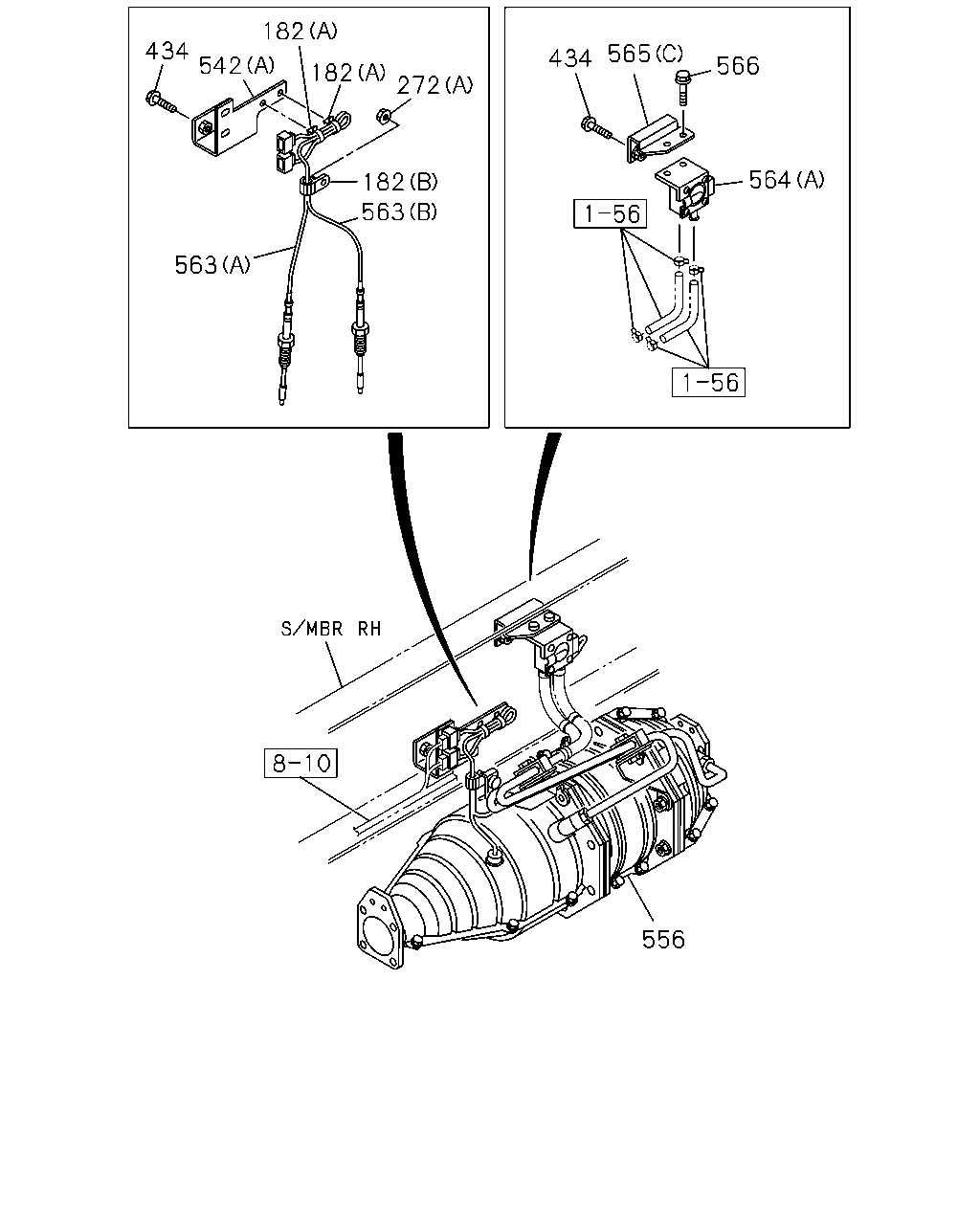

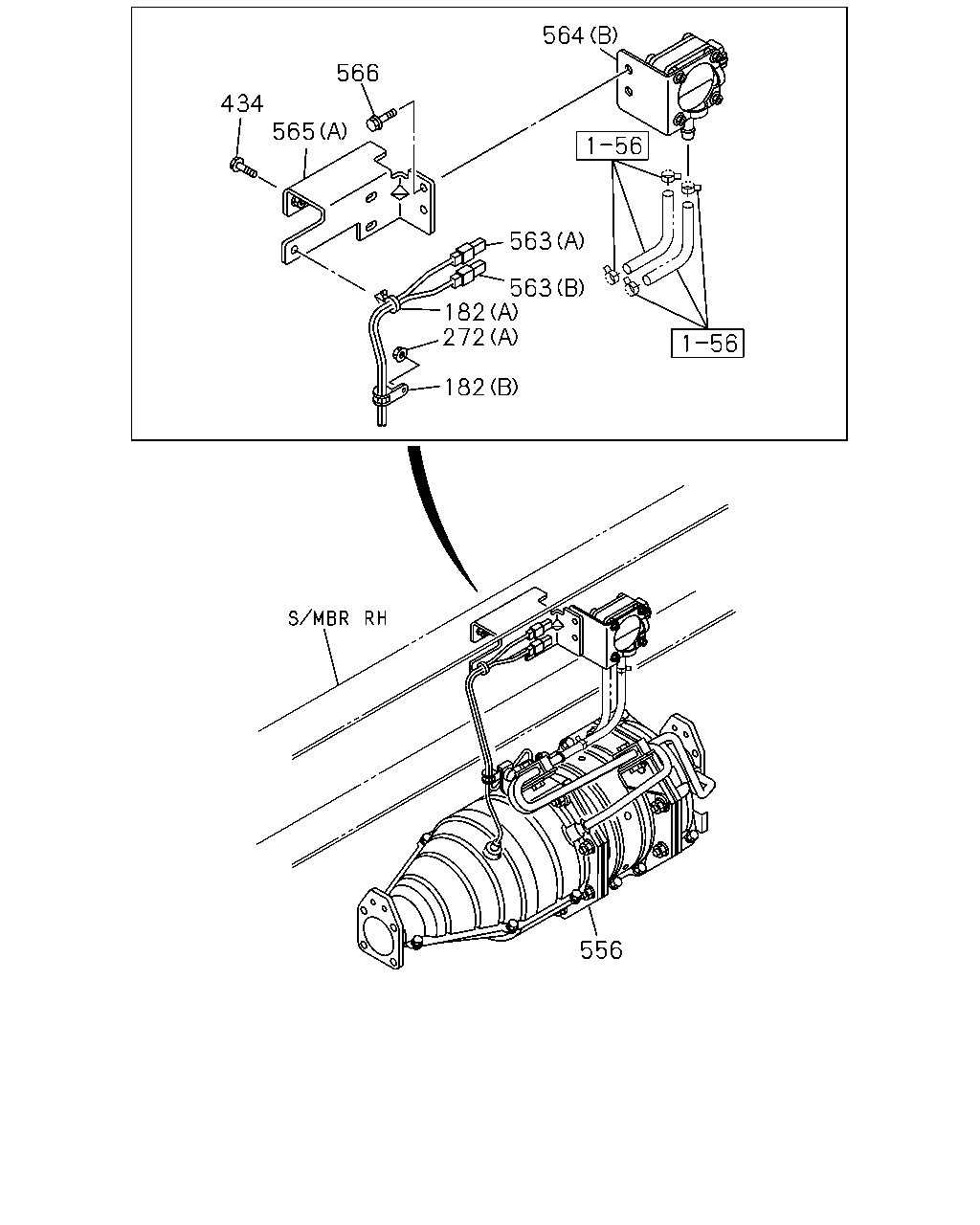

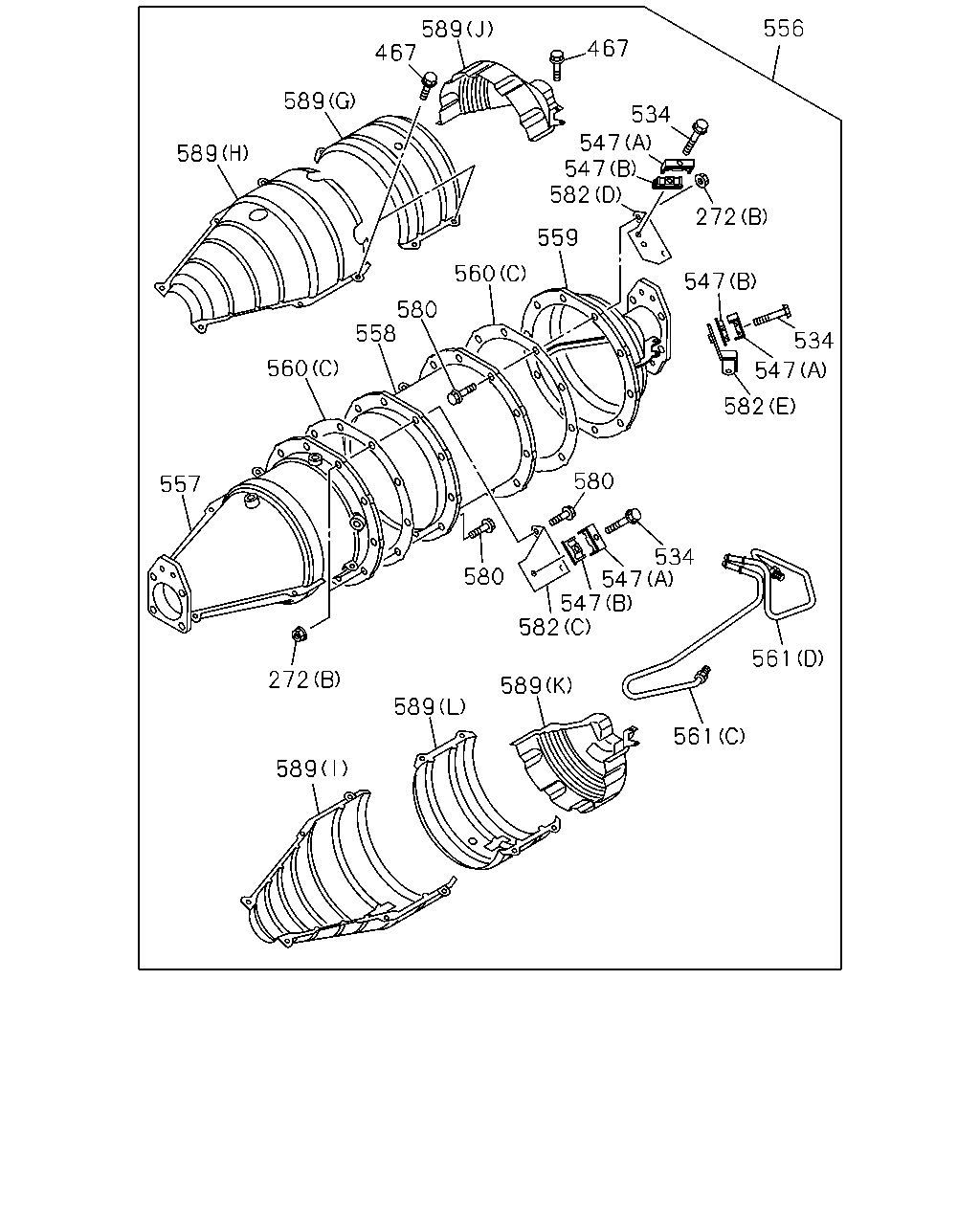

556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97331-947-0 02 1 0804- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64 		8-97373-108-0 01 1 0804- ● ● ● ● ●
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		1-22116-040-0 01 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0804- ●
560 03.611 GASKET; DPD
(C) 		8-97611-080-0 02 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-080-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-080-0 02 1 0804- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (D) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
(C) 		8-97373-966-0 02 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-97373-966-0 02 1 0804-1205 ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97373-966-0 02 1 1206- ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.632 (A) M8X70 		0-10855-870-0 04 1 0804- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98030-175-0 01 1 0804-1205 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
03.685 (C) M12X35 		1-22131-963-0 02 1 0710-0803 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (C) 		1-22131-962-0 02 1 1206- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (F) 		8-97387-245-0 01 1 0710-0803 ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(F) 		8-97387-245-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (F) 		8-97387-245-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98038-467-0 01 1 0710-0803 ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98038-467-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98073-065-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-065-0 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) (E) 		8-98082-019-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(B) 		8-98006-770-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-770-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98006-770-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (G) 		8-97387-246-2 01 1 0710-0803 ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(G) 		8-97387-246-2 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (G) 		8-97387-246-2 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-066-0 01 1 0710-0803 ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-066-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-961-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-019-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98038-469-0 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98038-469-0 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98106-886-0 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(B) 		8-98048-292-1 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-292-1 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98048-292-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-97387-248-1 01 1 0710-0803 ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-97387-248-1 01 1 0710-0803 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-97387-248-1 01 1 0804- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (C) 		8-97387-248-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-97387-248-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98077-474-0 01 1 0710-0803 ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98077-474-0 01 1 0804- ● ● ●
578 03.706 BRACKET; DPD FRT
(A) 		8-98048-296-0 01 1 0710-0803 ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98048-296-0 01 1 0804- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98048-296-0 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-97387-249-1 01 1 0710-0803 ● ● ●
579 03.704 BRACKET; DPD RR
(D) 		8-97387-249-1 01 1 0804- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-97387-249-1 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98001-883-1 01 1 0710-0803 ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98001-883-1 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98058-136-0 01 1 0710-0803 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98058-136-0 01 1 0804- ● ● ●
579 03.704 BRACKET; DPD RR
(B) 		8-98048-300-1 01 1 0710-0803 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-300-1 01 1 0804- ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98048-300-1 01 1 0804- ●
çizim 156104
532 460 574 118 574 117 115 118 352 117 115 352 387 577 532 574 118 122 577 200 117 113 115 115 387 576 385 200 124 113 81 115 385 124 12 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (F) 		8-98214-242-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 0710-0803 ● ● ●
12 03.701 SILENCER ASM; EXH
(E) 		8-97387-244-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (E) 		8-97387-244-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98073-374-0 01 1 0710-0803 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-374-0 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98073-374-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-839-0 01 1 0804- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
(B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98027-813-1 01 1 0804- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 (D) ID=65 		8-97148-757-1 01 1 0710- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 0710-0803 ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 03 1 0710-0803 ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-94457-277-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (D) 		8-94457-278-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97379-882-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97379-927-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 03 1 0804- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0710-0803 ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) OD=55 		9-09852-169-0 02 1 0804- ● ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) OD=55 		9-09852-169-0 02 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 03 1 0710-0803 ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 03 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0804- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 0710-0803 ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 03 1 0710-0803 ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.874 (B) M10 FLANGE 		5-09440-006-0 01 1 0710-0803 ● ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 (B) M10 FLANGE 		5-09440-006-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0804-0909 ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910- ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0710-0803 ● ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98001-889-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98001-889-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (J) 		8-97387-251-1 01 1 0710-0803 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (J) 		8-97387-251-1 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (F) 		8-98053-974-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (F) 		8-98053-974-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (E) 		8-98073-375-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (E) 		8-98073-375-1 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-495-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97207-224-0 02 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (G) 		8-98006-774-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (C) 		8-98006-776-1 01 1 0804- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-376-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 4400MM(44W) (H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (H) 		8-98073-377-0 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (H) 		8-98073-377-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) 		8-98101-911-0 01 1 0804- ●
387 03.704 SPACER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 (A) 		8-98078-962-1 01 1 0804- ●
387 03.704 SPACER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 (A) 		8-98044-774-0 01 1 0804- ● ●
387 03.704 SPACER; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.706 (B) 		8-98050-196-2 01 1 0804- ●
460 03.609 PLATE; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-98035-656-0 01 1 0804- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98079-106-0 01 1 0804- ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A) 		8-98078-962-1 01 1 0710-0803 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> (A) 		8-98078-962-1 01 1 0804- ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0710-0710 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98044-774-0 01 1 0710-0710 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0711-0711 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98044-774-0 01 1 0711-0711 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98044-774-0 01 1 0712-0803 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0712-0803 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-98044-774-0 01 1 0804-0810 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0804-0810 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0811- ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98044-774-0 01 1 0811- ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98044-774-0 01 1 0811- ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) 		8-98050-196-2 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (F) 		8-97387-245-0 01 1 0710-0803 ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(F) 		8-97387-245-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (F) 		8-97387-245-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98038-467-0 01 1 0710-0803 ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98038-467-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98073-065-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-065-0 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) (E) 		8-98082-019-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(B) 		8-98006-770-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-770-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98006-770-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (G) 		8-97387-246-2 01 1 0710-0803 ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(G) 		8-97387-246-2 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (G) 		8-97387-246-2 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-066-0 01 1 0710-0803 ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-066-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-961-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-019-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98038-469-0 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98038-469-0 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98106-886-0 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(B) 		8-98048-292-1 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-292-1 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98048-292-1 01 1 0804- ●
çizim 156115
589 467 589 589 557 560 558 580 560 559 582 547 547 534 467 556 272 547 534 547 582 580 534 547 547 582 580 272 589 589 589 561 561
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0710-0803 ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ●
467 03.685 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710-0803 ● ● ● ● ● ●
467 03.685 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD(8JM) M6X16 		8-98019-179-0 14 1 0804- ● ● ● ● ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0710-0803 ● ● ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0804- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0804- ● ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0710-0803 ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0804- ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0804- ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0710-0803 ● ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0804- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0804- ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0710-0803 ● ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0804- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0804- ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0710-0803 ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0804- ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0804- ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0710-0803 ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0804- ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
557 03.701 CATALYST ASM 8-98036-815-7 01 1 0710-0803 ● ● ● ●
557 03.701 CATALYST ASM 8-98036-815-7 01 1 0804- ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-815-7 01 1 0804- ● ● ●
557 03.701 CATALYST ASM 8-97608-055-8 01 1 0710-0803 ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-055-8 01 1 0804- ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-97608-055-8 01 1 0804- ●
558 03.634 FILTER ASM 8-98032-908-2 01 1 0710-0803 ● ● ● ●
558 03.634 FILTER ASM 8-98032-908-2 01 1 0804- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98032-908-2 01 1 0804- ● ● ●
558 03.634 FILTER ASM 8-97608-057-3 01 1 0710-0803 ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 0804- ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-97608-057-3 01 1 0804- ●
559 03.602 COVER; RR 8-98084-599-0 01 1 0710-0803 ● ● ● ●
559 03.602 COVER; RR 8-98084-599-0 01 1 0804-1011 ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-599-0 01 1 0804-1011 ● ● ●
559 03.602 COVER; RR 8-98093-507-0 01 1 1012- ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98093-507-0 01 1 1012- ● ● ●
559 03.602 COVER; RR 8-97611-078-0 01 1 0710-0803 ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97611-078-0 01 1 0804-1010 ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97611-078-0 01 1 0804-1010 ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97622-887-0 01 1 1011- ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97622-887-0 01 1 1011- ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97331-947-0 02 1 0804- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64 		8-97373-108-0 01 1 0804- ● ● ● ● ●
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		1-22116-040-0 01 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0804- ●
560 03.611 GASKET; DPD
(C) 		8-97611-080-0 02 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-080-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-080-0 02 1 0804- ●
561 03.609 PIPE; DPD
(A) 		8-98032-910-0 01 1 0710-0803 ● ● ● ●
561 03.609 PIPE; DPD
(A) 		8-98032-910-0 01 1 0804-1011 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98032-910-0 01 1 0804-1011 ● ● ●
561 03.609 PIPE; DPD
(A) 		8-98084-600-0 01 1 1012- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98084-600-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
(B) 		8-98032-911-1 01 1 0710-0803 ● ● ● ●
561 03.609 PIPE; DPD
(B) 		8-98032-911-1 01 1 0804-1011 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98032-911-1 01 1 0804-1011 ● ● ●
561 03.609 PIPE; DPD
(B) 		8-98084-601-0 01 1 1012- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98084-601-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
(C) 		8-98039-239-0 01 1 0710-0803 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98039-239-0 01 1 0804-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (C) 		8-98039-239-0 01 1 0804-1010 ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98084-603-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (C) 		8-98084-603-0 01 1 1011- ●
561 03.609 PIPE; DPD
(D) 		8-98039-241-0 01 1 0710-0803 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98039-241-0 01 1 0804-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (D) 		8-98039-241-0 01 1 0804-1010 ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98084-604-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (D) 		8-98084-604-0 01 1 1011- ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0710-0803 ● ● ● ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0804- ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0804- ● ● ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0710-0803 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0804- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0804- ●
582 03.706 BRACKET; PIPE
(A) 		8-98032-919-0 01 1 0710-0803 ● ● ● ●
582 03.706 BRACKET; PIPE
(A) 		8-98032-919-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98032-919-0 01 1 0804- ● ● ●
582 03.706 BRACKET; PIPE
(B) 		8-98032-920-0 01 1 0710-0803 ● ● ● ●
582 03.706 BRACKET; PIPE
(B) 		8-98032-920-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98032-920-0 01 1 0804- ● ● ●
582 03.706 BRACKET; PIPE
(C) 		8-97611-083-0 01 1 0710-0803 ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-083-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (C) 		8-97611-083-0 01 1 0804- ●
582 03.706 BRACKET; PIPE
(D) 		8-97611-084-0 01 1 0710-0803 ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-97611-084-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (D) 		8-97611-084-0 01 1 0804- ●
582 03.706 BRACKET; PIPE
(E) 		8-97611-085-0 01 1 0710-0803 ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-97611-085-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (E) 		8-97611-085-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-97383-660-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-97383-660-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97383-660-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(F) 		8-97383-663-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(F) 		8-97383-663-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-97383-663-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-98032-921-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-98032-921-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98032-921-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-98032-923-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-98032-923-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98032-923-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(D) 		8-98032-924-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(D) 		8-98032-924-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98032-924-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(E) 		8-98032-926-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(E) 		8-98032-926-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98032-926-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(G) 		8-97605-172-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97605-172-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (G) 		8-97605-172-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(H) 		8-97611-086-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97611-086-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (H) 		8-97611-086-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(I) 		8-97611-087-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-97611-087-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (I) 		8-97611-087-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(J) 		8-97611-088-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-97611-088-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (J) 		8-97611-088-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(K) 		8-97611-089-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97611-089-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (K) 		8-97611-089-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(L) 		8-97613-390-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97613-390-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (L) 		8-97613-390-0 01 1 0804- ●
çizim 156116
118 117 115 352 115 38 126 84 12 577 577 345 345 14 576 115 113 337 352 59 115 117 118 376 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (F) 		8-98214-242-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 0710-0803 ● ● ●
12 03.701 SILENCER ASM; EXH
(E) 		8-97387-244-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (E) 		8-97387-244-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98073-374-0 01 1 0710-0803 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-374-0 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98073-374-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-839-0 01 1 0804- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
(B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98027-813-1 01 1 0804- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 (D) ID=65 		8-97148-757-1 01 1 0710- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
4JJ1-TCC ENG(RDU) 		8-98082-021-0 01 1 0804- ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=65 		8-97148-757-1 01 1 0710-0803 ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) ID=65 		8-97148-757-1 01 1 0804- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=64 		8-97373-108-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) ID=64 		8-97373-108-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 0710-0803 ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 03 1 0710-0803 ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-94457-277-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (D) 		8-94457-278-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97379-882-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97379-927-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 03 1 0804- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0710-0803 ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) OD=55 		9-09852-169-0 02 1 0804- ● ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) OD=55 		9-09852-169-0 02 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 03 1 0710-0803 ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 03 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0804- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 0710-0803 ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 03 1 0710-0803 ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-346-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98283-855-0 01 1 1509- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-798-0 01 1 0812- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-102-0 01 1 0710- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98020-604-0 01 1 0710-0803 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98020-604-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ● ● ● ● ● ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
(B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-064-0 01 1 0804- ● ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0710-0803 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-218-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-218-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98045-047-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-964-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-058-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0812- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (G) 		8-98072-137-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98082-057-0 01 1 0804- ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
345 03.704 BRACKET; EXH SILENCER,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) 		8-98082-027-0 01 1 0804- ●
345 03.704 BRACKET; EXH SILENCER,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98081-909-0 01 1 0804- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0804- ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE 		0-28051-030-0 02 1 1206- ● ● ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
376 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ●
376 03.708 BOLT; BRKT
03.690 (B) W/PLATE 		8-98005-985-0 01 1 0710-0803 ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.690 (B) W/PLATE 		8-98005-985-0 01 1 0804-1205 ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE 		8-98005-985-0 01 1 1206- ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
376 03.708 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (F) 		8-97387-245-0 01 1 0710-0803 ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(F) 		8-97387-245-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (F) 		8-97387-245-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98038-467-0 01 1 0710-0803 ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98038-467-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98073-065-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-065-0 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) (E) 		8-98082-019-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(B) 		8-98006-770-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-770-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98006-770-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (G) 		8-97387-246-2 01 1 0710-0803 ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(G) 		8-97387-246-2 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (G) 		8-97387-246-2 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-066-0 01 1 0710-0803 ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-066-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-961-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-019-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98038-469-0 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98038-469-0 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98106-886-0 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(B) 		8-98048-292-1 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-292-1 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98048-292-1 01 1 0804- ●
çizim 156118
556 467 589 467 589 580 589 467 557 580 559 560 558 272 589 560 534 547 589 589 534 547 547 582 272 272 582 547 561 561
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0710-0803 ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ●
467 03.685 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710-0803 ● ● ● ● ● ●
467 03.685 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD(8JM) M6X16 		8-98019-179-0 14 1 0804- ● ● ● ● ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0710-0803 ● ● ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0804- ● ●
534 03.704 BOLT; CLIP
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE 		0-28650-635-0 02 1 0804- ● ● ●
534 03.704 BOLT; CLIP
03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0710-0803 ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0804- ● ●
534 03.704 BOLT; CLIP
4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE 		0-28650-635-0 03 1 0804- ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0710-0803 ● ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0804- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0804- ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0710-0803 ● ● ● ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0804- ● ●
547 03.682 CLIP; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0804- ● ● ●
547 03.682 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0710-0803 ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0804- ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (A) ID=7 & 7 L=22 		8-97381-635-0 03 1 0804- ●
547 03.682 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0710-0803 ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0804- ● ●
547 03.682 CLIP; PIPE
4HK1-TCS ENG(RJS) (B) ID=7 & 7 L=22 		8-97381-636-0 03 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
557 03.701 CATALYST ASM 8-98036-815-7 01 1 0710-0803 ● ● ● ●
557 03.701 CATALYST ASM 8-98036-815-7 01 1 0804- ● ●
557 03.701 CATALYST ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-815-7 01 1 0804- ● ● ●
557 03.701 CATALYST ASM 8-97608-055-8 01 1 0710-0803 ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-055-8 01 1 0804- ● ●
557 03.701 CATALYST ASM
4HK1-TCS ENG(RJS) 		8-97608-055-8 01 1 0804- ●
558 03.634 FILTER ASM 8-98032-908-2 01 1 0710-0803 ● ● ● ●
558 03.634 FILTER ASM 8-98032-908-2 01 1 0804- ● ●
558 03.634 FILTER ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98032-908-2 01 1 0804- ● ● ●
558 03.634 FILTER ASM 8-97608-057-3 01 1 0710-0803 ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97608-057-3 01 1 0804- ● ●
558 03.634 FILTER ASM
4HK1-TCS ENG(RJS) 		8-97608-057-3 01 1 0804- ●
559 03.602 COVER; RR 8-98084-599-0 01 1 0710-0803 ● ● ● ●
559 03.602 COVER; RR 8-98084-599-0 01 1 0804-1011 ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-599-0 01 1 0804-1011 ● ● ●
559 03.602 COVER; RR 8-98093-507-0 01 1 1012- ● ●
559 03.602 COVER; RR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98093-507-0 01 1 1012- ● ● ●
559 03.602 COVER; RR 8-97611-078-0 01 1 0710-0803 ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97611-078-0 01 1 0804-1010 ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97611-078-0 01 1 0804-1010 ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-97622-887-0 01 1 1011- ● ●
559 03.602 COVER; RR
4HK1-TCS ENG(RJS) 		8-97622-887-0 01 1 1011- ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97331-947-0 02 1 0804- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64 		8-97373-108-0 01 1 0804- ● ● ● ● ●
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		1-22116-040-0 01 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0804- ●
560 03.611 GASKET; DPD
(C) 		8-97611-080-0 02 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-080-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-080-0 02 1 0804- ●
561 03.609 PIPE; DPD
(A) 		8-98032-910-0 01 1 0710-0803 ● ● ● ●
561 03.609 PIPE; DPD
(A) 		8-98032-910-0 01 1 0804-1011 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98032-910-0 01 1 0804-1011 ● ● ●
561 03.609 PIPE; DPD
(A) 		8-98084-600-0 01 1 1012- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98084-600-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
(B) 		8-98032-911-1 01 1 0710-0803 ● ● ● ●
561 03.609 PIPE; DPD
(B) 		8-98032-911-1 01 1 0804-1011 ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98032-911-1 01 1 0804-1011 ● ● ●
561 03.609 PIPE; DPD
(B) 		8-98084-601-0 01 1 1012- ● ●
561 03.609 PIPE; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98084-601-0 01 1 1012- ● ● ●
561 03.609 PIPE; DPD
(C) 		8-98039-239-0 01 1 0710-0803 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98039-239-0 01 1 0804-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (C) 		8-98039-239-0 01 1 0804-1010 ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98084-603-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (C) 		8-98084-603-0 01 1 1011- ●
561 03.609 PIPE; DPD
(D) 		8-98039-241-0 01 1 0710-0803 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98039-241-0 01 1 0804-1010 ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (D) 		8-98039-241-0 01 1 0804-1010 ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98084-604-0 01 1 1011- ● ●
561 03.609 PIPE; DPD
4HK1-TCS ENG(RJS) (D) 		8-98084-604-0 01 1 1011- ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0710-0803 ● ● ● ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0804- ● ●
580 03.704 BOLT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE 		0-28650-835-0 16 1 0804- ● ● ●
580 03.704 BOLT; FLANGE
01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0710-0803 ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0804- ● ●
580 03.704 BOLT; FLANGE
4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE 		0-28650-835-0 20 1 0804- ●
582 03.706 BRACKET; PIPE
(A) 		8-98032-919-0 01 1 0710-0803 ● ● ● ●
582 03.706 BRACKET; PIPE
(A) 		8-98032-919-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98032-919-0 01 1 0804- ● ● ●
582 03.706 BRACKET; PIPE
(B) 		8-98032-920-0 01 1 0710-0803 ● ● ● ●
582 03.706 BRACKET; PIPE
(B) 		8-98032-920-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98032-920-0 01 1 0804- ● ● ●
582 03.706 BRACKET; PIPE
(C) 		8-97611-083-0 01 1 0710-0803 ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-083-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (C) 		8-97611-083-0 01 1 0804- ●
582 03.706 BRACKET; PIPE
(D) 		8-97611-084-0 01 1 0710-0803 ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-97611-084-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (D) 		8-97611-084-0 01 1 0804- ●
582 03.706 BRACKET; PIPE
(E) 		8-97611-085-0 01 1 0710-0803 ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-97611-085-0 01 1 0804- ● ●
582 03.706 BRACKET; PIPE
4HK1-TCS ENG(RJS) (E) 		8-97611-085-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-97383-660-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(C) 		8-97383-660-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97383-660-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(F) 		8-97383-663-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(F) 		8-97383-663-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (F) 		8-97383-663-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-98032-921-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(A) 		8-98032-921-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98032-921-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-98032-923-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(B) 		8-98032-923-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98032-923-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(D) 		8-98032-924-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(D) 		8-98032-924-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (D) 		8-98032-924-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(E) 		8-98032-926-0 01 1 0710-0803 ● ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(E) 		8-98032-926-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (E) 		8-98032-926-0 01 1 0804- ● ● ●
589 03.609 PROTECTOR; HEAT,DPD
(G) 		8-97605-172-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (G) 		8-97605-172-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (G) 		8-97605-172-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(H) 		8-97611-086-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (H) 		8-97611-086-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (H) 		8-97611-086-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(I) 		8-97611-087-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (I) 		8-97611-087-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (I) 		8-97611-087-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(J) 		8-97611-088-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (J) 		8-97611-088-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (J) 		8-97611-088-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(K) 		8-97611-089-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (K) 		8-97611-089-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (K) 		8-97611-089-0 01 1 0804- ●
589 03.609 PROTECTOR; HEAT,DPD
(L) 		8-97613-390-0 01 1 0710-0803 ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (L) 		8-97613-390-0 01 1 0804- ● ●
589 03.609 PROTECTOR; HEAT,DPD
4HK1-TCS ENG(RJS) (L) 		8-97613-390-0 01 1 0804- ●
çizim 156124
172 25 38 532 385 143 562 2 44 1 36 8 562 25 2 562 43 568 44 8 1 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) (D) 		8-98026-060-0 01 1 0710-0803 ● ● ●
1 03.609 PIPE; EXH
(D) 		8-98026-060-0 01 1 0804- ● ●
1 03.609 PIPE; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-98026-060-0 01 1 0804- ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-108-1 01 1 0804- ● ● ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98006-765-2 01 1 0710-0803 ● ● ● ●
1 03.609 PIPE; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-765-2 01 1 0804- ● ● ● ●
1 03.609 PIPE; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98075-966-0 01 1 0804- ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB) (B) 		8-97384-590-0 01 1 0710-0803 ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-97384-590-0 01 1 0804- ● ● ● ●
2 03.611 GASKET; PIPE TO MANIF
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97381-455-0 01 1 0710- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB) 03.613 (C) 		8-98026-063-0 01 1 0710-0803 ● ● ●
8 03.704 BRACKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (C) 		8-98026-063-0 01 1 0804- ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613 (A) 		8-97365-228-0 01 1 0804- ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (B) 		8-98020-555-0 01 1 0710-0803 ● ● ● ●
8 03.704 BRACKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.613 (B) 		8-98020-555-0 01 1 0804- ● ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) (D) 		8-98026-062-2 01 1 0710-0803 ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
(D) 		8-98026-062-2 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-98026-062-2 01 1 0804- ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-109-0 01 1 0804- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ) (B) 		8-98072-179-0 01 1 0710-0803 ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) 		8-98072-179-0 01 1 0804- ● ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-98082-064-0 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
(B) 		8-98006-766-0 01 1 0710-0803 ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-766-0 01 1 0804- ● ●
25 03.609 PIPE; EXH,BRK VLV TO SILENCER
4HK1-TCS ENG(RJS) (B) 		8-98006-766-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
43 03.611 CLAMP; EXH PIPE 8-97351-200-1 01 1 0710-0803 ● ● ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-97351-200-1 01 1 0804- ● ● ● ●
43 03.611 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-97351-200-1 01 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0710-0803 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98001-889-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98001-889-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (J) 		8-97387-251-1 01 1 0710-0803 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (J) 		8-97387-251-1 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (F) 		8-98053-974-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (F) 		8-98053-974-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (E) 		8-98073-375-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (E) 		8-98073-375-1 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-495-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97207-224-0 02 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (G) 		8-98006-774-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (C) 		8-98006-776-1 01 1 0804- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-376-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 4400MM(44W) (H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (H) 		8-98073-377-0 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (H) 		8-98073-377-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) 		8-98101-911-0 01 1 0804- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (D) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
(C) 		8-97373-966-0 02 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-97373-966-0 02 1 0804-1205 ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97373-966-0 02 1 1206- ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.632 (A) M8X70 		0-10855-870-0 04 1 0804- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98030-175-0 01 1 0804-1205 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
03.685 (C) M12X35 		1-22131-963-0 02 1 0710-0803 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (C) 		1-22131-962-0 02 1 1206- ●
568 03.704 NUT; DPD
01.062 M8 FLANGE 		0-91180-108-0 04 1 0710-0803 ● ● ● ●
568 03.704 NUT; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ● ● ●
568 03.704 NUT; DPD
02.042 M12 FLANGE 		0-91180-112-0 04 1 0710-0803 ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.042 M12 FLANGE 		0-91180-112-0 04 1 0804- ● ●
568 03.704 NUT; DPD
4HK1-TCS ENG(RJS) 02.042 M12 FLANGE 		0-91180-112-0 04 1 0804- ●
çizim 156134
385 385 385 377 574 122 121 143 24 385 143 385 14 532 200 124 12 115 579 579 118 117 115 113 576 115 113 578 118 117 115 337 118 117 115 113 578 376 577 115 337 576 81 352 44 560 562 562 556 34 376 376 376 84 84 570 329 361 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (F) 		8-98214-242-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 0710-0803 ● ● ●
12 03.701 SILENCER ASM; EXH
(E) 		8-97387-244-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (E) 		8-97387-244-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98073-374-0 01 1 0710-0803 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-374-0 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98073-374-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-839-0 01 1 0804- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
(B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98027-813-1 01 1 0804- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 (D) ID=65 		8-97148-757-1 01 1 0710- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
24 03.613 COLLAR; DIST,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ● ●
24 03.613 COLLAR; DIST,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
34 03.613 WASHER; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ● ● ● ●
44 03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0710-0803 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=65 		8-97148-757-1 01 1 0710-0803 ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) ID=65 		8-97148-757-1 01 1 0804- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=64 		8-97373-108-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) ID=64 		8-97373-108-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 0710-0803 ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 03 1 0710-0803 ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-94457-277-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (D) 		8-94457-278-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97379-882-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97379-927-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 03 1 0804- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0710-0803 ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) OD=55 		9-09852-169-0 02 1 0804- ● ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) OD=55 		9-09852-169-0 02 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 03 1 0710-0803 ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 03 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0804- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 0710-0803 ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 03 1 0710-0803 ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ●
121 03.704 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 01 1 0710-0803 ● ● ● ●
121 03.704 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 01 1 0804- ● ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.874 (B) M10 FLANGE 		5-09440-006-0 01 1 0710-0803 ● ● ● ●
122 03.275 NUT; HANGER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 (B) M10 FLANGE 		5-09440-006-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.252 M8X45 W/LK WASHER 		0-50040-845-0 02 1 0804-0909 ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8X45 W/LK WASHER 		0-50540-845-0 02 1 0910- ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0710-0803 ● ● ● ●
200 03.704 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.685 M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0710-0803 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0804- ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE 		0-28051-030-0 02 1 1206- ● ● ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
376 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ●
376 03.708 BOLT; BRKT
03.690 (B) W/PLATE 		8-98005-985-0 01 1 0710-0803 ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.690 (B) W/PLATE 		8-98005-985-0 01 1 0804-1205 ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE 		8-98005-985-0 01 1 1206- ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
376 03.708 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ●
377 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ●
377 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
377 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
377 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
377 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
377 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98001-889-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98001-889-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (J) 		8-97387-251-1 01 1 0710-0803 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (J) 		8-97387-251-1 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (F) 		8-98053-974-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (F) 		8-98053-974-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (E) 		8-98073-375-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (E) 		8-98073-375-1 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-495-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97207-224-0 02 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (G) 		8-98006-774-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (C) 		8-98006-776-1 01 1 0804- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-376-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 4400MM(44W) (H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (H) 		8-98073-377-0 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (H) 		8-98073-377-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) 		8-98101-911-0 01 1 0804- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97331-947-0 02 1 0804- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64 		8-97373-108-0 01 1 0804- ● ● ● ● ●
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		1-22116-040-0 01 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0804- ●
560 03.611 GASKET; DPD
(C) 		8-97611-080-0 02 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-080-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-080-0 02 1 0804- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (D) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
(C) 		8-97373-966-0 02 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-97373-966-0 02 1 0804-1205 ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97373-966-0 02 1 1206- ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.632 (A) M8X70 		0-10855-870-0 04 1 0804- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98030-175-0 01 1 0804-1205 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
03.685 (C) M12X35 		1-22131-963-0 02 1 0710-0803 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (C) 		1-22131-962-0 02 1 1206- ●
570 03.704 ADAPTER; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 		8-98073-217-0 01 1 0710-0803 ● ●
570 03.704 ADAPTER; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) 		8-98073-217-0 01 1 0804- ● ● ●
570 03.704 ADAPTER; EXH PIPE 8-98073-373-0 01 1 0710-0803 ● ●
570 03.704 ADAPTER; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98073-373-0 01 1 0804- ● ●
570 03.704 ADAPTER; EXH PIPE
4HK1-TCS ENG(RJS) 		8-98073-373-0 01 1 0804- ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98079-106-0 01 1 0804- ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A) 		8-98078-962-1 01 1 0710-0803 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> (A) 		8-98078-962-1 01 1 0804- ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0710-0710 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98044-774-0 01 1 0710-0710 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0711-0711 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98044-774-0 01 1 0711-0711 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98044-774-0 01 1 0712-0803 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0712-0803 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-98044-774-0 01 1 0804-0810 ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0804-0810 ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) EXC. FUEL TANK 140 LITTER<N19> (A) 		8-98044-774-0 01 1 0811- ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98044-774-0 01 1 0811- ● ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98044-774-0 01 1 0811- ● ●
574 03.706 SPACER; DPD
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (C) 		8-98050-196-2 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (F) 		8-97387-245-0 01 1 0710-0803 ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(F) 		8-97387-245-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (F) 		8-97387-245-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98038-467-0 01 1 0710-0803 ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98038-467-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98073-065-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-065-0 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) (E) 		8-98082-019-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(B) 		8-98006-770-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-770-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98006-770-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (G) 		8-97387-246-2 01 1 0710-0803 ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(G) 		8-97387-246-2 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (G) 		8-97387-246-2 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-066-0 01 1 0710-0803 ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-066-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-961-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-019-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98038-469-0 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98038-469-0 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98106-886-0 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(B) 		8-98048-292-1 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-292-1 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98048-292-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-97387-248-1 01 1 0710-0803 ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-97387-248-1 01 1 0710-0803 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-97387-248-1 01 1 0804- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (C) 		8-97387-248-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-97387-248-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98077-474-0 01 1 0710-0803 ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98077-474-0 01 1 0804- ● ● ●
578 03.706 BRACKET; DPD FRT
(A) 		8-98048-296-0 01 1 0710-0803 ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98048-296-0 01 1 0804- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98048-296-0 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-97387-249-1 01 1 0710-0803 ● ● ●
579 03.704 BRACKET; DPD RR
(D) 		8-97387-249-1 01 1 0804- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-97387-249-1 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98001-883-1 01 1 0710-0803 ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98001-883-1 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98058-136-0 01 1 0710-0803 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98058-136-0 01 1 0804- ● ● ●
579 03.704 BRACKET; DPD RR
(B) 		8-98048-300-1 01 1 0710-0803 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-300-1 01 1 0804- ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98048-300-1 01 1 0804- ●
çizim 156162
434 542 182 182 272 182 563 563 556 564 566 565 434
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (A) L=112 		8-94232-618-0 02 1 0710-0803 ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) 02.587 (A) L=112 		8-94232-618-0 02 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112 		8-94232-618-0 02 1 0804- ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 0710-0803 ● ● ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 0804- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 01 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCN ENG(RDQ) 02.587 (A) L=112 		8-94232-618-0 01 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112 		8-94232-618-0 01 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
(C) ID=7 L=7.5 		8-97369-561-0 01 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 L=7.5 		8-97369-561-0 01 1 0804- ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (C) ID=7 L=7.5 		8-97369-561-0 01 1 0804- ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0710-0803 ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804-1503 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0803 ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98004-026-1 01 1 0710-0803 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98004-026-1 01 1 0804- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98004-026-1 01 1 0804- ●
542 03.704 BRACKET
(B) 		8-98039-602-0 01 1 0710-0803 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98039-602-0 01 1 0804- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98039-602-0 01 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 0710-0803 ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98004-329-0 01 1 0804- ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 0710-0803 ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98004-330-0 01 1 0804- ● ● ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) (A) 		8-97359-985-2 01 1 0710-0803 ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) (A) 		8-97359-985-2 01 1 0710-0803 ● ●
564 01.150 SENSOR; PRESSURE,DPD
(A) 		8-97359-985-2 01 1 0804- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97359-985-2 01 1 0804- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCN ENG(RDQ) (B) 		8-97360-368-2 01 1 0710-0803 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97360-368-2 01 1 0804- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98012-396-0 01 1 0710-0803 ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98012-396-0 01 1 0804-1503 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98012-396-0 01 1 0804-1503 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98303-548-0 01 1 1504- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98303-548-0 01 1 1504- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A) 		8-98063-130-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-130-0 01 1 0804- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
(A) 		8-98063-129-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0804- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0804- ●
565 03.706 BRACKET; SENSOR,PRESSURE
(B) 		8-98029-347-0 01 1 0710-0803 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98029-347-0 01 1 0804- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) (B) 		8-98029-347-0 01 1 0804- ●
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0710-0803 ● ● ● ● ● ●
566 03.706 BOLT; SENSOR
CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0804- ● ● ● ● ● ●
çizim 156176
532 385 532 172 143 118 117 115 113 385 118 117 115 113 578 579 352 376 577 115 352 14 12 115 81 337 576 12 44 376 361 556 376 34 560 562 562
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98214-241-0 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (H) 		8-98254-792-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (F) 		8-98214-242-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> (G) 		8-98214-243-0 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 0710-0803 ● ● ●
12 03.701 SILENCER ASM; EXH
(E) 		8-97387-244-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (E) 		8-97387-244-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-97387-244-1 01 1 1204-1308 ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCS ENG(LFB) (E) 		8-98254-780-0 01 1 1309- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98073-374-0 01 1 0710-0803 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-374-0 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) 		8-98073-374-0 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-839-0 01 1 0804- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
(B) 		8-98020-562-1 01 1 0710-0803 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98020-562-1 01 1 0804-1203 ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 0804-1203 ●
12 03.701 SILENCER ASM; EXH
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98020-562-1 01 1 1204- ● ●
12 03.701 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) (B) 		8-98020-562-1 01 1 1204- ●
12 03.701 SILENCER ASM; EXH
4JJ1-TCC ENG(RDU) (C) 		8-98027-813-1 01 1 0804- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCS ENG(LFB) 03.611 (D) ID=65 		8-97148-757-1 01 1 0710- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
4JJ1-TCC ENG(RDU) 03.611 (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
34 03.613 WASHER; EXH PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9 		5-09500-012-0 04 1 1204- ● ● ● ●
44 03.613 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ● ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0710-0803 ● ● ●
44 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.042 (D) M10X25 FLANGE 		0-28151-025-0 02 1 0804- ● ● ● ●
44 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (A) M10X40 FLANGE 		0-28051-040-0 01 1 0804- ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 02 1 0710-0803 ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ● ● ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 02 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
03.706 L=37.5 		9-22151-217-0 03 1 0710-0803 ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ● ●
113 03.704 COLLAR; DIST,MTG BRKT
4HK1-TCS ENG(RJS) 03.706 L=37.5 		9-22151-217-0 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (C) 		8-94457-277-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 02 1 0710-0803 ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 02 1 0804- ● ● ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4JJ1-TCC ENG(RDU) (D) 		8-94457-278-1 02 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97379-882-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97379-927-0 02 1 0804- ● ● ●
115 03.704 RUBBER; MTG,SILENCER
(C) 		8-94457-277-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 03 1 0804- ●
115 03.704 RUBBER; MTG,SILENCER
(D) 		8-94457-278-1 03 1 0710-0803 ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 03 1 0804- ● ●
115 03.704 RUBBER; MTG,SILENCER
4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 03 1 0804- ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 0710-0803 ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) OD=55 		9-09852-169-0 02 1 0804- ● ● ● ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) OD=55 		9-09852-169-0 02 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 03 1 0710-0803 ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) OD=55 		9-09852-169-0 03 1 0804- ● ●
117 03.704 WASHER; PL,SILENCER MTG BRKT
4HK1-TCS ENG(RJS) OD=55 		9-09852-169-0 03 1 0804- ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 02 1 0710-0803 ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ● ● ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 07.874 M10 FLANGE 		5-09440-006-0 02 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
07.874 M10 FLANGE 		5-09440-006-0 03 1 0710-0803 ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ● ●
118 03.704 NUT; SILENCER MTG BRKT
4HK1-TCS ENG(RJS) 07.874 M10 FLANGE 		5-09440-006-0 03 1 0804- ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ● ● ●
172 03.708 BOLT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ● ●
172 03.708 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ● ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
352 03.613 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ●
352 03.613 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 03 1 0804- ●
361 03.704 BOLT; EXH PIPE TO PIPE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE 		8-98213-301-0 04 1 1204- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.890 (D) M10X30 FLANGE 		0-28051-030-0 02 1 1206- ● ● ● ●
376 03.708 BOLT; BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
376 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0804- ●
376 03.708 BOLT; BRKT
03.690 (B) W/PLATE 		8-98005-985-0 01 1 0710-0803 ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.690 (B) W/PLATE 		8-98005-985-0 01 1 0804-1205 ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.690 (B) W/PLATE 		8-98005-985-0 01 1 1206- ● ● ● ● ●
376 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0804- ● ●
376 03.708 BOLT; BRKT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0803 ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ● ●
376 03.708 BOLT; BRKT
4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE 		0-28651-035-0 02 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98001-889-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98001-889-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (J) 		8-97387-251-1 01 1 0710-0803 ● ● ●
385 03.704 BRACKET; SILENCER MTG
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (J) 		8-97387-251-1 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (F) 		8-98053-974-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (F) 		8-98053-974-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (E) 		8-98073-375-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (E) 		8-98073-375-1 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-495-1 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97207-224-0 02 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W) (G) 		8-98006-774-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (G) 		8-98006-774-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) (C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(C) 		8-98006-776-1 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (C) 		8-98006-776-1 01 1 0804- ● ● ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (D) 		8-98073-376-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (D) 		8-98073-376-0 01 1 0804- ● ● ●
385 03.704 BRACKET; SILENCER MTG
WHEEL BASE 4400MM(44W) (H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
(H) 		8-98073-377-0 01 1 0710-0803 ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (H) 		8-98073-377-0 01 1 0804- ● ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCS ENG(RJS) (H) 		8-98073-377-0 01 1 0804- ●
385 03.704 BRACKET; SILENCER MTG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (A) 		8-98101-911-0 01 1 0804- ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ●
532 03.704 NUT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
532 03.704 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
(A) 		8-97331-947-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97331-947-0 02 1 0804- ● ● ●
560 03.611 GASKET; DPD
(B) ID=64 		8-97373-108-0 01 1 0710-0803 ● ● ● ●
560 03.611 GASKET; DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (B) ID=64 		8-97373-108-0 01 1 0804- ● ● ● ● ●
560 03.611 GASKET; DPD
(B) 		1-22116-040-0 01 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		1-22116-040-0 01 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (B) 		1-22116-040-0 01 1 0804- ●
560 03.611 GASKET; DPD
(C) 		8-97611-080-0 02 1 0710-0803 ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-97611-080-0 02 1 0804- ● ●
560 03.611 GASKET; DPD
4HK1-TCS ENG(RJS) (C) 		8-97611-080-0 02 1 0804- ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.162 (D) M8X35 FLANGE 		0-28050-835-0 04 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (E) M8X70 FLANGE 		0-28050-870-0 02 1 1206- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (D) M12X35 FLANGE 		0-28051-235-0 04 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
(C) 		8-97373-966-0 02 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) (C) 		8-97373-966-0 02 1 0804-1205 ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-97373-966-0 02 1 1206- ● ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.632 (A) M8X70 		0-10855-870-0 04 1 0804- ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98030-175-0 01 1 0710-0803 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98030-175-0 01 1 0804-1205 ● ● ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98030-175-0 01 1 1206- ● ● ● ●
562 03.690 PLATE; STUD,BOLT
03.685 (C) M12X35 		1-22131-963-0 02 1 0710-0803 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.685 (C) M12X35 		1-22131-963-0 02 1 0804-1205 ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C) 		1-22131-962-0 02 1 1206- ● ●
562 03.690 PLATE; STUD,BOLT
4HK1-TCS ENG(RJS) 03.613 (C) 		1-22131-962-0 02 1 1206- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) (F) 		8-97387-245-0 01 1 0710-0803 ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(F) 		8-97387-245-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (F) 		8-97387-245-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D) 		8-98038-467-0 01 1 0710-0803 ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (D) 		8-98038-467-0 01 1 0804- ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) 		8-98073-065-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-065-0 01 1 0804- ● ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4JJ1-TCC ENG(RDU) (E) 		8-98082-019-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
(B) 		8-98006-770-0 01 1 0710-0803 ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98006-770-0 01 1 0804- ● ●
576 03.706 BRACKET; DPD FRT TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98006-770-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) (G) 		8-97387-246-2 01 1 0710-0803 ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(G) 		8-97387-246-2 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (G) 		8-97387-246-2 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-066-0 01 1 0710-0803 ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-066-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-961-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-019-0 01 1 0804- ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98074-124-1 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98038-469-0 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98038-469-0 01 1 0804- ● ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (F) 		8-98106-886-0 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
(B) 		8-98048-292-1 01 1 0710-0803 ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-292-1 01 1 0804- ● ●
577 03.706 BRACKET; DPD RR TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98048-292-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-97387-248-1 01 1 0710-0803 ● ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-97387-248-1 01 1 0710-0803 ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) (C) 		8-97387-248-1 01 1 0804- ● ●
578 03.706 BRACKET; DPD FRT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (C) 		8-97387-248-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-97387-248-1 01 1 0804- ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98077-474-0 01 1 0710-0803 ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98077-474-0 01 1 0804- ● ● ●
578 03.706 BRACKET; DPD FRT
(A) 		8-98048-296-0 01 1 0710-0803 ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98048-296-0 01 1 0804- ● ●
578 03.706 BRACKET; DPD FRT
4HK1-TCS ENG(RJS) (A) 		8-98048-296-0 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) (D) 		8-97387-249-1 01 1 0710-0803 ● ● ●
579 03.704 BRACKET; DPD RR
(D) 		8-97387-249-1 01 1 0804- ● ●
579 03.704 BRACKET; DPD RR
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (D) 		8-97387-249-1 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98001-883-1 01 1 0710-0803 ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98001-883-1 01 1 0804- ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) 		8-98058-136-0 01 1 0710-0803 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (A) 		8-98058-136-0 01 1 0804- ● ● ●
579 03.704 BRACKET; DPD RR
(B) 		8-98048-300-1 01 1 0710-0803 ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98048-300-1 01 1 0804- ● ●
579 03.704 BRACKET; DPD RR
4HK1-TCS ENG(RJS) (B) 		8-98048-300-1 01 1 0804- ●
çizim 156338
182 182 434 566 565 564 542 434 563 563 556
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (A) L=112 		8-94232-618-0 02 1 0710-0803 ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) 02.587 (A) L=112 		8-94232-618-0 02 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112 		8-94232-618-0 02 1 0804- ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 0710-0803 ● ● ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 0804- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 01 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCN ENG(RDQ) 02.587 (A) L=112 		8-94232-618-0 01 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112 		8-94232-618-0 01 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
(C) ID=7 L=7.5 		8-97369-561-0 01 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 L=7.5 		8-97369-561-0 01 1 0804- ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (C) ID=7 L=7.5 		8-97369-561-0 01 1 0804- ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804-1503 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0803 ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98004-026-1 01 1 0710-0803 ● ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) (A) 		8-98004-026-1 01 1 0804- ● ●
542 03.704 BRACKET
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98004-026-1 01 1 0804- ●
542 03.704 BRACKET
(B) 		8-98039-602-0 01 1 0710-0803 ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98039-602-0 01 1 0804- ● ●
542 03.704 BRACKET
4HK1-TCS ENG(RJS) (B) 		8-98039-602-0 01 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 0710-0803 ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98004-329-0 01 1 0804- ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 0710-0803 ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98004-330-0 01 1 0804- ● ● ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) (A) 		8-97359-985-2 01 1 0710-0803 ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) (A) 		8-97359-985-2 01 1 0710-0803 ● ●
564 01.150 SENSOR; PRESSURE,DPD
(A) 		8-97359-985-2 01 1 0804- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97359-985-2 01 1 0804- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCN ENG(RDQ) (B) 		8-97360-368-2 01 1 0710-0803 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97360-368-2 01 1 0804- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98012-396-0 01 1 0710-0803 ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98012-396-0 01 1 0804-1503 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98012-396-0 01 1 0804-1503 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98303-548-0 01 1 1504- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98303-548-0 01 1 1504- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A) 		8-98063-130-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-130-0 01 1 0804- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
(A) 		8-98063-129-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0804- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0804- ●
565 03.706 BRACKET; SENSOR,PRESSURE
(B) 		8-98029-347-0 01 1 0710-0803 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98029-347-0 01 1 0804- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) (B) 		8-98029-347-0 01 1 0804- ●
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0710-0803 ● ● ● ● ● ●
566 03.706 BOLT; SENSOR
CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0804- ● ● ● ● ● ●
çizim 156339
564 566 565 434 563 563 182 272 182 556
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB) 02.587 (A) L=112 		8-94232-618-0 02 1 0710-0803 ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) 02.587 (A) L=112 		8-94232-618-0 02 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
02.587 (A) L=112 		8-94232-618-0 02 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112 		8-94232-618-0 02 1 0804- ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 0710-0803 ● ● ● ●
182 03.682 CLIP; HARNESS
(B) ID=7 		8-98002-767-0 01 1 0804- ● ●
182 03.682 CLIP; HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 		8-98002-767-0 01 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
4HK1-TCN ENG(RDQ) 02.587 (A) L=112 		8-94232-618-0 01 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112 		8-94232-618-0 01 1 0804- ● ● ●
182 03.682 CLIP; HARNESS
(C) ID=7 L=7.5 		8-97369-561-0 01 1 0710-0803 ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (C) ID=7 L=7.5 		8-97369-561-0 01 1 0804- ● ●
182 03.682 CLIP; HARNESS
4HK1-TCS ENG(RJS) (C) ID=7 L=7.5 		8-97369-561-0 01 1 0804- ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0710-0803 ● ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ●
272 03.685 NUT; FLANGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 16 1 0804- ● ● ●
272 03.685 NUT; FLANGE
01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0710-0803 ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ● ●
272 03.685 NUT; FLANGE
4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 0804- ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804-1503 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0710-0803 ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0804-1503 ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ● ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ● ●
434 03.613 BOLT; BRKT
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ●
434 03.613 BOLT; BRKT
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1504- ●
434 03.613 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0710-0803 ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ● ●
434 03.613 BOLT; BRKT
4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0804- ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0710-0803 ● ● ● ●
556 03.701 DPD ASM 8-98036-810-7 01 1 0804-1011 ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98036-810-7 01 1 0804-1011 ● ● ●
556 03.701 DPD ASM 8-98084-595-4 01 1 1012- ● ●
556 03.701 DPD ASM
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-595-4 01 1 1012- ● ● ●
556 03.701 DPD ASM 8-98039-162-6 01 1 0710-0803 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98039-162-6 01 1 0804-1010 ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98039-162-6 01 1 0804-1010 ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 		8-98084-602-4 01 1 1011- ● ●
556 03.701 DPD ASM
4HK1-TCS ENG(RJS) 		8-98084-602-4 01 1 1011- ●
563 01.150 SENSOR; TEMPERATURE,DPD
(A) 		8-98004-329-0 01 1 0710-0803 ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98004-329-0 01 1 0804- ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
(B) 		8-98004-330-0 01 1 0710-0803 ● ● ● ● ● ●
563 01.150 SENSOR; TEMPERATURE,DPD
CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98004-330-0 01 1 0804- ● ● ● ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB) (A) 		8-97359-985-2 01 1 0710-0803 ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCS ENG(RJS) (A) 		8-97359-985-2 01 1 0710-0803 ● ●
564 01.150 SENSOR; PRESSURE,DPD
(A) 		8-97359-985-2 01 1 0804- ● ● ●
564 01.150 SENSOR; PRESSURE,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97359-985-2 01 1 0804- ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCN ENG(RDQ) (B) 		8-97360-368-2 01 1 0710-0803 ● ●
564 01.150 SENSOR; PRESSURE,DPD
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-97360-368-2 01 1 0804- ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98012-396-0 01 1 0710-0803 ● ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98012-396-0 01 1 0804-1503 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98012-396-0 01 1 0804-1503 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) (C) 		8-98303-548-0 01 1 1504- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (C) 		8-98303-548-0 01 1 1504- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A) 		8-98063-130-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-130-0 01 1 0804- ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
(A) 		8-98063-129-0 01 1 0710-0803 ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0804- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98063-129-0 01 1 0804- ●
565 03.706 BRACKET; SENSOR,PRESSURE
(B) 		8-98029-347-0 01 1 0710-0803 ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (B) 		8-98029-347-0 01 1 0804- ● ●
565 03.706 BRACKET; SENSOR,PRESSURE
4HK1-TCS ENG(RJS) (B) 		8-98029-347-0 01 1 0804- ●
566 03.706 BOLT; SENSOR
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0710-0803 ● ● ● ● ● ●
566 03.706 BOLT; SENSOR
CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0804- ● ● ● ● ● ●
çizim 156344
81 144 143 84 94 126 329 94 124 88 70 137 125 97 88 357 105 95 104 137 164 166 162 165 147 420 94 162 165 367 193 124 166 357 105 88 144 143 94 81 137 70 105 357 125 97 88 88 124 166 164 95 165 137 162 104 94 329 357 3 105 329 84 3 88 36 84 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-854-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 		8-98005-237-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (E) 		8-98005-237-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) (E) 		8-97387-264-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (E) 		8-97387-264-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97089-322-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-138-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97307-804-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-853-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-140-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-0812 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-602-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-061-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-062-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-063-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
WHEEL BASE 4400MM(44W) (B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
(B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-062-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) (B) 		8-98099-062-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
70 03.706 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=65 		8-97148-757-1 01 1 0710-0803 ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) ID=65 		8-97148-757-1 01 1 0804- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=64 		8-97373-108-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) ID=64 		8-97373-108-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-0812 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-1508 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98034-766-0 01 1 0710-0803 ● ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98034-766-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ● ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0710- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0710- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ● ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-346-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98283-855-0 01 1 1509- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-798-0 01 1 0812- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-102-0 01 1 0710- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98020-604-0 01 1 0710-0803 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98020-604-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ● ● ● ● ● ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
(B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-064-0 01 1 0804- ● ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0710-0803 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-218-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-218-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98045-047-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-964-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-058-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0812- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (G) 		8-98072-137-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98082-057-0 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (E) 		8-98059-407-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-109-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0710-0803 ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ● ● ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
(D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (F) 		8-98001-913-0 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE), TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98001-913-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0804- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E) 		8-98019-904-2 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-97169-014-0 01 1 0804- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-97116-588-2 01 1 0710- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (A) 		8-97096-651-0 01 1 0710- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
147 03.704 BRACKET; VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-125-1 01 1 0804-0811 ● ● ●
147 03.704 BRACKET; VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98117-604-0 01 1 0812- ● ● ●
147 03.704 BRACKET; VERTICAL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98082-146-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0710-0803 ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
(B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=115 		8-98034-765-0 01 1 0804- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98032-150-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0710-0803 ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0804- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=23 		8-98006-011-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=37.5 		9-22151-217-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710-0803 ● ● ● ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ●
193 03.704 NUT; BRKT,VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
193 03.704 NUT; BRKT,VERTICAL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0710-0803 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ●
329 03.613 NUT; EXH PIPE TO PIPE
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ● ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
367 03.704 COLLAR; DIST,SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 01 1 0804- ● ● ●
367 03.704 COLLAR; DIST,SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5 		9-22151-217-0 01 1 0804- ● ●
420 03.704 BOLT; BRKT,VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
420 03.704 BOLT; BRKT,VERTICAL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
çizim 156345
88 357 105 95 126 124 104 137 164 38 94 162 166 165 165 95 164 162 88 357 105 126 97 125 70 137 81 144 143 124 166 94 137 104 165 95 137 104 36 3 84 94 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-854-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 		8-98005-237-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (E) 		8-98005-237-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) (E) 		8-97387-264-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (E) 		8-97387-264-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97089-322-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-138-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97307-804-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-853-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-140-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-0812 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-602-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-061-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-062-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-063-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
WHEEL BASE 4400MM(44W) (B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
(B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-062-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) (B) 		8-98099-062-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
70 03.706 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=65 		8-97148-757-1 01 1 0710-0803 ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) ID=65 		8-97148-757-1 01 1 0804- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=64 		8-97373-108-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) ID=64 		8-97373-108-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-0812 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-1508 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98034-766-0 01 1 0710-0803 ● ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98034-766-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ● ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0710- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0710- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ● ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-346-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98283-855-0 01 1 1509- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-798-0 01 1 0812- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-102-0 01 1 0710- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98020-604-0 01 1 0710-0803 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98020-604-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ● ● ● ● ● ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
(B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-064-0 01 1 0804- ● ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0710-0803 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-218-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-218-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98045-047-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-964-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-058-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0812- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (G) 		8-98072-137-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98082-057-0 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (E) 		8-98059-407-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-109-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0710-0803 ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ● ● ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
(D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (F) 		8-98001-913-0 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE), TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98001-913-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0804- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E) 		8-98019-904-2 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-97169-014-0 01 1 0804- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-97116-588-2 01 1 0710- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (A) 		8-97096-651-0 01 1 0710- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0710-0803 ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
(B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=115 		8-98034-765-0 01 1 0804- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98032-150-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0710-0803 ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0804- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=23 		8-98006-011-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=37.5 		9-22151-217-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710-0803 ● ● ● ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ● ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
çizim 156346
126 125 97 38 70 81 144 137 143 94 105 357 164 162 165 166 94 104 88 124 137 95 162 165 166 94 95 104 137 124 88 357 164 105 88 126 125 97 70 81 144 137 143 94 38 84 3 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-854-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 		8-98005-237-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (E) 		8-98005-237-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) (E) 		8-97387-264-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (E) 		8-97387-264-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97089-322-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-138-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97307-804-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-853-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-140-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-0812 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-602-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-061-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-062-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-063-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
WHEEL BASE 4400MM(44W) (B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
(B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-062-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) (B) 		8-98099-062-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
70 03.706 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=65 		8-97148-757-1 01 1 0710-0803 ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) ID=65 		8-97148-757-1 01 1 0804- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=64 		8-97373-108-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) ID=64 		8-97373-108-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-0812 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-1508 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98034-766-0 01 1 0710-0803 ● ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98034-766-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ● ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0710- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0710- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ● ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-346-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98283-855-0 01 1 1509- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-798-0 01 1 0812- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-102-0 01 1 0710- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98020-604-0 01 1 0710-0803 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98020-604-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ● ● ● ● ● ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
(B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-064-0 01 1 0804- ● ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0710-0803 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-218-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-218-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98045-047-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-964-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-058-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0812- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (G) 		8-98072-137-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98082-057-0 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (E) 		8-98059-407-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-109-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0710-0803 ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ● ● ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
(D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (F) 		8-98001-913-0 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE), TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98001-913-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0804- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E) 		8-98019-904-2 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-97169-014-0 01 1 0804- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-97116-588-2 01 1 0710- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (A) 		8-97096-651-0 01 1 0710- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0710-0803 ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
(B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=115 		8-98034-765-0 01 1 0804- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98032-150-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0710-0803 ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0804- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=23 		8-98006-011-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=37.5 		9-22151-217-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710-0803 ● ● ● ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ● ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
çizim 156351
88 88 357 95 124 137 104 105 164 94 162 166 165 165 95 164 162 88 357 105 125 97 88 81 137 70 144 36 94 143 420 162 94 165 3 38 88 147 124 193 166 94 124 166 84 357 105 367 126 137 104 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-854-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (E) 		8-98005-237-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (E) 		8-98005-237-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
(E) 		8-98005-237-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) (E) 		8-97387-264-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (E) 		8-97387-264-0 01 1 0804- ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97089-322-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-138-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97307-804-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98283-853-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98090-140-0 01 1 0804-0811 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-0812 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 0812-1508 ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98134-199-0 01 1 1509- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (B) 		8-98020-602-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98020-602-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) (B) 		8-98099-061-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-061-0 01 1 0804- ● ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-062-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) 		8-98082-063-1 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
WHEEL BASE 4400MM(44W) (B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
(B) 		8-98099-062-0 01 1 0710-0803 ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-062-0 01 1 0804- ● ●
3 03.609 PIPE; EXH,CENTER
4HK1-TCS ENG(RJS) (B) 		8-98099-062-0 01 1 0804- ●
36 03.613 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 0710- ● ● ● ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
36 03.613 NUT; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
36 03.613 NUT; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.162 (C) M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0710-0803 ● ● ● ●
38 00.002 NUT; SILENCER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804- ● ● ● ●
38 00.002 NUT; SILENCER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0804- ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
70 03.706 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
70 03.706 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ●
81 03.704 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0804- ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
81 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (D) ID=65 		8-97148-757-1 01 1 0710-0803 ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D) ID=65 		8-97148-757-1 01 1 0804- ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.704 (B) ID=85.8 		1-22116-043-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (C) ID=64 		8-97373-108-0 01 1 0710-0803 ● ●
84 03.611 GASKET; EXH PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) (C) ID=64 		8-97373-108-0 01 1 0804- ● ● ●
84 03.611 GASKET; EXH PIPE
4JJ1-TCC ENG(RDU) (C) ID=64 		8-97373-108-0 01 1 0804- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0710-0803 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0804-0811 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0804-0811 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-0812 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-0812 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-0812 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 0812-1508 ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 0812-1508 ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 0812-1508 ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) 		8-97373-158-0 01 1 1509- ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97373-158-0 01 1 1509- ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98034-766-0 01 1 0710-0803 ● ● ● ●
88 03.708 CLAMP; EXH PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98034-766-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ● ● ● ● ●
94 03.704 BOLT; CLAMP
00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0710-0803 ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ●
94 03.704 BOLT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ● ● ●
94 03.704 BOLT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE 		8-97301-165-0 01 1 0804- ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0710- ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0710-0803 ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
95 03.708 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ● ●
95 03.708 BOLT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
97 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ● ●
97 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 03 1 0710- ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0710-0803 ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
104 03.704 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ● ●
104 03.704 NUT; BRKT
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ● ● ●
105 03.704 NUT; CLAMP
00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
105 03.704 NUT; CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710-0803 ● ●
124 03.704 NUT; SUPPORT RUBBER
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0804- ● ● ●
124 03.704 NUT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.334 (A) M8 		0-91110-508-0 02 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0710-0803 ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ●
125 03.708 NUT; CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.833 M10 		0-91110-510-0 01 1 0804- ● ● ● ●
125 03.708 NUT; CLAMP
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10 		0-91110-510-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-346-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98283-855-0 01 1 1509- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98134-798-0 01 1 0812- ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-102-0 01 1 0710- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (I) 		8-98020-604-0 01 1 0710-0803 ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (I) 		8-98020-604-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ● ● ● ● ● ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
(B) 		8-98099-064-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) (B) 		8-98099-064-0 01 1 0804- ● ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0710-0803 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) EXC. SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-101-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C) 		8-98073-218-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (C) 		8-98073-218-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98045-047-0 01 1 0710-0803 ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO4 SPECIFICATION(NT4) (B) 		8-98045-047-0 01 1 0804- ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) 		8-98078-964-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (E) 		8-98082-058-0 01 1 0804- ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-128-1 01 1 0812- ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0804-0811 ● ● ●
126 03.705 PIPE; EXH,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98011-818-0 01 1 0812-1508 ● ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (G) 		8-98072-137-0 01 1 0804- ● ●
126 03.705 PIPE; EXH,RR
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98082-057-0 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (E) 		8-98059-407-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) SMALL DOUBLE RR TIRE(6YE) (H) 		8-98079-109-0 01 1 0710- ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0710-0803 ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (G) 		8-97387-256-1 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ● ● ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
(D) 		8-97185-801-0 01 1 0710-0803 ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) 		8-97185-801-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (F) 		8-98001-913-0 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE), TAILPIPE SINGLE SHORT TYPE<8JJ> (F) 		8-98001-913-0 01 1 0804- ● ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0710-0803 ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. SMALL DOUBLE RR TIRE(6YE) (E) 		8-98019-904-2 01 1 0804- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E) 		8-98019-904-2 01 1 0804- ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-97169-014-0 01 1 0804- ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-97116-588-2 01 1 0710- ● ● ●
137 03.706 BRACKET; TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (A) 		8-97096-651-0 01 1 0710- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) (A) 		8-97080-694-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97080-694-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) 		8-98034-767-0 01 1 0804- ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98034-767-0 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98034-767-0 01 1 0804- ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-94457-277-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-94457-277-1 01 1 0804- ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-94457-278-1 01 1 0710-0803 ● ● ● ●
143 03.704 RUBBER; SUPPORT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-94457-278-1 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0803 ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ●
144 03.613 NUT; MTG RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ● ● ●
144 03.613 NUT; MTG RUBBER
4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
147 03.704 BRACKET; VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98090-125-1 01 1 0804-0811 ● ● ●
147 03.704 BRACKET; VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98117-604-0 01 1 0812- ● ● ●
147 03.704 BRACKET; VERTICAL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) 		8-98082-146-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0710-0803 ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) L=115 		8-98032-151-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=115 		8-98034-765-0 01 1 0710-0803 ● ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
(B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) L=115 		8-98034-765-0 01 1 0804- ● ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115 		8-98034-765-0 01 1 0804- ● ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=115 		8-98034-765-0 01 1 0804- ●
162 03.706 RUBBER; SUPPORT,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98032-150-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0710-0803 ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (A) L=23 		8-98006-011-0 01 1 0804- ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) L=23 		8-98006-011-0 01 1 0804- ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=37.5 		9-22151-217-0 01 1 0710-0803 ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) L=37.5 		9-22151-217-0 01 1 0804- ● ● ● ●
164 03.706 COLLAR; DIST,TAIL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO4 SPECIFICATION(NT4) (B) L=37.5 		9-22151-217-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0710-0803 ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.685 M10X45 FLANGE 		0-28051-045-0 01 1 0804- ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0803 ● ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
165 03.706 BOLT; SUPPORT RUBBER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X70 FLANGE 		0-28051-070-0 01 1 0804- ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710-0803 ● ● ● ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ● ●
166 03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0804- ● ●
193 03.704 NUT; BRKT,VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ● ●
193 03.704 NUT; BRKT,VERTICAL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0804- ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0710-0803 ● ● ● ● ● ●
357 03.708 WASHER; PL,CLAMP
00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ● ●
357 03.708 WASHER; PL,CLAMP
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22 		0-91614-610-0 01 1 0804- ● ●
367 03.704 COLLAR; DIST,SUPPORT RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.706 L=37.5 		9-22151-217-0 01 1 0804- ● ● ●
367 03.704 COLLAR; DIST,SUPPORT RUBBER
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.706 L=37.5 		9-22151-217-0 01 1 0804- ● ●
420 03.704 BOLT; BRKT,VERTICAL PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ● ●
420 03.704 BOLT; BRKT,VERTICAL PIPE
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0804- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
