1-40 — FUEL TANK (#49940) — 622 parça

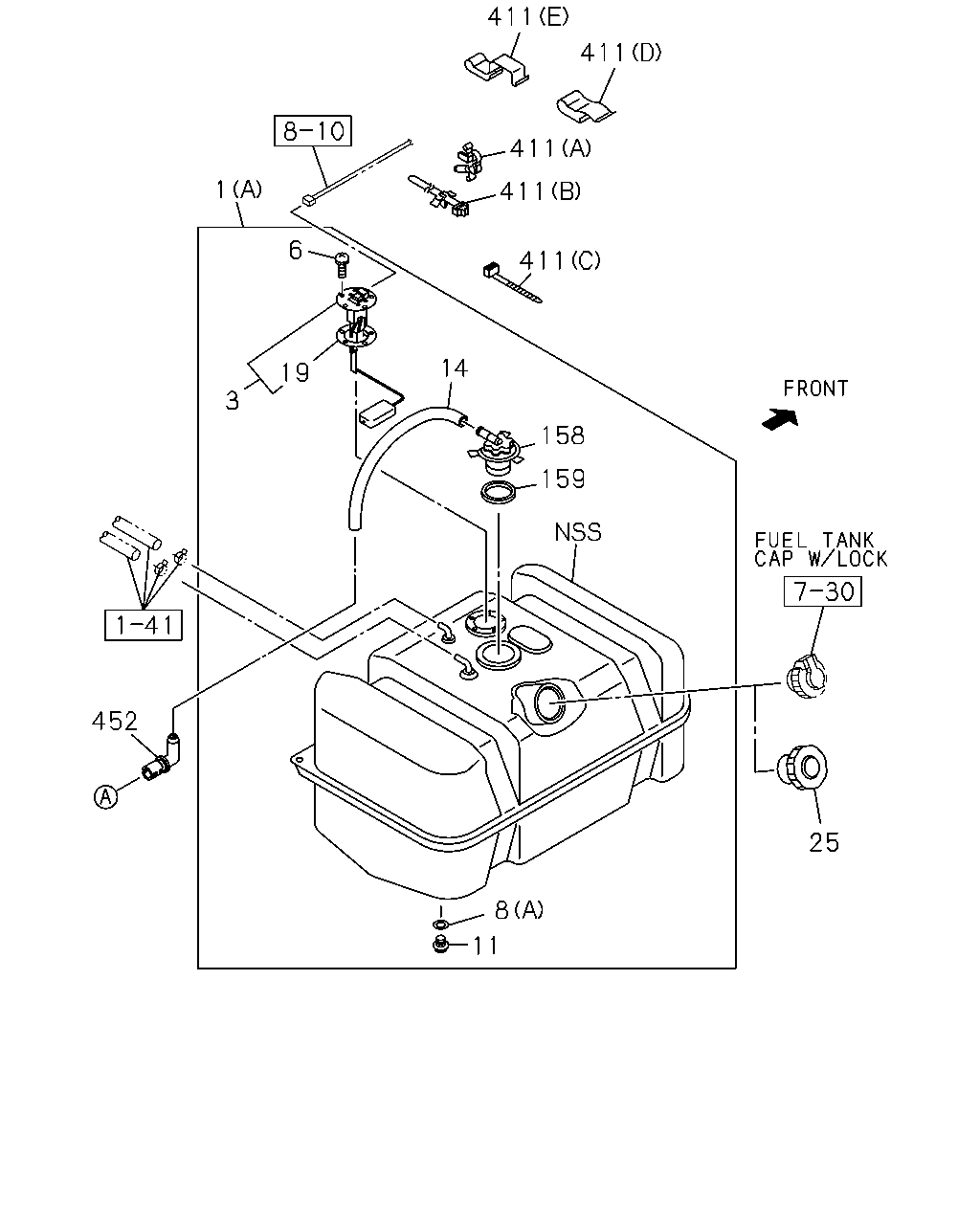

çizim 156071
411 411 411 411 411 14 158 159 1 6 19 3 452 8 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ● ● ● ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ● ● ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 0710- ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0710- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 0710- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0710- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710- ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 0710- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0710- ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0710- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 0710- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0710- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=480 		8-97135-581-0 01 1 0710-1003 ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0710-1003 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 0710- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0710- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 0710- ● ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0710- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 0710- ● ● ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0710-0906 ● ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0907- ● ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0710- ● ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0710- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 0710- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0710- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0710- ● ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0710- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 0710- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 02 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 02 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0711- ● ● ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0710- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3 		1-09987-182-0 01 1 0710- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0810- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0804- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 05 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 03 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 0805- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0710-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0710-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 0710-0802 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0803-0803 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0804-1407 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 0804-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (E) T=6.0 		5-09709-024-0 02 1 0710-0801 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0802-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=6.0 		5-09709-024-0 02 1 0802-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=6.0 		5-09709-024-0 02 1 0803-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0804-0804 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 04 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 04 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=10.5 		8-97371-950-0 04 1 0805- ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 0710- ● ● ● ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0710- ●

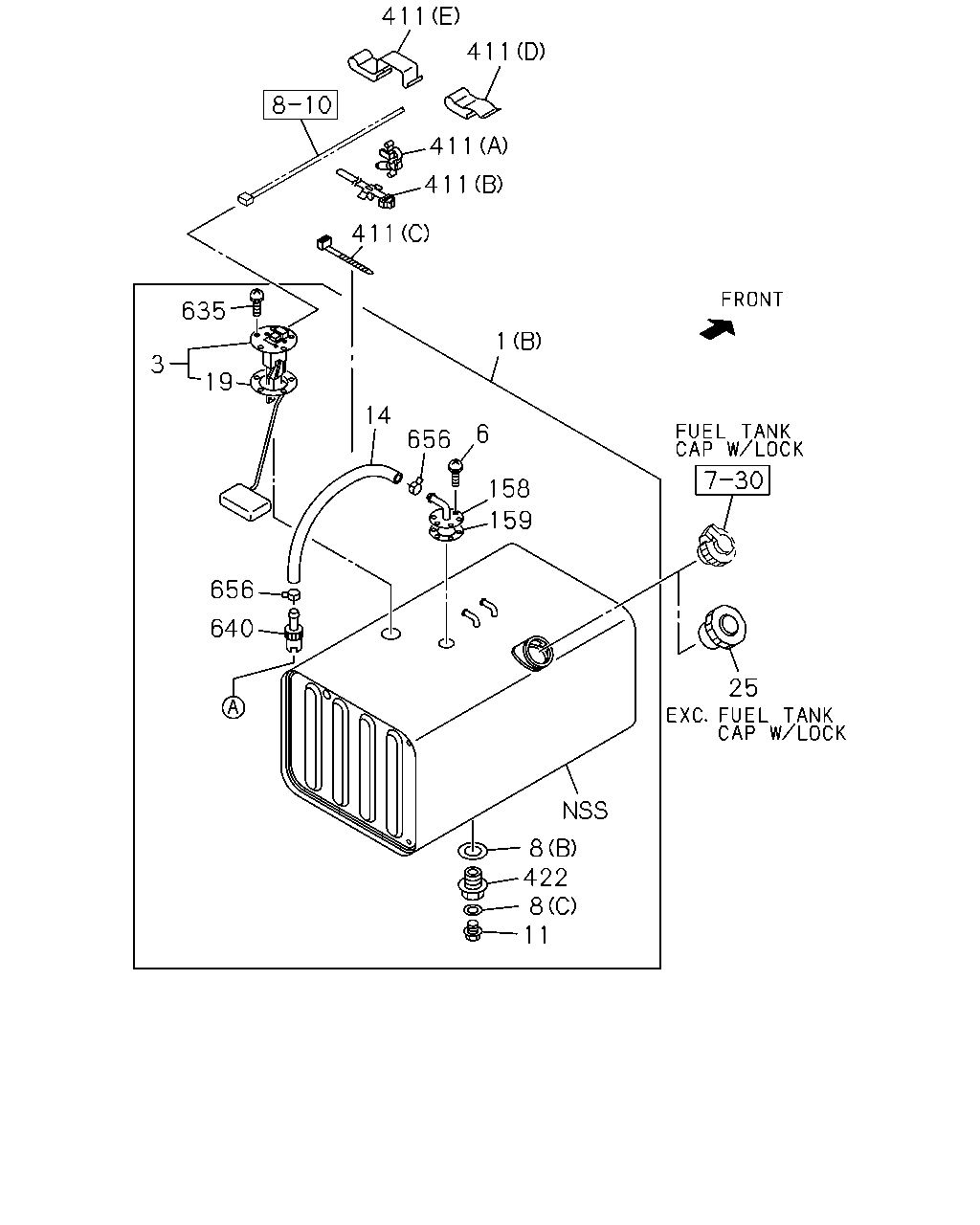

çizim 156080
411 411 411 411 411 635 3 19 14 656 6 1 158 159 656 640 8 422 8 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ● ● ● ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ● ● ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 0710- ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0710- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 0710- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0710- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710- ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 0710- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0710- ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0710- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 0710- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0710- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=480 		8-97135-581-0 01 1 0710-1003 ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0710-1003 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 0710- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0710- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 0710- ● ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0710- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 0710- ● ● ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0710-0906 ● ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0907- ● ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0710- ● ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0710- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 0710- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0710- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0710- ● ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0710- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 0710- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 02 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 02 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0711- ● ● ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0710- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3 		1-09987-182-0 01 1 0710- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0810- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0804- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 05 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 03 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 0805- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0710-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0710-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 0710-0802 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0803-0803 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0804-1407 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 0804-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (E) T=6.0 		5-09709-024-0 02 1 0710-0801 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0802-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=6.0 		5-09709-024-0 02 1 0802-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=6.0 		5-09709-024-0 02 1 0803-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0804-0804 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 04 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 04 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=10.5 		8-97371-950-0 04 1 0805- ●
422 03.023 PLUG; FUEL TANK
FUEL TANK 140 LITTER<N19> 03.890 M30 		8-98067-038-0 01 1 1504- ● ● ●
422 03.023 PLUG; FUEL TANK
03.890 M30 		8-98067-038-0 01 1 1504- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0710- ● ● ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0710- ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 0710- ● ● ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0710- ●
656 03.023 CLAMP; FUEL TANK
FUEL TANK 140 LITTER<N19> 		8-98304-416-0 02 1 1504- ● ● ●
656 03.023 CLAMP; FUEL TANK 8-98304-416-0 02 1 1504- ●

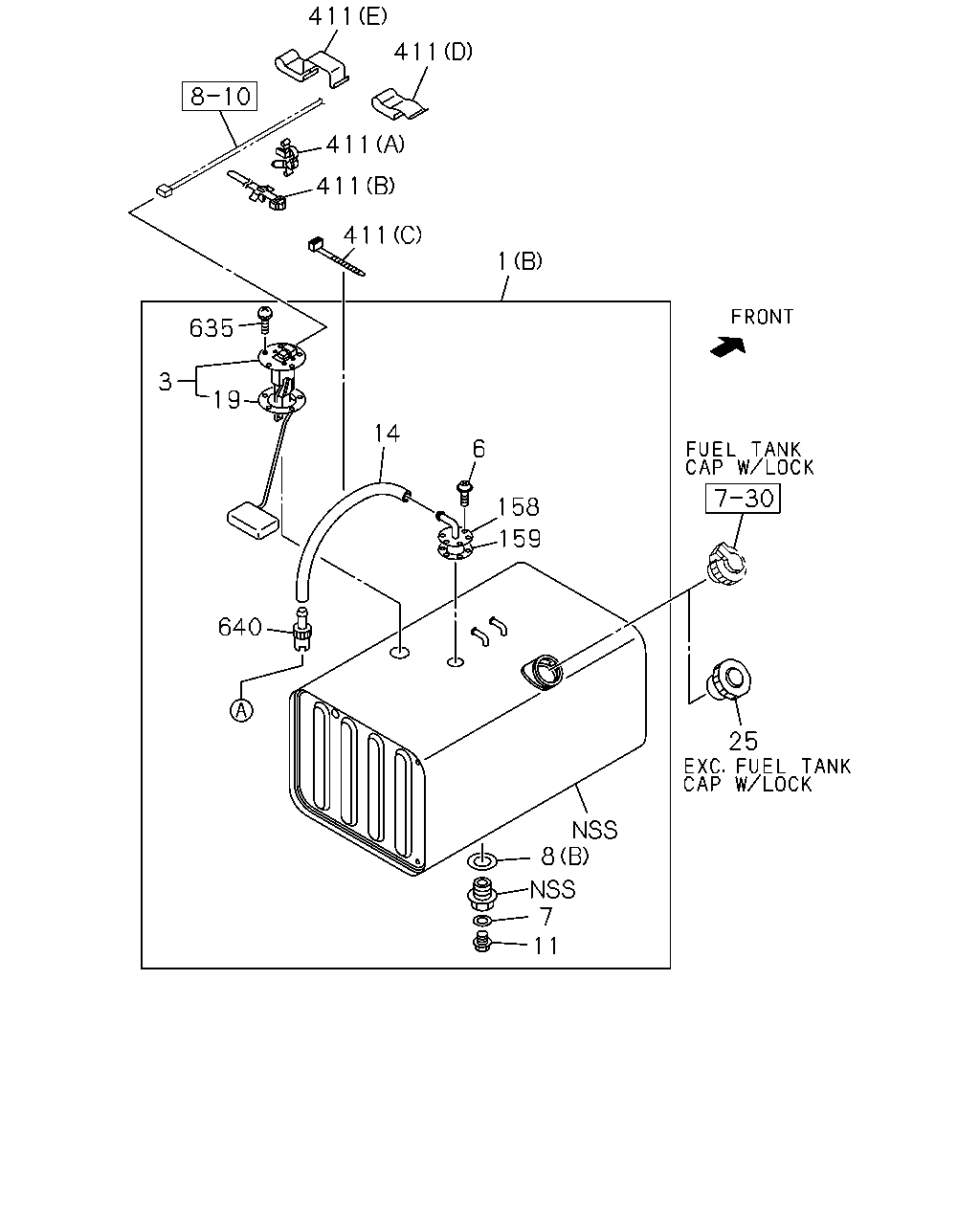

çizim 156091
411 411 411 411 411 1 25 11 7 8 158 159 6 14 635 19 3 640
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ● ● ● ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ● ● ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 0710- ● ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 0710- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 0710- ● ● ●
3 03.107 UNIT; FUEL TANK,SUB 8-98065-304-0 01 1 0710- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ● ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0710- ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710-1503 ● ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710-1503 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710- ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0710- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 0710- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0710- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0710- ● ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 0710- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 0710- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0710- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=480 		8-97135-581-0 01 1 0710-1003 ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=480 		8-97135-581-0 01 1 0710-1003 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1004- ● ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1004- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 0710- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0710- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 0710- ● ● ● ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 0710- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 0710- ● ● ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0710- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0710-0906 ● ● ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 0907- ● ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0710- ● ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0710- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 0710- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0710- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE

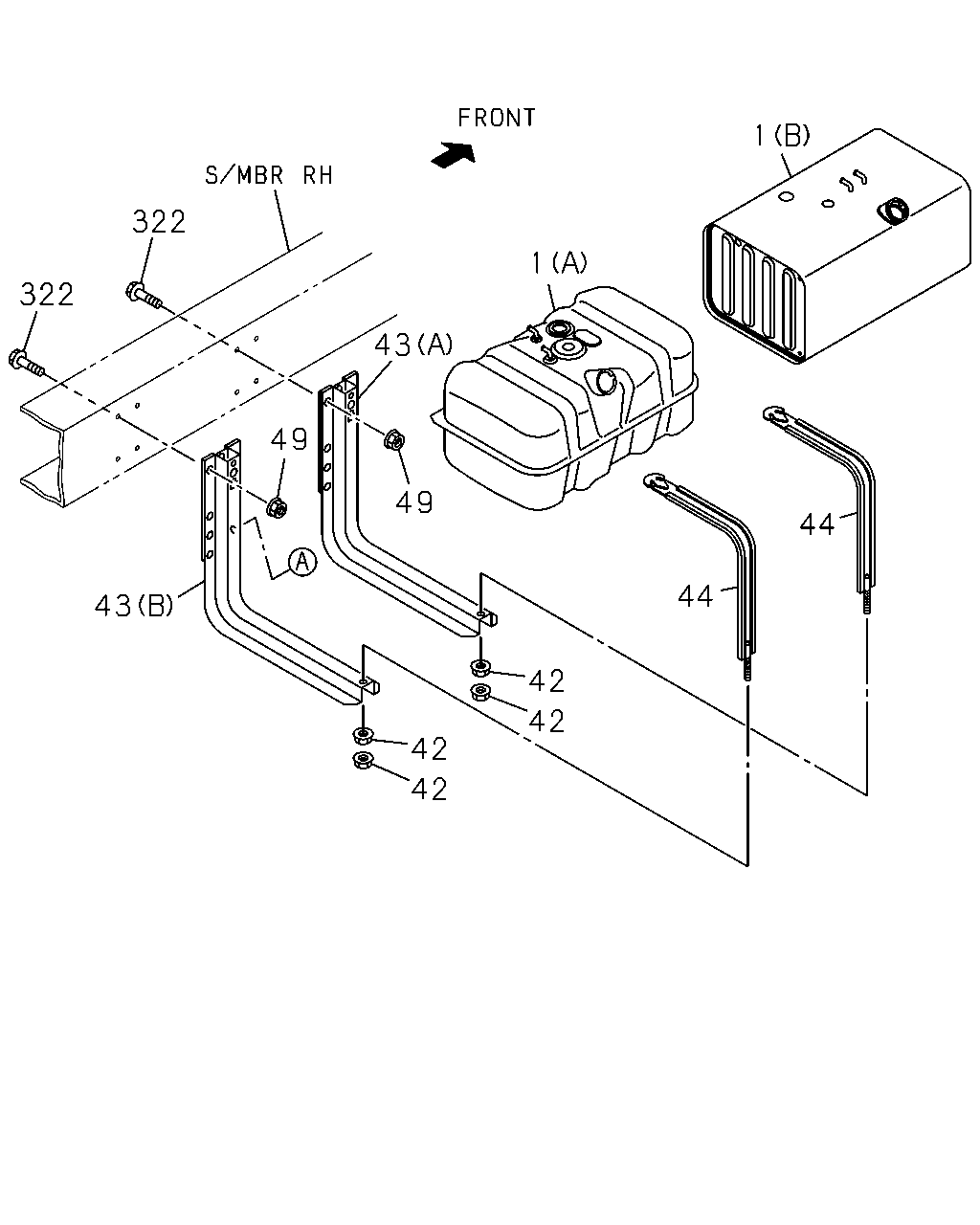

FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0710- ● ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0710- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 0710- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 0710- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0803-0803 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0804- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 02 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 02 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0711- ● ● ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 0710- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3 		1-09987-182-0 01 1 0710- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0805-0809 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 0810- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 0810- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0710-0710 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0804- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 0804- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 05 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 04 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0710-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0803-0803 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 03 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 0805- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 03 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 0805- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0710-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=6.0 		5-09709-012-0 02 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0710-0802 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 0710-0802 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0803-0803 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 0804-1407 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 0804-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (E) T=6.0 		5-09709-024-0 02 1 0710-0801 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0802-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=6.0 		5-09709-024-0 02 1 0802-0802 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0803-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) T=6.0 		5-09709-024-0 02 1 0803-0803 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0804-0804 ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0 		5-09709-024-0 02 1 0804-0804 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 0805- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 03 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 03 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (D) T=10.5 		5-09709-014-0 04 1 0710-0803 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
02.483 (D) T=10.5 		5-09709-014-0 04 1 0804-0804 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 04 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=10.5 		8-97371-950-0 04 1 0805- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=10.5 		8-97371-950-0 04 1 0805- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0710- ● ● ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0710- ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 0710- ● ● ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0710- ●
çizim 156107
322 322 43 49 43 49 42 42 42 42 44 44 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ● ● ● ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 0710- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ● ● ●
1 03.001 TANK; FUEL
(B) 820X500X400 140L 		8-98051-031-4 01 1 0710- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 100 LITTER<N02> M8 FLANGE 		9-09130-408-0 02 1 0710- ● ● ● ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0710- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 140 LITTER<N19> 00.833 M10 		0-91110-510-0 04 1 0710- ● ● ●
42 03.023 NUT; SUPPORT BELT
00.833 M10 		0-91110-510-0 04 1 0710- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (A) 		8-97384-060-5 01 1 0710- ● ● ● ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 0710- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (B) 		8-97384-062-6 01 1 0710- ● ● ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 0710- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (A) 		8-98049-768-1 01 1 0710- ● ● ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-98049-768-1 01 1 0710- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (B) 		8-98083-790-0 01 1 0710-1312 ● ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98083-790-0 01 1 0710-1312 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (B) 		8-98127-229-0 01 1 1401- ● ● ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98127-229-0 01 1 1401- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 100 LITTER<N02> L=795 		8-97384-080-2 02 1 0710- ● ● ● ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 0710- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 140 LITTER<N19> L=925 		8-98049-769-1 02 1 0710- ● ● ●
44 03.023 BAND; FUEL TANK
L=925 		8-98049-769-1 02 1 0710- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0710-0802 ●
49 03.023 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0710-0802 ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0710-0802 ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0710-0802 ● ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
49 03.023 NUT; BRKT
FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0803-0803 ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ●
49 03.023 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ● ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ● ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0804- ● ● ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0710-0802 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0710-0802 ● ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0803-0803 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0804- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 0804- ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0710- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0710- ● ● ●
322 03.895 BOLT; BRKT FIX
FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0710- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W), WHEELBASE 4400MM(44W) FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0710- ● ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0710- ● ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 07 1 0710- ● ● ●
çizim 156131
198 505 301 301 299 301 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
198 03.107 SPACER
4JJ1-TCS ENG(LFB) 		8-98081-509-0 01 1 0710-0803 ● ● ●
198 03.107 SPACER 8-98081-509-0 01 1 0804-1001 ● ●
198 03.107 SPACER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-509-0 01 1 0804-1001 ● ●
198 03.107 SPACER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 		8-98081-509-0 01 1 0804-1001 ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCS ENG(LFB) (B) 		8-98009-087-4 01 1 0710-0803 ● ● ●
299 03.162 BRACKET; FUEL FILTER
(B) 		8-98009-087-4 01 1 0804-1001 ● ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98009-087-4 01 1 0804-1001 ● ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (B) 		8-98009-087-4 01 1 0804-1001 ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98074-132-1 01 1 0804- ● ● ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-175-3 01 1 0710- ● ● ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0804-0903 ● ● ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0904-0910 ● ● ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80 		0-28151-280-0 01 1 0905- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0710-0803 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0710-0803 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0710-0803 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 (D) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE 		0-28151-250-0 02 1 0710-1501 ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE 		0-28151-250-0 01 1 1502- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80 		0-28151-280-0 01 1 0710-0811 ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.206 (E) M12X70 FLANGE 		0-28151-270-0 01 1 0802-0811 ● ● ● ●
505 03.163 BRACKET
4JJ1-TCS ENG(LFB) 		8-98081-486-0 01 1 0710-0803 ● ● ●
505 03.163 BRACKET 8-98081-486-0 01 1 0804-1001 ● ●
505 03.163 BRACKET
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-486-0 01 1 0804-1001 ● ●
505 03.163 BRACKET
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 		8-98081-486-0 01 1 0804-1001 ●
çizim 156329
634 633 301 301 299 301 299
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCS ENG(LFB) (B) 		8-98009-087-4 01 1 0710-0803 ● ● ●
299 03.162 BRACKET; FUEL FILTER
(B) 		8-98009-087-4 01 1 0804-1001 ● ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98009-087-4 01 1 0804-1001 ● ●
299 03.162 BRACKET; FUEL FILTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (B) 		8-98009-087-4 01 1 0804-1001 ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98074-132-1 01 1 0804- ● ● ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-175-3 01 1 0710- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80 		0-28151-280-0 01 1 0905- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0710-0803 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (B) M8X40 FLANGE 		0-28060-840-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0710-0803 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) M8X66 FLANGE 		8-98081-507-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0710-0803 ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
(C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (C) M14X58 FLANGE 		8-98081-508-0 01 1 0804-1001 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 (D) M12X100 FLANGE 		0-28151-200-0 01 1 0710- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE 		0-28151-250-0 02 1 0710-1501 ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE 		0-28151-250-0 01 1 1502- ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80 		0-28151-280-0 01 1 0710-0811 ● ● ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.206 (E) M12X70 FLANGE 		0-28151-270-0 01 1 0802-0811 ● ● ● ●
633 03.162 STUD; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.275 M8X25 L=37 		0-41010-825-0 02 1 0710- ● ● ● ●
634 03.162 NUT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ● ●
çizim 156348
485 303 302 300 485 485
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ● ●
300 03.162 BOLT; BRKT TO BODY
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0804-0903 ● ● ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0904-0910 ● ● ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ● ● ● ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0804-0903 ● ● ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0904-0910 ● ● ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0911- ● ● ● ● ● ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0804-0903 ● ● ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0904-0910 ● ● ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0911- ● ● ● ● ● ●
485 03.163 HOSE; FUEL
DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 0710-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 0907- ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0710-0710 ● ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0710-0710 ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (A) 		8-98041-728-0 01 1 0710-0710 ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0710-0710 ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0710-0710 ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0711-0802 ● ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0711-0802 ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0803-0803 ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0803-0803 ● ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0804-0906 ● ● ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0804-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0907-0910 ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
4HK1-TCS ENG(RJS) (A) 		8-98041-728-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ●
485 03.163 HOSE; FUEL
4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0804-0906 ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907-0910 ● ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907-0910 ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0911- ● ● ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0911- ● ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 0804-0910 ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 0911- ● ● ● ●
çizim 479336
485
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
485 03.163 HOSE; FUEL
DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 0710-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98098-276-0 01 1 0907- ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0710-0710 ● ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0710-0710 ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (A) 		8-98041-728-0 01 1 0710-0710 ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0710-0710 ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0710-0710 ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0711-0802 ● ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0711-0802 ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98041-728-0 01 1 0803-0803 ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0803-0803 ● ● ●
485 03.163 HOSE; FUEL
FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0804-0906 ● ● ●
485 03.163 HOSE; FUEL
(A) 		8-98041-728-0 01 1 0804-0906 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0907-0910 ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
4HK1-TCS ENG(RJS) (A) 		8-98041-728-0 01 1 0907-0910 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ●
485 03.163 HOSE; FUEL
4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98041-728-0 01 1 0911- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0804-0906 ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907-0910 ● ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0907-0910 ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0911- ● ● ● ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98099-503-0 01 1 0911- ● ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 0804-0910 ● ● ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (C) 		8-98105-710-0 01 1 0911- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
