Sayfa 0-39A - Isuzu EPC

0-39A — AIR COMPRESSOR; BRAKE (#4994) — 421 parça

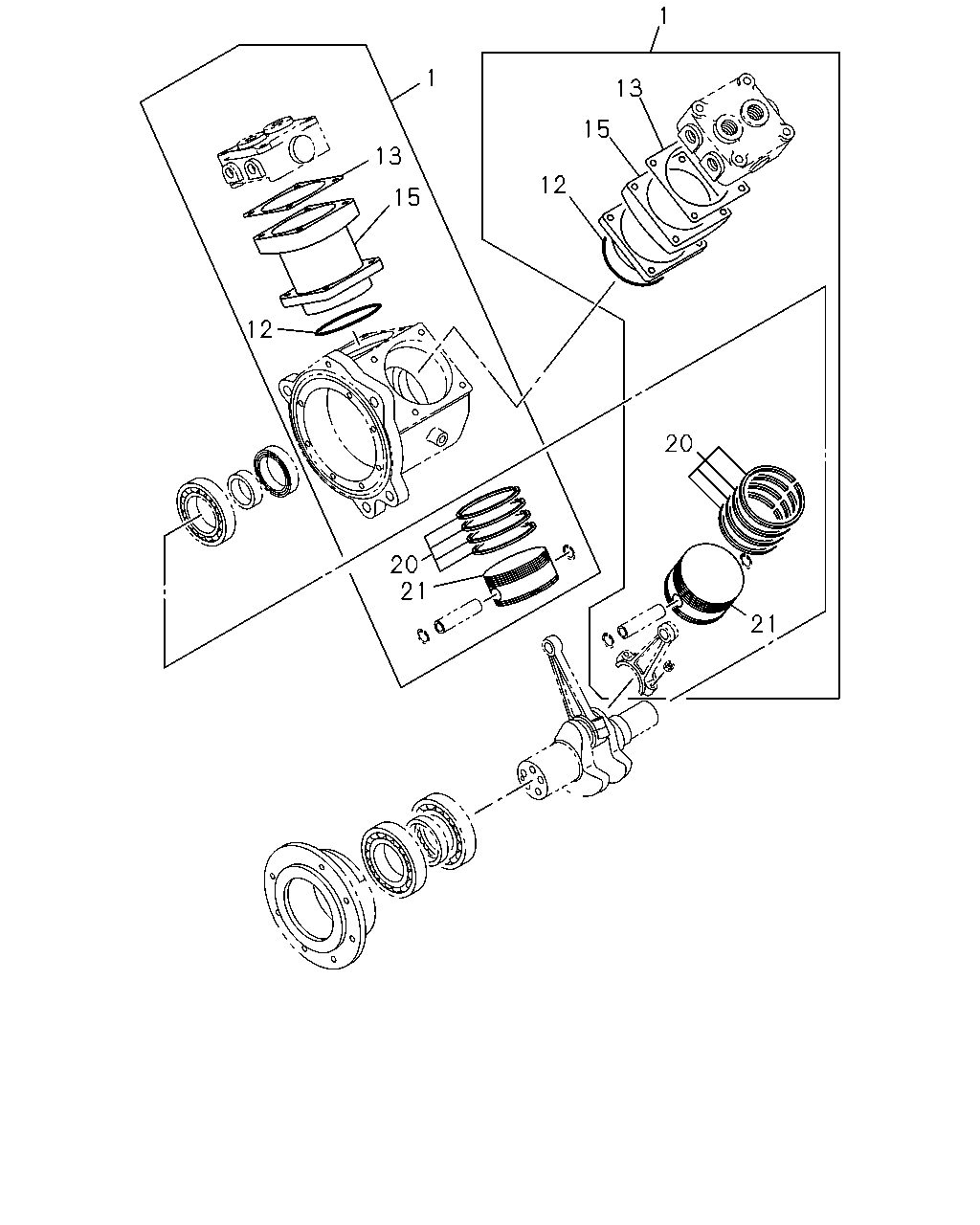

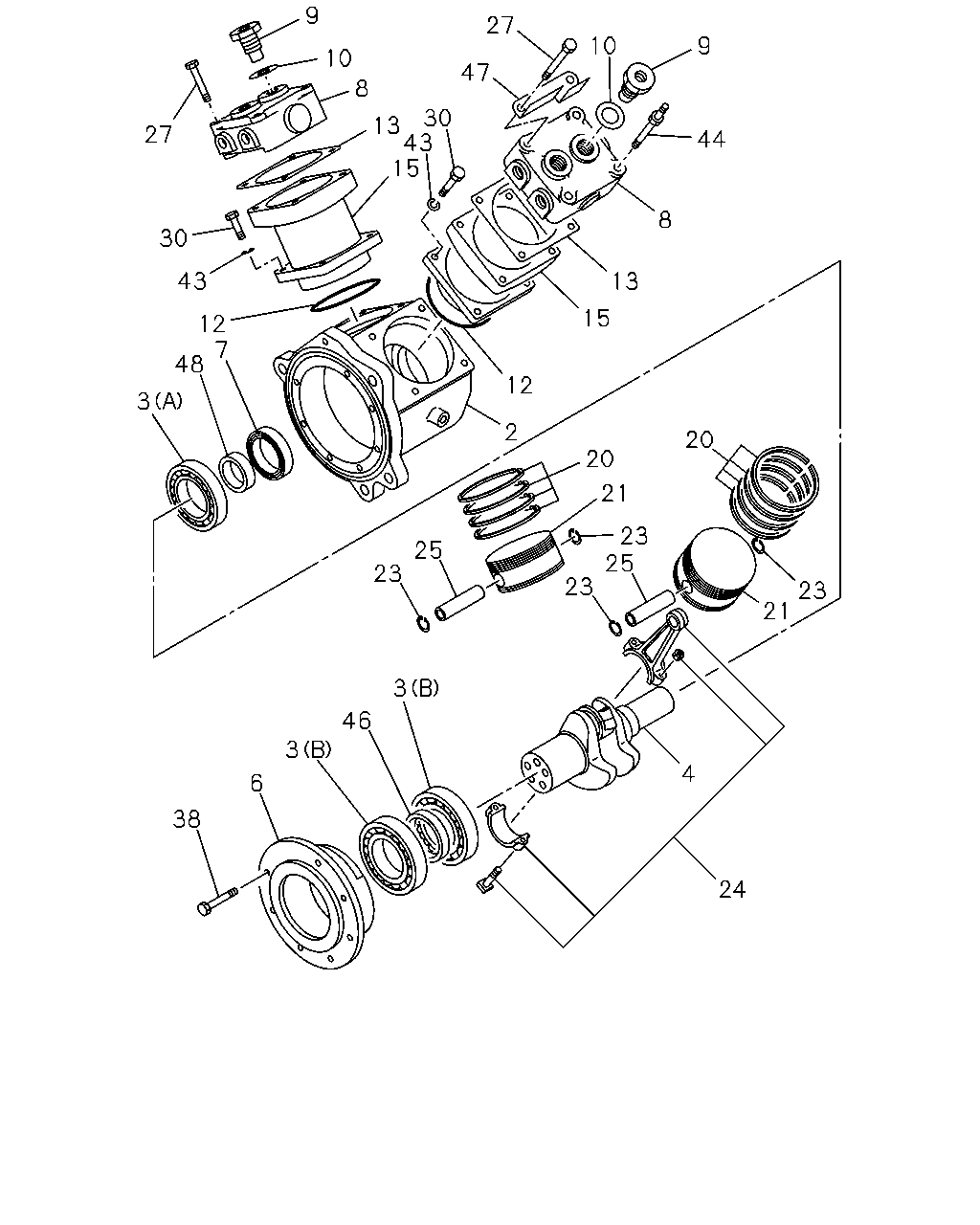

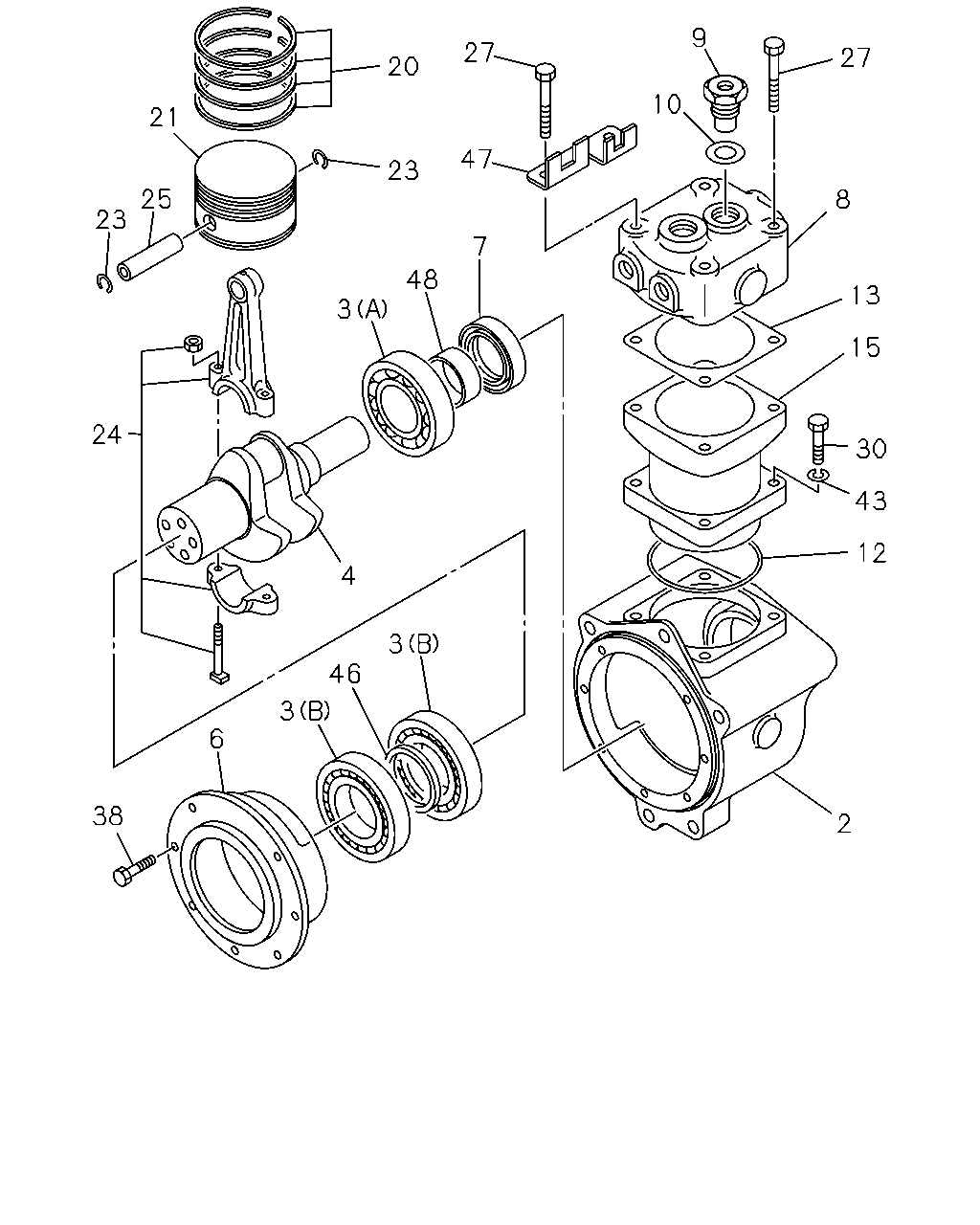

9 27 10 9 10 47 8 30 13 43 15 27 44 8 30 43 13 15 12 7 48 12 3 2 20 20 21 23 25 25 23 23 23 21 3 46 3 4 6 38 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR	1-19151-269-4	01	1	9606-9609	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-4	01	1	9610-9706	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-5	01	1	9707-9905	●	●
2	CRANKCASE; AIR CMPR	1-19151-269-5	01	1	9906-	●		●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-5	01	1	9906-				●
2	CRANKCASE; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-270-2	01	1	9610-9702	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-270-2	01	1	9703-9905	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-270-2	01	1	9906-				●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	9606-9706	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	9707-9905	●	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	9906-	●		●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	9606-9706	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	9707-9905	●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	9906-	●		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	9606-9609	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	9610-9706	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	9707-9905	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	9906-	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	9906-				●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-067-0	01	1	9610-9702	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-067-0	01	1	9703-9905	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-067-1	01	1	9906-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	9606-9706	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	9707-9905	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	9906-	●		●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9606-9706	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9707-9905	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9906-	●		●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	9606-9609	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	9610-9706	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	9707-9905	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	9906-	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	9906-				●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	01	1	9610-9702	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	01	1	9703-9905	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	01	1	9906-				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	02	1	9606-9609	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	9610-9706	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	9707-9905	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	02	1	9906-	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	9906-				●
9	VALVE ASM; UNLOADER,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	01	1	9610-9702	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	01	1	9703-9905	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	01	1	9906-				●
10	SHIM; AIR CMPR	9-19139-021-0	02	1	9606-9609	●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	9610-9706	●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	9707-9905	●	●
10	SHIM; AIR CMPR	9-19139-021-0	02	1	9906-	●		●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	9906-				●
10	SHIM; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	01	1	9610-9702	●
10	SHIM; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	01	1	9703-9905	●
10	SHIM; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	01	1	9906-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9606-9609	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9610-9706	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9707-9905	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9906-	●		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9906-				●
12	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9610-9702	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9703-9905	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9906-				●
13	GASKET; AIR CMPR	1-19139-001-0	02	1	9606-9606	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9607-9609	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9610-9706	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9707-9905	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9906-	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9906-				●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9610-9702	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9703-9905	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9906-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9606-9609	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9610-9706	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9707-9905	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9906-	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9906-				●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9610-9702	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9703-9905	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9906-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-0	02	1	9606-9609	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9610-9706	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9707-9905	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	9906-	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9906-				●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9610-9702	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9703-9905	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9906-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9606-9609	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9610-9706	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9707-9905	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9906-	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9906-				●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9610-9702	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9703-9905	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9906-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	9606-9609	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	9610-9706	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	9707-9905	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	9906-	●		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	9906-				●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	9610-9702	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	9703-9905	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	9906-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	9606-9609	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	9610-9706	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	9707-9905	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	9906-	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	9906-				●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-014-0	01	1	9610-9702	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-014-0	01	1	9703-9905	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-014-0	01	1	9906-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	9606-9609	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	9610-9706	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	9707-9905	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	9906-	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	9906-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9610-9905	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9906-				●
27	BOLT; HD M10X60	9-01066-060-0	07	1	9606-9609	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	9610-9706	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	9707-9905	●	●
27	BOLT; HD M10X60	9-01066-060-0	07	1	9906-	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	9906-				●
27	BOLT; HD EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	04	1	9610-9702	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	04	1	9703-9905	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	04	1	9906-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	9606-9609	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	9610-9706	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	9707-9905	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	9906-	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	9906-				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9610-9905	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9906-				●
38	BOLT; COVER FIX	1-19159-016-0	07	1	9606-9706	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	9707-9905	●	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	9906-	●		●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	08	1	9606-9609	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9610-9706	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9707-9905	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	08	1	9906-	●		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9906-				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9610-9612	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9701-9701	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9702-9905	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9906-				●
44	STUD; CYL HD,AIR CMPR	1-19119-019-1	01	1	9606-9609	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-019-1	01	1	9610-9706	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-019-1	01	1	9707-9905	●	●
44	STUD; CYL HD,AIR CMPR	1-19119-019-1	01	1	9906-	●		●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-019-1	01	1	9906-				●
46	SPACER; BRG	1-19179-016-0	01	1	9606-9706	●
46	SPACER; BRG	1-19179-016-0	01	1	9707-9905	●	●
46	SPACER; BRG	1-19179-016-0	01	1	9906-	●		●	●
47	BRACKET; PIPE	1-19119-022-1	01	1	9606-9606	●
47	BRACKET; PIPE	1-19119-028-0	02	1	9607-9609	●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	9610-9706	●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	9707-9905	●	●
47	BRACKET; PIPE	1-19119-028-0	02	1	9906-	●		●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	9906-				●
47	BRACKET; PIPE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-029-0	01	1	9610-9702	●
47	BRACKET; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-029-0	01	1	9703-9905	●
47	BRACKET; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-029-0	01	1	9906-				●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9606-9706	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9707-9905	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9906-	●		●	●

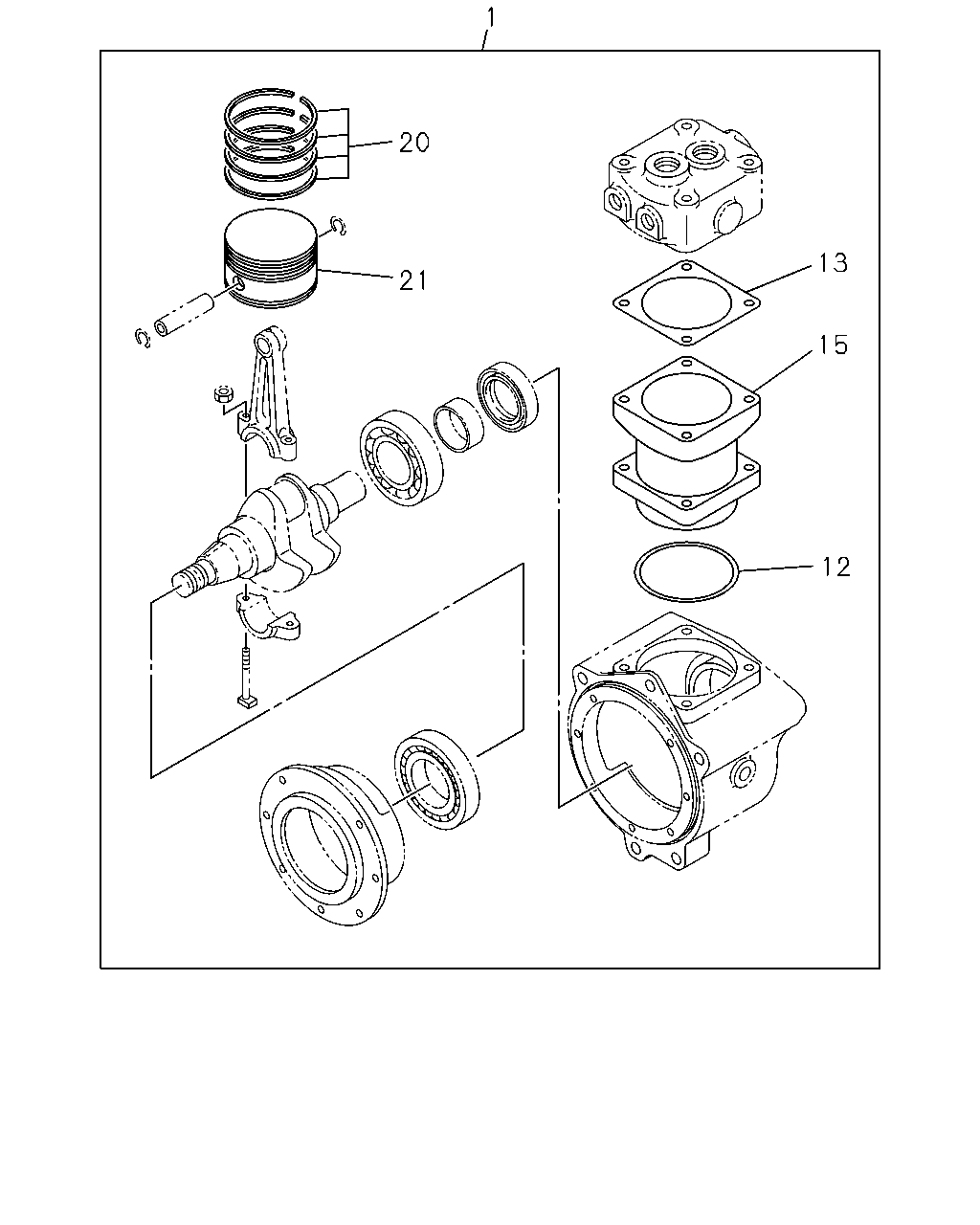

1 20 13 21 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-054-0	02	1	9606-9606	●
1	LINER KIT; CYL,AIR CMPR	1-19163-060-0	02	1	9607-9609	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	9610-9706	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	9707-9905	●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-060-1	02	1	9906-	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	9906-				●
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	01	1	9610-9702	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	01	1	9703-9905	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	01	1	9906-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9606-9609	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9610-9706	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9707-9905	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9906-	●		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9906-				●
12	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9610-9702	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9703-9905	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9906-				●
13	GASKET; AIR CMPR	1-19139-001-0	02	1	9606-9606	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9607-9609	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9610-9706	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9707-9905	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9906-	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9906-				●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9610-9702	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9703-9905	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9906-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9606-9609	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9610-9706	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9707-9905	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9906-	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9906-				●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9610-9702	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9703-9905	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9906-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-0	02	1	9606-9609	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9610-9706	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9707-9905	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	9906-	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9906-				●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9610-9702	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9703-9905	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9906-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9606-9609	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9610-9706	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9707-9905	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9906-	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9906-				●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9610-9702	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9703-9905	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9906-				●

1 1 13 15 13 12 15 12 20 20 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-054-0	02	1	9606-9606	●
1	LINER KIT; CYL,AIR CMPR	1-19163-060-0	02	1	9607-9609	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	9610-9706	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	9707-9905	●	●
1	LINER KIT; CYL,AIR CMPR	1-19163-060-1	02	1	9906-	●		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	9906-				●
1	LINER KIT; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	01	1	9610-9702	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	01	1	9703-9905	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	01	1	9906-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9606-9609	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9610-9706	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9707-9905	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9906-	●		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9906-				●
12	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9610-9702	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9703-9905	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9906-				●
13	GASKET; AIR CMPR	1-19139-001-0	02	1	9606-9606	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9607-9609	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9610-9706	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9707-9905	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9906-	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9906-				●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9610-9702	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9703-9905	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9906-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9606-9609	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9610-9706	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9707-9905	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9906-	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9906-				●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9610-9702	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9703-9905	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9906-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-0	02	1	9606-9609	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9610-9706	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9707-9905	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	9906-	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9906-				●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9610-9702	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9703-9905	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9906-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9606-9609	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9610-9706	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9707-9905	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9906-	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9906-				●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9610-9702	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9703-9905	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9906-				●

9 27 27 20 10 21 47 23 25 8 23 7 48 13 3 15 24 30 43 12 4 3 46 3 6 38 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR	1-19151-269-4	01	1	9606-9609	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-4	01	1	9610-9706	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-5	01	1	9707-9905	●	●
2	CRANKCASE; AIR CMPR	1-19151-269-5	01	1	9906-	●		●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-5	01	1	9906-				●
2	CRANKCASE; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-270-2	01	1	9610-9702	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-270-2	01	1	9703-9905	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-270-2	01	1	9906-				●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	9606-9706	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	9707-9905	●	●
3	BEARING; AIR CMPR (A)	1-09800-232-0	01	1	9906-	●		●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	9606-9706	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	9707-9905	●	●
3	BEARING; AIR CMPR (B)	1-09800-246-0	02	1	9906-	●		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	9606-9609	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	9610-9706	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	9707-9905	●	●
4	CRANKSHAFT; AIR CMPR	1-19171-068-0	01	1	9906-	●		●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-068-0	01	1	9906-				●
4	CRANKSHAFT; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-067-0	01	1	9610-9702	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-067-0	01	1	9703-9905	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-067-1	01	1	9906-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	9606-9706	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	9707-9905	●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-068-1	01	1	9906-	●		●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9606-9706	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9707-9905	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9906-	●		●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	9606-9609	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	9610-9706	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	9707-9905	●	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-016-0	02	1	9906-	●		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	9906-				●
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	01	1	9610-9702	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	01	1	9703-9905	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	01	1	9906-				●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	02	1	9606-9609	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	9610-9706	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	9707-9905	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-021-1	02	1	9906-	●		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	9906-				●
9	VALVE ASM; UNLOADER,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	01	1	9610-9702	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	01	1	9703-9905	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	01	1	9906-				●
10	SHIM; AIR CMPR	9-19139-021-0	02	1	9606-9609	●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	9610-9706	●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	9707-9905	●	●
10	SHIM; AIR CMPR	9-19139-021-0	02	1	9906-	●		●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	9906-				●
10	SHIM; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	01	1	9610-9702	●
10	SHIM; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	01	1	9703-9905	●
10	SHIM; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	01	1	9906-				●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9606-9609	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9610-9706	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9707-9905	●	●
12	GASKET; AIR CMPR	1-19623-539-0	02	1	9906-	●		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	9906-				●
12	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9610-9702	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9703-9905	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	01	1	9906-				●
13	GASKET; AIR CMPR	1-19139-001-0	02	1	9606-9606	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9607-9609	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9610-9706	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9707-9905	●	●
13	GASKET; AIR CMPR	1-19139-017-1	02	1	9906-	●		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	02	1	9906-				●
13	GASKET; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9610-9702	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9703-9905	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19139-017-1	01	1	9906-				●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9606-9609	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9610-9706	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9707-9905	●	●
15	CYLINDER; AIR CMPR	1-19151-251-0	02	1	9906-	●		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	9906-				●
15	CYLINDER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9610-9702	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9703-9905	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	01	1	9906-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-0	02	1	9606-9609	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9610-9706	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9707-9905	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	02	1	9906-	●		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	9906-				●
20	RING KIT; PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9610-9702	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9703-9905	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	01	1	9906-				●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9606-9609	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9610-9706	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9707-9905	●	●
21	PISTON; AIR CMPR	1-19161-016-0	02	1	9906-	●		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	9906-				●
21	PISTON; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9610-9702	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9703-9905	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	01	1	9906-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	9606-9609	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	9610-9706	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	9707-9905	●	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	04	1	9906-	●		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	9906-				●
23	RING; SNAP,PISTON,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	9610-9702	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	9703-9905	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	02	1	9906-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	9606-9609	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	9610-9706	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	9707-9905	●	●
24	ROD ASM; CONN,AIR CMPR	1-19173-006-0	02	1	9906-	●		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	9906-				●
24	ROD ASM; CONN,AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-014-0	01	1	9610-9702	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-014-0	01	1	9703-9905	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-014-0	01	1	9906-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	9606-9609	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	9610-9706	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	9707-9905	●	●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	02	1	9906-	●		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	9906-				●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9610-9905	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9906-				●
27	BOLT; HD M10X60	9-01066-060-0	07	1	9606-9609	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	9610-9706	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	9707-9905	●	●
27	BOLT; HD M10X60	9-01066-060-0	07	1	9906-	●		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	07	1	9906-				●
27	BOLT; HD EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	04	1	9610-9702	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	04	1	9703-9905	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X60	9-01066-060-0	04	1	9906-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	9606-9609	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	9610-9706	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	9707-9905	●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	08	1	9906-	●		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	9906-				●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9610-9905	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9906-				●
38	BOLT; COVER FIX	1-19159-016-0	07	1	9606-9706	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	9707-9905	●	●
38	BOLT; COVER FIX	1-19159-016-0	07	1	9906-	●		●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	08	1	9606-9609	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9610-9706	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9707-9905	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	08	1	9906-	●		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	9906-				●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9610-9612	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9701-9701	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9702-9905	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9906-				●
46	SPACER; BRG	1-19179-016-0	01	1	9606-9706	●
46	SPACER; BRG	1-19179-016-0	01	1	9707-9905	●	●
46	SPACER; BRG	1-19179-016-0	01	1	9906-	●		●	●
47	BRACKET; PIPE	1-19119-022-1	01	1	9606-9606	●
47	BRACKET; PIPE	1-19119-028-0	02	1	9607-9609	●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	9610-9706	●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	9707-9905	●	●
47	BRACKET; PIPE	1-19119-028-0	02	1	9906-	●		●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	9906-				●
47	BRACKET; PIPE EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-029-0	01	1	9610-9702	●
47	BRACKET; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-029-0	01	1	9703-9905	●
47	BRACKET; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-029-0	01	1	9906-				●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9606-9706	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9707-9905	●	●
48	SLEEVE; CR/SHF	1-19179-018-0	01	1	9906-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
