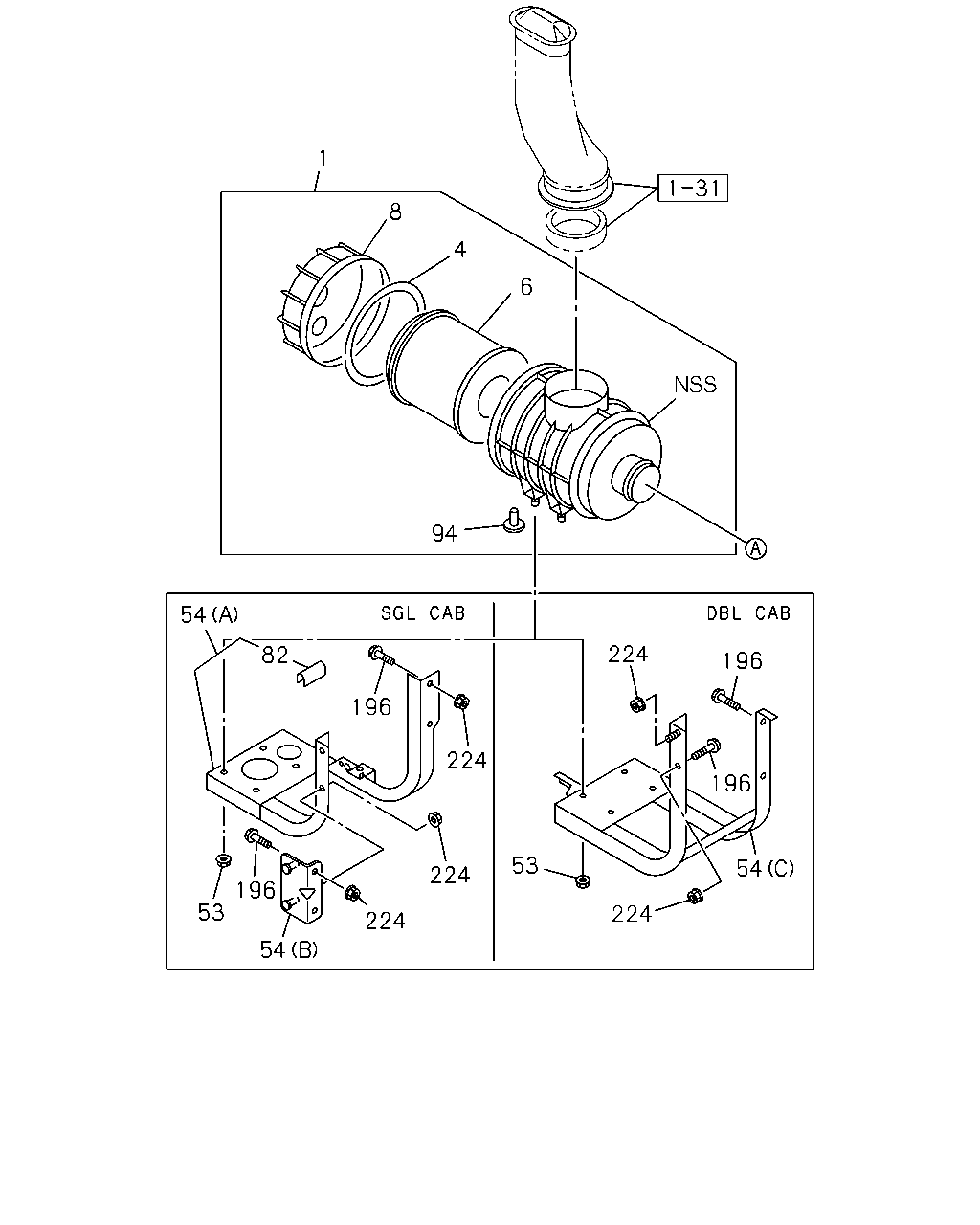

1-30 — AIR CLEANER (#49937) — 52 parça

1 8 4 6 94 54 224 82 196 196 224 196 53 54 224 196 53 224 224 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR	8-98050-415-2	01	1	0710-	●	●	●	●	●	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	0710-	●	●	●	●	●	●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	0710-	●	●	●	●	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	0710-	●	●	●	●	●	●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	0710-	●	●	●	●	●	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-	●	●	●	●	●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> (A)	8-98251-988-0	01	1	1401-		●	●
54	03.405 BRACKET; ACL (A)	8-98026-092-3	01	1	0710-0803	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) (A)	8-98026-092-3	01	1	0710-0803		●
54	03.405 BRACKET; ACL (A)	8-98026-092-3	01	1	0804-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98026-092-3	01	1	0804-		●
54	03.405 BRACKET; ACL (B)	8-98070-835-3	01	1	0710-0803	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB) (B)	8-98070-835-3	01	1	0710-0803		●
54	03.405 BRACKET; ACL (B)	8-98070-835-3	01	1	0804-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B)	8-98070-835-3	01	1	0804-		●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-125-1	01	1	0710-0802		●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-125-1	01	1	0710-0802			●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-125-1	01	1	0803-0803		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) (B)	8-98032-125-1	01	1	0803-0803			●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-125-1	01	1	0804-		●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-140-3	01	1	0710-0802		●
54	03.405 BRACKET; ACL FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-140-3	01	1	0710-0802			●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-140-3	01	1	0803-0803		●
54	03.405 BRACKET; ACL 4HK1-TCS ENG(RJS) (A)	8-98047-140-3	01	1	0803-0803			●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-98047-140-3	01	1	0804-1312		●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98047-140-3	01	1	1401-		●	●
54	03.405 BRACKET; ACL (C)	8-98061-669-1	01	1	0710-0803				●
54	03.405 BRACKET; ACL (C)	8-98061-669-1	01	1	0804-				●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (C)	8-98061-669-1	01	1	0804-					●
54	03.405 BRACKET; ACL (C)	8-98023-879-3	01	1	0710-0803					●	●
54	03.405 BRACKET; ACL 4HK1-TCN ENG(RDQ) (C)	8-98023-879-3	01	1	0804-					●
54	03.405 BRACKET; ACL (C)	8-98023-879-3	01	1	0804-						●
82	03.403 PROTECTOR 03.671	8-97327-172-0	01	1	0710-0803	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB) 03.671	8-97327-172-0	01	1	0710-0803		●
82	03.403 PROTECTOR 03.671	8-97327-172-0	01	1	0804-	●
82	03.403 PROTECTOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.671	8-97327-172-0	01	1	0804-		●
94	03.415 VALVE; VACUATOR	8-97352-112-0	01	1	0710-0907	●	●	●	●	●	●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	0908-	●	●	●	●	●	●
196	03.417 BOLT; BRKT,ACL 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●
196	03.417 BOLT; BRKT,ACL 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●
196	03.417 BOLT; BRKT,ACL 02.277 M10X35 FLANGE	0-28651-035-0	03	1	0710-				●	●	●
224	03.407 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	05	1	0803-0803		●
224	03.407 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	05	1	0803-0803			●
224	03.407 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	05	1	0804-		●	●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	0710-0802	●	●	●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	0803-0803	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	06	1	0803-0803		●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	06	1	0804-	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	06	1	0804-		●
224	03.407 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●	●	●

256

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

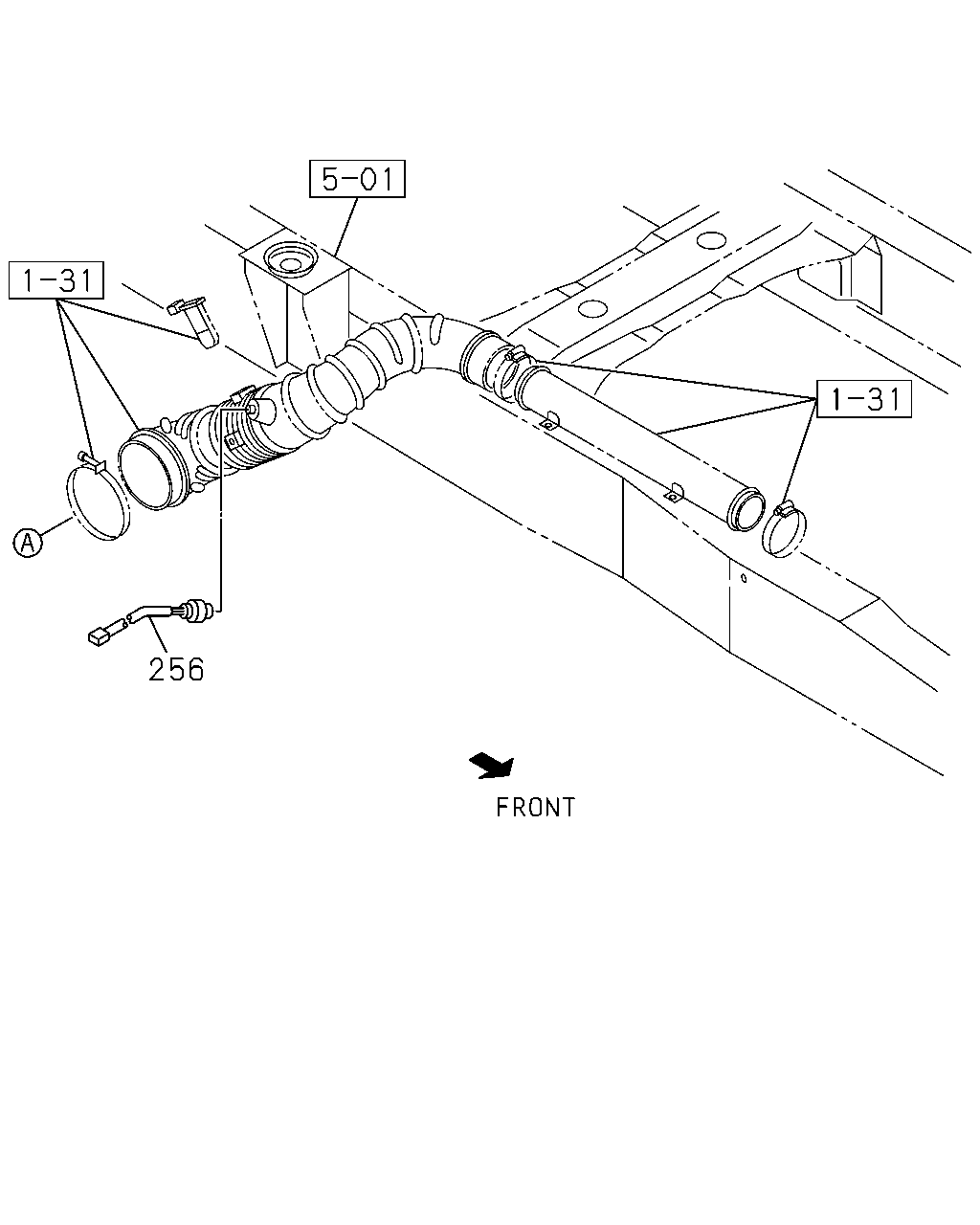

	256	03.405 SENSOR; AIRFLOW MULTI INFORMATION DISPLAY<7NY>	8-98081-565-1	01	1	0710-0912		●	●
	256	03.405 SENSOR; AIRFLOW MULTI INFORMATION DISPLAY<7NY>	8-98156-478-1	01	1	1001-		●	●
