0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#49929) — 219 parça

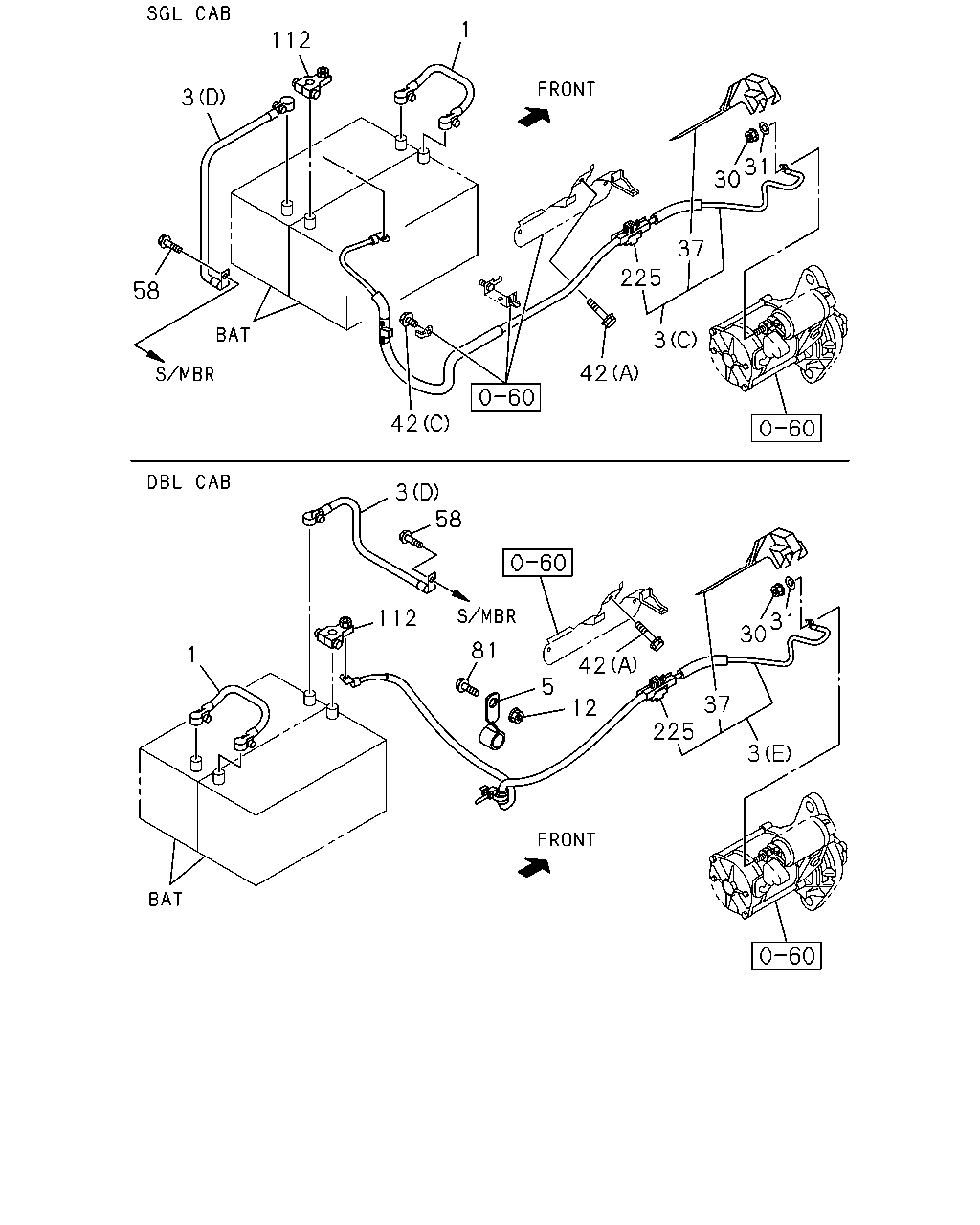

çizim 156064
1 112 3 31 30 37 225 58 3 42 42 3 5 112 31 30 81 1 42 5 37 225 12 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0710-0906 ● ● ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0907- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98137-187-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98294-738-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98148-114-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-740-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98148-113-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-739-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-880-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-0 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0710-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 0804- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0804- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98046-378-4 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98293-917-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-149-1 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98077-149-1 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-729-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98070-228-2 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-719-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98070-229-2 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-720-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0710-1203 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98070-232-3 01 1 0710-0712 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-0 01 1 0801-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-0 01 1 0804-0905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) 		8-98108-588-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) 		8-98294-733-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-728-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 0710- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0710-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0710-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-142-2 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-731-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-139-2 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-730-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 0710- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-2 01 1 0710-0905 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98077-147-3 01 1 0710-0712 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-590-1 01 1 0801-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-735-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-143-3 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-727-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98077-146-3 01 1 0710-0712 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-589-1 01 1 0801-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-734-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98077-148-3 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98099-104-0 01 1 0710-0712 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-591-1 01 1 0801-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-736-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-145-3 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-103-1 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-732-0 01 1 1410- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
DBL CAB(NP**W*) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 0710- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0710-0803 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0804- ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0710-0803 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0804- ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0710-0803 ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0804- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0710-0803 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0710-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0804-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0804-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DUMP CHASSIS(V4D) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 0710- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-0811 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ●
81 02.559 BOLT; BATTERY CABLE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0710-0906 ● ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0907- ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0710-0803 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-1409 ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ●

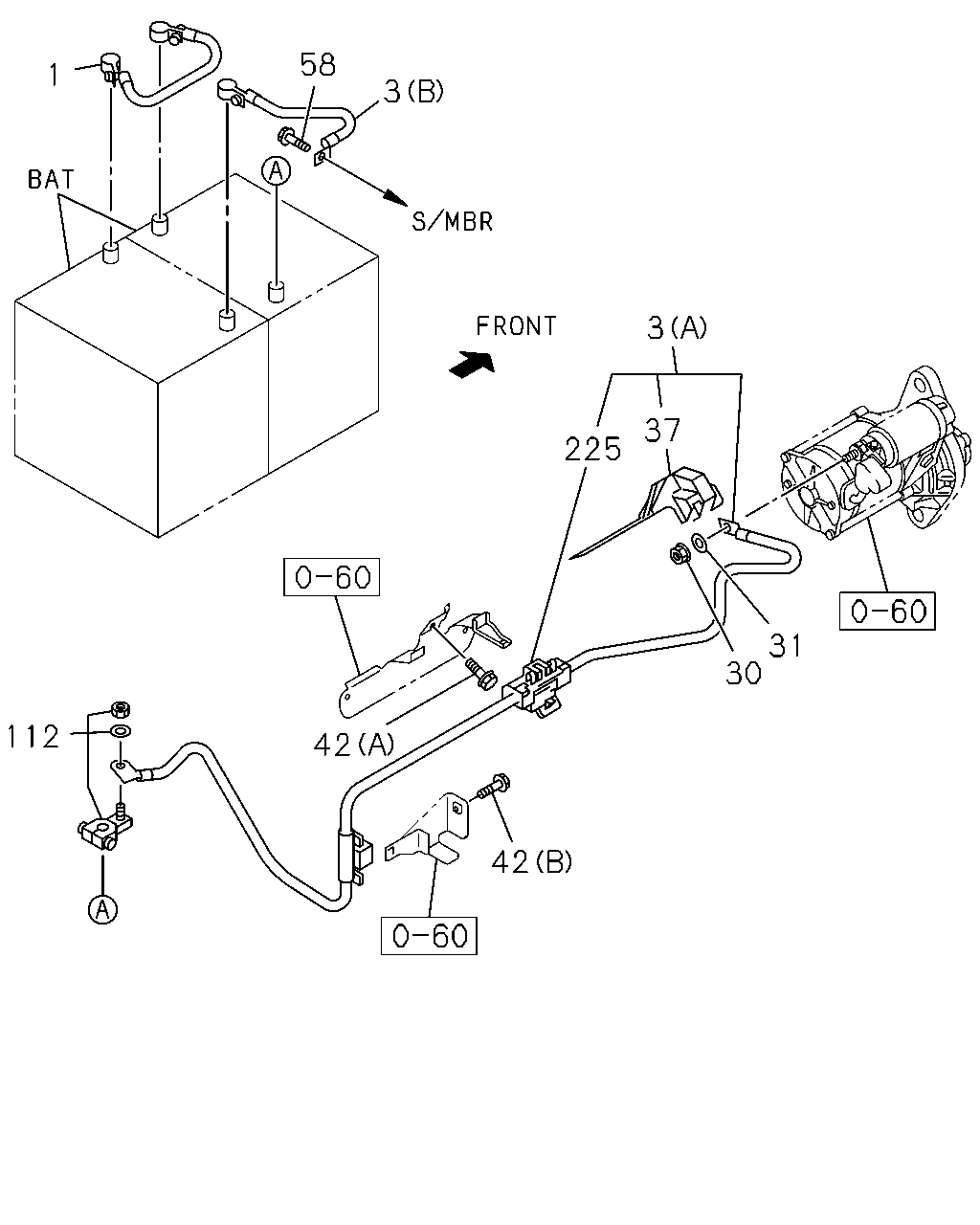

çizim 156078
58 1 3 3 37 225 31 30 112 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0710-0906 ● ● ● ●
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0907- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98137-187-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D) (C) 		8-98294-738-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98148-114-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-740-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98148-113-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-739-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-880-1 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-0 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-0 01 1 0710-0803 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 0804- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 0804- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98046-378-4 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98293-917-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-149-1 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98077-149-1 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-729-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98070-228-2 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98294-719-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98070-229-2 01 1 0804-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98294-720-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 0710-1203 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98070-232-3 01 1 0710-0712 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-0 01 1 0801-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-588-0 01 1 0804-0905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) 		8-98108-588-1 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (E) 		8-98294-733-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 0710-0803 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-144-3 01 1 0804-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**WN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-728-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=250 		8-98056-338-1 01 1 0710- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-2 01 1 0710-0804 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-3 01 1 0805-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-1 01 1 0710-0812 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 0901-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NQR SGL CAB(NP**SS) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98077-140-2 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-725-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-142-2 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-731-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-139-2 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-730-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) BATTERY 115E41L<8MA> (D) L=450 		8-98072-275-1 01 1 0710- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-231-2 01 1 0710-0905 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 0906-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98077-147-3 01 1 0710-0712 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-590-1 01 1 0801-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-735-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-143-3 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-727-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98077-146-3 01 1 0710-0712 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98108-589-1 01 1 0801-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (E) 		8-98294-734-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98077-148-3 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98099-104-0 01 1 0710-0712 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98108-591-1 01 1 0801-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (E) 		8-98294-736-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-145-3 01 1 0710-0710 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-103-1 01 1 0710-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NP**W*) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-732-0 01 1 1410- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0710-0803 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0804- ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0710-0803 ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0804- ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0710-0803 ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 0804- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0710-0803 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0710-0803 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0804-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0804-0809 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DUMP CHASSIS(V4D) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0810- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (A) M6X16 FLANGE 		8-97329-599-0 01 1 0710- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-0811 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0812-1004 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0710-0906 ● ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0907- ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0710-0803 ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 0804-1409 ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
