0-60 — ENGINE ELECTRICAL CONTROL PARTS (#49928) — 283 parça

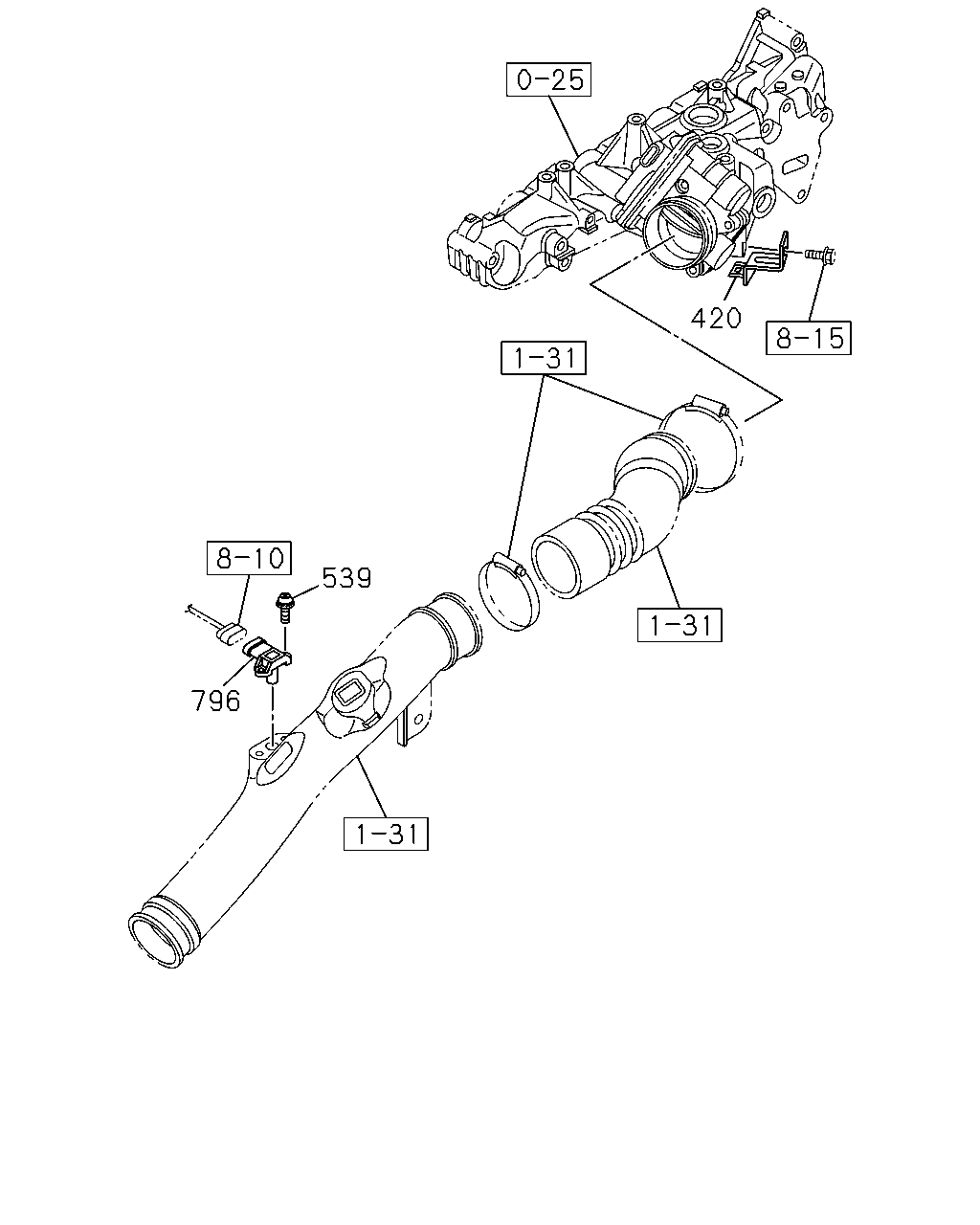

çizim 156022
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C D
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 0710-0803 ●
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 0804- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0710-0803 ● ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0804- ● ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0710-0803 ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0804- ● ● ● ●

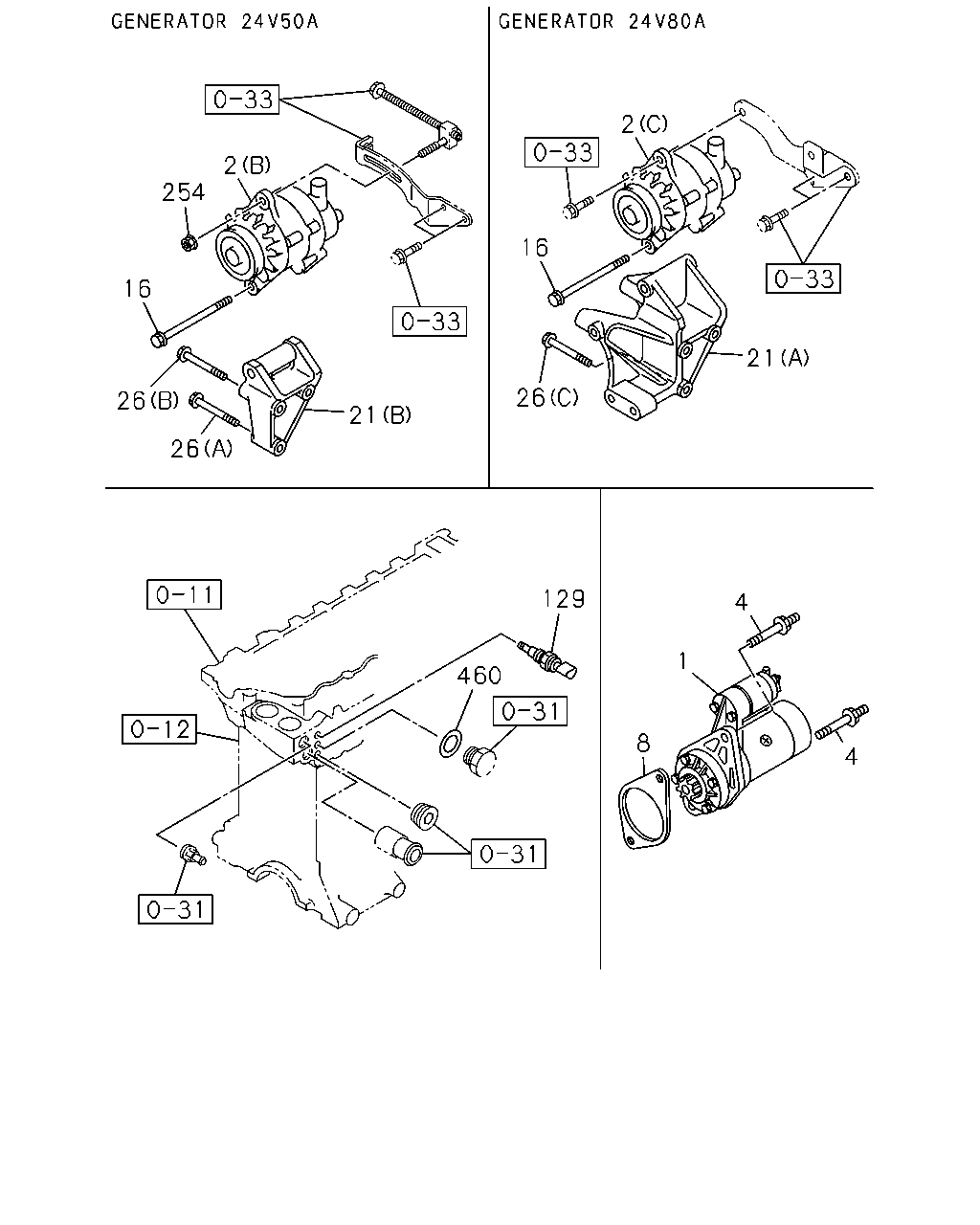

çizim 156025
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0710-0803 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0804-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-0803 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0804-1006 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0710-0803 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0804-1010 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0710-0803 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0804- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0710-0803 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0804- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0710- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-892-2 01 1 0710- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0710-0803 ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0804- ● ● ● ●
8 02.042 SPACER; STARTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 0710- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0710-0803 ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0804- ● ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (B) 		8-97075-884-2 01 1 0710- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (A) 		8-98036-551-0 01 1 0710- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0710- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0710- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0710- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0710-0803 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0804- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0710-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0710- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0710- ● ●

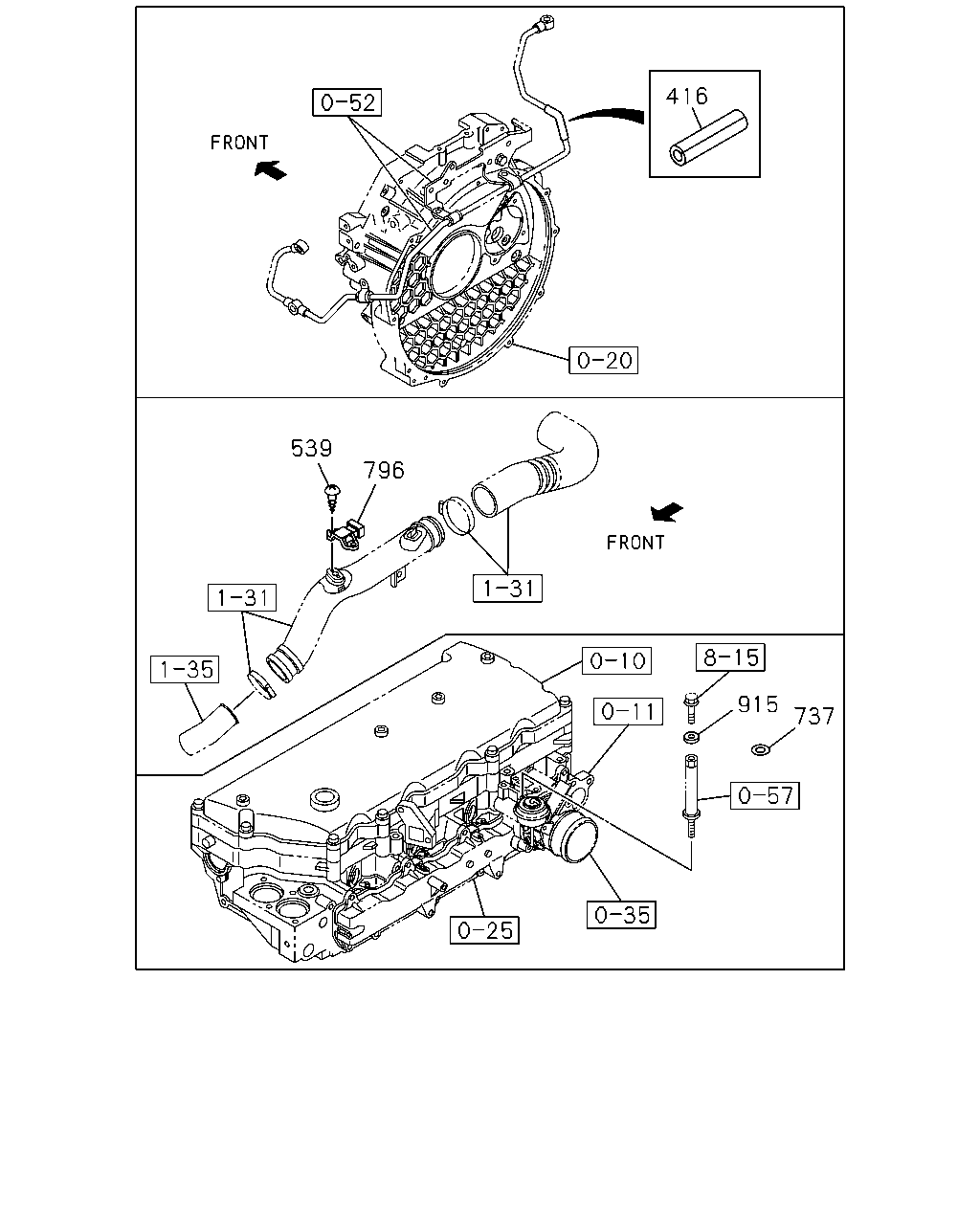

çizim 156031
416 539 796 915 737
BalonParca AdiParca NoAdetTipApplied Date A B C D
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-0710 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0710-0803 ● ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0804- ● ● ● ●
737 03.901 WASHER; PL
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.413 ID=6.4 		0-91610-606-0 01 1 0907- ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0710-0803 ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0804- ● ● ● ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.662 ID=8.4 OD=19 		5-11779-001-0 01 1 0804-1301 ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.275 ID=9 OD=18 T=5 		9-14149-173-0 01 1 1302- ●

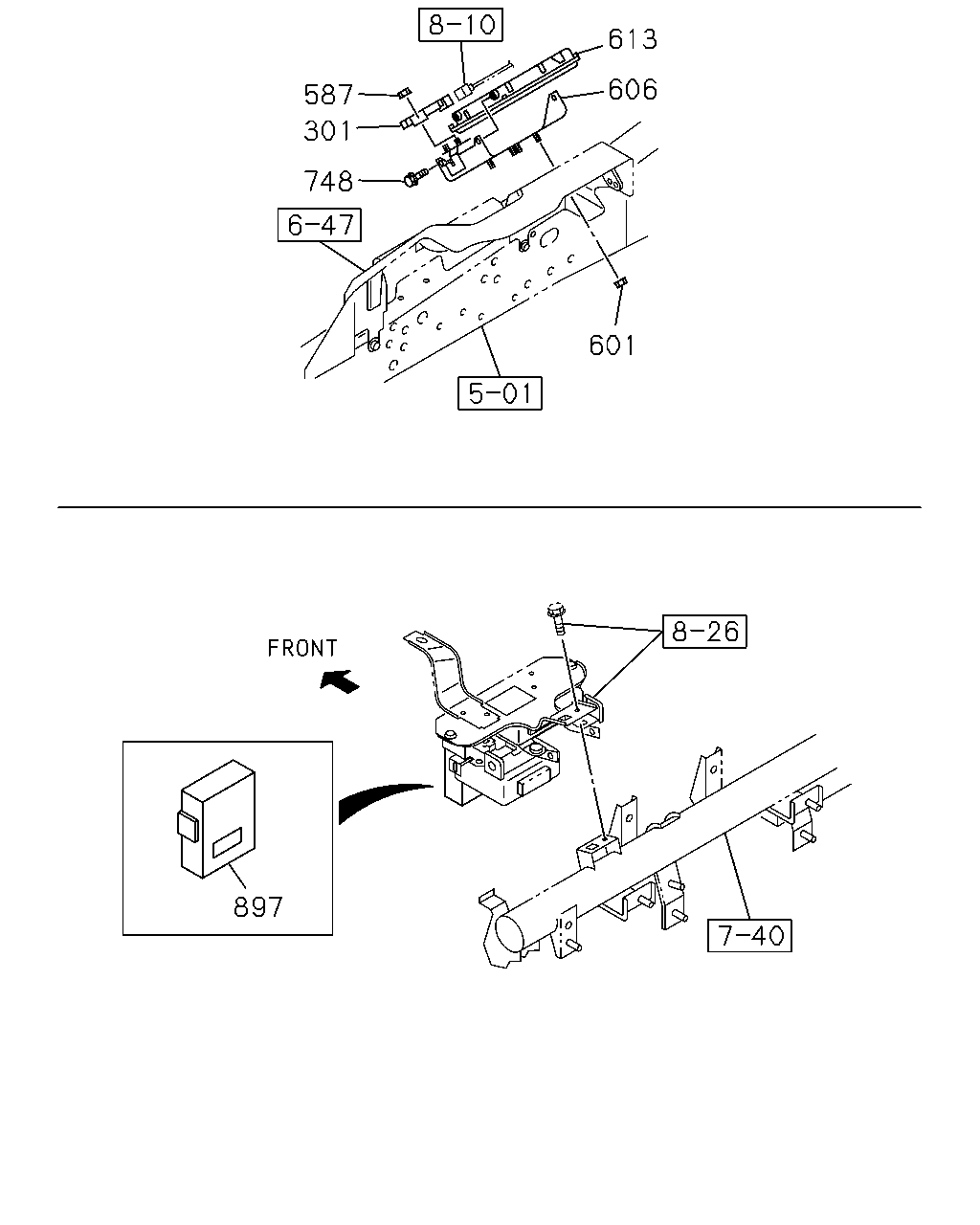

çizim 156034
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B C D
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0710-0803 ● ● ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0804- ●
301 02.510 RESISTOR; DROPPING
EURO4 SPECIFICATION(NT4) 		8-97357-613-0 01 1 0804- ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0710 ● ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803 ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ●
587 03.671 NUT; RESISTOR & RELAY
EURO4 SPECIFICATION(NT4) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0710- ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EURO3 SPECIFICATION(NT3) 		8-98114-583-2 01 1 0903-1402 ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1403- ● ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0710-0902 ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) 		8-98004-751-1 01 1 0903-0906 ● ● ● ●
606 03.680 BRACKET; CONT UNIT
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-98004-751-1 01 1 0907-1402 ● ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98299-047-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98299-049-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 02.510 		8-98299-048-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) ,IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 02.510 		8-98299-048-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),HONG KONGEQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC) ,MULTI INFORMATION DISPLAY<7NY> 02.510 		8-98299-048-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-459-0 01 1 0804-0804 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98120-025-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-459-2 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),IMMOBILIZER SYST EM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-459-2 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-459-3 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98229-603-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY>,G LOW SYSTEM DELETE<7RK> 		8-98229-603-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-461-0 01 1 0804-0804 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98120-026-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-461-2 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),IMMOBILIZER SYST EM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-461-2 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98115-461-3 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98229-605-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HON G KONG EQUIPMENT(B14),IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY>,G LOW SYSTEM DELETE<7RK> 		8-98229-605-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-063-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-056-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98066-065-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-060-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-053-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-055-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98066-062-9 01 1 0710-0803 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98066-062-9 01 1 0804- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL -SMOOTHER(8GF) 		8-98066-058-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-073-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-067-9 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-077-1 01 1 0804-0804 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98120-024-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-077-5 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MULTI INFORMATION DISPLAY<7NY> 		8-98081-077-5 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-077-6 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98229-604-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOW SYSTEM DELETE<7RK> 		8-98229-604-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98081-076-1 01 1 0804-0804 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98120-023-0 01 1 0804-0905 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98081-076-5 01 1 0906-1105 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),IMMOBILIZER SYSTEM(7KC),MULTI INF ORMATION DISPLAY<7NY> 		8-98081-076-5 01 1 1106-1106 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98081-076-6 01 1 1107-1209 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98229-602-0 01 1 1210-1501 ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY>,GLOW SYSTEM DELETE <7RK> 		8-98229-602-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98102-108-5 01 1 0804-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY>, GLOW SYSTEM DELETE<7RK> 		8-98102-108-5 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-076-5 01 1 0804-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY>,GLOW SYSTEM DELETE <7RK> 		8-98093-076-5 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98102-107-5 01 1 0804-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY>,GLOW SYSTEM DELETE <7RK> 		8-98102-107-5 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98093-088-5 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-077-5 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-084-5 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0) 		8-98081-073-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0),MULTI INFORMATION DISPL AY<7NY> 		8-98081-068-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0),MULTI INFORMATION DISPL AY<7NY> 		8-98081-071-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98093-090-5 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-079-5 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-086-5 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0) 		8-98071-296-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0),MULTI INFORMATION DISPL AY<7NY> 		8-98071-291-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0),MULTI INFORMATION DISPL AY<7NY> 		8-98071-293-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-092-4 01 1 0804-1501 ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) INDIA EQUIPMENT(B07),MALAYSIA EQUIPMENT(B10),AUSTRALIA EQUIPMENT(B13),HONG KONG EQUIPMENT(B14) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY>,GLOW SYSTEM DELETE <7RK> 		8-98093-092-4 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98081-079-2 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-093-4 01 1 0711- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-080-3 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0),MULTI INFORMATION DISPL AY<7NY> 		8-98081-080-7 01 1 0711- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98081-082-2 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98093-099-4 01 1 0711- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-086-2 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0) 		8-98081-086-6 01 1 0711- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98081-085-2 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EURO4 SPECIFICATION(NT4) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98093-102-4 01 1 0711- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-083-2 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14), SINGAPOREEQUIPMENT(2G0),MULTI INFORMATION DISPL AY<7NY> 		8-98081-083-6 01 1 0711- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-297-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-394-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
DBL CAB(NP**W*) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-392-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL -SMOOTHER(8GF) 		8-98066-050-5 01 1 0804-1111 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC),TRANSMISSION CONTROL -SMOOTHER(8GF) 		8-98191-757-0 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-048-5 01 1 0804-1111 ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) IMMOBILIZER SYSTEM(7KC) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-755-0 01 1 1112- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-049-5 01 1 0804-1111 ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98191-756-0 01 1 1112- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0710-0906 ● ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0907- ● ● ● ●
897 02.510 DRM
EXC. GENERATOR 24V80A(7YN) 		8-98082-814-7 01 1 0710-0803 ● ● ●
897 02.510 DRM
EXC. GENERATOR 24V80A(7YN) 		8-98082-814-7 01 1 0804- ● ● ● ●
çizim 156037
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0710- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0710-0906 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0907-1501 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502- ● ● ● ●

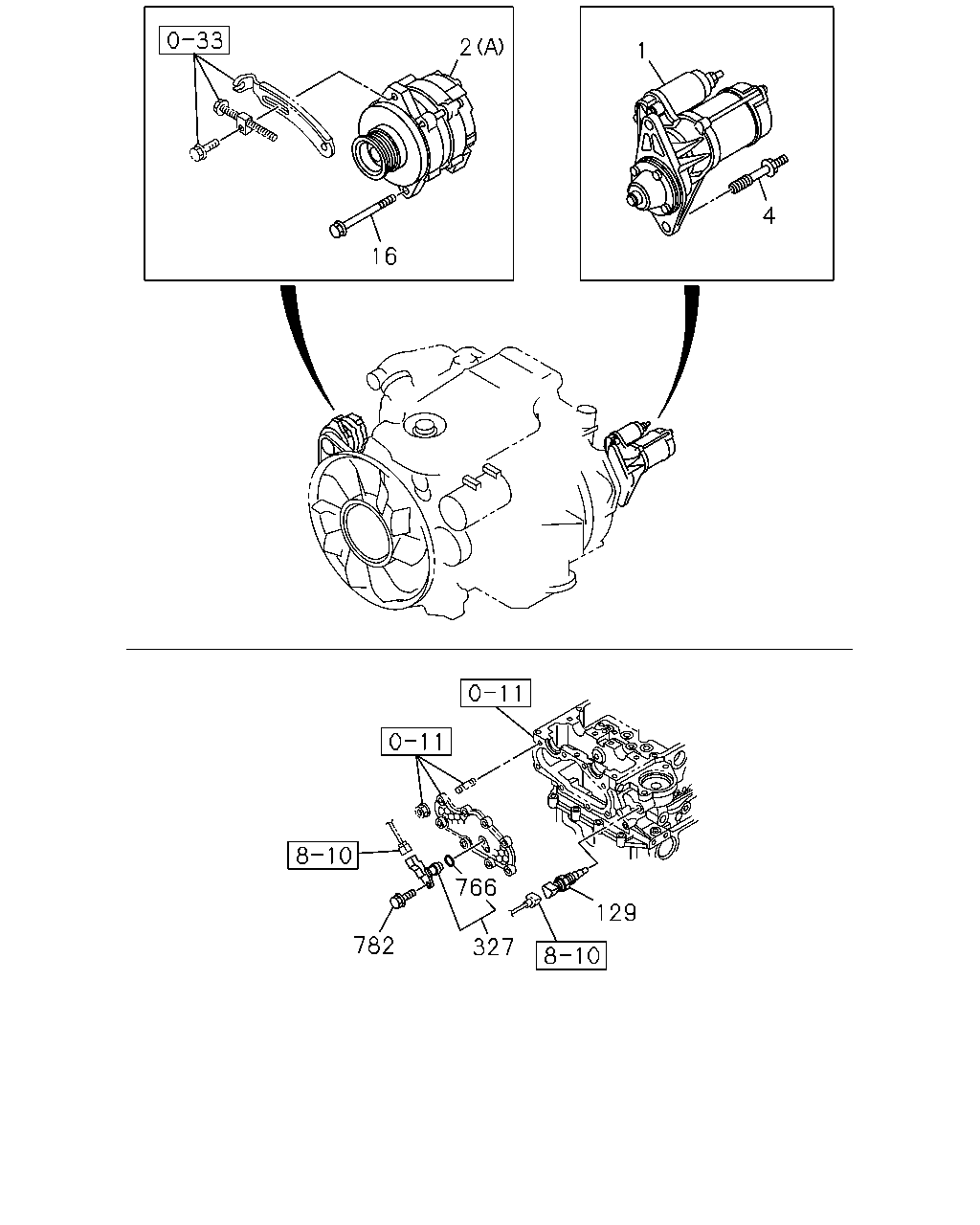

çizim 156039
2 1 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0710-0803 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0804-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-0803 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0804-1006 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0710-0803 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0804-1010 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0710-0803 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0804- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0710-0803 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0804- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0710- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-892-2 01 1 0710- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0710-0803 ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0804- ● ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0710-0803 ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0804- ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0710-0803 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0804- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0710-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0710-0803 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0804- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0710-0803 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0804- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0710-0803 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0804- ● ●
çizim 156059
393 393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C D
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 0809-0903 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 0904- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-0803 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0804-0809 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0804-0809 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0810-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DUMP CHASSIS(V4D) (E) 		8-98018-903-0 01 1 0810-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0810-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DUMP CHASSIS(V4D) (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710-0803 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0803-0808 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0803-0808 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0809-0903 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0809-0903 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 0904- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0904- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0803- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0803- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR(NP***N) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0710-0803 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR(NP***N) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0804- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0710-0804 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0805- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR SGL CAB(NP**SS) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0805- ● ●

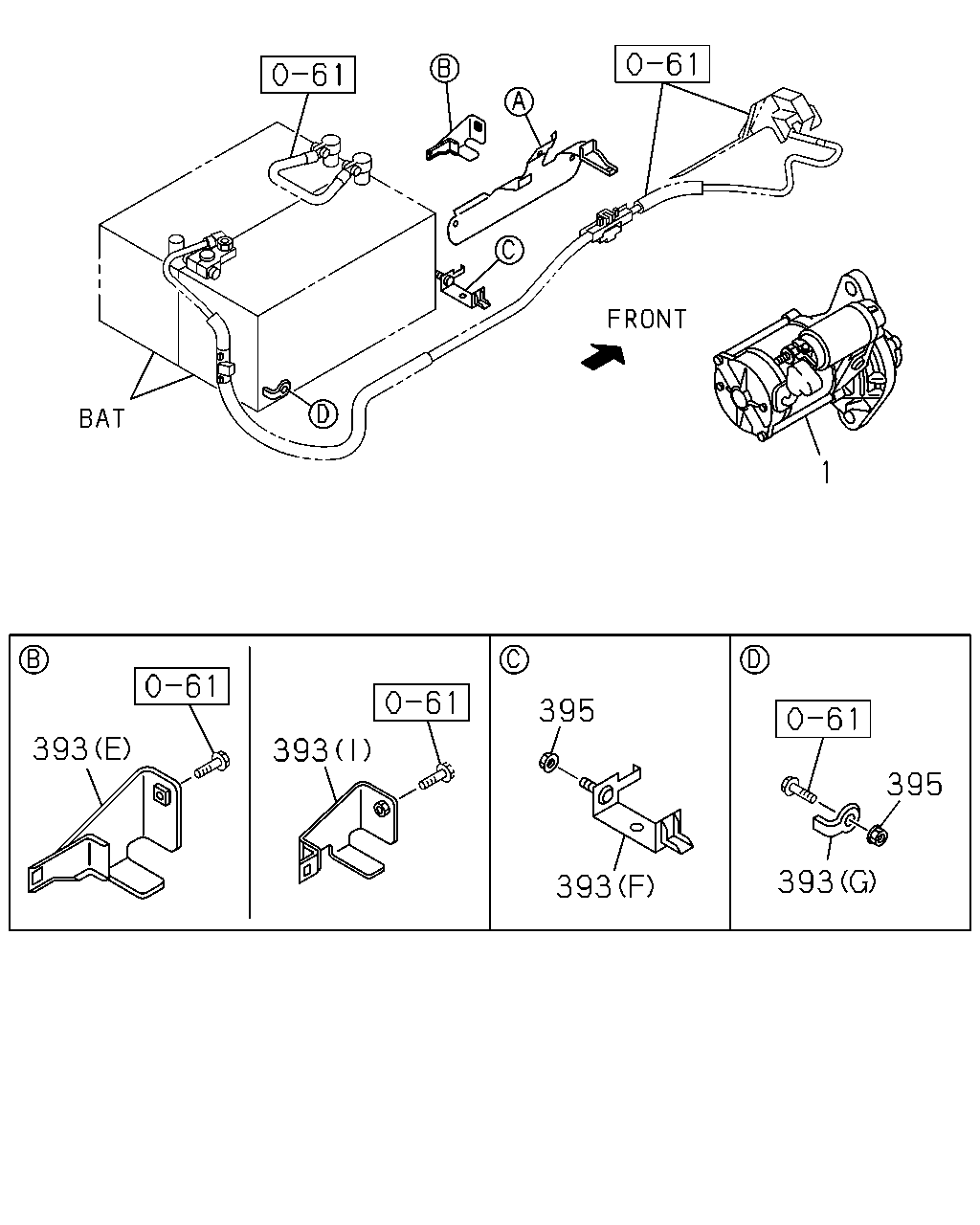

çizim 156069
1 395 393 393 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0710-0803 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0804-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-0803 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0804-1006 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0710-0803 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0804-1010 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011-1207 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 0809-0903 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 0904- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-0803 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0804-0809 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0804-0809 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0810-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DUMP CHASSIS(V4D) (E) 		8-98018-903-0 01 1 0810-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0810-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DUMP CHASSIS(V4D) (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710-0803 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710-0803 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0804- ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0803-0808 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0803-0808 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0809-0903 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0809-0903 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 0904- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0904- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (B) 		8-98030-138-2 01 1 0803- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0710-0802 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>,BATTERY 115E41L<8MA> (A) 		8-98030-139-2 01 1 0803- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR(NP***N) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0710-0803 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR(NP***N) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0804- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0710-0804 ● ●
393 02.343 BRACKET; HARNESS TO BODY
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0805- ● ●
393 02.343 BRACKET; HARNESS TO BODY
NQR SGL CAB(NP**SS) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0805- ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710-0804 ● ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
395 02.343 NUT; BRKT FIX
NQR SGL CAB(NP**SS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
395 02.343 NUT; BRKT FIX
NPR SGL CAB(NP**SN) EXC. DUMP CHASSIS(V4D),BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0805- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
