Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#49925) — 260 parça

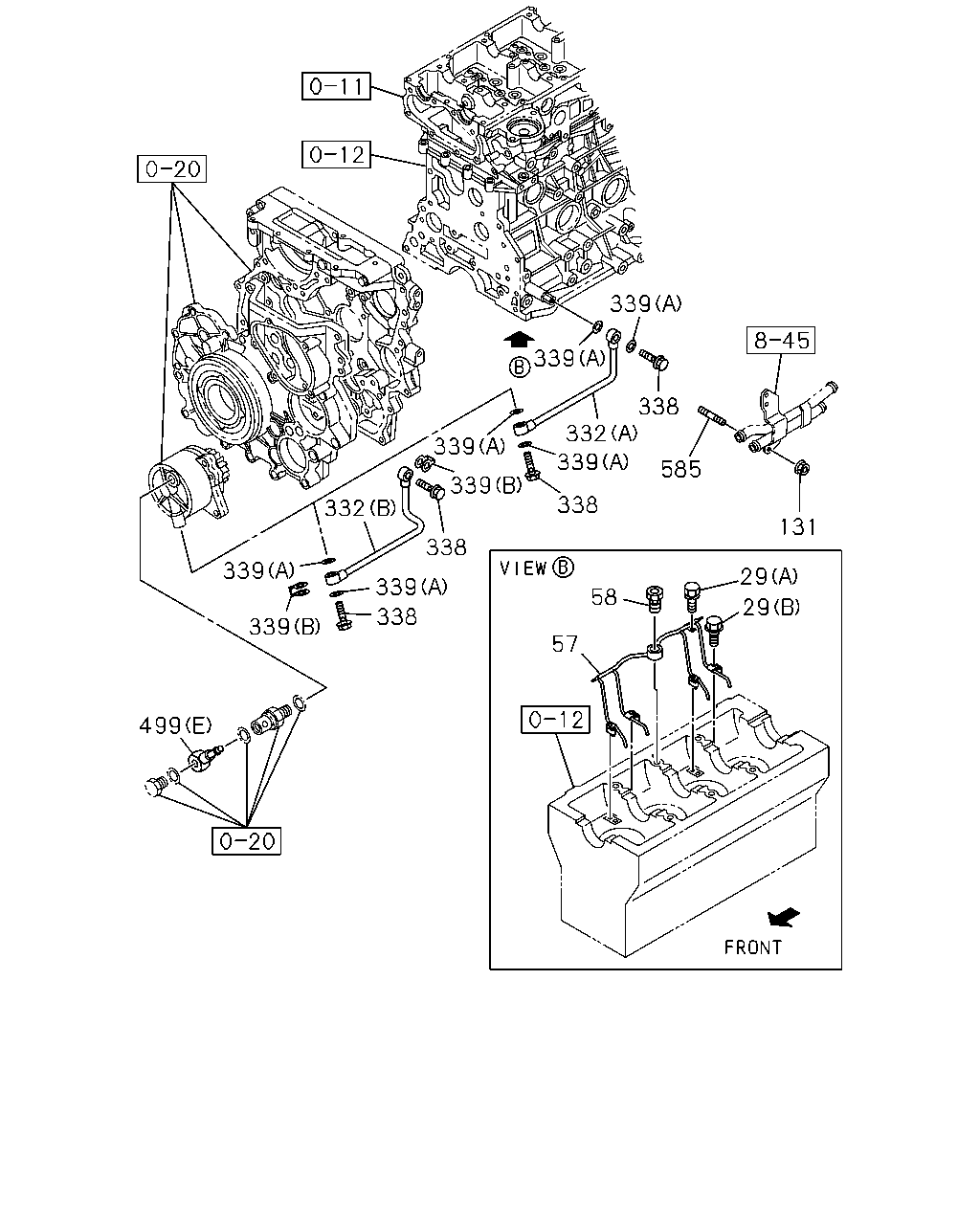

339 338 585 131 29 29 58 57 338 339 332 339 339 339 338 332 339 338 339 339 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0710-0803	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0710-0803	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0804-	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0710-0803	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0804-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0710-0803	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0804-1407	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-	●	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0710-0803	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0804-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0710-0803	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0804-0901	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0902-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1301-	●	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0710-0803	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0804-0901	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0710-0803	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0804-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (A)	8-97381-661-3	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-97385-434-1	01	1	0804-	●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (E)	8-98027-553-0	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (C)	8-98040-104-2	01	1	0710-0803			●	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (C)	8-98040-104-2	01	1	0804-			●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	0804-			●	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0710-0803	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0804-	●	●

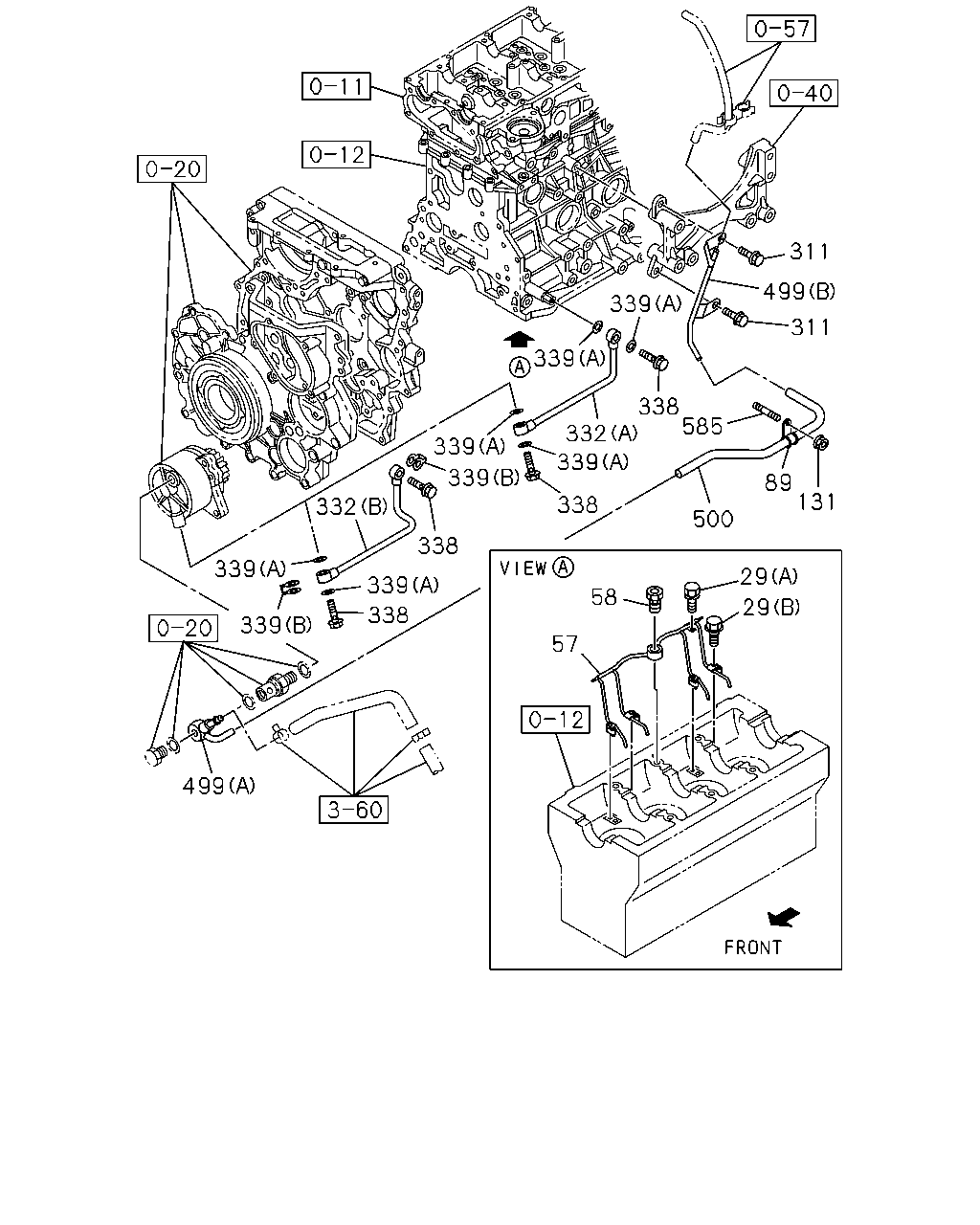

311 499 311 131 89 500 29 29 58 57 338 339 338 338 339 332 338 585 339 339 339 339 332 339 339 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0710-0803	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0710-0803	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0804-	●	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0710-0803	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	0804-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0710-0803	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0804-1407	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-	●	●
89	04.681 CLIP; VAC HOSE	9-09520-835-0	01	1	0710-0803	●
89	04.681 CLIP; VAC HOSE EURO4 SPECIFICATION(NT4)	9-09520-835-0	01	1	0804-	●	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0710-0803	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	0804-	●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0710-0803	●
311	01.531 BOLT; PIPE FIX EURO4 SPECIFICATION(NT4) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0804-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0710-0803	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-097-0	01	1	0804-0901	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	0902-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1301-	●	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0710-0803	●
338	01.531 BOLT; JOINT,OIL PIPE 03.162 M8X18 EYE-BOLT	1-09675-037-1	02	1	0804-0901	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	0902-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0710-0803	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0804-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (A)	8-97381-661-3	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-97385-434-1	01	1	0804-	●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (E)	8-98027-553-0	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (C)	8-98040-104-2	01	1	0710-0803			●	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (C)	8-98040-104-2	01	1	0804-			●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	0804-			●	●
500	04.681 HOSE; VACUUM	8-97369-587-1	01	1	0710-0803	●
500	04.681 HOSE; VACUUM EURO4 SPECIFICATION(NT4)	8-97369-587-1	01	1	0804-	●	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0710-0803	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	0804-	●	●

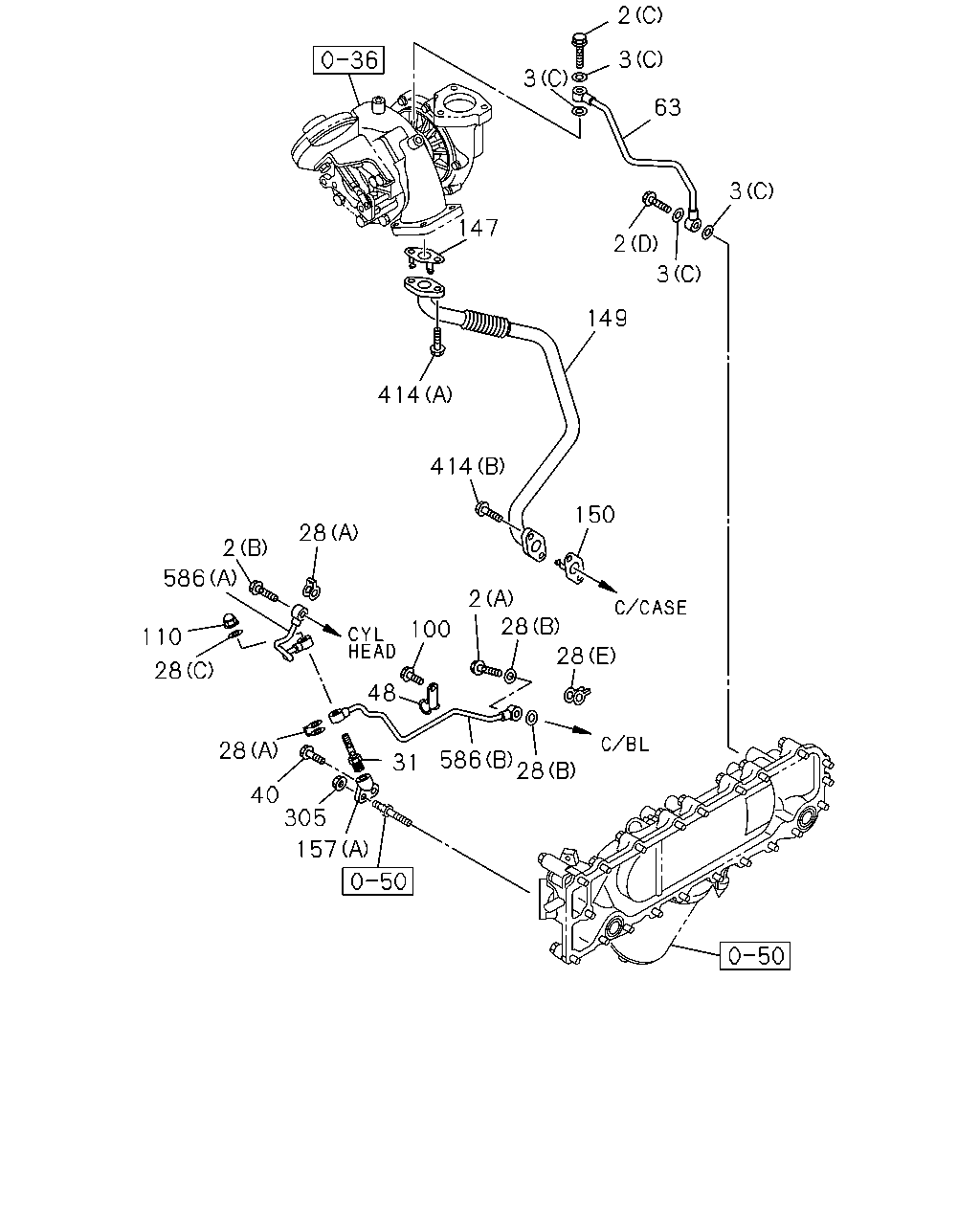

2 3 3 63 3 147 2 3 149 414 414 150 28 2 586 2 28 100 110 28 28 48 28 586 28 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0710-0803	●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	0804-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0710-0803	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	0804-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	0710-0803	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	0804-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0710-0803	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	0804-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	0710-0803	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	0804-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0803			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0804-1101			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0804-0902	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0803			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0804-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-			●	●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-0	01	1	0710-0803	●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	0804-	●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-0803	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-			●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98068-212-0	01	1	0710-0803	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98068-212-0	01	1	0804-0903	●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	0904-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0710-0803	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0804-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97386-643-2	01	1	0710-0803			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-97386-643-2	01	1	0804-1509			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98328-013-0	01	1	1510-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98092-070-0	01	1	0804-			●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	0710-0803	●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	0804-1309	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	0710-0803	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	0804-	●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-1	01	1	0710-0803	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	0804-	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0710-0803	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	0804-	●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (B)	8-98153-165-0	01	1	1003-			●	●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	0710-0803	●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	0804-	●	●
157	01.519 BRACKET; OIL PIPE (C)	8-98036-534-0	01	1	0710-0803			●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (C)	8-98036-534-0	01	1	0804-			●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98077-403-0	01	1	0804-1002			●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (B)	8-98077-403-0	01	1	1003-			●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B)	8-98077-403-0	01	1	1003-			●	●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-0803	●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-	●	●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0710-0803	●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	0804-1107	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-	●	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0710-0803	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	0804-	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0710-0803	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	0804-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0710-0803	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	0804-	●	●

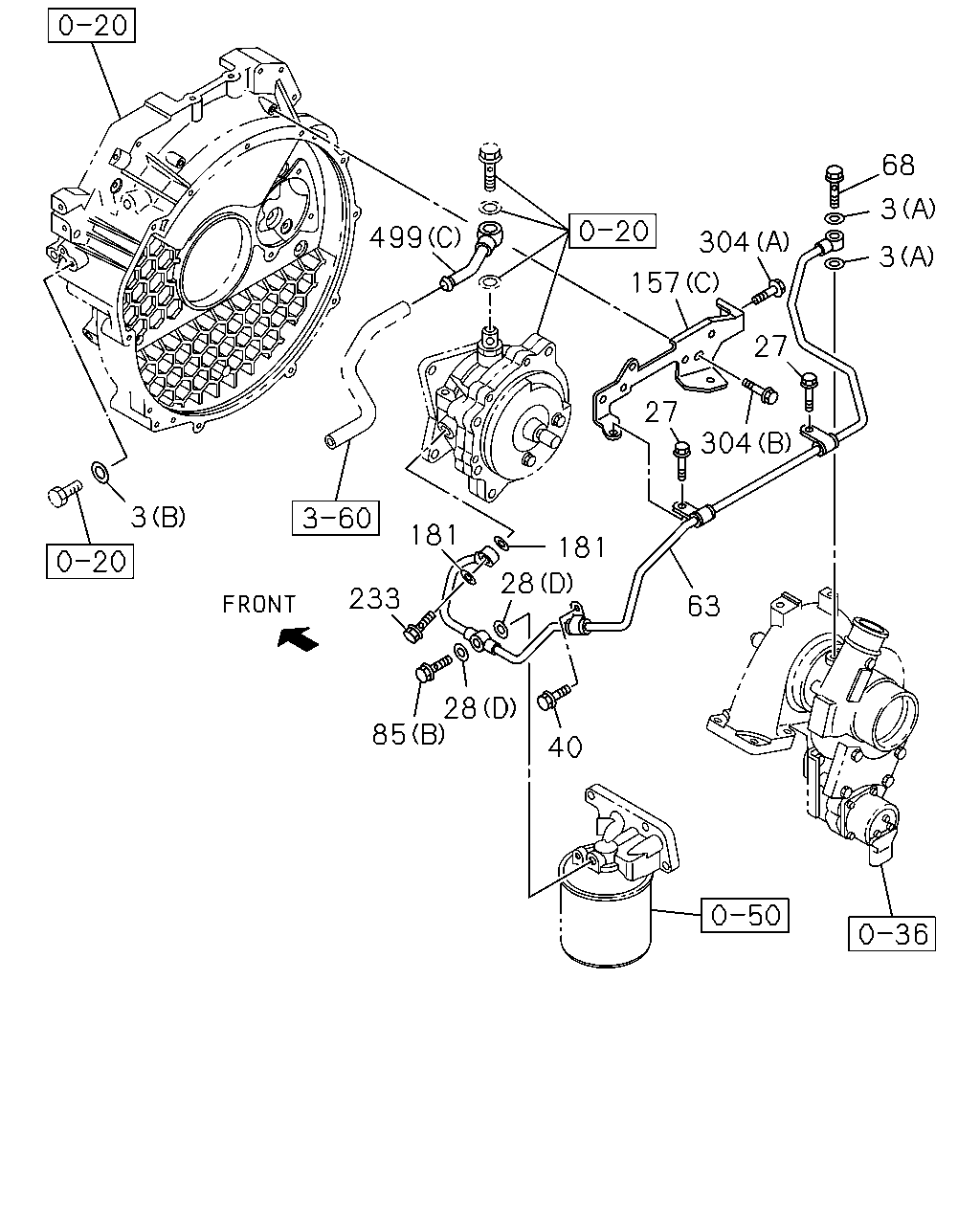

68 3 499 304 3 157 27 27 304 3 181 181 28 233 63 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	0710-0803	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	0804-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0803			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0804-1101			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-			●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0804-0902	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0803			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0804-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-			●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-0803	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0710-0803	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0804-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97386-643-2	01	1	0710-0803			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-97386-643-2	01	1	0804-1509			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98328-013-0	01	1	1510-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98092-070-0	01	1	0804-			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-97081-817-0	01	1	0710-0803			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-97081-817-0	01	1	0804-0805			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	0806-			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M12X28 FLANGE	8-97166-518-1	01	1	0804-			●	●
85	01.531 BOLT; EYE,OIL PIPE FIX 03.330 (B) M10X28 FLANGE	8-97149-995-0	01	1	0710-0710			●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	0711-			●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X22	1-09675-028-0	01	1	0804-			●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (B)	8-98153-165-0	01	1	1003-			●	●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	0710-0803	●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	0804-	●	●
157	01.519 BRACKET; OIL PIPE (C)	8-98036-534-0	01	1	0710-0803			●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (C)	8-98036-534-0	01	1	0804-			●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98077-403-0	01	1	0804-1002			●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (B)	8-98077-403-0	01	1	1003-			●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B)	8-98077-403-0	01	1	1003-			●	●
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	04	1	0710-0803			●	●
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-			●	●
233	01.531 BOLT; EYE M10X22	1-09675-028-0	01	1	0710-0803			●	●
233	01.531 BOLT; EYE EURO4 SPECIFICATION(NT4) M10X22	1-09675-028-0	01	1	0804-			●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803			●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0804-0811			●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0710-0803			●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0804-0811			●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0812-1001			●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-			●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	0804-			●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (A)	8-97381-661-3	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-97385-434-1	01	1	0804-	●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (E)	8-98027-553-0	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (C)	8-98040-104-2	01	1	0710-0803			●	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (C)	8-98040-104-2	01	1	0804-			●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	0804-			●	●

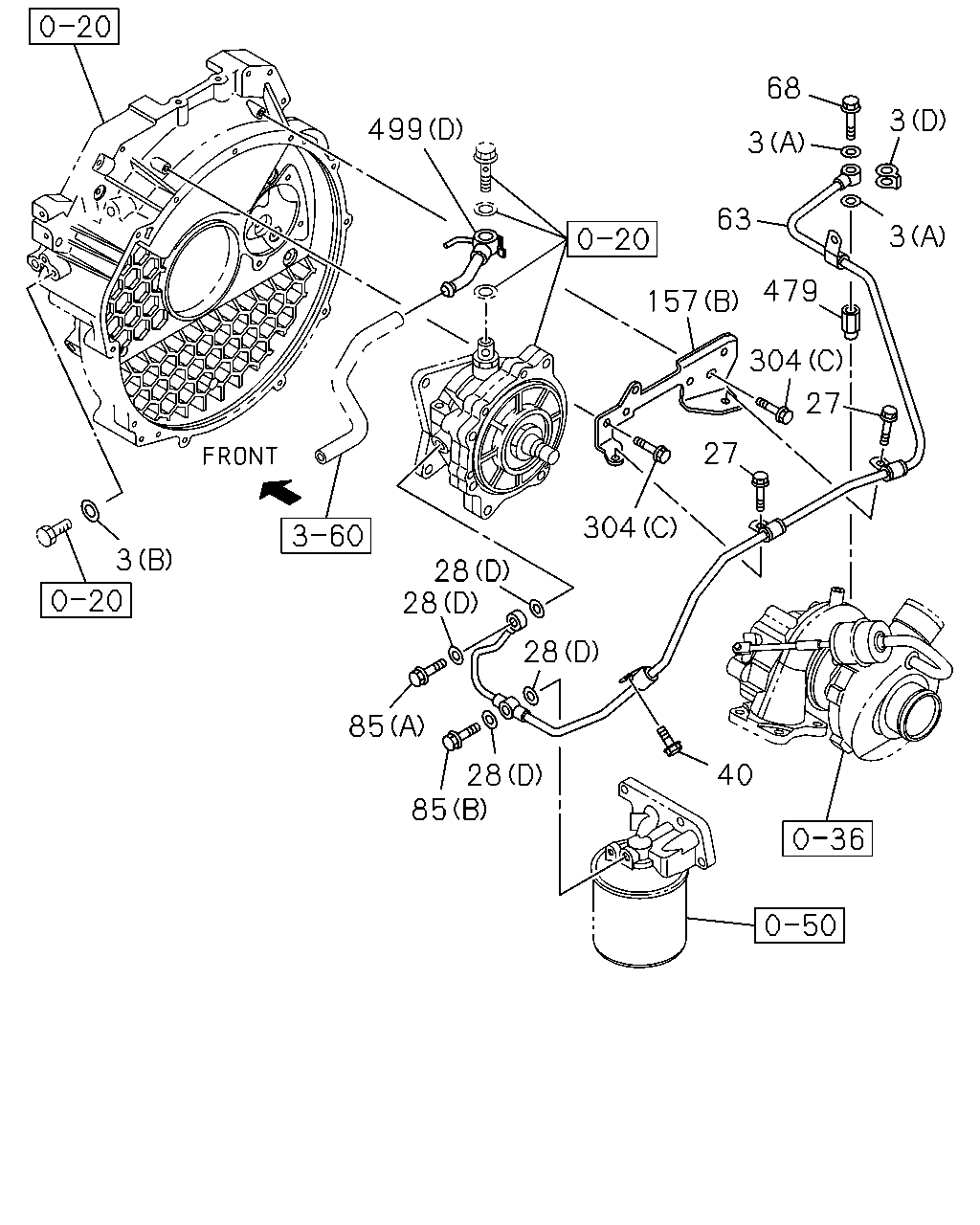

68 3 499 3 63 3 479 157 304 27 27 304 3 28 28 28 85 28 85 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0712-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	0710-0803	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	04	1	0804-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-0803			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	0804-			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (A) ID=12.2	9-09571-412-0	02	1	0804-1101			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-			●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	0804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	0804-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0710-0803	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0804-0902	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=20.0	8-98113-762-0	01	1	0903-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0710-0803			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0804-			●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0804-			●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-0803	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0710-0803	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97381-488-0	01	1	0804-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97386-643-2	01	1	0710-0803			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-97386-643-2	01	1	0804-1509			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4)	8-98328-013-0	01	1	1510-			●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98092-070-0	01	1	0804-			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M10X26	8-97081-817-0	01	1	0710-0803			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-97081-817-0	01	1	0804-0805			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	0806-			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M12X28 FLANGE	8-97166-518-1	01	1	0804-			●	●
85	01.531 BOLT; EYE,OIL PIPE FIX 03.330 (B) M10X28 FLANGE	8-97149-995-0	01	1	0710-0710			●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	0711-			●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X22	1-09675-028-0	01	1	0804-			●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (B)	8-98153-165-0	01	1	1003-			●	●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	0710-0803	●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	0804-	●	●
157	01.519 BRACKET; OIL PIPE (C)	8-98036-534-0	01	1	0710-0803			●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (C)	8-98036-534-0	01	1	0804-			●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98077-403-0	01	1	0804-1002			●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (B)	8-98077-403-0	01	1	1003-			●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B)	8-98077-403-0	01	1	1003-			●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803			●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0804-0811			●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0710-0803			●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO4 SPECIFICATION(NT4) 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0804-0811			●	●
304	01.540 BOLT; BRKT,OIL PIPE 02.483 (B) M10X16 FLANGE	0-28051-016-0	02	1	0812-1001			●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	1002-			●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	0804-			●	●
479	01.531 ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.800	8-94436-891-0	01	1	0804-			●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (A)	8-97381-661-3	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	0710-0803	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (B)	8-97385-434-1	01	1	0804-	●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (E)	8-98027-553-0	01	1	0804-	●	●
499	04.681 PIPE; VACUUM (C)	8-98040-104-2	01	1	0710-0803			●	●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (C)	8-98040-104-2	01	1	0804-			●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	0804-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
