Sayfa 0-38A - Isuzu EPC

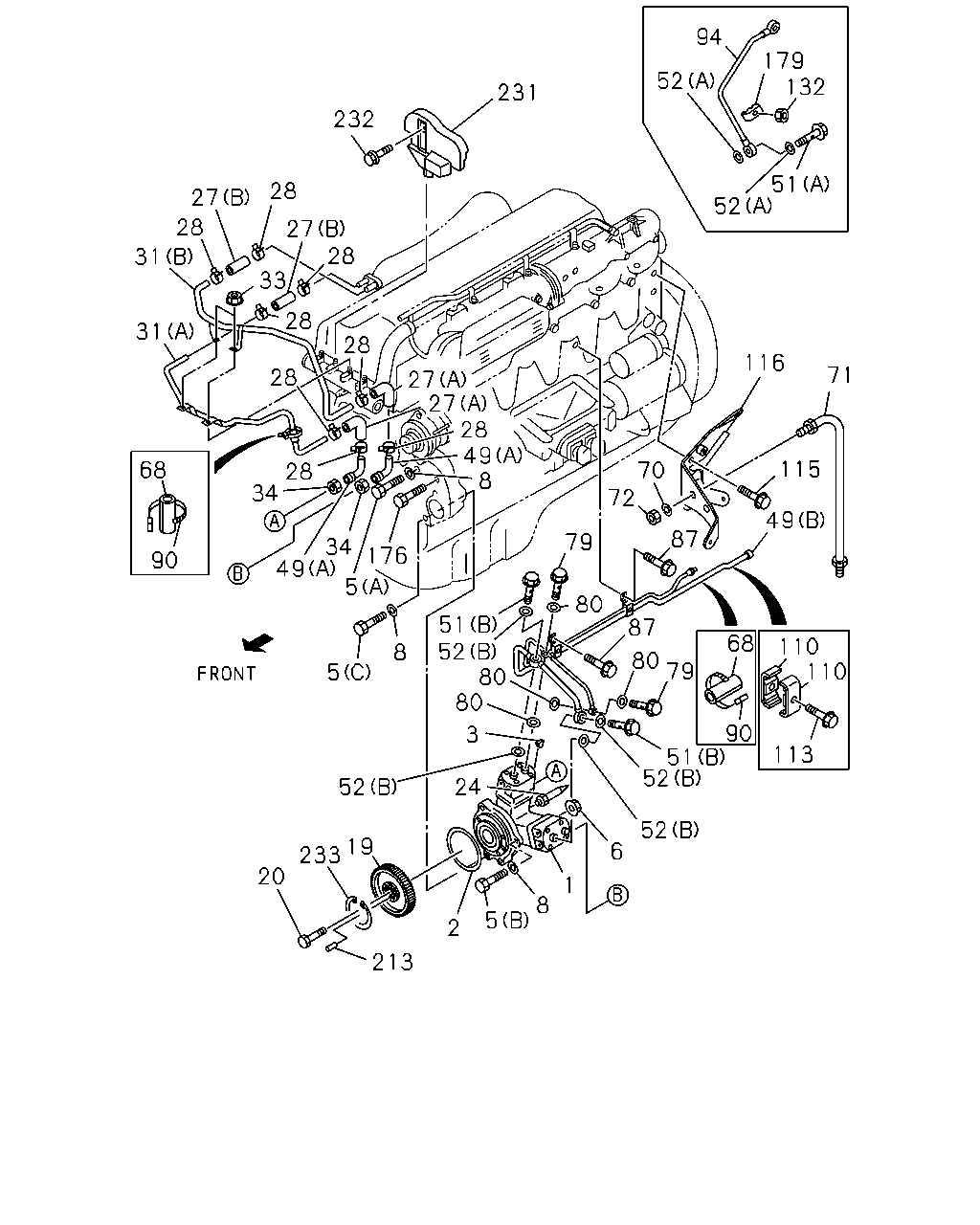

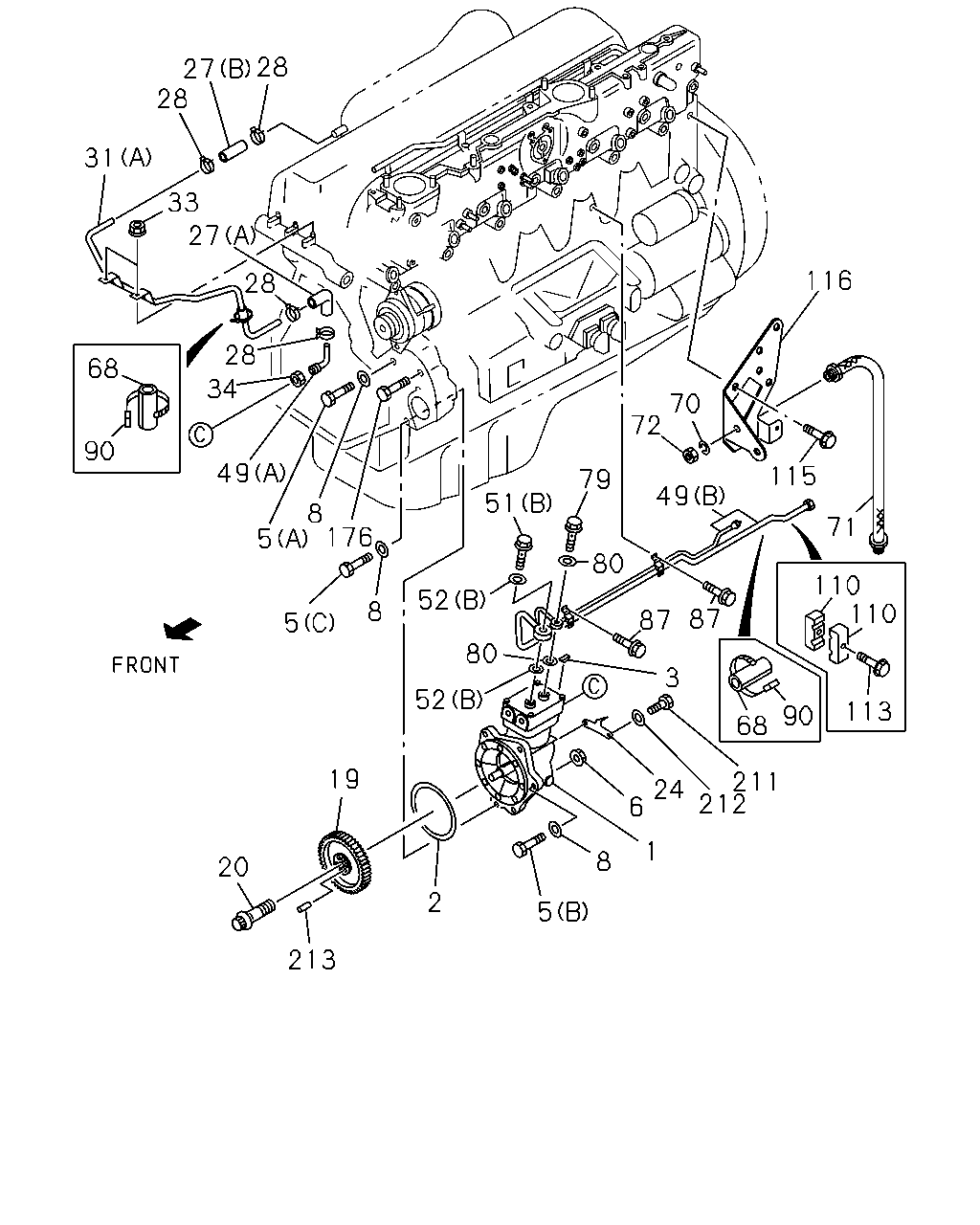

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#4992) — 439 parça

28 31 33 27 116 28 28 68 34 70 72 115 90 49 79 49 51 8 176 71 5 80 110 110 52 8 87 87 5 80 3 52 113 90 68 19 211 212 24 6 1 8 20 2 5 213 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-268-9	01	1	9606-9606	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-0	01	1	9607-9609	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-1	01	1	9610-9706	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	9707-9905	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-4	01	1	9906-	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-4	01	1	9906-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-3	01	1	9610-9702	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-3	01	1	9703-9905	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	9906-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9606-9706	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9707-9905	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9906-	●		●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9606-9706	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9707-9905	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9610-9706	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9707-9905	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9606-9706	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9707-9905	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	9606-9609	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	9610-9612	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	9611-9905	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9606-9706	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9707-9905	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9906-	●		●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9606-9706	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9707-9905	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9906-	●		●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9606-9706	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9707-9905	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9906-	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9606-9706	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9707-9905	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9906-	●		●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9606-9706	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9707-9905	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9906-	●		●	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9606-9609	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9610-9706	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9707-9905	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9906-	●		●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	9906-				●
24	POINTER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9610-9702	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9703-9905	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9610-9905	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9610-9905	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9606-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9707-9905	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9906-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9906-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9606-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9707-9905	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9906-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9906-				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9610-9905	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9906-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9606-9609	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9610-9706	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9707-9905	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9906-	●		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9906-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9606-9905	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9906-	●			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9606-9609	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	9610-9905	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9906-0010	●
31	PIPE; AIR,AIR CMPR SUCTION ELECTRONIC GOV RED3(KG5) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	9906-0010				●
31	PIPE; AIR,AIR CMPR SUCTION RLD GOVERNOR(SD7) (B)	1-19192-993-0	01	1	9906-0010				●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	0011-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	0011-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9707-9905		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9906-			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9707-9905		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9906-			●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9606-9706	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9707-9905	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9610-9905	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9906-				●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9606-9609	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9610-9706	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9707-9905	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9906-	●		●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9906-				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> (B)	1-19193-018-0	01	1	9703-9801	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (B)	1-19193-018-0	01	1	9802-9905	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19193-018-0	01	1	9906-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	9610-9905	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO<SV1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-785-2	01	1	9906-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9610-9905	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9906-				●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9606-9609	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-661-2	01	1	9610-9702	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO<SV1> (B)	1-19192-661-2	01	1	9703-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO<SV1> (B)	1-19192-661-2	01	1	9707-9905	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-661-2	01	1	9707-9905		●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9906-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO<SV1>,INJ PUMP HIGH ALTITUDEANEROID COMPENSATOR(YC4) (B)	1-19192-661-2	01	1	9906-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9606-9609	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9610-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9707-9905	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9906-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9906-				●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19193-019-0	01	1	9906-				●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9606-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) M10X21 FLANGE	1-09675-077-0	01	1	9610-9905	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-	●
51	BOLT; EYE,AIR PIPE TO CMPR RLD GOVERNOR(SD7) (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-				●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9606-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9610-9706	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9707-9905	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9906-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9906-				●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9610-9701	●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9702-9905	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9906-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9606-9609	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9610-9905	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9906-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9906-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9606-9609	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9610-9706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9707-9905	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	04	1	9906-	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9906-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9610-9701	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9702-9905	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9906-				●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9610-9905	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9906-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9606-9609	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9610-9902	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9903-9905	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9906-	●		●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9906-	●			●
68	SLEEVE; RUBBER 17 INCH CLUTCH(RF3) ID=18 OD=22 L=25	8-94412-773-0	02	1	9610-9612	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9701-9706	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9905	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9905		●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9906-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9906-			●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9606-9706	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9707-9905	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9906-	●		●	●
71	HOSE; FLEX,AIR GOV L=520	0-07030-520-0	01	1	9606-9607	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9608-9905	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9906-	●		●	●
71	HOSE; FLEX,AIR GOV L=560	1-09363-689-0	01	1	9707-9905		●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9606-9706	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9707-9905	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9906-	●		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9610-9905	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9906-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9606-9609	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9610-9706	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9707-9905	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9906-	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9906-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9905	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9606-9609	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9610-9706	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9905	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9906-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9906-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9606-9706	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9707-9905	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9906-	●		●	●
90	CLIP; HARNESS 17 INCH CLUTCH(RF3) L=140	5-09707-031-0	02	1	9610-9612	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-0	02	1	9701-9706	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9707-9905	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9707-9905		●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9906-				●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9906-			●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9610-9905	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9906-				●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9606-9609	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9610-9706	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9707-9905	●	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9906-	●		●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9906-				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9606-9706	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9707-9905	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9906-	●		●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9606-9706	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9707-9905	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9906-	●		●	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9606-9702	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO<SV1>	1-19199-212-0	01	1	9703-9706	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO<SV1>	1-19199-212-0	01	1	9707-9905	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9707-9905		●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9906-	●		●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO<SV1>	1-19199-212-0	01	1	9906-				●
116	BRACKET; AIR PIPE ENGINE REAR PTO<SV1>	1-19199-286-0	01	1	9703-9905	●
116	BRACKET; AIR PIPE ENGINE REAR PTO<SV1>	1-19199-286-0	01	1	9906-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9606-9706	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9707-9905	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9906-	●		●	●
211	BOLT; POINTER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	9610-9702	●
211	BOLT; POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	9703-9905	●
211	BOLT; POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16	0-23801-016-0	02	1	9906-				●
212	WASHER; LK,POINTER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9610-9702	●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9703-9905	●
212	WASHER; LK,POINTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9906-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9606-9706	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9707-9905	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9906-	●		●	●

94 179 132 52 231 232 51 28 27 52 28 27 28 31 33 28 31 28 27 27 28 49 8 116 71 28 70 72 115 68 28 34 49 87 79 34 176 90 49 5 80 87 51 52 80 80 68 110 110 8 80 79 5 90 51 52 3 113 24 52 52 19 233 6 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-268-9	01	1	9606-9606	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-0	01	1	9607-9609	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-1	01	1	9610-9706	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-2	01	1	9707-9905	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-4	01	1	9906-	●		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-4	01	1	9906-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-3	01	1	9610-9702	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-3	01	1	9703-9905	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-292-4	01	1	9906-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9606-9706	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9707-9905	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	9906-	●		●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9606-9706	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9707-9905	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9610-9706	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9707-9905	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140	1-09020-112-0	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9606-9706	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9707-9905	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX (C) M14X100	9-91666-400-0	01	1	9606-9609	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	9610-9612	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	9611-9905	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	9906-	●		●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9606-9706	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9707-9905	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	9906-	●		●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9606-9706	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9707-9905	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	9906-	●		●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9606-9706	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9707-9905	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	9906-	●		●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9606-9706	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9707-9905	●	●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	9906-	●		●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9606-9706	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9707-9905	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	9906-	●		●	●
24	POINTER; AIR CMPR	1-11327-017-0	01	1	9606-9609	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9610-9706	●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-0	01	1	9707-9905	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	9906-	●		●
24	POINTER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-017-1	01	1	9906-				●
24	POINTER; AIR CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9610-9702	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9703-9905	●
24	POINTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-11327-040-1	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9610-9905	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9610-9905	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	01	1	9906-				●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9606-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9707-9905	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	9906-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	9906-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9606-9609	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9610-9706	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9707-9905	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	9906-	●		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	9906-				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9610-9905	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	04	1	9906-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9606-9609	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9610-9706	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9707-9905	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	9906-	●		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	9906-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9606-9905	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-659-0	01	1	9906-	●			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9606-9609	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	9610-9905	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	9906-0010	●
31	PIPE; AIR,AIR CMPR SUCTION ELECTRONIC GOV RED3(KG5) AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	9906-0010				●
31	PIPE; AIR,AIR CMPR SUCTION RLD GOVERNOR(SD7) (B)	1-19192-993-0	01	1	9906-0010				●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-993-0	01	1	0011-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-993-0	01	1	0011-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9707-9905		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	9906-			●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9707-9905		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	9906-			●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9606-9706	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9707-9905	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9610-9905	●
34	NUT; LK SUCTION PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	01	1	9906-				●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9606-9609	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9610-9706	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9707-9905	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	9906-	●		●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	9906-				●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> (B)	1-19193-018-0	01	1	9703-9801	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (B)	1-19193-018-0	01	1	9802-9905	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19193-018-0	01	1	9906-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-785-2	01	1	9610-9905	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO<SV1>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19192-785-2	01	1	9906-				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9610-9905	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	01	1	9906-				●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9606-9609	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-661-2	01	1	9610-9702	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO<SV1> (B)	1-19192-661-2	01	1	9703-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO<SV1> (B)	1-19192-661-2	01	1	9707-9905	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-661-2	01	1	9707-9905		●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	9906-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO<SV1>,INJ PUMP HIGH ALTITUDEANEROID COMPENSATOR(YC4) (B)	1-19192-661-2	01	1	9906-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9606-9609	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9610-9706	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9707-9905	●	●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	9906-	●		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	9906-				●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-19193-019-0	01	1	9906-				●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9606-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) M10X21 FLANGE	1-09675-077-0	01	1	9610-9905	●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-	●
51	BOLT; EYE,AIR PIPE TO CMPR RLD GOVERNOR(SD7) (A) M10X21 FLANGE	1-09675-077-0	01	1	9906-				●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9606-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9610-9706	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9707-9905	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	9906-	●		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	02	1	9906-				●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9610-9701	●
51	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9702-9905	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39	1-09675-175-1	01	1	9906-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9606-9609	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9610-9905	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-083-0	02	1	9906-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9906-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	9606-9609	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9610-9706	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9707-9905	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	04	1	9906-	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	04	1	9906-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9610-9701	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9702-9905	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	9906-				●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9610-9905	●
68	SLEEVE; RUBBER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35	8-94127-043-0	01	1	9906-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9606-9609	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9610-9902	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9903-9905	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	9906-	●		●	●
68	SLEEVE; RUBBER AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25	8-94412-773-0	01	1	9906-	●			●
68	SLEEVE; RUBBER 17 INCH CLUTCH(RF3) ID=18 OD=22 L=25	8-94412-773-0	02	1	9610-9612	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9701-9706	●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9905	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9707-9905		●
68	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=18 OD=22 L=25	8-94412-773-0	02	1	9906-				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	9906-			●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9606-9706	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9707-9905	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9906-	●		●	●
71	HOSE; FLEX,AIR GOV L=520	0-07030-520-0	01	1	9606-9607	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9608-9905	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	9906-	●		●	●
71	HOSE; FLEX,AIR GOV L=560	1-09363-689-0	01	1	9707-9905		●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9606-9706	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9707-9905	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9906-	●		●	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9610-9905	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9906-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9606-9609	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9610-9706	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9707-9905	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	9906-	●		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9906-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9905	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9606-9609	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9610-9706	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9905	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9906-	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9906-				●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9606-9706	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9707-9905	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	9906-	●		●	●
90	CLIP; HARNESS 17 INCH CLUTCH(RF3) L=140	5-09707-031-0	02	1	9610-9612	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-0	02	1	9701-9706	●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9707-9905	●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9707-9905		●
90	CLIP; HARNESS EURO2 SPECIFICATION<THN> L=140	5-09707-031-1	02	1	9906-				●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	9906-			●
94	PIPE; AIR,BOOST CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-19192-975-0	01	1	9606-9905	●
94	PIPE; AIR,BOOST EXC. EURO2 SPECIFICATION<THN>	1-19192-975-0	01	1	9906-	●			●
94	PIPE; AIR,BOOST RLD GOVERNOR(SD7)	1-19193-109-0	01	1	9906-				●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9610-9905	●
110	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-208-0	02	1	9906-				●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9606-9609	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9610-9706	●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9707-9905	●	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	9906-	●		●
110	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09701-210-0	02	1	9906-				●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9606-9706	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9707-9905	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9906-	●		●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9606-9706	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9707-9905	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	9906-	●		●	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9606-9702	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO<SV1>	1-19199-212-0	01	1	9703-9706	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO<SV1>	1-19199-212-0	01	1	9707-9905	●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9707-9905		●
116	BRACKET; AIR PIPE	1-19199-212-0	01	1	9906-	●		●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO<SV1>	1-19199-212-0	01	1	9906-				●
116	BRACKET; AIR PIPE ENGINE REAR PTO<SV1>	1-19199-286-0	01	1	9703-9905	●
116	BRACKET; AIR PIPE ENGINE REAR PTO<SV1>	1-19199-286-0	01	1	9906-				●
132	NUT; CLIP CLUTCH-15.5" TWIN PLATE SPICER(TEY) M6 FLANGE	0-91150-106-0	01	1	9606-9905	●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9906-	●
132	NUT; CLIP RLD GOVERNOR(SD7) M6 FLANGE	0-91150-106-0	01	1	9906-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9606-9706	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9707-9905	●	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	9906-	●		●	●
179	CLIP; PIPE CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-09701-132-0	02	1	9606-9905	●
179	CLIP; PIPE	1-09701-132-1	02	1	9906-	●
179	CLIP; PIPE RLD GOVERNOR(SD7)	1-09701-132-1	02	1	9906-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9606-9706	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9707-9905	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	9906-	●		●	●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	9707-9905		●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	9906-			●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	9707-9905		●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	9906-			●
233	RING; FRICTION	1-12529-003-0	01	1	9707-9905		●
233	RING; FRICTION	1-12529-003-0	01	1	9906-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
