Sayfa 0-36 - Isuzu EPC

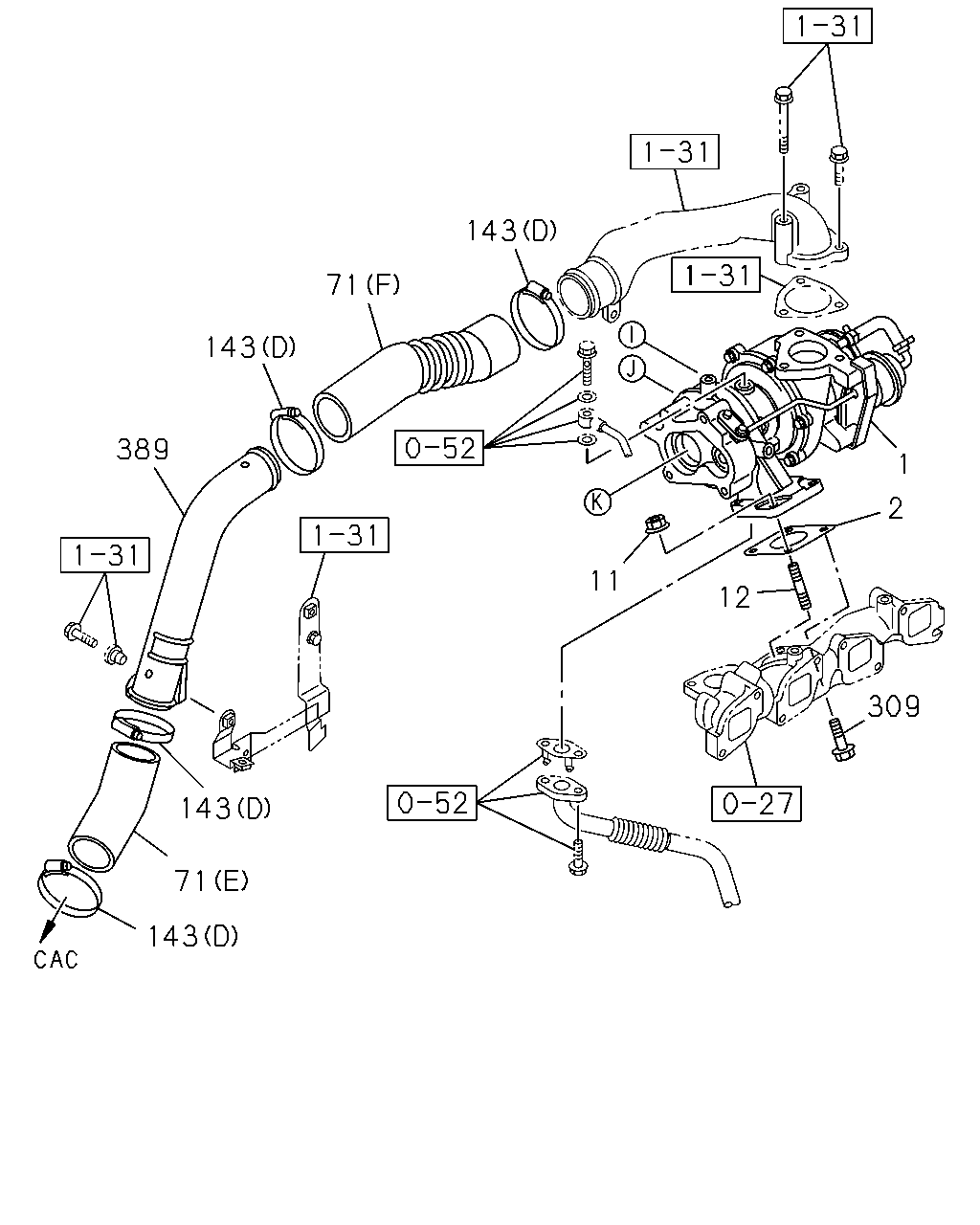

0-36 — TURBOCHARGER SYSTEM (#49918) — 964 parça

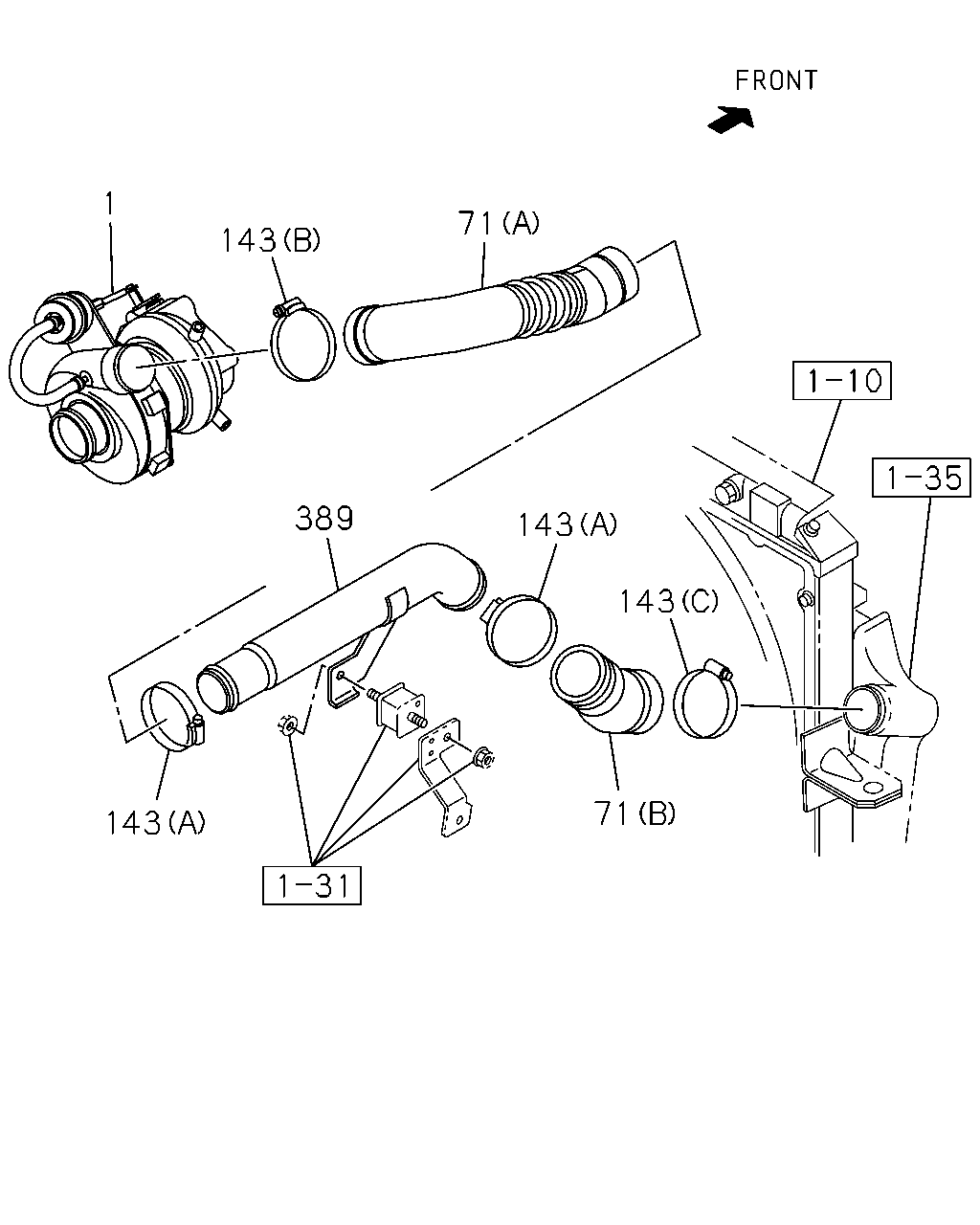

143 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0710-0803	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0710-0803			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0804-0805			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-			●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	0804-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0710-0803			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0804-0805			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-			●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98055-062-2	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98006-133-2	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98039-732-3	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98107-509-1	01	1	0804-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0804-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=50-69	1-09707-135-0	01	1	0710-0711			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0712-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0710-0810			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (A) ID=58-76	1-09707-203-0	02	1	0710-0811			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=55-75	8-98133-349-0	02	1	0812-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-			●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0710-0803	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0804-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803			●	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0710-			●	●

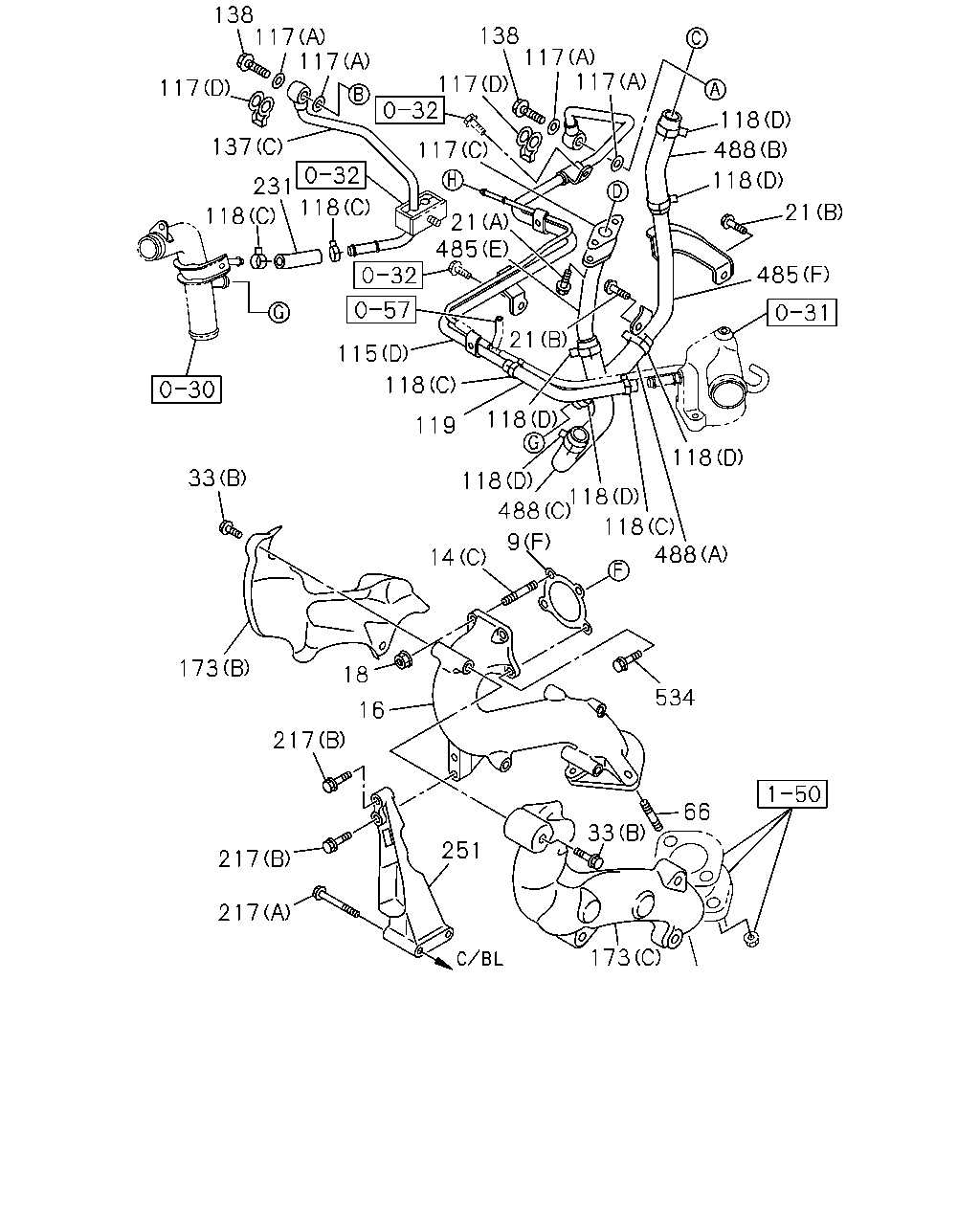

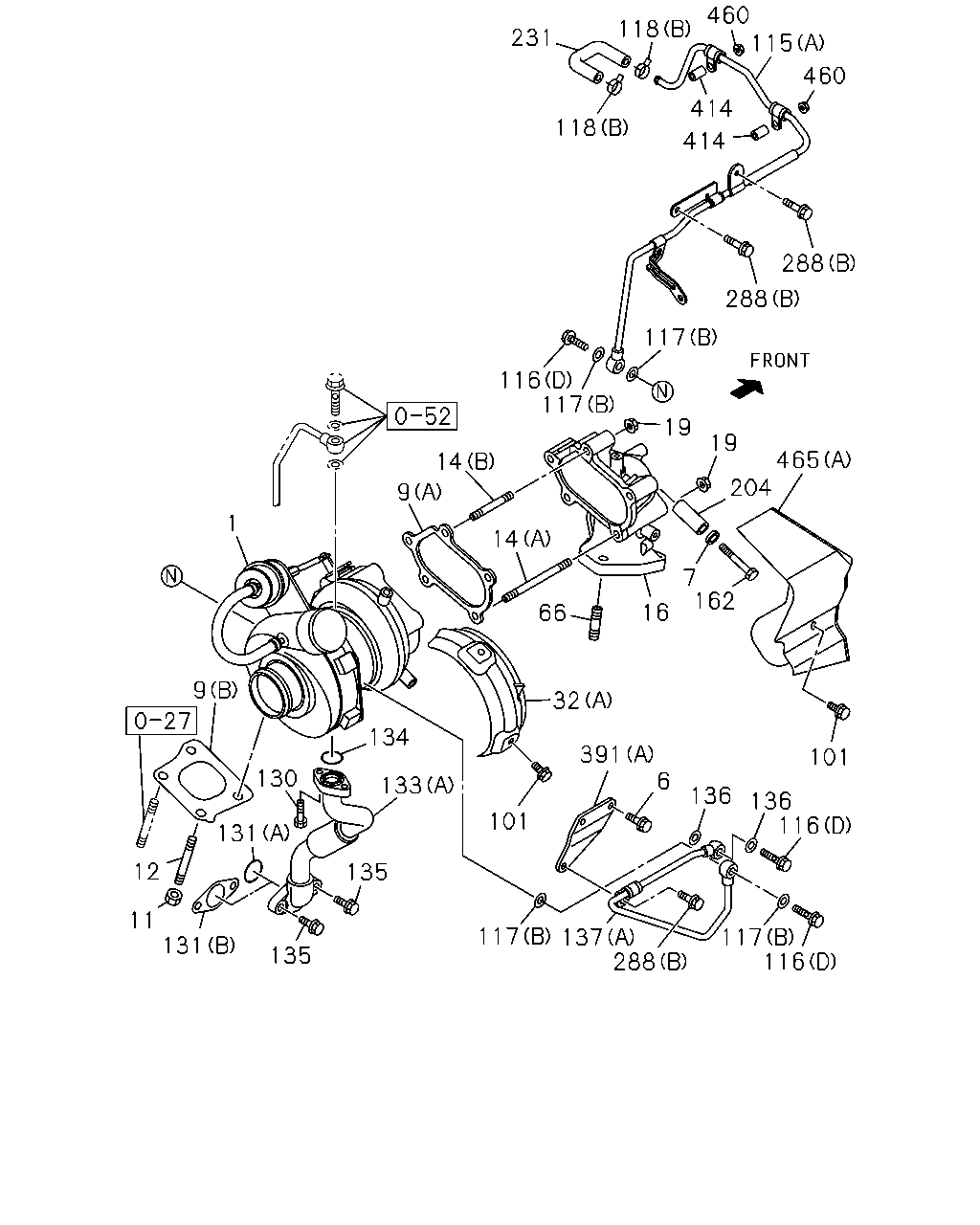

138 117 117 423 138 117 117 525 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (D)	8-98113-333-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98113-710-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98085-187-0	01	1	0710-0803			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0804-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-928-0	01	1	0804-			●	●
117	03.342 GASKET; WATER PIPE 01.531 (D) ID=12.6 ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	02	1	0905-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (C)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	0804-	●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0710-0803	●		●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0804-0804	●	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4).	9-09571-412-0	04	1	0805-0904	●		●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0805-0904		●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0905-			●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	04	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0710-0802	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-0803	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97387-271-0	01	1	0710-0803			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0804-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98063-840-0	01	1	0804-			●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0710-			●	●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	0804-	●	●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	0804-	●	●

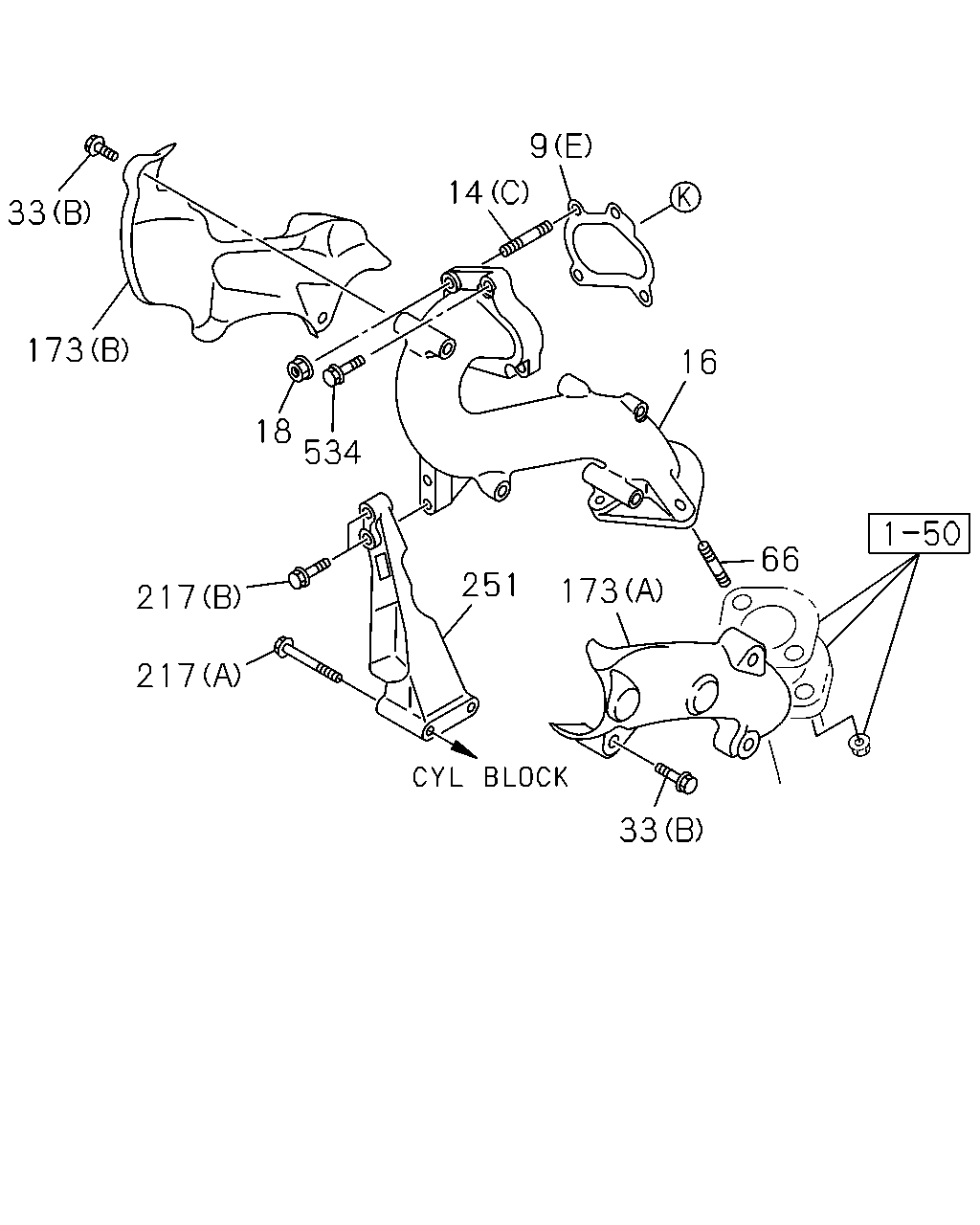

9 14 33 173 16 18 534 66 251 173 217 217 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F)	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) 03.611 (F)	8-98011-532-0	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2) (E)	8-98015-116-1	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=54	8-97376-758-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D) ID=49	8-98046-241-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	0804-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0710-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-2	01	1	0710-0803			●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	0804-			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0710-0803	●
18	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) M8 FLANGE	8-97161-607-0	03	1	0804-0903	●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-	●	●
18	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) M8 FLANGE	8-97161-607-0	02	1	0804-0903	●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0804-	●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0804-	●	●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-			●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-022-3	01	1	0710-0803	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO4 SPECIFICATION(NT4) (C)	8-98032-022-3	01	1	0804-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-2	01	1	0710-0803	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0804-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO2 SPECIFICATION(NT2) (A)	8-98032-023-1	01	1	0804-	●	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0803	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0804-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0710-0803	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0804-	●	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0710-0803	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0804-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0710-0803	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0804-0903	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) M8X35 FLANGE	8-98053-224-0	02	1	0804-	●	●

143 32 33 33 32 143 389 143 71 143 1 11 12 2 309 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

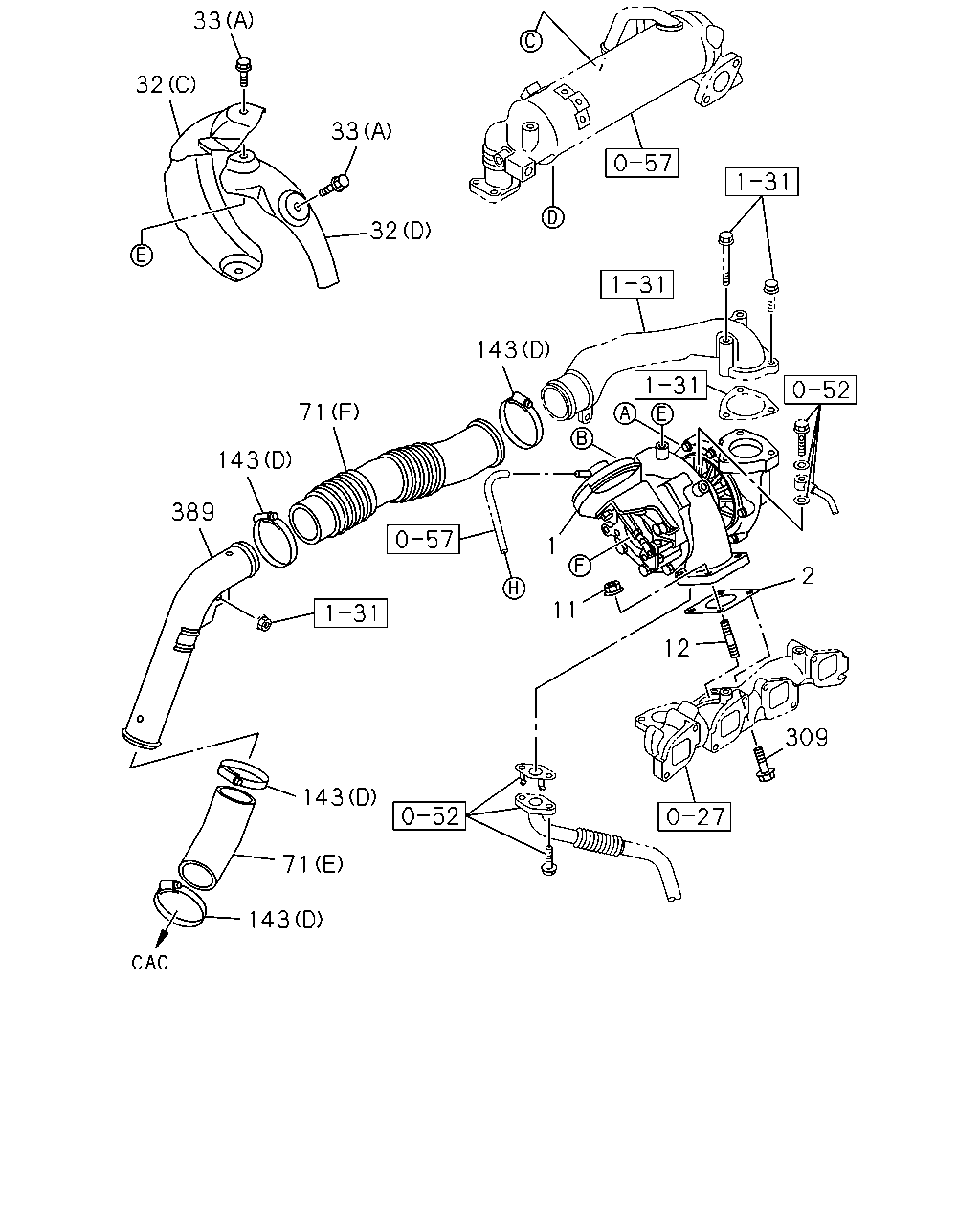

1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0710-0803	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0710-0803			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0804-0805			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-			●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	0804-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0710-0803			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0804-0805			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-			●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98034-990-3	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-991-1	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98034-991-1	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98031-888-3	01	1	0710-0803			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98031-888-3	01	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97351-168-0	01	1	0804-			●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0804-	●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0804-	●	●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98055-062-2	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98006-133-2	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98039-732-3	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98107-509-1	01	1	0804-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0804-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=50-69	1-09707-135-0	01	1	0710-0711			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0712-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0710-0810			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (A) ID=58-76	1-09707-203-0	02	1	0710-0811			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=55-75	8-98133-349-0	02	1	0812-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-			●	●

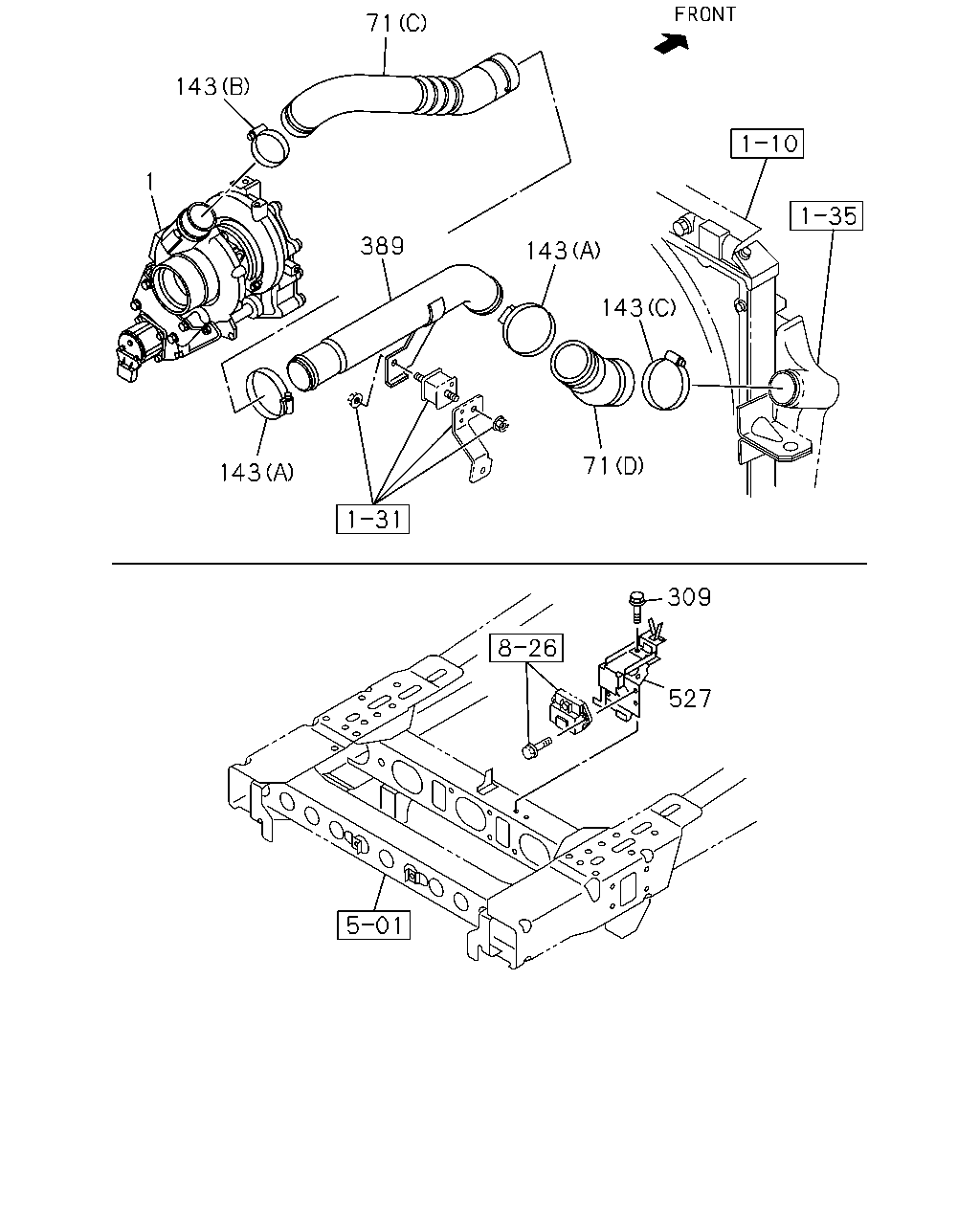

309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0710-0803	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0804-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803			●	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0710-			●	●

138 117 117 117 137 118 231 118 117 117 138 117 117 21 485 115 118 119 118 118 488 118 21 118 118 488 485 118 21 488 118 14 9 33 18 16 173 217 217 217 251 33 534 66 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

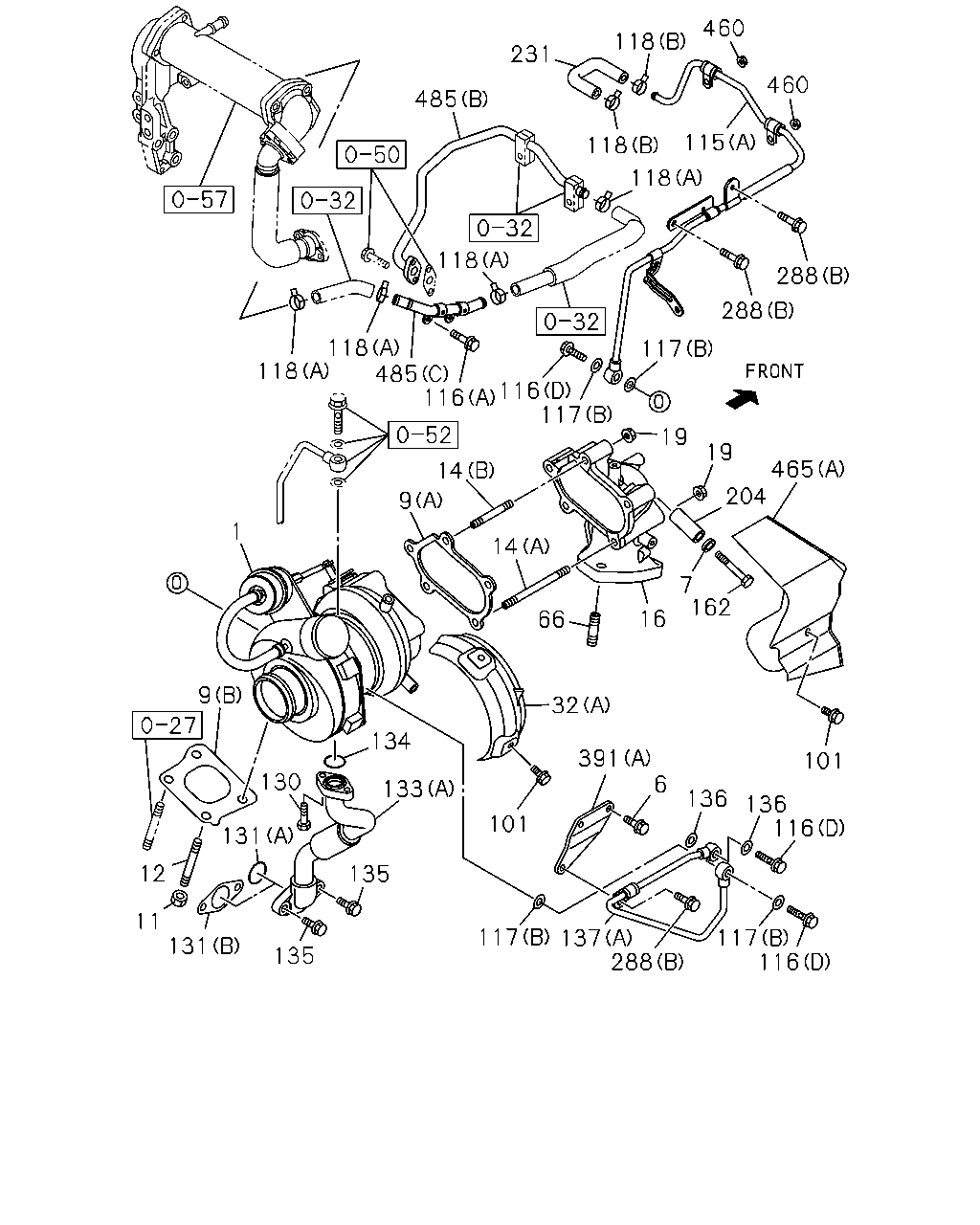

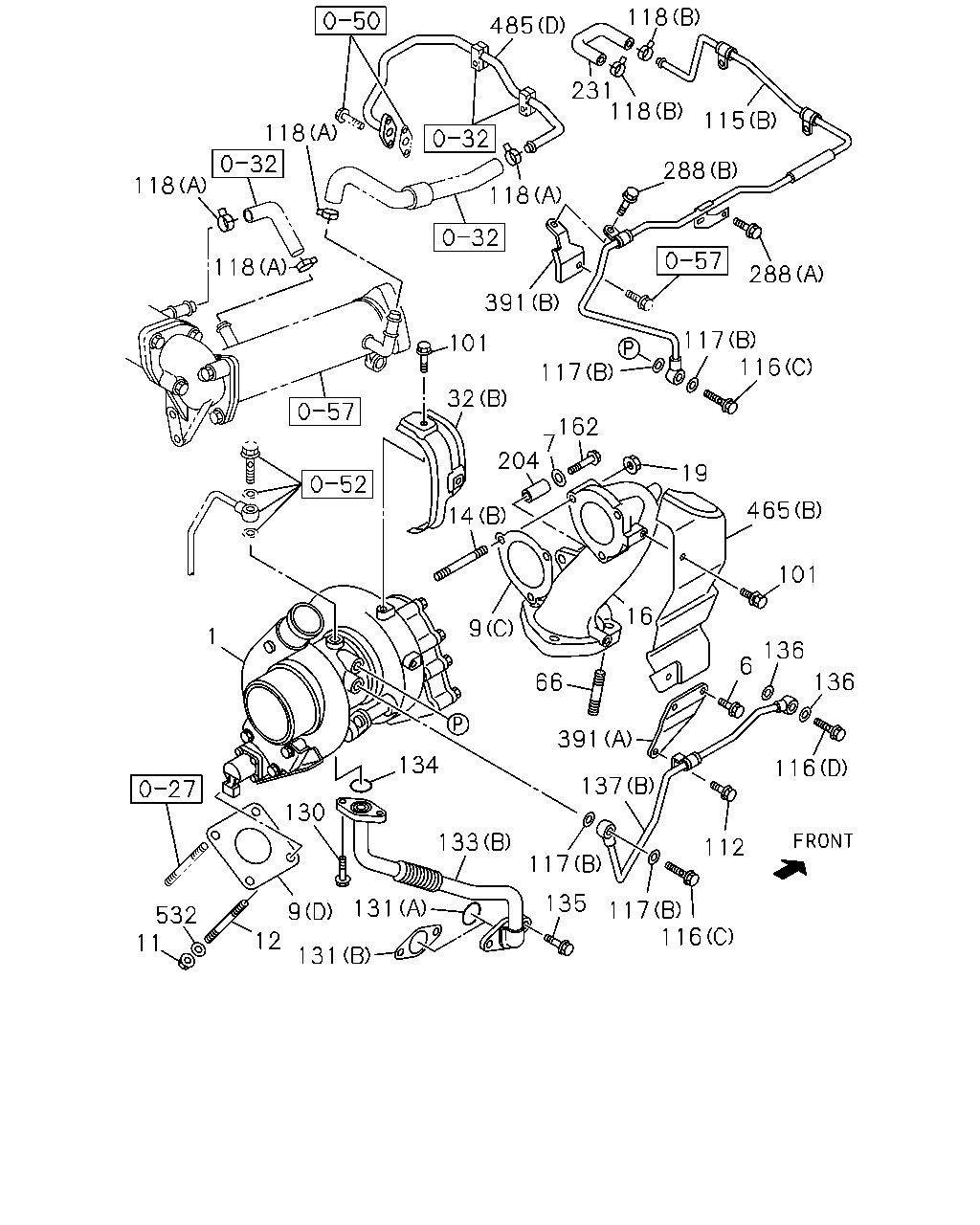

9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F)	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) 03.611 (F)	8-98011-532-0	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2) (E)	8-98015-116-1	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=54	8-97376-758-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D) ID=49	8-98046-241-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	0804-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0710-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-2	01	1	0710-0803			●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	0804-			●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0710-0803	●
18	03.613 NUT; EXH PIPE EURO4 SPECIFICATION(NT4) M8 FLANGE	8-97161-607-0	03	1	0804-0903	●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	0904-	●	●
18	03.613 NUT; EXH PIPE EURO2 SPECIFICATION(NT2) M8 FLANGE	8-97161-607-0	02	1	0804-0903	●	●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-	●	●
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0710-0803	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0804-0809	●	●
21	03.358 BOLT; PIPE EURO4 SPECIFICATION(NT4) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0810-	●	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0804-	●	●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0710-0803	●
33	03.342 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0804-	●	●
33	03.342 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	06	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (D)	8-98113-333-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98113-710-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98085-187-0	01	1	0710-0803			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0804-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-928-0	01	1	0804-			●	●
117	03.342 GASKET; WATER PIPE 01.531 (D) ID=12.6 ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	02	1	0905-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (C)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	0804-	●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0710-0803	●		●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0804-0804	●	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4).	9-09571-412-0	04	1	0805-0904	●		●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0805-0904		●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0905-			●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	04	1	0804-			●	●

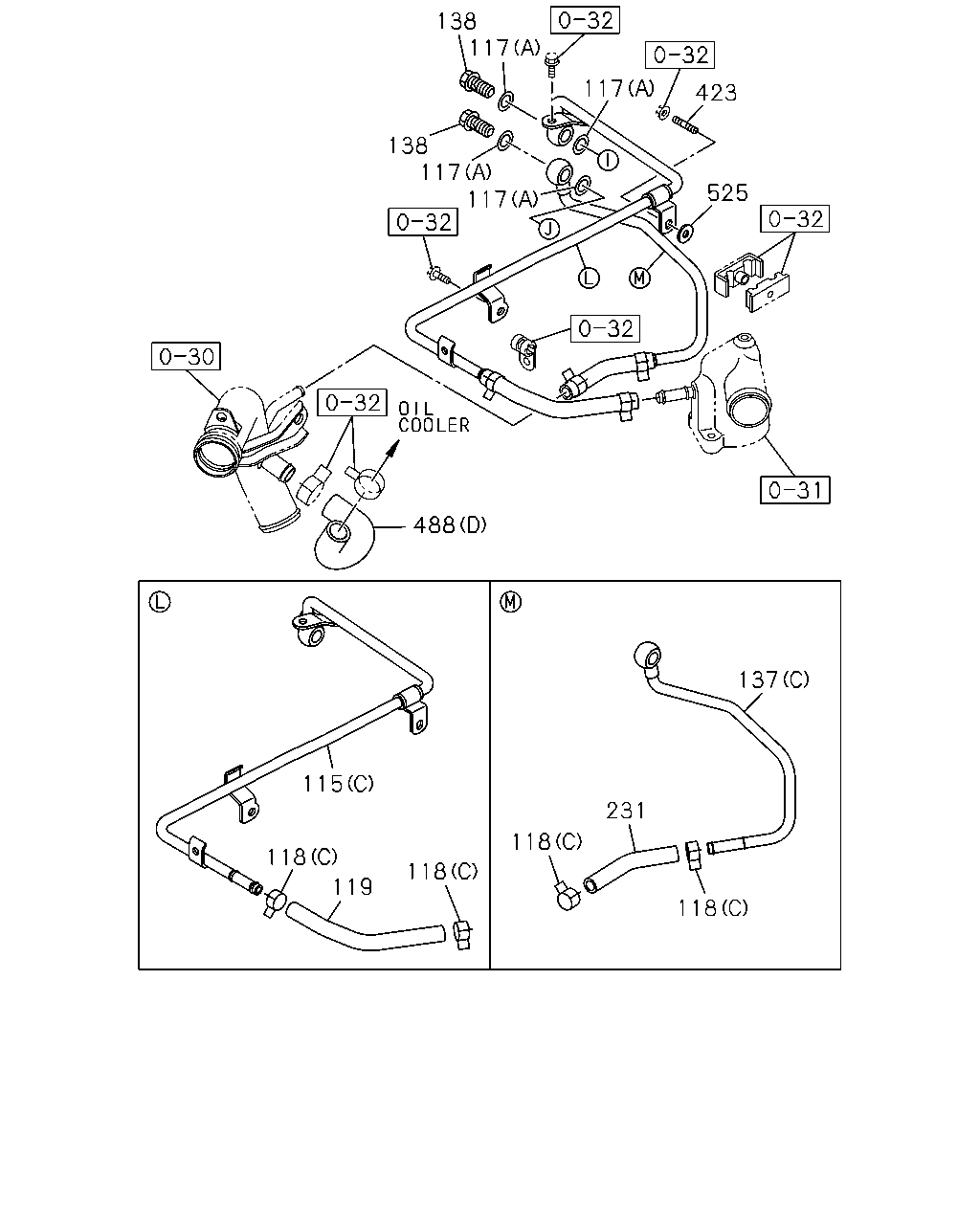

118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0710-0802	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0803-0803	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97387-271-0	01	1	0710-0803			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0804-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98063-840-0	01	1	0804-			●	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0804-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-022-3	01	1	0710-0803	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO4 SPECIFICATION(NT4) (C)	8-98032-022-3	01	1	0804-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-2	01	1	0710-0803	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0804-	●	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EURO2 SPECIFICATION(NT2) (A)	8-98032-023-1	01	1	0804-	●	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0710-0803	●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0804-	●	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0710-0803	●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0710-			●	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0710-0803	●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-97381-651-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (F)	8-97381-652-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (D)	8-98032-267-0	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR (A)	8-98041-637-1	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97376-773-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1502-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98064-164-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1502-			●	●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0710-0803	●
488	03.163 HOSE; RUBBER EURO4 SPECIFICATION(NT4) (C)	8-98015-118-0	01	1	0804-	●	●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	0804-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0710-0803	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0804-0903	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.417 M8X23 FLANGE	8-97378-077-0	02	1	0904-	●	●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) M8X35 FLANGE	8-98053-224-0	02	1	0804-	●	●

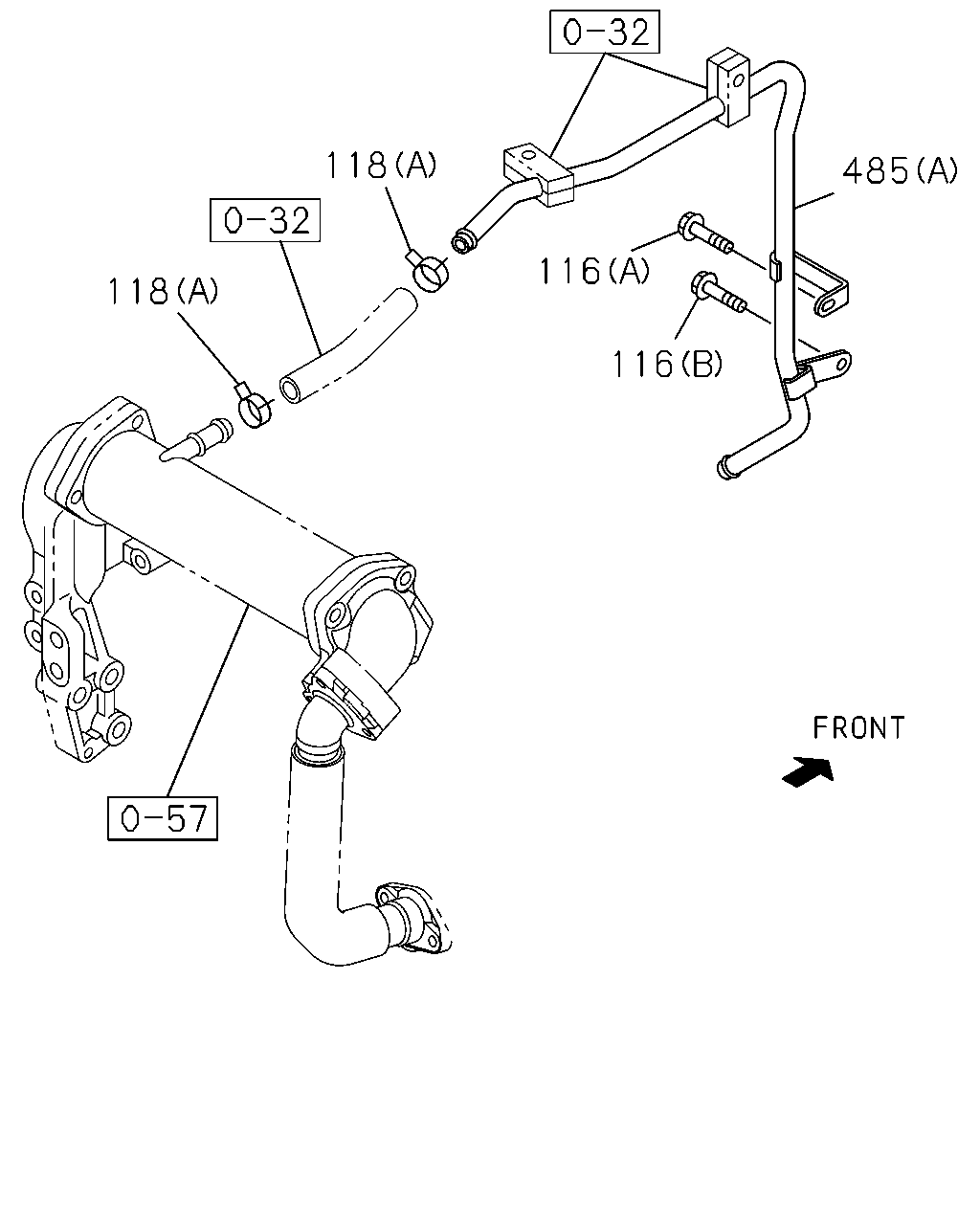

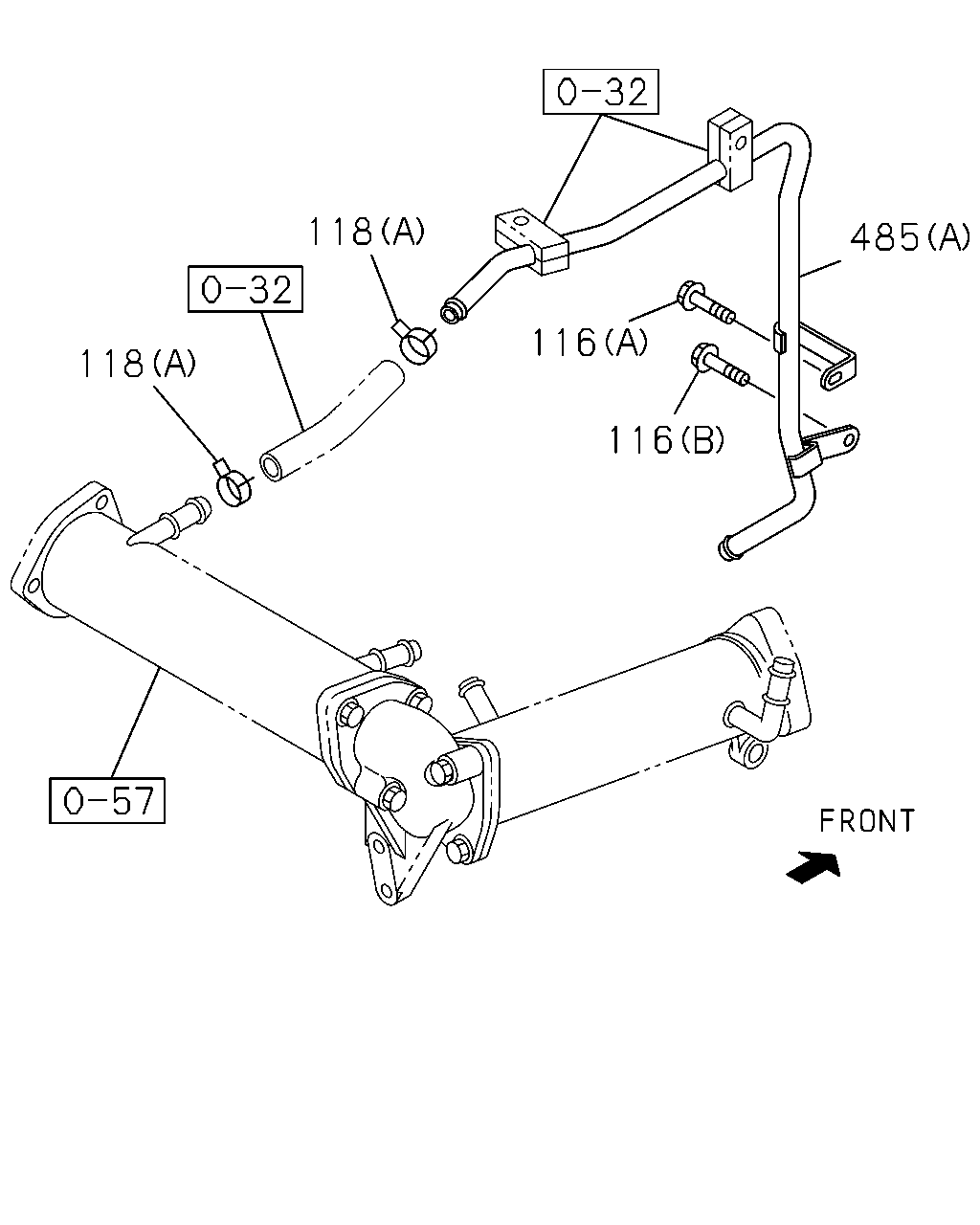

118 485 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-			●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0710-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-			●	●
116	03.342 BOLT; WATER PIPE NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0804-1501			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	1502-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-97381-651-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (F)	8-97381-652-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (D)	8-98032-267-0	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR (A)	8-98041-637-1	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97376-773-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1502-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98064-164-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1502-			●	●

231 118 460 460 115 118 118 288 288 117 19 19 204 465 162 7 16 66 14 9 14 117 116 116 485 118 118 118 485 101 116 136 136 6 391 32 117 116 288 137 117 101 134 133 135 130 131 135 131 11 12 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-			●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0710-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F)	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) 03.611 (F)	8-98011-532-0	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2) (E)	8-98015-116-1	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=54	8-97376-758-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D) ID=49	8-98046-241-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	0804-			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0710-0803			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0804-0805			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-			●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	0804-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0710-0803			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0804-0805			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-			●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	0804-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0710-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-2	01	1	0710-0803			●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	0804-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0710-0803			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	0804-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98034-990-3	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-991-1	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98034-991-1	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98031-888-3	01	1	0710-0803			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98031-888-3	01	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97351-168-0	01	1	0804-			●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-			●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0710-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (D)	8-98113-333-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98113-710-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98085-187-0	01	1	0710-0803			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0804-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-928-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-			●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0710-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-			●	●
116	03.342 BOLT; WATER PIPE NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0804-1501			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	1502-			●	●
117	03.342 GASKET; WATER PIPE 01.531 (D) ID=12.6 ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	02	1	0905-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (C)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	0804-	●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0710-0803	●		●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0804-0804	●	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4).	9-09571-412-0	04	1	0805-0904	●		●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0805-0904		●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0905-			●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	04	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0710-			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0710-1006			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER (B)	8-97386-642-0	01	1	0710-0803			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-97386-642-1	01	1	0804-1006			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98172-661-0	01	1	1007-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97148-925-2	01	1	0804-1006			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98172-658-0	01	1	1007-			●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0710-			●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0710-			●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312			●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97387-271-0	01	1	0710-0803			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0804-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98063-840-0	01	1	0804-			●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0710-			●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0710-			●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0710-0803			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-			●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0804-			●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	0710-			●	●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	0710-0803			●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	0804-			●	●
460	03.374 NUT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417 (B)	8-98052-394-0	01	1	0710-0803			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	0804-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A)	8-97351-167-0	01	1	0804-1204			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98176-248-0	01	1	1205-			●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-97381-651-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (F)	8-97381-652-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (D)	8-98032-267-0	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR (A)	8-98041-637-1	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97376-773-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1502-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98064-164-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1502-			●	●

118 485 116 118 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-			●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0710-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-			●	●
116	03.342 BOLT; WATER PIPE NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0804-1501			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	1502-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-97381-651-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (F)	8-97381-652-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (D)	8-98032-267-0	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR (A)	8-98041-637-1	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97376-773-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1502-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98064-164-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1502-			●	●

118 485 231 118 115 118 288 118 118 118 288 391 117 116 101 117 32 162 7 204 19 465 14 101 16 9 1 136 6 136 66 391 134 116 137 130 133 112 117 135 131 117 116 9 12 532 11 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-			●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0710-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F)	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) 03.611 (F)	8-98011-532-0	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2) (E)	8-98015-116-1	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=54	8-97376-758-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D) ID=49	8-98046-241-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	0804-			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0710-0803			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0804-0805			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-			●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	0804-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0710-0803			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0804-0805			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-			●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	0804-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0710-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-2	01	1	0710-0803			●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	0804-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0710-0803			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	0804-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98034-990-3	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-991-1	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98034-991-1	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98031-888-3	01	1	0710-0803			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98031-888-3	01	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97351-168-0	01	1	0804-			●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-			●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0710-			●	●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803			●	●
112	03.417 BOLT; CLIP EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (D)	8-98113-333-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98113-710-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98085-187-0	01	1	0710-0803			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0804-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-928-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-			●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0710-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-			●	●
116	03.342 BOLT; WATER PIPE NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0804-1501			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	1502-			●	●
117	03.342 GASKET; WATER PIPE 01.531 (D) ID=12.6 ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	02	1	0905-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (C)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	0804-	●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0710-0803	●		●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0804-0804	●	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4).	9-09571-412-0	04	1	0805-0904	●		●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0805-0904		●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0905-			●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	04	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0710-			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0710-1006			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER (B)	8-97386-642-0	01	1	0710-0803			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-97386-642-1	01	1	0804-1006			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98172-661-0	01	1	1007-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97148-925-2	01	1	0804-1006			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98172-658-0	01	1	1007-			●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0710-			●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0710-			●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312			●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97387-271-0	01	1	0710-0803			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0804-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98063-840-0	01	1	0804-			●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0710-			●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0710-			●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0710-0803			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-			●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0804-			●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	0710-			●	●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	0710-0803			●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	0804-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417 (B)	8-98052-394-0	01	1	0710-0803			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	0804-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A)	8-97351-167-0	01	1	0804-1204			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98176-248-0	01	1	1205-			●	●
485	01.097 PIPE; WATER EGR (E)	8-97381-651-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (E)	8-97381-651-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (F)	8-97381-652-0	01	1	0710-0803	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (F)	8-97381-652-0	01	1	0804-	●	●
485	01.097 PIPE; WATER EGR (D)	8-98032-267-0	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO4 SPECIFICATION(NT4) (D)	8-98032-267-0	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR (A)	8-98041-637-1	01	1	0710-0803			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98041-637-1	01	1	0804-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97376-773-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97376-773-0	01	1	1502-			●	●
485	01.097 PIPE; WATER EGR NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98064-164-0	01	1	0804-1501			●	●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (C)	8-98064-164-0	01	1	1502-			●	●
532	03.407 WASHER; TURBOCHARGER 03.613 ID=10	1-09503-033-1	04	1	0710-0803			●	●
532	03.407 WASHER; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.613 ID=10	1-09503-033-1	04	1	0804-0805			●	●

231 118 118 460 414 414 115 460 288 288 117 19 19 465 204 116 117 7 162 101 116 136 136 6 391 32 66 16 14 14 9 1 9 134 133 130 135 135 131 12 11 131 101 117 137 288 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
6	03.417 BOLT; BRKT TO C/BL 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-			●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0710-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F)	8-98011-532-0	01	1	0710-0803	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) 03.611 (F)	8-98011-532-0	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2) (E)	8-98015-116-1	01	1	0804-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) ID=54	8-97376-758-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54	8-97376-758-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (D) ID=49	8-98046-241-0	01	1	0710-0803			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49	8-98046-241-0	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97039-777-1	01	1	0804-			●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-97374-412-0	01	1	0804-			●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0710-0803	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0804-	●	●
11	03.342 NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0710-0803			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10	1-09420-005-0	04	1	0804-0805			●	●
11	03.342 NUT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE	8-97381-617-0	04	1	0806-			●	●
11	03.342 NUT; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8	9-09842-007-0	04	1	0804-			●	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0710-0803	●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0804-	●	●
12	03.342 STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0710-0803			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45	9-04731-030-0	02	1	0804-0805			●	●
12	03.342 STUD; TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X30 L=45	1-09302-106-0	02	1	0806-			●	●
12	03.342 STUD; TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28	9-04731-028-0	02	1	0804-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0710-0803	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO4 SPECIFICATION(NT4) 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0904-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2) 03.601 (C) M8X25 L=36	8-97378-062-0	02	1	0804-0903	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0710-			●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108	8-97019-477-0	02	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0710-0803	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98009-717-3	01	1	0804-0910	●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98147-897-1	01	1	0911-	●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2)	8-98012-735-4	01	1	0804-	●	●
16	03.609 ADAPTER; EXH PIPE	8-98030-080-2	01	1	0710-0803			●	●
16	03.609 ADAPTER; EXH PIPE EURO4 SPECIFICATION(NT4)	8-98030-080-3	01	1	0804-			●	●
16	03.609 ADAPTER; EXH PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-97039-749-2	01	1	0804-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	03	1	0710-0803			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE	8-94170-486-0	03	1	0804-			●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE	8-94170-486-0	05	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-98034-990-3	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98034-990-3	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (D)	8-98034-991-1	01	1	0710-0803	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98034-991-1	01	1	0804-	●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98031-888-3	01	1	0710-0803			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98031-888-3	01	1	0804-			●	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97351-168-0	01	1	0804-			●	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0710-0803	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0804-	●	●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0710-			●	●
101	03.602 BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0710-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98091-838-0	01	1	0710-0802	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-98113-333-0	01	1	0803-0803	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (D)	8-98113-333-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (C)	8-98113-710-0	01	1	0804-	●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98085-187-0	01	1	0710-0803			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION(NT4) (B)	8-98085-187-0	01	1	0804-			●	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98096-928-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0710-0803			●	●
116	03.342 BOLT; WATER PIPE 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT	1-09675-081-0	02	1	0805-			●	●
116	03.342 BOLT; WATER PIPE (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0710-0804			●	●
116	03.342 BOLT; WATER PIPE EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0805-			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	01	1	0804-0804			●	●
116	03.342 BOLT; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT	8-94455-144-0	03	1	0805-			●	●
116	03.342 BOLT; WATER PIPE NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	0804-1501			●	●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE	0-28650-820-0	04	1	1502-			●	●
117	03.342 GASKET; WATER PIPE 01.531 (D) ID=12.6 ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	02	1	0905-	●	●
117	03.342 GASKET; WATER PIPE 01.531 (C)	8-97262-117-0	01	1	0710-0803	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 01.531 (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	0804-	●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0710-0803	●		●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0804-0804	●	●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4).	9-09571-412-0	04	1	0805-0904	●		●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0805-0904		●
117	03.342 GASKET; WATER PIPE EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	04	1	0905-			●	●
117	03.342 GASKET; WATER PIPE 08.955 (A) ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	02	1	0804-0804			●	●
117	03.342 GASKET; WATER PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-414-0	04	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0710-0803	●
118	03.342 CLIP; WATER HOSE 01.153 (C) ID=12.8	8-94367-943-0	04	1	0804-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (D) ID=22	8-94382-401-0	06	1	0710-0803	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 08.846 (D) ID=22	8-94382-401-0	06	1	0804-1003	●	●
118	03.342 CLIP; WATER HOSE EURO4 SPECIFICATION(NT4) 03.278 (D) ID=22	8-97359-141-0	06	1	1004-	●	●
118	03.342 CLIP; WATER HOSE 08.846 (A) ID=20	1-09707-084-1	06	1	0710-0803			●	●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20	1-09707-084-1	06	1	0804-			●	●
118	03.342 CLIP; WATER HOSE 03.162 (B) ID=15.5	8-94221-519-0	02	1	0710-			●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0710-			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0710-1006			●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER (B)	8-97386-642-0	01	1	0710-0803			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-97386-642-1	01	1	0804-1006			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98172-661-0	01	1	1007-			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97148-925-2	01	1	0804-1006			●	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98172-658-0	01	1	1007-			●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0710-			●	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0710-			●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312			●	●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0710-0803	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (C)	8-97381-650-0	01	1	0804-	●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97387-271-0	01	1	0710-0803			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION(NT4) (B)	8-97387-271-0	01	1	0804-			●	●
137	01.097 PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98063-840-0	01	1	0804-			●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0710-			●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-			●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0710-0803	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0804-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0710-			●	●
288	03.342 BOLT; WATER PIPE CLIP 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0710-0803			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0804-			●	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-			●	●
288	03.342 BOLT; WATER PIPE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0804-			●	●
391	03.342 BRACKET; WATER PIPE (A)	8-97371-730-0	01	1	0710-			●	●
391	03.342 BRACKET; WATER PIPE (B)	8-98013-958-0	01	1	0710-0803			●	●
391	03.342 BRACKET; WATER PIPE EURO4 SPECIFICATION(NT4) (B)	8-98013-958-0	01	1	0804-			●	●
414	03.602 SPACER EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.429 M8X10	1-11369-081-0	02	1	0804-			●
460	03.374 NUT; PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER 03.417 (B)	8-98052-394-0	01	1	0710-0803			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION(NT4) 03.417 (B)	8-98052-394-0	01	1	0804-			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A)	8-97351-167-0	01	1	0804-1204			●	●
465	03.602 PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98176-248-0	01	1	1205-			●	●

1 71 143 389 143 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98055-062-2	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98006-133-2	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98039-732-3	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98107-509-1	01	1	0804-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0804-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=50-69	1-09707-135-0	01	1	0710-0711			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0712-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0710-0810			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (A) ID=58-76	1-09707-203-0	02	1	0710-0811			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=55-75	8-98133-349-0	02	1	0812-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0710-			●	●

71 143 1 389 143 143 71 143 309 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	0710-0803	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-97381-507-5	01	1	0804-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-1	01	1	0804-0804	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	0805-	●	●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98079-569-2	01	1	0804-			●
1	03.342 TURBOCHARGER ASM NPR SGL CAB(NP**SN) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0804-1501			●	●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	1502-			●	●
1	03.342 TURBOCHARGER ASM	8-98027-772-2	01	1	0710-0803			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98027-772-5	01	1	0804-1509			●	●
1	03.342 TURBOCHARGER ASM EURO4 SPECIFICATION(NT4)	8-98322-481-0	01	1	1510-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (F)	8-98159-280-1	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (E)	8-98036-513-2	01	1	0804-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0710-0803	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (F)	8-98055-062-1	01	1	0804-1001	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (F)	8-98055-062-2	01	1	1002-	●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-98006-133-2	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (C)	8-98006-133-2	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98039-732-3	01	1	0710-0803			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (D)	8-98039-732-3	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98059-964-1	01	1	0804-			●	●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98107-509-1	01	1	0804-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65	8-98096-418-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET DBL CAB(NP*W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0710-0803	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=50-65	1-09707-204-0	04	1	0804-0810	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=45-65	8-98133-348-0	04	1	0811-0812	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	0901-1001	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65	8-98133-348-0	04	1	1002-	●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=50-69	1-09707-135-0	01	1	0710-0711			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=60-65	8-98096-418-0	01	1	0712-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=68-85	1-09707-202-0	01	1	0710-0810			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=65-85	8-98133-350-0	01	1	0811-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1002-			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (A) ID=58-76	1-09707-203-0	02	1	0710-0811			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=55-75	8-98133-349-0	02	1	0812-0812			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	0901-1001			●	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-			●	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0710-0803	●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0804-	●	●
309	03.342 BOLT; TURBOCHARGER 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803			●	●
309	03.342 BOLT; TURBOCHARGER EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-			●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0710-0803	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98036-505-1	01	1	0804-	●	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98042-688-1	01	1	0710-			●	●
527	03.373 BRACKET; TURBOCHARGER	8-98100-583-0	01	1	0710-0803			●	●
527	03.373 BRACKET; TURBOCHARGER EURO4 SPECIFICATION(NT4)	8-98100-583-0	01	1	0804-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
