0-31 — THERMOSTAT AND HOUSING (#49914) — 53 parça

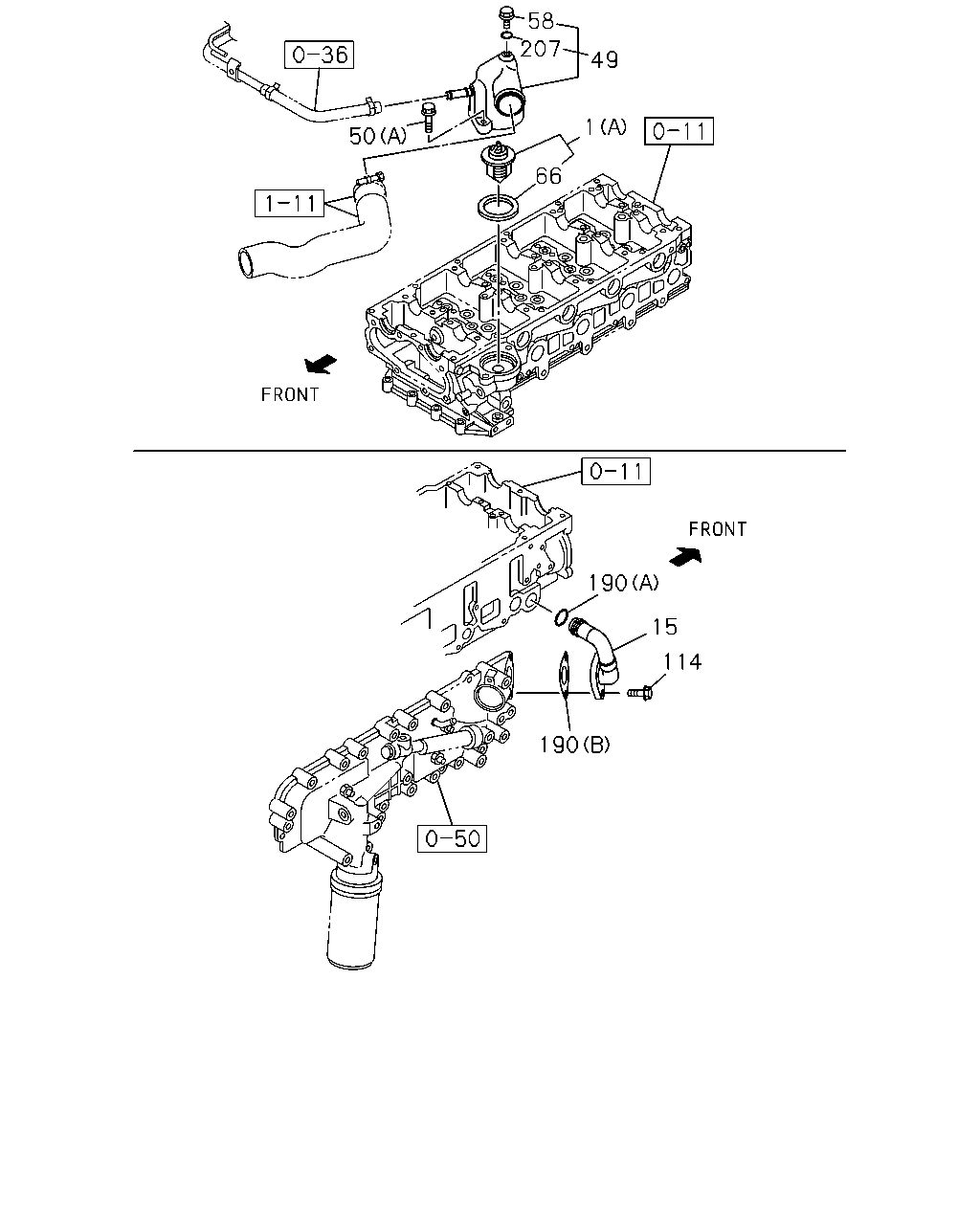

58 207 49 50 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-98017-027-1	01	1	0710-0803	●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-98017-027-2	01	1	0804-	●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-3	01	1	0710-			●	●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97300-790-3	01	1	0710-			●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0710-0803	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0804-	●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0710-			●	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-0	01	1	0710-0803	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0804-	●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0710-			●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0803	●
50	01.252 BOLT; OUTLET PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-			●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0710-			●	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0710-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98114-587-0	01	1	0804-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	02	1	0710-1501			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-			●	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0710-0803	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0804-	●	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	0710-0803	●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	0804-	●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0710-0803	●		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0804-	●	●	●	●

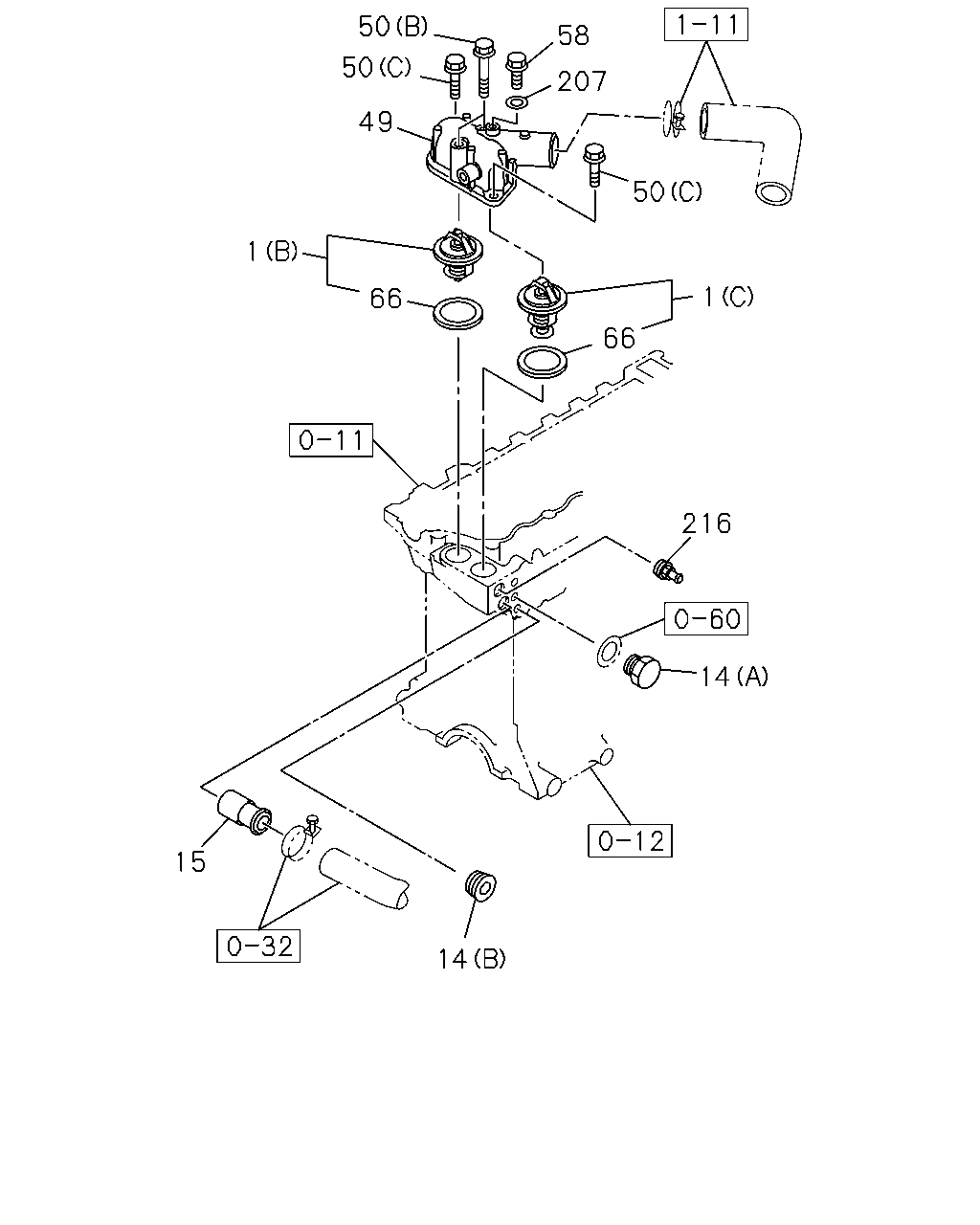

50 50 49 1 66 15 14 14 216 66 1 50 207 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-98017-027-1	01	1	0710-0803	●
1	01.246 THERMOSTAT (A) 85 CELSIUS	8-98017-027-2	01	1	0804-	●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-3	01	1	0710-			●	●
1	01.246 THERMOSTAT (C) 82 CELSIUS	8-97300-790-3	01	1	0710-			●	●
14	01.252 PLUG; SW 01.073 (B) PT3/8	5-09605-005-0	01	1	0710-			●	●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	0710-			●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0710-0803	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0804-	●	●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	0710-			●	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-0	01	1	0710-0803	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0804-	●	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	0710-			●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0803	●
50	01.252 BOLT; OUTLET PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●
50	01.252 BOLT; OUTLET PIPE 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0710-			●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	0710-			●	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	0710-			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98114-587-0	01	1	0804-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	02	1	0710-1501			●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-			●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0710-0803	●		●	●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0804-	●	●	●	●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	0710-			●	●
