0-10 — CYLINDER HEAD COVER (#49902) — 117 parça

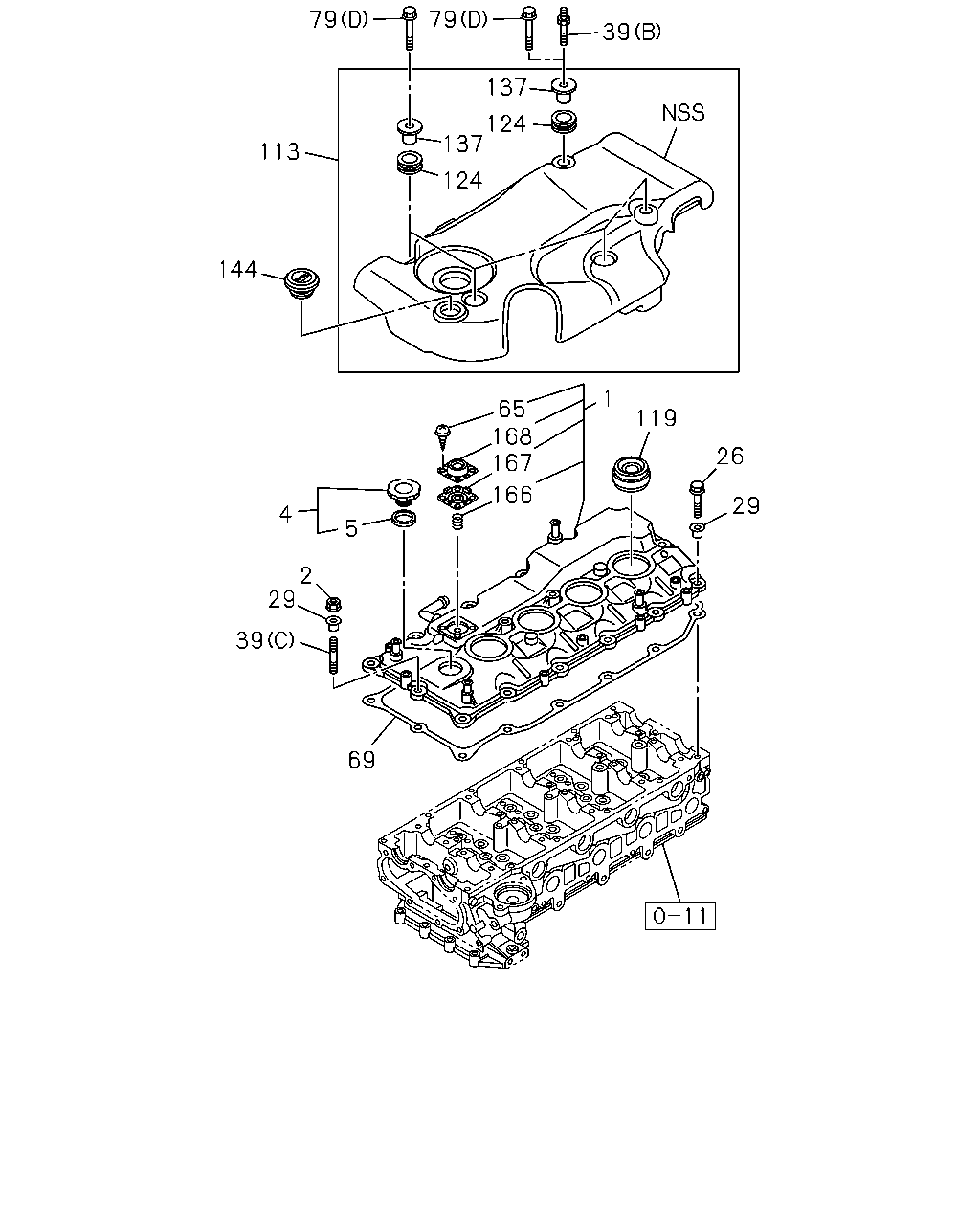

29 26 119 1 166 167 168 65 4 5 2 29 39 69 144 113 79 79 137 124 137 124 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-98051-197-0	01	1	0710-0803	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0804-1305	●	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-	●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0710-			●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0710-0803	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0804-	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0811			●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0710-0803	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0804-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0710-0803	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0804-	●	●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0710-0803	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	0804-	●	●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	0710-0803	●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	0804-1408	●	●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-	●	●
39	00.413 STUD; COVER,HD (C) M6X30 L=38	8-97372-795-0	01	1	0710-0803	●
39	00.413 STUD; COVER,HD (C) M6X30 L=38	8-97372-795-0	01	1	0804-	●	●
39	00.413 STUD; COVER,HD EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	0804-	●	●
39	00.413 STUD; COVER,HD 03.275 (A) M6X25 L=34	0-41010-625-0	02	1	0710-0906			●	●
39	00.413 STUD; COVER,HD EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.275 (A) M6X25 L=34	0-41010-625-0	02	1	0907-			●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0710-0803	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	0804-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	0710-0803	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	0804-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-359-1	01	1	0710-			●	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20	8-97127-607-0	03	1	1111-			●	●
79	00.293 BOLT; COVER 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	0710-0803	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	0804-	●	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION(NT2) 04.338 (D) M8X20 FLANGE	0-28050-820-0	04	1	0804-	●	●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-			●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	0710-			●	●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	04	1	0710-0906			●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20	8-97127-607-0	04	1	0907-1110			●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 00.413 (A) M6X20	8-97127-607-0	04	1	1111-			●	●
113	00.386 COVER; CYL HEAD COVER EURO4 SPECIFICATION(NT4)	8-98115-676-0	01	1	1111-			●	●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-2	01	1	0710-0803	●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	0804-1104	●	●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-	●	●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0710-0906			●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97354-803-3	01	1	0907-1110			●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3)	8-97354-803-3	01	1	1111-			●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0710-0803	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	0804-	●	●
124	00.413 RUBBER; MTG,COVER EURO4 SPECIFICATION(NT4)	8-97226-908-0	05	1	1111-			●	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0710-0803	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0804-	●	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0710-0906			●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97226-908-0	06	1	0907-1110			●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3)	8-97226-908-0	06	1	1111-			●	●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	0710-0803	●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	0804-	●	●
144	01.758 CAP; PIPE,CYL HEAD COVER	8-98036-117-0	01	1	0710-0803	●
144	01.758 CAP; PIPE,CYL HEAD COVER	8-98036-117-0	01	1	0804-0907	●	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0710-0803	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	0804-	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0710-0803	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	0804-1305	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505	●	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-	●	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0710-0803	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	0804-	●	●

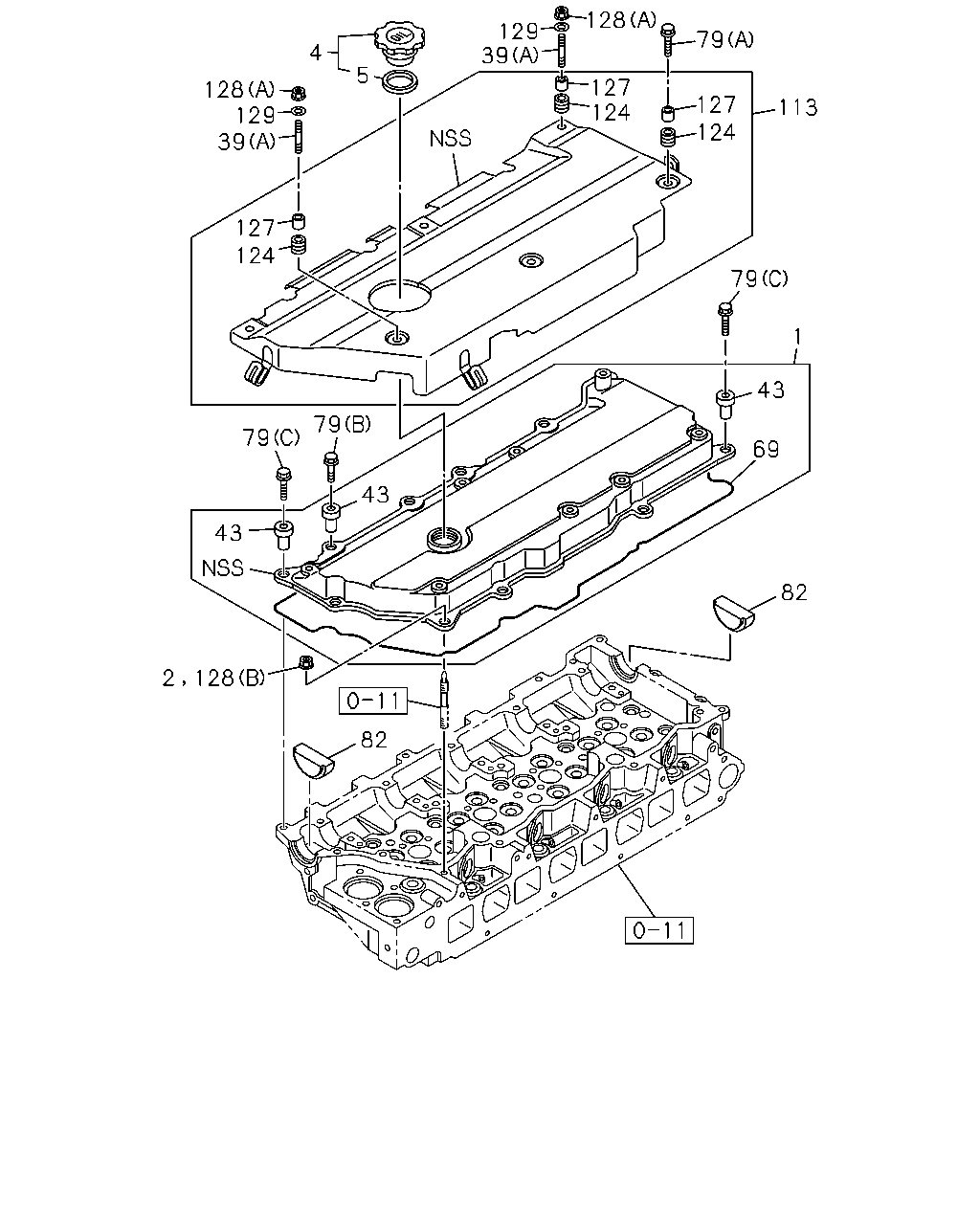

128 129 39 127 124 79 79 43 43 2 128 82 82 69 43 1 79 113 124 127 124 127 79 128 129 39 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD	8-98051-197-0	01	1	0710-0803	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	0804-1305	●	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505	●	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-	●	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0710-			●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0710-0803	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	0804-	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0811			●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0710-0803	●		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0804-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0710-0803	●		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0804-	●	●	●	●
39	00.413 STUD; COVER,HD (C) M6X30 L=38	8-97372-795-0	01	1	0710-0803	●
39	00.413 STUD; COVER,HD (C) M6X30 L=38	8-97372-795-0	01	1	0804-	●	●
39	00.413 STUD; COVER,HD EURO2 SPECIFICATION(NT2) 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	0804-	●	●
39	00.413 STUD; COVER,HD 03.275 (A) M6X25 L=34	0-41010-625-0	02	1	0710-0906			●	●
39	00.413 STUD; COVER,HD EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.275 (A) M6X25 L=34	0-41010-625-0	02	1	0907-			●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0710-			●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	0710-0803	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	0804-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-359-1	01	1	0710-			●	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20	8-97127-607-0	03	1	1111-			●	●
79	00.293 BOLT; COVER 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	0710-0803	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	0804-	●	●
79	00.293 BOLT; COVER EURO2 SPECIFICATION(NT2) 04.338 (D) M8X20 FLANGE	0-28050-820-0	04	1	0804-	●	●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-			●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	0710-			●	●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	04	1	0710-0906			●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20	8-97127-607-0	04	1	0907-1110			●	●
79	00.293 BOLT; COVER EURO3 SPECIFICATION(NT3) 00.413 (A) M6X20	8-97127-607-0	04	1	1111-			●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0710-1005			●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-			●	●
113	00.386 COVER; CYL HEAD COVER EURO4 SPECIFICATION(NT4)	8-98115-676-0	01	1	1111-			●	●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-2	01	1	0710-0803	●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	0804-1104	●	●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-	●	●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0710-0906			●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97354-803-3	01	1	0907-1110			●	●
113	00.386 COVER; CYL HEAD COVER EURO3 SPECIFICATION(NT3)	8-97354-803-3	01	1	1111-			●	●
124	00.413 RUBBER; MTG,COVER EURO4 SPECIFICATION(NT4)	8-97226-908-0	05	1	1111-			●	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0710-0803	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	0804-	●	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0710-0906			●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97226-908-0	06	1	0907-1110			●	●
124	00.413 RUBBER; MTG,COVER EURO3 SPECIFICATION(NT3)	8-97226-908-0	06	1	1111-			●	●
127	00.386 RETAINER; COVER EURO4 SPECIFICATION(NT4)	8-97092-314-0	05	1	1111-			●	●
127	00.386 RETAINER; COVER	8-97092-314-0	06	1	0710-0906			●	●
127	00.386 RETAINER; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97092-314-0	06	1	0907-1110			●	●
127	00.386 RETAINER; COVER EURO3 SPECIFICATION(NT3)	8-97092-314-0	06	1	1111-			●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0710-0906			●	●
128	00.413 NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0907-			●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-			●	●
129	00.413 WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	02	1	0710-0906			●	●
129	00.413 WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) ID=6.4 OD=18	0-91610-706-0	02	1	0907-			●	●
