◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51157 - NN/NP/NQR-R EXC.EU5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#49900) — 14 parça

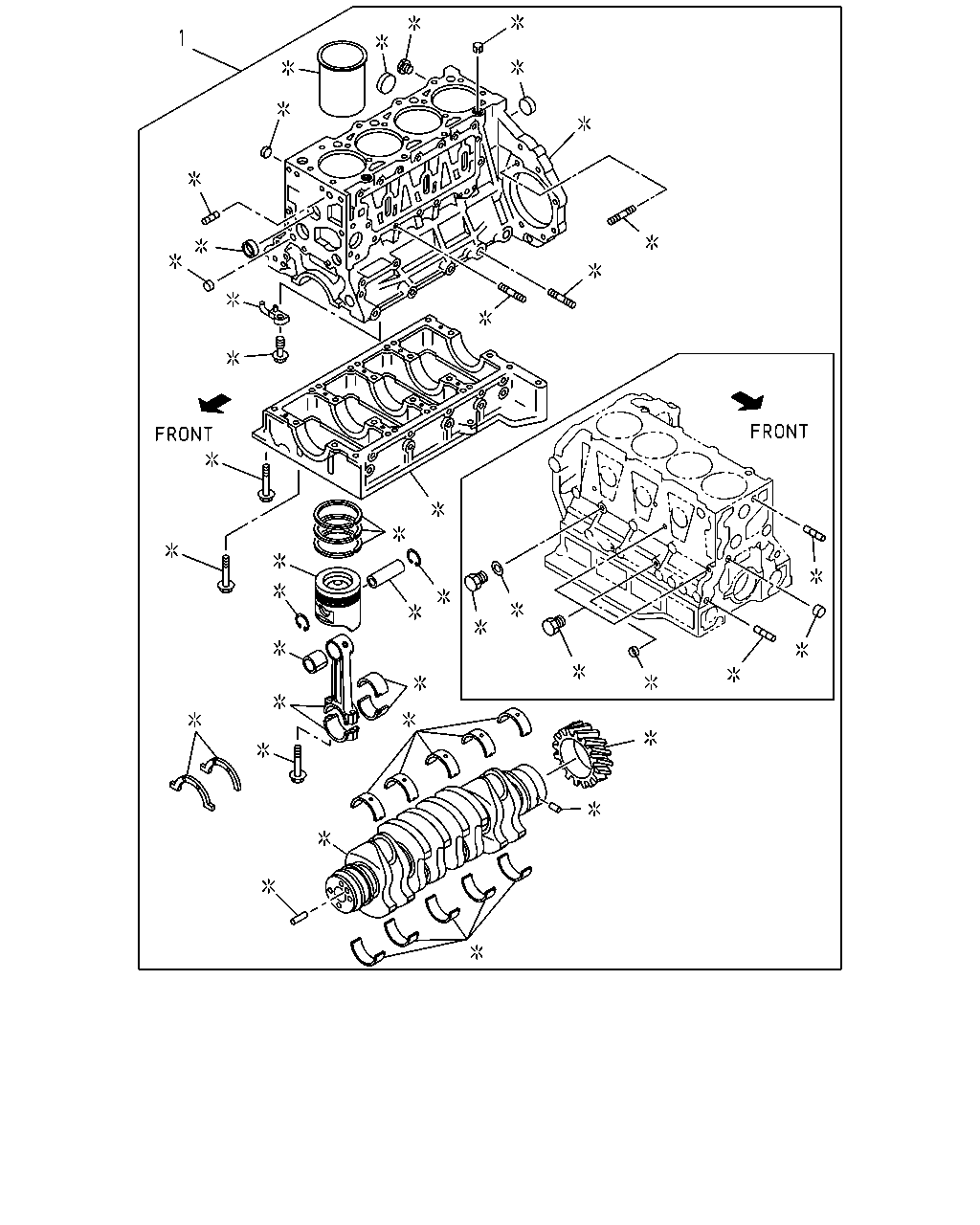

çizim 156030
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL 5-87310-924-1 01 1 0710-0803 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-924-3 01 1 0804-1007 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1008-1409 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-925-3 01 1 0710-0912 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-093-6 01 1 1001-1312 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-235-2 01 1 1401- ● ●

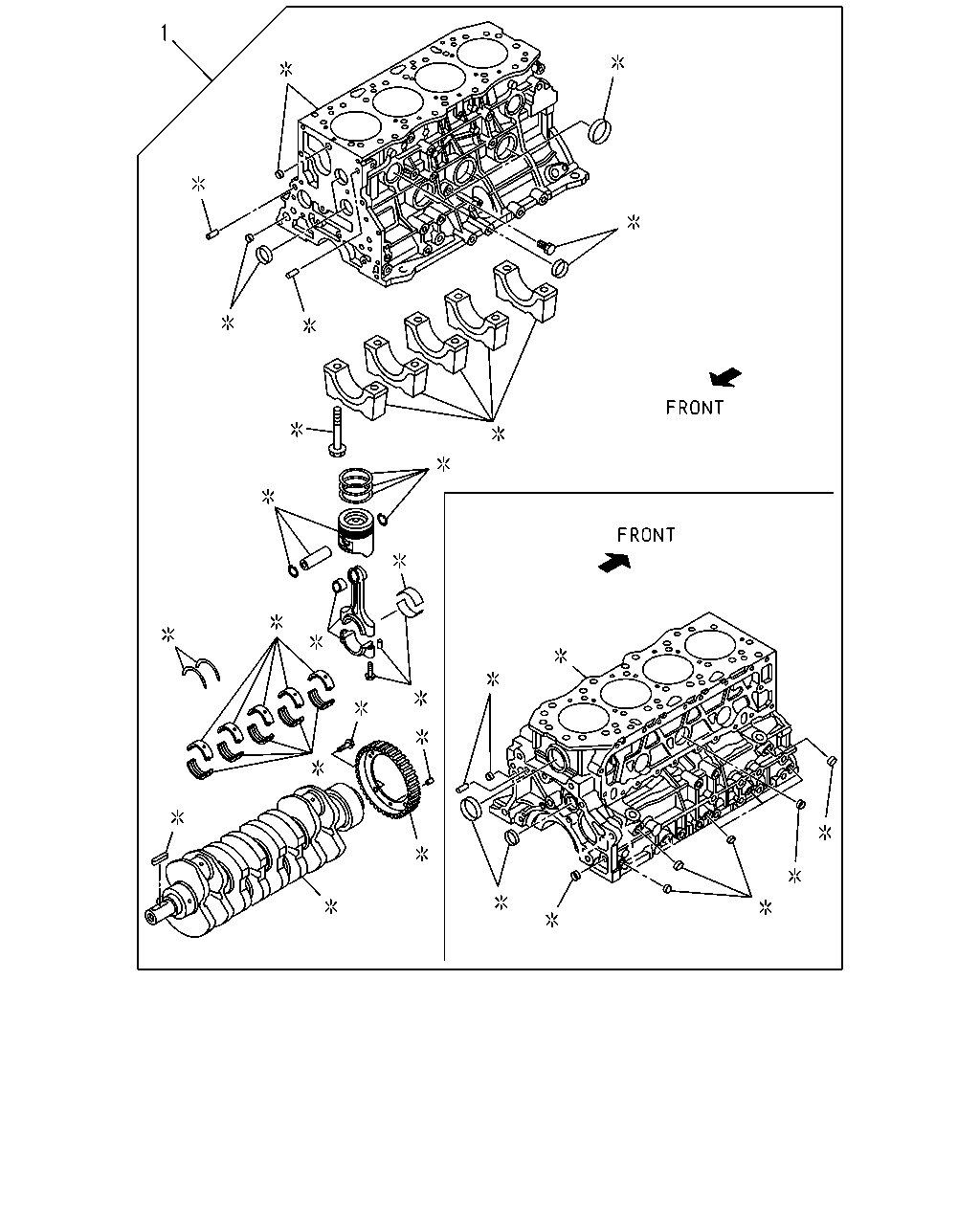

çizim 156054
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.033 ENGINE ASM; PARTIAL 5-87310-924-1 01 1 0710-0803 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-924-3 01 1 0804-1007 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1008-1409 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-925-3 01 1 0710-0912 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-093-6 01 1 1001-1312 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-235-2 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
