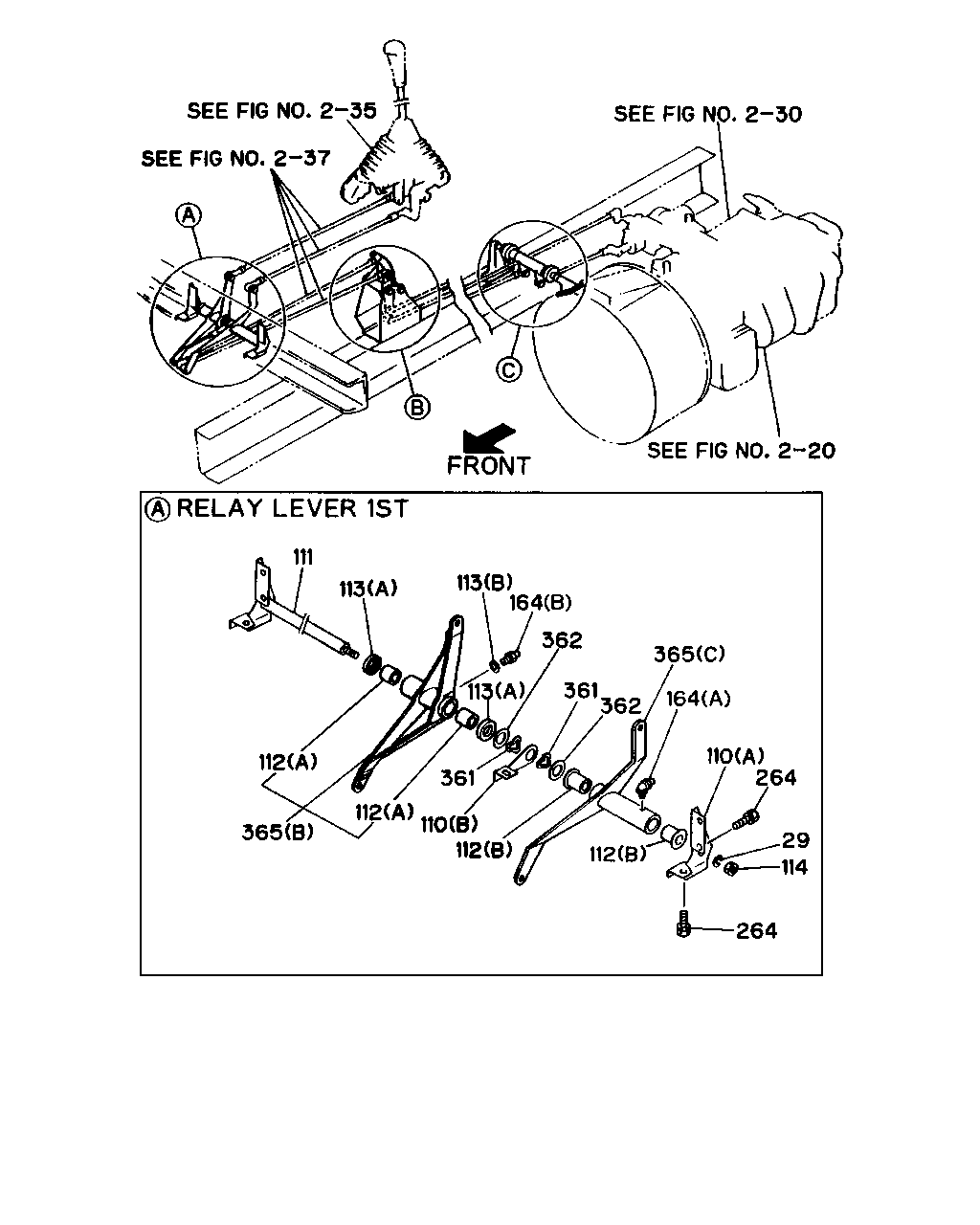

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#499) — 163 parça

243 33 71 35 34 46 162 34 46 71 242 43 34 34 33 243 71 35 34 46 34 162 34 34 46 71 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	BOLT; BRKT,3RD RELAY LEVER M10X45	9-01911-045-0	01	1	8712-9001	●
33	BOLT; BRKT,3RD RELAY LEVER 10PC1 STD ENG(10L) M10X45	9-01911-045-0	01	1	8712-9001		●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	9-91056-445-0	01	1	8712-9001	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	9-92051-445-0	01	1	9002-9005			●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9006-			●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER M10X45	9-01911-045-0	01	1	9002-9002					●
33	BOLT; BRKT,3RD RELAY LEVER M10X45 W/LK WASHER	0-50041-045-0	01	1	9003-9205					●
33	BOLT; BRKT,3RD RELAY LEVER M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-					●
33	BOLT; BRKT,3RD RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) M12X45	9-01911-245-0	01	1	8712-9001		●	●
33	BOLT; BRKT,3RD RELAY LEVER M12X45	9-01911-245-0	01	1	9002-9005			●	●		●
33	BOLT; BRKT,3RD RELAY LEVER M12X45 W/LK WASHER	0-50041-245-0	01	1	9006-			●	●		●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	8712-	●	●	●	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	8712-	●	●	●	●	●	●
43	NUT; BRKT M8 FLANGE	5-09440-005-0	04	1	8712-9001	●
43	NUT; BRKT 10PC1 STD ENG(10L) M8 FLANGE	5-09440-005-0	04	1	8712-9001		●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	8712-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-188-0	01	1	8712-9001	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PC1 STD ENG(10L) (B)	1-33657-188-0	01	1	8712-9001		●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-223-0	01	1	8712-9001	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PC1 STD ENG(10L) (A)	1-33657-223-0	01	1	8712-9001		●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-188-0	01	1	9002-					●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-223-0	01	1	9002-					●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (C)	1-33657-193-2	01	1	8712-9001		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (D)	1-33657-195-1	01	1	8712-9001		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (C)	1-33657-193-2	01	1	9002-			●	●		●
71	BRACKET; 3RD RELAY LEVER,FRAME (D)	1-33657-195-1	01	1	9002-			●	●		●
162	LEVER; RELAY	1-33651-403-1	01	1	8712-9001	●
162	LEVER; RELAY 10PC1 STD ENG(10L)	1-33651-403-1	01	1	8712-9001		●
162	LEVER; RELAY	1-33651-271-2	01	1	9002-					●
162	LEVER; RELAY 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33651-338-1	01	1	8712-9001		●	●
162	LEVER; RELAY	1-33651-338-1	01	1	9002-			●	●		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) M12X30 W/LK WASHER	9-01911-230-0	02	1	8712-9001		●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005			●	●		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-			●	●		●
242	NUT; FLANGE 3RD RELAY LEVER M8 FLANGE	5-09440-005-0	04	1	9002-					●
243	WASHER; LK,BRKT ID=14.2	9-09150-614-0	01	1	9002-			●	●	●	●

365 112 112 361 110 112 112 264 114 29 264 110 164 365 362 361 362 164 113 113 113 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
29	WASHER; LK,RELAY LEVER ID=14.2	9-09150-514-0	01	1	8712-	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-180-1	01	1	8712-	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-184-2	01	1	8712-	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-123-1	01	1	8712-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (A) ID=22 OD=25 L=18	1-09330-050-0	02	1	8712-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (B) L=24	5-33659-054-0	02	1	8712-	●	●	●	●	●	●
113	WASHER; RELAY LEVER (A)	1-09509-041-0	02	1	8712-	●	●	●	●	●	●
113	WASHER; RELAY LEVER (B) ID=6.4	9-09160-506-0	01	1	8712-	●	●	●	●	●	●
114	NUT; RELAY LEVER M14	9-99110-414-0	01	1	8712-	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (B) M6 STRAIGHT	9-09031-006-0	01	1	8712-	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (A) PT1/8 ELBOW	9-09031-210-0	01	1	8712-	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	8712-9005	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-			●	●	●	●
361	WASHER; WAVED	1-33659-093-0	02	1	8712-	●	●	●	●	●	●
362	SHIM	1-33659-092-0	02	1	8712-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	8712-9001	●
365	LEVER; RELAY,SELECT 10PC1 STD ENG(10L) (A)	1-33651-249-4	01	1	8712-9001		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	8712-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-			●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	8712-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-			●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-					●
365	LEVER; RELAY,SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A)	1-33651-295-1	01	1	8712-9001		●	●
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9002-			●	●		●

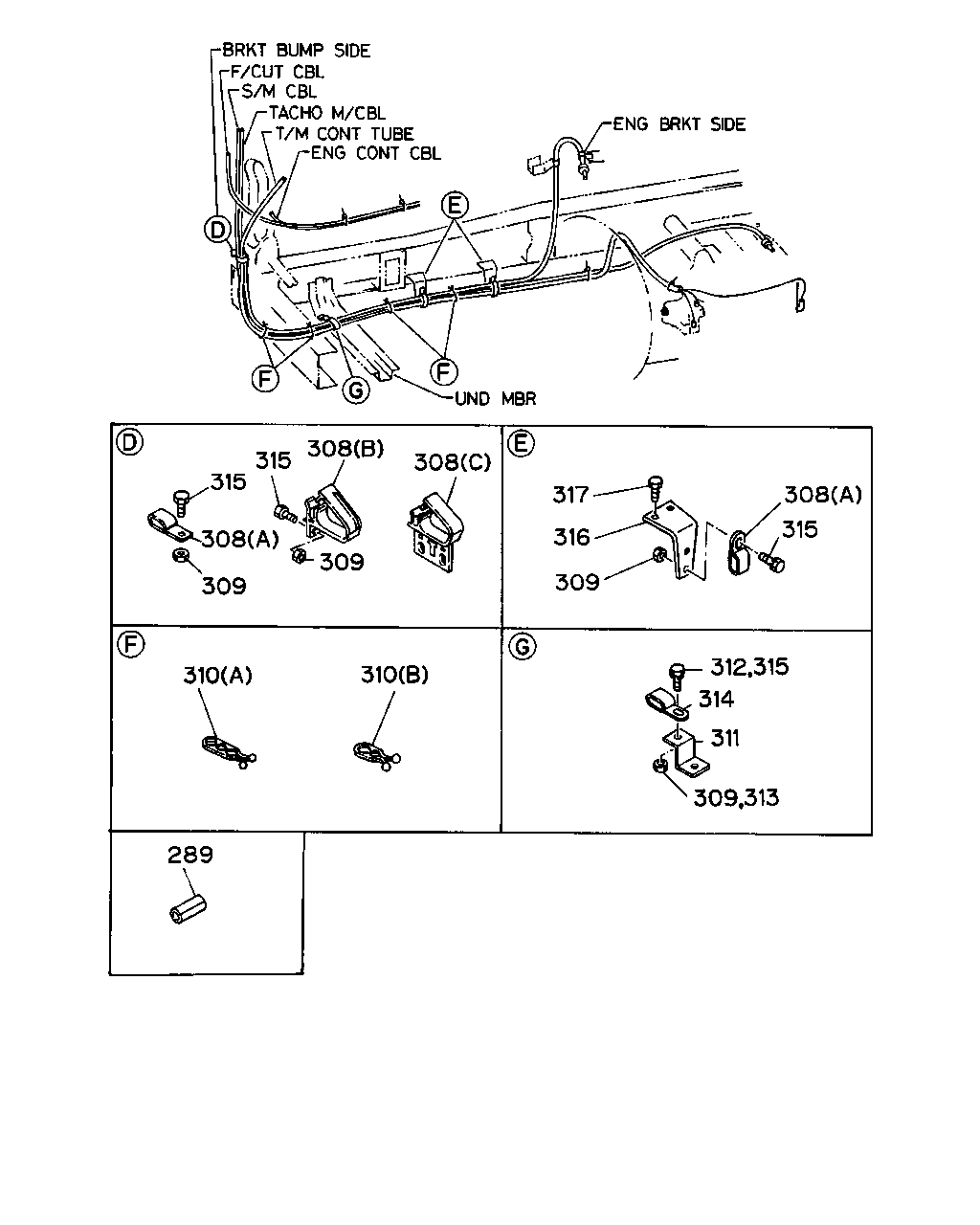

313 309 311 314 315 312 289 310 310 309 309 308 315 315 308 308 317 316 309 308 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
289	SLEEVE; RUBBER NYLON TUBE AIR PIPING<Z29> OD=16.8 L=50	1-09369-010-0	01	1	9307-			●	●
308	CLIP; PIPE (A) ID=11X2 L=16	9-09535-026-0	03	1	8902-9001	●
308	CLIP; PIPE REINFORCEMENT BUMPER<VG7> (C)	1-09700-780-1	01	1	8712-9001	●	●	●
308	CLIP; PIPE EXC. REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	8712-9001	●	●	●
308	CLIP; PIPE (A) ID=11X2 L=16	9-09535-026-0	03	1	9002-9007					●
308	CLIP; PIPE REINFORCEMENT BUMPER<VG7> (C)	1-09700-780-1	01	1	9002-9306			●	●	●	●
308	CLIP; PIPE EXC. REINFORCEMENT BUMPER<VG7> (B)	1-09700-772-2	01	1	9002-			●	●	●	●
308	CLIP; PIPE 10PC1 STD ENG(10L) (A) ID=10.5 & 14.5 L=20	1-09700-716-0	03	1	8712-8801		●
308	CLIP; PIPE 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A) ID=10.5 & 14.5 L=20	1-09700-716-0	03	1	8802-8906		●	●
308	CLIP; PIPE 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A) ID=10.5 & 14.5 L=20	1-09701-085-0	03	1	8907-9002		●	●
308	CLIP; PIPE 10PC1 STD ENG(10L) (A) ID=19.5X2 L=24.5	9-09917-356-0	03	1	8802-8802		●
308	CLIP; PIPE 10PC1 STD ENG(10L) (A) ID=10.5 & 14.5 L=21	1-09700-715-0	03	1	8803-8906		●
308	CLIP; PIPE 10PC1 STD ENG(10L) (A) ID=10.5 & 14.5 L=21	1-09701-084-0	03	1	8907-9001		●
308	CLIP; PIPE (A) ID=10.5 & 14.5 L=20	1-09700-716-0	02	1	8712-8801		●	●
308	CLIP; PIPE (A) ID=19.5X2 L=24.5	9-09917-356-0	01	1	8712-8801		●	●
308	CLIP; PIPE (A) ID=10.5 & 14.5 L=20	1-09701-085-0	03	1	9002-9007			●	●		●
308	CLIP; PIPE REINFORCEMENT BUMPER<VG7> (C)	1-09700-780-1	01	1	9307-				●
309	NUT; PIPE CLIP M8	9-09110-408-0	04	1	8712-9007	●	●	●	●	●	●
309	NUT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	02	1	8712-	●	●	●	●	●	●
309	NUT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8	9-09110-408-0	01	1	9009-			●	●	●	●
309	NUT; PIPE CLIP M8	9-09110-408-0	02	1	8712-8801		●	●
310	CLIP; TUBE 10PC1 STD ENG(10L) (A) ID=13.5 & 9.5 & 11	1-09709-124-0	05	1	8712-9001		●
310	CLIP; TUBE 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B) ID=13.5 & 11	1-09709-123-0	06	1	8712-8801		●	●
310	CLIP; TUBE 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B) ID=13.5 & 11	1-09709-123-0	05	1	8802-9001		●	●
310	CLIP; TUBE (B) ID=13.5 & 11	1-09709-123-0	05	1	9002-9007			●	●		●
311	BRACKET; CLIP,UNDER MBR	1-47465-488-0	02	1	8712-9003	●	●	●	●	●	●
311	BRACKET; CLIP,UNDER MBR	1-47465-488-0	01	1	9002-9007			●	●	●	●
312	BOLT; CLIP BRKT M8X25 W/LK&PL WASHER	9-01960-825-0	01	1	9002-9007			●	●	●	●
313	NUT; CLIP BRKT M8	9-09110-408-0	01	1	8712-9007	●	●	●	●	●	●
314	CLIP; PIPE,UNDER MBR ID=11X2 L=16	9-09535-026-0	01	1	8902-9007	●				●
314	CLIP; PIPE,UNDER MBR 10PC1 STD ENG(10L) ID=10.5 & 14.5 L=21	1-09700-715-0	01	1	8802-8906		●
314	CLIP; PIPE,UNDER MBR 10PC1 STD ENG(10L) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	8907-9001		●
314	CLIP; PIPE,UNDER MBR ID=10.5 & 14.5 L=20	1-09700-716-0	01	1	8712-8801		●	●
314	CLIP; PIPE,UNDER MBR 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) ID=10.5 & 14.5 L=20	1-09700-716-0	01	1	8802-8906		●	●
314	CLIP; PIPE,UNDER MBR 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	8907-9001		●	●
314	CLIP; PIPE,UNDER MBR ID=10.5 & 14.5 L=20	1-09701-085-0	01	1	9002-9007			●	●		●
315	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	03	1	8712-9001	●
315	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9002-9007			●	●	●	●
315	BOLT; PIPE CLIP M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9007			●	●	●	●
315	BOLT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204			●	●	●	●
315	BOLT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302			●	●	●	●
315	BOLT; PIPE CLIP REINFORCEMENT BUMPER<VG7> M8X20 FLANGE	0-28080-820-0	02	1	9303-			●	●	●	●
315	BOLT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204			●	●	●	●
315	BOLT; PIPE CLIP EXC. REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-			●	●	●	●
315	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	8712-9001		●	●
316	BRACKET; CLIP	1-46147-049-1	02	1	9002-9007			●	●	●	●
317	BOLT; BRKT,SIDE MBR M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	8712-9001	●
317	BOLT; BRKT,SIDE MBR M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	8712-9001		●	●
317	BOLT; BRKT,SIDE MBR M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9002-9002			●	●	●	●
317	BOLT; BRKT,SIDE MBR M8X20 W/LK WASHER	9-01900-820-0	04	1	9003-9007			●	●	●	●

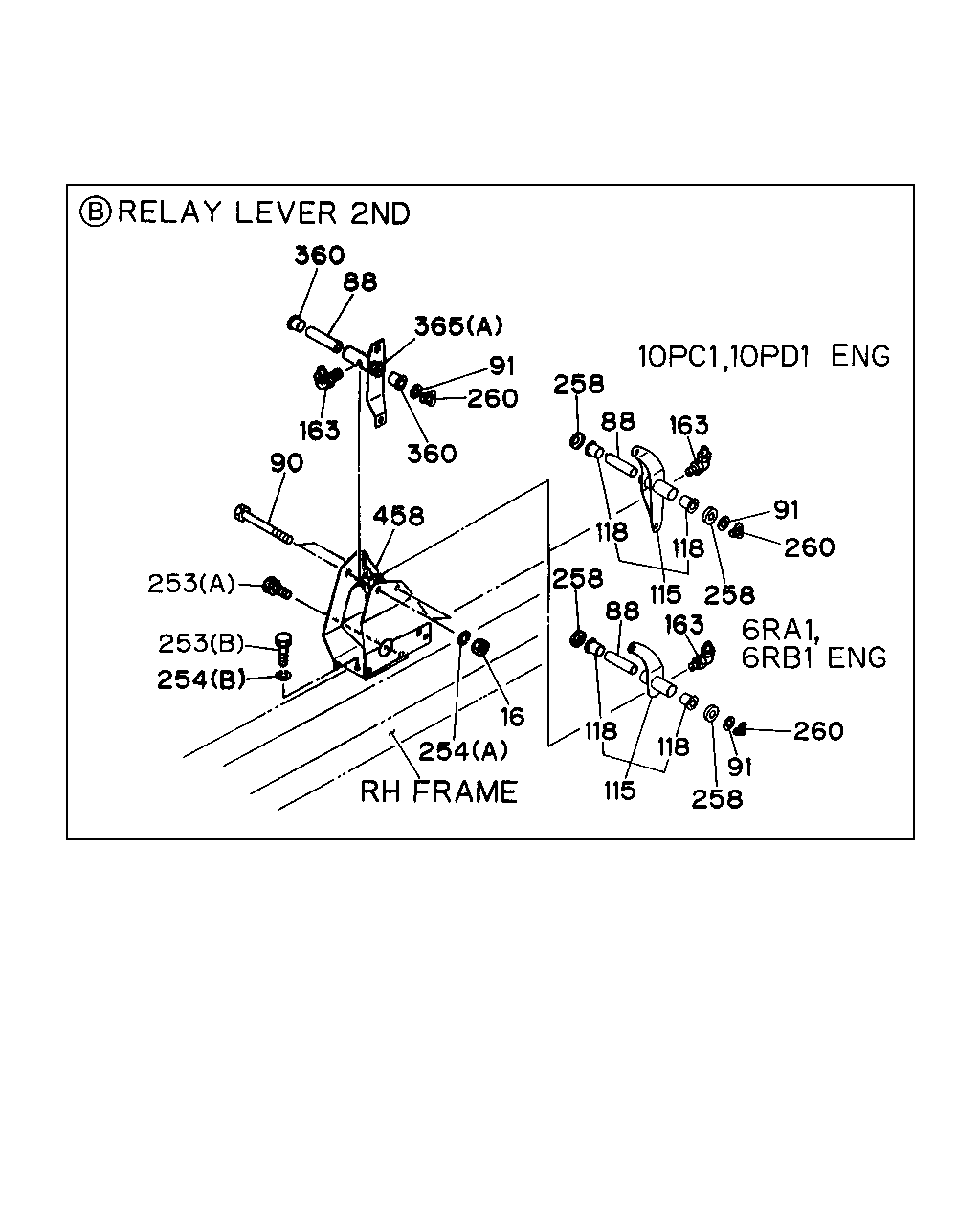

360 88 365 91 260 360 458 163 90 253 253 254 254 16 118 115 118 258 91 260 163 88 258 115 258 260 91 118 118 163 88 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	8712-	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	8712-	●	●	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	8712-	●	●	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	8712-	●	●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-273-1	01	1	8712-9001	●
115	LEVER; RELAY,2ND SHIFT 10PC1 STD ENG(10L)	1-33651-273-1	01	1	8712-9001		●
115	LEVER; RELAY,2ND SHIFT	1-33651-504-1	01	1	9002-					●
115	LEVER; RELAY,2ND SHIFT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33651-276-1	01	1	8712-9001		●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-505-1	01	1	9002-			●	●		●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	8712-	●	●	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	8712-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X45	9-91056-445-0	02	1	8712-9001	●
253	BOLT; BRKT,2ND RELAY LEVER 10PC1 STD ENG(10L) (B) M14X45	9-91056-445-0	02	1	8712-9001		●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X45	9-92051-445-0	02	1	9002-9005					●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X45	0-20801-445-0	02	1	9006-					●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	9-01971-035-0	02	1	8712-9002	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9003-			●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B) M14X40	9-91056-440-0	02	1	8712-9001		●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	9-92051-440-0	02	1	9002-9005			●	●		●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	0-20801-440-0	02	1	9006-			●	●		●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	8712-	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	8712-	●	●	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	8712-	●	●	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	8712-	●	●	●	●	●	●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	8712-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	8712-9001	●
365	LEVER; RELAY,SELECT 10PC1 STD ENG(10L) (A)	1-33651-249-4	01	1	8712-9001		●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	8712-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-			●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	8712-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-			●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-					●
365	LEVER; RELAY,SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A)	1-33651-295-1	01	1	8712-9001		●	●
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9002-			●	●		●
458	BRACKET; 2ND RELAY LEVER	1-33657-210-3	01	1	8712-9001	●
458	BRACKET; 2ND RELAY LEVER 10PC1 STD ENG(10L)	1-33657-210-3	01	1	8712-9001		●
458	BRACKET; 2ND RELAY LEVER	1-33657-210-4	01	1	9002-					●
458	BRACKET; 2ND RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33657-221-4	01	1	8712-9001		●	●
458	BRACKET; 2ND RELAY LEVER	1-33657-221-5	01	1	9002-			●	●		●

325 366 366 366 366 366 366 387 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	F
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> L=250	1-09707-126-0	01	1	9002-		●	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=20 H=23 L=27	1-09700-861-0	01	1	9405-		●	●
366	TUBE; NYLON,FULLER CONT BLACK OD=3/8" L=30000	1-09368-255-0	AR	1	8712-9306	●	●	●	●
366	TUBE; NYLON,FULLER CONT WHITE OD=1/8" L=30000	1-09368-256-0	AR	1	8712-9306	●	●	●	●
366	TUBE; NYLON,FULLER CONT RED OD=3.96MM L=5250	1-33619-358-0	AR	1	9307-		●	●
366	TUBE; NYLON,FULLER CONT BLACK OD=3.96MM L=5250	1-33619-368-0	AR	1	9307-		●	●
366	TUBE; NYLON,FULLER CONT BLUE OD=3.96MM L=5800	1-33619-376-0	AR	1	9307-		●	●
366	TUBE; NYLON,FULLER CONT GREEN OD=3.96MM L=5250	1-33619-385-0	AR	1	9307-		●	●
366	TUBE; NYLON,FULLER CONT YELLOW OD=3.96MM L=4850	1-33619-390-0	AR	1	9307-		●	●
366	TUBE; NYLON,FULLER CONT ORANGE OD=3.96MM L=5800	1-33619-398-0	AR	1	9307-		●	●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-0	02	1	9002-9007		●	●	●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-0	01	1	9008-		●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9002-9306		●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9307-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
