◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#49898) — 19 parça

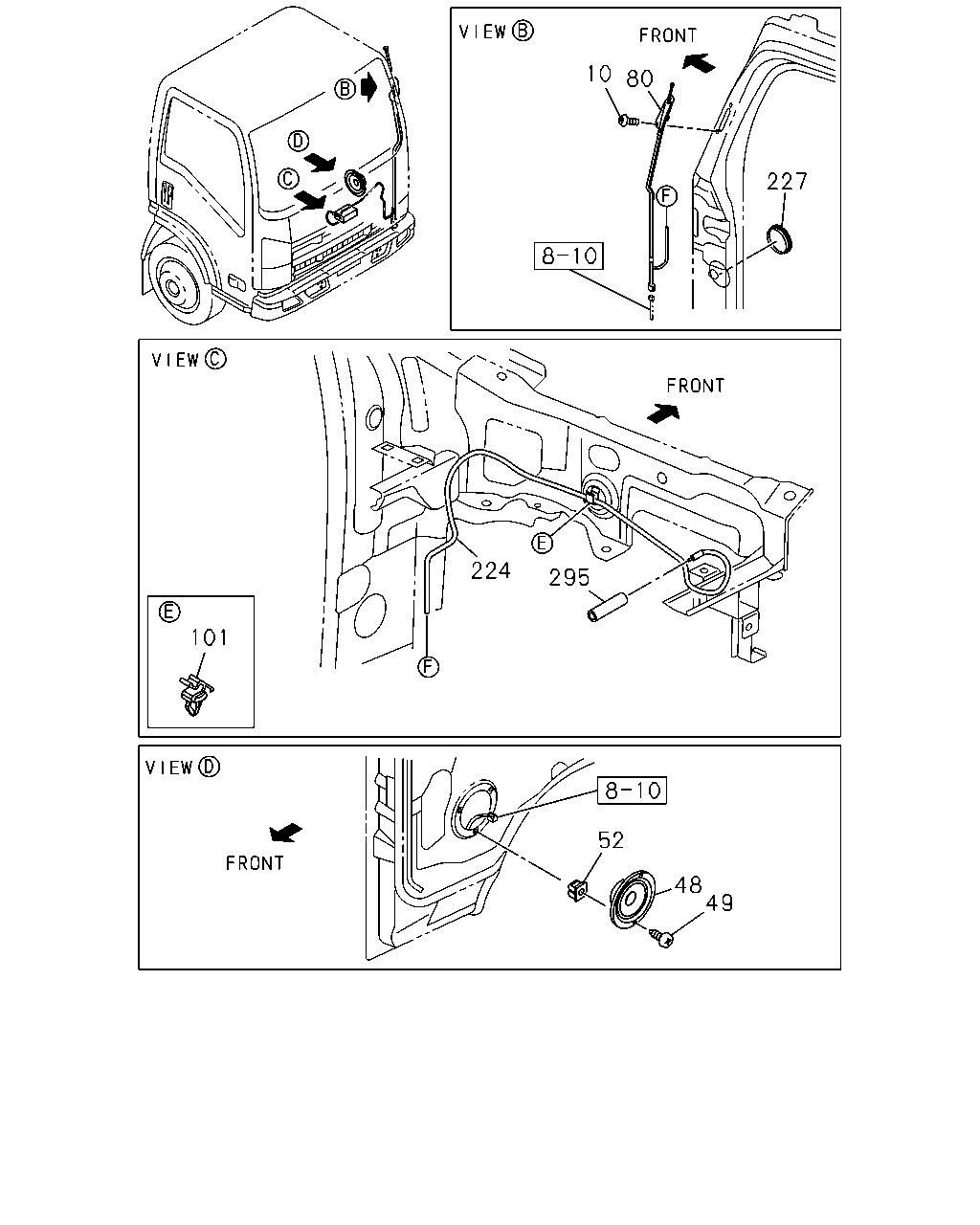

çizim 155834
10 80 227 224 295 101 52 48 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0712- ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 0712- ● ● ● ●
49 09.655 SCREW; SPEAKER
16.067 M5X14 		8-94279-325-0 06 1 0712-0712 ● ● ● ●
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0801- ● ● ● ●
52 09.655 GROMMET; SCREW,SPEAKER
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0712- ● ● ● ●
80 09.645 ANTENNA 8-97387-265-3 01 1 0712- ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.342 ID=6.5 		5-09709-117-0 01 1 0712- ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.647 ID=4.8 		8-94128-483-0 01 1 0712- ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0712-0906 ● ● ● ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0907- ● ●
224 09.647 CABLE; EXT,FEEDER
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98029-970-1 01 1 0907- ● ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 0712- ● ● ● ●
295 09.665 INSULATOR; ANTENNA 8-98095-617-1 01 1 0712- ● ● ● ●

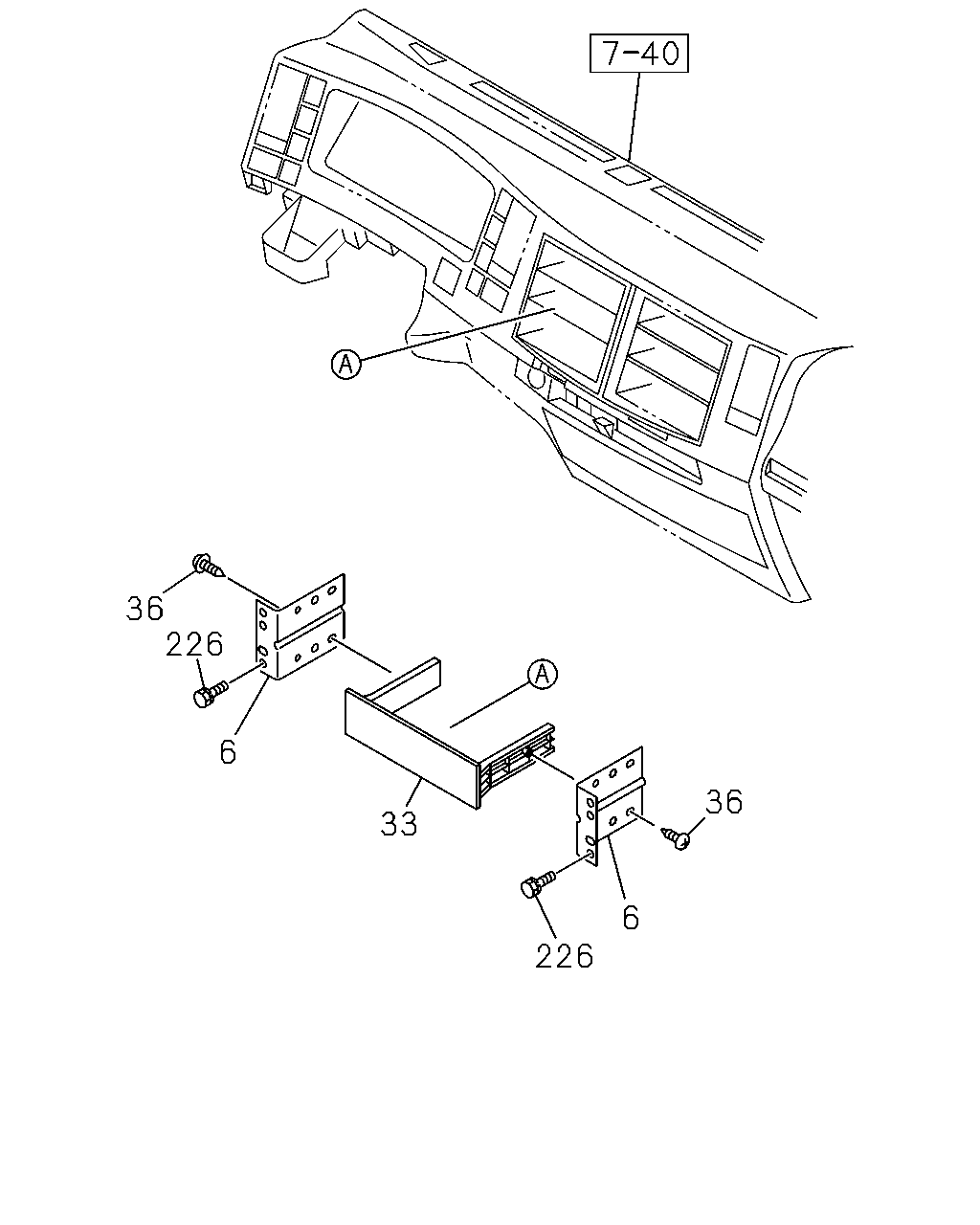

çizim 155837
36 226 6 36 33 6 226
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0712- ● ● ● ●
33 09.650 COVER; RADIO
BLACK 		8-97407-896-1 01 1 0712- ● ● ● ●
36 09.779 SCREW; COVER
16.100 M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712- ● ● ● ●
226 09.647 BOLT; BRKT
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 02 1 0712-1101 ● ● ● ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ● ● ●
226 09.647 BOLT; BRKT
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 02 1 1301- ● ● ● ●
