Isuzu WW
▶
TRUCKS
▶
NNR
▶
51155 - NNR/NPR EU-L EXC.EU5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶

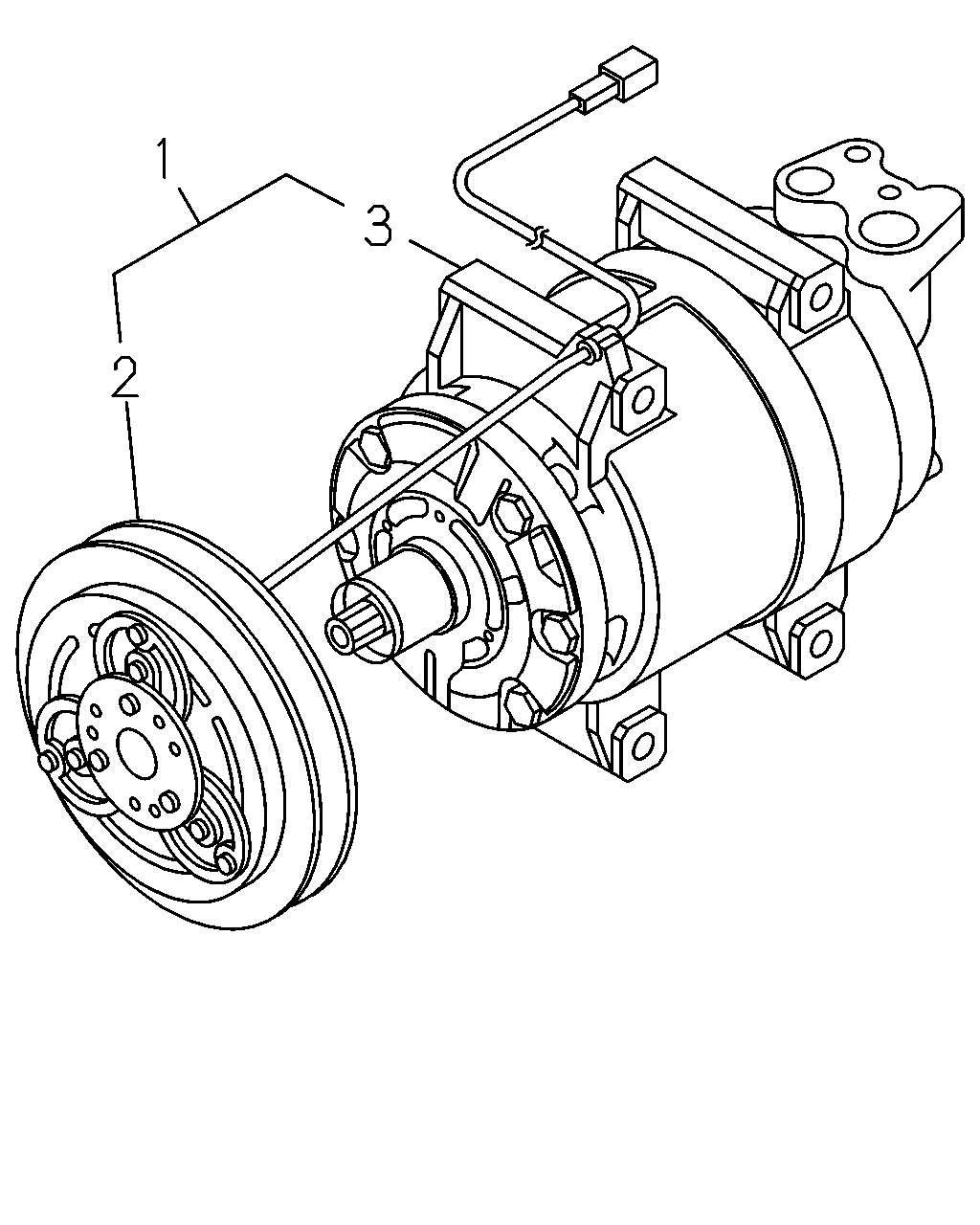

8-71 — COMPRESSOR; AIR CONDITIONING
(#49894) — 8 parça
Tümü
A - NPR6SE
B - NPR6SN
C - NPR6WE
D - NPR6WN
1
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98000-988-2
01
1
0712-1211
●
●
●
●
1
09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98214-324-0
01
1
1212-
●
●
●
●
1
09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98037-146-2
01
1
0712-1211
●
●
1
09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98214-321-0
01
1
1212-
●
●
2
09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-0
01
1
0712-
●
●
●
●
2
09.188 CLUTCH; MAGNET,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)
8-98208-773-0
01
1
0712-
●
●
3
09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
0712-
●
●
3
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
0712-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
