8-60 — HEATER UNIT; FRONT (#49892) — 94 parça

234 235 207 235 41 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	0712-	●	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	0712-	●	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-493-0	01	1	0712-	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	0712-	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	0712-	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0712-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	0712-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	0712-	●	●	●	●

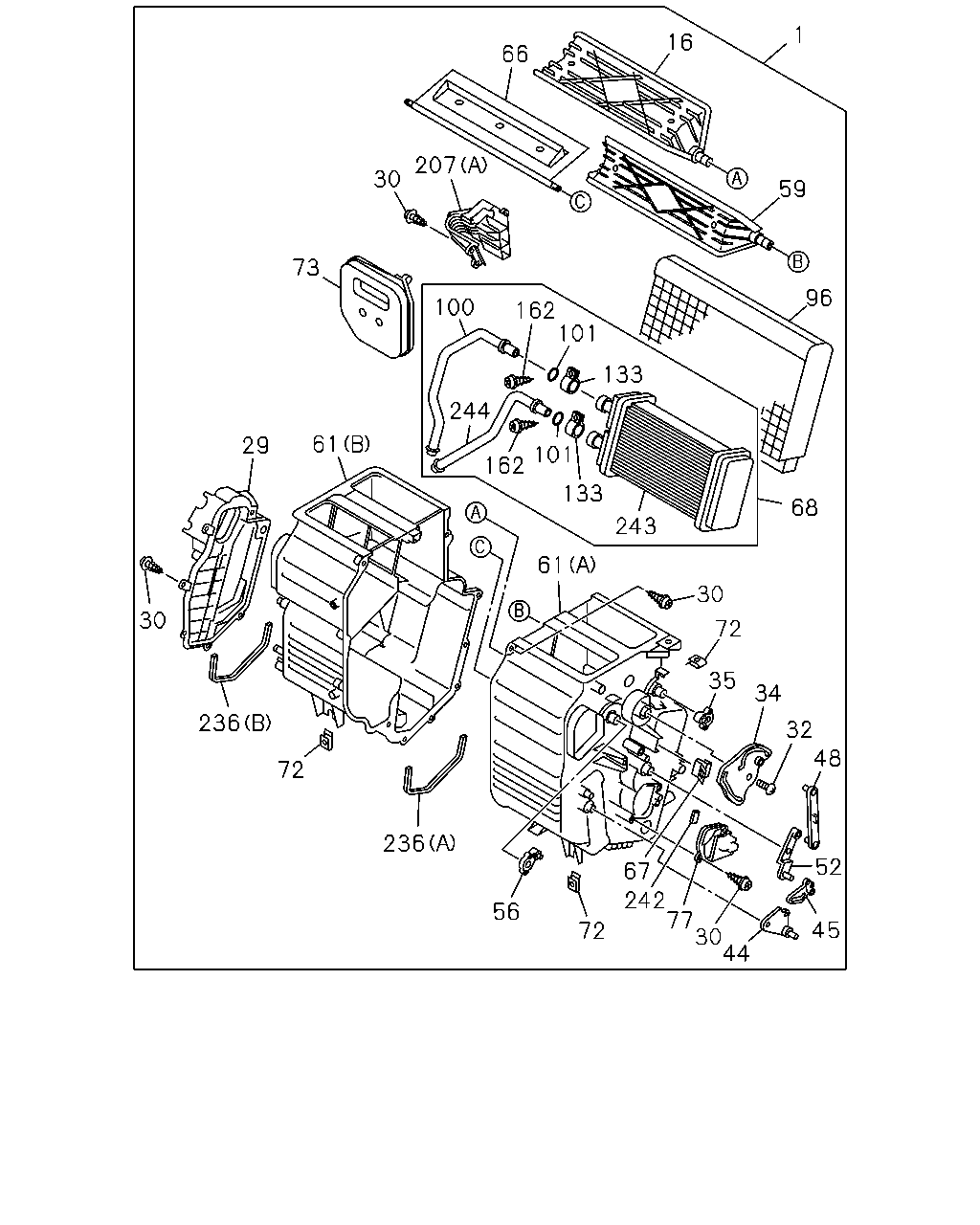

1 16 66 207 30 59 73 96 100 162 101 133 244 61 29 101 162 133 68 243 61 30 30 72 35 34 236 32 48 72 236 52 67 242 77 30 44 56 45 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98034-145-3	01	1	0712-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41)	8-98031-740-3	01	1	0712-	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	0712-	●	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-480-0	01	1	0712-	●	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0712-	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-418-0	28	1	0712-0712	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	0712-	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16	8-98047-416-0	03	1	0712-	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-497-0	01	1	0712-	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-500-0	01	1	0712-	●	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-502-0	01	1	0712-	●	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-503-0	01	1	0712-	●	●	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0712-0712	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	0712-	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41)	8-98047-499-0	01	1	0712-0712	●	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-498-0	01	1	0712-	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-501-0	01	1	0712-	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	0712-	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-478-0	01	1	0712-	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-479-0	01	1	0712-	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-385-0	01	1	0712-	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	0712-	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-494-0	01	1	0712-	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	0712-	●	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	0712-	●	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	0712-	●	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-482-0	01	1	0712-	●	●	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0712-	●	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-532-0	01	1	0712-	●	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-531-0	02	1	0712-	●	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-530-0	02	1	0712-	●	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-529-0	02	1	0712-	●	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	0712-	●	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-493-0	01	1	0712-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	0712-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	0712-	●	●	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	0712-	●	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656	8-98048-508-0	01	1	0712-	●	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98048-511-0	01	1	0712-	●	●	●	●

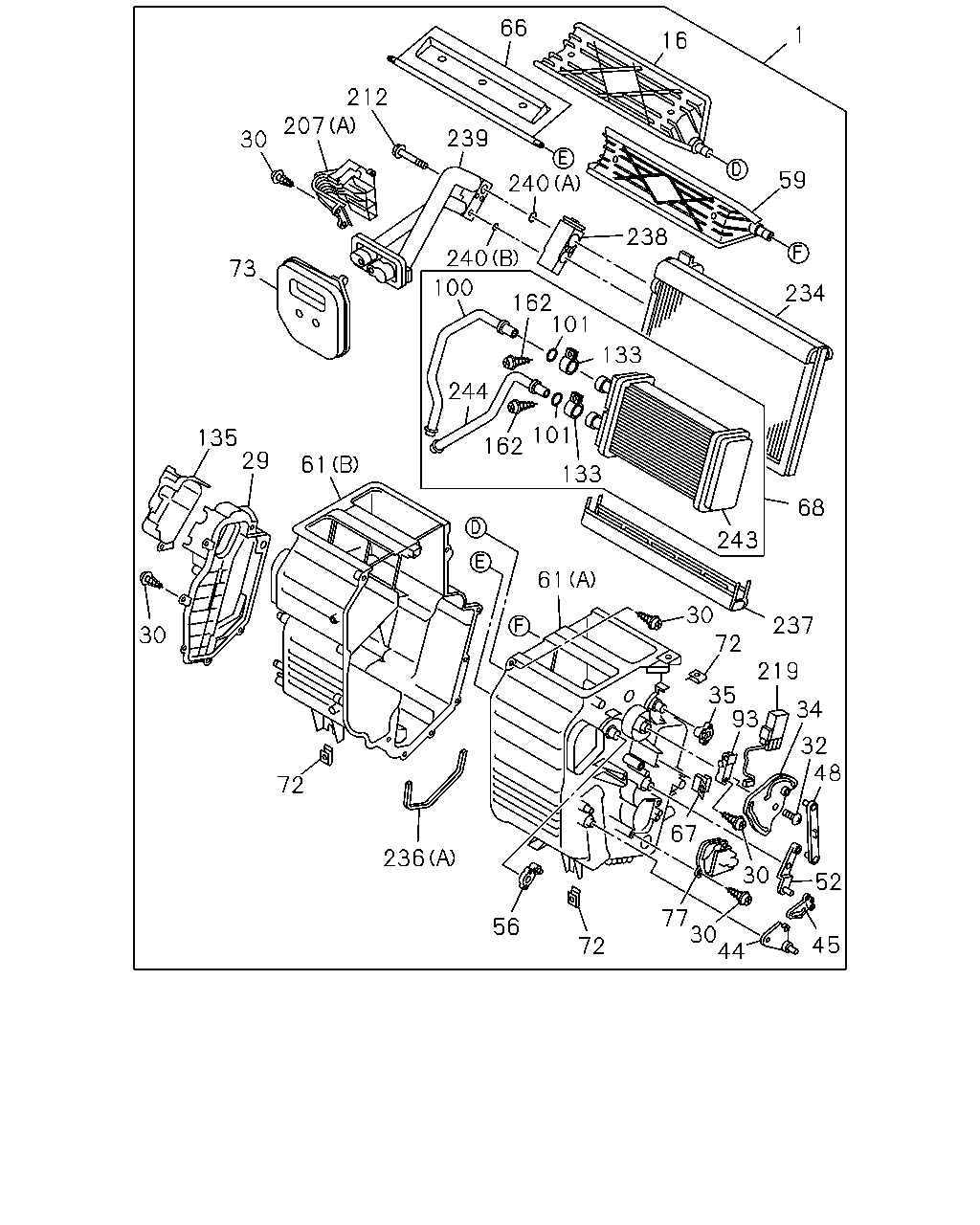

66 1 16 212 207 239 30 240 59 238 240 73 100 234 162 101 133 244 101 135 29 162 61 133 68 243 61 30 72 237 30 219 35 93 34 32 48 72 67 236 30 52 77 30 44 56 45 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98034-145-3	01	1	0712-	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41)	8-98031-740-3	01	1	0712-	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-387-0	01	1	0712-	●	●	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-480-0	01	1	0712-	●	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0712-	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-418-0	28	1	0712-0712	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	0712-	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M4X16	8-98047-416-0	03	1	0712-	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-497-0	01	1	0712-	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-500-0	01	1	0712-	●	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-502-0	01	1	0712-	●	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-503-0	01	1	0712-	●	●	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0712-0712	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-391-0	01	1	0712-	●	●	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41)	8-98047-499-0	01	1	0712-0712	●	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-498-0	01	1	0712-	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-501-0	01	1	0712-	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-386-0	01	1	0712-	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-478-0	01	1	0712-	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-479-0	01	1	0712-	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-385-0	01	1	0712-	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-417-0	02	1	0712-	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-494-0	01	1	0712-	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) M6	8-98047-428-0	03	1	0712-	●	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	0712-	●	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	0712-	●	●	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98047-482-0	01	1	0712-	●	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	0712-	●	●	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-532-0	01	1	0712-	●	●	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-531-0	02	1	0712-	●	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-530-0	02	1	0712-	●	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	0712-	●	●	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98072-529-0	02	1	0712-	●	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	0712-	●	●	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-493-0	01	1	0712-	●	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	0712-	●	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	0712-	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	0712-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98047-420-0	01	1	0712-	●	●	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98047-421-0	01	1	0712-	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	0712-	●	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	0712-	●	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	0712-	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	0712-	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	0712-	●	●	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.656	8-98048-508-0	01	1	0712-	●	●	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98048-511-0	01	1	0712-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
