◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#49890) — 49 parça

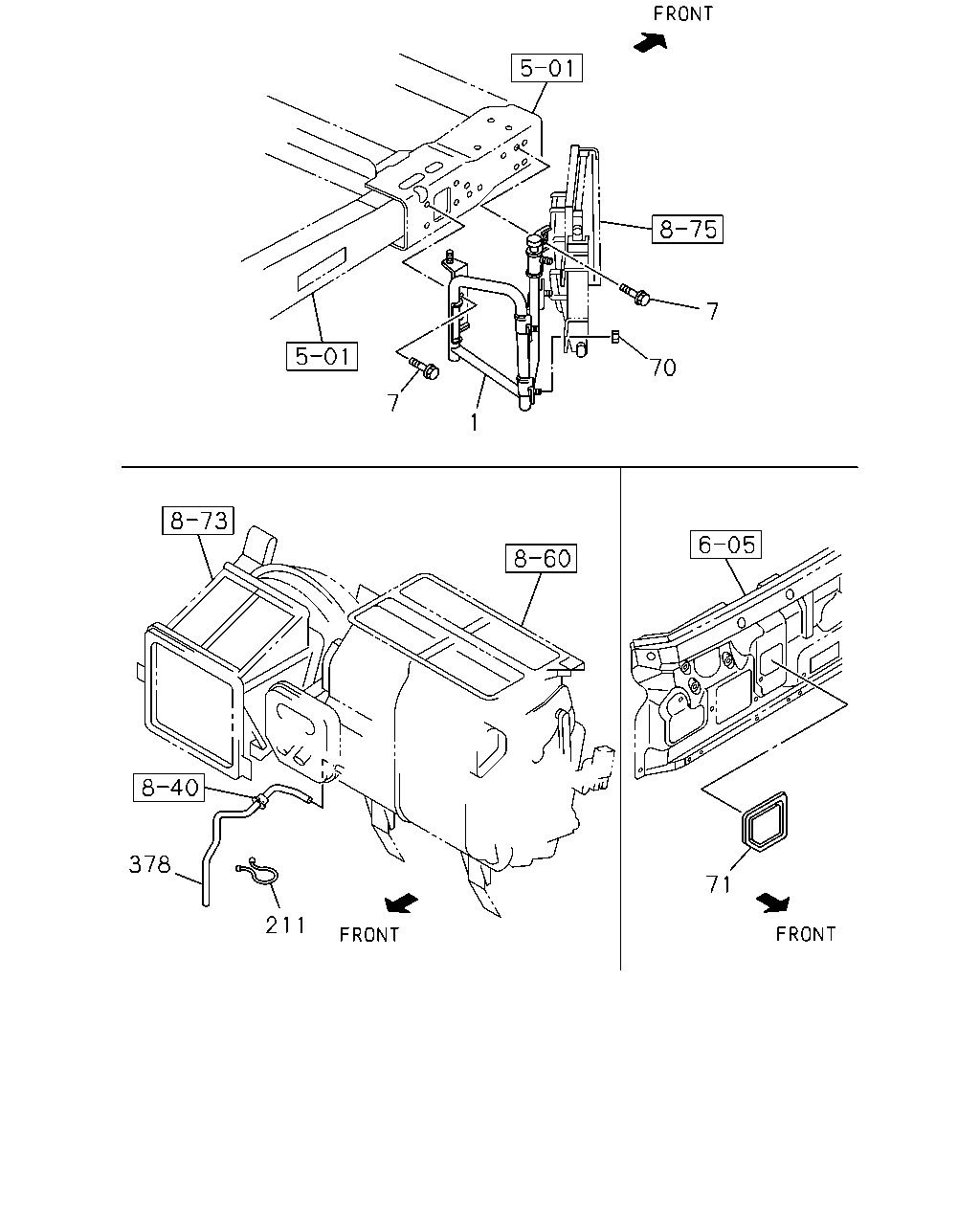

çizim 155825
7 70 7 1 378 71 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98006-339-0 01 1 0712-1303 ● ● ● ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98214-412-0 01 1 1304- ● ● ● ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 0712- ● ● ● ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0712- ● ● ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 0712- ● ● ● ●
211 09.190 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.278 		8-94463-508-0 01 1 0712-0803 ● ● ● ●
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 		8-94463-508-0 01 1 0804- ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98006-239-3 01 1 0712- ● ● ● ●

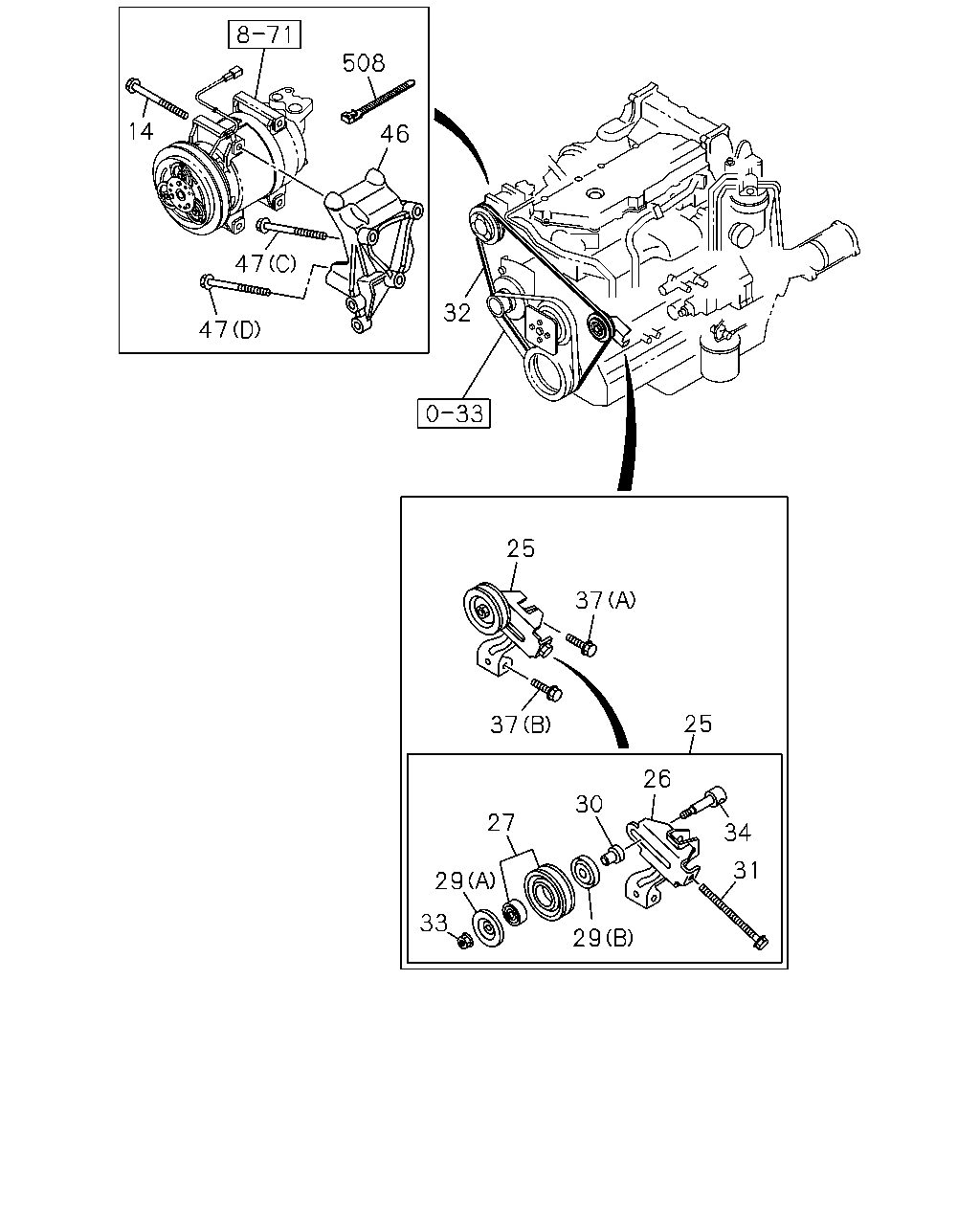

çizim 155829
508 14 46 47 32 47 25 37 25 37 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0712- ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0712- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0712-1006 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1007- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0712- ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0712- ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0712- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0712- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0712- ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0712- ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0712- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0712-0804 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0805- ● ● ● ●
32 01.066 BELT; A/C CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 0712- ● ●
33 09.181 NUT; IDLER PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0712- ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0712- ● ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0712- ● ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0712- ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 0712- ● ● ● ●
46 09.171 BRACKET; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98006-515-3 01 1 0712- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0712- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 02 1 0712- ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (D) M10X120 FLANGE 		0-28156-012-0 01 1 0712- ● ●
508 09.181 CLIP; HARNESS
4HK1-TCS ENG(RJS) 03.162 L=140 		5-09707-031-1 01 1 0712- ● ●

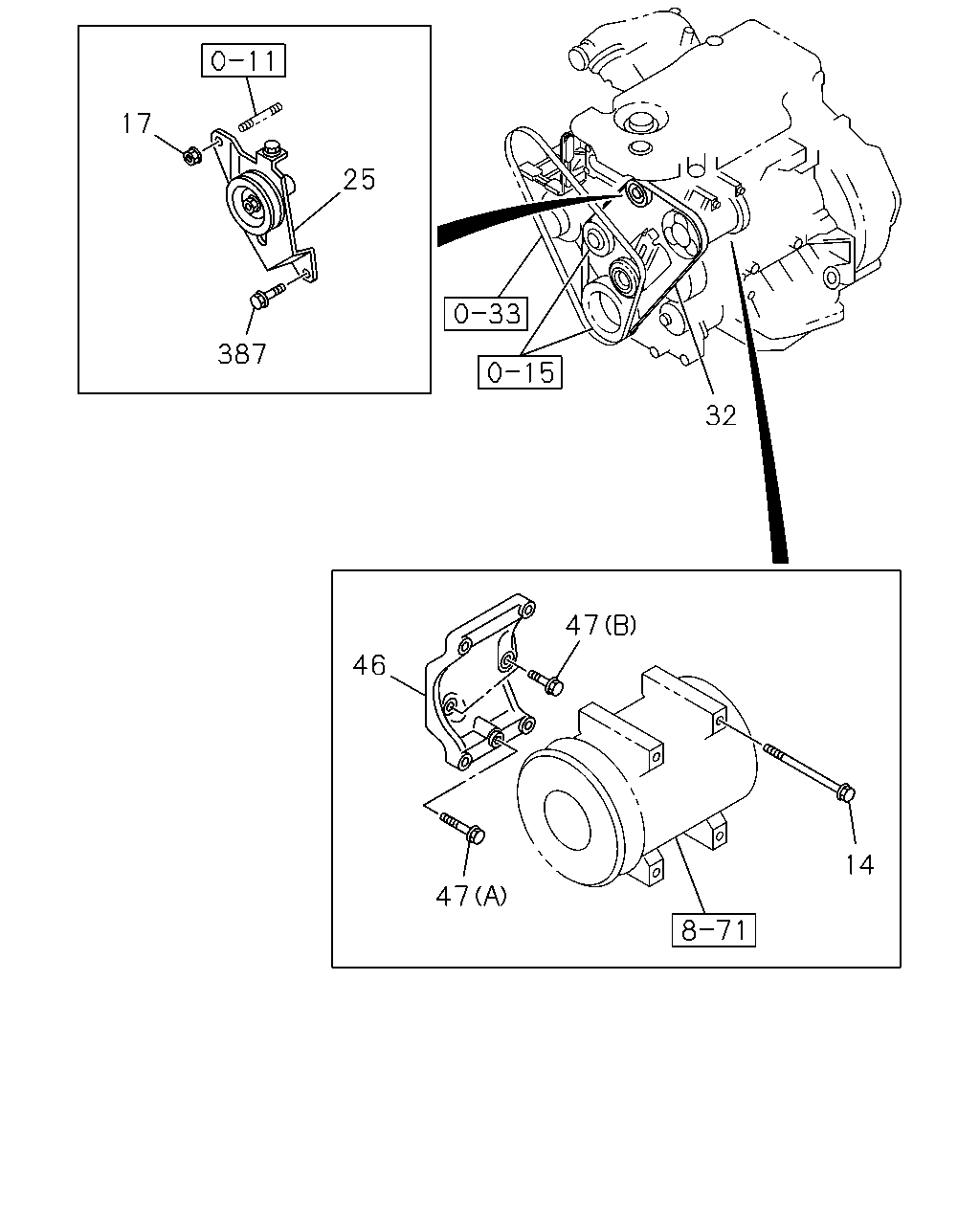

çizim 155832
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0712- ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0712- ● ●
17 09.171 NUT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0712- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 0712-1006 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1007- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0712- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0712-0804 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0805- ● ● ● ●
32 01.066 BELT; A/C CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 0712- ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98037-322-0 01 1 0712- ● ● ● ●
46 09.171 BRACKET; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242 		8-98006-515-3 01 1 0712- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0712- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 02 1 0712- ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (D) M10X120 FLANGE 		0-28156-012-0 01 1 0712- ● ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ● ● ●
