0-35B — ENGINE CONTROL VALVE AND LEVER (#4989) — 90 parça

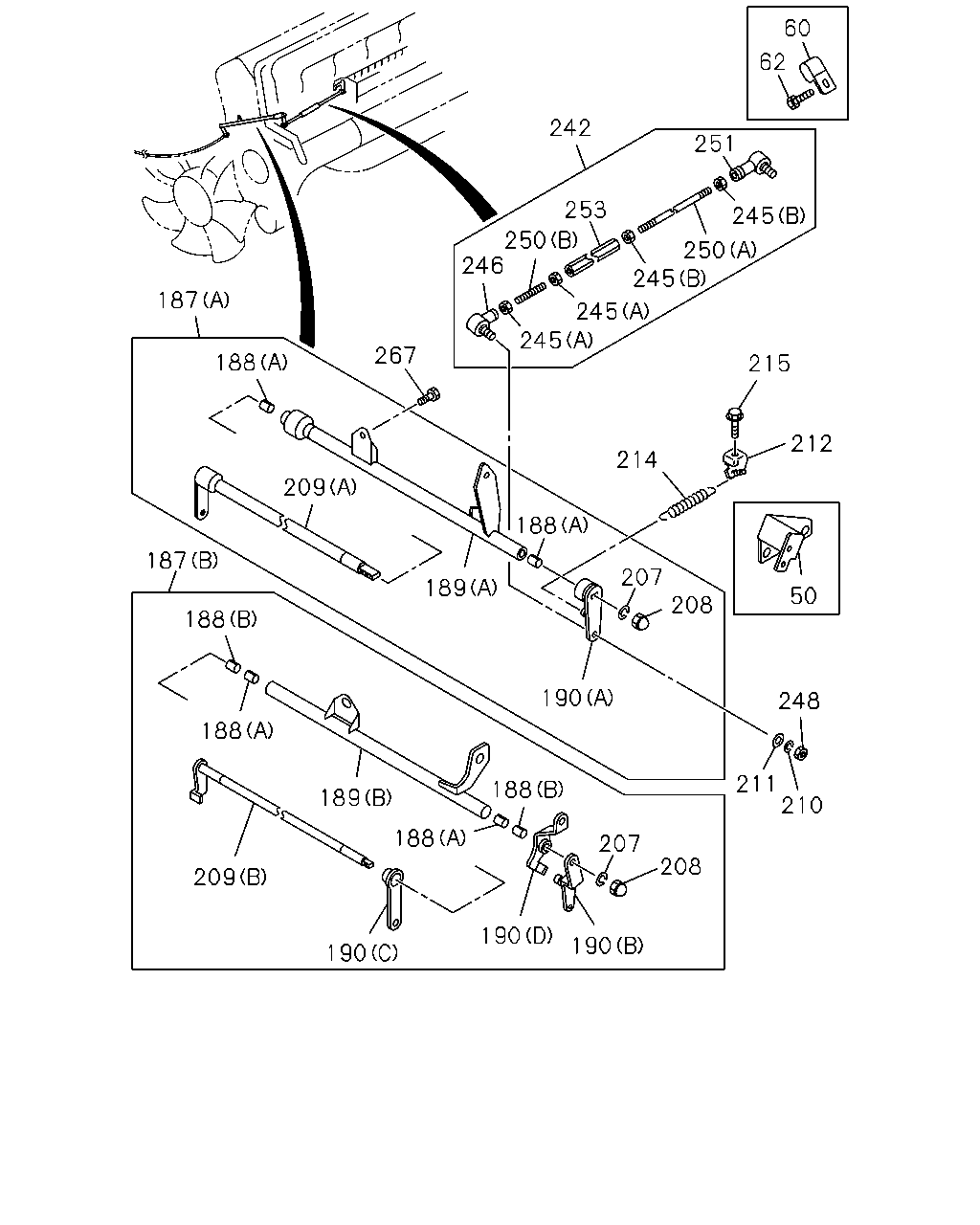

çizim 6892
60 62 242 251 253 245 250 246 250 245 187 245 245 267 188 215 212 214 209 188 187 189 207 208 50 188 190 248 188 211 210 188 189 188 207 208 209 190 190 190
BalonParca AdiParca NoAdetTipApplied Date A B
50 BRACKET; ENG CONT CABLE
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-23335-493-0 01 1 9606-9905 ●
60 CLIP; CABLE
RLD GOVERNOR(SD7) ID=7 L=20 		9-09524-635-0 01 1 9606-9905 ●
60 CLIP; CABLE
ID=7 L=20 		9-09524-635-0 01 1 9906- ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9606-9905 ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9906- ●
187 CONTROL ASM; ENG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-23300-329-0 01 1 9606-9905 ●
187 CONTROL ASM; ENG
EXC. ENGINE REAR PTO<SV1> (A) 		1-23300-326-0 01 1 9606-9905 ●
188 BUSHING; CONT SHAFT
(B) 		1-09330-053-0 02 1 9606-9905 ●
188 BUSHING; CONT SHAFT
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-09330-059-0 02 1 9606-9905 ●
189 BRACKET; ENG CONT
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-23335-492-0 01 1 9606-9905 ●
189 BRACKET; ENG CONT
EXC. ENGINE REAR PTO<SV1> (A) 		1-23335-482-0 01 1 9606-9905 ●
190 LEVER; ENG CONT
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-23311-353-0 01 1 9606-9905 ●
190 LEVER; ENG CONT
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-23311-354-0 01 1 9606-9905 ●
190 LEVER; ENG CONT
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-23311-355-0 01 1 9606-9905 ●
190 LEVER; ENG CONT
EXC. ENGINE REAR PTO<SV1> (A) 		1-23311-352-0 01 1 9606-9905 ●
207 WASHER; LK,CONT LEVER
ID=8.2 		9-09150-508-0 01 1 9606-9905 ●
208 NUT; LEVER 1-09984-015-0 01 1 9606-9905 ●
209 SHAFT; ENG CONT
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-23331-130-0 01 1 9606-9905 ●
209 SHAFT; ENG CONT
EXC. ENGINE REAR PTO<SV1> (A) 		1-23331-128-0 01 1 9606-9905 ●
210 WASHER; LK,JOINT BALL
ANTI NOISE EQUIPMENT<SV9> ID=5.1 		9-09150-505-0 02 1 9606-9905 ●
211 WASHER; PL,JOINT BALL
ANTI NOISE EQUIPMENT<SV9> ID=5.3 OD=16 		9-09164-705-0 02 1 9606-9905 ●
212 BRACKET; SPR EYE
ANTI NOISE EQUIPMENT<SV9> 		1-23335-486-0 01 1 9606-9905 ●
214 SPRING; ENG CONT RETURN
ANTI NOISE EQUIPMENT<SV9> 		1-09583-315-0 01 1 9606-9905 ●
215 BOLT; BRKT SPR EYE
ANTI NOISE EQUIPMENT<SV9> M10X16 FLANGE 		0-28181-016-0 01 1 9606-9905 ●
242 LINK ASM
ANTI NOISE EQUIPMENT<SV9> L=216 		1-23314-177-0 01 1 9606-9905 ●
245 NUT; LINK
ANTI NOISE EQUIPMENT<SV9> (A) M5 LH THREAD 		9-09840-277-0 02 1 9606-9905 ●
245 NUT; LINK
ANTI NOISE EQUIPMENT<SV9> (B) M5 		9-99110-405-0 02 1 9606-9905 ●
246 JOINT; BALL,ENG CONT LINK
ANTI NOISE EQUIPMENT<SV9> 		1-09760-104-0 01 1 9606-9905 ●
248 NUT; JOINT BALL
ANTI NOISE EQUIPMENT<SV9> M5 		9-99110-405-0 02 1 9606-9905 ●
250 ROD; ROD TO JOINT
ANTI NOISE EQUIPMENT<SV9> (B) M5X50 LH THREAD 		1-09765-197-0 01 1 9606-9905 ●
250 ROD; ROD TO JOINT
ANTI NOISE EQUIPMENT<SV9> (A) M5X120 		9-08400-512-0 01 1 9606-9905 ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
ANTI NOISE EQUIPMENT<SV9> 		1-09760-103-0 01 1 9606-9905 ●
253 JOINT; ROD TO ROD
ANTI NOISE EQUIPMENT<SV9> 		9-23319-194-0 01 1 9606-9905 ●
267 BOLT; ENG CONT
ANTI NOISE EQUIPMENT<SV9> M10X30 FLANGE 		0-28181-030-0 01 1 9606-9905 ●

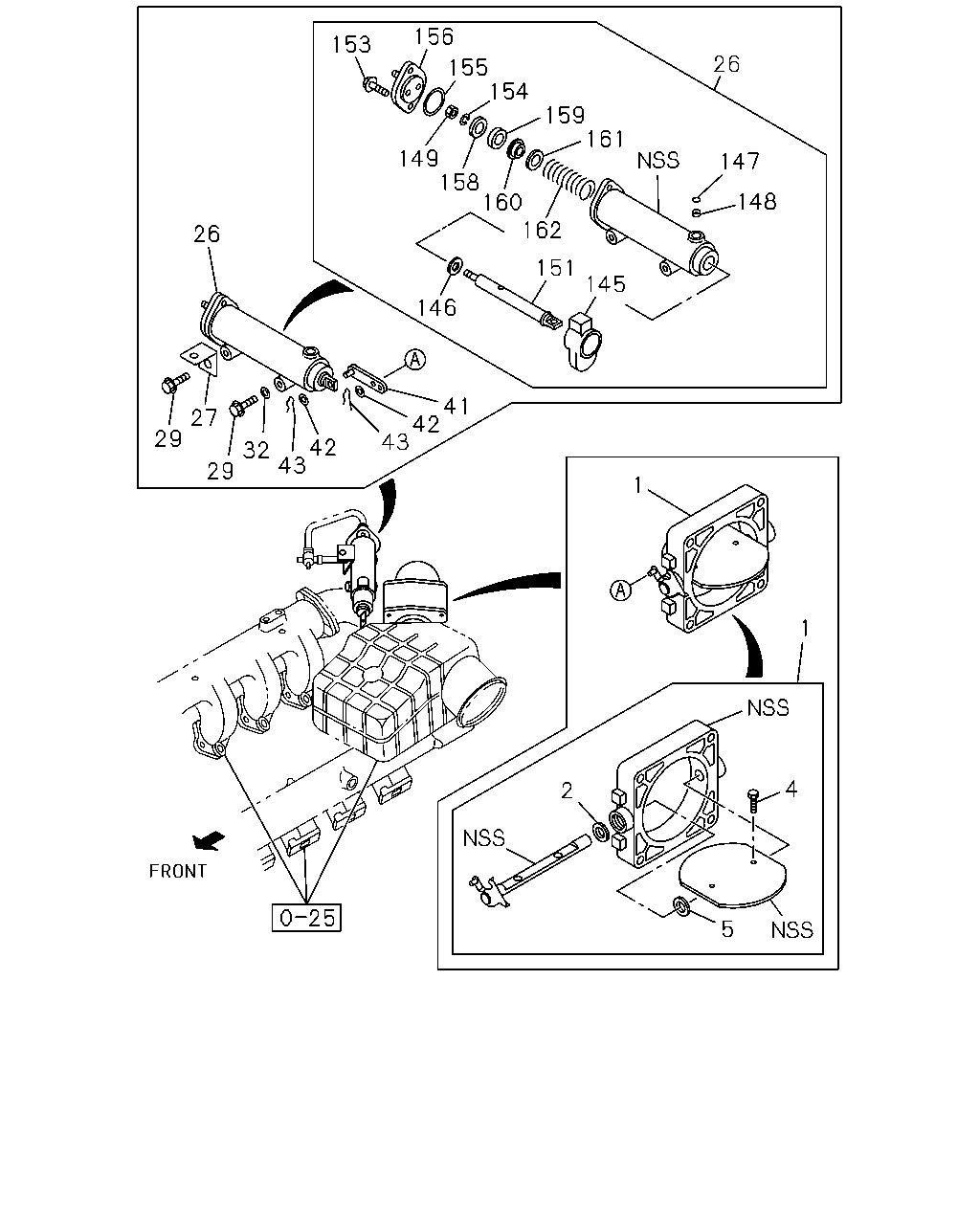

çizim 40166
156 153 26 155 154 159 161 149 158 160 162 147 148 26 151 145 146 41 42 43 27 29 32 42 43 29 1 1 4 2 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHUTTER ASM; INT 1-14310-219-0 01 1 9606-9905 ●
1 SHUTTER ASM; INT 1-14310-219-1 01 1 9906- ●
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 9606-9905 ●
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 9906- ●
4 SCREW; VLV FIX 9-92050-514-0 02 1 9606-9905 ●
4 SCREW; VLV FIX 9-92050-514-0 02 1 9906- ●
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 9606-9905 ●
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 9906- ●
26 CYLINDER ASM; CONT 1-22190-622-0 01 1 9606-9702 ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9703-9905 ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9906- ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 9606-9905 ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 9906- ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9606-9905 ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9906- ●
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9606-9905 ●
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9906- ●
41 LINK; INT SHUTTER 1-14319-004-2 01 1 9606-9711 ●
41 LINK; INT SHUTTER 1-14319-133-0 01 1 9712-9905 ●
41 LINK; INT SHUTTER 1-14319-133-0 01 1 9906- ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9606-9905 ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9906- ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9606-9905 ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9906- ●
145 COVER; BREATHER 1-22199-008-0 01 1 9606-9905 ●
145 COVER; BREATHER 1-22199-008-0 01 1 9906- ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9606-9905 ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9906- ●
147 RING; RET 9-88510-331-0 01 1 9606-9905 ●
147 RING; RET 9-88510-331-0 01 1 9906- ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 9606-9905 ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 9906- ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9606-9905 ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9906- ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9606-9905 ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9906- ●
153 BOLT; CONT CYL 1-22199-155-0 02 1 9606-9702 ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 9703-9905 ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 9906- ●
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 9606-9905 ●
154 WASHER; LK,CYL
ID=8.2 		9-09150-508-0 01 1 9906- ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 9606-9905 ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 9906- ●
156 COVER; CONT CYL 9-88510-321-0 01 1 9606-9702 ●
156 COVER; CONT CYL 1-22189-162-1 01 1 9703-9905 ●
156 COVER; CONT CYL 1-22189-162-1 01 1 9906- ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9606-9905 ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9906- ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 9606-9905 ●
159 GASKET; CONT CYL 9-88510-373-0 01 1 9906- ●
160 PLATE 1-22199-020-0 01 1 9606-9905 ●
160 PLATE 1-22199-020-0 01 1 9906- ●
161 RING; WEAR 1-22199-002-0 01 1 9606-9905 ●
161 RING; WEAR 1-22199-002-0 01 1 9906- ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 9606-9905 ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 9906- ●
