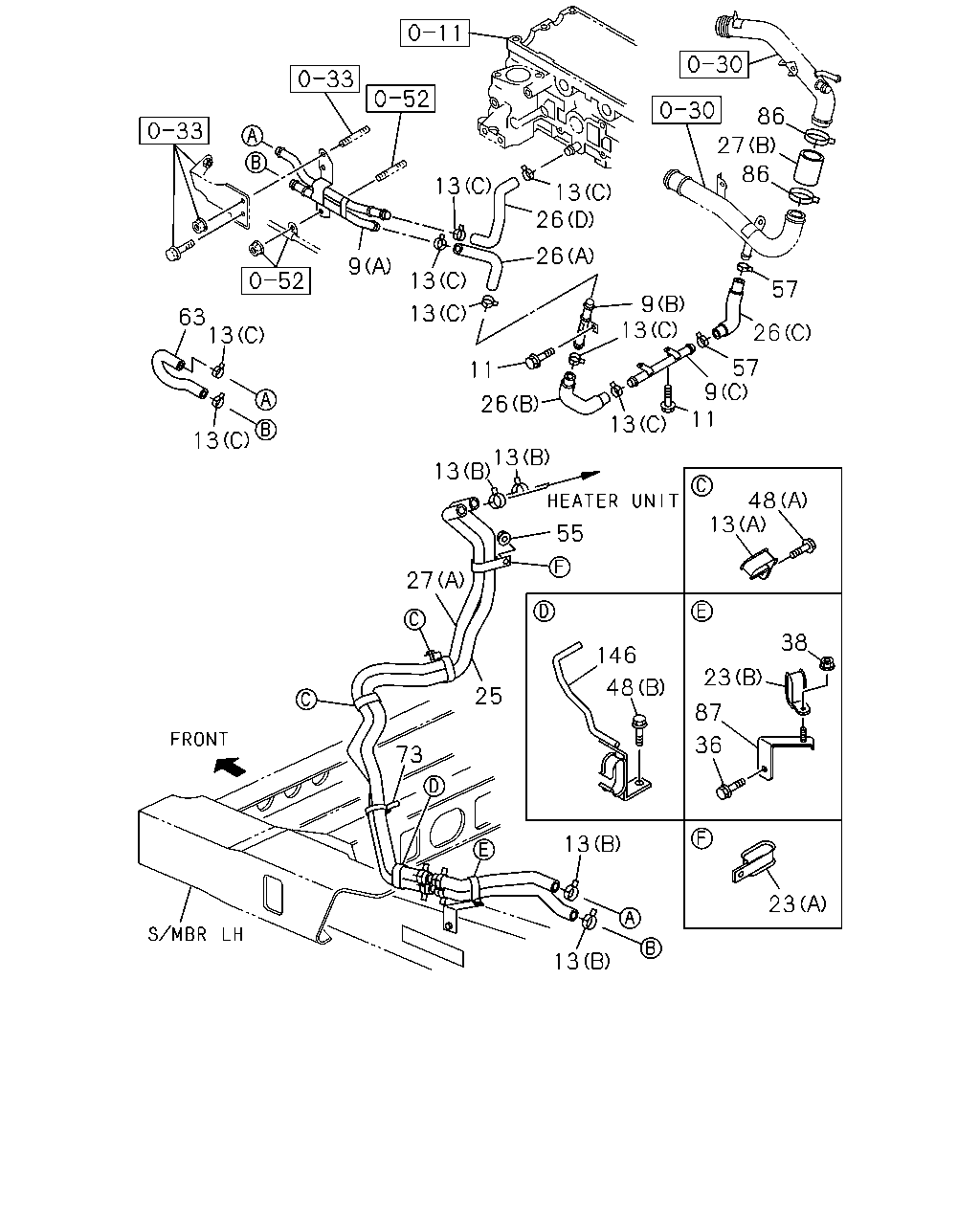

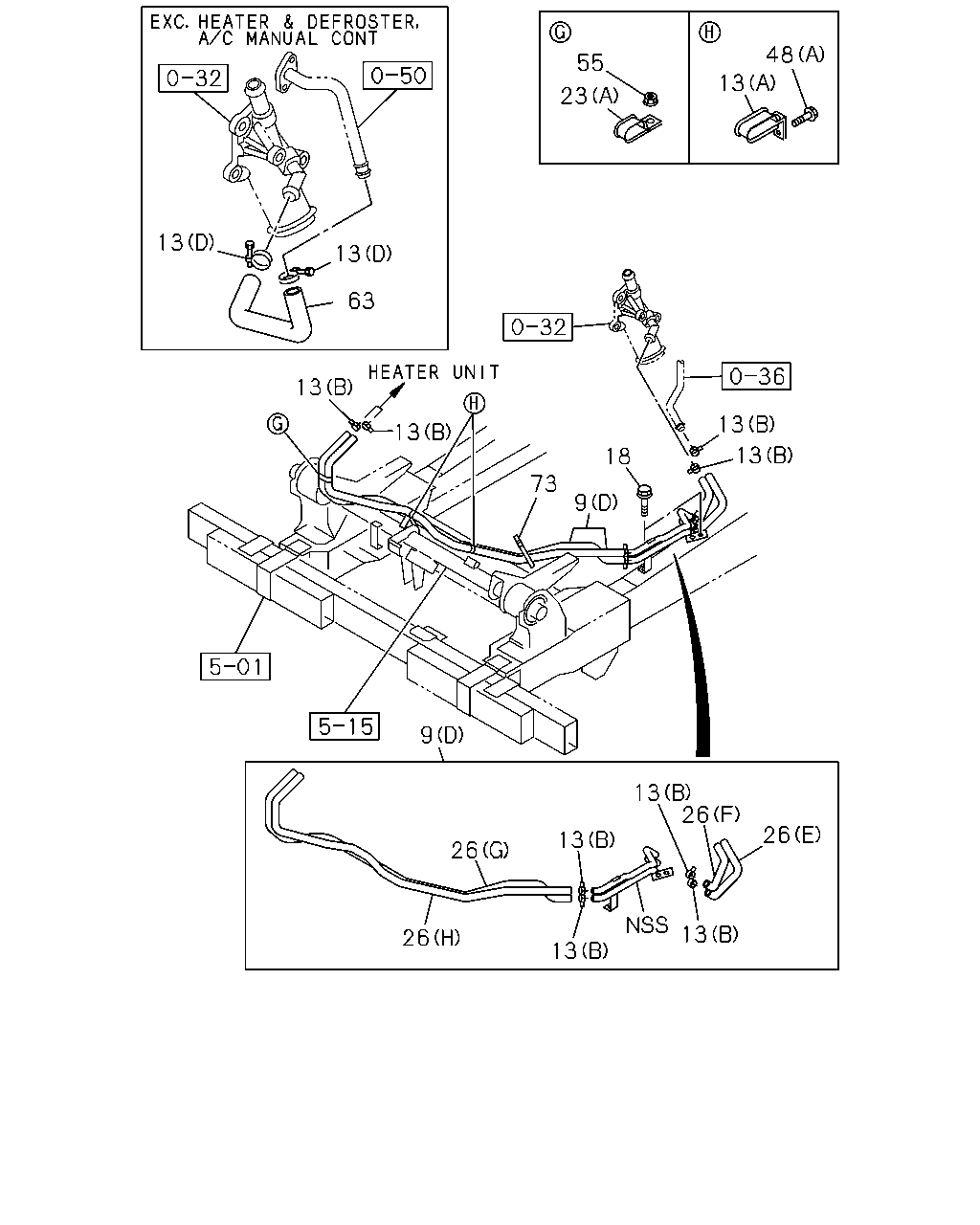

8-45 — HEATER PIPING (#49889) — 71 parça

48 55 13 23 13 13 63 13 13 13 13 18 73 9 9 13 26 26 13 26 13 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-97381-481-3	01	1	0712-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-97383-035-1	01	1	0712-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98028-829-1	01	1	0712-	●	●	●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98006-433-1	01	1	0712-		●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (D) ID=25	8-94233-115-0	02	1	0804-		●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0712-		●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0712-	●	●	●	●
18	08.866 BOLT; WATER HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-		●		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-97359-144-0	01	1	0712-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98029-678-0	02	1	0712-0801	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98029-678-0	01	1	0802-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (A)	0-03516-240-0	01	1	0712-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (D)	8-97383-048-1	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98000-099-1	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98000-101-2	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98050-295-0	01	1	0712-		●		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (F)	8-98050-296-0	01	1	0712-		●		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (G)	8-98059-457-1	01	1	0712-		●		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (H)	8-98059-458-1	01	1	0712-		●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	0712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●	●
63	08.846 HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0804-		●		●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0712-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	0712-	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	0712-		●		●

86 27 86 13 13 26 26 9 13 57 9 13 13 63 13 26 57 9 11 11 26 13 13 13 13 48 13 55 27 38 146 23 48 25 87 36 73 13 23 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-97381-481-3	01	1	0712-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-97383-035-1	01	1	0712-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98028-829-1	01	1	0712-	●	●	●	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98006-433-1	01	1	0712-		●		●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (D) ID=25	8-94233-115-0	02	1	0804-		●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	0712-		●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0712-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0712-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-97359-144-0	01	1	0712-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98029-678-0	02	1	0712-0801	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98029-678-0	01	1	0802-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98021-671-2	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (A)	0-03516-240-0	01	1	0712-0910	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (A)	8-98143-868-0	01	1	0911-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (D)	8-97383-048-1	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98000-099-1	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98000-101-2	01	1	0712-	●	●	●	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98050-295-0	01	1	0712-		●		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (F)	8-98050-296-0	01	1	0712-		●		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (G)	8-98059-457-1	01	1	0712-		●		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (H)	8-98059-458-1	01	1	0712-		●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (B)	8-98009-701-0	01	1	0712-	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98021-670-3	01	1	0712-	●	●	●	●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●	●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	0712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCS ENG(LFB) 01.166 ID=20.8	8-94125-862-1	02	1	0712-	●	●	●	●
63	08.846 HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540	8-94134-250-1	01	1	0804-		●		●
63	08.846 HOSE; WATER 4JJ1-TCS ENG(LFB) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0712-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	0712-	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	0712-		●		●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 ID=40.5	8-97313-472-0	02	1	0712-	●	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98025-918-4	01	1	0712-	●	●	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98108-314-0	01	1	0802-	●	●	●	●
