Isuzu WW
▶
TRUCKS
▶
NNR
▶
51155 - NNR/NPR EU-L EXC.EU5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#49887) — 94 parça
Tümü
A - NPR6SE
B - NPR6SN
C - NPR6WE
D - NPR6WN
◀
[828A] NO.5 RELAY;FRAME SIDE (7 parça)
[828A] NO.1 EXC.MULTI INFORMATION DISPLAY (30 parça)
[828A] NO.4 (11 parça)
[828A] NO.3 (14 parça)
[828A] NO.2 MULTI INFORMATION DISPLAY (30 parça)
[828A] NO.6 -'12/4 RELAY;CAB SIDE (1 parça)
[828A] NO.7 '12/5- RELAY;CAB SIDE (1 parça)
▶
531
666
333
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
333
09.277 RELAY; MARKER LAMP
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0712-
●
●
●
●
531
02.769 RELAY; MAIN
4JJ1-TCS ENG(LFB) 02.510 24V 30A JIDECO
8-97238-540-0
01
1
0712-0906
●
●
531
02.769 RELAY; MAIN
02.510 24V 30A JIDECO
8-97238-540-0
01
1
0712-0906
●
●
531
02.769 RELAY; MAIN
02.510 24V 30A JIDECO
8-97238-540-0
01
1
0907-1402
●
●
●
●
531
02.769 RELAY; MAIN
02.485 24V 30A MITSUBA
8-98259-779-0
01
1
1403-
●
●
●
●
666
02.173 RELAY; STARTER
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0712-1005
●
●
●
●
666
02.173 RELAY; STARTER
24V 10A
8-98167-173-0
01
1
1006-
●
●
●
●
540
676
265
762
761
711
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

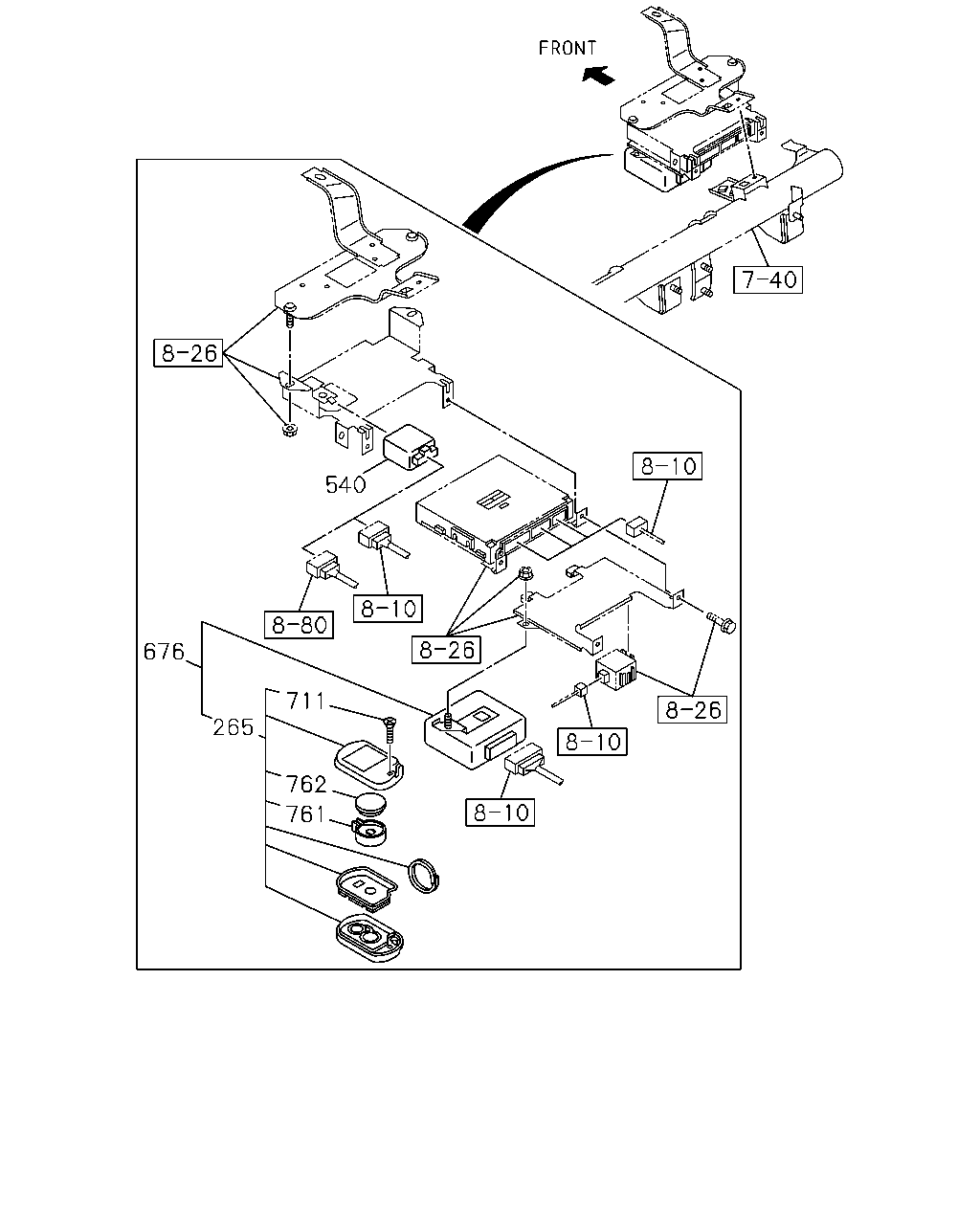

265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98048-459-1
02
1
0712-0906
●
●
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB)
8-98048-459-1
02
1
0907-1012
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98048-459-1
02
1
0907-1012
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB)
8-98180-751-0
02
1
1101-1205
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98180-751-0
02
1
1101-1205
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB)
8-98218-236-0
02
1
1206-
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98218-236-0
02
1
1206-
●
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0712-0906
●
●
●
●
540
16.067 RELAY; WIPER INTERVAL
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0907-1308
●
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0907-1308
●
●
540
16.067 RELAY; WIPER INTERVAL
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13>
8-98233-976-0
01
1
1309-
●
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98233-976-0
01
1
1309-
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98044-504-1
01
1
0712-0906
●
●
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB)
8-98044-504-1
01
1
0907-1012
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98044-504-1
01
1
0907-1012
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB)
8-98181-810-0
01
1
1101-1205
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98181-810-0
01
1
1101-1205
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB)
8-98218-233-0
01
1
1206-
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98218-233-0
01
1
1206-
●
●
711
02.510 SCREW; TRANSMITTER
M2X5
8-98078-067-0
02
1
0712-0906
●
●
●
●
711
02.510 SCREW; TRANSMITTER
4JJ1-TCS ENG(LFB) M2X5
8-98078-067-0
02
1
0907-1205
●
●
711
02.510 SCREW; TRANSMITTER
M2X5
8-98078-067-0
02
1
0907-1205
●
●
711
02.510 SCREW; TRANSMITTER
4JJ1-TCS ENG(LFB) M2X5
8-98218-239-0
02
1
1206-
●
●
711
02.510 SCREW; TRANSMITTER
M2X5
8-98218-239-0
02
1
1206-
●
●
761
04.439 HOLDER; BATTERY
8-98078-063-0
02
1
0712-0906
●
●
●
●
761
04.439 HOLDER; BATTERY
4JJ1-TCS ENG(LFB)
8-98078-063-0
02
1
0907-1012
●
●
761
04.439 HOLDER; BATTERY
8-98078-063-0
02
1
0907-1012
●
●
762
02.559 BATTERY
8-98078-061-0
02
1
0712-0906
●
●
●
●
762
02.559 BATTERY
4JJ1-TCS ENG(LFB)
8-98078-061-0
02
1
0907-
●
●
762
02.559 BATTERY
8-98078-061-0
02
1
0907-
●
●
584
744
756
441
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

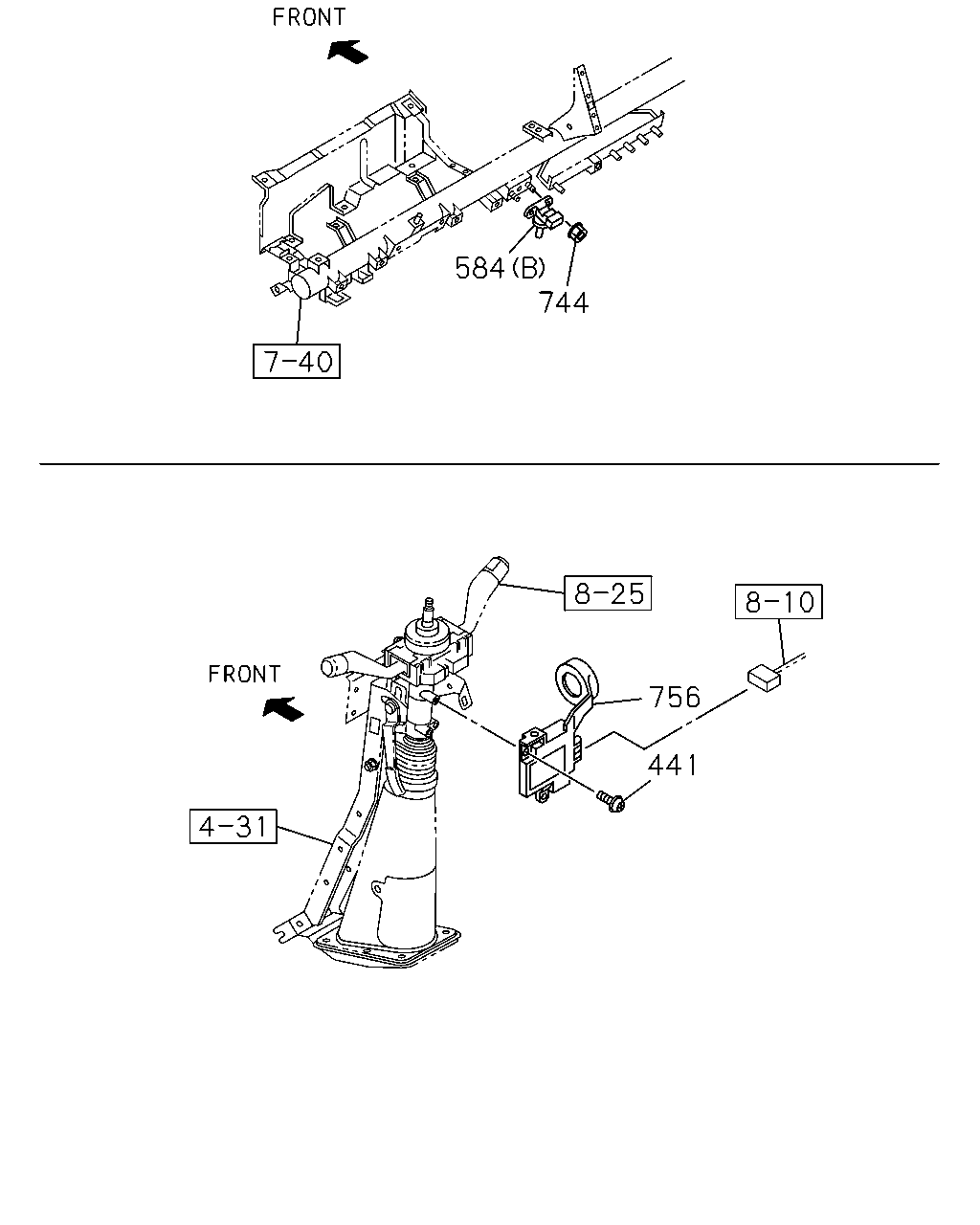

441
02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET
8-98063-767-0
02
1
0712-
●
●
●
●
584
02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97387-682-0
01
1
0712-
●
●
584
02.440 SENSOR; PRESSURE
(A)
8-97387-682-0
01
1
0712-
●
●
584
02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB) 03.331 (B)
8-98020-514-0
01
1
0712-
●
●
584
02.440 SENSOR; PRESSURE
03.331 (B)
8-98020-514-0
01
1
0712-
●
●
744
09.277 NUT; SENSOR
01.062 M6 FLANGE
0-91180-106-0
02
1
0712-0908
●
●
●
●
744
09.277 NUT; SENSOR
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE
0-91180-106-0
02
1
0909-
●
●
744
09.277 NUT; SENSOR
01.062 M6 FLANGE
0-91180-106-0
02
1
0909-
●
●
756
16.263 CONTROL UNIT; IMMOBILIZER
8-98073-883-0
01
1
0712-0712
●
●
●
●
756
16.263 CONTROL UNIT; IMMOBILIZER
8-98097-554-0
01
1
0712-1005
●
●
●
●
756
16.263 CONTROL UNIT; IMMOBILIZER
8-98158-127-0
01
1
1006-
●
●
●
●
1
4
44
189
45
189
584
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

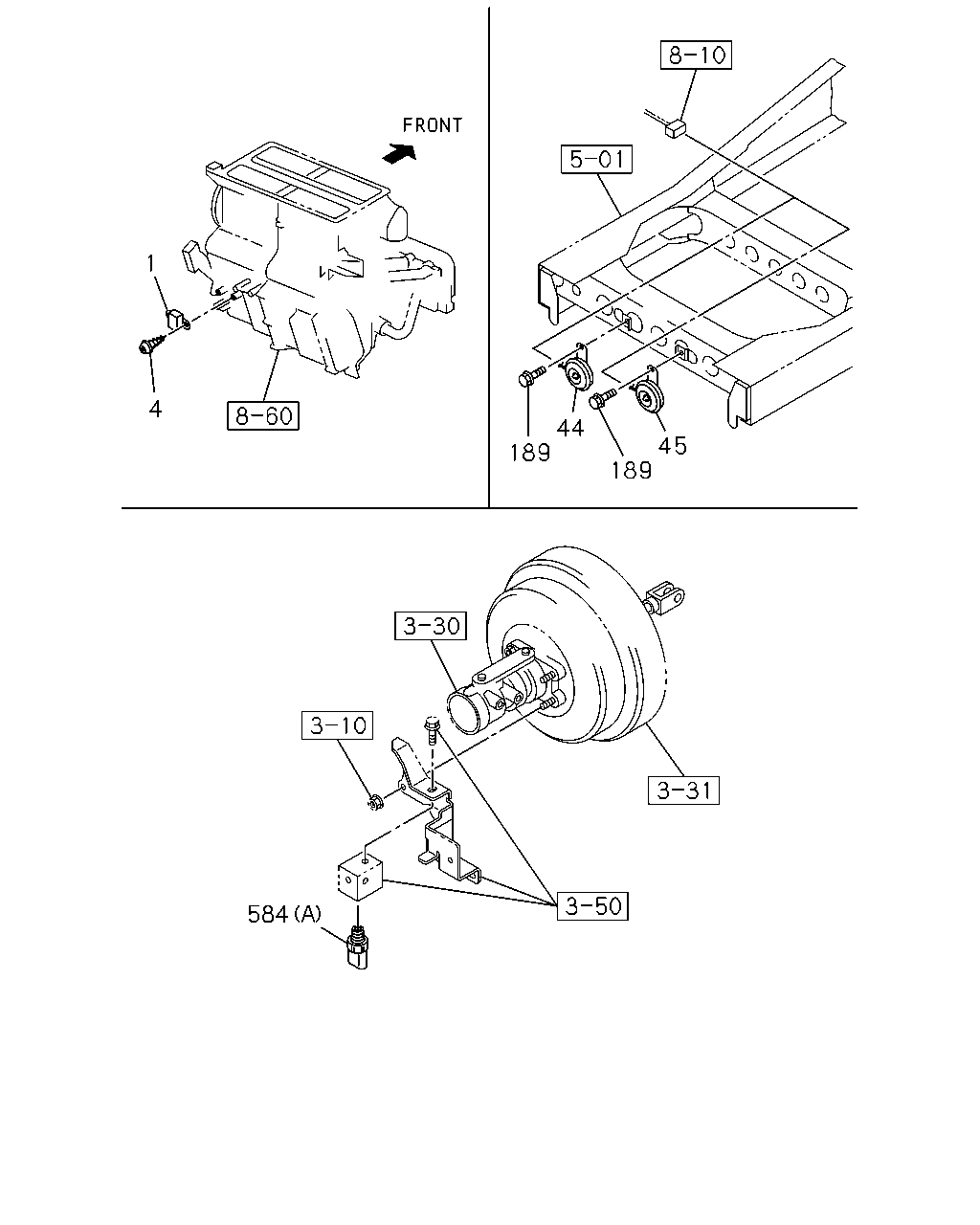

1
02.575 UNIT; FLASHER
8-98025-533-1
01
1
0712-
●
●
●
●
4
02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING
0-72180-516-0
01
1
0712-1101
●
●
●
●
4
02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1102-1212
●
●
●
●
4
02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING
0-72180-516-0
01
1
1301-
●
●
●
●
44
02.810 HORN; HIGH NOTE
8-98070-080-0
01
1
0712-
●
●
●
●
45
02.810 HORN; LOW NOTE
8-98022-023-0
01
1
0712-
●
●
●
●
189
02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0712-1004
●
●
●
●
189
02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0712-1004
●
●
●
●
189
02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1005-
●
●
●
●
189
02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1005-
●
●
●
●
584
02.440 SENSOR; PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> (A)
8-97387-682-0
01
1
0712-
●
●
584
02.440 SENSOR; PRESSURE
(A)
8-97387-682-0
01
1
0712-
●
●
584
02.440 SENSOR; PRESSURE
4JJ1-TCS ENG(LFB) 03.331 (B)
8-98020-514-0
01
1
0712-
●
●
584
02.440 SENSOR; PRESSURE
03.331 (B)
8-98020-514-0
01
1
0712-
●
●

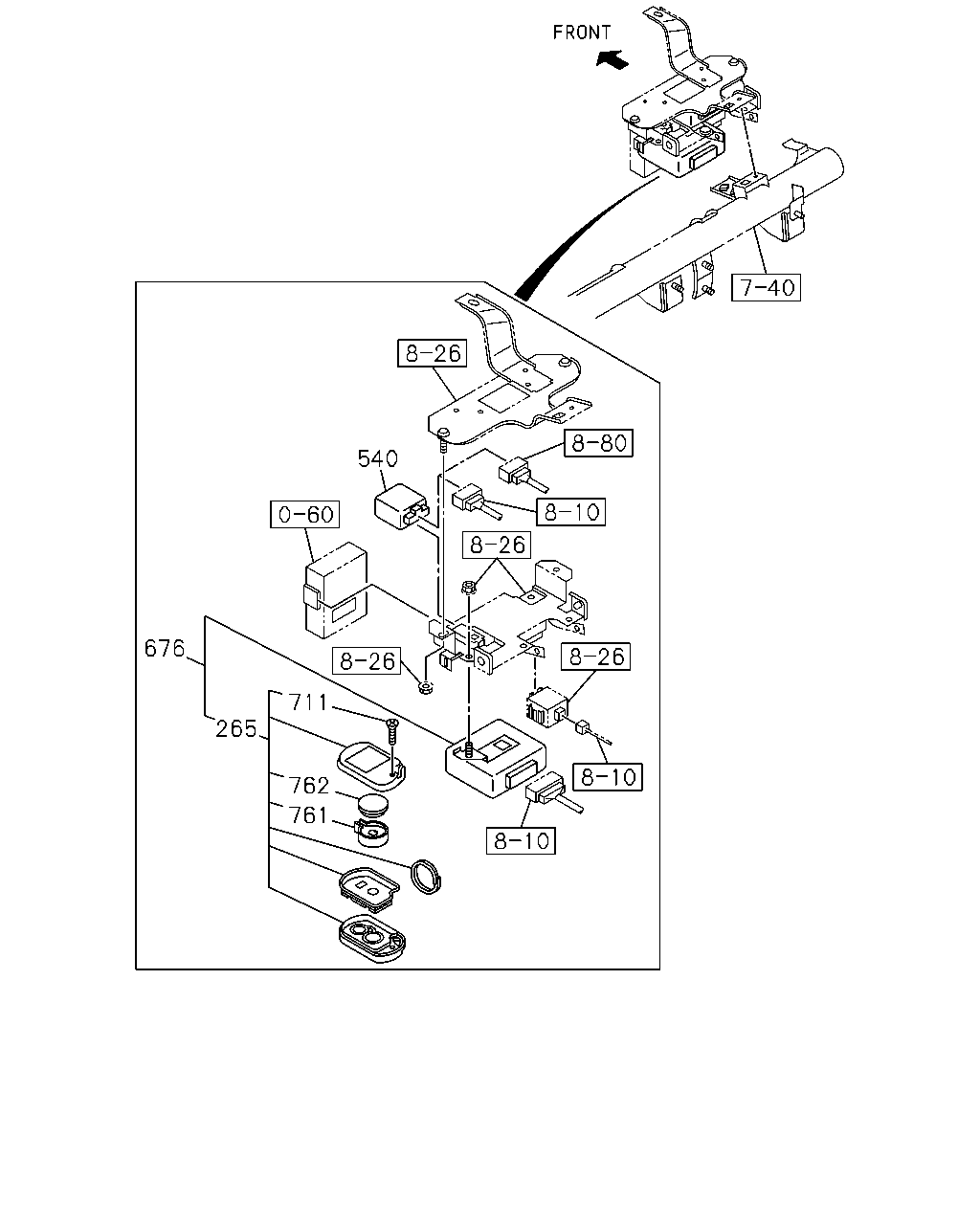

540
676
265
762
711
761
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98048-459-1
02
1
0712-0906
●
●
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB)
8-98048-459-1
02
1
0907-1012
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98048-459-1
02
1
0907-1012
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB)
8-98180-751-0
02
1
1101-1205
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98180-751-0
02
1
1101-1205
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
4JJ1-TCS ENG(LFB)
8-98218-236-0
02
1
1206-
●
●
265
02.440 TRANSMITTER ASM; AUTO DOOR LOCK
8-98218-236-0
02
1
1206-
●
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0712-0906
●
●
●
●
540
16.067 RELAY; WIPER INTERVAL
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0907-1308
●
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0907-1308
●
●
540
16.067 RELAY; WIPER INTERVAL
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13>
8-98233-976-0
01
1
1309-
●
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98233-976-0
01
1
1309-
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98044-504-1
01
1
0712-0906
●
●
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB)
8-98044-504-1
01
1
0907-1012
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98044-504-1
01
1
0907-1012
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB)
8-98181-810-0
01
1
1101-1205
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98181-810-0
01
1
1101-1205
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
4JJ1-TCS ENG(LFB)
8-98218-233-0
01
1
1206-
●
●
676
07.450 CONTROL UNIT; KEYLESS ENTRY
8-98218-233-0
01
1
1206-
●
●
711
02.510 SCREW; TRANSMITTER
M2X5
8-98078-067-0
02
1
0712-0906
●
●
●
●
711
02.510 SCREW; TRANSMITTER
4JJ1-TCS ENG(LFB) M2X5
8-98078-067-0
02
1
0907-1205
●
●
711
02.510 SCREW; TRANSMITTER
M2X5
8-98078-067-0
02
1
0907-1205
●
●
711
02.510 SCREW; TRANSMITTER
4JJ1-TCS ENG(LFB) M2X5
8-98218-239-0
02
1
1206-
●
●
711
02.510 SCREW; TRANSMITTER
M2X5
8-98218-239-0
02
1
1206-
●
●
761
04.439 HOLDER; BATTERY
8-98078-063-0
02
1
0712-0906
●
●
●
●
761
04.439 HOLDER; BATTERY
4JJ1-TCS ENG(LFB)
8-98078-063-0
02
1
0907-1012
●
●
761
04.439 HOLDER; BATTERY
8-98078-063-0
02
1
0907-1012
●
●
762
02.559 BATTERY
8-98078-061-0
02
1
0712-0906
●
●
●
●
762
02.559 BATTERY
4JJ1-TCS ENG(LFB)
8-98078-061-0
02
1
0907-
●
●
762
02.559 BATTERY
8-98078-061-0
02
1
0907-
●
●
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

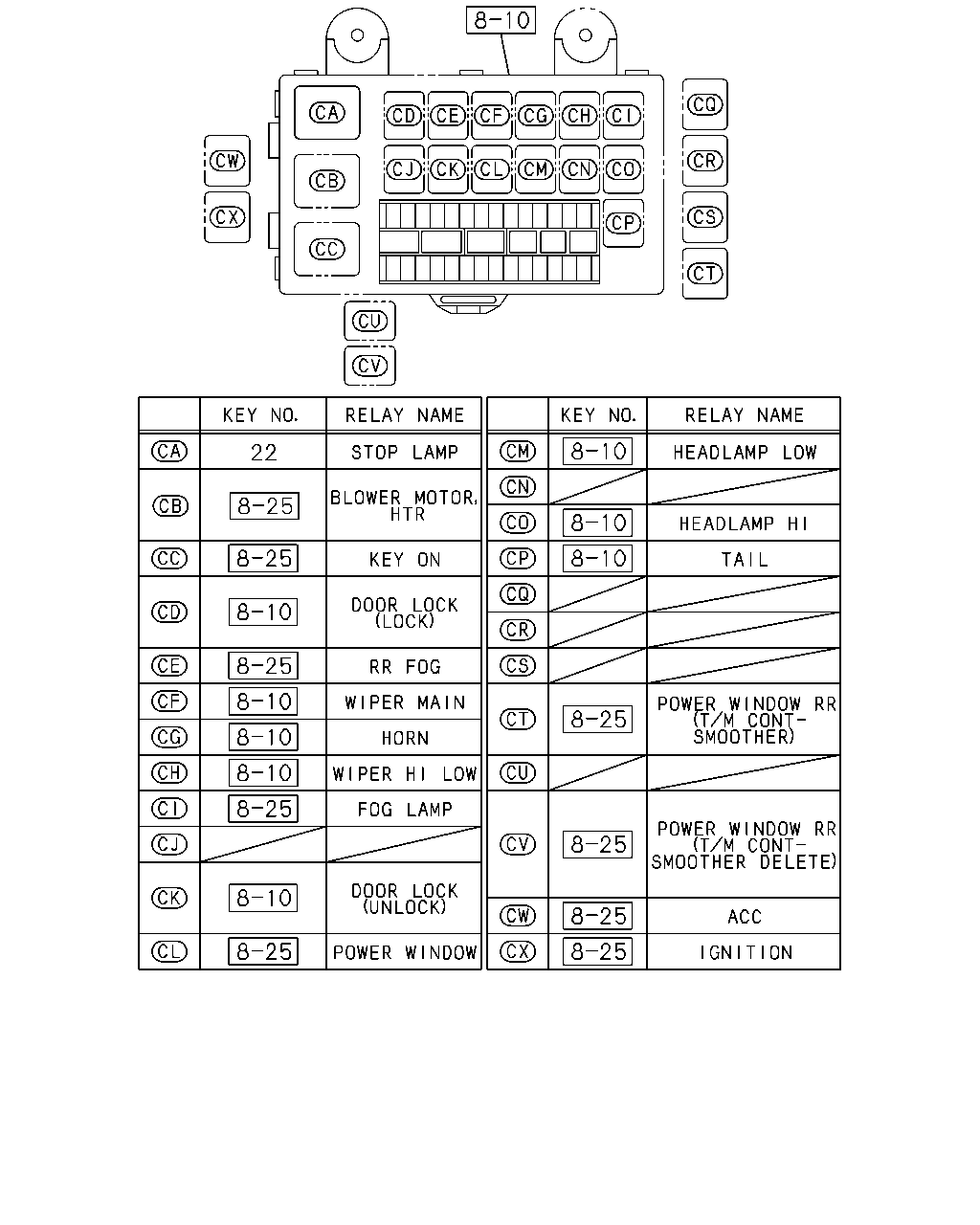

22
02.679 RELAY; STOP LAMP
02.510 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0712-
●
●
●
●
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D

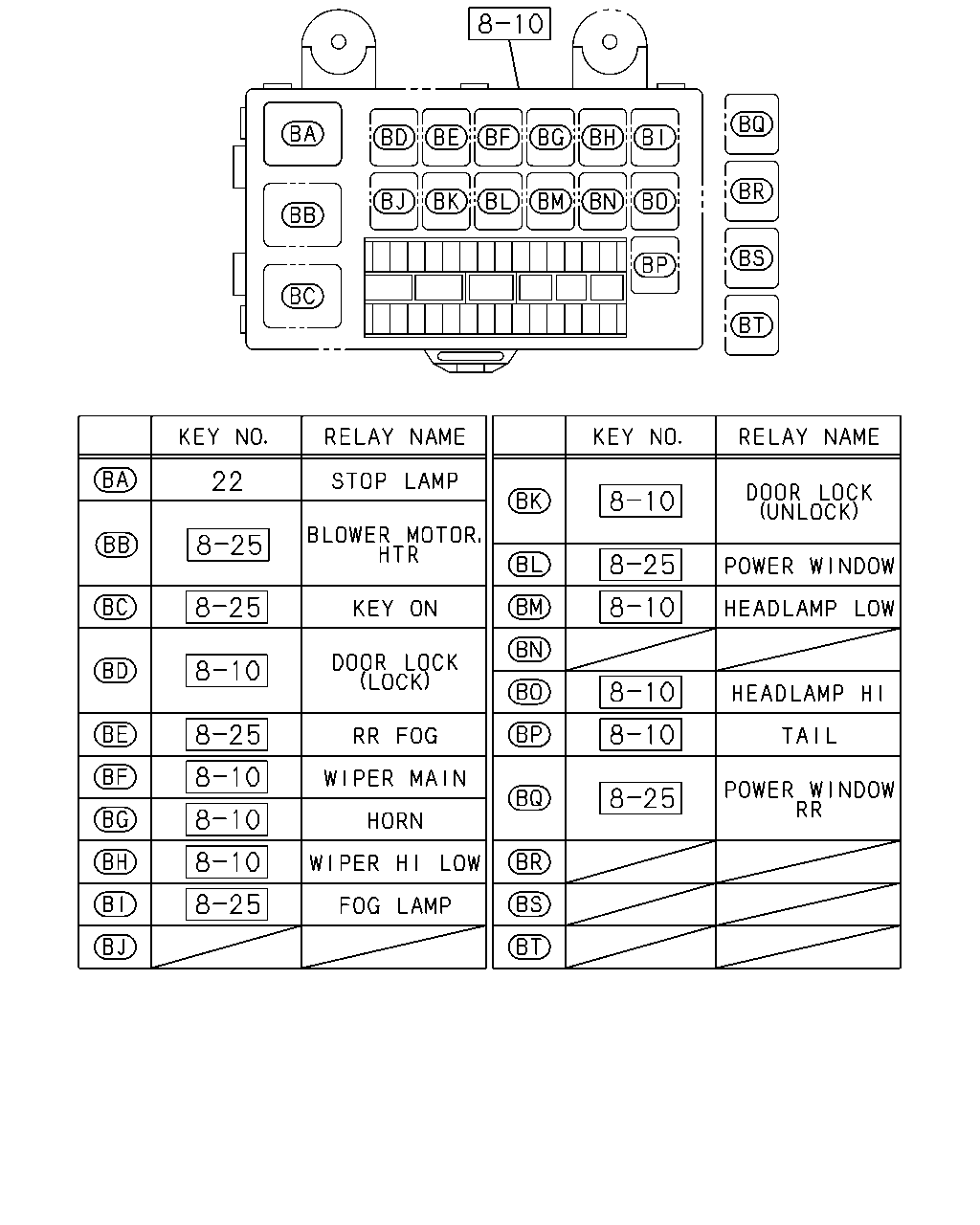

22
02.679 RELAY; STOP LAMP
02.510 24V 12.5A MATSUSHITA
8-97262-933-0
01
1
0712-
●
●
●
●
