◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#49884) — 104 parça
çizim 155556
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A JIDECO 		8-97238-540-0 01 1 0712-1402 ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ● ●

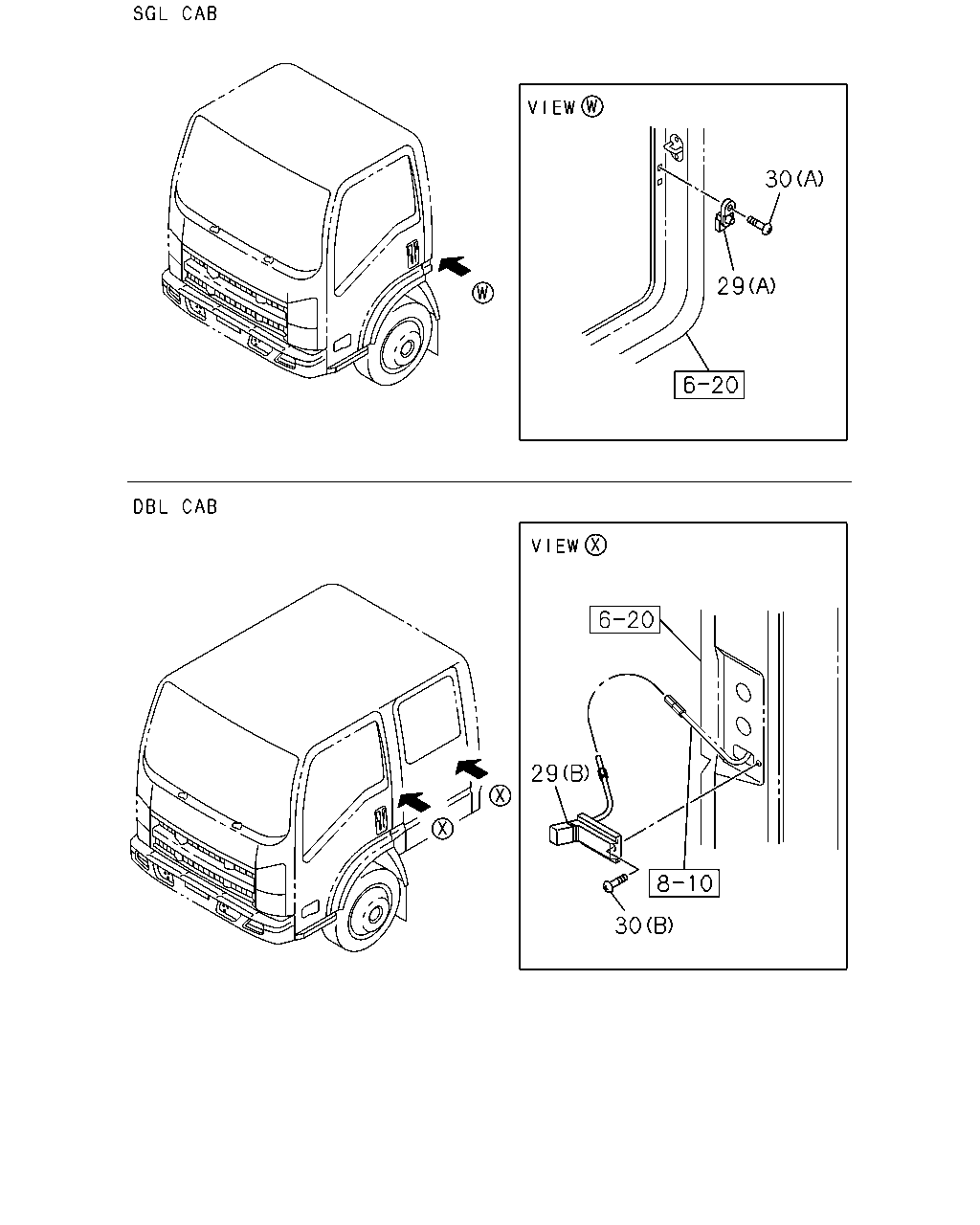

çizim 155559
30 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 0712- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0712- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 0712- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0712- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 0712- ● ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 0712- ● ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 0712- ● ●

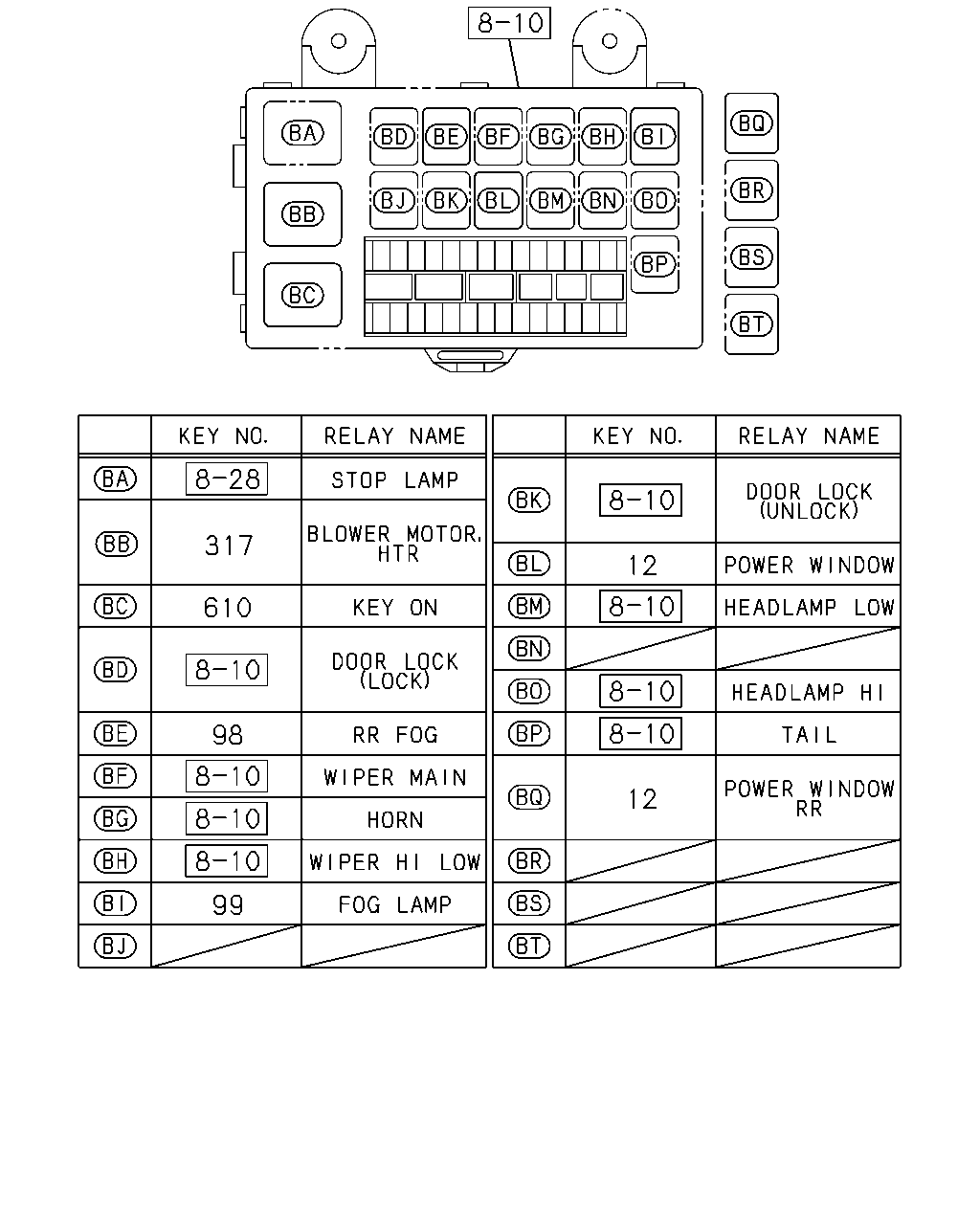

çizim 155562
317 12 610 98 12 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712-0910 ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712-0910 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0911- ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0911- ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712-1204 ● ● ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●

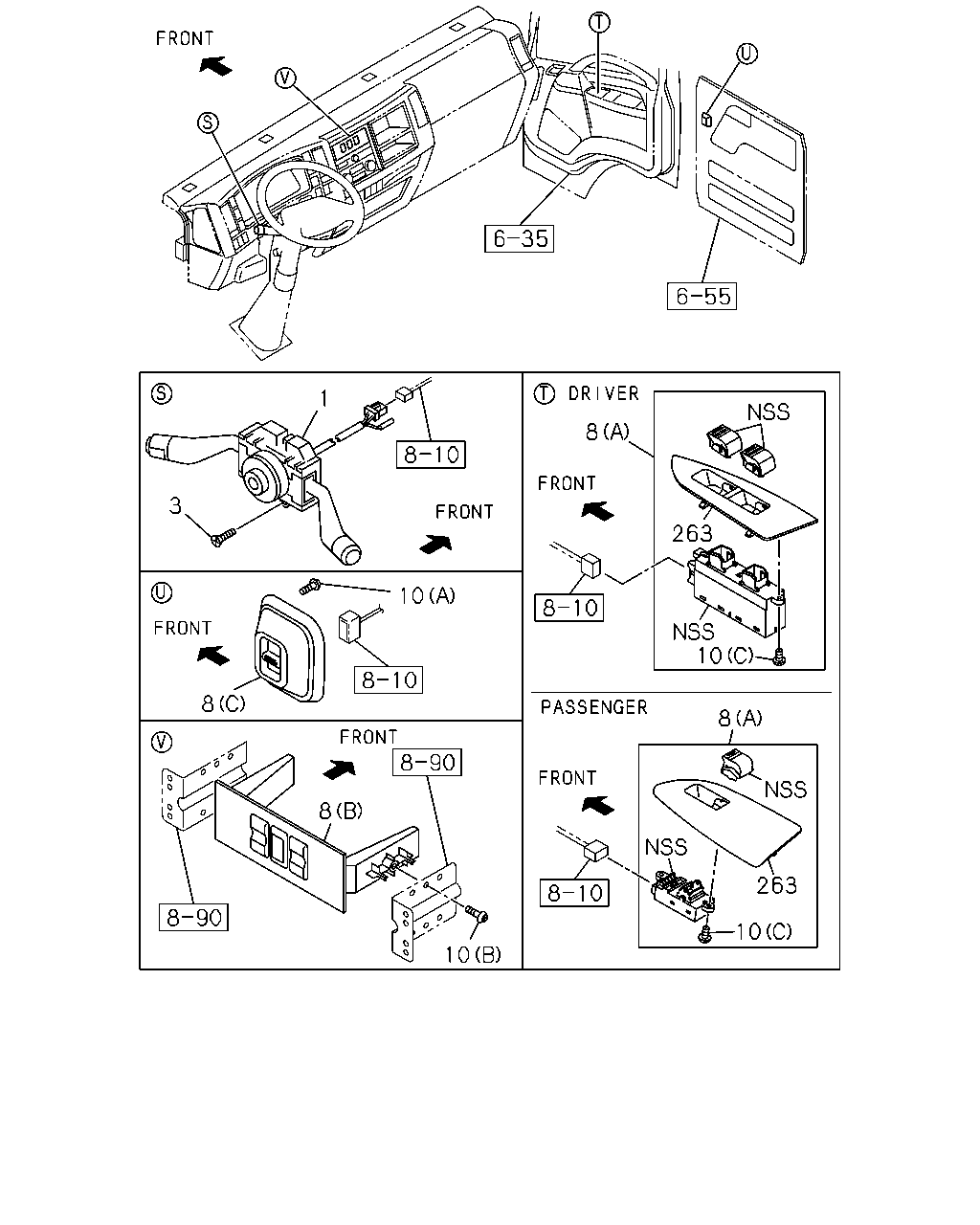

çizim 155807
1 8 3 263 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98070-015-1 01 1 0712-0905 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98070-015-1 01 1 0712-0905 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98146-639-0 01 1 0906-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98146-639-0 01 1 0906-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98217-812-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98217-812-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-740-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-740-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 0712-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98070-007-2 01 1 0712-1310 ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-750-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98073-850-1 01 1 0712-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY> 		8-98073-850-1 01 1 0712-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-757-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,MULTI INFORMATION DIS PLAY<7NY> 		8-98243-757-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98070-017-1 01 1 0712-0905 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98146-641-0 01 1 0906-1210 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98217-814-0 01 1 1211-1310 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-741-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98097-621-1 01 1 0712-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-758-0 01 1 1311- ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0712- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98001-737-2 01 1 0712- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98003-784-1 01 1 0712-0809 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98129-845-0 01 1 0810-1001 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1002- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
(B) 		8-97386-987-1 01 1 0712- ● ●
8 16.263 SWITCH; POWER WINDOW
(C) REAR SIDE 		8-97387-035-0 02 1 0712- ● ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 0712- ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0712- ● ●
10 03.885 SCREW; POWER WINDOW SW
16.100 (B) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712- ● ●
263 16.081 COVER; SW 8-98153-838-0 01 1 0712- ● ● ● ●
263 16.081 COVER; SW 8-98153-843-0 01 1 0712- ● ● ● ●

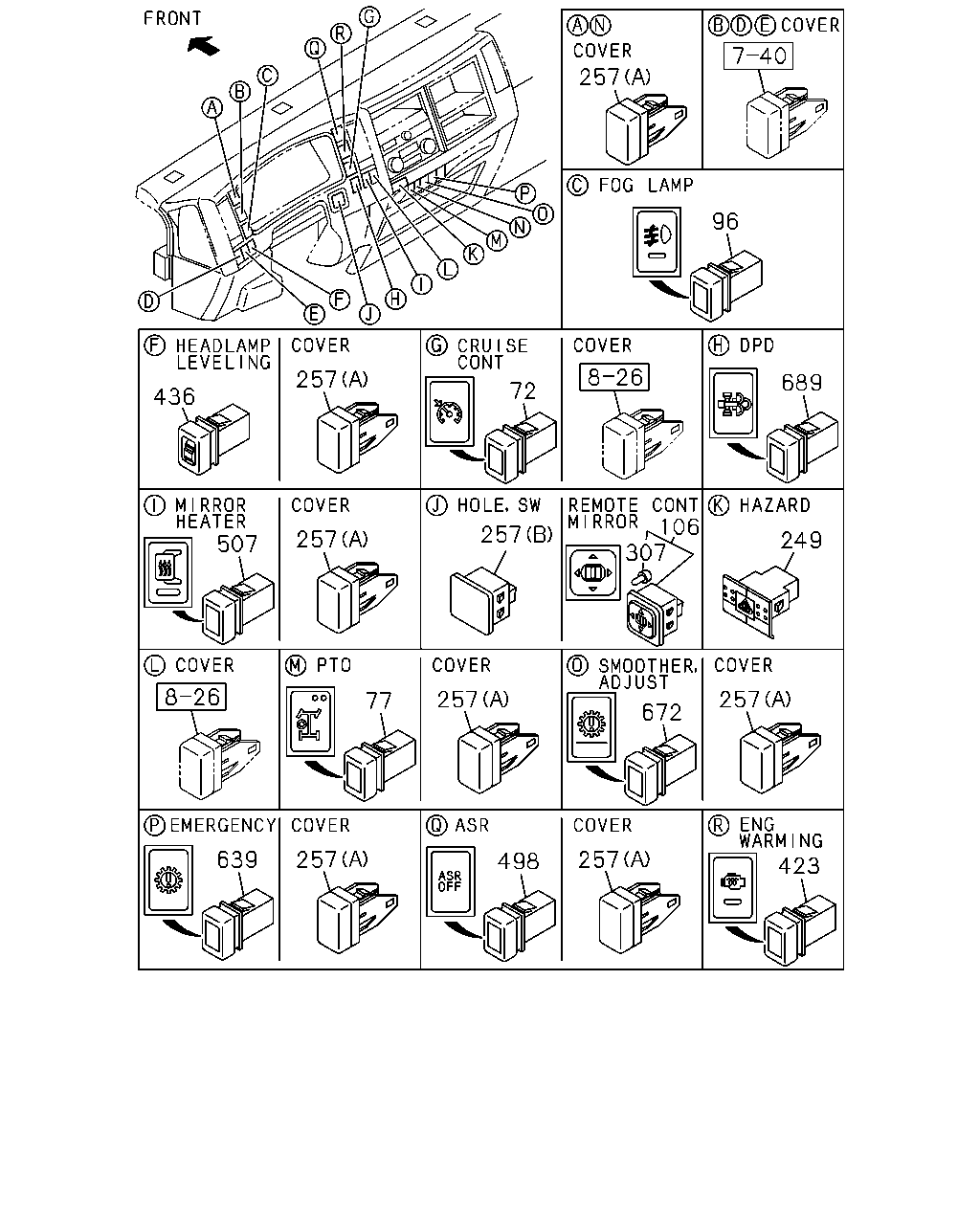

çizim 155812
257 96 257 689 72 436 507 106 307 257 257 249 257 257 77 672 423 257 257 639 498
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 02.485 SWITCH; CRUISE CONT
MULTI INFORMATION DISPLAY<7NY> 		8-98011-344-1 01 1 0712- ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 0712- ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 0712- ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 0712- ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0712- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 0712-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 0907- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 0712- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0712-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 0712-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98025-954-1 01 1 0712-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 0712-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 0712-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 0712-0906 ● ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 0712- ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-1 01 1 0712-1106 ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4JJ1-TCS ENG(LFB) 		8-97387-010-2 01 1 1107- ● ●
423 03.883 SWITCH; ENG WARMING 8-97387-010-2 01 1 1107- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 0712- ● ● ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0712- ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 0712- ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 0712- ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97387-000-2 01 1 0712-0806 ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0807- ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-971-2 01 1 0712-0806 ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0807- ● ● ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 0712- ● ● ● ●

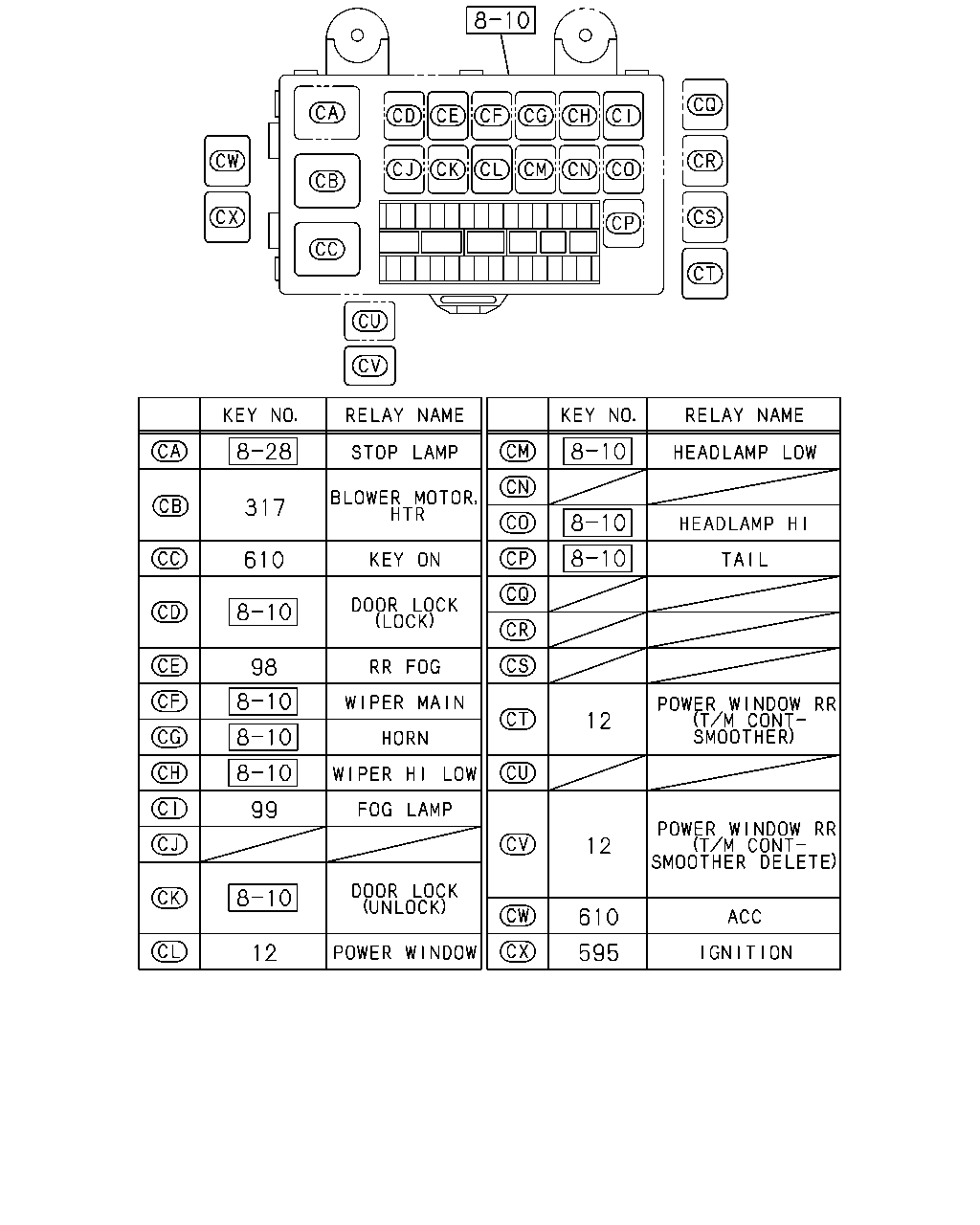

çizim 155815
317 610 98 12 99 12 610 12 595
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712-0910 ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712-0910 ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0911- ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0911- ● ●
98 02.485 RELAY; RR FOG LAMP
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ● ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0712- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712- ● ● ● ●
595 02.510 RELAY; IGNITION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●
595 02.510 RELAY; IGNITION
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0712-1204 ● ● ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 1205- ● ● ● ●

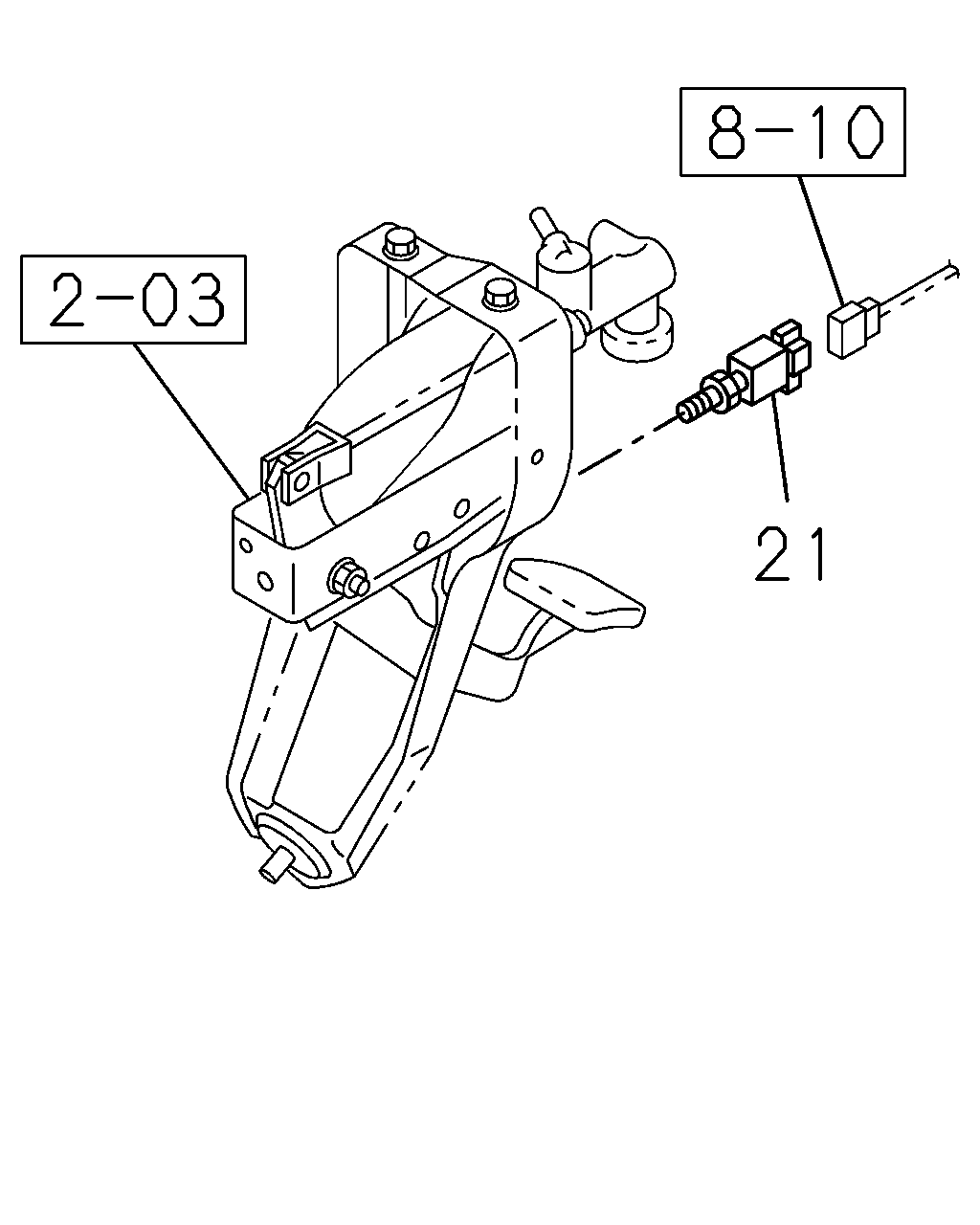

çizim 283388
21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0712- ● ● ● ●
